wsf::space::OrbitalTargetPoint Class Reference

#include <WsfOrbitalTargetPoint.hpp>

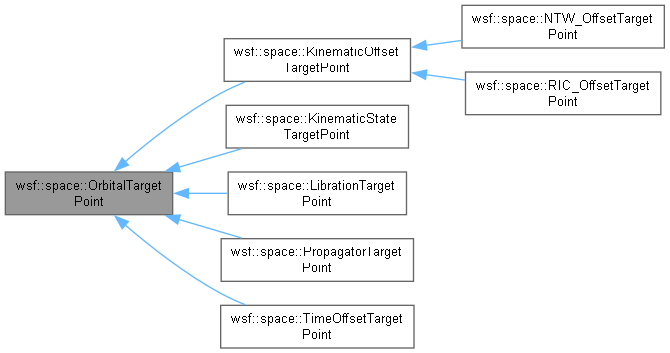

Inheritance diagram for wsf::space::OrbitalTargetPoint:

Public Member Functions
	OrbitalTargetPoint ()=default
virtual	~OrbitalTargetPoint ()=default
virtual OrbitalTargetPoint *	Clone () const =0
	Create a copy of this target point.
virtual void	Update (const UtCalendar &aEpoch)=0
	Update the point to the given aEpoch.
virtual ut::OrbitalStateVector	GetOrbitalStateVectorInertial () const =0
	Return the combined inertial position and velocity of this point at this object's current epoch.
virtual UtVec3d	GetPositionECI () const =0
	Return the ECI position of this point at this object's current epoch.
virtual UtVec3d	GetVelocityECI () const =0
	Return the ECI velocity of this point at this object's current epoch.
virtual UtCalendar	GetEpoch () const =0
	Return the current epoch of this point.
virtual double	GetCharacteristicTime () const =0

Constructor & Destructor Documentation

OrbitalTargetPoint()

wsf::space::OrbitalTargetPoint::OrbitalTargetPoint ( )

default

Referenced by Clone(), wsf::space::KinematicOffsetTargetPoint::GetBasePoint(), wsf::space::KinematicOffsetTargetPoint::GetParentPoint(), and wsf::space::KinematicStateTargetPoint::KinematicStateTargetPoint().

~OrbitalTargetPoint()

virtual wsf::space::OrbitalTargetPoint::~OrbitalTargetPoint ( )

virtualdefault

Member Function Documentation

Clone()

virtual OrbitalTargetPoint * wsf::space::OrbitalTargetPoint::Clone ( ) const

pure virtual

Create a copy of this target point.

Implemented in wsf::space::KinematicStateTargetPoint, wsf::space::LibrationTargetPoint, wsf::space::NTW_OffsetTargetPoint, wsf::space::PropagatorTargetPoint, wsf::space::RIC_OffsetTargetPoint, and wsf::space::TimeOffsetTargetPoint.

References OrbitalTargetPoint().

GetCharacteristicTime()

virtual double wsf::space::OrbitalTargetPoint::GetCharacteristicTime ( ) const

pure virtual

Return a characteristic time for this point.

This is used in the Target maneuver to set a maximum search time when there is no user input for this value. This method should return a reasonable time that likely includes the targeting solution. For example, a propagator based OrbitalTargetPoint might return the orbital period.

Returns

- A characteristic time (in seconds) for the motion of the underlying point.

Implemented in wsf::space::KinematicOffsetTargetPoint, wsf::space::KinematicStateTargetPoint, wsf::space::LibrationTargetPoint, wsf::space::PropagatorTargetPoint, and wsf::space::TimeOffsetTargetPoint.

GetEpoch()

virtual UtCalendar wsf::space::OrbitalTargetPoint::GetEpoch ( ) const

pure virtual

Return the current epoch of this point.

Implemented in wsf::space::KinematicOffsetTargetPoint, wsf::space::KinematicStateTargetPoint, wsf::space::LibrationTargetPoint, wsf::space::PropagatorTargetPoint, and wsf::space::TimeOffsetTargetPoint.

GetOrbitalStateVectorInertial()

virtual ut::OrbitalStateVector wsf::space::OrbitalTargetPoint::GetOrbitalStateVectorInertial ( ) const

pure virtual

Return the combined inertial position and velocity of this point at this object's current epoch.

Implemented in wsf::space::KinematicOffsetTargetPoint, wsf::space::KinematicStateTargetPoint, wsf::space::LibrationTargetPoint, wsf::space::PropagatorTargetPoint, and wsf::space::TimeOffsetTargetPoint.

Referenced by wsf::space::NTW_OffsetTargetPoint::GetPositionECI(), wsf::space::RIC_OffsetTargetPoint::GetPositionECI(), wsf::space::NTW_OffsetTargetPoint::GetVelocityECI(), and wsf::space::RIC_OffsetTargetPoint::Update().

GetPositionECI()

virtual UtVec3d wsf::space::OrbitalTargetPoint::GetPositionECI ( ) const

pure virtual

Return the ECI position of this point at this object's current epoch.

Implemented in wsf::space::KinematicStateTargetPoint, wsf::space::LibrationTargetPoint, wsf::space::NTW_OffsetTargetPoint, wsf::space::PropagatorTargetPoint, wsf::space::RIC_OffsetTargetPoint, and wsf::space::TimeOffsetTargetPoint.

Referenced by wsf::space::KinematicOffsetTargetPoint::GetOrbitalStateVectorInertial().

GetVelocityECI()

virtual UtVec3d wsf::space::OrbitalTargetPoint::GetVelocityECI ( ) const

pure virtual

Return the ECI velocity of this point at this object's current epoch.

Implemented in wsf::space::KinematicStateTargetPoint, wsf::space::LibrationTargetPoint, wsf::space::NTW_OffsetTargetPoint, wsf::space::PropagatorTargetPoint, wsf::space::RIC_OffsetTargetPoint, and wsf::space::TimeOffsetTargetPoint.

Referenced by wsf::space::KinematicOffsetTargetPoint::GetOrbitalStateVectorInertial().

Update()

virtual void wsf::space::OrbitalTargetPoint::Update ( const UtCalendar & aEpoch )

pure virtual

Update the point to the given aEpoch.

Implemented in wsf::space::KinematicOffsetTargetPoint, wsf::space::KinematicStateTargetPoint, wsf::space::LibrationTargetPoint, wsf::space::PropagatorTargetPoint, wsf::space::RIC_OffsetTargetPoint, and wsf::space::TimeOffsetTargetPoint.

---

The documentation for this class was generated from the following file:

• WsfOrbitalTargetPoint.hpp
