#include <WsfOrbitalDynamicsTerm.hpp>

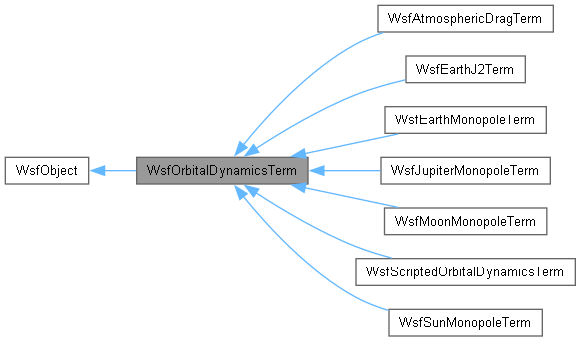

Inheritance diagram for WsfOrbitalDynamicsTerm:

[legend]

Collaboration diagram for WsfOrbitalDynamicsTerm:

Public Member Functions
	WsfOrbitalDynamicsTerm ()
	WsfOrbitalDynamicsTerm (const WsfOrbitalDynamicsTerm &aOther)
WsfOrbitalDynamicsTerm &	operator= (const WsfOrbitalDynamicsTerm &aOther)=delete
WsfOrbitalDynamicsTerm *	Clone () const override=0
const char *	GetScriptClassName () const override
virtual UtVec3d	ComputeAcceleration (double aMass, const UtCalendar &aTime, const UtVec3d &aPosition, const UtVec3d &aVelocity) const =0
virtual std::string	GetTermType () const =0
	Return a string indicating the type of term.
virtual bool	Initialize (const WsfOrbitalDynamics &aDynamics)
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
virtual bool	ProcessInput (UtInput &aInput)
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Protected Member Functions
const WsfOrbitalDynamics *	GetDynamics () const
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Additional Inherited Members
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.

Detailed Description

A term used in orbital dynamics.

A single term in the orbital dynamics is any contribution to the dynamics of a space domain object that is being modeled. A term can be defined in any way that clients find useful, and the only restriction is that they are able to be summed with any other terms that affect the dynamics of the bodies in question.

These terms are not intended to hold any state related to the bodies on which these dynamics are acting.

Constructor & Destructor Documentation

◆ WsfOrbitalDynamicsTerm() [1/2]

WsfOrbitalDynamicsTerm::WsfOrbitalDynamicsTerm ( )

inline

References WsfObject::WsfObject().

Referenced by Clone(), operator=(), WsfEarthJ2Term::WsfEarthJ2Term(), WsfJupiterMonopoleTerm::WsfJupiterMonopoleTerm(), WsfOrbitalDynamicsTerm(), WsfScriptedOrbitalDynamicsTerm::WsfScriptedOrbitalDynamicsTerm(), and WsfSunMonopoleTerm::WsfSunMonopoleTerm().

◆ WsfOrbitalDynamicsTerm() [2/2]

WsfOrbitalDynamicsTerm::WsfOrbitalDynamicsTerm ( const WsfOrbitalDynamicsTerm & aOther )

inline

References WsfObject::WsfObject(), and WsfOrbitalDynamicsTerm().

Member Function Documentation

◆ Clone()

WsfOrbitalDynamicsTerm * WsfOrbitalDynamicsTerm::Clone ( ) const

overridepure virtual

Return a copy of this object. Must be implemented by all derived types. If cloning is impossible, a WsfUncloneableException should be thrown.

Implements WsfObject.

Implemented in WsfAtmosphericDragTerm, WsfEarthJ2Term, WsfEarthMonopoleTerm, WsfJupiterMonopoleTerm, WsfMoonMonopoleTerm, WsfScriptedOrbitalDynamicsTerm, and WsfSunMonopoleTerm.

References WsfOrbitalDynamicsTerm().

Referenced by UT_DEFINE_SCRIPT_METHOD().

◆ ComputeAcceleration()

virtual UtVec3d WsfOrbitalDynamicsTerm::ComputeAcceleration	(	double	aMass,
		const UtCalendar &	aTime,
		const UtVec3d &	aPosition,
		const UtVec3d &	aVelocity ) const

pure virtual

Return the acceleration in the ECI frame.

This routine computes the acceleration represented by this term that would be experienced by a body of the given aMass at the given aTime, aPosition and aVelocity. The given aPosition and aVelocity are in the ECI frame, and the returned acceleration is also in the ECI frame.

Parameters

aMass	- The mass of the object that would experience this dynamical term.
aTime	- The time at which the acceleration is being computed.
aPosition	- The position of the body that would experience this acceleration.
aVelocity	- The velocity of the body that would experience this acceleration.
