#include <RegexValidator.hpp>

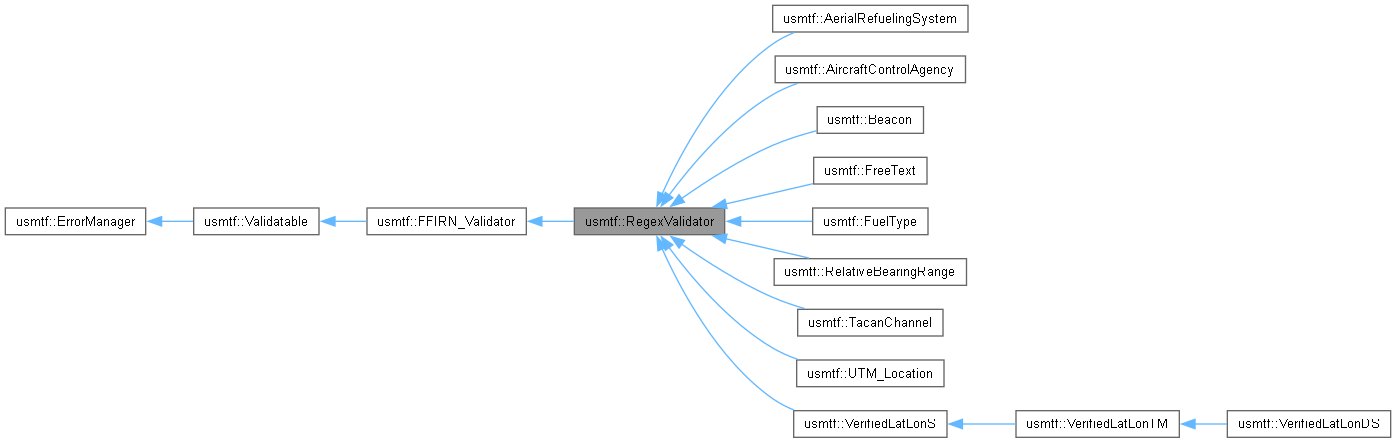

Inheritance diagram for usmtf::RegexValidator:

[legend]

Collaboration diagram for usmtf::RegexValidator:

[legend]

Public Member Functions
	RegexValidator ()=default
bool	ParseAndValidate (const usmtf::Field &aField) override
void	SetRegexExpression (const std::string &aExpression)
	Configure to run against regex needs.
void	SetErrorMessage (const std::string &aMessage)
Public Member Functions inherited from usmtf::FFIRN_Validator
	FFIRN_Validator ()=default
const std::string &	GetRawContent () const noexcept
	Return the content of the field as it was in the USMTF set.
std::vector< std::string >	SplitOnDelimeter (const std::string &value, const std::string &delimeter)
	Values separated by delimeter.
const std::string &	GetFieldContent () const noexcept
Public Member Functions inherited from usmtf::Validatable
bool	IsValid () const noexcept
Public Member Functions inherited from usmtf::ErrorManager
virtual	~ErrorManager ()=default
bool	HasErrors () const noexcept
void	LogErrors (std::ostream &aOut) const noexcept
const std::vector< ValidationError > &	GetErrors () const

Static Public Attributes
static const std::string	cAny = R"((.*))"
static const std::string	c00to90 = R"(([0-8][0-9]\|90))"
static const std::string	c00to59 = R"(([0-5][0-9]))"
static const std::string	c00to59dec000to999 = R"(([0-5][0-9])(.)([0-9]{3}))"
static const std::string	c00to59dec0to9 = R"(([0-5][0-9])(.)([0-9]{1}))"
static const std::string	c01to60 = R"(([0-5][1-9]\|10\|20\|30\|40\|50\|60))"
static const std::string	cNorS = R"((N\|S))"
static const std::string	cAtoZ = R"((A\|B\|C\|D\|E\|F\|G\|H\|I\|J\|K\|L\|M\|N\|O\|P\|Q\|R\|S\|T\|U\|V\|W\|X\|Y\|Z))"
static const std::string	c0to9 = R"(([0-9]))"
static const std::string	cHyphenDelimeter = R"((-))"
static const std::string	c000to180 = R"((0[0-9]{2}\|1[0-7][0-9]\|180))"
static const std::string	c000to359 = R"((0[0-9]{2}\|1[0-9]{2}\|2[0-9]{2}\|3[0-5][0-9]))"
static const std::string	c0to999 = R"(([0-9]{1,3}))"
static const std::string	c1to999 = R"(([1-9][0-9]{0,2}))"
static const std::string	c000to99999 = R"(([0-9]{3,5}))"
static const std::string	cEorW = R"((E\|W))"
static const std::string	cStart = R"(^)"
static const std::string	cEnd = R"($)"
static const std::string	cSpace = R"( )"

Protected Attributes
QRegularExpressionMatch	mMatchResults
QRegularExpression	mRegexExpression
std::string	mRegexString {"No Regex Provided"}
std::string	mErrorMessage {"Failed Regex Validation for: " + mRegexString}
Protected Attributes inherited from usmtf::FFIRN_Validator
Field	mField

Additional Inherited Members
Public Types inherited from usmtf::FFIRN_Validator
using	FFIRN_Func = std::function<bool(void)>
using	FFIRN_DescriptorMap = std::unordered_map<std::string, FFIRN_Func>
Static Public Member Functions inherited from usmtf::FFIRN_Validator
static bool	IsInSelection (const std::string &aValue, const std::vector< std::string > &choices) noexcept
static bool	IsStringLength (const std::string &aValue, size_t aLength) noexcept
static size_t	CheckForAnyDelimeter (const std::string &aValue, const std::vector< std::string > &aDelimeters) noexcept
	Returns the positions of a specified delimiter if present, npos if not.
static size_t	CheckForAnyDelimeter (const std::string &aValue, const std::vector< std::string > &aDelimeters, std::string &aFoundDelimeter) noexcept
template<class T>
static bool	IsInRange (T aValue, T aLowerBound, T aUpperBound) noexcept
Protected Member Functions inherited from usmtf::FFIRN_Validator
bool	ValidateByDescriptor (const FFIRN_DescriptorMap &aDescriptorMap)
	Speed up validation if descriptor is present. Runs all functions if it isn't.
void	ClearErrorsIfValid (bool aHasAtLeastOnePassed) noexcept
void	SetField (const Field &aField) noexcept
	Field Setter for internal use only.
Protected Member Functions inherited from usmtf::ErrorManager
void	AddError (const ValidationError &aError) noexcept
void	AddError (const std::string &aFailureReason, const std::string &aValueValidatied, const std::string &aOptionalSuggestion="") noexcept
void	AddError (const std::string &aErrorMessage) noexcept
void	AddErrors (const std::vector< ValidationError > &aErrors) noexcept
void	ClearErrors () noexcept

Detailed Description

RegexValidator is intended to hand complex cases which cause headaches with traditional rule building Validators. If this works out it will probably become status quo, we didn't build it early naively thinking that it was unnecessary. But now were spending lots of time codifying parse and extraction variances. It was thought they would be more generically reusable.

were using whole value matching because we want parsing after matching to be simplified. If its valid, you should be able to use static string positions. We can if we need move to search for sub-expressions etc.

Constructor & Destructor Documentation

◆ RegexValidator()

usmtf::RegexValidator::RegexValidator ( )

default

References ParseAndValidate(), SetErrorMessage(), and SetRegexExpression().

Member Function Documentation

◆ ParseAndValidate()

bool usmtf::RegexValidator::ParseAndValidate ( const usmtf::Field & aField )

overridevirtual

Run against whole field content. If Matches, safely extract portions. I see this be used in conjunction with variant validator quite a bit to solve complex extraction. Lets see!!

Implements usmtf::FFIRN_Validator.

Reimplemented in usmtf::RelativeBearingRange, usmtf::TacanChannel, usmtf::UTM_Location, usmtf::VerifiedLatLonDS, usmtf::VerifiedLatLonS, and usmtf::VerifiedLatLonTM.

References usmtf::ErrorManager::AddError(), usmtf::Field::GetContent(), mErrorMessage, mMatchResults, mRegexExpression, mRegexString, and usmtf::FFIRN_Validator::SetField().

Referenced by usmtf::VerifiedLatLonS::GetLatMinutes(), usmtf::TacanChannel::GetRecieverChannel(), usmtf::Beacon::GetThird(), usmtf::AircraftControlAgency::ParseAndValidate(), usmtf::FreeText::ParseAndValidate(), usmtf::UTM_Location::ParseAndValidate(), and RegexValidator().

◆ SetErrorMessage()

void usmtf::RegexValidator::SetErrorMessage ( const std::string & aMessage )

Help your users understand by providing them something nice to read when validation doesnt pass.

References mErrorMessage.

Referenced by RegexValidator(), and SetRegexExpression().

◆ SetRegexExpression()

void usmtf::RegexValidator::SetRegexExpression ( const std::string & aExpression )

Configure to run against regex needs.

References mRegexExpression, mRegexString, and SetErrorMessage().

Referenced by usmtf::AerialRefuelingSystem::AerialRefuelingSystem(), usmtf::AircraftControlAgency::AircraftControlAgency(), usmtf::Beacon::Beacon(), usmtf::FreeText::FreeText(), usmtf::FuelType::FuelType(), RegexValidator(), usmtf::RelativeBearingRange::RelativeBearingRange(), usmtf::TacanChannel::TacanChannel(), usmtf::UTM_Location::UTM_Location(), usmtf::VerifiedLatLonDS::VerifiedLatLonDS(), usmtf::VerifiedLatLonS::VerifiedLatLonS(), and usmtf::VerifiedLatLonTM::VerifiedLatLonTM().

Member Data Documentation

◆ c000to180

const std::string usmtf::RegexValidator::c000to180 = R"((0[0-9]{2}|1[0-7][0-9]|180))"

static

Referenced by usmtf::VerifiedLatLonDS::VerifiedLatLonDS(), usmtf::VerifiedLatLonS::VerifiedLatLonS(), and usmtf::VerifiedLatLonTM::VerifiedLatLonTM().

◆ c000to359

const std::string usmtf::RegexValidator::c000to359 = R"((0[0-9]{2}|1[0-9]{2}|2[0-9]{2}|3[0-5][0-9]))"

static

Referenced by usmtf::RelativeBearingRange::RelativeBearingRange().

◆ c000to99999

const std::string usmtf::RegexValidator::c000to99999 = R"(([0-9]{3,5}))"

static

Referenced by usmtf::UTM_Location::UTM_Location().

◆ c00to59

const std::string usmtf::RegexValidator::c00to59 = R"(([0-5][0-9]))"

static

Referenced by usmtf::VerifiedLatLonDS::VerifiedLatLonDS(), and usmtf::VerifiedLatLonS::VerifiedLatLonS().

◆ c00to59dec000to999

const std::string usmtf::RegexValidator::c00to59dec000to999 = R"(([0-5][0-9])(.)([0-9]{3}))"

static

Referenced by usmtf::VerifiedLatLonTM::VerifiedLatLonTM().

◆ c00to59dec0to9

const std::string usmtf::RegexValidator::c00to59dec0to9 = R"(([0-5][0-9])(.)([0-9]{1}))"

static

Referenced by usmtf::VerifiedLatLonDS::VerifiedLatLonDS().

◆ c00to90

const std::string usmtf::RegexValidator::c00to90 = R"(([0-8][0-9]|90))"

static

Referenced by usmtf::VerifiedLatLonDS::VerifiedLatLonDS(), usmtf::VerifiedLatLonS::VerifiedLatLonS(), and usmtf::VerifiedLatLonTM::VerifiedLatLonTM().

◆ c01to60

const std::string usmtf::RegexValidator::c01to60 = R"(([0-5][1-9]|10|20|30|40|50|60))"

static

Referenced by usmtf::UTM_Location::UTM_Location().

◆ c0to9

const std::string usmtf::RegexValidator::c0to9 = R"(([0-9]))"

static

Referenced by usmtf::VerifiedLatLonDS::VerifiedLatLonDS(), usmtf::VerifiedLatLonS::VerifiedLatLonS(), and usmtf::VerifiedLatLonTM::VerifiedLatLonTM().

◆ c0to999

const std::string usmtf::RegexValidator::c0to999 = R"(([0-9]{1,3}))"

static

Referenced by usmtf::RelativeBearingRange::RelativeBearingRange().

◆ c1to999

const std::string usmtf::RegexValidator::c1to999 = R"(([1-9][0-9]{0,2}))"

static

Referenced by usmtf::TacanChannel::TacanChannel().

◆ cAny

const std::string usmtf::RegexValidator::cAny = R"((.*))"

static

Referenced by usmtf::FreeText::FreeText(), and usmtf::RelativeBearingRange::RelativeBearingRange().

◆ cAtoZ

const std::string usmtf::RegexValidator::cAtoZ = R"((A|B|C|D|E|F|G|H|I|J|K|L|M|N|O|P|Q|R|S|T|U|V|W|X|Y|Z))"

static

◆ cEnd

const std::string usmtf::RegexValidator::cEnd = R"($)"

static

Referenced by usmtf::AerialRefuelingSystem::AerialRefuelingSystem(), usmtf::AircraftControlAgency::AircraftControlAgency(), usmtf::Beacon::Beacon(), usmtf::FreeText::FreeText(), usmtf::FuelType::FuelType(), usmtf::RelativeBearingRange::RelativeBearingRange(), usmtf::TacanChannel::TacanChannel(), usmtf::UTM_Location::UTM_Location(), usmtf::VerifiedLatLonDS::VerifiedLatLonDS(), usmtf::VerifiedLatLonS::VerifiedLatLonS(), and usmtf::VerifiedLatLonTM::VerifiedLatLonTM().

◆ cEorW

const std::string usmtf::RegexValidator::cEorW = R"((E|W))"

static

Referenced by usmtf::VerifiedLatLonDS::VerifiedLatLonDS(), usmtf::VerifiedLatLonS::VerifiedLatLonS(), and usmtf::VerifiedLatLonTM::VerifiedLatLonTM().

◆ cHyphenDelimeter

const std::string usmtf::RegexValidator::cHyphenDelimeter = R"((-))"

static

Referenced by usmtf::Beacon::Beacon(), usmtf::RelativeBearingRange::RelativeBearingRange(), usmtf::TacanChannel::TacanChannel(), usmtf::VerifiedLatLonDS::VerifiedLatLonDS(), usmtf::VerifiedLatLonS::VerifiedLatLonS(), and usmtf::VerifiedLatLonTM::VerifiedLatLonTM().

◆ cNorS

const std::string usmtf::RegexValidator::cNorS = R"((N|S))"

static

Referenced by usmtf::VerifiedLatLonDS::VerifiedLatLonDS(), usmtf::VerifiedLatLonS::VerifiedLatLonS(), and usmtf::VerifiedLatLonTM::VerifiedLatLonTM().

◆ cSpace

const std::string usmtf::RegexValidator::cSpace = R"( )"

static

Referenced by usmtf::RelativeBearingRange::RelativeBearingRange().

◆ cStart

const std::string usmtf::RegexValidator::cStart = R"(^)"

static

Referenced by usmtf::AerialRefuelingSystem::AerialRefuelingSystem(), usmtf::AircraftControlAgency::AircraftControlAgency(), usmtf::Beacon::Beacon(), usmtf::FreeText::FreeText(), usmtf::FuelType::FuelType(), usmtf::RelativeBearingRange::RelativeBearingRange(), usmtf::TacanChannel::TacanChannel(), usmtf::UTM_Location::UTM_Location(), usmtf::VerifiedLatLonDS::VerifiedLatLonDS(), usmtf::VerifiedLatLonS::VerifiedLatLonS(), and usmtf::VerifiedLatLonTM::VerifiedLatLonTM().

◆ mErrorMessage

std::string usmtf::RegexValidator::mErrorMessage {"Failed Regex Validation for: " + mRegexString}

protected

Referenced by ParseAndValidate(), and SetErrorMessage().

◆ mMatchResults

QRegularExpressionMatch usmtf::RegexValidator::mMatchResults

protected

Referenced by usmtf::VerifiedLatLonS::GetLatHemisphere(), usmtf::VerifiedLatLonS::GetLonMinutes(), usmtf::AircraftControlAgency::ParseAndValidate(), usmtf::FreeText::ParseAndValidate(), ParseAndValidate(), and usmtf::UTM_Location::ParseAndValidate().

◆ mRegexExpression

QRegularExpression usmtf::RegexValidator::mRegexExpression

protected

Referenced by ParseAndValidate(), and SetRegexExpression().

◆ mRegexString

std::string usmtf::RegexValidator::mRegexString {"No Regex Provided"}

protected

Referenced by ParseAndValidate(), and SetRegexExpression().

The documentation for this class was generated from the following files:
