#include <WsfCoverageMeasure.hpp>

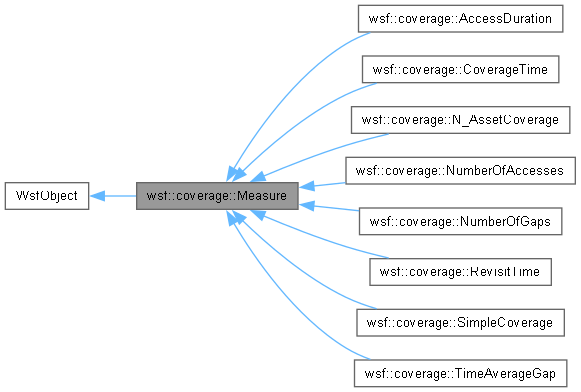

Inheritance diagram for wsf::coverage::Measure:

[legend]

Collaboration diagram for wsf::coverage::Measure:

Public Member Functions
	Measure (const WsfScenario &aScenario)
	Measure (const Measure &aOther)=default
	~Measure () override=default
Measure *	Clone () const override=0
bool	ProcessInput (UtInput &aInput) override
virtual double	GetMeasuredValue (const GridAsset &aGridAsset) const =0
	Return the measured value for a given `aGridAsset`.
virtual std::string	GetValueHeader () const =0
virtual double	GetDefaultValue () const =0
	Return the default value of the measure.
bool	Initialize (Coverage &aCoverage)
virtual void	CollectionStarting (Coverage &aCoverage, double aSimTime)
void	CollectionCompleting (Coverage &aCoverage, double aSimTime)
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Protected Member Functions
std::size_t	GetNumOutput () const
	Return the number of output objects attached to this Measure.
const MeasureOutput *	GetOutput (std::size_t aIndex) const
	Return the output object at the given index.
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Protected Attributes
UtCallbackHolder	mCallbacks {}
	Holder for callbacks created when this object connects to events on it's coverage.

Additional Inherited Members
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.

Detailed Description

Measure represents a MOE for a coverage computation.

Each MOE is owned by a coverage object, and is responsible for connecting to the various interval events on that coverage objects. In this way, the Measure is updated as the simulation progresses with data as it becomes available. Measures also own instances of output objects that will write the resulting measured values out in various formats.

Constructor & Destructor Documentation

◆ Measure() [1/2]

wsf::coverage::Measure::Measure ( const WsfScenario & aScenario )

inlineexplicit

Referenced by wsf::coverage::AccessDuration::AccessDuration(), Clone(), wsf::coverage::CoverageTime::CoverageTime(), Measure(), wsf::coverage::N_AssetCoverage::N_AssetCoverage(), wsf::coverage::NumberOfAccesses::NumberOfAccesses(), wsf::coverage::NumberOfGaps::NumberOfGaps(), wsf::coverage::RevisitTime::RevisitTime(), wsf::coverage::SimpleCoverage::SimpleCoverage(), and wsf::coverage::TimeAverageGap::TimeAverageGap().

◆ Measure() [2/2]

wsf::coverage::Measure::Measure ( const Measure & aOther )

default

References Measure().

◆ ~Measure()

wsf::coverage::Measure::~Measure ( )

overridedefault

Member Function Documentation

◆ Clone()

Measure * wsf::coverage::Measure::Clone ( ) const

overridepure virtual

Return a copy of this object. Must be implemented by all derived types. If cloning is impossible, a WsfUncloneableException should be thrown.

Implements WsfObject.

Implemented in wsf::coverage::AccessDuration, wsf::coverage::CoverageTime, wsf::coverage::N_AssetCoverage, wsf::coverage::NumberOfAccesses, wsf::coverage::NumberOfGaps, wsf::coverage::RevisitTime, wsf::coverage::SimpleCoverage, and wsf::coverage::TimeAverageGap.

References Measure(), and ProcessInput().

◆ CollectionCompleting()

void wsf::coverage::Measure::CollectionCompleting	(	Coverage &	aCoverage,
		double	aSimTime )

Tack any action needed at the end of a coverage collection interval.

In addition to allowing the subclass to perform any subclass-specific tasks, this will cause all the output objects to produce their output.

Parameters

aCoverage	- The coverage owning this object.
aSimTime	- The sim time of the end of collection.

◆ CollectionStarting()

virtual void wsf::coverage::Measure::CollectionStarting	(	Coverage &	aCoverage,
		double	aSimTime )

inlinevirtual

Perform any needed actions when the coverage interval begins.

Parameters

aCoverage	- The coverage owning this object.
aSimTime	- The sim time at which the coverate interval starts.

Reimplemented in wsf::coverage::AccessDuration, wsf::coverage::CoverageTime, wsf::coverage::N_AssetCoverage, wsf::coverage::NumberOfAccesses, wsf::coverage::NumberOfGaps, wsf::coverage::RevisitTime, and wsf::coverage::TimeAverageGap.

◆ GetDefaultValue()

virtual double wsf::coverage::Measure::GetDefaultValue ( ) const

pure virtual

Return the default value of the measure.

Implemented in wsf::coverage::AccessDuration, wsf::coverage::CoverageTime, wsf::coverage::N_AssetCoverage, wsf::coverage::NumberOfAccesses, wsf::coverage::NumberOfGaps, wsf::coverage::RevisitTime, wsf::coverage::SimpleCoverage, and wsf::coverage::TimeAverageGap.

References Initialize().

◆ GetMeasuredValue()

virtual double wsf::coverage::Measure::GetMeasuredValue ( const GridAsset & aGridAsset ) const

pure virtual

Return the measured value for a given aGridAsset.

Implemented in wsf::coverage::AccessDuration, wsf::coverage::CoverageTime, wsf::coverage::N_AssetCoverage, wsf::coverage::NumberOfAccesses, wsf::coverage::NumberOfGaps, wsf::coverage::RevisitTime, wsf::coverage::SimpleCoverage, and wsf::coverage::TimeAverageGap.

Referenced by wsf::coverage::MeasureGridStats::MeasureGridStats(), and wsf::coverage::MeasureLatLonStats::MeasureLatLonStats().

◆ GetNumOutput()

std::size_t wsf::coverage::Measure::GetNumOutput ( ) const

inlineprotected

Return the number of output objects attached to this Measure.

◆ GetOutput()

const MeasureOutput * wsf::coverage::Measure::GetOutput ( std::size_t aIndex ) const

inlineprotected

Return the output object at the given index.

◆ GetValueHeader()

virtual std::string wsf::coverage::Measure::GetValueHeader ( ) const

pure virtual

Return a string giving the header for this value in output files.

This header should be descriptive enough to be interpreted by a human reader. The return value will appear as a field in a CSV file, so there should not be any commas in the returned value.

Implemented in wsf::coverage::AccessDuration, wsf::coverage::CoverageTime, wsf::coverage::N_AssetCoverage, wsf::coverage::NumberOfAccesses, wsf::coverage::NumberOfGaps, wsf::coverage::RevisitTime, wsf::coverage::SimpleCoverage, and wsf::coverage::TimeAverageGap.

◆ Initialize()

bool wsf::coverage::Measure::Initialize ( Coverage & aCoverage )

Initialize this Measure.

In addition to propagating the output directory from aCoverage to this objects output, this will assure that the output will produce files with unique names among the outputs for this Measure. Finally, this calls into the subclasses intialization method, in which it is expected that the subclass will connect to the interval events on aCoverage.

Parameters

aCoverage - The coverage owning this.

Returns: - true if initialization is successful; false otherwise.

References WsfObject::GetName(), and wsf::coverage::Coverage::GetOutputDir().

Referenced by GetDefaultValue().

◆ ProcessInput()

bool wsf::coverage::Measure::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput a reference to a UtInput object.

Returns: 'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase (or an object derived from it) if the command was recognized but contains some sort of error.

Note: If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from WsfObject.

Reimplemented in wsf::coverage::N_AssetCoverage, wsf::coverage::NumberOfAccesses, wsf::coverage::NumberOfGaps, and wsf::coverage::RevisitTime.

References WsfObjectTypeList< T >::Find(), and wsf::coverage::MeasureOutputTypes::Get().

Referenced by Clone(), wsf::coverage::AccessDuration::ProcessInput(), wsf::coverage::CoverageTime::ProcessInput(), wsf::coverage::N_AssetCoverage::ProcessInput(), wsf::coverage::NumberOfAccesses::ProcessInput(), wsf::coverage::NumberOfGaps::ProcessInput(), and wsf::coverage::RevisitTime::ProcessInput().

Member Data Documentation

◆ mCallbacks

UtCallbackHolder wsf::coverage::Measure::mCallbacks {}

protected

Holder for callbacks created when this object connects to events on it's coverage.

The documentation for this class was generated from the following files:
