#include <SectorGeometry.hpp>

Inheritance diagram for usmtf::SectorGeometry:

[legend]

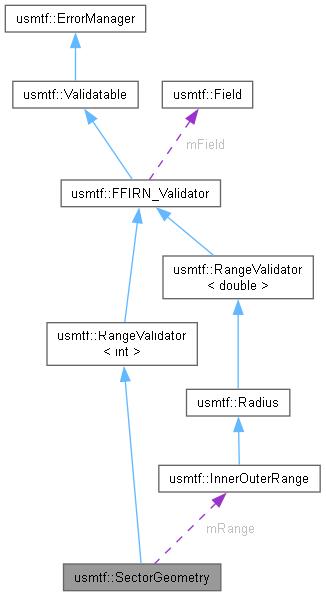

Collaboration diagram for usmtf::SectorGeometry:

[legend]

Public Member Functions
	SectorGeometry ()
bool	ParseAndValidate (const Field &aField) override
const std::string &	GetSectorStartAngle () const noexcept
const std::string &	GetSectorStopAngle () const noexcept
const std::string &	GetAngleOrientation () const noexcept
const InnerOuterRange &	GetRange () const noexcept
Public Member Functions inherited from usmtf::RangeValidator< int >
void	SetValidRange (int aLowerBound, int aUpperBound)
int	GetCastedValue () const noexcept
Public Member Functions inherited from usmtf::FFIRN_Validator
	FFIRN_Validator ()=default
const std::string &	GetRawContent () const noexcept
	Return the content of the field as it was in the USMTF set.
std::vector< std::string >	SplitOnDelimeter (const std::string &value, const std::string &delimeter)
	Values separated by delimeter.
const std::string &	GetFieldContent () const noexcept
Public Member Functions inherited from usmtf::Validatable
bool	IsValid () const noexcept
Public Member Functions inherited from usmtf::ErrorManager
virtual	~ErrorManager ()=default
bool	HasErrors () const noexcept
void	LogErrors (std::ostream &aOut) const noexcept
const std::vector< ValidationError > &	GetErrors () const

Protected Attributes
std::string	mSectorStartAngle
std::string	mSectorStopAngle
std::string	mAngularOrientation
InnerOuterRange	mRange
Protected Attributes inherited from usmtf::RangeValidator< int >
int	mCastedRangeValue
int	mLowerBound
int	mUpperBound
Protected Attributes inherited from usmtf::FFIRN_Validator
Field	mField

Additional Inherited Members
Public Types inherited from usmtf::FFIRN_Validator
using	FFIRN_Func = std::function<bool(void)>
using	FFIRN_DescriptorMap = std::unordered_map<std::string, FFIRN_Func>
Static Public Member Functions inherited from usmtf::FFIRN_Validator
static bool	IsInSelection (const std::string &aValue, const std::vector< std::string > &choices) noexcept
static bool	IsStringLength (const std::string &aValue, size_t aLength) noexcept
static size_t	CheckForAnyDelimeter (const std::string &aValue, const std::vector< std::string > &aDelimeters) noexcept
	Returns the positions of a specified delimiter if present, npos if not.
static size_t	CheckForAnyDelimeter (const std::string &aValue, const std::vector< std::string > &aDelimeters, std::string &aFoundDelimeter) noexcept
template<class T>
static bool	IsInRange (T aValue, T aLowerBound, T aUpperBound) noexcept
Protected Member Functions inherited from usmtf::RangeValidator< int >
bool	IsInvalidRange (int aValue) noexcept
Protected Member Functions inherited from usmtf::FFIRN_Validator
bool	ValidateByDescriptor (const FFIRN_DescriptorMap &aDescriptorMap)
	Speed up validation if descriptor is present. Runs all functions if it isn't.
void	ClearErrorsIfValid (bool aHasAtLeastOnePassed) noexcept
void	SetField (const Field &aField) noexcept
	Field Setter for internal use only.
Protected Member Functions inherited from usmtf::ErrorManager
void	AddError (const ValidationError &aError) noexcept
void	AddError (const std::string &aFailureReason, const std::string &aValueValidatied, const std::string &aOptionalSuggestion="") noexcept
void	AddError (const std::string &aErrorMessage) noexcept
void	AddErrors (const std::vector< ValidationError > &aErrors) noexcept
void	ClearErrors () noexcept

Detailed Description

FFIRN_Validator responsible for the validation and property extraction of a SectorGeometry. SectorGeometry is a semi circular shape that might represent a wedge with potentially inner and out radius. usmtf Example: /SECTIO:058190T45-60NM

Constructor & Destructor Documentation

◆ SectorGeometry()

usmtf::SectorGeometry::SectorGeometry ( )

References mRange, and usmtf::RangeValidator< int >::SetValidRange().

Member Function Documentation

◆ GetAngleOrientation()

const std::string & usmtf::SectorGeometry::GetAngleOrientation ( ) const

noexcept

References mAngularOrientation.

◆ GetRange()

const InnerOuterRange & usmtf::SectorGeometry::GetRange ( ) const

noexcept

References mRange.

◆ GetSectorStartAngle()

const std::string & usmtf::SectorGeometry::GetSectorStartAngle ( ) const

noexcept

References mSectorStartAngle.

◆ GetSectorStopAngle()

const std::string & usmtf::SectorGeometry::GetSectorStopAngle ( ) const

noexcept

References mSectorStopAngle.

◆ ParseAndValidate()

bool usmtf::SectorGeometry::ParseAndValidate ( const Field & aField )

overridevirtual

I am not a huge fan of violating command query separation. But, in this case it makes sense. The functions that come into ParseAndValidate have to parse to get value of the component, sometimes there are many components in a single field. Unfortunately parsing is an intertwined attribute of validation. You cant parse according to some rule set if the field is invalid, making it impossible to separate the two notions easily. I have opted to instead name the functions for what they are actually doing. Parsing components and validating them as well. Optionally members can be set within the function as well.

Reimplemented from usmtf::RangeValidator< int >.

References usmtf::ErrorManager::AddError(), usmtf::ErrorManager::AddErrors(), usmtf::FFIRN_Validator::CheckForAnyDelimeter(), usmtf::Field::GetContent(), usmtf::RangeValidator< int >::IsInvalidRange(), usmtf::FFIRN_Validator::IsStringLength(), mAngularOrientation, usmtf::RangeValidator< int >::mCastedRangeValue, mRange, mSectorStartAngle, mSectorStopAngle, and usmtf::FFIRN_Validator::SplitOnDelimeter().
