SOSM_SensorTarget Class Reference

#include <SOSM_SensorTarget.hpp>

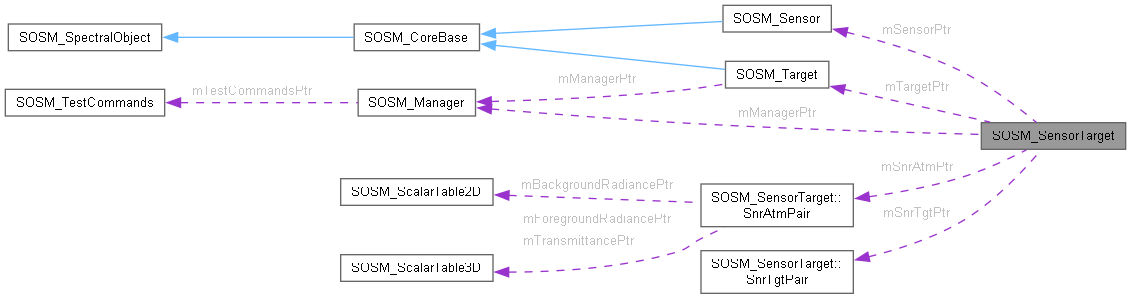

Collaboration diagram for SOSM_SensorTarget:

Classes
class	SnrAtmPair
class	SnrTgtPair

Public Member Functions
	SOSM_SensorTarget (SOSM_Manager *aManagerPtr)
virtual	~SOSM_SensorTarget ()
bool	Initialize (const std::string &aSensorType, const std::string &aTargetType)
float	ComputeTargetIrradiance (SOSM_Interaction &aInteraction) const
float	ComputeProbabilityOfDetection (float aTargetIrradiance, SOSM_Interaction &aInteraction) const
SOSM_Sensor *	GetSensor () const
SOSM_Target *	GetTarget () const
SOSM_Manager *	GetManager () const

Protected Types
typedef std::map< std::string, SnrAtmPair * >	SnrAtmTableMap
	The key is '<snr-type>_<atm_type>'.
typedef std::map< std::string, SnrTgtPair * >	SnrTgtTableMap
	The key is '<snr-type>_<tgt_type>_<tgt_state>'.

Protected Member Functions
	SOSM_SensorTarget (const SOSM_SensorTarget &aSrc)=delete
	Copy constructor declared but not defined to prevent use.
SOSM_SensorTarget	operator= (const SOSM_SensorTarget &aRhs)=delete
	Assignment operator declared but not defined to prevent use.
SnrAtmPair *	CreateOrLoadSensorAtmosphereTables ()
SnrTgtPair *	CreateOrLoadSensorTargetTables ()
void	LoadSensorTargetTables ()
	Load precomputed sensor-target specific tables if permitted.

Protected Attributes
SOSM_Manager *	mManagerPtr
SOSM_Sensor *	mSensorPtr
SOSM_Target *	mTargetPtr
bool	mUsingTables
SnrAtmPair *	mSnrAtmPtr
SnrTgtPair *	mSnrTgtPtr

Static Protected Attributes
static SnrAtmTableMap	sSnrAtmTables
static SnrTgtTableMap	sSnrTgtTables

Detailed Description

A sensor-target pair.

There are two basic ways to perform sensor/target interactions:

• Directly instantiating sensor and target objects and invoking the sensor detection routines. This will invoke the underlying sensor, target and atmospheric models to compute the detection result. This is the slower of the methods, but uses less storage.
• Utilizing precomputed tables that are specifically computed for the sensor-type/target-type pair. This is the most efficient mechanism, but can require a LOT of memory if there are a great number sensor types and target types.

The main function of this class is to isolate to calling application from knowing which method is being used. The caller is simply responsible for instantiating and initializing one of these objects for a given sensor/target pair.

An application may choose to either maintain one of these objects for each sensor-type/target-type pair or one for each sensor/target pair. The second method is more efficient (and thread-safe) because the some of the models maintain a persistent state that works most efficiently when not changing between targets. The first method is NOT thread-safe. The disadvantage is that each pairing takes about 100 bytes, which should be no problem (unless has about 10000 bodies, all which have IR sensors detecting all targets!)

Note

Thread-safety only exists when each pair of interacting sensor and target objects has their own instance of this object.

Member Typedef Documentation

SnrAtmTableMap

typedef std::map<std::string, SnrAtmPair*> SOSM_SensorTarget::SnrAtmTableMap

protected

The key is '<snr-type>_<atm_type>'.

SnrTgtTableMap

typedef std::map<std::string, SnrTgtPair*> SOSM_SensorTarget::SnrTgtTableMap

protected

The key is '<snr-type>_<tgt_type>_<tgt_state>'.

Constructor & Destructor Documentation

SOSM_SensorTarget() [1/2]

SOSM_SensorTarget::SOSM_SensorTarget

(

SOSM_Manager *

aManagerPtr

)

References mManagerPtr, mSensorPtr, mSnrAtmPtr, mSnrTgtPtr, mTargetPtr, and mUsingTables.

Referenced by operator=(), and SOSM_SensorTarget().

~SOSM_SensorTarget()

SOSM_SensorTarget::~SOSM_SensorTarget ( )

virtual

References mSensorPtr, and mTargetPtr.

SOSM_SensorTarget() [2/2]

SOSM_SensorTarget::SOSM_SensorTarget ( const SOSM_SensorTarget & aSrc )

protecteddelete

Copy constructor declared but not defined to prevent use.

References SOSM_SensorTarget().

Member Function Documentation

ComputeProbabilityOfDetection()

float SOSM_SensorTarget::ComputeProbabilityOfDetection	(	float	aTargetIrradiance,
		SOSM_Interaction &	aInteraction ) const

Compute the probability of detection for a specified target irradiance.

Parameters

aTargetIrradiance	[input] The irradiance on the sensor while looking at the target of interest. (W/cm^2)
aInteraction	[input] The interaction object representing the sensor and target state.

Returns

The probability of detection in the range [0..1].

References mSensorPtr.

Referenced by WsfSOSM_Sensor::SOSM_Mode::AttemptToDetect().

ComputeTargetIrradiance()

float SOSM_SensorTarget::ComputeTargetIrradiance

(

SOSM_Interaction &

aInteraction

)

const

Compute the irradiance on the sensor when looking at the target.

Parameters

aInteraction

[input] The interaction object representing the sensor and target state.

Returns

The irradiance on the sensor (W/cm^2)

References SOSM_Interaction::GetAbsoluteTargetElevation(), SOSM_Interaction::GetSensorAltitude(), SOSM_Interaction::GetSlantRange(), SOSM_Interaction::GetTargetToSensorAspect(), SOSM_Interaction::mBackgroundRadiance, SOSM_Interaction::mBackgroundScaleFactor, SOSM_Interaction::mBodyArea, SOSM_Interaction::mBodyIntensity, SOSM_Interaction::mContrastIntensity, SOSM_Interaction::mForegroundRadiance, SOSM_Interaction::mForegroundScaleFactor, mManagerPtr, SOSM_Interaction::mPlumeArea, SOSM_Interaction::mPlumeIntensity, mSensorPtr, mSnrAtmPtr, mSnrTgtPtr, mTargetPtr, SOSM_Interaction::mTransmittance, SOSM_Interaction::mTransmittanceScaleFactor, mUsingTables, and SOSM_Interaction::Print().

Referenced by WsfSOSM_Sensor::SOSM_Mode::AttemptToDetect().

CreateOrLoadSensorAtmosphereTables()

SOSM_SensorTarget::SnrAtmPair * SOSM_SensorTarget::CreateOrLoadSensorAtmosphereTables ( )

protected

References SOSM_ScalarTable2D::DV(), SOSM_ScalarTable3D::DV(), SOSM_Utility::FileModificationTime(), SOSM_ScalarTable2D::IV1(), SOSM_ScalarTable3D::IV1(), SOSM_ScalarTable2D::IV2(), SOSM_ScalarTable3D::IV2(), SOSM_ScalarTable3D::IV3(), mManagerPtr, mSensorPtr, SOSM_SimpleInteraction::SetAbsoluteTargetElevation(), SOSM_SimpleInteraction::SetSensorAltitude(), and SOSM_SimpleInteraction::SetSlantRange().

Referenced by LoadSensorTargetTables(), and operator=().

CreateOrLoadSensorTargetTables()

SOSM_SensorTarget::SnrTgtPair * SOSM_SensorTarget::CreateOrLoadSensorTargetTables ( )

protected

References SOSM_ScalarTable2D::DV(), SOSM_Utility::FileModificationTime(), SOSM_ScalarTable2D::IV1(), SOSM_ScalarTable2D::IV2(), mManagerPtr, mSensorPtr, mTargetPtr, SOSM_Interaction::mTargetStateIndex, SOSM_SimpleInteraction::SetTargetAltitude(), SOSM_SimpleInteraction::SetTargetSpeed(), SOSM_SimpleInteraction::SetTargetThrottle(), and SOSM_SimpleInteraction::SetTargetToSensorAspect().

Referenced by LoadSensorTargetTables(), and operator=().

GetManager()

SOSM_Manager * SOSM_SensorTarget::GetManager ( ) const

inline

References mManagerPtr.

GetSensor()

SOSM_Sensor * SOSM_SensorTarget::GetSensor ( ) const

inline

References mSensorPtr.

Referenced by WsfSOSM_Sensor::SOSM_Mode::AttemptToDetect().

GetTarget()

SOSM_Target * SOSM_SensorTarget::GetTarget ( ) const

inline

References mTargetPtr.

Referenced by WsfSOSM_Sensor::SOSM_Mode::AttemptToDetect().

Initialize()

bool SOSM_SensorTarget::Initialize	(	const std::string &	aSensorType,
		const std::string &	aTargetType )

References LoadSensorTargetTables(), mManagerPtr, mSensorPtr, mTargetPtr, mUsingTables, and ok.

Referenced by SOSM_Manager::AllocateSensorTargetPair().

LoadSensorTargetTables()

void SOSM_SensorTarget::LoadSensorTargetTables ( )

protected

Load precomputed sensor-target specific tables if permitted.

References CreateOrLoadSensorAtmosphereTables(), CreateOrLoadSensorTargetTables(), mSensorPtr, mSnrAtmPtr, mSnrTgtPtr, mTargetPtr, mUsingTables, sSnrAtmTables, and sSnrTgtTables.

Referenced by Initialize(), and operator=().

operator=()

SOSM_SensorTarget SOSM_SensorTarget::operator= ( const SOSM_SensorTarget & aRhs )

protecteddelete

Assignment operator declared but not defined to prevent use.

References CreateOrLoadSensorAtmosphereTables(), CreateOrLoadSensorTargetTables(), LoadSensorTargetTables(), and SOSM_SensorTarget().

Member Data Documentation

mManagerPtr

SOSM_Manager* SOSM_SensorTarget::mManagerPtr

protected

Referenced by ComputeTargetIrradiance(), CreateOrLoadSensorAtmosphereTables(), CreateOrLoadSensorTargetTables(), GetManager(), Initialize(), and SOSM_SensorTarget().

mSensorPtr

SOSM_Sensor* SOSM_SensorTarget::mSensorPtr

protected

Referenced by ComputeProbabilityOfDetection(), ComputeTargetIrradiance(), CreateOrLoadSensorAtmosphereTables(), CreateOrLoadSensorTargetTables(), GetSensor(), Initialize(), LoadSensorTargetTables(), SOSM_SensorTarget(), and ~SOSM_SensorTarget().

mSnrAtmPtr

SnrAtmPair* SOSM_SensorTarget::mSnrAtmPtr

protected

Referenced by ComputeTargetIrradiance(), LoadSensorTargetTables(), and SOSM_SensorTarget().

mSnrTgtPtr

SnrTgtPair* SOSM_SensorTarget::mSnrTgtPtr

protected

Referenced by ComputeTargetIrradiance(), LoadSensorTargetTables(), and SOSM_SensorTarget().

mTargetPtr

SOSM_Target* SOSM_SensorTarget::mTargetPtr

protected

Referenced by ComputeTargetIrradiance(), CreateOrLoadSensorTargetTables(), GetTarget(), Initialize(), LoadSensorTargetTables(), SOSM_SensorTarget(), and ~SOSM_SensorTarget().

mUsingTables

bool SOSM_SensorTarget::mUsingTables

protected

Referenced by ComputeTargetIrradiance(), Initialize(), LoadSensorTargetTables(), and SOSM_SensorTarget().

sSnrAtmTables

SOSM_SensorTarget::SnrAtmTableMap SOSM_SensorTarget::sSnrAtmTables

staticprotected

Referenced by LoadSensorTargetTables().

sSnrTgtTables

SOSM_SensorTarget::SnrTgtTableMap SOSM_SensorTarget::sSnrTgtTables

staticprotected

Referenced by LoadSensorTargetTables().

---

The documentation for this class was generated from the following files:

• SOSM_SensorTarget.hpp
• SOSM_SensorTarget.cpp
