#include <FieldTypes.hpp>

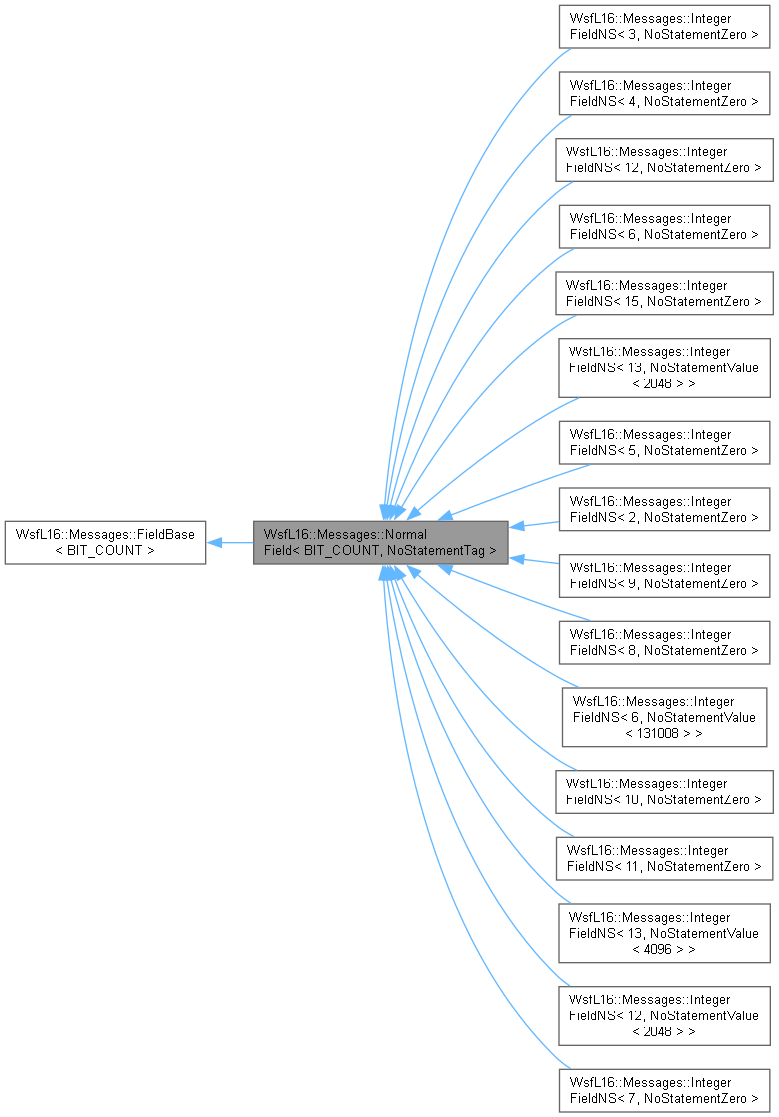

Inheritance diagram for WsfL16::Messages::NormalField< BIT_COUNT, NoStatementTag >:

[legend]

Collaboration diagram for WsfL16::Messages::NormalField< BIT_COUNT, NoStatementTag >:

[legend]

Public Types
typedef FieldNoStatementValidTag	no_statement_type
Public Types inherited from WsfL16::Messages::FieldBase< BIT_COUNT >
typedef NoAccessorTypeTag	accessor_type
typedef NoAccessorUnitsTag	accessor_units
typedef FieldNoStatementInvalidTag	no_statement_type
typedef NoEnumStringMapTag	enum_map_type
typedef SmallIntType< BIT_COUNT >::integer_type	value_type
	Use the smallest integer to hold the data.

Public Member Functions
	NormalField ()
void	SetNoStatement ()
bool	IsNoStatement () const
Public Member Functions inherited from WsfL16::Messages::FieldBase< BIT_COUNT >
	FieldBase ()
value_type	GetRawData () const
template<class T>
value_type	SafeCast (T aValue) const
void	SetRawData (value_type aValue)

Static Public Attributes
static const unsigned int	cNO_STATEMENT_VALUE = NS_ValuatorType::value
Static Public Attributes inherited from WsfL16::Messages::FieldBase< BIT_COUNT >
static const unsigned int	cFIELD_SIZE = BIT_COUNT
static const unsigned int	cMID_VALUE = (1u << cFIELD_SIZE) / 2
static const unsigned int	cMAX_VALUE = (1u << cFIELD_SIZE) - 1

Additional Inherited Members
Protected Member Functions inherited from WsfL16::Messages::FieldBase< BIT_COUNT >
int	DecodeTC (unsigned a2C) const
unsigned	EncodeTC (int aInt) const
	Encode an integer into a N-bit two's compliment representation.
unsigned	EncodeTCMod (int aInt) const
Protected Attributes inherited from WsfL16::Messages::FieldBase< BIT_COUNT >
value_type	mValue

Detailed Description

template<unsigned BIT_COUNT, typename NoStatementTag>
class WsfL16::Messages::NormalField< BIT_COUNT, NoStatementTag >

A field which supports a 'no-statement' value. No-statement is the default value NoStatementTag can be NoStatementMax, NoStatementMid, NoStatementZero, or NoStatementValue<VAL>
