#include <WsfGroupTypes.hpp>

Inheritance diagram for WsfGroupTypes:

[legend]

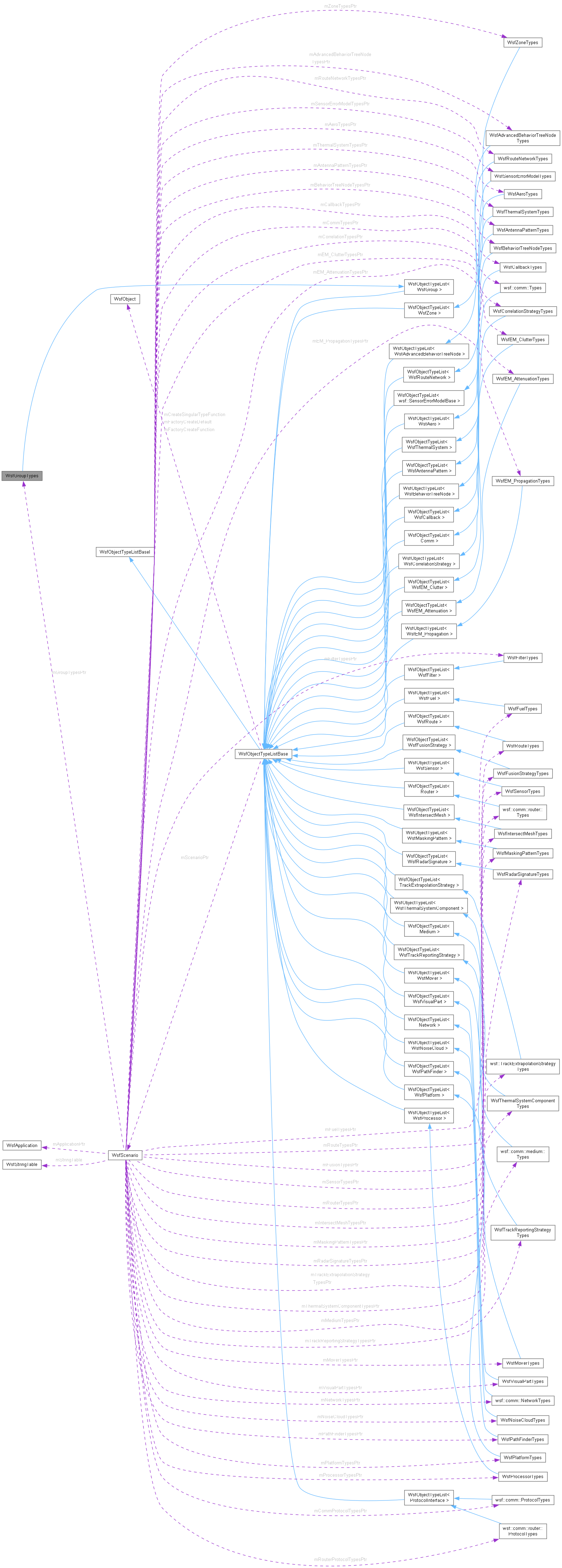

Collaboration diagram for WsfGroupTypes:

[legend]

Static methods to return a reference to the type list associated with a scenario.
static WSF_EXPORT WsfGroupTypes &	Get (WsfScenario &aScenario)
	Return a modifiable reference to the type list associated with the specified scenario.
static WSF_EXPORT const WsfGroupTypes &	Get (const WsfScenario &aScenario)
	Return a const reference to the type list associated with the specified scenario.
	WsfGroupTypes (WsfScenario &aScenario)
bool	LoadType (UtInput &aInput, WsfPlatformPart *aPlatformPartPtr)
bool	LoadType (UtInput &aInput, WsfPlatform *aPlatformPtr)
LoadResult	LoadType (UtInput &aInput) override
bool	JoinGroupType (const std::string &aGroupType, const std::string &aGroupName, WsfPlatform *aPlatformPtr) const
bool	JoinGroupType (const std::string &aGroupType, const std::string &aGroupName, WsfPlatformPart *aPlatformPartPtr) const

Additional Inherited Members
Public Types inherited from WsfObjectTypeList< WsfGroup >
typedef WsfGroup	ObjectType
typedef std::vector< WsfGroup * >	ObjectPtrList
Public Types inherited from WsfObjectTypeListBase
enum	Flags { cREDEFINITION_ALLOWED = 1 , cSINGULAR_BASE_TYPE = 2 , cOBJECT_FACTORY_BASE = 4 , cNO_DELAY_LOAD = 8 , cSIGNATURE_FLAGS = cREDEFINITION_ALLOWED \| cNO_DELAY_LOAD }
Public Types inherited from WsfObjectTypeListBaseI
typedef std::vector< WsfStringId >	TypeIdList
Public Member Functions inherited from WsfObjectTypeList< WsfGroup >
	WsfObjectTypeList (WsfScenario &aScenario, unsigned int aFlags, const std::string &aBlockName)
bool	Add (WsfStringId aId, std::unique_ptr< WsfGroup > aDefinitionPtr)
bool	AddCoreType (WsfStringId aId, std::unique_ptr< WsfGroup > aDefinitionPtr)
WsfGroup *	Clone (WsfStringId aId) const override
WsfGroup *	Find (WsfStringId aId) const override
ObjectPtrList	GetCoreTypes () const
	Returns a list of core types, i.e. types added via AddCoreType.
void	GetCurrentTypes (ObjectPtrList &aListOfPtrs) const
void	GetCurrentUserTypes (ObjectPtrList &aListOfPtrs) const
	Returns the list of types defined by the user (no core / builtin types).
bool	IsType (WsfStringId aTypeName) const
void	SetSingularBaseType ()
void	SetObjectFactory (const FACTORY_LIST *aFactoryListPtr)
void	SetObjectFactoryDefault ()
bool	ProcessInput (UtInput &aInput) override
virtual bool	InitializeType (ObjectType *aTypePtr)
bool	LoadNamedComponent (UtInput &aInput, WsfPlatform &aPlatform, bool aIsAdding, int aRole)
bool	LoadUnnamedComponent (UtInput &aInput, WsfPlatform &aPlatform, bool aIsAdding, int aRole)
bool	LoadUnnamedComponentWithoutEdit (UtInput &aInput, WsfPlatform &aPlatform, bool aIsAdding, int aRole)
bool	DeleteNamedComponent (UtInput &aInput, WsfPlatform &aPlatform, int aRole)
bool	DeleteUnnamedComponent (UtInput &aInput, WsfPlatform &aPlatform, int aRole)
Public Member Functions inherited from WsfObjectTypeListBase
	WsfObjectTypeListBase (const WsfObjectTypeListBase &)=delete
WsfObjectTypeListBase &	operator= (const WsfObjectTypeListBase &)=delete
	WsfObjectTypeListBase (unsigned int aFlags, const std::string &aBlockName=std::string(), WsfScenario *aScenarioPtr=nullptr)
	~WsfObjectTypeListBase () override
void	Clear () override
	Clear (Erase) all type entries.
void	GetTypeIds (TypeIdList &aListOfIds) const override
	Return a vector of the type identifiers currently being controlled by this list.
bool	ProcessInput (UtInput &aInput) override
int	Size () const
	Return the current number of types being maintained by the list.
const std::string &	GetBlockName () const override
WsfScenario *	GetScenario () const
Public Member Functions inherited from WsfObjectTypeListBaseI
virtual	~WsfObjectTypeListBaseI ()=default
virtual void	CompleteLoad ()
Protected Types inherited from WsfObjectTypeListBase
typedef std::map< WsfStringId, std::unique_ptr< WsfObject > >	TypeMap
bool	InitializeTypeP (WsfObject *aObjectPtr) override
Protected Member Functions inherited from WsfObjectTypeListBase
WsfDeferredInput &	GetDeferredInput () const
bool	CanDelayLoad () const
bool	AddP (WsfStringId aId, std::unique_ptr< WsfObject > aDefinitionPtr)
WsfObject *	CloneP (WsfStringId aId) const
virtual WsfObject *	FindP (WsfStringId aId) const
bool	LoadTypeP (UtInput &aInput, WsfObject *&aLoadedObjectPtr)
virtual bool	DeferredLoadTypeP (UtInput &aInput, WsfObject *&aLoadedObjectPtr)
bool	DeleteComponentP (UtInput &aInput, WsfPlatform &aPlatform, int aRole, bool aIsNamed)
bool	LoadComponentP (UtInput &aInput, WsfPlatform &aPlatform, bool aIsAdding, int aRole, bool aIsNamed, bool aIsEditable)
Static Protected Member Functions inherited from WsfObjectTypeList< WsfGroup >
static WsfObject *	CreateDefaultFunction ()
static WsfObject *	CreateFunction ()
static WsfObject *	FactoryCreateFunction (void *aListPtr, const std::string &aTypeName)
Protected Attributes inherited from WsfObjectTypeListBase
TypeMap	mTypeMap
std::vector< std::unique_ptr< WsfObject > >	mRedefinedTypes
	A list of type objects that have been redefined.
std::set< WsfStringId >	mCoreTypes
unsigned int	mFlags
const std::string	mBlockName
WsfObject (	mCreateSingularTypeFunction )()
WsfObject (	mFactoryCreateFunction )(void *aListPtr, const std::string &aTypeName)
WsfObject (	mFactoryCreateDefault )()
void *	mFactoryPtr
WsfScenario *	mScenarioPtr

Constructor & Destructor Documentation

◆ WsfGroupTypes()

WsfGroupTypes::WsfGroupTypes ( WsfScenario & aScenario )

References WsfObjectTypeList< WsfGroup >::AddCoreType(), and WsfObjectTypeList< WsfGroup >::WsfObjectTypeList().

Referenced by Get(), and Get().

Member Function Documentation

◆ Get() [1/2]

const WsfGroupTypes & WsfGroupTypes::Get ( const WsfScenario & aScenario )

static

Return a const reference to the type list associated with the specified scenario.

References WsfScenario::GetGroupTypes(), and WsfGroupTypes().

◆ Get() [2/2]

WsfGroupTypes & WsfGroupTypes::Get ( WsfScenario & aScenario )

static

Return a modifiable reference to the type list associated with the specified scenario.

References WsfScenario::GetGroupTypes(), and WsfGroupTypes().

◆ JoinGroupType() [1/2]

bool WsfGroupTypes::JoinGroupType	(	const std::string &	aGroupType,
		const std::string &	aGroupName,
		WsfPlatform *	aPlatformPtr ) const

if exists, clone the given group type and join it.

Parameters

aGroupType	- the type of the group to join
aGroupName	- the name of the group to join
aPlatformPtr	- the platform that will join the group

Returns: true if successfully joined group

References WsfObjectTypeList< WsfGroup >::Clone(), WsfObjectTypeList< WsfGroup >::Find(), and WsfPlatform::JoinGroup().

◆ JoinGroupType() [2/2]

bool WsfGroupTypes::JoinGroupType	(	const std::string &	aGroupType,
		const std::string &	aGroupName,
		WsfPlatformPart *	aPlatformPartPtr ) const

if exists, clone the given group type and join it.

Parameters

aGroupType	- the type of the group to join
aGroupName	- the name of the group to join
aPlatformPartPtr	- the platform part that will join the group

Returns: true if successfully joined group

References WsfObjectTypeList< WsfGroup >::Clone(), WsfObjectTypeList< WsfGroup >::Find(), and WsfPlatformPart::JoinGroup().

◆ LoadType() [1/3]

WsfGroupTypes::LoadResult WsfGroupTypes::LoadType ( UtInput & aInput )

overridevirtual

Load a new 'type object' from an input stream. Process the current command if it is one that defines a new 'type object' of this class.

Parameters

aInput The input stream.

Exceptions

UtInput::ExceptionBase (or derived class) if an error was encountered.

Reimplemented from WsfObjectTypeList< WsfGroup >.

References WsfObjectTypeList< T >::LoadType().

◆ LoadType() [2/3]

bool WsfGroupTypes::LoadType	(	UtInput &	aInput,
		WsfPlatform *	aPlatformPtr )

Create a group type that will be cloned later when instantiated

Parameters

aInput	- stream from input file
aPlatformPtr	- the platform used to get the token replacements from

Returns: true if successfully created group type

References WsfObjectTypeList< WsfGroup >::Add(), WsfObjectTypeList< WsfGroup >::Clone(), WsfObject::GetName(), WsfObject::GetNameId(), WsfObject::GetType(), and groupPtr.

◆ LoadType() [3/3]

bool WsfGroupTypes::LoadType	(	UtInput &	aInput,
		WsfPlatformPart *	aPlatformPartPtr )

Create a group type that will be cloned later when instantiated

Parameters

aInput	- stream from input file
aPlatformPartPtr	- the platform part used to get the token replacements from

Returns: true if successfully created group type

References WsfObjectTypeList< WsfGroup >::Add(), WsfObjectTypeList< WsfGroup >::Clone(), and groupPtr.

Referenced by WsfGroupList::ProcessInput(), and WsfGroupList::ProcessInput().

The documentation for this class was generated from the following files:
