A base class defining the interface for the implementation classes. (Implementor). More...

#include <WsfCommLayer.hpp>

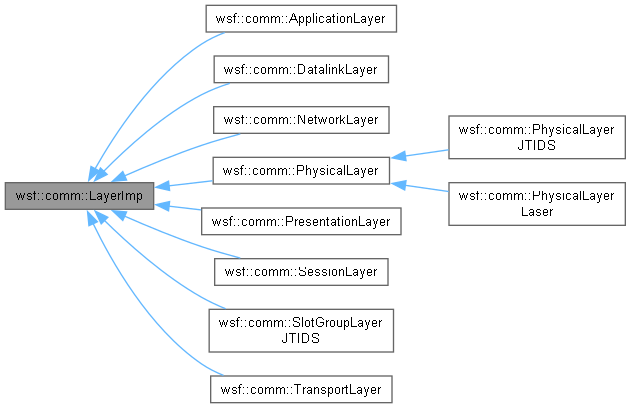

Inheritance diagram for wsf::comm::LayerImp:

[legend]

Public Member Functions
virtual	~LayerImp ()=default

Upper/Lower layer methods, pushed down to this object for retrieval directly from
the implementation from the layer.
void	SetUpperLayer (Layer *aLayerPtr)
Layer *	GetUpperLayer () const
void	SetLowerLayer (Layer *aLayerPtr)
Layer *	GetLowerLayer () const
bool	DebugEnabled () const
	Determine if debugging is enabled.
void	SetDebugEnabled (bool aDebugEnabled)

Common infrastructure methods.
virtual LayerImp *	Clone () const =0
virtual bool	Initialize (double aSimTime)=0
virtual bool	Initialize2 (double aSimTime)
virtual bool	ProcessInput (UtInput &aInput)=0
virtual bool	Receive (double aSimTime, Comm *aXmtrPtr, Message &aMessage, bool &aNotifyNextLayer)=0
virtual bool	Send (double aSimTime, size_t aLayerIndex, Message &aMessage, bool &aNotifyNextLayer)=0
virtual bool	ProcessLayerMessage (double aSimTime, layer::Message aLayerMessage, Message *aCommMessagePtr)=0

Methods to access the owning communication device.
Comm *	Parent () const
void	SetParent (Comm *aParentCommPtr)

Indexing methods, pushed down to this object for retrieval directly from
the implementation from the layer.
void	SetIndex (size_t aIndex)
size_t	GetIndex () const

Detailed Description

A base class defining the interface for the implementation classes. (Implementor).

Constructor & Destructor Documentation

◆ ~LayerImp()

virtual wsf::comm::LayerImp::~LayerImp ( )

virtualdefault

Member Function Documentation

◆ Clone()

virtual LayerImp * wsf::comm::LayerImp::Clone ( ) const

pure virtual

Implemented in wsf::comm::ApplicationLayer, wsf::comm::DatalinkLayer, wsf::comm::NetworkLayer, wsf::comm::PhysicalLayer, wsf::comm::PhysicalLayerJTIDS, wsf::comm::PhysicalLayerLaser, wsf::comm::PresentationLayer, wsf::comm::SessionLayer, wsf::comm::SlotGroupLayerJTIDS, and wsf::comm::TransportLayer.

◆ DebugEnabled()

bool wsf::comm::LayerImp::DebugEnabled ( ) const

inline

Determine if debugging is enabled.

Referenced by wsf::comm::DatalinkLayer::AddToQueue(), wsf::comm::DatalinkLayer::PurgeQueue(), wsf::comm::SlotGroupLayerJTIDS::Receive(), wsf::comm::PhysicalLayer::Send(), wsf::comm::SlotGroupLayerJTIDS::Send(), wsf::comm::DatalinkLayer::TransmitComplete(), and wsf::comm::DatalinkLayer::TransmitFailed().

◆ GetIndex()

size_t wsf::comm::LayerImp::GetIndex ( ) const

inline

Referenced by wsf::comm::DatalinkLayer::AddToQueue(), wsf::comm::medium::Unguided::EndPropagation(), wsf::comm::medium::Guided::EndTransmission(), wsf::comm::medium::Unguided::EndTransmission(), wsf::comm::NetworkLayer::ProcessLayerMessage(), wsf::comm::PhysicalLayer::ProcessLayerMessage(), wsf::comm::DatalinkLayer::PurgeQueue(), wsf::comm::DatalinkLayer::ReadyToTransmit(), wsf::comm::ApplicationLayer::Receive(), wsf::comm::DatalinkLayer::Receive(), wsf::comm::NetworkLayer::Receive(), wsf::comm::PhysicalLayer::Receive(), wsf::comm::PresentationLayer::Receive(), wsf::comm::SessionLayer::Receive(), wsf::comm::TransportLayer::Receive(), wsf::comm::ApplicationLayer::Send(), wsf::comm::DatalinkLayer::Send(), wsf::comm::NetworkLayer::Send(), wsf::comm::PhysicalLayer::Send(), wsf::comm::PresentationLayer::Send(), wsf::comm::SessionLayer::Send(), wsf::comm::TransportLayer::Send(), wsf::comm::DatalinkLayer::TransmitComplete(), and wsf::comm::DatalinkLayer::TransmitFailed().

◆ GetLowerLayer()

Layer * wsf::comm::LayerImp::GetLowerLayer ( ) const

inline

◆ GetUpperLayer()

Layer * wsf::comm::LayerImp::GetUpperLayer ( ) const

inline

◆ Initialize()

virtual bool wsf::comm::LayerImp::Initialize ( double aSimTime )

pure virtual

Implemented in wsf::comm::ApplicationLayer, wsf::comm::DatalinkLayer, wsf::comm::NetworkLayer, wsf::comm::PhysicalLayer, wsf::comm::PhysicalLayerJTIDS, wsf::comm::PhysicalLayerLaser, wsf::comm::PresentationLayer, wsf::comm::SessionLayer, wsf::comm::SlotGroupLayerJTIDS, and wsf::comm::TransportLayer.

Referenced by wsf::comm::Layer::Initialize().

◆ Initialize2()

virtual bool wsf::comm::LayerImp::Initialize2 ( double aSimTime )

inlinevirtual

Reimplemented in wsf::comm::NetworkLayer.

Referenced by wsf::comm::Layer::Initialize2().

◆ Parent()

Comm * wsf::comm::LayerImp::Parent ( ) const

Referenced by wsf::comm::DatalinkLayer::AddToQueue(), wsf::comm::PhysicalLayer::CanReceiveFrom(), wsf::comm::PhysicalLayerLaser::Initialize(), wsf::comm::SlotGroupLayerJTIDS::Initialize(), ProcessLayerMessage(), wsf::comm::NetworkLayer::ProcessLayerMessage(), wsf::comm::PhysicalLayer::ProcessLayerMessage(), wsf::comm::DatalinkLayer::PurgeQueue(), wsf::comm::DatalinkLayer::ReadyToTransmit(), wsf::comm::ApplicationLayer::Receive(), wsf::comm::DatalinkLayer::Receive(), wsf::comm::NetworkLayer::Receive(), wsf::comm::PhysicalLayer::Receive(), wsf::comm::PresentationLayer::Receive(), wsf::comm::SessionLayer::Receive(), wsf::comm::SlotGroupLayerJTIDS::Receive(), wsf::comm::TransportLayer::Receive(), wsf::comm::ApplicationLayer::Send(), wsf::comm::DatalinkLayer::Send(), wsf::comm::NetworkLayer::Send(), wsf::comm::PhysicalLayer::Send(), wsf::comm::PresentationLayer::Send(), wsf::comm::SessionLayer::Send(), wsf::comm::SlotGroupLayerJTIDS::Send(), wsf::comm::TransportLayer::Send(), wsf::comm::DatalinkLayer::TransmitComplete(), and wsf::comm::DatalinkLayer::TransmitFailed().

◆ ProcessInput()

virtual bool wsf::comm::LayerImp::ProcessInput ( UtInput & aInput )

pure virtual

Implemented in wsf::comm::ApplicationLayer, wsf::comm::DatalinkLayer, wsf::comm::NetworkLayer, wsf::comm::PhysicalLayer, wsf::comm::PhysicalLayerJTIDS, wsf::comm::PresentationLayer, wsf::comm::SessionLayer, wsf::comm::SlotGroupLayerJTIDS, and wsf::comm::TransportLayer.

Referenced by wsf::comm::Layer::ProcessInput().

◆ ProcessLayerMessage()

virtual bool wsf::comm::LayerImp::ProcessLayerMessage	(	double	aSimTime,
		layer::Message	aLayerMessage,
		Message *	aCommMessagePtr )

pure virtual

Process a layer event.

Parameters

aSimTime	[input] The current simulation time.
aLayerMessage	[input] The layer message.
aCommMessagePtr	[input] The message being processed.

Implemented in wsf::comm::ApplicationLayer, wsf::comm::DatalinkLayer, wsf::comm::NetworkLayer, wsf::comm::PhysicalLayer, wsf::comm::PhysicalLayerJTIDS, wsf::comm::PresentationLayer, wsf::comm::SessionLayer, wsf::comm::SlotGroupLayerJTIDS, and wsf::comm::TransportLayer.

References Parent(), and SetParent().

Referenced by wsf::comm::Layer::ProcessLayerMessage().

◆ Receive()

virtual bool wsf::comm::LayerImp::Receive	(	double	aSimTime,
		Comm *	aXmtrPtr,
		Message &	aMessage,
		bool &	aNotifyNextLayer )

pure virtual

Receive the message in this layer.

Parameters

aSimTime	[input] The current simulation time.
aXmtrPtr	[input] The comm device that sent the message.
aMessage	[input] The communication message being received.
aNotifyNextLayer	[output] True if the next layer above this one should immediately process this message.

Returns: 'true' if layer successfully processed the message.

Implemented in wsf::comm::ApplicationLayer, wsf::comm::DatalinkLayer, wsf::comm::NetworkLayer, wsf::comm::PhysicalLayer, wsf::comm::PhysicalLayerJTIDS, wsf::comm::PresentationLayer, wsf::comm::SessionLayer, wsf::comm::SlotGroupLayerJTIDS, and wsf::comm::TransportLayer.

Referenced by wsf::comm::Layer::Receive().

◆ Send()

virtual bool wsf::comm::LayerImp::Send	(	double	aSimTime,
		size_t	aLayerIndex,
		Message &	aMessage,
		bool &	aNotifyNextLayer )

pure virtual

Send the message to this layer.

Parameters

aSimTime	[input] The current simulation time.
aLayerIndex	[input] The index in the protocol stack for this layer.
aMessage	[input] The communication message being received.
aNotifyNextLayer	[output] True if the next layer below this one should immediately process this message.

Returns: 'true' if layer successfully processed the message.

Implemented in wsf::comm::ApplicationLayer, wsf::comm::DatalinkLayer, wsf::comm::NetworkLayer, wsf::comm::PhysicalLayer, wsf::comm::PhysicalLayerJTIDS, wsf::comm::PresentationLayer, wsf::comm::SessionLayer, wsf::comm::SlotGroupLayerJTIDS, and wsf::comm::TransportLayer.

Referenced by wsf::comm::Layer::Send().

◆ SetDebugEnabled()

void wsf::comm::LayerImp::SetDebugEnabled ( bool aDebugEnabled )

inline

Set the debug state.

Parameters

aDebugEnabled New debug state

Referenced by wsf::comm::Layer::SetDebugEnabled().

◆ SetIndex()

void wsf::comm::LayerImp::SetIndex ( size_t aIndex )

inline

Referenced by wsf::comm::Layer::SetIndex().

◆ SetLowerLayer()

void wsf::comm::LayerImp::SetLowerLayer ( Layer * aLayerPtr )

inline

◆ SetParent()

void wsf::comm::LayerImp::SetParent ( Comm * aParentCommPtr )

Referenced by wsf::comm::Layer::Layer(), ProcessLayerMessage(), and wsf::comm::Layer::SetParent().

◆ SetUpperLayer()

void wsf::comm::LayerImp::SetUpperLayer ( Layer * aLayerPtr )

inline
