WsfXIO_Packet Class Reference

Base class for XIO Packets. Provides the header information. More...

#include <WsfXIO_Packet.hpp>

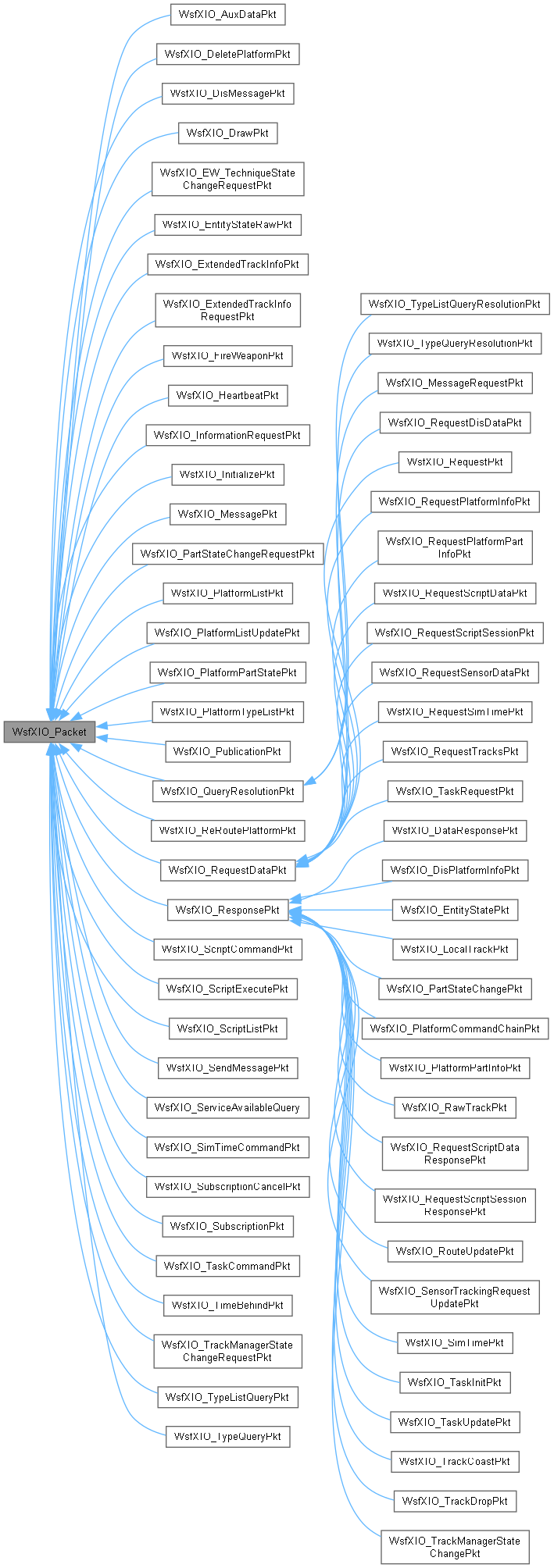

Inheritance diagram for WsfXIO_Packet:

Public Types
enum	PacketFlags { cSYNCHRONIZED = 1 }
typedef bool	BaseType

Public Member Functions
	WsfXIO_Packet (int aPacketId)
template<typename T>
void	Serialize (T &aBuff)
	Serializes the packet header. Must be called first from derived class Serialize().
float	GetTimeStamp () const
void	SetTimeStamp (float aTimeStamp)
void	SetFlags (uint32_t aFlags)
void	AddFlags (uint32_t aFlags)
uint32_t	GetFlags () const

Public Attributes
GenUniqueId	mApplicationId

Static Public Attributes
static const int	cPACKET_ID = -1

Protected Attributes
uint32_t	mFlags
float	mTimeStamp

Detailed Description

Base class for XIO Packets. Provides the header information.

Member Typedef Documentation

BaseType

typedef bool WsfXIO_Packet::BaseType

Member Enumeration Documentation

PacketFlags

enum WsfXIO_Packet::PacketFlags

Enumerator
cSYNCHRONIZED	Indicates the packet should be synchronized if possible.

Constructor & Destructor Documentation

WsfXIO_Packet()

WsfXIO_Packet::WsfXIO_Packet ( int aPacketId )

inline

References mFlags.

Referenced by WsfXIO_ResponsePkt::mCompletesRequest(), WsfXIO_RequestDataPkt::WsfXIO_RequestDataPkt(), WsfXIO_AuxDataPkt::XIO_DEFINE_PACKET(), WsfXIO_DeletePlatformPkt::XIO_DEFINE_PACKET(), WsfXIO_DisMessagePkt::XIO_DEFINE_PACKET(), WsfXIO_DrawPkt::XIO_DEFINE_PACKET(), WsfXIO_EntityStateRawPkt::XIO_DEFINE_PACKET(), WsfXIO_EW_TechniqueStateChangeRequestPkt::XIO_DEFINE_PACKET(), WsfXIO_ExtendedTrackInfoPkt::XIO_DEFINE_PACKET(), WsfXIO_ExtendedTrackInfoRequestPkt::XIO_DEFINE_PACKET(), WsfXIO_FireWeaponPkt::XIO_DEFINE_PACKET(), WsfXIO_HeartbeatPkt::XIO_DEFINE_PACKET(), WsfXIO_InformationRequestPkt::XIO_DEFINE_PACKET(), WsfXIO_InitializePkt::XIO_DEFINE_PACKET(), WsfXIO_MessagePkt::XIO_DEFINE_PACKET(), WsfXIO_PartStateChangeRequestPkt::XIO_DEFINE_PACKET(), WsfXIO_PlatformListPkt::XIO_DEFINE_PACKET(), WsfXIO_PlatformListUpdatePkt::XIO_DEFINE_PACKET(), WsfXIO_PlatformPartStatePkt::XIO_DEFINE_PACKET(), WsfXIO_PlatformTypeListPkt::XIO_DEFINE_PACKET(), WsfXIO_PublicationPkt::XIO_DEFINE_PACKET(), WsfXIO_QueryResolutionPkt::XIO_DEFINE_PACKET(), WsfXIO_ScriptCommandPkt::XIO_DEFINE_PACKET(), WsfXIO_ScriptExecutePkt::XIO_DEFINE_PACKET(), WsfXIO_ScriptListPkt::XIO_DEFINE_PACKET(), WsfXIO_SendMessagePkt::XIO_DEFINE_PACKET(), WsfXIO_ServiceAvailableQuery::XIO_DEFINE_PACKET(), WsfXIO_SimTimeCommandPkt::XIO_DEFINE_PACKET(), WsfXIO_SubscriptionCancelPkt::XIO_DEFINE_PACKET(), WsfXIO_SubscriptionPkt::XIO_DEFINE_PACKET(), WsfXIO_TimeBehindPkt::XIO_DEFINE_PACKET(), WsfXIO_TrackManagerStateChangeRequestPkt::XIO_DEFINE_PACKET(), WsfXIO_TypeListQueryPkt::XIO_DEFINE_PACKET(), and WsfXIO_TypeQueryPkt::XIO_DEFINE_PACKET().

Member Function Documentation

AddFlags()

void WsfXIO_Packet::AddFlags ( uint32_t aFlags )

inline

References mFlags.

GetFlags()

uint32_t WsfXIO_Packet::GetFlags ( ) const

inline

References mFlags.

GetTimeStamp()

float WsfXIO_Packet::GetTimeStamp ( ) const

inline

References mTimeStamp.

Serialize()

template<typename T>

void WsfXIO_Packet::Serialize ( T & aBuff )

inline

Serializes the packet header. Must be called first from derived class Serialize().

References mApplicationId, mFlags, and mTimeStamp.

Referenced by WsfXIO_RequestDataPkt::Serialize(), WsfXIO_ReRoutePlatformPkt::Serialize(), and WsfXIO_TaskCommandPkt::Serialize().

SetFlags()

void WsfXIO_Packet::SetFlags ( uint32_t aFlags )

inline

References mFlags.

Referenced by WsfXIO_PlatformInfoService::EvaluateDeadReckoningEvent::SendState().

SetTimeStamp()

void WsfXIO_Packet::SetTimeStamp ( float aTimeStamp )

inline

References mTimeStamp.

Referenced by WsfXIO_Interface::Send(), WsfXIO_Interface::Send(), WsfXIO_Interface::SendToAll(), and WsfXIO_Interface::SendToAllUDP().

Member Data Documentation

cPACKET_ID

const int WsfXIO_Packet::cPACKET_ID = -1

static

Referenced by WsfXIO_TaskRequest::HandleResponse(), and WsfXIO_TrackRequest::HandleResponse().

mApplicationId

GenUniqueId WsfXIO_Packet::mApplicationId

Referenced by WsfXIO_Interface::Send(), WsfXIO_Interface::Send(), WsfXIO_Interface::SendToAll(), WsfXIO_Interface::SendToAllTCP(), WsfXIO_Interface::SendToAllUDP(), Serialize(), and WsfXIO_Interface::WsfXIO_Interface().

mFlags

uint32_t WsfXIO_Packet::mFlags

protected

Referenced by AddFlags(), GetFlags(), Serialize(), SetFlags(), and WsfXIO_Packet().

mTimeStamp

float WsfXIO_Packet::mTimeStamp

protected

Referenced by GetTimeStamp(), Serialize(), and SetTimeStamp().

---

The documentation for this class was generated from the following file:

• WsfXIO_Packet.hpp
