#include <WsfSpaceOrbitalPropagatorCondition.hpp>

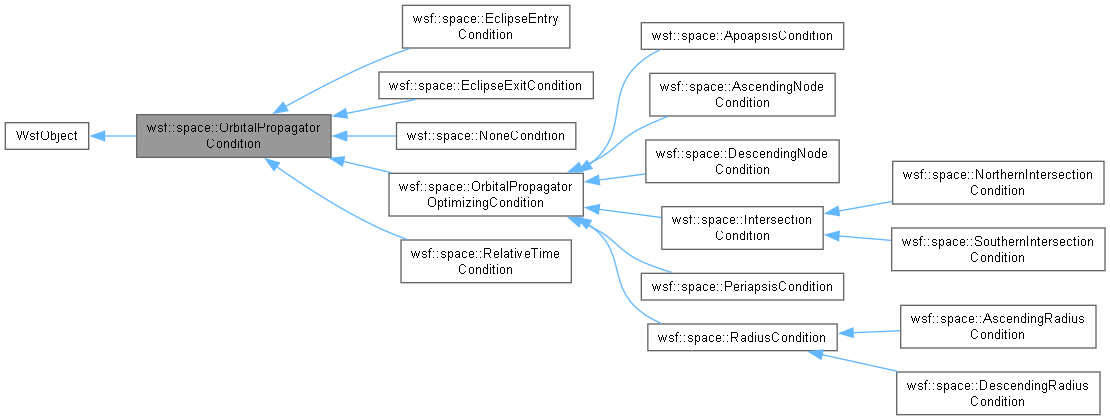

Inheritance diagram for wsf::space::OrbitalPropagatorCondition:

[legend]

Collaboration diagram for wsf::space::OrbitalPropagatorCondition:

Public Member Functions
OrbitalPropagatorCondition *	Clone () const override=0
bool	ProcessInput (UtInput &aInput) override
unsigned	GetOrbitNumber () const
	Return the orbit number.
void	SetOrbitNumber (unsigned aOrbitNumber)
	Set the orbit number.
virtual bool	ValidateParameterRanges () const
virtual bool	GetTimeToCondition (const UtOrbitalPropagatorBase &aPropagator, double &aTimeToCondition) const =0
virtual void	Accept (OrbitalPropagatorConditionVisitor &aVisitor)=0
	Accept a visitor.
virtual std::string	GetConditionString () const =0
	Return the string identifying the condition.
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Protected Attributes
unsigned	mOrbitNumber {0}

Additional Inherited Members
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Detailed Description

A condition that might be satisfied during orbital propagation. This class represents a condition that might obtain during orbital propagation and is used to find execution times of orbital mission events. All conditions are able to set an orbit number, which specifies how many full orbits should execute before considering if the condition is satisfied.

Member Function Documentation

◆ Accept()

virtual void wsf::space::OrbitalPropagatorCondition::Accept ( OrbitalPropagatorConditionVisitor & aVisitor )

pure virtual

Accept a visitor.

Implemented in wsf::space::ApoapsisCondition, wsf::space::AscendingNodeCondition, wsf::space::AscendingRadiusCondition, wsf::space::DescendingNodeCondition, wsf::space::DescendingRadiusCondition, wsf::space::EclipseEntryCondition, wsf::space::EclipseExitCondition, wsf::space::NoneCondition, wsf::space::NorthernIntersectionCondition, wsf::space::PeriapsisCondition, wsf::space::RelativeTimeCondition, and wsf::space::SouthernIntersectionCondition.

◆ Clone()

OrbitalPropagatorCondition * wsf::space::OrbitalPropagatorCondition::Clone ( ) const

overridepure virtual

Return a copy of this object. Must be implemented by all derived types. If cloning is impossible, a WsfUncloneableException should be thrown.

Implements WsfObject.

Implemented in wsf::space::ApoapsisCondition, wsf::space::AscendingNodeCondition, wsf::space::AscendingRadiusCondition, wsf::space::DescendingNodeCondition, wsf::space::DescendingRadiusCondition, wsf::space::EclipseEntryCondition, wsf::space::EclipseExitCondition, wsf::space::NoneCondition, wsf::space::NorthernIntersectionCondition, wsf::space::PeriapsisCondition, wsf::space::RelativeTimeCondition, and wsf::space::SouthernIntersectionCondition.

References ProcessInput().

◆ GetConditionString()

virtual std::string wsf::space::OrbitalPropagatorCondition::GetConditionString ( ) const

pure virtual

Return the string identifying the condition.

Implemented in wsf::space::ApoapsisCondition, wsf::space::AscendingNodeCondition, wsf::space::AscendingRadiusCondition, wsf::space::DescendingNodeCondition, wsf::space::DescendingRadiusCondition, wsf::space::EclipseEntryCondition, wsf::space::EclipseExitCondition, wsf::space::NoneCondition, wsf::space::NorthernIntersectionCondition, wsf::space::PeriapsisCondition, wsf::space::RelativeTimeCondition, and wsf::space::SouthernIntersectionCondition.

Referenced by wsf::space::OrbitalPropagatorOptimizingCondition::GetTimeToCondition().

◆ GetOrbitNumber()

unsigned wsf::space::OrbitalPropagatorCondition::GetOrbitNumber ( ) const

inline

Return the orbit number.

References mOrbitNumber.

Referenced by wsf::space::EclipseEntryCondition::GetTimeToCondition(), and wsf::space::EclipseExitCondition::GetTimeToCondition().

◆ GetTimeToCondition()

virtual bool wsf::space::OrbitalPropagatorCondition::GetTimeToCondition	(	const UtOrbitalPropagatorBase &	aPropagator,
		double &	aTimeToCondition ) const

pure virtual

Get the time at which the condition is satisfied. This method computes the time in seconds from the current time of the aPropagator at which the condition is satisfied. If the method is able to compute such a time, the aTimeToCondition is set to the appropriate value and this method returns true. If the method is unable to determine when the condition obtains, then the method returns false.

Parameters

aPropagator	- The propagator for which the time to the condition being satisfied is desired.
aTimeToCondition	[out] - The time in seconds from the current time of the provided `aPropagator` at which the condition is satisfied.

Returns: true if the time was able to be determined; false otherwise.

Implemented in wsf::space::EclipseEntryCondition, wsf::space::EclipseExitCondition, wsf::space::NoneCondition, wsf::space::OrbitalPropagatorOptimizingCondition, and wsf::space::RelativeTimeCondition.

Referenced by WsfOrbitalScriptEvent::GetNextExecutionTime(), and UT_DEFINE_SCRIPT_METHOD().

◆ ProcessInput()

bool wsf::space::OrbitalPropagatorCondition::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput a reference to a UtInput object.

Returns: 'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase (or an object derived from it) if the command was recognized but contains some sort of error.

Note: If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from WsfObject.

Reimplemented in wsf::space::RadiusCondition, and wsf::space::RelativeTimeCondition.

Referenced by Clone().

◆ SetOrbitNumber()

void wsf::space::OrbitalPropagatorCondition::SetOrbitNumber ( unsigned aOrbitNumber )

inline

Set the orbit number.

References mOrbitNumber.

Referenced by WsfOrbitalScriptEvent::GetNextExecutionTime(), and WsfOrbitalManeuver::InitializeTimes().

◆ ValidateParameterRanges()

virtual bool wsf::space::OrbitalPropagatorCondition::ValidateParameterRanges ( ) const

inlinevirtual

Validate any input parameters for the conditions. This method should be overridden for conditions that take parameters for which there are some restrictions on their values (e.g., the parameter must be positive). If the parameter is outside the allowed range, this method should print an error and return false.

Returns: true if all parameters are valid; false otherwise.

Reimplemented in wsf::space::RadiusCondition, and wsf::space::RelativeTimeCondition.

Member Data Documentation

◆ mOrbitNumber

unsigned wsf::space::OrbitalPropagatorCondition::mOrbitNumber {0}

protected

Referenced by GetOrbitNumber(), wsf::space::NoneCondition::GetTimeToCondition(), wsf::space::OrbitalPropagatorOptimizingCondition::GetTimeToCondition(), wsf::space::RelativeTimeCondition::GetTimeToCondition(), wsf::space::ApoapsisCondition::HandleSpecialCases(), wsf::space::AscendingNodeCondition::HandleSpecialCases(), wsf::space::DescendingNodeCondition::HandleSpecialCases(), wsf::space::IntersectionCondition::HandleSpecialCases(), wsf::space::PeriapsisCondition::HandleSpecialCases(), wsf::space::ApoapsisCondition::InitialGuess(), wsf::space::AscendingNodeCondition::InitialGuess(), wsf::space::AscendingRadiusCondition::InitialGuess(), wsf::space::DescendingNodeCondition::InitialGuess(), wsf::space::DescendingRadiusCondition::InitialGuess(), wsf::space::NorthernIntersectionCondition::InitialGuess(), wsf::space::PeriapsisCondition::InitialGuess(), wsf::space::SouthernIntersectionCondition::InitialGuess(), and SetOrbitNumber().

The documentation for this class was generated from the following files:
