#include <WsfOrbitalManeuver.hpp>

Inheritance diagram for WsfOrbitalManeuver:

[legend]

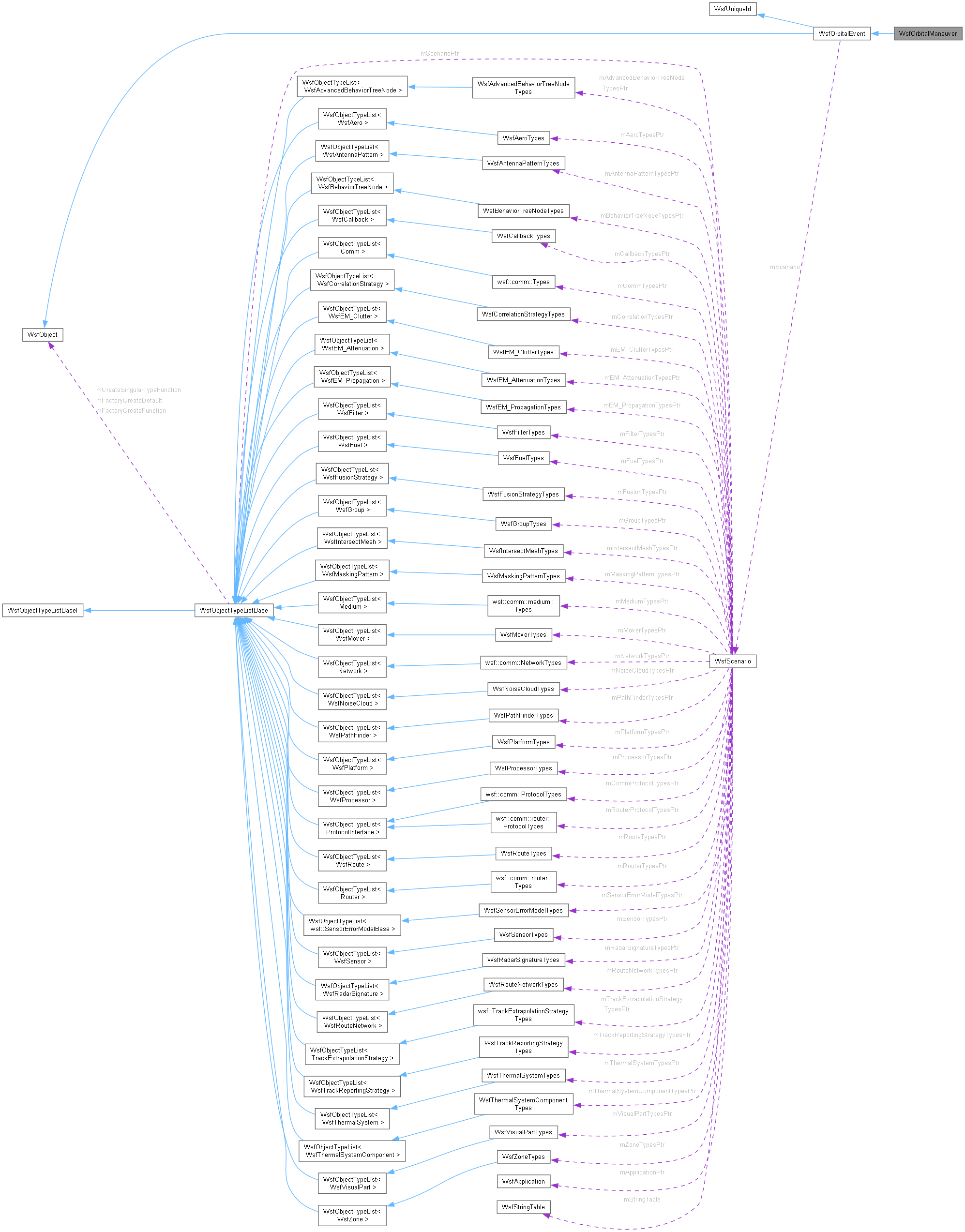

Collaboration diagram for WsfOrbitalManeuver:

[legend]

Public Member Functions
	WsfOrbitalManeuver (const WsfOrbitalManeuver &aSrc)=default
WsfOrbitalManeuver &	operator= (const WsfOrbitalManeuver &)=delete
	~WsfOrbitalManeuver () override=default
WsfOrbitalManeuver *	Clone () const override=0
	Make a copy of this object.
bool	VerifyCondition () const override
bool	EvaluatePreconditions (const wsf::space::OrbitalMissionContext &aContext) const override
bool	EvaluatePostconditions (const wsf::space::OrbitalMissionContext &aContext) const override
virtual void	ComputeDeltaV (const UtCalendar &aCurrentTime, const UtCalendar &aEvaluationTime, const UtOrbitalPropagatorBase &aPropagator, UtVec3d &aDeltaV) const
const char *	GetScriptClassName () const override
	Return the name of the script class associated with this class.
double	GetDeltaV () const override
double	GetRequiredDeltaV (const UtOrbitalPropagatorBase &aPropagator) const override
Public Member Functions inherited from WsfOrbitalEvent
	WsfOrbitalEvent (const WsfOrbitalEvent &aSrc)
WsfOrbitalEvent &	operator= (const WsfOrbitalEvent &)=delete
	~WsfOrbitalEvent () override=default
bool	ProcessInput (UtInput &aInput) override
virtual bool	Initialize (const UtCalendar &aEpoch, const wsf::space::OrbitalMissionContext &aContext)
bool	CanVerify () const
	Return whether this event can be verified.
virtual bool	ValidateParameterRanges (const std::string &aExecutingPlatformName) const
bool	IsComplete () const
	Return whether the event is complete.
bool	IsCanceled () const
	Return whether the event is canceled.
void	SetCanceled ()
	Mark the event as canceled.
bool	Execute (const UtCalendar &aEpoch, wsf::space::OrbitalMissionContext &aContext)
const char *	GetScriptClassName () const override
bool	IsFinite () const
void	SetFinite (bool aIsFinite)
	Set whether the event is finite.
bool	HasExecuted () const
	Return whether the event has executed at least once (i.e., Execute() has been called).
const wsf::space::OrbitalPropagatorCondition &	GetCondition () const
	Return the condition for event execution (const).
wsf::space::OrbitalPropagatorCondition &	GetCondition ()
	Return the condition for event execution (non-const).
WsfStringId	GetConditionString () const
	Return the condition string for event execution.
void	SetCondition (std::unique_ptr< wsf::space::OrbitalPropagatorCondition > aConditionPtr)
	Set the condition for execution.
const UtCalendar &	GetStartTime () const
	Return the time at which the event will begin executing.
void	SetStartTime (const UtCalendar &aStartTime)
	Set the start time to begin event execution.
const UtCalendar &	GetEvaluationTime () const
	Return the nominal time to execute the event impulsively.
UtTimeValue	GetDuration () const
	Return the full duration of the event. If the event is impulsive, this method returns 0.
void	SetDuration (const UtTimeValue &aDuration)
	Set the full duration of the event. A value of 0 implies and impulsive event; otherwise it is finite.
void	SetOnlyDuration (const UtTimeValue &aDuration)
UtTimeValue	GetUpdateInterval () const
	For finite events, return the interval at which the event is to be re-evaluated.
void	SetUpdateInterval (const UtTimeValue &aUpdateInterval)
	Set the update interval for which the event is to be re-evaluated.
virtual const WsfOrbitalEvent *	GetCurrentMissionEvent () const
virtual WsfOrbitalEvent *	GetCurrentMissionEvent ()
virtual WsfOrbitalEvent *	AdvanceMissionEvent (const UtCalendar &aEpoch, const wsf::space::OrbitalMissionContext &aContext)
virtual bool	IsSequence () const
	Is this MissionEvent a MissionEvent sequence (WsfMissionEventSequence)?
virtual bool	GetNextExecutionTime (const UtCalendar &aCurrentTime, const UtOrbitalPropagatorBase &aPropagator, UtCalendar &aNextExecutionTime)
	For finite events, return the next time the event should be executed.
virtual void	Accept (WsfOrbitalEventVisitor *aVisitorPtr)=0
Public Member Functions inherited from WsfUniqueId
	WsfUniqueId ()
	Construtor initializes the unique identifier to 0.
	WsfUniqueId (const WsfUniqueId &)
	Copy constructor initializes the unique identifier to 0.
WsfUniqueId &	operator= (const WsfUniqueId &)
unsigned int	GetUniqueId () const
	Get the unique identifier assigned to this object.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Static Public Member Functions
static WsfStringId	GetTypeId ()
Static Public Member Functions inherited from WsfOrbitalEvent
static WsfOrbitalEvent *	Create (const WsfScenario &aScenario, UtInput &aInput, bool aIgnoreSomeExceptions=false)

Protected Member Functions
	WsfOrbitalManeuver (const WsfScenario &aScenario)
bool	InitializeTimes (const UtCalendar &aEpoch, const wsf::space::OrbitalMissionContext &aContext) override
bool	ExecuteEvent (const UtCalendar &aEpoch, wsf::space::OrbitalMissionContext &aContext) override
bool	EvaluateCompletion (const UtCalendar &aEpoch, const UtOrbitalPropagatorBase &aPropagator) override
const UtOrbitalPropagatorBase *	GetTargetPropagatorPerception (WsfLocalTrack &aLocalTrack, const wsf::space::OrbitalMissionContext &aContext) const
const UtOrbitalPropagatorBase *	GetTargetPropagatorTruth (WsfStringId aTargetName, WsfSimulation *aSimulationPtr) const
	Get the truth target propagator associated with a space mover on the named platform.
Protected Member Functions inherited from WsfOrbitalEvent
	WsfOrbitalEvent (const WsfScenario &aScenario)
virtual bool	InitializeVariables (const UtCalendar &aCurrentTime, const UtCalendar &aEvaluationTime, const wsf::space::OrbitalMissionContext &aContext)
Protected Member Functions inherited from WsfUniqueId
void	AssignUniqueId (WsfSimulation *aSimulationPtr)
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Protected Attributes
double	mDeltaV
double	mRemainingDeltaV
Protected Attributes inherited from WsfOrbitalEvent
ut::CloneablePtr< wsf::space::OrbitalPropagatorCondition >	mCondition {}
bool	mIsFinite
bool	mHasExecuted
bool	mIsComplete
bool	mIsCanceled
bool	mDebug
bool	mCanVerify
UtCalendar	mStartTime
	Can this event be verified without running in a simulation?
UtCalendar	mEvaluationTime
UtTimeValue	mDuration
UtTimeValue	mUpdateInterval
const WsfScenario &	mScenario

Additional Inherited Members
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
Static Protected Member Functions inherited from WsfOrbitalEvent
static WsfOrbitalEvent *	Create (const WsfScenario &aScenario, WsfStringId aType)

Detailed Description

A Base class for orbital maneuvers. Derived classes must define the "ComputeDeltaV" and "Clone" methods. For any maneuvers that rely on a Condition (see below) to succeed, the "EvaluatePreconditions" method should be implemented. Likewise, for any post-maneuver criteria that must be evaluated (e.g., orbit not intersecting the Earth), the "EvaluatePostConditions" method should be implemented. Orbital maneuvers can either be executed with a mover in the context of a simulation, or they can be executed exclusively with an orbital propagator. In the latter case, the unique id and script accessible base classes are not used.

Constructor & Destructor Documentation

◆ WsfOrbitalManeuver() [1/2]

WsfOrbitalManeuver::WsfOrbitalManeuver ( const WsfOrbitalManeuver & aSrc )

default

References WsfOrbitalManeuver().

Referenced by Clone(), operator=(), and WsfOrbitalManeuver().

◆ ~WsfOrbitalManeuver()

WsfOrbitalManeuver::~WsfOrbitalManeuver ( )

overridedefault

◆ WsfOrbitalManeuver() [2/2]

WsfOrbitalManeuver::WsfOrbitalManeuver ( const WsfScenario & aScenario )

protected

References GetTypeId(), mDeltaV, mRemainingDeltaV, WsfObject::SetType(), and WsfOrbitalEvent::WsfOrbitalEvent().

Member Function Documentation

◆ Clone()

WsfOrbitalManeuver * WsfOrbitalManeuver::Clone ( ) const

overridepure virtual

Make a copy of this object.

Implements WsfOrbitalEvent.

References WsfOrbitalManeuver().

◆ ComputeDeltaV()

virtual void WsfOrbitalManeuver::ComputeDeltaV	(	const UtCalendar &	aCurrentTime,
		const UtCalendar &	aEvaluationTime,
		const UtOrbitalPropagatorBase &	aPropagator,
		UtVec3d &	aDeltaV ) const

inlinevirtual

Compute the total delta-V needed to complete the associated maneuver. If this is a finite maneuver this method will be called multiple times to complete the maneuver.

Parameters

aCurrentTime	The current time, which may be different than the evaluation time in a finite maneuver. For example, the maneuver may be scheduled to start before the evaluation time to provide an optimal burn interval about the given constraint. Typically this will start at mStartTime and continue to be evaluated at the update interval of the maneuver.
aEvaluationTime	The time at which the delta-v is to be computed. Typically this will be mEvaluationTime.
aPropagator	The propagator representing the current state of the executor of the maneuver. When executing in a simulation context, this propagator will refer to the space mover's propagator. When executing in a verification context, this propagator will be the propagator performing the trial run of the mission sequence.
aDeltaV	The delta-v required to complete the maneuver.

Referenced by ExecuteEvent(), GetRequiredDeltaV(), and InitializeTimes().

◆ EvaluateCompletion()

bool WsfOrbitalManeuver::EvaluateCompletion	(	const UtCalendar &	aEpoch,
		const UtOrbitalPropagatorBase &	aPropagator )

overrideprotectedvirtual

Evaluate whether a maneuver is marked as complete. If it is complete, mIsComplete is true in Execute(). otherwise do nothing. The default implementation checks to see whether sufficient delta-V has been expended to complete the maneuver.

Reimplemented from WsfOrbitalEvent.

References mRemainingDeltaV.

◆ EvaluatePostconditions()

bool WsfOrbitalManeuver::EvaluatePostconditions ( const wsf::space::OrbitalMissionContext & aContext ) const

overridevirtual

As part of maneuver verification, evaluate any required postconditions associated with the maneuver. These checks involve making sure that this is an expected post-maneuver orbit; for instance, there is no intersection with the earth and it is not hyperbolic.

Parameters

aContext The orbital mission context in which this event is executing.

Returns: True if the post-conditions are met, false otherwise.

Reimplemented from WsfOrbitalEvent.

References wsf::space::OrbitalMissionContext::GetAvailableDeltaV(), wsf::space::OrbitalMissionContext::GetPropagator(), GetRequiredDeltaV(), WsfObject::GetType(), and ok.

◆ EvaluatePreconditions()

bool WsfOrbitalManeuver::EvaluatePreconditions ( const wsf::space::OrbitalMissionContext & aContext ) const

overridevirtual

As part of maneuver verification, evaluate any preconditions associated with the maneuver. Usually this involves making sure that the provided WsfOrbitalManeuver::Condition is correct.

Parameters

aContext The orbital mission context in which this event is executing.

Returns: True if the preconditions are met, false otherwise.

Reimplemented from WsfOrbitalEvent.

References WsfObject::GetType(), ok, and VerifyCondition().

◆ ExecuteEvent()

bool WsfOrbitalManeuver::ExecuteEvent	(	const UtCalendar &	aEpoch,
		wsf::space::OrbitalMissionContext &	aContext )

overrideprotectedvirtual

Direct the space mover associated with this maneuver to execute the maneuver. The space mover may or may not be successful in actually executing the maneuver due to delta-V limitations. In the case of finite maneuvers, this method is called multiple times at the given update interval.

Parameters

aEpoch	The absolute time at which to execute the maneuver.
aContext	The orbital mission context in which this event is executing.

Implements WsfOrbitalEvent.

References ComputeDeltaV(), wsf::space::OrbitalMissionContext::GetPropagator(), wsf::space::OrbitalMissionContext::Maneuver(), mDeltaV, WsfOrbitalEvent::mEvaluationTime, mRemainingDeltaV, success, and wsf::space::OrbitalMissionContext::Update().

◆ GetDeltaV()

double WsfOrbitalManeuver::GetDeltaV ( ) const

inlineoverridevirtual

Get the delta V expended to execute this maneuver. This value may increment during execution of a finite maneuver. the full value is only valid when IsComplete() is true.

Reimplemented from WsfOrbitalEvent.

References mDeltaV.

◆ GetRequiredDeltaV()

double WsfOrbitalManeuver::GetRequiredDeltaV ( const UtOrbitalPropagatorBase & aPropagator ) const

overridevirtual

Return the minimum required delta-v needed to complete this maneuver. If the maneuver is impulsive, this value will be the actual required value; otherwise if finite, the actual value will be greater.

Note: Use this method to determine the feasibility of maneuver execution for a given delta-V budget.

Reimplemented from WsfOrbitalEvent.

References ComputeDeltaV(), and WsfOrbitalEvent::mEvaluationTime.

Referenced by EvaluatePostconditions(), and InitializeTimes().

◆ GetScriptClassName()

const char * WsfOrbitalManeuver::GetScriptClassName ( ) const

inlineoverride

Return the name of the script class associated with this class.

◆ GetTargetPropagatorPerception()

const UtOrbitalPropagatorBase * WsfOrbitalManeuver::GetTargetPropagatorPerception	(	WsfLocalTrack &	aLocalTrack,
		const wsf::space::OrbitalMissionContext &	aContext ) const

protected

Get the target propagator already associated with a track, or if possible, create and attach a propagator (in aux data with a key of "propagator").

References WsfAuxDataEnabled::GetAuxData(), WsfAuxDataEnabled::GetAuxDataConst(), WsfEnvironment::GetCentralBody(), WsfSimulation::GetDateTime(), WsfSimulation::GetEnvironment(), WsfPlatform::GetMover(), WsfObject::GetName(), WsfNORAD_PropagatorInverter::GetOrbitalState(), WsfSimulation::GetPlatformByIndex(), wsf::space::OrbitalMissionContext::GetPropagator(), WsfSpaceMoverBase::GetPropagator(), wsf::space::OrbitalMissionContext::GetSimulation(), WsfDateTime::GetStartDateAndTime(), WsfTrack::GetTargetIndex(), WsfTrack::GetUpdateTime(), WsfObject::IsA_TypeOf(), WsfObject::SetName(), and WsfNORAD_PropagatorInverter::SolutionFound().

◆ GetTargetPropagatorTruth()

const UtOrbitalPropagatorBase * WsfOrbitalManeuver::GetTargetPropagatorTruth	(	WsfStringId	aTargetName,
		WsfSimulation *	aSimulationPtr ) const

protected

Get the truth target propagator associated with a space mover on the named platform.

References WsfPlatform::GetMover(), WsfSimulation::GetPlatformByName(), and WsfSpaceMoverBase::GetPropagator().

◆ GetTypeId()

WsfStringId WsfOrbitalManeuver::GetTypeId ( )

static

Referenced by WsfOrbitalManeuver().

◆ InitializeTimes()

bool WsfOrbitalManeuver::InitializeTimes	(	const UtCalendar &	aEpoch,
		const wsf::space::OrbitalMissionContext &	aContext )

overrideprotectedvirtual

Initialize the start and evaluation times for the maneuver. In the case of finite maneuvering set the start time according to a patched conic approximation.

Note: For finite maneuvers the start time can be before the epoch; in that case we advance the maneuver one or more orbits and print a warning.

Reimplemented from WsfOrbitalEvent.

References ComputeDeltaV(), wsf::space::RelativeTimeCondition::cTYPE, wsf::space::OrbitalMissionContext::GetAvailableDeltaV(), WsfOrbitalEvent::GetCondition(), wsf::space::OrbitalMissionContext::GetManeuverDuration(), wsf::space::OrbitalMissionContext::GetName(), wsf::space::OrbitalMissionContext::GetPropagator(), GetRequiredDeltaV(), WsfObject::GetType(), InitializeTimes(), WsfOrbitalEvent::InitializeVariables(), WsfOrbitalEvent::mCondition, WsfOrbitalEvent::mDuration, WsfOrbitalEvent::mEvaluationTime, WsfOrbitalEvent::mIsFinite, WsfOrbitalEvent::mStartTime, ok, and wsf::space::OrbitalPropagatorCondition::SetOrbitNumber().

Referenced by InitializeTimes().

◆ operator=()

WsfOrbitalManeuver & WsfOrbitalManeuver::operator= ( const WsfOrbitalManeuver & )

delete

References WsfOrbitalManeuver().

◆ VerifyCondition()

bool WsfOrbitalManeuver::VerifyCondition ( ) const

overridevirtual

Verify that the condition set in the maneuver is one of the possible valid constraints. Note that when executed the constraint may not be valid at the time.

Reimplemented from WsfOrbitalEvent.

Referenced by EvaluatePreconditions().

Member Data Documentation

◆ mDeltaV

double WsfOrbitalManeuver::mDeltaV

protected

Referenced by ExecuteEvent(), GetDeltaV(), and WsfOrbitalManeuver().

◆ mRemainingDeltaV

double WsfOrbitalManeuver::mRemainingDeltaV

protected

Referenced by EvaluateCompletion(), ExecuteEvent(), and WsfOrbitalManeuver().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ WsfOrbitalManeuver() [1/2]

◆ ~WsfOrbitalManeuver()

◆ WsfOrbitalManeuver() [2/2]

Member Function Documentation

◆ Clone()

◆ ComputeDeltaV()

◆ EvaluateCompletion()

◆ EvaluatePostconditions()

◆ EvaluatePreconditions()

◆ ExecuteEvent()

◆ GetDeltaV()

◆ GetRequiredDeltaV()

◆ GetScriptClassName()

◆ GetTargetPropagatorPerception()

◆ GetTargetPropagatorTruth()

◆ GetTypeId()

◆ InitializeTimes()

◆ operator=()

◆ VerifyCondition()

Member Data Documentation

◆ mDeltaV

◆ mRemainingDeltaV
