The standard representation of infrared signature using a collection of tables. More...

#include <WsfStandardInfraredSignature.hpp>

Inheritance diagram for WsfStandardInfraredSignature:

[legend]

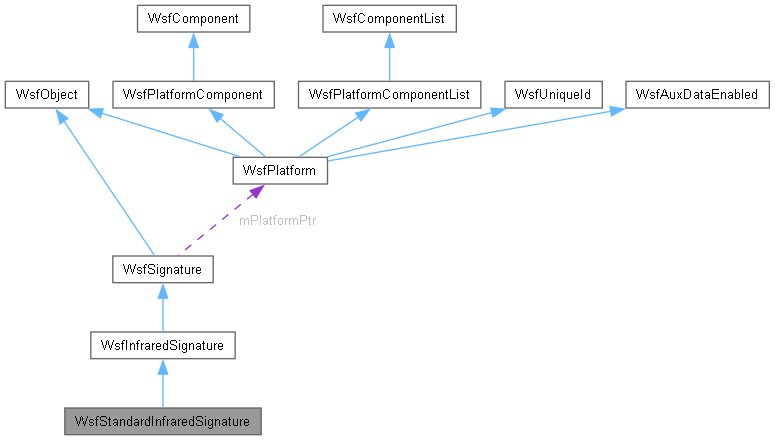

Collaboration diagram for WsfStandardInfraredSignature:

[legend]

Classes
class	Table
	A 'Table' represents the signature for a given frequency band. More...
class	State
	A 'State' represents all of the tables for a given signature state. More...

Public Types
using	BandIndex = std::vector<Table>::size_type
using	StateIndex = std::vector<State>::size_type
Public Types inherited from WsfInfraredSignature
enum	{ cSIGNATURE_INDEX = 2 }
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.

Public Member Functions
	WsfStandardInfraredSignature ()=default
WsfInfraredSignature *	Clone () const override
bool	InitializeType () override
std::vector< WsfStringId >	GetStateNames () const override
	get the list of all valid states belonging to the signature
bool	ProcessInput (UtInput &aInput) override
float	GetSignature (double aSimTime, WsfStringId aStateId, WsfEM_Types::InfraredBand aBand, double aAzimuth, double aElevation) override
const std::vector< State > &	GetStates () const
Public Member Functions inherited from WsfInfraredSignature
	WsfInfraredSignature ()
Public Member Functions inherited from WsfSignature
	WsfSignature ()
	WsfSignature (const WsfSignature &aSrc)
WsfSignature &	operator= (const WsfSignature &)=delete
	~WsfSignature () override=default
virtual bool	Initialize (double aSimTime, WsfPlatform *aPlatformPtr)
virtual bool	IsA_ValidState (WsfStringId aId) const
bool	RequiresPlatform () const
	indicates that a signature can be queried without a valid mPlatform
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Static Public Member Functions
static WsfInfraredSignature *	ObjectFactory (const std::string &aTypeName)
	Factory method called by WsfInfraredSignatureTypes.
static WsfStringId	GetInputType (WsfPlatform *aPlatformPtr)
static WsfStringId	GetState (WsfPlatform *aPlatformPtr)
static bool	SetState (WsfPlatform *aPlatformPtr, WsfStringId aState)
static float	GetScaleFactor (WsfPlatform *aPlatformPtr)
static bool	SetScaleFactor (WsfPlatform *aPlatformPtr, float aScaleFactor)
static float	GetValue (double aSimTime, WsfPlatform *aPlatformPtr, WsfEM_Types::InfraredBand aBand, double aAzimuth, double aElevation)
static void	RegisterScriptMethods (UtScriptTypes &aScriptTypes)
static void	RegisterInterface (WsfScenario &aScenario)
	Register the platform interface object on the prototype signature list in the specified scenario.

Additional Inherited Members
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).
Static Protected Member Functions inherited from WsfSignature
template<class SignatureState, WsfStringId SignatureState::* IdMember, typename Iterator>
static std::vector< WsfStringId >	GetStateNamesP (Iterator aBegin, Iterator aEnd)
Protected Attributes inherited from WsfSignature
WsfPlatform *	mPlatformPtr
double	mBaseTime
bool	mRequiresPlatform {false}

Detailed Description

The standard representation of infrared signature using a collection of tables.

Member Typedef Documentation

◆ BandIndex

using WsfStandardInfraredSignature::BandIndex = std::vector<Table>::size_type

◆ StateIndex

using WsfStandardInfraredSignature::StateIndex = std::vector<State>::size_type

Constructor & Destructor Documentation

◆ WsfStandardInfraredSignature()

WsfStandardInfraredSignature::WsfStandardInfraredSignature ( )

default

References WsfInfraredSignature::WsfInfraredSignature().

Referenced by Clone(), and ObjectFactory().

Member Function Documentation

◆ Clone()

WsfInfraredSignature * WsfStandardInfraredSignature::Clone ( ) const

overridevirtual

Return a copy of this object. Must be implemented by all derived types. If cloning is impossible, a WsfUncloneableException should be thrown.

Implements WsfInfraredSignature.

References WsfInfraredSignature::WsfInfraredSignature(), and WsfStandardInfraredSignature().

◆ GetSignature()

float WsfStandardInfraredSignature::GetSignature	(	double	aSimTime,
		WsfStringId	aStateId,
		WsfEM_Types::InfraredBand	aBand,
		double	aAzimuth,
		double	aElevation )

overridevirtual

Get the infrared cross section.

Parameters

aSimTime	[input] The current simulation time.
aStateId	[input] The string ID representing the signature state to be used.
aBand	[input] infrared band.
aAzimuth	[input] azimuth of the observer with respect to this platform (radians).
aElevation	[input] elevation of the observer with respect to this platform (radians).

Returns: The infrared cross section (m^2)

Implements WsfInfraredSignature.

◆ GetStateNames()

std::vector< WsfStringId > WsfStandardInfraredSignature::GetStateNames ( ) const

overridevirtual

get the list of all valid states belonging to the signature

Reimplemented from WsfSignature.

References WsfSignature::GetStateNamesP(), and GetStates().

◆ GetStates()

const std::vector< WsfStandardInfraredSignature::State > & WsfStandardInfraredSignature::GetStates ( ) const

Returns: The signatures for all of defined states.

Note: This method was created to allow applications access to signature data. It should not be used to look up signatures.

Referenced by GetStateNames().

◆ InitializeType()

bool WsfStandardInfraredSignature::InitializeType ( )

overridevirtual

Initialize an signature 'type' instance. This is called by WsfObjectTypeList::LoadType after all the input for the instance has been read.

Returns: true if successful.

Reimplemented from WsfSignature.

References WsfSignature::InitializeType(), and ok.

◆ ObjectFactory()

WsfInfraredSignature * WsfStandardInfraredSignature::ObjectFactory ( const std::string & aTypeName )

static

Factory method called by WsfInfraredSignatureTypes.

References WsfInfraredSignature::WsfInfraredSignature(), and WsfStandardInfraredSignature().

Referenced by WsfInfraredSignatureTypes::WsfInfraredSignatureTypes().

◆ ProcessInput()

bool WsfStandardInfraredSignature::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput a reference to a UtInput object.

Returns: 'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase (or an object derived from it) if the command was recognized but contains some sort of error.

Note: If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from WsfSignature.

References WsfObject::ProcessInput().

The documentation for this class was generated from the following files:
