#include <WsfSignature.hpp>

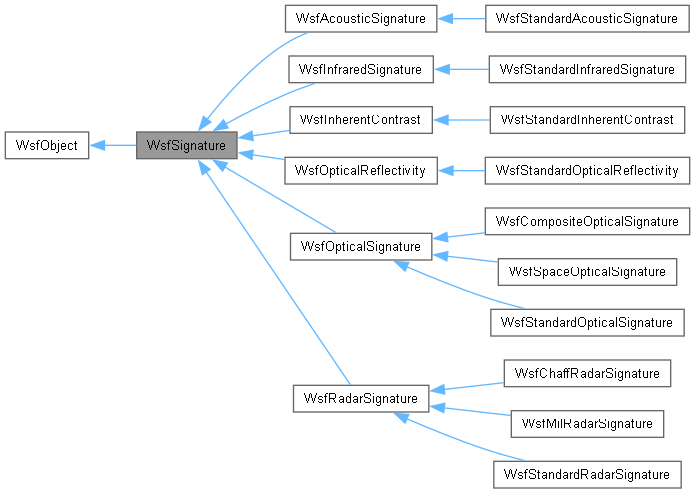

Inheritance diagram for WsfSignature:

[legend]

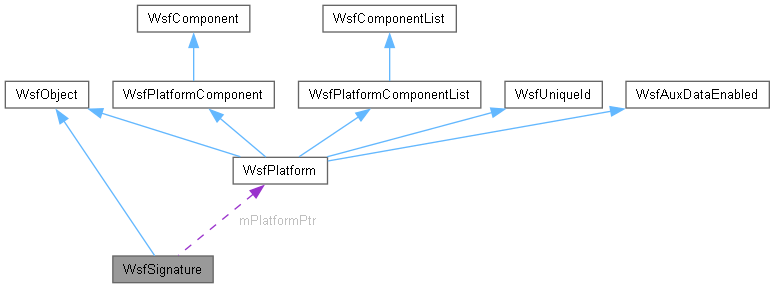

Collaboration diagram for WsfSignature:

[legend]

Public Member Functions
	WsfSignature ()
	WsfSignature (const WsfSignature &aSrc)
WsfSignature &	operator= (const WsfSignature &)=delete
	~WsfSignature () override=default
virtual bool	InitializeType ()
virtual bool	Initialize (double aSimTime, WsfPlatform *aPlatformPtr)
virtual bool	IsA_ValidState (WsfStringId aId) const
virtual std::vector< WsfStringId >	GetStateNames () const
	get the list of all valid states belonging to the signature
bool	ProcessInput (UtInput &aInput) override
bool	RequiresPlatform () const
	indicates that a signature can be queried without a valid mPlatform
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
virtual WsfObject *	Clone () const =0
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Static Protected Member Functions
template<class SignatureState, WsfStringId SignatureState::* IdMember, typename Iterator>
static std::vector< WsfStringId >	GetStateNamesP (Iterator aBegin, Iterator aEnd)

Protected Attributes
WsfPlatform *	mPlatformPtr
double	mBaseTime
bool	mRequiresPlatform {false}

Additional Inherited Members
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Detailed Description

This is the abstract base class for all platform 'signatures'.

A 'signature' is a platform attribute that is used to define the susceptibility of the platform to being detected by a sensor.

Constructor & Destructor Documentation

◆ WsfSignature() [1/2]

WsfSignature::WsfSignature ( )

References mBaseTime, mPlatformPtr, and WsfObject::WsfObject().

Referenced by operator=(), WsfInfraredSignature::WsfInfraredSignature(), WsfInherentContrast::WsfInherentContrast(), WsfOpticalReflectivity::WsfOpticalReflectivity(), WsfOpticalSignature::WsfOpticalSignature(), WsfRadarSignature::WsfRadarSignature(), and WsfSignature().

◆ WsfSignature() [2/2]

WsfSignature::WsfSignature ( const WsfSignature & aSrc )

References mBaseTime, mPlatformPtr, mRequiresPlatform, WsfObject::WsfObject(), and WsfSignature().

◆ ~WsfSignature()

WsfSignature::~WsfSignature ( )

overridedefault

References Initialize(), InitializeType(), and IsA_ValidState().

Member Function Documentation

◆ GetStateNames()

virtual std::vector< WsfStringId > WsfSignature::GetStateNames ( ) const

inlinevirtual

get the list of all valid states belonging to the signature

Reimplemented in WsfCompositeOpticalSignature, WsfMilRadarSignature, WsfSpaceOpticalSignature, WsfStandardAcousticSignature, WsfStandardInfraredSignature, WsfStandardInherentContrast, WsfStandardOpticalReflectivity, WsfStandardOpticalSignature, and WsfStandardRadarSignature.

Referenced by IsA_ValidState().

◆ GetStateNamesP()

template<class SignatureState, WsfStringId SignatureState::* IdMember, typename Iterator>

std::vector< WsfStringId > WsfSignature::GetStateNamesP	(	Iterator	aBegin,
		Iterator	aEnd )

inlinestaticprotected

Many derived signatures use the same logic in obtaining state names, but their state classes and data containers are distinct This template also uses "pointer-to-member" to access the name via different state classes.

Referenced by WsfMilRadarSignature::GetStateNames(), WsfSpaceOpticalSignature::GetStateNames(), WsfStandardAcousticSignature::GetStateNames(), WsfStandardInfraredSignature::GetStateNames(), WsfStandardInherentContrast::GetStateNames(), WsfStandardOpticalReflectivity::GetStateNames(), WsfStandardOpticalSignature::GetStateNames(), and WsfStandardRadarSignature::GetStateNames().

◆ Initialize()

bool WsfSignature::Initialize	(	double	aSimTime,
		WsfPlatform *	aPlatformPtr )

virtual

Initialize an instance to prepare for use in a simulation.

Parameters

aSimTime	The current simulation time.
aPlatformPtr	The platform to which the instance is attached.

Returns: true if successful.

Reimplemented in WsfChaffRadarSignature, WsfCompositeOpticalSignature, and WsfSpaceOpticalSignature.

References mBaseTime, and mPlatformPtr.

Referenced by WsfCompositeOpticalSignature::Initialize(), WsfSpaceOpticalSignature::Initialize(), WsfRadarSignature::SetSignature(), and ~WsfSignature().

◆ InitializeType()

bool WsfSignature::InitializeType ( )

virtual

Initialize an signature 'type' instance. This is called by WsfObjectTypeList::LoadType after all the input for the instance has been read.

Returns: true if successful.

Reimplemented in WsfCompositeOpticalSignature, WsfMilRadarSignature, WsfSpaceOpticalSignature, WsfStandardAcousticSignature, WsfStandardInfraredSignature, WsfStandardInherentContrast, WsfStandardOpticalReflectivity, WsfStandardOpticalSignature, and WsfStandardRadarSignature.

◆ IsA_ValidState()

bool WsfSignature::IsA_ValidState ( WsfStringId aId ) const

virtual

Checks to make the entered state Id exists, returns true if it exists, false otherwise.

Parameters

aId	the name Id of the state.

Returns: Returns true if provided state exists.

References GetStateNames().

Referenced by WsfSignatureList::SetState(), and ~WsfSignature().

◆ operator=()

WsfSignature & WsfSignature::operator= ( const WsfSignature & )

delete

References WsfSignature().

◆ ProcessInput()

bool WsfSignature::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput a reference to a UtInput object.

Returns: 'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase (or an object derived from it) if the command was recognized but contains some sort of error.

Note: If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from WsfObject.

Reimplemented in WsfSpaceOpticalSignature, WsfStandardAcousticSignature, WsfStandardInfraredSignature, WsfStandardInherentContrast, WsfStandardOpticalReflectivity, WsfStandardOpticalSignature, and WsfStandardRadarSignature.

References WsfObject::ProcessInput().

◆ RequiresPlatform()

bool WsfSignature::RequiresPlatform ( ) const

inline

indicates that a signature can be queried without a valid mPlatform

References mRequiresPlatform.

Member Data Documentation

◆ mBaseTime

double WsfSignature::mBaseTime

protected

Referenced by Initialize(), WsfSignature(), and WsfSignature().

◆ mPlatformPtr

WsfPlatform* WsfSignature::mPlatformPtr

protected

Referenced by WsfCompositeOpticalSignature::GetProjectedArea(), WsfSpaceOpticalSignature::GetProjectedArea(), WsfCompositeOpticalSignature::GetRadiantIntensity(), WsfSpaceOpticalSignature::GetRadiantIntensity(), WsfCompositeOpticalSignature::Initialize(), Initialize(), WsfSpaceOpticalSignature::Initialize(), WsfSignature(), and WsfSignature().

◆ mRequiresPlatform

bool WsfSignature::mRequiresPlatform {false}

protected

Referenced by RequiresPlatform(), WsfCompositeOpticalSignature::WsfCompositeOpticalSignature(), WsfSignature(), and WsfSpaceOpticalSignature::WsfSpaceOpticalSignature().

The documentation for this class was generated from the following files:
