#include <AerialRefuelingInfo.hpp>

Inheritance diagram for usmtf::AerialRefuelingInfo:

[legend]

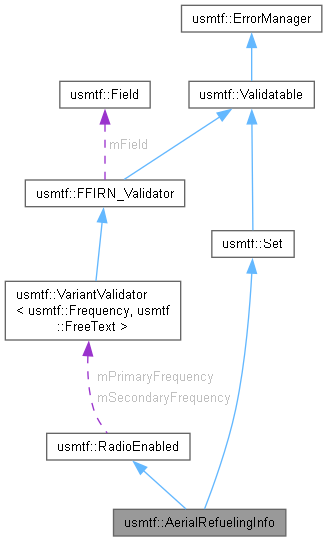

Collaboration diagram for usmtf::AerialRefuelingInfo:

[legend]

Public Member Functions
	AerialRefuelingInfo (const std::string &aSTF, const std::vector< Field > &aFields) noexcept
	AerialRefuelingInfo (const AerialRefuelingInfo &)=delete
const FreeText &	GetCallsign () const noexcept
const FreeText &	GetMissionNumber () const noexcept
const FreeText &	GetIffSifMode () const noexcept
const VariantValidator< LatLon, RelativeBearingRange, FreeText > &	GetControlPoint () const noexcept
const Altitude &	GetAltitude () const noexcept
const FreeText &	GetRefuelTime () const noexcept
const FreeText &	GetRefuelEndTime () const noexcept
const FuelLoad &	GetOffloadFuel () const noexcept
const FreeText &	GetLink16Callsign () const noexcept
const FreeText &	GetAircraftType () const noexcept
const AerialRefuelingSystem &	GetRefuelSystem () const noexcept
const std::string &	GetNumberOfAircraftInCell () const noexcept
const FreeText &	GetCellSequence () const noexcept
const TacanChannel &	GetTacanChannel () const noexcept
const Beacon &	GetBeacon () const noexcept
Public Member Functions inherited from usmtf::Set
	Set (const std::string &aSTF, const std::vector< Field > &aFields) noexcept
virtual	~Set ()=default
const std::string &	GetType () const noexcept
	Return the Set Identifiers/Set Text Format of the set instance.
bool	IsEmpty () const noexcept
int	GetFieldCount () const noexcept
const Field &	GetField (size_t aIndex) const
	Returns a field at a index position in the Set.
const std::string &	GetFieldContent (size_t aIndex) const
	Returns the Contents of a field at specified index.
const std::string	GetReconstructedSet () const noexcept
Public Member Functions inherited from usmtf::Validatable
bool	IsValid () const noexcept
Public Member Functions inherited from usmtf::ErrorManager
virtual	~ErrorManager ()=default
bool	HasErrors () const noexcept
void	LogErrors (std::ostream &aOut) const noexcept
const std::vector< ValidationError > &	GetErrors () const
Public Member Functions inherited from usmtf::RadioEnabled
	RadioEnabled ()=default
const VariantValidator< Frequency, FreeText > &	GetPrimaryFrequency () const noexcept
const VariantValidator< Frequency, FreeText > &	GetSecondaryFrequency () const noexcept

Additional Inherited Members
Protected Member Functions inherited from usmtf::ErrorManager
void	AddError (const ValidationError &aError) noexcept
void	AddError (const std::string &aFailureReason, const std::string &aValueValidatied, const std::string &aOptionalSuggestion="") noexcept
void	AddError (const std::string &aErrorMessage) noexcept
void	AddErrors (const std::vector< ValidationError > &aErrors) noexcept
void	ClearErrors () noexcept
Protected Attributes inherited from usmtf::Set
std::string	mSetTextFormat
std::vector< Field >	mFields
Protected Attributes inherited from usmtf::RadioEnabled
VariantValidator< Frequency, FreeText >	mPrimaryFrequency
VariantValidator< Frequency, FreeText >	mSecondaryFrequency

Detailed Description

THE ARINFO SET PROVIDES AERIAL REFUELING INFORMATION TO RECEIVER AIRCRAFT.

USMTF Example: ARINFO/EXXON 11/AR123HA/B:37700/NAME:BUICK/170/ARCT:141325Z /NDAR:141400ZFEB/KLBS:15.0/PFREQ:243.0/SFREQ:121.5/EN11/ACTYP:KC135R /BOM/4/TNKRS:1,3/16-72/4-3-1//

Standard Excerpt: ||||| ||||| O R ARINFO/ / / / ||||| 1 AIRCRAFT CALL SIGN 2 MISSION NUMBER 3 IFF/SIF MODE AND CODE 4 AIR REFUELING CONTROL POINT ||||| M [1-12 ABNS] M [1-8 ABNS] M [3/5 N] M [1/20 ABNS] ||||| ||||| / / ||||| 5 ALTITUDE IN HUNDREDS OF FEET 6 AIR REFUELING CONTROL DAY-TIME ||||| M [1-3 N] M [7 AN] ||||| ||||| /........................................../ / ||||| 7 DAY-TIME AND MONTH OF END AIR REFUELING 8 OFFLOAD FUEL 9 PRIMARY FREQUENCY ||||| O [10 AN] M [3-5 NS] M [1/8 ANS] ||||| ||||| /......................./................................./.............................. ||||| 10 SECONDARY FREQUENCY 11 LINK 16 ABBREVIATED CALL SIGN 12 TYPE OF REFUELING AIRCRAFT ||||| O. [1/8 ANS] O. [4 AN] O. [2/6 AN] ||||| ||||| /.........................../............................../........................... ||||| 13 AERIAL REFUELING SYSTEM 14 NUMBER OF AIRCRAFT IN CELL 15 CELL SEQUENCE NUMBER(S) ||||| O. [3 A] O. [1-2 N] O. [1/3 NS] ||||| ||||| /....................................../...........// ||||| 16 TACAN CHANNEL, RECEIVER AND TANKER 17 BEACON ||||| O. [3-7 NS] O. [5 NS]

Detailed Document: ARINFO.UF.html

Constructor & Destructor Documentation

◆ AerialRefuelingInfo() [1/2]

usmtf::AerialRefuelingInfo::AerialRefuelingInfo	(	const std::string &	aSTF,
		const std::vector< Field > &	aFields )

noexcept

References usmtf::ErrorManager::AddError(), usmtf::ErrorManager::AddErrors(), usmtf::ErrorManager::GetErrors(), usmtf::Set::GetField(), usmtf::Set::GetFieldContent(), usmtf::SetError::GetPosition(), usmtf::FFIRN_Validator::GetRawContent(), usmtf::RadioEnabled::mPrimaryFrequency, usmtf::RadioEnabled::mSecondaryFrequency, usmtf::NULL_FIELD, usmtf::RangeValidator< T >::ParseAndValidate(), usmtf::Set::Set(), and usmtf::RangeValidator< T >::SetValidRange().
