P6DofTableTool Class Reference

#include <P6DofUtils.hpp>

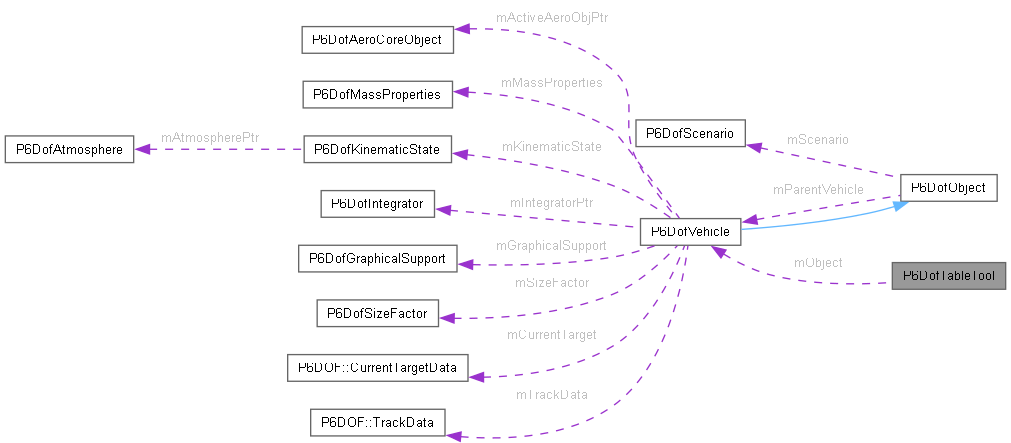

Collaboration diagram for P6DofTableTool:

Public Member Functions
	P6DofTableTool (P6DofVehicle *aObject)
	~P6DofTableTool ()=default
void	InitializeTableMachValues (double aMaxMach)
bool	CreateAutopilotTables ()
void	OutputCLMaxMachTableToInputString (std::string &aInput) const
void	OutputCLMinMachTableToInputString (std::string &aInput) const
void	OutputAlphaMaxMachTableToInputString (std::string &aInput) const
void	OutputAlphaMinMachTableToInputString (std::string &aInput) const
void	OutputAlphaMachCLTableToInputString (std::string &aInput) const
void	OutputStickMachAlphaTablesToInputString (std::string &aInput) const
void	OutputCLMachAlphaTableToInputString (std::string &aInput) const

Protected Member Functions
double	CalcCLFromCLArea (double aCLArea)
void	CreateMachTestList (double aMaxMach)
bool	CalculateStickForZeroMoment (double aMach, double aAlpha_rad, bool aIsPowerOn, double &aThrustProduced_lbs, double &aStickBack)
bool	CalculateStickForZeroMoment (double aMach, double aAlpha_rad, double &aStickBack)
void	AddStickAndCL (double aMach, double aAlpha_rad, double &aStickBack, bool &aMachAdded, bool aLowPoint, bool aHighPoint)
bool	CalcStickAndCL (double aMach, double aAlpha_rad, double &aStickBackBaseline, double &aStickBackThrustShift, double &aStickBackXCmShift, double &aStickBackZCmShift)
int	CountValidStickAndCL (double aMach, std::vector< double > aAlphaVector_deg)
void	AddAlphaVsMachCL (double aMach, double aCL, double aMinAlpha_deg, double aMaxAlpha_deg, bool &aMachAdded)

Protected Attributes
P6DofVehicle *	mObject
std::unique_ptr< P6DofMachDataTable >	mCLMaxVsMachTable
std::unique_ptr< P6DofMachDataTable >	mCLMinVsMachTable
std::unique_ptr< P6DofMachDataTable >	mAlphaMax_degVsMachTable
std::unique_ptr< P6DofMachDataTable >	mAlphaMin_degVsMachTable
std::unique_ptr< P6DofMachParamDataTable >	mStickForZeroMomentVsMachAlphaTablePtr
std::unique_ptr< P6DofMachParamDataTable >	mThrustDeltaStickForZeroMomentVsMachAlphaTablePtr
std::unique_ptr< P6DofMachParamDataTable >	mXcgDeltaStickForZeroMomentVsMachAlphaTablePtr
std::unique_ptr< P6DofMachParamDataTable >	mZcgDeltaStickForZeroMomentVsMachAlphaTablePtr
std::unique_ptr< P6DofMachParamDataTable >	mCLVsMachAlphaTable
std::unique_ptr< P6DofMachParamDataTable >	mAlphaVsMachCLTable
std::vector< double >	mMachTestList
bool	mTableListsInitialized

Constructor & Destructor Documentation

P6DofTableTool()

P6DofTableTool::P6DofTableTool ( P6DofVehicle * aObject )

explicit

References P6DofVehicle::GetNominalEstimateMaxMach(), InitializeTableMachValues(), mAlphaMax_degVsMachTable, mAlphaMin_degVsMachTable, mAlphaVsMachCLTable, mCLMaxVsMachTable, mCLMinVsMachTable, mCLVsMachAlphaTable, mObject, mStickForZeroMomentVsMachAlphaTablePtr, mTableListsInitialized, mThrustDeltaStickForZeroMomentVsMachAlphaTablePtr, mXcgDeltaStickForZeroMomentVsMachAlphaTablePtr, and mZcgDeltaStickForZeroMomentVsMachAlphaTablePtr.

~P6DofTableTool()

P6DofTableTool::~P6DofTableTool ( )

default

References AddAlphaVsMachCL(), AddStickAndCL(), CalcCLFromCLArea(), CalcStickAndCL(), CalculateStickForZeroMoment(), CountValidStickAndCL(), CreateAutopilotTables(), CreateMachTestList(), InitializeTableMachValues(), OutputAlphaMachCLTableToInputString(), OutputAlphaMaxMachTableToInputString(), OutputAlphaMinMachTableToInputString(), OutputCLMachAlphaTableToInputString(), OutputCLMaxMachTableToInputString(), OutputCLMinMachTableToInputString(), and OutputStickMachAlphaTablesToInputString().

Member Function Documentation

AddAlphaVsMachCL()

void P6DofTableTool::AddAlphaVsMachCL ( double aMach, double aCL, double aMinAlpha_deg, double aMaxAlpha_deg, bool & aMachAdded )

protected

References mAlphaVsMachCLTable, and mCLVsMachAlphaTable.

Referenced by ~P6DofTableTool().

AddStickAndCL()

void P6DofTableTool::AddStickAndCL ( double aMach, double aAlpha_rad, double & aStickBack, bool & aMachAdded, bool aLowPoint, bool aHighPoint )

protected

References CalcCLFromCLArea(), CalcStickAndCL(), mCLVsMachAlphaTable, mObject, mStickForZeroMomentVsMachAlphaTablePtr, mThrustDeltaStickForZeroMomentVsMachAlphaTablePtr, mXcgDeltaStickForZeroMomentVsMachAlphaTablePtr, and mZcgDeltaStickForZeroMomentVsMachAlphaTablePtr.

Referenced by ~P6DofTableTool().

CalcCLFromCLArea()

double P6DofTableTool::CalcCLFromCLArea ( double aCLArea )

protected

References mObject.

Referenced by AddStickAndCL(), and ~P6DofTableTool().

CalcStickAndCL()

bool P6DofTableTool::CalcStickAndCL ( double aMach, double aAlpha_rad, double & aStickBackBaseline, double & aStickBackThrustShift, double & aStickBackXCmShift, double & aStickBackZCmShift )

protected

References CalculateStickForZeroMoment(), P6DofMassProperties::GetBaseMass_lbs(), P6DofVehicle::GetMassProperties(), and mObject.

Referenced by AddStickAndCL(), CountValidStickAndCL(), and ~P6DofTableTool().

CalculateStickForZeroMoment() [1/2]

bool P6DofTableTool::CalculateStickForZeroMoment ( double aMach, double aAlpha_rad, bool aIsPowerOn, double & aThrustProduced_lbs, double & aStickBack )

protected

References P6DofPropulsionSystem::FillAllTanks(), P6DofScenario::GetFreezeFlags(), P6DofPropulsionSystem::GetFuelTanks(), P6DofFreezeFlags::GetMasterNoLagTesting(), P6DofPropulsionSystem::GetNumFuelTanks(), P6DofPilotObject::GetThrottleControllerPosition(), mObject, P6DofPilotObject::ReleaseTestControl(), P6DofFreezeFlags::SetMasterNoLagTesting(), P6DofPilotObject::SetTestThrottleControllerPosition(), success, P6DofPilotObject::TakeTestControl(), and P6DofPilotObject::UsingTestControl().

Referenced by CalcStickAndCL(), CalculateStickForZeroMoment(), and ~P6DofTableTool().

CalculateStickForZeroMoment() [2/2]

bool P6DofTableTool::CalculateStickForZeroMoment ( double aMach, double aAlpha_rad, double & aStickBack )

protected

References CalculateStickForZeroMoment().

CountValidStickAndCL()

int P6DofTableTool::CountValidStickAndCL ( double aMach, std::vector< double > aAlphaVector_deg )

protected

References CalcStickAndCL().

Referenced by ~P6DofTableTool().

CreateAutopilotTables()

bool P6DofTableTool::CreateAutopilotTables

(

)

Referenced by P6DofUtils::CommonCreateAutopilotSupportFile(), and ~P6DofTableTool().

CreateMachTestList()

void P6DofTableTool::CreateMachTestList ( double aMaxMach )

protected

References mMachTestList.

Referenced by InitializeTableMachValues(), and ~P6DofTableTool().

InitializeTableMachValues()

void P6DofTableTool::InitializeTableMachValues

(

double

aMaxMach

)

References CreateMachTestList().

Referenced by P6DofUtils::CreateAutopilotSupportFileWithMaxMach(), P6DofTableTool(), and ~P6DofTableTool().

OutputAlphaMachCLTableToInputString()

void P6DofTableTool::OutputAlphaMachCLTableToInputString

(

std::string &

aInput

)

const

References mAlphaVsMachCLTable.

Referenced by P6DofUtils::CommonCreateAutopilotSupportFile(), and ~P6DofTableTool().

OutputAlphaMaxMachTableToInputString()

void P6DofTableTool::OutputAlphaMaxMachTableToInputString

(

std::string &

aInput

)

const

References mAlphaMax_degVsMachTable.

Referenced by P6DofUtils::CommonCreateAutopilotSupportFile(), and ~P6DofTableTool().

OutputAlphaMinMachTableToInputString()

void P6DofTableTool::OutputAlphaMinMachTableToInputString

(

std::string &

aInput

)

const

References mAlphaMin_degVsMachTable.

Referenced by P6DofUtils::CommonCreateAutopilotSupportFile(), and ~P6DofTableTool().

OutputCLMachAlphaTableToInputString()

void P6DofTableTool::OutputCLMachAlphaTableToInputString

(

std::string &

aInput

)

const

References mCLVsMachAlphaTable.

Referenced by P6DofUtils::CommonCreateAutopilotSupportFile(), and ~P6DofTableTool().

OutputCLMaxMachTableToInputString()

void P6DofTableTool::OutputCLMaxMachTableToInputString

(

std::string &

aInput

)

const

References mCLMaxVsMachTable.

Referenced by P6DofUtils::CommonCreateAutopilotSupportFile(), and ~P6DofTableTool().

OutputCLMinMachTableToInputString()

void P6DofTableTool::OutputCLMinMachTableToInputString

(

std::string &

aInput

)

const

References mCLMinVsMachTable.

Referenced by P6DofUtils::CommonCreateAutopilotSupportFile(), and ~P6DofTableTool().

OutputStickMachAlphaTablesToInputString()

void P6DofTableTool::OutputStickMachAlphaTablesToInputString

(

std::string &

aInput

)

const

References mStickForZeroMomentVsMachAlphaTablePtr, mThrustDeltaStickForZeroMomentVsMachAlphaTablePtr, mXcgDeltaStickForZeroMomentVsMachAlphaTablePtr, and mZcgDeltaStickForZeroMomentVsMachAlphaTablePtr.

Referenced by P6DofUtils::CommonCreateAutopilotSupportFile(), and ~P6DofTableTool().

Member Data Documentation

mAlphaMax_degVsMachTable

std::unique_ptr<P6DofMachDataTable> P6DofTableTool::mAlphaMax_degVsMachTable

protected

Referenced by OutputAlphaMaxMachTableToInputString(), and P6DofTableTool().

mAlphaMin_degVsMachTable

std::unique_ptr<P6DofMachDataTable> P6DofTableTool::mAlphaMin_degVsMachTable

protected

Referenced by OutputAlphaMinMachTableToInputString(), and P6DofTableTool().

mAlphaVsMachCLTable

std::unique_ptr<P6DofMachParamDataTable> P6DofTableTool::mAlphaVsMachCLTable

protected

Referenced by AddAlphaVsMachCL(), OutputAlphaMachCLTableToInputString(), and P6DofTableTool().

mCLMaxVsMachTable

std::unique_ptr<P6DofMachDataTable> P6DofTableTool::mCLMaxVsMachTable

protected

Referenced by OutputCLMaxMachTableToInputString(), and P6DofTableTool().

mCLMinVsMachTable

std::unique_ptr<P6DofMachDataTable> P6DofTableTool::mCLMinVsMachTable

protected

Referenced by OutputCLMinMachTableToInputString(), and P6DofTableTool().

mCLVsMachAlphaTable

std::unique_ptr<P6DofMachParamDataTable> P6DofTableTool::mCLVsMachAlphaTable

protected

Referenced by AddAlphaVsMachCL(), AddStickAndCL(), OutputCLMachAlphaTableToInputString(), and P6DofTableTool().

mMachTestList

std::vector<double> P6DofTableTool::mMachTestList

protected

Referenced by CreateMachTestList().

mObject

P6DofVehicle* P6DofTableTool::mObject

protected

Referenced by AddStickAndCL(), CalcCLFromCLArea(), CalcStickAndCL(), CalculateStickForZeroMoment(), and P6DofTableTool().

mStickForZeroMomentVsMachAlphaTablePtr

std::unique_ptr<P6DofMachParamDataTable> P6DofTableTool::mStickForZeroMomentVsMachAlphaTablePtr

protected

Referenced by AddStickAndCL(), OutputStickMachAlphaTablesToInputString(), and P6DofTableTool().

mTableListsInitialized

bool P6DofTableTool::mTableListsInitialized

protected

Referenced by P6DofTableTool().

mThrustDeltaStickForZeroMomentVsMachAlphaTablePtr

std::unique_ptr<P6DofMachParamDataTable> P6DofTableTool::mThrustDeltaStickForZeroMomentVsMachAlphaTablePtr

protected

Referenced by AddStickAndCL(), OutputStickMachAlphaTablesToInputString(), and P6DofTableTool().

mXcgDeltaStickForZeroMomentVsMachAlphaTablePtr

std::unique_ptr<P6DofMachParamDataTable> P6DofTableTool::mXcgDeltaStickForZeroMomentVsMachAlphaTablePtr

protected

Referenced by AddStickAndCL(), OutputStickMachAlphaTablesToInputString(), and P6DofTableTool().

mZcgDeltaStickForZeroMomentVsMachAlphaTablePtr

std::unique_ptr<P6DofMachParamDataTable> P6DofTableTool::mZcgDeltaStickForZeroMomentVsMachAlphaTablePtr

protected

Referenced by AddStickAndCL(), OutputStickMachAlphaTablesToInputString(), and P6DofTableTool().

---

The documentation for this class was generated from the following files:

• P6DofUtils.hpp
• P6DofUtils.cpp
