An object that represents the acoustic signature of a platform. More...

#include <WsfAcousticSignature.hpp>

Inheritance diagram for WsfAcousticSignature:

[legend]

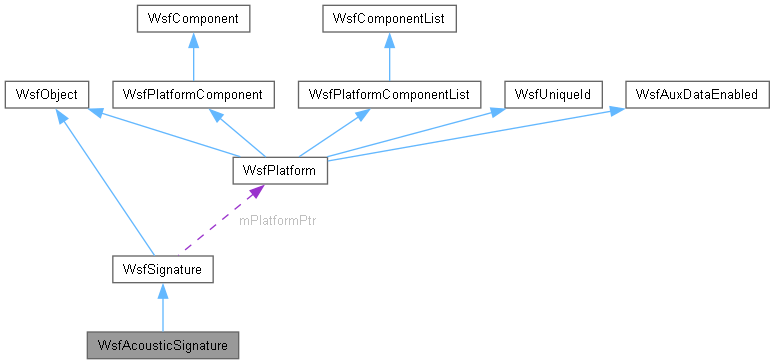

Collaboration diagram for WsfAcousticSignature:

[legend]

Public Types
enum	{ cSIGNATURE_INDEX = 5 }
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.

Public Member Functions
	WsfAcousticSignature ()=default
WsfAcousticSignature *	Clone () const override=0
virtual double	GetNoisePressure (WsfStringId aStateId, double aFrequency)=0
virtual double	GetNoisePressure (WsfStringId aStateId, double aFrequency, double aTgtToRcvrAz, double aTgtToRcvrEl)=0
virtual std::pair< double, double >	GetNoisePressureLimits (WsfStringId aStateId) const
Public Member Functions inherited from WsfSignature
	WsfSignature ()
	WsfSignature (const WsfSignature &aSrc)
WsfSignature &	operator= (const WsfSignature &)=delete
	~WsfSignature () override=default
virtual bool	InitializeType ()
virtual bool	Initialize (double aSimTime, WsfPlatform *aPlatformPtr)
virtual bool	IsA_ValidState (WsfStringId aId) const
virtual std::vector< WsfStringId >	GetStateNames () const
	get the list of all valid states belonging to the signature
bool	ProcessInput (UtInput &aInput) override
bool	RequiresPlatform () const
	indicates that a signature can be queried without a valid mPlatform
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Methods to support the actual interface on the platform.
These methods provide the interface from the sensor model to the signature. The user makes calls like WsfAcousticSignature::GetValue(...).
static WsfStringId	GetInputType (WsfPlatform *aPlatformPtr)
static WsfStringId	GetState (WsfPlatform *aPlatformPtr)
static bool	SetState (WsfPlatform *aPlatformPtr, WsfStringId aState)
static float	GetScaleFactor (WsfPlatform *aPlatformPtr)
static bool	SetScaleFactor (WsfPlatform *aPlatformPtr, float aScaleFactor)
static double	GetValue (WsfPlatform *aPlatformPtr, double aFrequency)
static double	GetValue (WsfPlatform *aPlatformPtr, double aFrequency, double aTgtToRcvrAz, double aTgtToRcvrEl)
static void	RegisterScriptMethods (UtScriptTypes &aScriptTypes)
static void	RegisterInterface (WsfScenario &aScenario)
	Register the platform interface object on the prototype signature list in the specified scenario.

Additional Inherited Members
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).
Static Protected Member Functions inherited from WsfSignature
template<class SignatureState, WsfStringId SignatureState::* IdMember, typename Iterator>
static std::vector< WsfStringId >	GetStateNamesP (Iterator aBegin, Iterator aEnd)
Protected Attributes inherited from WsfSignature
WsfPlatform *	mPlatformPtr
double	mBaseTime
bool	mRequiresPlatform {false}

Detailed Description

An object that represents the acoustic signature of a platform.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
cSIGNATURE_INDEX	Index of signature within WsfSignatureList (must be unique).

Constructor & Destructor Documentation

◆ WsfAcousticSignature()

WsfAcousticSignature::WsfAcousticSignature ( )

default

Referenced by Clone(), WsfStandardAcousticSignature::Clone(), WsfStandardAcousticSignature::CreateDefaultType(), GetValue(), GetValue(), WsfStandardAcousticSignature::ObjectFactory(), and WsfStandardAcousticSignature::WsfStandardAcousticSignature().

Member Function Documentation

◆ Clone()

WsfAcousticSignature * WsfAcousticSignature::Clone ( ) const

overridepure virtual

Return a copy of this object. Must be implemented by all derived types. If cloning is impossible, a WsfUncloneableException should be thrown.

Implements WsfObject.

Implemented in WsfStandardAcousticSignature.

References WsfAcousticSignature().

◆ GetInputType()

WsfStringId WsfAcousticSignature::GetInputType ( WsfPlatform * aPlatformPtr )

static

Get the input type of the signature.

Parameters

aPlatformPtr [input] The pointer to the platform containing the signature.

Returns: The current signature state.

References cSIGNATURE_INDEX, WsfSignatureList::GetInputType(), and WsfPlatform::GetSignatureList().

Referenced by GetNoisePressure().

◆ GetNoisePressure() [1/2]

virtual double WsfAcousticSignature::GetNoisePressure	(	WsfStringId	aStateId,
		double	aFrequency )

pure virtual

Get the acoustic signature for a given signature state and signal frequency.

Parameters

aStateId	[input] The string ID representing the signature state to be used.
aFrequency	[input] The frequency of the desired noise pressure

Implemented in WsfStandardAcousticSignature.

Referenced by WsfStandardAcousticSignature::GetNoisePressure(), GetValue(), and GetValue().

◆ GetNoisePressure() [2/2]

virtual double WsfAcousticSignature::GetNoisePressure	(	WsfStringId	aStateId,
		double	aFrequency,
		double	aTgtToRcvrAz,
		double	aTgtToRcvrEl )

pure virtual

Get the acoustic signature for a given signature state and signal frequency at the given azimuth and elevation.

Parameters

aStateId	[input] The string ID representing the signature state to be used.
aFrequency	[input] The frequency of the desired noise pressure
aTgtToRcvrAz	[input] The azimuth from the target to the receiver
aTgtToRcvrEl	[input] the elevation from the target to the receiver

Implemented in WsfStandardAcousticSignature.

References GetInputType(), GetNoisePressureLimits(), GetScaleFactor(), GetState(), GetValue(), RegisterInterface(), RegisterScriptMethods(), SetScaleFactor(), and SetState().

◆ GetNoisePressureLimits()

std::pair< double, double > WsfAcousticSignature::GetNoisePressureLimits ( WsfStringId aStateId ) const

virtual

Get the min and max noise pressure values that can be returned by GetNoisePressure for the given signature state.

Reimplemented in WsfStandardAcousticSignature.

Referenced by GetNoisePressure().

◆ GetScaleFactor()

float WsfAcousticSignature::GetScaleFactor ( WsfPlatform * aPlatformPtr )

static

Get the signature scale factor.

Parameters

aPlatformPtr [input] The pointer to the platform containing the signature.

Returns: The signature scale factor.

References cSIGNATURE_INDEX, WsfSignatureList::GetScaleFactor(), and WsfPlatform::GetSignatureList().

Referenced by GetNoisePressure().

◆ GetState()

WsfStringId WsfAcousticSignature::GetState ( WsfPlatform * aPlatformPtr )

static

Get the current signature state.

Parameters

aPlatformPtr [input] The pointer to the platform containing the signature.

Returns: The current signature state.

References cSIGNATURE_INDEX, WsfPlatform::GetSignatureList(), and WsfSignatureList::GetState().

Referenced by GetNoisePressure().

◆ GetValue() [1/2]

double WsfAcousticSignature::GetValue	(	WsfPlatform *	aPlatformPtr,
		double	aFrequency )

static

Get the signature value for a set of conditions.

Parameters

aPlatformPtr	[input] The platform from which the signature is to be retrieved.
aFrequency	[input] The frequency value of interest for lookup of signature value..
