WsfXIO_Packet.hpp File Reference

#include "wsf_export.h"
#include "GenUniqueId.hpp"
#include "PakPacket.hpp"
#include "xio/WsfXIO_Defines.hpp"

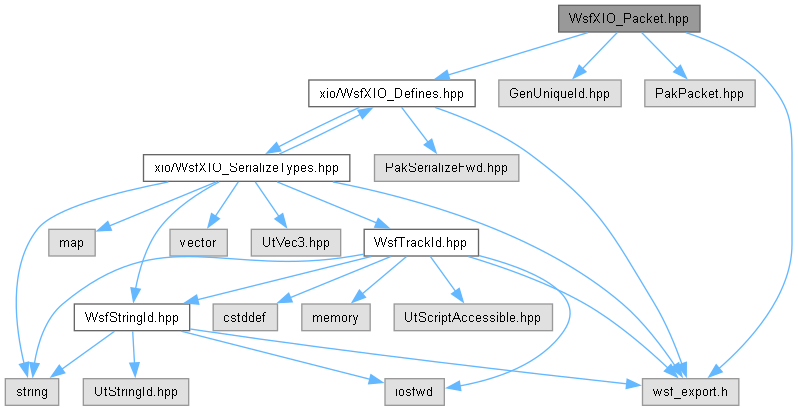

Include dependency graph for WsfXIO_Packet.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	WsfXIO_Packet
	Base class for XIO Packets. Provides the header information. More...

Variables
static const int	cXIO_WSF_LAST_PACKET_ID = 74
static const int	cXIO_WSF_EXTENDED_FIRST_PACKET_ID = 75
static const int	cXIO_WSF_EXTENDED_LAST_PACKET_ID = 99
static const int	cXIO_APP_1_FIRST_PACKET_ID = 100
static const int	cXIO_APP_1_LAST_PACKET_ID = 114
static const int	cXIO_APP_2_FIRST_PACKET_ID = 200
static const int	cXIO_APP_2_LAST_PACKET_ID = 349
static const int	cXIO_WSF_LAST_TYPE_ID = 10
	Class type registry for polymorphic serialization.
static const int	cXIO_WSF_SIM_LAST_TYPE_ID = 20
static const int	cXIO_WSF_EXTENDED_FIRST_TYPE_ID = 21
static const int	cXIO_WSF_EXTENDED_LAST_TYPE_ID = 30

Macros to simplify defining packets.
#define	XIO_DEFINE_PACKET_CTOR(PACKET_NAME__, BASE_TYPE__, PACKET_ID__)
#define	XIO_DEFINE_PACKET_SERIALIZE()
#define	XIO_DEFINE_PACKET(PACKET_NAME__, BASE_TYPE__, PACKET_ID__)

Macro Definition Documentation

XIO_DEFINE_PACKET

#define XIO_DEFINE_PACKET	(		PACKET_NAME__,
			BASE_TYPE__,
			PACKET_ID__ )

Value:

XIO_DEFINE_PACKET_CTOR(PACKET_NAME__, BASE_TYPE__, PACKET_ID__) {} \
XIO_DEFINE_PACKET_SERIALIZE()

XIO_DEFINE_PACKET_CTOR

#define XIO_DEFINE_PACKET_CTOR	(		PACKET_NAME__,
			BASE_TYPE__,
			PACKET_ID__ )

Value:

typedef BASE_TYPE__ BaseType;                                        \
static const int    cPACKET_ID = PACKET_ID__;                        \
PACKET_NAME__(int aPacketId = cPACKET_ID)                            \
   : BASE_TYPE__(aPacketId)

XIO_DEFINE_PACKET_SERIALIZE

#define XIO_DEFINE_PACKET_SERIALIZE

(

)

Value:

template<typename T>               \
void Serialize(T& aBuff)           \
{                                  \
   BaseType::Serialize(aBuff);     \
   DoSerialize(aBuff);             \
}                                  \
template<typename T>               \
void DoSerialize(T& aBuff)

Variable Documentation

cXIO_APP_1_FIRST_PACKET_ID

const int cXIO_APP_1_FIRST_PACKET_ID = 100

static

cXIO_APP_1_LAST_PACKET_ID

const int cXIO_APP_1_LAST_PACKET_ID = 114

static

cXIO_APP_2_FIRST_PACKET_ID

const int cXIO_APP_2_FIRST_PACKET_ID = 200

static

cXIO_APP_2_LAST_PACKET_ID

const int cXIO_APP_2_LAST_PACKET_ID = 349

static

cXIO_WSF_EXTENDED_FIRST_PACKET_ID

const int cXIO_WSF_EXTENDED_FIRST_PACKET_ID = 75

static

cXIO_WSF_EXTENDED_FIRST_TYPE_ID

const int cXIO_WSF_EXTENDED_FIRST_TYPE_ID = 21

static

Referenced by WsfXIO_WeaponPacketRegistry::RegisterClasses().

cXIO_WSF_EXTENDED_LAST_PACKET_ID

const int cXIO_WSF_EXTENDED_LAST_PACKET_ID = 99

static

cXIO_WSF_EXTENDED_LAST_TYPE_ID

const int cXIO_WSF_EXTENDED_LAST_TYPE_ID = 30

static

Referenced by WsfXIO_WeaponPacketRegistry::RegisterClasses().

cXIO_WSF_LAST_PACKET_ID

const int cXIO_WSF_LAST_PACKET_ID = 74

static

cXIO_WSF_LAST_TYPE_ID

const int cXIO_WSF_LAST_TYPE_ID = 10

static

Class type registry for polymorphic serialization.

Referenced by WsfXIO_PacketRegistry::RegisterClasses(), and WsfXIO_SimPacketRegistry::RegisterClasses().

cXIO_WSF_SIM_LAST_TYPE_ID

const int cXIO_WSF_SIM_LAST_TYPE_ID = 20

static

Referenced by WsfXIO_SimPacketRegistry::RegisterClasses().
