#include <WsfExplicitWeaponEffects.hpp>

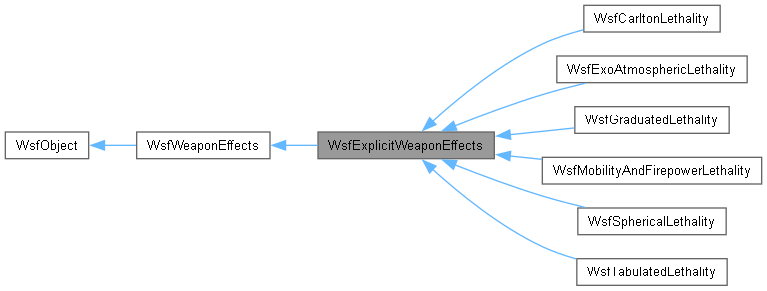

Inheritance diagram for WsfExplicitWeaponEffects:

[legend]

Collaboration diagram for WsfExplicitWeaponEffects:

[legend]

Public Member Functions
	WsfExplicitWeaponEffects (WsfScenario &aScenario)
	~WsfExplicitWeaponEffects () override=default
WsfWeaponEffects *	Clone () const override
bool	ProcessInput (UtInput &aInput) override
virtual double	MaximumEffectiveRadiusSquared () const
	Access the miss radius squared beyond which the weapon has no effect.
virtual double	MaximumEffectiveRadius () const
	Access the miss radius beyond which the weapon has no effect.
void	SetMaxiumEffectiveRadius (double aRadius)
	Set the radius beyond which the weapon has no effect.
Public Member Functions inherited from WsfWeaponEffects
	WsfWeaponEffects (WsfScenario &aScenario)
	~WsfWeaponEffects () override
virtual bool	PreInitialize ()
bool	ProcessInput (UtInput &aInput) override
virtual bool	Initialize (double aSimTime, const WsfWeaponEngagement *aEngagementPtr)
UtScriptContext *	GetScriptAccessibleContext () const override
Result	GetTargetResult () const
Result	GetIncidentalResult () const
Result	GetTotalResult () const
bool	UseLaunchPk () const
bool	UseInterceptPk () const
double	GetPkDegrade () const
	Return the current Pk degrade factor.
double	GetPkConstraint () const
void	SetInvincibleIndex (unsigned int aPlatformID)
	Set the ID of a platform which shall not be damaged. (Usually the launching entity.).
unsigned int	GetInvincibleIndex () const
	Get the ID of a platform which will not be damaged.
void	SetDamageRadius (double aDamageRadius)
	Set the maximum lethal damage radius for this effect.
double	GetDamageRadius () const
	Return the maximum lethal damage radius for this effect.
double	GetLaunchPk () const
	Get the Launch Pk.
double	GetInterceptPk () const
	Get the Intercept Pk.
bool	DrawEndgamePk ()
	Force a pk draw for an external platform target.
virtual double	GetCEP () const
	Access the value for engagement Circular Error Probable (CEP).
void	SetCEP (double aValue)
void	SetPkDegrade (double aPkDegrade)
virtual double	GetPkDrawn () const
	Access the Pk value drawn for the (intended) target hit assessment.
bool	DebugEnabled () const
	Returns 'true' if debugging is enabled for this instance.
void	SetDebugEnabled (bool aDebugEnabled)
	Enable or disable debugging for this instance.
unsigned int	KilledPlatformCount () const
	Method returns the count of platforms killed during this engagement.
bool	IsKilledPlatform (size_t aPlatformIndex) const
	Returns 'true' if the specified WSF platform index has been killed during this engagement.
WsfPk::Table *	GetPkTable ()
WsfScenario &	GetScenario ()
virtual void	ProcessEffectExplicit (double aSimTime)
virtual void	ProcessEffectImplicit (double aSimTime)
virtual void	Terminate (double aSimTime)
void	Defeat ()
bool	GetIncidentalDamageAllowed () const
void	SetIncidentalDamageAllowed (bool aIncidentalDamageAllowed)
bool	GetParentDamageAllowed () const
void	SetParentDamageAllowed (bool aParentDamageAllowed)
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Protected Member Functions
	WsfExplicitWeaponEffects (const WsfExplicitWeaponEffects &aSrc)=default
void	CalcInterceptPk (double aSimTime, WsfPlatform *aTargetPtr) override
void	CalcPkParameters (WsfPlatform *aTargetPtr, double &aAzimuth, double &aElevation, double &aMissileSpeed, double &aTargetSpeed) override
bool	IsVulnerable (WsfPlatform *aTargetPtr) override
double	LastTestRadiusSquared () const
void	CalcInterceptGeometry (WsfPlatform *aTargetPtr, double &aRangeRate, double &aApproachAngle)
Protected Member Functions inherited from WsfWeaponEffects
	WsfWeaponEffects (const WsfWeaponEffects &aSrc)
	Copy Constructor for Clone().
WsfWeaponEffects &	operator= (const WsfWeaponEffects &aRhs)
virtual void	ApplyEffectIncrement (double aSimTime, WsfPlatform *aOtherPlatformPtr, double aDamageAmount)
virtual void	ApplyEffectTo (double aSimTime, WsfPlatform *aOtherPlatformPtr)
virtual void	ApplyDamageResultToOtherPlatform (double aSimTime, WsfPlatform *aOtherPlatformPtr, double aDamage, Result aResult)
virtual void	CalcLaunchPk (double aSimTime)
virtual void	CalcPkDegradation (double aSimTime, WsfPlatform *aTargetPtr)
bool	IsIntendedTargetValid ()
	This protected method assures that a specified target index does exist.
void	AddToKilledPlatforms (unsigned int aKilledIndex)
double	DrawUniformPk ()
	Draw a uniform value for Pk determination.
void	ProcessEffectCommon (double aSimTime, WsfPlatform *aRefPlatformPtr)
bool	Defeated () const
	Return a flag to indicate that this effect has been annulled by outside influences.
const WsfWeaponEngagement *	GetEngagement () const
	Return the Engagement that this effect was instantiated to support.
void	SetUseLaunchPk ()
	Indicate that you wish to use the Launch Pk value (in lieu of the Intercept Pk value).
void	SetUseInterceptPk ()
	Indicate that you wish to use the Intercept Pk value (in lieu of the Launch Pk value).
void	SetLaunchPk (double aValue)
void	SetInterceptPk (double aValue)
void	SetPkDrawn (double aValue)
	Set the Pk value used in the intended target hit assessment.
void	SetIncidentalResult (const WsfWeaponEffects::Result &aResult)
void	SetTargetResult (const WsfWeaponEffects::Result &aResult)
void	SetResult (const WsfWeaponEffects::Result &aResult, bool aIsIntended)
size_t	KilledPlatform (size_t aIndex)
	Method returns an index of one of the platforms killed during this engagement.
const WsfWeaponEngagement *	GetEngagementPtr () const
WsfSimulation *	GetSimulation () const
WsfScriptContext *	GetScriptContext () const
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Additional Inherited Members
Public Types inherited from WsfWeaponEffects
enum	Result { cINVALID , cMISSED , cDAMAGED , cKILLED }
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
Static Public Member Functions inherited from WsfWeaponEffects
static WsfStringId	GetWeaponEffectsType (WsfPlatform &aPlatform)
	Return the weapon effects type for the associated platform.
static std::string	GetResultString (WsfWeaponEffects::Result aResult)
Static Public Attributes inherited from WsfWeaponEffects
static const char *	cTYPE_KIND = "weapon_effect"
static const double	cUNHARMED = 0.0
	Value indicating no damage to a player, the weapon had no effect.
static const double	cMORTALLY_WOUNDED = 1.0

Detailed Description

A base class for explicit weapon effect determinations. Produces damage to platforms when a weapon detonates in proximity.

Constructor & Destructor Documentation

◆ WsfExplicitWeaponEffects() [1/2]

WsfExplicitWeaponEffects::WsfExplicitWeaponEffects ( WsfScenario & aScenario )

References WsfWeaponEffects::SetUseInterceptPk(), and WsfWeaponEffects::WsfWeaponEffects().

Referenced by Clone(), WsfCarltonLethality::WsfCarltonLethality(), WsfExoAtmosphericLethality::WsfExoAtmosphericLethality(), WsfExplicitWeaponEffects(), WsfGraduatedLethality::WsfGraduatedLethality(), WsfMobilityAndFirepowerLethality::WsfMobilityAndFirepowerLethality(), WsfMobilityAndFirepowerLethality::WsfMobilityAndFirepowerLethality(), WsfSphericalLethality::WsfSphericalLethality(), and WsfTabulatedLethality::WsfTabulatedLethality().

◆ ~WsfExplicitWeaponEffects()

WsfExplicitWeaponEffects::~WsfExplicitWeaponEffects ( )

overridedefault

References MaximumEffectiveRadius(), MaximumEffectiveRadiusSquared(), and WsfWeaponEffects::WsfWeaponEffects().

◆ WsfExplicitWeaponEffects() [2/2]

WsfExplicitWeaponEffects::WsfExplicitWeaponEffects ( const WsfExplicitWeaponEffects & aSrc )

protecteddefault

References WsfExplicitWeaponEffects().

Member Function Documentation

◆ CalcInterceptGeometry()

void WsfExplicitWeaponEffects::CalcInterceptGeometry	(	WsfPlatform *	aTargetPtr,
		double &	aRangeRate,
		double &	aApproachAngle )

protected

Utility method for use in derived classes. Calculates opening or closing speed and approach angle from true platform velocities. Does not calculate a miss distance, as the weapon_fuse does this. Since the method does not have actual locations, it cannot give them signs (approach - recede).

Parameters

aTargetPtr	Platform to consider as the target for this engagement.
aRangeRate	Calculated relative speed for a hit-to-kill determination.
aApproachAngle	Calculated impact angle. 0.0 = Grazing bump, 180 = head-on.

References CalcInterceptGeometry(), WsfWeaponEffects::GetEngagement(), and WsfWeaponEngagement::GetWeaponPlatform().

Referenced by CalcInterceptGeometry(), and WsfExoAtmosphericLethality::CalcInterceptPk().

◆ CalcInterceptPk()

void WsfExplicitWeaponEffects::CalcInterceptPk	(	double	aSimTime,
		WsfPlatform *	aTargetPtr )

overrideprotectedvirtual

Method to calculate the Intercept Pk, in response to engagement conditions at intercept. Will be called at the beginning of ProcessEffectExplicit().

Parameters

aSimTime	simulated time for the weapon effect.
aTargetPtr	Target under consideration for damage.

Reimplemented from WsfWeaponEffects.

Reimplemented in WsfGraduatedLethality, WsfMobilityAndFirepowerLethality, and WsfTabulatedLethality.

References CalcPkParameters(), WsfWeaponEffects::DebugEnabled(), WsfWeaponEffects::GetPkTable(), WsfObject::GetTypeId(), WsfPk::Table::LookUp(), and WsfWeaponEffects::SetInterceptPk().

◆ CalcPkParameters()

void WsfExplicitWeaponEffects::CalcPkParameters	(	WsfPlatform *	aTargetPtr,
		double &	aAzimuth,
		double &	aElevation,
		double &	aMissileSpeed,
		double &	aTargetSpeed )

overrideprotectedvirtual

Capture the geometry values needed to do a Pk table lookup.

Parameters

aTargetPtr	Pointer to the target to be evaluated for geometry.
aAzimuth	Missile-body-relative azimuth to the target.
aElevation	Missile-body-relative elevation to the target.
aMissileSpeed	Missile speed.
aTargetSpeed	Target speed.

Reimplemented from WsfWeaponEffects.

References WsfWeaponEffects::GetEngagement(), WsfWeaponEngagement::GetTargetLocationWCS(), WsfWeaponEngagement::GetWeaponLocationWCS(), and WsfWeaponEngagement::GetWeaponPlatform().

Referenced by CalcInterceptPk().

◆ Clone()

WsfWeaponEffects * WsfExplicitWeaponEffects::Clone ( ) const

overridevirtual

Create a clone of the object.

Returns: A pointer to the new object.

Implements WsfWeaponEffects.

Reimplemented in WsfGraduatedLethality, WsfMobilityAndFirepowerLethality, WsfSphericalLethality, and WsfTabulatedLethality.

References WsfExplicitWeaponEffects(), and WsfWeaponEffects::WsfWeaponEffects().

◆ IsVulnerable()

bool WsfExplicitWeaponEffects::IsVulnerable ( WsfPlatform * aTargetPtr )

overrideprotectedvirtual

In addition to the base class checks, this also excludes platforms that are outside of the lethal radius.

Reimplemented from WsfWeaponEffects.

References WsfWeaponEffects::GetEngagement(), WsfWeaponEngagement::GetMissDistance(), WsfWeaponEngagement::GetWeaponPlatform(), and WsfWeaponEffects::IsVulnerable().

◆ LastTestRadiusSquared()

double WsfExplicitWeaponEffects::LastTestRadiusSquared ( ) const

inlineprotected

Get the miss radius squared for the most recent test. (Used in derived classes to prevent having to do the offset calculation a second time.)

Referenced by WsfSphericalLethality::ApplyEffectTo(), and WsfGraduatedLethality::CalcInterceptPk().

◆ MaximumEffectiveRadius()

double WsfExplicitWeaponEffects::MaximumEffectiveRadius ( ) const

virtual

Access the miss radius beyond which the weapon has no effect.

Get the radius beyond which the weapon has no lethal effect.

Referenced by WsfSphericalLethality::ApplyEffectTo(), WsfGraduatedLethality::PreInitialize(), WsfSphericalLethality::PreInitialize(), and ~WsfExplicitWeaponEffects().

◆ MaximumEffectiveRadiusSquared()

double WsfExplicitWeaponEffects::MaximumEffectiveRadiusSquared ( ) const

virtual

Access the miss radius squared beyond which the weapon has no effect.

Get the radius squared beyond which the weapon has no lethal effect.

Referenced by ~WsfExplicitWeaponEffects().

◆ ProcessInput()

bool WsfExplicitWeaponEffects::ProcessInput ( UtInput & aInput )

overridevirtual

Method will read a data stream, and initialize any data required by the object prior to first use. The type loader must call this method on each object after the data stream input is read.

Reimplemented from WsfObject.

Reimplemented in WsfGraduatedLethality, WsfMobilityAndFirepowerLethality, WsfSphericalLethality, and WsfTabulatedLethality.

References WsfWeaponEffects::ProcessInput().

Referenced by WsfCarltonLethality::ProcessInput(), WsfExoAtmosphericLethality::ProcessInput(), WsfGraduatedLethality::ProcessInput(), WsfMobilityAndFirepowerLethality::ProcessInput(), WsfSphericalLethality::ProcessInput(), and WsfTabulatedLethality::ProcessInput().

◆ SetMaxiumEffectiveRadius()

void WsfExplicitWeaponEffects::SetMaxiumEffectiveRadius ( double aRadius )

inline

Set the radius beyond which the weapon has no effect.

Referenced by WsfGraduatedLethality::PreInitialize().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ WsfExplicitWeaponEffects() [1/2]

◆ ~WsfExplicitWeaponEffects()

◆ WsfExplicitWeaponEffects() [2/2]

Member Function Documentation

◆ CalcInterceptGeometry()

◆ CalcInterceptPk()

◆ CalcPkParameters()

◆ Clone()

◆ IsVulnerable()

◆ LastTestRadiusSquared()

◆ MaximumEffectiveRadius()

◆ MaximumEffectiveRadiusSquared()

◆ ProcessInput()

◆ SetMaxiumEffectiveRadius()
