The main controller for a simulation. More...

#include <WsfSimulation.hpp>

Inheritance diagram for WsfSimulation:

[legend]

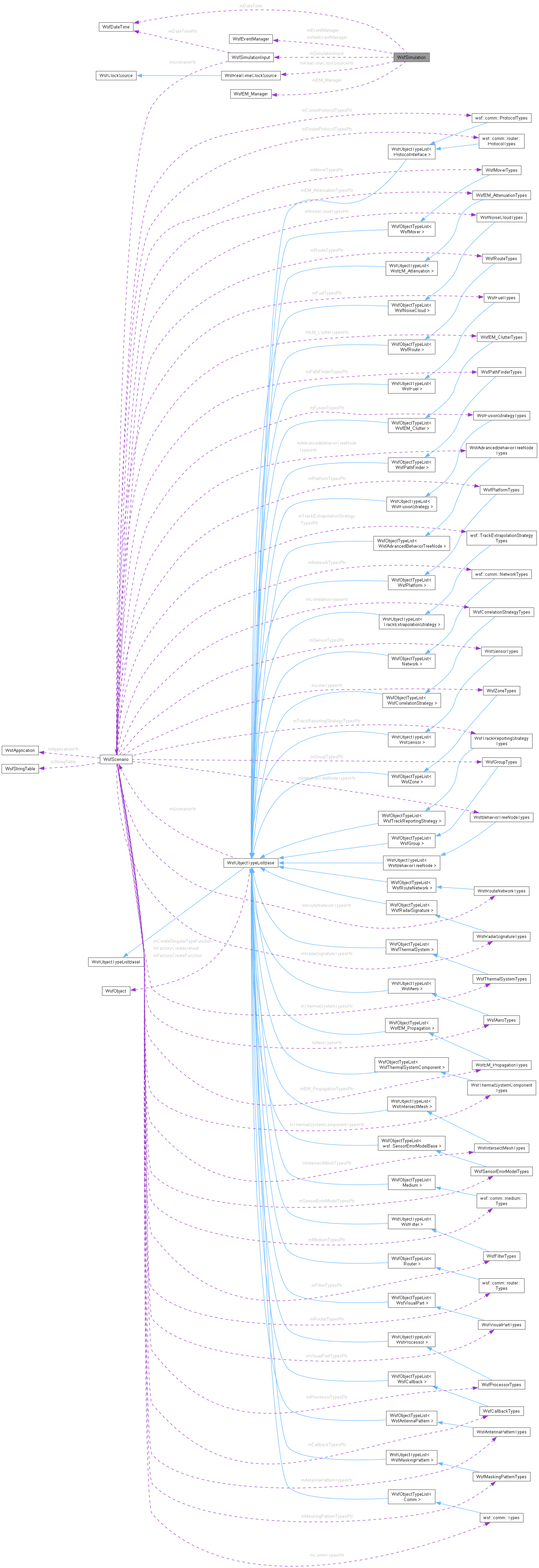

Collaboration diagram for WsfSimulation:

[legend]

Classes
class	InitializeError
	An exception that is thrown when Initialize() fails. More...
class	StartError
	An exception that is thrown when Start() fails. More...
class	CreateError
class	AddPlatformEvent
	An internal event scheduled to add a platform at the specified time. More...

Public Types
enum	State { cPENDING_INITIALIZE , cINITIALIZING , cPENDING_START , cSTARTING , cACTIVE , cPENDING_COMPLETE , cCOMPLETE }
	An enumerated type specifying the state of the simulation. More...
enum	CompletionReason { cNONE , cEND_TIME_REACHED , cRESET , cTERMINATE , cOTHER }
	An enumerated type specifying the reason for completion of the simulation. More...

Public Member Functions
	WsfSimulation (const WsfScenario &aScenario, unsigned int aRunNumber)
virtual	~WsfSimulation ()
	WsfSimulation (const WsfSimulation &aSrc)=delete
WsfSimulation &	operator= (const WsfSimulation &aRhs)=delete
const WsfScenario &	GetScenario () const
WsfApplication &	GetApplication () const

AddInputPlatforms
Non-public method for adding platforms as part of the standard simulation initialization routine. During runtime, platforms are added individually using the AddPlatform methods that are publicly available as part of the WsfSimulation interface.
WsfEM_Manager	mEM_Manager
	EM manager.
WsfEventManager	mEventManager
	Simulation event manager object.
WsfEventManager	mWallEventManager
	Wall clock-based event manager object.
std::unique_ptr< WsfClockSource >	mClockSourcePtr {nullptr}
	Pointer to the simulation clock source object.
WsfRealTimeClockSource *	mRealTimeClockSourcePtr {nullptr}
double	mSimTime {0.0}
	The last time to which the simulation has been updated (seconds).
double	mRealTime {false}
double	mTimeBehind {0.0}
	The amount of time the simulation clock is behind the real-time clock.
double	mTimestep {0.0}
double	mSyncAccumulatedTime {0.0}
	The wall clock time taken to execute the current synchronized time step.
volatile State	mState {cPENDING_INITIALIZE}
	The current state of the simulation.
volatile CompletionReason	mCompletionReason {cNONE}
	The reason for simulation completion.
bool	mExternalEventReady {false}
	True if an external event needs to be processed.
unsigned int	mRunNumber
	The current run number being executed.
const WsfSimulationInput &	mSimulationInput
WsfDateTime	mDateTime
bool	mMultiThreaded
double	mMinimumMoverTimestep
double	mEndTime {std::numeric_limits<double>::max()}
	The end time of the simulation (seconds).
bool	mIsRealTime {false}
bool	AddInputPlatforms ()
virtual bool	TurnPartOffP (double aSimTime, WsfPlatformPart *aPartPtr)
virtual bool	TurnPartOnP (double aSimTime, WsfPlatformPart *aPartPtr)
virtual bool	SetPartOperationalP (double aSimTime, WsfPlatformPart *aPartPtr, bool aOperational)
virtual void	DispatchWallEvents ()
	Dispatch any pending wall clock events up to and including the indicated time.
virtual void	DispatchSimEvents (double aSimTime)
virtual void	DispatchEvents (double aSimTime)
virtual bool	PlatformInitialized (double aSimTime, WsfPlatform *aNewPlatformPtr)
virtual bool	PlatformIntroduced (double aSimTime, WsfPlatform *aNewPlatformPtr)
virtual bool	SimulationInitialized ()
virtual void	CreateClock ()
virtual bool	PlatformIsAvailable (WsfPlatform *aPlatformPtr)

Simulation State and Time management
virtual void	Initialize ()
virtual void	PrepareSimulation ()
virtual void	AddEvent (std::unique_ptr< WsfEvent > aEventPtr)
template<typename T, typename... Args>
T *	AddEventT (Args &&... args)
virtual void	AddWallEvent (std::unique_ptr< WsfEvent > aEventPtr)
template<typename T, typename... Args>
T *	AddWallEventT (Args &&... args)
virtual double	AdvanceTime ()
virtual double	AdvanceTime (double aSimTime)
virtual bool	ShouldExecute () const
virtual void	Start ()
virtual void	Pause ()
	Pause execution of the simulation.
void	PauseAndRequestAdvance (double)
	Pause the execution of the simulation and request a time advance in scaled-and-stepped mode.
virtual void	Resume ()
	Resume execution of the paused simulation.
virtual void	Complete (double aSimTime)
virtual void	RequestReset ()
virtual void	WaitForAdvanceTime ()
bool	IsActive () const
State	GetState () const
	Return the simulation's current state.
const std::string &	GetStateString () const
	Return the string representation of the simulation's current state.
CompletionReason	GetCompletionReason () const
virtual std::string	GetCompletionReasonString () const
virtual void	RequestTermination ()
void	SetEndTime (double aEndTime)
	Set the defined end time of the simulation.
double	GetSimTime () const
	Get the last time to which the simulation was updated.
double	GetEndTime () const
	Get the defined end time of the simulation.
virtual double	GetNextEventTime () const
double	GetRealTime () const
bool	IsRealTime () const
	Return whether this simulation is running real-time, or a multiple of real-time.
double	GetWallTime () const
	Get the current wall-clock time since simulation creation.
double	GetTimeBehind () const
double	GetTimestep () const
double	GetSyncTimestep () const
virtual void	SetRealtime (double aSimTime, bool aIsRealTime)
	Instructs the simulation to run in a real-time mode.
void	SetIsExternallyStarted (bool aIsExternallyStarted)
bool	IsExternallyStarted () const
	Return whether the simulation is to be started by an external source.
bool	MultiThreadingActive () const
	Return whether the simulation multi-threading is currently active.
void	SetMultiThreadingActive (bool aMultiThreadingActive)
	Set whether multi-threading is currently active ('true') or not ('false').
bool	IsEventStepSimulation () const
	Return event step simulation indicator.
void	SetAmAnEventStepSimulation (bool aFlag)
void	SetClockSource (std::unique_ptr< WsfClockSource > aClockSourcePtr)
const WsfClockSource *	GetClockSource () const
virtual double	GetClockRate () const
	Returns the clock rate of the simulation.
virtual void	SetClockRate (double aClockRate)
	Changes the clock rate of the simulation.
virtual void	SetTimeParameters (int aTimeScheme, double aSimTime, double aClockRate, double aTimeStep, bool aTimeAdvance=false)
	Change the time parameters of the simulation.
static const std::string &	GetStateString (State aState)
	Return the string representation of the provided simulation state.

Platform addition, deletion and query methods.
virtual bool	AddPlatform (WsfPlatform *aPlatformPtr)
virtual bool	AddPlatform (double aSimTime, WsfPlatform *aPlatformPtr)
virtual void	DeletePlatform (double aSimTime, WsfPlatform *aPlatformPtr, bool aDeleteMemory=true)
WsfPlatform *	GetPlatformByIndex (size_t aIndex) const
WsfPlatform *	GetPlatformByName (WsfStringId aNameId) const
bool	PlatformExists (size_t aIndex) const
	Returns 'true' if the platform with the specified index still exists.
WsfStringId	GetPlatformNameId (size_t aIndex) const
	Return the name (ID) of a platform, even if the platform has been deleted from the simulation.
WsfStringId	GetPlatformTypeId (size_t aIndex) const
	Return the type (ID) of a platform, even if the platform has been deleted from the simulation.

Platform list iteration methods
The following methods can be used to iterate over the list of known platforms. For example: for (size_t i = 0; i < simulationPtr->GetPlatformCount(); ++i) { WsfPlatform* platformPtr = simulationPtr->GetPlatformEntry(i); ... blah blah blah ... } platformPtr WsfPlatform * platformPtr Definition WsfScriptTrackClass.cpp:507 WsfPlatform Platforms represent a entity within the simulation. Definition WsfPlatform.hpp:115
size_t	GetPlatformCount () const
WsfPlatform *	GetPlatformEntry (size_t aEntry) const

Subsystem status change methods
virtual bool	TurnPartOff (double aSimTime, WsfPlatformPart *aPartPtr)
virtual bool	TurnPartOn (double aSimTime, WsfPlatformPart *aPartPtr)
virtual bool	SetPartOperational (double aSimTime, WsfPlatformPart *aPartPtr, bool aOperational=true)
virtual void	SetPartUpdateInterval (double aSimTime, WsfPlatformPart *aPartPtr, double aUpdateInterval)

Methods that are public, but aren't part of the public interface.
virtual bool	PlatformDeleted (double aSimTime, WsfPlatform *aOldPlatformPtr)
virtual void	ProcessRemovePlatformEvent (double aSimTime, WsfPlatform *aPlatformPtr, bool aDeletePlatform)
	Called from RemovePlatformEvent to complete the processing of deleting a platform.
virtual void	ProcessPlatformBrokenEvent (double aSimTime, WsfPlatform *aPlatformPtr)
	Call from PlatformBrokenEvent to complete the processing of the broken of a platform.

Deprecated methods.
virtual void	SimulationStarting ()
	Deprecated form of Start();.
virtual void	SimulationComplete (double aSimTime)
	Deprecated form of Complete();.
bool	IsFlexibleRealtime () const
	Return 'true' if the simulation's real-time constraint is flexible.
void	SetFlexibleRealtime ()

Observer access methods.
WsfAdvancedBehaviorObserver &	GetAdvancedBehaviorObserver () const
WsfBehaviorObserver &	GetBehaviorObserver () const
WsfCommObserver &	GetCommObserver () const
WsfDisObserver &	GetDisObserver () const
WsfExchangeObserver &	GetExchangeObserver () const
WsfFuelObserver &	GetFuelObserver () const
WsfMoverObserver &	GetMoverObserver () const
WsfPlatformObserver &	GetPlatformObserver () const
WsfPlatformPartObserver &	GetPlatformPartObserver () const
WsfProcessorObserver &	GetProcessorObserver () const
WsfScriptStateMachineObserver &	GetScriptStateMachineObserver () const
WsfSensorObserver &	GetSensorObserver () const
WsfSimulationObserver &	GetSimulationObserver () const
WsfTaskObserver &	GetTaskObserver () const
WsfTrackObserver &	GetTrackObserver () const
WsfZoneObserver &	GetZoneObserver () const

Simulation extension methods.
WsfSimulationExtension *	FindExtension (const std::string &aName) const
WsfSimulationExtension &	GetExtension (const std::string &aName) const
const WsfExtensionList &	GetExtensions () const
void	RegisterExtension (const std::string &aName, std::unique_ptr< WsfSimulationExtension > aExtensionPtr)
const std::vector< std::string > &	GetExtensionNames () const
unsigned int	AssignUniqueId ()
	Assign the next unique identifier for WsfUniqueId.
ut::Random &	GetRandom ()
ut::Random &	LockRandom ()
void	UnlockRandom ()
ut::Random &	GetScriptRandom ()
ut::Random &	LockScriptRandom ()
void	UnlockScriptRandom ()
wsf::TerrainInterface *	GetTerrainInterface () const
WsfDateTime &	GetDateTime ()
const WsfDateTime &	GetDateTime () const
WsfGroupManager &	GetGroupManager ()
wsf::comm::NetworkManager *	GetCommNetworkManager () const
WsfMultiThreadManager &	GetMultiThreadManager ()
WsfPathFinderList &	GetPathFinderList () const
WsfScriptContext &	GetScriptContext ()
const WsfScriptContext &	GetScriptContext () const
WsfLOS_Manager *	GetLOS_Manager () const
WsfZoneAttenuation &	GetZoneAttenuation ()
WsfEM_Manager &	GetEM_Manager ()
UtScriptExecutor &	GetScriptExecutor ()
UtAtmosphere &	GetAtmosphere () const
	Return the UtAtmosphere object used by the simulation.
WsfEnvironment &	GetEnvironment () const
WsfSystemLog &	GetSystemLog () const
WsfIFF_Manager *	GetIFF_Manager () const
unsigned int	NextMessageSerialNumber ()
unsigned int	NextEngagementSerialNumber ()
unsigned int	PreviousEngagementSerialNumber () const
void	ReclaimPreviousEngagementSerialNumber ()
double	CreateMessageDataTag ()
bool	MultiThreaded () const
	Return whether the simulation should multi-thread were appropriate.
unsigned int	GetRunNumber () const
	Get the current run number.
unsigned int	GetFinalRunNumber () const
bool	RandomizeFrequency () const
bool	UseDefaultFrequency () const
double	GetMinimumMoverTimestep () const
const WsfSimulationInput &	GetSimulationInput () const
std::string	SubstituteOutputFileVariables (const std::string &aOutputFile)

Platform list maintenance methods.
void	AddToPlatformList (WsfPlatform *aPlatformPtr)
bool	DeleteFromPlatformList (WsfPlatform *aPlatformPtr)
bool	PlatformPointerExists (WsfPlatform *aPlatformPtr)
void	ResetPlatformList ()
	Reset the list to its initial (empty) state.

Detailed Description

The main controller for a simulation.

The 'simulation' object acts as the main controller for a simulation. While it is possible to use the framework without a simulation object, the simulation object will almost always be required for all but the most trivial of simulations.

The simulation object provides methods to:

Maintain an event queue
Supervise the addition and deletion of platforms
Turn platform systems on and off in a coordinated manner.
Maintain simulation 'observers'

Most methods within the class are virtual so a derived class may be used to provide custom simulation functionality.

Member Enumeration Documentation

◆ CompletionReason

enum WsfSimulation::CompletionReason

An enumerated type specifying the reason for completion of the simulation.

Enumerator
cNONE	No reason; the simulation is not in a PENDING_COMPLETE or COMPLETE state.
cEND_TIME_REACHED	The simulation has reached the specified end time.
cRESET	A reset was commanded through a call to WsfSimulation::Reset.
cTERMINATE	A terminate was commanded through a call to WsfSimulation::Terminate.
cOTHER	Other reason that can be used by derived classes.

◆ State

enum WsfSimulation::State

An enumerated type specifying the state of the simulation.

Enumerator
cPENDING_INITIALIZE	The simulation has been constructed and is ready for WsfSimulation::Initialize to be called.
cINITIALIZING	The WsfSimulation::Initialize method is being called.
cPENDING_START	Initialization is complete, ready for WsfSimulation::Start to be called.
cSTARTING	The WsfSimulation::Start method is being called.
cACTIVE	Start is complete, the simulation is in progress.
cPENDING_COMPLETE	Simulation processing is complete; waiting on a call to WsfSimulation::Complete.
cCOMPLETE	Simulation is complete.

Constructor & Destructor Documentation

◆ WsfSimulation() [1/2]

WsfSimulation::WsfSimulation	(	const WsfScenario &	aScenario,
		unsigned int	aRunNumber )

◆ ~WsfSimulation()

WsfSimulation::~WsfSimulation ( )

virtual

References GetPlatformCount(), GetPlatformEntry(), and platformPtr.

◆ WsfSimulation() [2/2]

WsfSimulation::WsfSimulation ( const WsfSimulation & aSrc )

delete

References WsfSimulation().

Member Function Documentation

◆ AddEvent()

void WsfSimulation::AddEvent ( std::unique_ptr< WsfEvent > aEventPtr )

virtual

Add an event to the simulation event queue.

Parameters

aEventPtr A pointer to the event to be queued. This classes assumes ownership of the object.

Reimplemented in WsfFrameStepSimulation.

References mEventManager.

Referenced by wsf::comm::NetworkAdHoc::AddAddressRate(), AddEventT(), AddInputPlatforms(), wsf::comm::NetworkAdHoc::AddNamedRate(), AddPlatform(), WsfBrawlerProcessor::AddSelfCalledConsciousnessEvent(), WsfScriptContext::AddTimedEvents(), WsfRouteMover::AddUnpauseEventFor(), WsfImplicitWeapon::BeginEngagement(), WsfLaserWeapon::BeginShot(), WsfJTIDS_SlotGroup::BeginTransmitEvent(), WsfImplicitWeapon::CeaseFire(), wsf::comm::NetworkAdHoc::ChangeRate(), WsfTaskManager::CheckMessageAcknowledged(), WsfImplicitWeapon::ClearEngagement(), WsfWeapon::ContinueSalvo(), WsfTaskManager::CreateDelayTask(), DeletePlatform(), WsfTrackStateController::DeleteTrack(), WsfTrackStateController::DiscoverTrack(), WsfArticulatedPart::EnableArticulationUpdates(), WsfTrackStateController::EnterState(), WsfLaserWeapon::EvaluateCooling(), WsfTrackStateController::EvaluationComplete(), WsfPlatformPartEvent::Execute(), WsfPlatform::ExecuteScriptAtTime(), WsfScriptProcessor::ExecuteScriptAtTime(), WsfExplicitWeapon::FireP(), WsfWeapon::FireSalvo(), XWsfSeaTraffic::HandleDeparture(), XWsfSeaTraffic::HandleEnterLoiter(), Tool::Initialize(), wsf::comm::NetworkAdHoc::Initialize(), WsfClusterCorrelation::Initialize(), WsfEventStepSimulation::Initialize(), WsfMobilityAndFirepowerLethality::Initialize(), WsfPerceptionProcessor::Initialize(), Initialize(), WsfTSPI_Mover::Initialize(), XWsfAirTraffic::Initialize(), XWsfSeaTraffic::SeaPort::Initialize(), WsfTrackProcessor::InitializeMemberData(), WsfMilInterface::KillPlatform(), wsf::comm::ProtocolIGMP::NetworkReceive(), wsf::coverage::Coverage::PendingStart(), wsf::comm::router::ProtocolAdHoc::PerfectCommAdded(), wsf::comm::router::ProtocolAdHoc::PerfectCommRemoved(), wsf::comm::router::ProtocolAdHoc::PerfectConnectionAdded(), wsf::comm::router::ProtocolAdHoc::PerfectConnectionRemoved(), WsfEventStepSimulation::PlatformInitialized(), WsfDisInterface::PrepareExtension(), WsfExtInterface::PrepareExtension(), WsfTrackStateController::ProcessMessage(), WsfWeapon::ProcessReloading(), WsfQuantumTaskerProcessor::ProcessTaskStatusMessage(), WsfTaskManager::ProcessTaskStatusMessage(), wsf::comm::medium::Guided::PropagateMessage(), WsfCyclicTrackReporting::ReportFusedTracks(), WsfCyclicTrackReporting::ReportRawTracks(), wsf::space::OrbitalMissionSimulationContext::Schedule(), wsf::comm::ComponentHW::ScheduleAltFreqChange(), WsfOTH_RadarSensor::OTH_Mode::ScheduleAltFreqChange(), WsfRadarSensor::RadarMode::ScheduleAltFreqChange(), wsf::comm::LayerEvent::ScheduleCommLayerEvent(), wsf::comm::Event::ScheduleDeliverMessageEvent(), wsf::space::OrbitalMissionSimulationContext::ScheduleMission(), WsfSensor::ScheduleModeChange(), WsfEventPipeInterface::SendModeActive(), WsfDisPlatform::SendOrQueueEmissionsPDU(), WsfTaskManager::SendTaskMessage(), wsf::comm::medium::Medium::SetActiveModeDelayed(), wsf::comm::medium::Medium::SetActiveModeDelayed(), WsfPerceptionProcessor::SetAssetUpdateInterval(), WsfWaypointMover::SetCompleteTime(), WsfPlatformPart::SetDamageFactor(), SetEndTime(), WsfEventStepSimulation::SetPartUpdateInterval(), WsfPerceptionProcessor::SetThreatUpdateInterval(), SetTimeParameters(), wsf::UCI_SensorComponent::SlewComplete(), WsfTimeDelayQueue::SubmitRequest(), WsfWeaponTaskManager::TaskCorrelated(), WsfWeaponEngagement::Terminate(), wsf::comm::medium::Guided::TransmitMessage(), wsf::comm::medium::Unguided::TransmitMessage(), WsfDisPlatform::TrySendCMEData(), WsfEventStepSimulation::TurnPartOff(), WsfEventStepSimulation::TurnPartOn(), wsf::comm::NetworkAdHoc::Update(), wsf::comm::NetworkAdHoc::Update(), wsf::comm::NetworkAdHoc::Update(), XWsfAirTraffic::UpdateFlightStatus(), WsfL16::Interface_J11::WeaponFired(), and WsfWeaponTaskManager::WeaponFired().

◆ AddEventT()

template<typename T, typename... Args>

T * WsfSimulation::AddEventT ( Args &&... args )

inline

References AddEvent().

◆ AddInputPlatforms()

bool WsfSimulation::AddInputPlatforms ( )

protected

Adds platforms to the simulation in a phase-stepped manner. This is only used by the simulation during initialization of platforms. Any addition of platforms outside of this process is done on a platform-by-platform basis using the standard AddPlatform call.

References AddEvent(), AddToPlatformList(), WsfPlatform::Clone(), WsfScriptContext::ExecuteScript(), WsfScriptContext::FindScript(), WsfScriptContext::GetClass(), GetExtension(), GetPlatformByName(), GetScriptContext(), ok, WsfObserver::PlatformAdded(), WsfObserver::PlatformInitialized(), PlatformInitialized(), PlatformIsAvailable(), WsfObserver::PlatformOmitted(), PlatformPointerExists(), platformPtr, WsfSimulationExtension::PlatformsInitialized(), and WsfScriptContext::ValidateScript().

Referenced by Initialize().

◆ AddPlatform() [1/2]

bool WsfSimulation::AddPlatform	(	double	aSimTime,
		WsfPlatform *	aPlatformPtr )

virtual

Add a platform to an active simulation.

This method should be used to add platforms to a simulation that is running.

It is an error to invoke this before WsfSimulation::Initialize has been called.

Parameters

aSimTime	The time at which to add the platform to the simulation.
aPlatformPtr	Pointer to the platform to be added. This class assumes ownership of the platform.

Returns: 'true' if the platform was added or 'false' if an not.

Note: If aSimTime is less than the current simulation time, it will be clamped to the current simulation time. If aSimTime is greater than the current simulation time, it will be scheduled to be added to the simulation at that future time.

Reimplemented in WsfFrameStepSimulation.

References AddEvent(), AddToPlatformList(), cINITIALIZING, DeleteFromPlatformList(), WsfPlatform::GetIndex(), WsfObject::GetName(), WsfObject::GetNameId(), GetPlatformByName(), GetPlatformCount(), GetPlatformEntry(), GetSimTime(), WsfPlatform::Initialize(), WsfPlatform::Initialize2(), WsfPlatform::IsExternallyControlled(), mState, ok, WsfObserver::PlatformAdded(), WsfObserver::PlatformDeleted(), WsfPlatform::PlatformDeleted(), WsfObserver::PlatformInitialized(), PlatformInitialized(), PlatformPointerExists(), WsfPlatform::SetDeleted(), and simTime.

◆ AddPlatform() [2/2]

bool WsfSimulation::AddPlatform ( WsfPlatform * aPlatformPtr )

virtual

Add a platform to an active simulation.

This method should be used to add platforms to a simulation that is running.

It is an error to invoke this before WsfSimulation::Initialize has been called.

Parameters

aPlatformPtr Pointer to the platform to be added. This class assumes ownership of the platform.

Returns: 'true' if the platform was added or 'false' if an not.

Reimplemented in WsfFrameStepSimulation.

References AddPlatform(), and GetSimTime().

Referenced by WsfFrameStepSimulation::AddPlatform(), WsfFrameStepSimulation::AddPlatform(), AddPlatform(), engage::Platform::AddToSimulation(), WsfP6DOF_Mover::CheckForNewlyJettisonedPlatforms(), Sensor::CreateAndInitialize(), Target::CreateAndInitialize(), HorizontalMapFunction::Execute(), WsfSimulation::AddPlatformEvent::Execute(), Tool::Initialize(), and wsf::coverage::RectangularGrid::PreparePlatforms().

◆ AddToPlatformList()

void WsfSimulation::AddToPlatformList ( WsfPlatform * aPlatformPtr )

protected

Add a platform to the list of platforms.

It is assumed the caller has already verified the platform does not exist in the list.

Parameters

aPlatformPtr Pointer to the platform to be added.

References WsfPlatform::GetIndex(), WsfObject::GetNameId(), WsfObject::GetTypeId(), and WsfPlatform::SetIndex().

Referenced by AddInputPlatforms(), and AddPlatform().

◆ AddWallEvent()

void WsfSimulation::AddWallEvent ( std::unique_ptr< WsfEvent > aEventPtr )

virtual

Add an event to the real-world event queue. Event will be triggered based on WallClock time, rather than simulation time, and will not pause if the simulation pauses. This should be used for Simulation Management events, not simulated events.

Parameters

aEventPtr A pointer to the event to be queued. This class assumes ownership of the object.

References mWallEventManager.

Referenced by AddWallEventT(), and WsfDisInterface::SimulationPausing().

◆ AddWallEventT()

template<typename T, typename... Args>

T * WsfSimulation::AddWallEventT ( Args &&... args )

inline

References AddWallEvent().

◆ AdvanceTime() [1/2]

double WsfSimulation::AdvanceTime ( )

virtual

Dispatch the next event.

Returns: The simulation time of the dispatched event.

Reimplemented in WsfFrameStepSimulation.

References WsfObserver::AdvanceTime(), cPENDING_COMPLETE, DispatchEvents(), GetEndTime(), WsfEvent::GetTime(), mClockSourcePtr, mEventManager, mIsRealTime, mRealTimeClockSourcePtr, mSimTime, mState, and mSyncAccumulatedTime.

Referenced by WsfFrameStepSimulation::AdvanceTime(), WsfStandardApplication::RunEventLoop(), and weapon_tools().

◆ AdvanceTime() [2/2]

double WsfSimulation::AdvanceTime ( double aSimTime )

virtual

Dispatch the next event if its time is less than or equal to the specified time.

Parameters

aSimTime Desired simulation time.

Returns: If an event was dispatched then the time of the event, otherwise 'aSimTime'.

Reimplemented in WsfFrameStepSimulation.

References WsfObserver::AdvanceTime(), cPENDING_COMPLETE, DispatchEvents(), GetEndTime(), WsfEvent::GetTime(), mClockSourcePtr, mEventManager, mSimTime, and mState.

◆ AssignUniqueId()

unsigned int WsfSimulation::AssignUniqueId ( )

Assign the next unique identifier for WsfUniqueId.

Referenced by WsfUniqueId::AssignUniqueId().

◆ Complete()

void WsfSimulation::Complete ( double aSimTime )

virtual

Indicate that the application has completed its simulation loop.

This performs the following action (in the order specified):

Marks the simulation as complete.
Stops the clock.
Invokes SimulationComplete for each registered simulation observer.
Deletes all remaining platforms.
Deletes all remaining events in the event queue
Invokes the Complete method for each registered simulation extension.
Resets the clock back to 0.0

Parameters

aSimTime The current simulation time.

Reimplemented in WsfEventStepSimulation, and WsfFrameStepSimulation.

References cACTIVE, cCOMPLETE, cEND_TIME_REACHED, cNONE, WsfSimulationExtension::Complete(), cPENDING_COMPLETE, GetExtension(), GetPlatformCount(), GetPlatformEntry(), mClockSourcePtr, mCompletionReason, mEndTime, mEventManager, mSimTime, mState, ProcessRemovePlatformEvent(), ResetPlatformList(), and WsfObserver::SimulationComplete().

Referenced by WsfEventStepSimulation::Complete(), WsfFrameStepSimulation::Complete(), WsfStandardApplication::RunEventLoop(), and SimulationComplete().

◆ CreateClock()

void WsfSimulation::CreateClock ( )

protectedvirtual

This is a method used to create the type of clock the simulation expects.

Note: See WsfEventStepSimulation for a non-trivial implementation.

Reimplemented in WsfEventStepSimulation, and WsfFrameStepSimulation.

References SetClockSource().

Referenced by Initialize().

◆ CreateMessageDataTag()

double WsfSimulation::CreateMessageDataTag ( )

◆ DeleteFromPlatformList()

bool WsfSimulation::DeleteFromPlatformList ( WsfPlatform * aPlatformPtr )

protected

Delete a platform pointer from the list of platforms.

This only deletes the pointer from the list. It does not delete the platform.

Returns: 'true' if the platform was successfully removed from the list or 'false' if it did not exist in the list.

References WsfPlatform::GetIndex(), and WsfObject::GetNameId().

Referenced by AddPlatform(), and PlatformDeleted().

◆ DeletePlatform()

void WsfSimulation::DeletePlatform	(	double	aSimTime,
		WsfPlatform *	aPlatformPtr,
		bool	aDeleteMemory = true )

virtual

Delete a platform from the simulation

Parameters

aSimTime	Current simulation time
aPlatformPtr	Pointer to platform to be deleted
aDeleteMemory	If true (default), platform's memory will be cleaned up. Otherwise, platform is simply removed from the simulation and ownership of platform is released.

A platform cannot be deleted directly because the caller may be something on the platform itself (such as a mover). In such a case the platform pointer must remain valid until the active event completes. To get around this, we schedule this event for the current simulation time. This allows the current event to complete and causes the platform to actually get deleted when this event is dispatched.

Reimplemented in WsfFrameStepSimulation.

References AddEvent(), WsfPlatform::GetIndex(), WsfPlatform::IsDeleted(), WsfPlatform::NotifyDeleting(), PlatformExists(), ProcessRemovePlatformEvent(), and WsfPlatform::SetDeleted().

Referenced by WsfWeaponTaskManager::AbortFiring(), WsfExplicitWeapon::AddWeaponToSimulation(), WsfTowedMover::CleanUpStowedAsset(), WsfAirMover::CrashIntoGround(), WsfP6DOF_Mover::CrashIntoGroundCB(), WsfBrawlerMover::DeleteMover(), WsfFrameStepSimulation::DeletePlatform(), WsfMilInterface::KillPlatform(), ATG_LAR_And_LC_Generator::LARGenUpdate(), SAM_LaunchComputerGenerator::LCGenUpdate(), WsfTowedMover::OnPlatformDeleted(), WsfGuidedMoverBase::PrelaunchAdvanceTime(), WsfWeaponFuse::PrivateDetonate(), WsfDisRemoveEntity::Process(), WsfWeaponServer::ProcessCommand(), WsfPlatformPart::SetDamageFactor(), WsfDisPlatform::SetEntityState(), WsfDisWeaponEvents::TransferPlatformToInternalControl(), ATA_LaunchComputerGenerator::Update(), Fires::FiresMover::Update(), WsfChaffMover::Update(), WsfDisMover::Update(), WsfGuidedMoverBase::Update(), WsfOffsetMover::Update(), WsfTSPI_Mover::Update(), XWsfAirTraffic::UpdateFlightStatus(), and UT_DEFINE_SCRIPT_METHOD().

◆ DispatchEvents()

void WsfSimulation::DispatchEvents ( double aSimTime )

protectedvirtual

Dispatch any pending events up to and including the indicated time.

Parameters

aSimTime All events whose time is less than or equal to this value will be dispatched.

References DispatchSimEvents(), and DispatchWallEvents().

Referenced by AdvanceTime(), and AdvanceTime().

◆ DispatchSimEvents()

void WsfSimulation::DispatchSimEvents ( double aSimTime )

protectedvirtual

Dispatch any pending events up to and including the indicated time.

Parameters

aSimTime All events whose time is less than or equal to this value will be dispatched.

References mEventManager.

Referenced by DispatchEvents().

◆ DispatchWallEvents()

void WsfSimulation::DispatchWallEvents ( )

protectedvirtual

Dispatch any pending wall clock events up to and including the indicated time.

References mWallEventManager.

Referenced by DispatchEvents().

◆ FindExtension()

WsfSimulationExtension * WsfSimulation::FindExtension ( const std::string & aName ) const

Referenced by WsfMilDisInterface::AddedToDisInterface(), IADSC2SimulationExtension::Find(), wsf::comm::NetworkManager::Find(), wsf::EarthGravityModel::Find(), wsf::simdis::Interface::Find(), WsfCSV_EventOutput::Find(), WsfDisInterface::Find(), WsfDrawManager::Find(), WsfEventOutput::Find(), WsfEventPipeInterface::Find(), WsfExtInterface::Find(), WsfLOS_Manager::Find(), WsfMilInterface::Find(), WsfMilInterface::Find(), WsfMTT_Interface::Find(), WsfScriptObserver::Find(), WsfWeaponServer::Find(), WsfXIO_Extension::Find(), XWsfOSM_Traffic::Find(), WsfXIO_Extension::FindDisExtension(), WsfXIO_Extension::FindSimulation(), wsf::AirCombat::EventPipeInterface::Get(), wsf::annotation::EventPipeInterface::Get(), wsf::cyber::SimulationExtension::Get(), wsf::p6dof::EventPipeInterface::Get(), wsf::six_dof::EventPipeInterface::Get(), wsf::space::EventPipeInterface::Get(), wsf::UCI_InterfaceExtension::Get(), WsfPromptObserver::Get(), WsfDraw::GetDrawManager(), WsfBallisticMissileLaunchComputer::Initialize(), WsfLaserDesignator::Initialize(), WsfLaserTracker::Initialize(), WsfRIPRProcessor::Initialize(), Initialize(), WsfWeaponServer::Initialize(), and WsfStandardApplication::UpdateOptionsP().

◆ GetAdvancedBehaviorObserver()

WsfAdvancedBehaviorObserver & WsfSimulation::GetAdvancedBehaviorObserver ( ) const

inline

◆ GetApplication()

WsfApplication & WsfSimulation::GetApplication ( ) const

References WsfScenario::GetApplication(), and GetScenario().

Referenced by WsfScriptObserver::AddEvent().

◆ GetAtmosphere()

UtAtmosphere & WsfSimulation::GetAtmosphere ( ) const

Return the UtAtmosphere object used by the simulation.

Referenced by WsfSA_Processor::CalculateObservables(), and WsfSA_Processor::UpdateFlightKinematicsData().

◆ GetBehaviorObserver()

WsfBehaviorObserver & WsfSimulation::GetBehaviorObserver ( ) const

inline

◆ GetClockRate()

double WsfSimulation::GetClockRate ( ) const

virtual

Returns the clock rate of the simulation.

Referenced by PauseAndRequestAdvance(), WsfDisDataQueryR::ProduceResponse(), and WsfEventStepSimulation::WaitForAdvanceTime().

◆ GetClockSource()

const WsfClockSource * WsfSimulation::GetClockSource ( ) const

inline

Return the current clock source object.

Returns: Pointer to the current clock source object.

References mClockSourcePtr.

Referenced by WsfDisSetDataR::PopulateResponse(), SetTimeParameters(), WsfXIO_SimTimeService::UpdateEvent::UpdateEvent(), and WsfXIO_TimeSynchronization::WsfXIO_TimeSynchronization().

◆ GetCommNetworkManager()

wsf::comm::NetworkManager * WsfSimulation::GetCommNetworkManager ( ) const

inline

◆ GetCommObserver()

WsfCommObserver & WsfSimulation::GetCommObserver ( ) const

inline

Referenced by wsf::comm::router::Router::AddLink(), wsf::comm::router::Router::AddNode(), wsf::comm::router::Router::DisableLink(), wsf::comm::router::Router::EnableLink(), wsf::comm::router::ProtocolAdHoc::ExecuteOnCommAdded(), wsf::comm::router::ProtocolAdHoc::ExecuteOnCommRemoved(), wsf::comm::router::ProtocolAdHoc::ExecuteOnConnectionAdded(), wsf::comm::router::ProtocolAdHoc::ExecuteOnConnectionRemoved(), wsf::comm::router::Router::RemoveLink(), and wsf::comm::router::Router::RemoveNode().

◆ GetCompletionReason()

CompletionReason WsfSimulation::GetCompletionReason ( ) const

inline

Return the simulation's reason for completion. If the simulation has not actually completed, the returned value will be cNONE

References mCompletionReason.

Referenced by WsfStandardApplication::RunEventLoop().

◆ GetCompletionReasonString()

std::string WsfSimulation::GetCompletionReasonString ( ) const

virtual

Return the string representation of the simulation's reason for completion. If the simulation has not actually completed, the returned value will be "NONE".

References cEND_TIME_REACHED, cNONE, cRESET, cTERMINATE, and mCompletionReason.

Referenced by WsfStandardApplication::RunEventLoop().

◆ GetDateTime() [1/2]

WsfDateTime & WsfSimulation::GetDateTime ( )

inline

References mDateTime.

Referenced by WsfSpaceMoverBase::CreateKinematicModel(), WsfOrbitalScriptEvent::ExecuteEvent(), wsf::space::KinematicStateExtrapolation::Extrapolate(), WsfSpaceMover::GetDateTime(), WsfSpaceMoverBase::GetFutureLocationWCS(), WsfSolarTerminator::GetPlatformSolarIllumination(), WsfOrbitalManeuver::GetTargetPropagatorPerception(), UCI_Util::GetTimeStamp(), WsfAccessReport::Initialize(), WsfEclipseReport::Initialize(), WsfL16::Interface::Initialize(), WsfNORAD_SpaceMover::Initialize(), WsfOpticalEnvironment::Initialize(), WsfOrbitalScriptEvent::Initialize(), WsfOrbitDeterminationKalmanFilter::Initialize(), WsfSpaceMoverBase::Initialize(), WsfIntegratingSpaceMover::Initialize2(), WsfSpaceMoverBase::Initialize2(), wsf::coverage::Coverage::PendingStart(), WsfExclusionSensorComponent::PostAttemptToDetect(), WsfMoonLOS_SensorComponent::PostAttemptToDetect(), WsfSolarElevationAtTargetSensorComponent::PostAttemptToDetect(), WsfSolarIlluminationComponent::PostAttemptToDetect(), WsfSpaceMoverBase::PreInitialize(), wsf::event::utils::PrintDateTime(), wsf::event::utilsCSV::PrintDateTime(), wsf::event::utils::PrintTrackData(), wsf::event::utilsCSV::PrintTrackData(), WsfSpaceMoverBase::Update(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), and WsfSimulation().

◆ GetDateTime() [2/2]

const WsfDateTime & WsfSimulation::GetDateTime ( ) const

inline

References mDateTime.

◆ GetDisObserver()

WsfDisObserver & WsfSimulation::GetDisObserver ( ) const

inline

◆ GetEM_Manager()

WsfEM_Manager & WsfSimulation::GetEM_Manager ( )

inline

References mEM_Manager.

Referenced by WsfEM_XmtrRcvr::GetEM_Manager().

◆ GetEndTime()

double WsfSimulation::GetEndTime ( ) const

inline

Get the defined end time of the simulation.

References mEndTime.

Referenced by WsfFrameStepSimulation::AdvanceTime(), AdvanceTime(), AdvanceTime(), engage::Task::Execute(), Initialize(), and WsfAccessReport::SensorDetectionChangedHandler().

◆ GetEnvironment()

WsfEnvironment & WsfSimulation::GetEnvironment ( ) const

Referenced by WsfOrbitalManeuver::GetTargetPropagatorPerception(), WsfEM_SurfaceClutter::Initialize(), WsfPlatform::Initialize(), WsfRadarMTD_SignalProcessor::Initialize(), WsfRadarMTI_SignalProcessor::Initialize(), WsfRadarPD_SignalProcessor::Initialize(), and WsfOrbitalLaunchComputer::WriteOrbits().

◆ GetExchangeObserver()

WsfExchangeObserver & WsfSimulation::GetExchangeObserver ( ) const

inline

◆ GetExtension()

WsfSimulationExtension & WsfSimulation::GetExtension ( const std::string & aName ) const

Referenced by WsfL16::Interface::AddedToSimulation(), AddInputPlatforms(), Complete(), wsf::altloc::SimulationExtension::Get(), wsf::coverage::SimulationExtension::Get(), wsf::space::AtmosphereSimulationExtension::Get(), WsfConstellationManager::Get(), WsfDE_FileManager::Get(), Initialize(), PrepareSimulation(), WsfWeaponServerExtension::SimulationCreated(), and Start().

◆ GetExtensionNames()

const std::vector< std::string > & WsfSimulation::GetExtensionNames ( ) const

◆ GetExtensions()

const WsfExtensionList & WsfSimulation::GetExtensions ( ) const

inline

◆ GetFinalRunNumber()

unsigned int WsfSimulation::GetFinalRunNumber ( ) const

References WsfScenario::GetFinalRunNumber(), and GetScenario().

◆ GetFuelObserver()

WsfFuelObserver & WsfSimulation::GetFuelObserver ( ) const

inline

◆ GetGroupManager()

WsfGroupManager & WsfSimulation::GetGroupManager ( )

inline

◆ GetIFF_Manager()

WsfIFF_Manager * WsfSimulation::GetIFF_Manager ( ) const

◆ GetLOS_Manager()

WsfLOS_Manager * WsfSimulation::GetLOS_Manager ( ) const

inline

◆ GetMinimumMoverTimestep()

double WsfSimulation::GetMinimumMoverTimestep ( ) const

inline

References mMinimumMoverTimestep.

◆ GetMoverObserver()

WsfMoverObserver & WsfSimulation::GetMoverObserver ( ) const

inline

◆ GetMultiThreadManager()

WsfMultiThreadManager & WsfSimulation::GetMultiThreadManager ( )

inline

Referenced by WsfFrameStepSimulation::AddPlatform(), WsfFrameStepSimulation::AdvanceFrame(), WsfEventStepSimulation::Complete(), WsfFrameStepSimulation::Complete(), WsfFrameStepSimulation::DeletePlatform(), WsfPlatformPartEvent::Execute(), WsfEventStepSimulation::Initialize(), WsfFrameStepSimulation::Initialize(), WsfEventStepSimulation::PlatformDeleted(), WsfEventStepSimulation::PlatformIntroduced(), WsfFrameStepSimulation::TurnPartOffP(), and WsfFrameStepSimulation::TurnPartOnP().

◆ GetNextEventTime()

double WsfSimulation::GetNextEventTime ( ) const

virtual

Return the time of the next event in the event queue. If there is no event, the current simulation time is returned.

References WsfEvent::GetTime(), mEventManager, and mSimTime.

◆ GetPathFinderList()

WsfPathFinderList & WsfSimulation::GetPathFinderList ( ) const

inline

Referenced by WsfSimulation().

◆ GetPlatformByIndex()

WsfPlatform * WsfSimulation::GetPlatformByIndex ( size_t aIndex ) const

Return the pointer to the platform given its unique platform index. The return value is 0 if the platform does not exist.

◆ GetPlatformByName()

WsfPlatform * WsfSimulation::GetPlatformByName ( WsfStringId aNameId ) const

Return a pointer to a platform given the string ID of the platform name.

Returns: A pointer to the platform or 0 if the platform does not exist.

References platformPtr.

Referenced by AddInputPlatforms(), AddPlatform(), WsfSensorProcessor::AddSensor(), WsfFusionCenter::AdjustTrackQuantities(), WsfImplicitWeapon::BeginEngagement(), wsf::coverage::Grid::CategorizeAssets(), WsfXIO_ScriptService::CheckParams(), WsfSatelliteBreakupModel::CollisionalBreakup(), MTT_PerceivedCluster::CopyFrom(), wsf::cyber::EngagementManager::CyberAttack(), wsf::cyber::EngagementManager::CyberScan(), FlightPathAnalysisFunction::Execute(), HorizontalMapFunction::Execute(), WsfSatelliteBreakupModel::ExplosiveBreakup(), WsfCuedLaserWeapon::Fire(), wsf::comm::Network::GetAddressFromNamedComm(), WsfTaskManager::GetMessageSender(), WsfFalseTargetBlip::GetReferenceJammerToRadarRange(), WsfZoneDefinition::GetReferencePlatform(), WsfTrack::GetTargetIndex(), WsfOrbitalManeuver::GetTargetPropagatorTruth(), Tool::Initialize(), WsfFormationFlyer::Initialize(), WsfOffsetMover::Initialize(), WsfTrack::Initialize(), wsf::comm::NetworkManager::InitializeUserLinks(), notifyOfPlatformsNotPresentInSimulation(), WsfZoneDefinition::PointIsInside(), wsf::altloc::Component::PreInitialize(), wsf::coverage::CompositeGrid::PreparePlatforms(), wsf::coverage::ExistingPlatformGrid::PreparePlatforms(), WsfWeaponServer::ProcessCommand(), WsfL16::Interface_J11::ProcessJ11_0Message(), WsfSensorProcessor::RemoveSensor(), wsf::comm::SlotGroupLayerJTIDS::Send(), wsf::ExternalLinks::SendMessage(), WsfOffsetMover::SetReference(), WsfRIPRProcessor::SetTargetByName(), wsf::comm::NetworkAdHoc::Update(), WsfPerfectTracker::Update(), WsfFalseTarget::UpdateBaseBlipPositions(), WsfFalseTarget::UpdateBlipPositions(), WsfFusionCenter::UpdateFalseTargetTracks(), WsfFormationFlyer::UpdateLeadInfo(), WsfFusionCenter::UpdateRealTargetTracks(), WsfZoneDefinition::UpdateReference(), WsfWeaponFuse::UpdateTargetState(), WsfWeaponTaskManager::UplinkStart(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), wsf::comm::UT_DEFINE_SCRIPT_METHOD(), wsf::cyber::UT_DEFINE_SCRIPT_METHOD(), wsf::comm::Comm::ValidateGateway(), WsfRIPRProcessor::WeaponsIncoming(), and WsfMessage::WsfMessage().

◆ GetPlatformCount()

size_t WsfSimulation::GetPlatformCount ( ) const

Return the number of platforms in the platform list.

Returns: the number of platform in the platform list.

Referenced by WsfMobilityAndFirepowerLethality::AddInitialCM_States(), AddPlatform(), WsfFrameStepSimulation::AdvanceFrame(), WsfWeaponFuse::CheckAllTargets(), Complete(), HorizontalMapFunction::CreateSensorList(), WsfEclipseEventManager::Enable(), wsf::comm::router::ProtocolOSPF::GetAllOSPF(), WsfL16::Interface::GetControllerFromTrackNumber(), WsfExtEntityDeadReckon::Initialize(), notifyOfPlatformsNotPresentInSimulation(), PlatformDeleted(), WsfMilDisInterface::PrepareComponent(), WsfDisInterface::PrepareExtension(), WsfWeaponEffects::ProcessEffectCommon(), WsfExtEntityDeadReckon::RequireExternalEntities(), WsfDefaultSensorScheduler::TurnOn(), WsfEOIR_Sensor::TurnOn(), WsfPhysicalScanSensorScheduler::TurnOn(), WsfSectorScanSensorScheduler::TurnOn(), WsfSensorsManagerFovSensorScheduler::TurnOn(), WsfSpinSensorScheduler::TurnOn(), UT_DEFINE_SCRIPT_METHOD(), and ~WsfSimulation().

◆ GetPlatformEntry()

WsfPlatform * WsfSimulation::GetPlatformEntry ( size_t aEntry ) const

Return a specific entry from the list of platforms.

Parameters

aEntry The slot of the desired entry. This is not the same as the platform index. It must be valid, i.e.: 0 <= aEntry < GetPlatformCount().

Returns: Pointer to the requested platform.

Referenced by WsfMobilityAndFirepowerLethality::AddInitialCM_States(), AddPlatform(), WsfFrameStepSimulation::AdvanceFrame(), WsfWeaponFuse::CheckAllTargets(), Complete(), HorizontalMapFunction::CreateSensorList(), WsfL16::Interface::GetControllerFromTrackNumber(), WsfExtEntityDeadReckon::Initialize(), PlatformDeleted(), WsfMilDisInterface::PrepareComponent(), WsfDisInterface::PrepareExtension(), WsfWeaponEffects::ProcessEffectCommon(), WsfExtEntityDeadReckon::RequireExternalEntities(), WsfDefaultSensorScheduler::TurnOn(), WsfEOIR_Sensor::TurnOn(), WsfPhysicalScanSensorScheduler::TurnOn(), WsfSectorScanSensorScheduler::TurnOn(), WsfSensorsManagerFovSensorScheduler::TurnOn(), WsfSpinSensorScheduler::TurnOn(), UT_DEFINE_SCRIPT_METHOD(), and ~WsfSimulation().

◆ GetPlatformNameId()

WsfStringId WsfSimulation::GetPlatformNameId ( size_t aIndex ) const

Return the name (ID) of a platform, even if the platform has been deleted from the simulation.

Referenced by WsfTaskManager::CheckMessageAcknowledged(), WsfWeaponEngagement::GetFiringPlatformName(), WsfImage::Object::GetTruthName(), WsfWeaponEngagement::GetWeaponPlatformName(), wsf::event::utils::PrintTrackTargetName(), wsf::event::utilsCSV::PrintTrackTargetName(), wsf::event::utils::PrintWE_PlayerData(), wsf::event::utilsCSV::PrintWE_PlayerData(), WsfCompositeSensor::ProcessMessage(), WsfBallisticMissileLaunchComputer::QueuedSolutionPurge(), WsfDefaultSensorScheduler::SelectTarget(), WsfTaskManager::SendTaskMessage(), WsfCompositeSensor::SensorDetectionChanged(), and engage::Events::SensorDetectionChanged::Write().

◆ GetPlatformObserver()

WsfPlatformObserver & WsfSimulation::GetPlatformObserver ( ) const

inline

◆ GetPlatformPartObserver()

WsfPlatformPartObserver & WsfSimulation::GetPlatformPartObserver ( ) const

inline

◆ GetPlatformTypeId()

WsfStringId WsfSimulation::GetPlatformTypeId ( size_t aIndex ) const

Return the type (ID) of a platform, even if the platform has been deleted from the simulation.

◆ GetProcessorObserver()

WsfProcessorObserver & WsfSimulation::GetProcessorObserver ( ) const

inline

◆ GetRandom()

ut::Random & WsfSimulation::GetRandom ( )

Referenced by WsfJamStrobeDetector::ApplyMeasurementErrors(), WsfTRIMSIM_Processor::ComputeMeasurementErrors(), WsfBrawlerProcessor::GetConsciousnessEventTime(), wsf::altloc::SimulationExtension::GetDraw(), WsfSensorTracker::GetRandom(), WsfNavigationMesh::GetRandomLocation(), WsfPathFinder::GetRandomLocation(), WsfNavigationErrors::GlobalGaussian(), XWsfSeaTraffic::HandleDeparture(), WsfGuidedMover::IgniteStage(), WsfClusterCorrelation::Initialize(), WsfDirectionFinderProcessor::Initialize(), WsfElementESA_AntennaPattern::Initialize(), WsfESA_AntennaPattern::Initialize(), WsfESA_NX_AntennaPattern::Initialize(), WsfFalseTargetScreener::Initialize(), WsfJTIDS_SlotGroup::Initialize(), WsfL16::SurveillancePart::Initialize(), WsfNavigationErrors::Initialize(), WsfNoiseCloud::Initialize(), WsfPhysicalScanSensorScheduler::Initialize(), WsfRandomVariable::Initialize(), WsfSensor::Initialize(), WsfSpinSensorScheduler::Initialize(), WsfTrackProcessor::InitializeMemberData(), WsfIntersectMesh::Intersect(), WsfIntersectProcessor::Intersect(), WsfBehaviorTreeWeightedRandomNode::LocalExecute(), WsfPlatformAvailability::PlatformIsAvailable(), XWsfAirTraffic::ProcessEvent(), WsfGuidedMover::SeparateStage(), WsfP6DOF_Mover::SetDestroyed(), WsfRandomVariable::SetGenerator(), WsfAdvancedBehaviorTreeWeightedRandomNode::TickFunction(), WsfSensorsManagerFovSensorScheduler::TurnOn(), WsfEventStepSimulation::TurnPartOn(), WsfHighEnergyLaser::UpdateEngagementGeometry(), WsfEmitterTypeReporting::UpdateReportedEmitterType(), and WsfTargetTypeReporting::UpdateReportedTargetType().

◆ GetRealTime()

double WsfSimulation::GetRealTime ( ) const

inline

Get the last sampled real-time clock time.

Note: This value may not be maintained for non-realtime simulations.

References mRealTime.

Referenced by WsfStandardApplication::RunEventLoop().

◆ GetRunNumber()

unsigned int WsfSimulation::GetRunNumber ( ) const

inline

Get the current run number.

References mRunNumber.

Referenced by WsfStandardApplication::InitializeSimulation(), WsfStandardApplication::RunEventLoop(), WsfMultiresolutionMultirunTable::SimulationCreated(), and SubstituteOutputFileVariables().

◆ GetScenario()

const WsfScenario & WsfSimulation::GetScenario ( ) const

inline

Referenced by WsfExtEmission::AddSensor(), WsfScriptBMAssetRecordClass::AttachUnitZone(), WsfScriptBMWeaponInterface::AttachWeaponZone(), WsfEM_ALARM_Attenuation::atmosphere::attenuation(), WsfBMUtils::ConvertTrack(), Sensor::CreateAndInitialize(), Target::CreateAndInitialize(), wsf::cyber::EngagementManager::CyberAttack(), wsf::cyber::EngagementManager::CyberScan(), HorizontalMapFunction::Execute(), Fires::FiresPath::FiresPath(), GetApplication(), WsfBMUtils::GetAssignedIDRecord(), ZoneUtils::GetClosestPointInZone(), ZoneUtils::GetDistanceFromEllipseToPoint(), ZoneUtils::GetDistanceFromPointToZone(), GetFinalRunNumber(), WsfBMUtils::GetWeaponID(), wsf::cyber::Attack::Initialize(), WsfATG_WeaponLAR::Initialize(), WsfEM_Rcvr::Initialize(), WsfEM_Xmtr::Initialize(), WsfEM_XmtrRcvr::Initialize(), WsfESA_AntennaPattern::Initialize(), WsfEW_FalseTargetEffect::FT_Data::Initialize(), WsfNoiseCloud::Initialize(), Initialize(), WsfStandardApplication::InitializeSimulation(), notifyOfPlatformsNotPresentInSimulation(), engage::Platform::Platform(), WsfPlatformAvailability::PlatformIsAvailable(), wsf::coverage::RectangularGrid::PreparePlatforms(), and wsf::coverage::ZoneBasedGrid::PreparePlatforms().

◆ GetScriptContext() [1/2]

WsfScriptContext & WsfSimulation::GetScriptContext ( )

inline

◆ GetScriptContext() [2/2]

const WsfScriptContext & WsfSimulation::GetScriptContext ( ) const

inline

◆ GetScriptExecutor()

UtScriptExecutor & WsfSimulation::GetScriptExecutor ( )

inline

Referenced by WsfPerceptionProcessor::AssetScore(), WsfScriptCallback::Execute(), WsfScriptContext::GetExecutor(), WsfPerceptionProcessor::ThreatScore(), and WsfClusterManager::UserDistanceFunction().

◆ GetScriptRandom()

ut::Random & WsfSimulation::GetScriptRandom ( )

Referenced by WsfScriptContext::AddTimedEvents().

◆ GetScriptStateMachineObserver()

WsfScriptStateMachineObserver & WsfSimulation::GetScriptStateMachineObserver ( ) const

inline

◆ GetSensorObserver()

WsfSensorObserver & WsfSimulation::GetSensorObserver ( ) const

inline

◆ GetSimTime()

double WsfSimulation::GetSimTime ( ) const

inline

Get the last time to which the simulation was updated.

References mSimTime.

◆ GetSimulationInput()

const WsfSimulationInput & WsfSimulation::GetSimulationInput ( ) const

inline

References mSimulationInput.

Referenced by WsfSensor::GetRequiredPd(), and WsfSimulation().

◆ GetSimulationObserver()

WsfSimulationObserver & WsfSimulation::GetSimulationObserver ( ) const

inline

◆ GetState()

State WsfSimulation::GetState ( ) const

inline

Return the simulation's current state.

References mState.

Referenced by WsfWeaponEngagement::Delete(), WsfStandardApplication::InitializeSimulation(), and WsfStandardApplication::RunEventLoop().

◆ GetStateString() [1/2]

const std::string & WsfSimulation::GetStateString ( ) const

Return the string representation of the simulation's current state.

References mState.

◆ GetStateString() [2/2]

const std::string & WsfSimulation::GetStateString ( State aState )

static

Return the string representation of the provided simulation state.

◆ GetSyncTimestep()

double WsfSimulation::GetSyncTimestep ( ) const

inline

Return the scaled and stepped DIS-NRT timestep (if running DIS-NRT).

Returns: the current timestep in a scaled-and-stepped simulation.

◆ GetSystemLog()

WsfSystemLog & WsfSimulation::GetSystemLog ( ) const

◆ GetTaskObserver()

WsfTaskObserver & WsfSimulation::GetTaskObserver ( ) const

inline

◆ GetTerrainInterface()

wsf::TerrainInterface * WsfSimulation::GetTerrainInterface ( ) const

References wsf::TerrainInterface::Get().

Referenced by wsf::comm::ComponentHW_Subsurface::CanSendTo(), WsfNavigationMesh::DebugDrawMesh(), ClutterTableFunction::Execute(), wsf::Terrain::Initialize(), WsfTerrainPathFinder::Initialize(), WsfLOS_Manager::MaskedByTerrain(), WsfLOS_Manager::MaskedByTerrain(), WsfLOS_Manager::MaskedByTerrain(), WsfLOS_Manager::MaskedByVegetation(), WsfLOS_Manager::MaskedByVegetation(), WsfLOS_Manager::MaskedByVegetation(), wsf::altloc::Component::PreInitialize(), WsfParabolicMover::SetImpactTOFAndLL(), Fires::FiresMover::Update(), and WsfSimulation().

◆ GetTimeBehind()

double WsfSimulation::GetTimeBehind ( ) const

inline

Get the amount of time the simulation clock is behind real-time clock.

A derived class may optionally maintain this value for use as a hint to other simulation components that the simulation clock has fallen 'sufficiently' behind the real-time clock and that they should take action to try to reduce the workload. The default value is zero (not running behind).

References mTimeBehind.

◆ GetTimestep()

double WsfSimulation::GetTimestep ( ) const

inline

Return the simulation timestep (if the simulation is time-stepped).

Returns: The simulation timestep for time-stepped simulation or 0 for an event driven simulation.

References mTimestep.

Referenced by WsfDisInterface::ExecuteSensorUpdateEvent(), WsfARGO8_Mover::Initialize(), WsfDisSetDataR::PopulateResponse(), and WsfDisDataQueryR::ProduceResponse().

◆ GetTrackObserver()

WsfTrackObserver & WsfSimulation::GetTrackObserver ( ) const

inline

◆ GetWallTime()

double WsfSimulation::GetWallTime ( ) const

Get the current wall-clock time since simulation creation.

Get the current wall clock elapsed time since simulation creation.

Referenced by WsfDisInterface::SimulationPausing().

◆ GetZoneAttenuation()

WsfZoneAttenuation & WsfSimulation::GetZoneAttenuation ( )

inline

◆ GetZoneObserver()

WsfZoneObserver & WsfSimulation::GetZoneObserver ( ) const

inline

◆ Initialize()

void WsfSimulation::Initialize ( )

virtual

Initialize the simulation.

This method initializes the simulation by performing the following actions:

Invokes the Initialize method for each registered simulation extension.
Invokes Initialize each registered simulation observer.
Adds the 'initial state' platforms to the simulation.
Invokes the derived class SimulationInitialized() method.
Marks the simulation as 'pending_start'

Upon completion of this call, the application should call WsfSimulation::Start, enter a loop to execute events and then call WsfSimulation::Complete.

Exceptions

WsfSimulation::InitializeError if an error is encountered.

Note: It is an error to call this method again without calling WsfSimulation::Complete.

Reimplemented in WsfEventStepSimulation, and WsfFrameStepSimulation.

References AddEvent(), AddInputPlatforms(), WsfObserver::InitializeCallback::Callback(), cINITIALIZING, cPENDING_INITIALIZE, cPENDING_START, WsfSimulationInput::cPP_ABOVE_NORMAL, WsfSimulationInput::cPP_BELOW_NORMAL, WsfSimulationInput::cPP_HIGH, WsfSimulationInput::cPP_NORMAL, WsfSimulationInput::cPP_REALTIME, CreateClock(), FindExtension(), GetEndTime(), GetExtension(), GetScenario(), GetScriptContext(), WsfObserver::Initialize(), WsfSimulationExtension::Initialize(), WsfScriptContext::InitializeGlobalContext(), mIsRealTime, mRealTime, mSimTime, mSimulationInput, mState, mTimeBehind, ok, WsfSimulationExtension::PendingStart(), WsfSimulationExtension::PrepareExtension(), SimulationInitialized(), WsfObserver::SimulationInitializing(), and WsfObserver::SimulationPendingStart().

Referenced by WsfPlatform::AssignToSimulation(), WsfEventStepSimulation::Initialize(), WsfFrameStepSimulation::Initialize(), and WsfStandardApplication::InitializeSimulation().

◆ IsActive()

bool WsfSimulation::IsActive ( ) const

inline

Return whether the simulation currently is in the ACTIVE state (see WsfSimulation::State for a list of simulation states).

Note: This method is used to conditionally either advance the simulation time or trigger a call to WsfSimulation::Complete, as follows:

// Code Fragment illustrating the IsActive() method in a simulation main loop.
while (sim.IsActive())
{
   sim.AdvanceTime();
}
sim.Complete(sim.GetEndTime());

References cACTIVE, and mState.

Referenced by engage::Task::Execute(), and WsfStandardApplication::RunEventLoop().

◆ IsEventStepSimulation()

bool WsfSimulation::IsEventStepSimulation ( ) const

inline

Return event step simulation indicator.

Referenced by WsfExtEntityDeadReckon::Initialize().

◆ IsExternallyStarted()

bool WsfSimulation::IsExternallyStarted ( ) const

inline

Return whether the simulation is to be started by an external source.

Referenced by WsfEventStepSimulation::SetRealtime(), WsfFrameStepSimulation::SetRealtime(), and WsfFrameStepSimulation::Start().

◆ IsFlexibleRealtime()

bool WsfSimulation::IsFlexibleRealtime ( ) const

inline

Return 'true' if the simulation's real-time constraint is flexible.

◆ IsRealTime()

bool WsfSimulation::IsRealTime ( ) const

inline

Return whether this simulation is running real-time, or a multiple of real-time.

References mIsRealTime.

Referenced by WsfDisIO_Thread::Initialize(), WsfStandardApplication::RunEventLoop(), WsfEventStepSimulation::TurnPartOn(), and WsfStandardApplication::UpdateOptionsP().

◆ LockRandom()

ut::Random & WsfSimulation::LockRandom ( )

Referenced by WsfEW_Effect::Initialize(), and WsfExoAtmosphericLethality::Initialize().

◆ LockScriptRandom()

ut::Random & WsfSimulation::LockScriptRandom ( )

◆ MultiThreaded()

bool WsfSimulation::MultiThreaded ( ) const

inline

Return whether the simulation should multi-thread were appropriate.

References mMultiThreaded.

Referenced by WsfFrameStepSimulation::AddPlatform(), WsfFrameStepSimulation::AdvanceFrame(), WsfEventStepSimulation::Complete(), WsfFrameStepSimulation::Complete(), WsfFrameStepSimulation::DeletePlatform(), WsfEventStepSimulation::Initialize(), WsfFrameStepSimulation::Initialize(), WsfEventStepSimulation::PlatformDeleted(), WsfEventStepSimulation::PlatformInitialized(), WsfEventStepSimulation::PlatformIntroduced(), WsfFrameStepSimulation::TurnPartOffP(), WsfEventStepSimulation::TurnPartOn(), and WsfFrameStepSimulation::TurnPartOnP().

◆ MultiThreadingActive()

bool WsfSimulation::MultiThreadingActive ( ) const

inline

Return whether the simulation multi-threading is currently active.

Referenced by WsfLOS_Manager::LOS_DataExists(), WsfLOS_Manager::LOS_DataExists(), WsfLOS_Manager::LOS_DataExists(), WsfLOS_Manager::PlatformDeleted(), WsfLOS_Manager::SetLOS_Data(), WsfLOS_Manager::SetLOS_Data(), WsfLOS_Manager::SetStateData(), WsfLOS_Manager::SetStateData(), WsfLOS_Manager::StateDataExists(), and WsfLOS_Manager::StateDataExists().

◆ NextEngagementSerialNumber()

unsigned int WsfSimulation::NextEngagementSerialNumber ( )

inline

Referenced by WsfWeaponEngagement::WsfWeaponEngagement().

◆ NextMessageSerialNumber()

unsigned int WsfSimulation::NextMessageSerialNumber ( )

inline

Referenced by WsfScriptAssetMessageClass::Create(), WsfScriptMessageClass::Create(), and WsfScriptSA_EntityMessage::Create().

◆ operator=()

WsfSimulation & WsfSimulation::operator= ( const WsfSimulation & aRhs )

delete

References WsfSimulation().

◆ Pause()

void WsfSimulation::Pause ( )

virtual

Pause execution of the simulation.

References cACTIVE, mClockSourcePtr, mState, and WsfObserver::SimulationPausing().

Referenced by PauseAndRequestAdvance(), and WsfDisStopFreeze::Process().

◆ PauseAndRequestAdvance()

void WsfSimulation::PauseAndRequestAdvance ( double aSimTime )

Pause the execution of the simulation and request a time advance in scaled-and-stepped mode.

References GetClockRate(), mSyncAccumulatedTime, Pause(), and WsfObserver::RequestTimeAdvance().

Referenced by SetTimeParameters().

◆ PlatformDeleted()

bool WsfSimulation::PlatformDeleted	(	double	aSimTime,
		WsfPlatform *	aOldPlatformPtr )

virtual

Virtual method invoked by the base class used to notify other platforms and observers of the impending deletion of a platform. This is called immediately prior to deleting the platform object.

Parameters

aSimTime	The current simulation time.
aOldPlatformPtr	Pointer to the platform to be deleted.

Returns: 'true' if successful and 'false' otherwise.

Reimplemented in WsfEventStepSimulation.

References DeleteFromPlatformList(), WsfPlatform::GetDamageFactor(), GetPlatformCount(), GetPlatformEntry(), WsfPlatform::IsBroken(), WsfPlatform::NotifyDeleted(), WsfObserver::PlatformBroken(), WsfObserver::PlatformDeleted(), and platformPtr.

Referenced by WsfEventStepSimulation::PlatformDeleted(), and ProcessRemovePlatformEvent().

◆ PlatformExists()

bool WsfSimulation::PlatformExists ( size_t aIndex ) const

Returns 'true' if the platform with the specified index still exists.

Referenced by DeletePlatform().

◆ PlatformInitialized()

bool WsfSimulation::PlatformInitialized	(	double	aSimTime,
		WsfPlatform *	aNewPlatformPtr )

protectedvirtual

Virtual method invoked by the base class just after it has called the a platforms Initialize() method.

It is provided so derived classes can perform their own unique platform initialization.

Parameters

aSimTime	The current simulation time.
aNewPlatformPtr	Pointer to the platform just initialized.

Returns: 'true' if successful and 'false' otherwise.

Reimplemented in WsfEventStepSimulation.

Referenced by AddInputPlatforms(), and AddPlatform().

◆ PlatformIntroduced()

bool WsfSimulation::PlatformIntroduced	(	double	aSimTime,
		WsfPlatform *	aNewPlatformPtr )

protectedvirtual

Virtual method invoked by the base class after it has introduced a new platform to the simulation.

Parameters

aSimTime	The current simulation time.
aNewPlatformPtr	Pointer to the platform just introduced.

Returns: 'true' if successful and 'false' otherwise.

Reimplemented in WsfEventStepSimulation.

Referenced by WsfEventStepSimulation::PlatformIntroduced().

◆ PlatformIsAvailable()

bool WsfSimulation::PlatformIsAvailable ( WsfPlatform * aPlatformPtr )

protectedvirtual

Referenced by AddInputPlatforms().

◆ PlatformPointerExists()

bool WsfSimulation::PlatformPointerExists ( WsfPlatform * aPlatformPtr )

protected

Does the platform pointer already exist in the list?

Parameters

aPlatformPtr The pointer to be tested.

Returns: 'true' if already in the list or 'false' if not.

Referenced by AddInputPlatforms(), and AddPlatform().

◆ PrepareSimulation()

void WsfSimulation::PrepareSimulation ( )

virtual

References GetExtension(), ok, and WsfSimulationExtension::PrepareExtension().

◆ PreviousEngagementSerialNumber()

unsigned int WsfSimulation::PreviousEngagementSerialNumber ( ) const

inline

Referenced by WsfWeaponEngagement::CopySerialNumber().

◆ ProcessPlatformBrokenEvent()

void WsfSimulation::ProcessPlatformBrokenEvent	(	double	aSimTime,
		WsfPlatform *	aPlatformPtr )

virtual

Call from PlatformBrokenEvent to complete the processing of the broken of a platform.

References WsfPlatform::OnBrokenEvent().

Referenced by WsfMilInterface::KillPlatform().

◆ ProcessRemovePlatformEvent()

void WsfSimulation::ProcessRemovePlatformEvent	(	double	aSimTime,
		WsfPlatform *	aPlatformPtr,
		bool	aDeletePlatform )

virtual

Called from RemovePlatformEvent to complete the processing of deleting a platform.

References PlatformDeleted(), and WsfPlatform::SetDeleted().

Referenced by Complete(), and DeletePlatform().

◆ RandomizeFrequency()

bool WsfSimulation::RandomizeFrequency ( ) const

References mSimulationInput.

Referenced by WsfOTH_RadarSensor::OTH_Mode::Initialize(), and WsfRadarSensor::RadarMode::Initialize().

◆ ReclaimPreviousEngagementSerialNumber()

void WsfSimulation::ReclaimPreviousEngagementSerialNumber ( )

inline

Referenced by WsfWeaponEngagement::CopySerialNumber().

◆ RegisterExtension()

void WsfSimulation::RegisterExtension	(	const std::string &	aName,
		std::unique_ptr< WsfSimulationExtension >	aExtensionPtr )

◆ RequestReset()

void WsfSimulation::RequestReset ( )

virtual

Reset the simulation.

This method is called when some external source wants to reset the simulation. A derived class can override this method to perform its own special processing.

The default behavior is to set the simulation state to PENDING_COMPLETE with a completion reason of RESET. It is the responsibility of the caller to detect this condition and take action.

References cACTIVE, cPENDING_COMPLETE, cRESET, mCompletionReason, and mState.

Referenced by WsfDisStopFreeze::Process().

◆ RequestTermination()

void WsfSimulation::RequestTermination ( )

virtual

Terminate the simulation.

This method is called when some external source wants to terminate the simulation. A derived class can override this method to perform its own special processing.

The default behavior is to set the simulation state to PENDING_COMPLETE with a completion reason of TERMINATE. It is the responsibility of the caller to detect this condition and take action.

References cACTIVE, cPENDING_COMPLETE, cTERMINATE, mCompletionReason, and mState.

Referenced by WsfDisStopFreeze::Process(), and engage::SimulationExtension::WeaponTerminated().

◆ ResetPlatformList()

void WsfSimulation::ResetPlatformList ( )

protected

Reset the list to its initial (empty) state.

Referenced by Complete(), and WsfSimulation().

◆ Resume()

void WsfSimulation::Resume ( )

virtual

Resume execution of the paused simulation.

References cACTIVE, mClockSourcePtr, mState, and WsfObserver::SimulationResuming().

Referenced by WsfDisStartResume::Process(), WsfDisStartResumeR::ProcessStartCommand(), and SetTimeParameters().

◆ SetAmAnEventStepSimulation()

void WsfSimulation::SetAmAnEventStepSimulation ( bool aFlag )

inline

Referenced by WsfEventStepSimulation::WsfEventStepSimulation().

◆ SetClockRate()

void WsfSimulation::SetClockRate ( double aClockRate )

virtual

Changes the clock rate of the simulation.

References mClockSourcePtr, and WsfObserver::SimulationClockRateChange().

Referenced by WsfDisSetData::Process(), WsfDisSetDataR::ProcessSetDataRequest(), and SetTimeParameters().

◆ SetClockSource()

void WsfSimulation::SetClockSource ( std::unique_ptr< WsfClockSource > aClockSourcePtr )

Set the clock source object.

The clock source object is the source of time for the simulation. Not all simulations require a simulation clock. For instance, in an event-stepped simulation the flow of time can be derived from the events. However one may want to run the event-stepped simulation in a real-time environment. Attaching a real-time clock object will (if used properly) prevent events from being dispatched until the correct simulation is encountered.

There can be only once clock source. Calling this method deletes any previously defined clock source and replaces it with the new source. The clock source is owned by the simulation and will be deleted when the simulation is deleted.

Parameters

aClockSourcePtr Pointer to the clock source object. This class assumes ownership of the object.

References mClockSourcePtr, mRealTimeClockSourcePtr, mSimulationInput, and WsfObserver::SimulationClockRateChange().

Referenced by WsfEventStepSimulation::CreateClock(), WsfFrameStepSimulation::CreateClock(), and CreateClock().

◆ SetEndTime()

void WsfSimulation::SetEndTime ( double aEndTime )

Set the defined end time of the simulation.

References AddEvent(), cCOMPLETE, cINITIALIZING, mEndTime, and mState.

Referenced by weapon_tools(), and engage::SimulationExtension::WeaponTerminated().

◆ SetFlexibleRealtime()

void WsfSimulation::SetFlexibleRealtime ( )

inline

◆ SetIsExternallyStarted()

void WsfSimulation::SetIsExternallyStarted ( bool aIsExternallyStarted )

Allow an external source (esp., an observer such as the DIS Interface) to start the simulation in lieu of the simulation's starting itself.

Referenced by WsfDisInterface::ActivateConnection(), WsfXIO_Simulation::Initialize(), and WsfDisInterface::PrepareExtension().

◆ SetMultiThreadingActive()

void WsfSimulation::SetMultiThreadingActive ( bool aMultiThreadingActive )

inline

Set whether multi-threading is currently active ('true') or not ('false').

◆ SetPartOperational()

virtual bool WsfSimulation::SetPartOperational	(	double	aSimTime,
		WsfPlatformPart *	aPartPtr,
		bool	aOperational = true )

inlinevirtual

References SetPartOperationalP().

◆ SetPartOperationalP()

bool WsfSimulation::SetPartOperationalP	(	double	aSimTime,
		WsfPlatformPart *	aPartPtr,
		bool	aOperational )

protectedvirtual

Set the platform part operation state

Parameters

aSimTime	The current simulation time.
aPartPtr	A pointer to the system whose operational state is to be changed
aOperational	Desired operational state of the system

Returns: 'true' if successful or 'false' if operational state was not changed

References WsfPlatformPart::IsOperational(), and WsfPlatformPart::SetOperational().

Referenced by SetPartOperational().

◆ SetPartUpdateInterval()

void WsfSimulation::SetPartUpdateInterval	(	double	aSimTime,
		WsfPlatformPart *	aPartPtr,
		double	aUpdateInterval )

virtual

Set the update interval for a platform part. This method defines how often the simulation executive will call the Update() method.

Parameters

aSimTime	The current simulation time.
aPartPtr	A pointer to the sensor whose update interval is to be changed.
aUpdateInterval	The new update interval. If this value is less than or equal to zero, the periodic calls to Update() will be deactivated until another call is made to reactive the periodic calls.

Reimplemented in WsfEventStepSimulation.

References WsfPlatformPart::SetUpdateInterval().

Referenced by WsfSensor::SetNextUpdateTime().

◆ SetRealtime()

virtual void WsfSimulation::SetRealtime	(	double	aSimTime,
		bool	aIsRealTime )

inlinevirtual

Instructs the simulation to run in a real-time mode.

Reimplemented in WsfEventStepSimulation, and WsfFrameStepSimulation.

Referenced by WsfStandardApplication::UpdateOptionsP().

◆ SetTimeParameters()

void WsfSimulation::SetTimeParameters	(	int	aTimeScheme,
		double	aSimTime,
		double	aClockRate,
		double	aTimeStep,
		bool	aTimeAdvance = false )

virtual

Change the time parameters of the simulation.

References AddEvent(), GetClockSource(), mClockSourcePtr, mRealTime, mSyncAccumulatedTime, PauseAndRequestAdvance(), Resume(), and SetClockRate().

Referenced by WsfDisSetData::Process(), WsfDisActionResponse::ProcessJoinExerciseResponseTo(), WsfDisActionResponseR::ProcessJoinExerciseResponseTo(), and WsfDisSetDataR::ProcessSetDataRequest().

◆ ShouldExecute()

bool WsfSimulation::ShouldExecute ( ) const

virtual

Determine whether the simulation should be executed. To test for a reset condition or the end of a set of Monte-Carlo repetitions, this method can be called as the exit condition of a while loop (see example, below).

Note: This execution proceeds with calls to WsfSimulation::Initialize, WsfSimulation::Start and WsfSimulation::AdvanceTime, as shown below.
// Example simulation loop, using the ShouldExecute() method.

while (sim.ShouldExecute())

{

sim.Initialize();

sim.Start();

while (sim.IsActive())

{

sim.AdvanceTime();

}

sim.Complete(sim.GetEndTime());

};

References cCOMPLETE, cPENDING_INITIALIZE, cRESET, mCompletionReason, and mState.

◆ SimulationComplete()

virtual void WsfSimulation::SimulationComplete ( double aSimTime )

inlinevirtual

Deprecated form of Complete();.

References Complete().

◆ SimulationInitialized()

bool WsfSimulation::SimulationInitialized ( )

protectedvirtual

Virtual method invoked by the base class Initialize() method after it has performed the basic simulation initialization.

Derived classes can use it to add any additional functionality they require.

Returns: 'true' if successful and 'false' otherwise.

Referenced by Initialize().

◆ SimulationStarting()

virtual void WsfSimulation::SimulationStarting ( )

inlinevirtual

Deprecated form of Start();.

References Start().

◆ Start()

void WsfSimulation::Start ( )

virtual

Indicate the application is going to start its simulation loop.

This performs the following actions:

Resets the clock back to 0.0
Invokes the Start method for each registered simulation extension.
Invokes SimulationStarting for each registered observer.
Mark the simulation as active.

Note: This should be invoked IMMEDIATELY before starting the simulation loop as some observers may be time-sensitive.

Reimplemented in WsfFrameStepSimulation.

References cACTIVE, cCOMPLETE, cNONE, cPENDING_START, cSTARTING, GetExtension(), mClockSourcePtr, mCompletionReason, mState, WsfObserver::SimulationStarting(), and WsfSimulationExtension::Start().

Referenced by WsfStandardApplication::RunEventLoop(), SimulationStarting(), WsfFrameStepSimulation::Start(), and weapon_tools().

◆ SubstituteOutputFileVariables()

std::string WsfSimulation::SubstituteOutputFileVariables ( const std::string & aOutputFile )

Performs substitution for naming output files d - Run Number D - Date M-D-Y T - Time HHMMSS

References GetRunNumber().

Referenced by WsfDisInterface::ActivateConnection(), WsfEventPipeInterface::AddedToSimulation(), wsf::event::output::SimulationExtension::OpenFile(), and wsf::console::ScenarioExtension::SimulationCreated().

◆ TurnPartOff()

virtual bool WsfSimulation::TurnPartOff	(	double	aSimTime,
		WsfPlatformPart *	aPartPtr )

inlinevirtual

Reimplemented in WsfEventStepSimulation.

References TurnPartOffP().

Referenced by WsfWeaponServer::PlatformDeleted(), WsfTaskManager::ReleaseResource(), and WsfDisEmission::UpdateSensor().

◆ TurnPartOffP()

bool WsfSimulation::TurnPartOffP	(	double	aSimTime,
		WsfPlatformPart *	aPartPtr )

protectedvirtual

Turn off a platform part.

Parameters

aSimTime	The current simulation time.
aPartPtr	A pointer to the system to be turned off.

Returns: 'true' if successful or 'false' if already turned off.

Reimplemented in WsfFrameStepSimulation.

References WsfPlatformPart::IsTurnedOn(), and WsfPlatformPart::TurnOff().

Referenced by TurnPartOff(), and WsfFrameStepSimulation::TurnPartOffP().

◆ TurnPartOn()

virtual bool WsfSimulation::TurnPartOn	(	double	aSimTime,
		WsfPlatformPart *	aPartPtr )

inlinevirtual

Reimplemented in WsfEventStepSimulation.

References TurnPartOnP().

Referenced by WsfTaskManager::AcquireResource(), HorizontalMapFunction::CreateSensorList(), WsfCuedLaserWeapon::Fire(), WsfCuedLaserWeapon::Initialize(), WsfBeamDirector::PointAtTarget(), WsfExplicitWeapon::ProcessDeferredLaunchEvent(), WsfPlatform::SwapMover(), WsfWeaponTrackProcessor::Update(), and WsfDisEmission::UpdateSensor().

◆ TurnPartOnP()

bool WsfSimulation::TurnPartOnP	(	double	aSimTime,
		WsfPlatformPart *	aPartPtr )

protectedvirtual

Turn on a platform part.

Parameters

aSimTime	The current simulation time.
aPartPtr	A pointer to the system to be turned on.

Returns: 'true' if successful or 'false' if already turned on.

Reimplemented in WsfFrameStepSimulation.

References WsfPlatformPart::CanBeTurnedOn(), WsfPlatformPart::IsOperational(), WsfPlatformPart::IsTurnedOn(), and WsfPlatformPart::TurnOn().

Referenced by TurnPartOn(), and WsfFrameStepSimulation::TurnPartOnP().

◆ UnlockRandom()

void WsfSimulation::UnlockRandom ( )

Referenced by WsfEW_Effect::Initialize(), and WsfExoAtmosphericLethality::Initialize().

◆ UnlockScriptRandom()

void WsfSimulation::UnlockScriptRandom ( )

◆ UseDefaultFrequency()

bool WsfSimulation::UseDefaultFrequency ( ) const

References mSimulationInput.

◆ WaitForAdvanceTime()

void WsfSimulation::WaitForAdvanceTime ( )

virtual

Reimplemented in WsfEventStepSimulation, and WsfFrameStepSimulation.

Referenced by WsfStandardApplication::RunEventLoop().

Member Data Documentation

◆ mClockSourcePtr

std::unique_ptr<WsfClockSource> WsfSimulation::mClockSourcePtr {nullptr}

protected

Pointer to the simulation clock source object.

Referenced by WsfFrameStepSimulation::AdvanceFrame(), WsfFrameStepSimulation::AdvanceTime(), WsfFrameStepSimulation::AdvanceTime(), AdvanceTime(), AdvanceTime(), Complete(), GetClockSource(), Pause(), Resume(), SetClockRate(), SetClockSource(), WsfEventStepSimulation::SetRealtime(), WsfFrameStepSimulation::SetRealtime(), SetTimeParameters(), WsfFrameStepSimulation::Start(), Start(), WsfEventStepSimulation::WaitForAdvanceTime(), and WsfFrameStepSimulation::WaitForAdvanceTime().

◆ mCompletionReason

volatile CompletionReason WsfSimulation::mCompletionReason {cNONE}

protected

The reason for simulation completion.

Referenced by Complete(), GetCompletionReason(), GetCompletionReasonString(), RequestReset(), RequestTermination(), ShouldExecute(), and Start().

◆ mDateTime

WsfDateTime WsfSimulation::mDateTime

protected

Referenced by GetDateTime(), GetDateTime(), and WsfSimulation().

◆ mEM_Manager

WsfEM_Manager WsfSimulation::mEM_Manager

protected

EM manager.

Referenced by GetEM_Manager().

◆ mEndTime

double WsfSimulation::mEndTime {std::numeric_limits<double>::max()}

protected

The end time of the simulation (seconds).

Referenced by Complete(), GetEndTime(), SetEndTime(), and WsfSimulation().

◆ mEventManager

WsfEventManager WsfSimulation::mEventManager

protected

Simulation event manager object.

Referenced by WsfFrameStepSimulation::AddEvent(), AddEvent(), WsfFrameStepSimulation::AdvanceFrame(), AdvanceTime(), AdvanceTime(), Complete(), DispatchSimEvents(), GetNextEventTime(), WsfEventStepSimulation::WaitForAdvanceTime(), and WsfSimulation().

◆ mExternalEventReady

bool WsfSimulation::mExternalEventReady {false}

protected

True if an external event needs to be processed.

◆ mIsRealTime

bool WsfSimulation::mIsRealTime {false}

protected

Referenced by WsfFrameStepSimulation::AdvanceFrame(), AdvanceTime(), WsfFrameStepSimulation::Complete(), WsfEventStepSimulation::CreateClock(), WsfFrameStepSimulation::CreateClock(), WsfEventStepSimulation::Initialize(), Initialize(), IsRealTime(), WsfEventStepSimulation::SetRealtime(), WsfFrameStepSimulation::SetRealtime(), WsfEventStepSimulation::WaitForAdvanceTime(), and WsfSimulation().

◆ mMinimumMoverTimestep

double WsfSimulation::mMinimumMoverTimestep

protected

Referenced by GetMinimumMoverTimestep(), WsfEventStepSimulation::Initialize(), WsfFrameStepSimulation::Initialize(), and WsfSimulation().

◆ mMultiThreaded

bool WsfSimulation::mMultiThreaded

protected

Referenced by MultiThreaded(), and WsfSimulation().

◆ mRealTime

double WsfSimulation::mRealTime {false}

protected

The last sampled real-time clock value (seconds) See GetRealTime() for more information.

Referenced by WsfFrameStepSimulation::AdvanceFrame(), GetRealTime(), Initialize(), SetTimeParameters(), WsfEventStepSimulation::WaitForAdvanceTime(), and WsfFrameStepSimulation::WaitForAdvanceTime().

◆ mRealTimeClockSourcePtr

WsfRealTimeClockSource* WsfSimulation::mRealTimeClockSourcePtr {nullptr}

protected

If mClockSourcePtr is a WsfRealTimeClockSource, points to mClockSourcePtr, otherwise it is nullptr.

Referenced by AdvanceTime(), and SetClockSource().

◆ mRunNumber

unsigned int WsfSimulation::mRunNumber

protected

The current run number being executed.

Referenced by GetRunNumber(), and WsfSimulation().

◆ mSimTime

double WsfSimulation::mSimTime {0.0}

protected

The last time to which the simulation has been updated (seconds).

Referenced by WsfFrameStepSimulation::AdvanceTime(), AdvanceTime(), AdvanceTime(), Complete(), GetNextEventTime(), GetSimTime(), and Initialize().

◆ mSimulationInput

const WsfSimulationInput& WsfSimulation::mSimulationInput

protected

Referenced by GetSimulationInput(), Initialize(), RandomizeFrequency(), SetClockSource(), UseDefaultFrequency(), and WsfSimulation().

◆ mState

volatile State WsfSimulation::mState {cPENDING_INITIALIZE}

protected

The current state of the simulation.

Referenced by AddPlatform(), WsfFrameStepSimulation::AdvanceTime(), AdvanceTime(), AdvanceTime(), Complete(), GetState(), GetStateString(), Initialize(), IsActive(), Pause(), RequestReset(), RequestTermination(), Resume(), SetEndTime(), ShouldExecute(), and Start().

◆ mSyncAccumulatedTime

double WsfSimulation::mSyncAccumulatedTime {0.0}

protected

The wall clock time taken to execute the current synchronized time step.

Referenced by AdvanceTime(), PauseAndRequestAdvance(), and SetTimeParameters().

◆ mTimeBehind

double WsfSimulation::mTimeBehind {0.0}

protected

The amount of time the simulation clock is behind the real-time clock.

Referenced by GetTimeBehind(), Initialize(), and WsfEventStepSimulation::WaitForAdvanceTime().

◆ mTimestep

double WsfSimulation::mTimestep {0.0}

protected

The timestep or frame time for a fixed timestep simulation. For event-driven simulations this will be zero (the default value). For time-stepped simulations, the derived class must set this to their timestep.

Referenced by GetTimestep(), and WsfFrameStepSimulation::Initialize().

◆ mWallEventManager

WsfEventManager WsfSimulation::mWallEventManager

protected

Wall clock-based event manager object.

Referenced by AddWallEvent(), DispatchWallEvents(), and WsfSimulation().

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

AddInputPlatforms

Simulation State and Time management

Platform addition, deletion and query methods.

Platform list iteration methods

Subsystem status change methods

Methods that are public, but aren't part of the public interface.

Deprecated methods.

Observer access methods.

Simulation extension methods.

Platform list maintenance methods.

Detailed Description

Member Enumeration Documentation

◆ CompletionReason

◆ State

Constructor & Destructor Documentation

◆ WsfSimulation() [1/2]

◆ ~WsfSimulation()

◆ WsfSimulation() [2/2]

Member Function Documentation

◆ AddEvent()

◆ AddEventT()

◆ AddInputPlatforms()

◆ AddPlatform() [1/2]

◆ AddPlatform() [2/2]

◆ AddToPlatformList()

◆ AddWallEvent()

◆ AddWallEventT()

◆ AdvanceTime() [1/2]

◆ AdvanceTime() [2/2]

◆ AssignUniqueId()

◆ Complete()

◆ CreateClock()

◆ CreateMessageDataTag()

◆ DeleteFromPlatformList()

◆ DeletePlatform()

◆ DispatchEvents()

◆ DispatchSimEvents()

◆ DispatchWallEvents()

◆ FindExtension()

◆ GetAdvancedBehaviorObserver()

◆ GetApplication()

◆ GetAtmosphere()

◆ GetBehaviorObserver()

◆ GetClockRate()

◆ GetClockSource()

◆ GetCommNetworkManager()

◆ GetCommObserver()

◆ GetCompletionReason()

◆ GetCompletionReasonString()

◆ GetDateTime() [1/2]

◆ GetDateTime() [2/2]

◆ GetDisObserver()

◆ GetEM_Manager()

◆ GetEndTime()

◆ GetEnvironment()

◆ GetExchangeObserver()

◆ GetExtension()

◆ GetExtensionNames()

◆ GetExtensions()

◆ GetFinalRunNumber()

◆ GetFuelObserver()

◆ GetGroupManager()

◆ GetIFF_Manager()

◆ GetLOS_Manager()

◆ GetMinimumMoverTimestep()

◆ GetMoverObserver()

◆ GetMultiThreadManager()

◆ GetNextEventTime()

◆ GetPathFinderList()

◆ GetPlatformByIndex()

◆ GetPlatformByName()

◆ GetPlatformCount()

◆ GetPlatformEntry()

◆ GetPlatformNameId()

◆ GetPlatformObserver()

◆ GetPlatformPartObserver()

◆ GetPlatformTypeId()
