#include <WsfZone.hpp>

Inheritance diagram for WsfZone:

[legend]

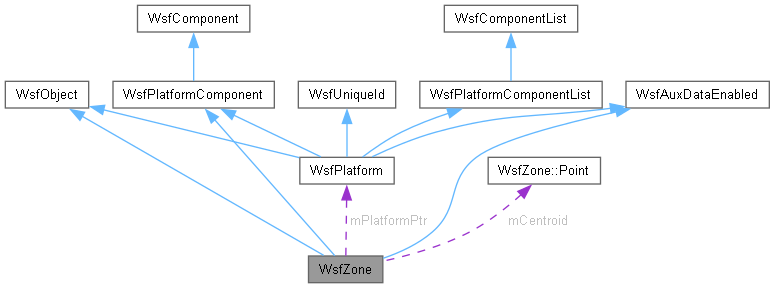

Collaboration diagram for WsfZone:

[legend]

Classes
struct	Point

Public Member Functions
	WsfZone ()
WsfZone &	operator= (const WsfZone &)=delete
	~WsfZone () override=default
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)
Public Member Functions inherited from WsfComponentT< WsfPlatform >
	WsfComponentT ()
	WsfComponentT (const WsfComponentT &) noexcept
WsfComponentT &	operator= (const WsfComponentT &) noexcept
	~WsfComponentT () override=default
ParentType *	GetComponentParent () const
void	SetComponentParent (ParentType *aParentPtr)
Public Member Functions inherited from WsfComponent
virtual	~WsfComponent ()=default
template<typename T>
bool	QueryInterfaceT (T *&aRolePtr)
bool	ComponentHasRole (int aRole)
	Returns true if the component has the specified role.
virtual bool	PreInitialize (double aSimTime)
virtual bool	Initialize2 (double aSimTime)
virtual void	PreInput ()
Public Member Functions inherited from WsfAuxDataEnabled
	WsfAuxDataEnabled ()=default
	WsfAuxDataEnabled (const WsfAuxDataEnabled &aSrc)=default
WsfAuxDataEnabled &	operator= (const WsfAuxDataEnabled &aRhs)
	WsfAuxDataEnabled (WsfAuxDataEnabled &&)=default
WsfAuxDataEnabled &	operator= (WsfAuxDataEnabled &&)=default
virtual	~WsfAuxDataEnabled () noexcept
void	SetAuxData (const WsfAttributeContainer &aAuxData)
void	DeleteAuxData ()
	Delete the aux data container from the object.
void	MergeAuxData (const WsfAuxDataEnabled &aSrc)
	Merge the object's aux data with aux data from an existing object.
void	UpdateAuxData (const WsfAuxDataEnabled &aSrc)
	Update the object's aux data with aux data from an existing object.
bool	HasAuxData () const
	Returns true if this object has aux data.
bool	ProcessInput (UtInput &aInput)
template<typename T>
void	Serialize (T &aBuff)
	(De)serialization for XIO
WsfAttributeContainer &	GetAuxData ()
const WsfAttributeContainer &	GetAuxData () const noexcept
const WsfAttributeContainer &	GetAuxDataConst () const noexcept

Static Public Attributes
static constexpr const char *	cTYPE_KIND = "zone"
static constexpr double	cUNSPECIFIED = 1.0E20
static constexpr double	cHUGE = 9.9E20
static constexpr double	cSMALL = -9.9E20
Static Public Attributes inherited from WsfAuxDataEnabled
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataAccessed
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataDestroyed

Component infrastructure methods
WsfPlatform *	mPlatformPtr
std::map< WsfStringId, double >	mModifierList
double	mMinAlt
double	mMaxAlt
double	mMinX
double	mMaxX
double	mMinY
double	mMaxY
double	mArea
Point	mCentroid
bool	mIsInitialized
WsfComponent *	CloneComponent () const override
int	GetComponentInitializationOrder () const override
WsfStringId	GetComponentName () const override
const int *	GetComponentRoles () const override
void *	QueryInterface (int aRole) override
void	ComponentParentChanged (WsfPlatform *aPlatformPtr) override
WsfPlatform *	GetPlatform () const
WsfZone *	Clone () const override=0
	The standard Clone() method (virtual copy constructor).
bool	ProcessInput (UtInput &aInput) override
bool	Initialize (double aSimTime) override
virtual void	Initialize (const WsfScenario &aScenario)
virtual bool	PointIsInside (WsfSimulation *aSimulationPtr, const double aViewedPointWCS[3], const double aEyePointWCS[3], const double aLookHeading, const double aDeltaDownRange=0.0)
virtual double	CheckIntersections (const double aLLA1[3], const double aLLA2[3])
virtual bool	GetLatLonExtrema (double &aSouthernLat, double &aWesternLon, double &aNorthernLat, double &aEasternLon) const
void	SetGlobalName (WsfStringId aGlobalName)
	Set the global model that this zone was cloned from.
WsfStringId	GetGlobalName () const
virtual double	Area ()
virtual WsfGeoPoint	Reference ()=0
virtual WsfGeoPoint	Centroid ()
virtual void	MaxPoint (double &aX, double &aY, double &aAlt)
virtual void	MinPoint (double &aX, double &aY, double &aAlt)
virtual void	DrawBounds (WsfDraw &aDraw)
virtual void	DrawCentroid (WsfDraw &aDraw)
virtual void	Draw (WsfDraw &aDraw)
virtual void	DrawRelative (WsfDraw &aDraw, const double aEyePointWCS[3], const double aLookHeading)
virtual void	DebugDrawBounds (WsfDraw &aDraw)
virtual void	DebugDrawCentroid (WsfDraw &aDraw)
virtual void	DebugDrawZone (WsfDraw &aDraw)
virtual void	DebugDrawZoneRelative (WsfDraw &aDraw, const double aEyePointWCS[3], const double aLookHeading)
virtual const std::map< WsfStringId, double > &	GetModifierList () const
	Get the modifier list for WsfZoneAttenuation.
virtual double	ModifierValue (const std::string &aModifierName) const
	returns the value of the modifier matching the given name
bool	IsInitialized () const
void	SetFillColor (const std::string &aColor)
void	SetFillColor (const UtColor &aColor)
void	SetLineColor (const std::string &aColor)
void	SetLineColor (const UtColor &aColor)
virtual ut::optional< UtColor >	GetFillColor () const
virtual ut::optional< UtColor >	GetLineColor () const
	WsfZone (const WsfZone &aSrc)
	Copy constructor (for Clone()).

Additional Inherited Members
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
Public Types inherited from WsfComponentT< WsfPlatform >
typedef WsfPlatform	ParentType
	This is needed to support the WsfComponentList template.
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Detailed Description

An abstract base class for a zone.

Zones represent an volume that is formed either by extruding a polygon or other geometric shape in the vertical direction, or specifying a 3-D spherical radius. The key run-time function for a Zone is the determination of whether a point of interest lies within the Zone or not. A Zone must be specified relative to some point of reference. There are two possibilities – relative to:

1) the Observer (who must specify his location and direction when he makes the function call), or
2) an internally-specified reference position. The internally-specified location may be fixed or variable, but since this class will NOT be responsible for tracking the movement of another entity, it is up to the owner of the Zone to maintain currency of the reference values.

One Zone may be created referencing another. This will result in a geometric- ally similar volume, but translated and (heading) rotated to another position. If the original Zone was defined with a (Lat, Lon) polygon, the new Zone will use (X, Y) relative offsets, but will NOT account for earth's curvature, and so may contain vertical distortions as the size grows.

A polygonal Zone must be defined in a clockwise fashion, as viewed from above.

Note: Every Zone must be Initialize()'d by the instantiator before use. has been processed, or after all values have been set via accessors.

See also: WsfZoneDefinition; WsfZoneReference; WsfZoneSet

Constructor & Destructor Documentation

◆ WsfZone() [1/2]

WsfZone::WsfZone ( )

◆ ~WsfZone()

WsfZone::~WsfZone ( )

overridedefault

◆ WsfZone() [2/2]

WsfZone::WsfZone ( const WsfZone & aSrc )

protected

Copy constructor (for Clone()).

References mArea, mCentroid, mIsInitialized, mMaxAlt, mMaxX, mMaxY, mMinAlt, mMinX, mMinY, mModifierList, mPlatformPtr, WsfAuxDataEnabled::WsfAuxDataEnabled(), WsfObject::WsfObject(), and WsfZone().

Member Function Documentation

◆ Area()

double WsfZone::Area ( )

virtual

Reimplemented in WsfZoneReference.

References mArea.

◆ Centroid()

WsfGeoPoint WsfZone::Centroid ( )

virtual

Reimplemented in WsfZoneReference.

References mCentroid.

Referenced by ZoneUtils::GetZoneCentroid(), and Reference().

◆ CheckIntersections()

virtual double WsfZone::CheckIntersections	(	const double	aLLA1[3],
		const double	aLLA2[3] )

inlinevirtual

Reimplemented in WsfZoneDefinition, and WsfZoneSet.

◆ Clone()

WsfZone * WsfZone::Clone ( ) const

overridepure virtual

The standard Clone() method (virtual copy constructor).

Implements WsfObject.

Implemented in WsfCodedZone, WsfZoneDefinition, WsfZoneReference, and WsfZoneSet.

References PointIsInside(), and WsfZone().

Referenced by WsfATG_WeaponLAR::WsfATG_WeaponLAR().

◆ CloneComponent()

WsfComponent * WsfZone::CloneComponent ( ) const

inlineoverridevirtual

Clones a component. May return null if component does not support clone.

Implements WsfComponent.

References WsfObject::Clone().

◆ ComponentParentChanged()

void WsfZone::ComponentParentChanged ( WsfPlatform * aParentPtr )

inlineoverridevirtual

The parent to which the component is attached has been updated. This virtual method is called whenever the components parent attachment has been changed. This is provided so derived class receives notification of the change.

Parameters

aParentPtr Pointer to the new parent. The new parent may be null if the attachment was severed.

Reimplemented from WsfComponentT< WsfPlatform >.

References mPlatformPtr.

◆ DebugDrawBounds()

virtual void WsfZone::DebugDrawBounds ( WsfDraw & aDraw )

inlinevirtual

Reimplemented in WsfZoneDefinition, WsfZoneReference, and WsfZoneSet.

◆ DebugDrawCentroid()

virtual void WsfZone::DebugDrawCentroid ( WsfDraw & aDraw )

inlinevirtual

Reimplemented in WsfZoneDefinition, WsfZoneReference, and WsfZoneSet.

◆ DebugDrawZone()

virtual void WsfZone::DebugDrawZone ( WsfDraw & aDraw )

inlinevirtual

Reimplemented in WsfZoneDefinition, WsfZoneReference, and WsfZoneSet.

◆ DebugDrawZoneRelative()

virtual void WsfZone::DebugDrawZoneRelative	(	WsfDraw &	aDraw,
		const double	aEyePointWCS[3],
		const double	aLookHeading )

inlinevirtual

Reimplemented in WsfZoneDefinition.

◆ Draw()

virtual void WsfZone::Draw ( WsfDraw & aDraw )

inlinevirtual

Reimplemented in WsfZoneDefinition.

◆ DrawBounds()

virtual void WsfZone::DrawBounds ( WsfDraw & aDraw )

inlinevirtual

Reimplemented in WsfZoneDefinition.

◆ DrawCentroid()

virtual void WsfZone::DrawCentroid ( WsfDraw & aDraw )

inlinevirtual

Reimplemented in WsfZoneDefinition.

◆ DrawRelative()

virtual void WsfZone::DrawRelative	(	WsfDraw &	aDraw,
		const double	aEyePointWCS[3],
		const double	aLookHeading )

inlinevirtual

Reimplemented in WsfZoneDefinition.

◆ GetComponentInitializationOrder()

int WsfZone::GetComponentInitializationOrder ( ) const

inlineoverridevirtual

Forces a specific initialization order. Components are initialized in increasing initialization order value.

Reimplemented from WsfComponent.

References cWSF_INITIALIZE_ORDER_ZONE.

◆ GetComponentName()

WsfStringId WsfZone::GetComponentName ( ) const

inlineoverridevirtual

Returns the component's name. Each component in a component list has a unique name. Names are usually defined by the user, but they may also be generated by code and prefixed with a '#' to guarantee no collisions with user-defined names.

Implements WsfComponent.

References WsfObject::GetNameId().

◆ GetComponentRoles()

const int * WsfZone::GetComponentRoles ( ) const

overridevirtual

Returns a zero-terminated array of component roles. Note that the array should be in decreasing order of specificity and should generally the inheritance hierarchy. The first entry should be the components 'primary' role. For example a sensor would do the following:

static const int roles[] = { cWSF_COMPONENT_SENSOR, cWSF_COMPONENT_ARTICULATED_PART,
                             cWSF_COMPONENT_PLATFORM_PART, 0 };
return roles;

Implements WsfComponent.

References cWSF_COMPONENT_NULL, and cWSF_COMPONENT_ZONE.

◆ GetFillColor()

virtual ut::optional< UtColor > WsfZone::GetFillColor ( ) const

inlinevirtual

Reimplemented in WsfZoneDefinition, and WsfZoneReference.

Referenced by WsfZoneDefinition::GetFillColor().

◆ GetGlobalName()

WsfStringId WsfZone::GetGlobalName ( ) const

inline

Get the name of the globe template that this zone derives from.

Returns: The name of the template. WsfStringId(0) if there was no derivation.

Referenced by WsfXIO_ObjectInfoLoad::Load_Platform(), and UT_DEFINE_SCRIPT_METHOD().

◆ GetLatLonExtrema()

bool WsfZone::GetLatLonExtrema	(	double &	aSouthernLat,
		double &	aWesternLon,
		double &	aNorthernLat,
		double &	aEasternLon ) const

virtual

Reimplemented in WsfZoneDefinition.

Referenced by wsf::Terrain::GetHeightExtremaIn(), and wsf::coverage::ZoneBasedGrid::InitializeP().

◆ GetLineColor()

virtual ut::optional< UtColor > WsfZone::GetLineColor ( ) const

inlinevirtual

Reimplemented in WsfZoneDefinition, and WsfZoneReference.

Referenced by WsfZoneDefinition::GetLineColor().

◆ GetModifierList()

virtual const std::map< WsfStringId, double > & WsfZone::GetModifierList ( ) const

inlinevirtual

Get the modifier list for WsfZoneAttenuation.

Reimplemented in WsfZoneReference.

References mModifierList.

Referenced by WsfZoneAttenuation::Initialize().

◆ GetPlatform()

WsfPlatform * WsfZone::GetPlatform ( ) const

inline

References mPlatformPtr.

◆ Initialize() [1/2]

void WsfZone::Initialize ( const WsfScenario & aScenario )

virtual

This method is called to initialize the zone for use. This form is called from scenario initialization for globally defined zones.

Reimplemented in WsfZoneDefinition, WsfZoneReference, and WsfZoneSet.

References mIsInitialized.

◆ Initialize() [2/2]

bool WsfZone::Initialize ( double aSimTime )

overridevirtual

Implementation of WsfComponent::Initialize. This is called by when initializing components attached to a platform (WsfPlatform::Initialize)

Parameters

aSimTime The current simulation time.

Returns: true;

Reimplemented from WsfComponent.

References Initialize(), and mPlatformPtr.

Referenced by Initialize(), WsfZoneReference::Initialize(), and UT_DEFINE_SCRIPT_METHOD().

◆ IsInitialized()

bool WsfZone::IsInitialized ( ) const

inline

References mIsInitialized.

Referenced by wsf::Terrain::GetHeightExtremaIn(), and UT_DEFINE_SCRIPT_METHOD().

◆ MaxPoint()

void WsfZone::MaxPoint	(	double &	aX,
		double &	aY,
		double &	aAlt )

virtual

Reimplemented in WsfZoneReference.

References mMaxAlt, mMaxX, and mMaxY.

Referenced by Reference().

◆ MinPoint()

void WsfZone::MinPoint	(	double &	aX,
		double &	aY,
		double &	aAlt )

virtual

Reimplemented in WsfZoneReference.

References mMinAlt, mMinX, and mMinY.

Referenced by Reference().

◆ ModifierValue()

double WsfZone::ModifierValue ( const std::string & aModifierName ) const

virtual

returns the value of the modifier matching the given name

Reimplemented in WsfZoneReference.

References mModifierList.

◆ operator=()

WsfZone & WsfZone::operator= ( const WsfZone & )

delete

References WsfZone().

◆ PointIsInside()

bool WsfZone::PointIsInside	(	WsfSimulation *	aSimulationPtr,
		const double	aViewedPointWCS[3],
		const double	aEyePointWCS[3],
		const double	aLookHeading,
		const double	aDeltaDownRange = 0.0 )

virtual

Is the point inside the zone?

Parameters

aSimulationPtr	the simulation
aViewedPointWCS	the point which is being tested for containment in the zone.
aEyePointWCS	is the potential reference point for a relative Zone.
aLookHeading	the current heading (for relative references)
aDeltaDownRange	is an (optional) delta to slide the Zone away from the eyepoint. (Used to adjust the Zone location for off-design conditions.)

Returns: 'true' if the point is inside the Zone or 'false' otherwise.

Reimplemented in WsfZoneDefinition, WsfZoneReference, and WsfZoneSet.

Referenced by Clone(), wsf::Terrain::GetHeightExtremaIn(), WsfPlatformAvailability::PlatformIsAvailable(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), and UT_DEFINE_SCRIPT_METHOD().

◆ ProcessInput()

bool WsfZone::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput a reference to a UtInput object.

Returns: 'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase (or an object derived from it) if the command was recognized but contains some sort of error.

Note: If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from WsfObject.

Reimplemented in WsfZoneDefinition, and WsfZoneSet.

References WsfAuxDataEnabled::ProcessInput(), and SetFillColor().

Referenced by WsfZoneDefinition::ProcessInput(), and WsfZoneSet::ProcessInput().

◆ QueryInterface()

void * WsfZone::QueryInterface ( int aRole )

overridevirtual

Requests a component's role interface. A component can support one or more roles.

Parameters

aRole The role whose interface is to be returned.

Returns: A pointer to the object if it supports the indicated role, or 'null' if it does not. Usage: WsfProcessor* procPtrOrNull = (WsfProcessor*)componentPtr->QueryComponentInterface(cWSF_COMPONENT_PROCESSOR);

Implements WsfComponent.

References cWSF_COMPONENT_ZONE.

◆ Reference()

virtual WsfGeoPoint WsfZone::Reference ( )

pure virtual

Implemented in WsfZoneDefinition, WsfZoneReference, and WsfZoneSet.

References Centroid(), MaxPoint(), and MinPoint().

◆ SetFillColor() [1/2]

void WsfZone::SetFillColor ( const std::string & aColor )

References SetFillColor().

Referenced by ProcessInput(), SetFillColor(), and UT_DEFINE_SCRIPT_METHOD().

◆ SetFillColor() [2/2]

void WsfZone::SetFillColor ( const UtColor & aColor )

inline

◆ SetGlobalName()

void WsfZone::SetGlobalName ( WsfStringId aGlobalName )

inline

Set the global model that this zone was cloned from.

◆ SetLineColor() [1/2]

void WsfZone::SetLineColor ( const std::string & aColor )

References SetLineColor().

Referenced by SetLineColor().

◆ SetLineColor() [2/2]

void WsfZone::SetLineColor ( const UtColor & aColor )

inline

Member Data Documentation

◆ cHUGE

double WsfZone::cHUGE = 9.9E20

staticconstexpr

Referenced by WsfZoneDefinition::SetPolyPoints(), WsfZoneDefinition::SetPolyPointsRelative(), and WsfZone().

◆ cSMALL

double WsfZone::cSMALL = -9.9E20

staticconstexpr

Referenced by WsfZoneDefinition::SetPolyPoints(), WsfZoneDefinition::SetPolyPointsRelative(), and WsfZone().

◆ cTYPE_KIND

const char* WsfZone::cTYPE_KIND = "zone"

staticconstexpr

◆ cUNSPECIFIED

double WsfZone::cUNSPECIFIED = 1.0E20

staticconstexpr

Referenced by WsfZoneDefinition::Draw(), WsfZoneDefinition::GetAngleBounds(), WsfZoneDefinition::Initialize(), WsfZoneDefinition::ProcessInput(), WsfZoneDefinition::SetAltBounds(), WsfZoneDefinition::SetAngleBounds(), WsfZoneDefinition::SetPolyPoints(), WsfZoneDefinition::SetRadialBounds(), WsfZoneDefinition::UpdateReference(), UT_DEFINE_SCRIPT_METHOD(), ZoneUtils::ValueSet(), WsfZone(), and WsfZoneDefinition::WsfZoneDefinition().

◆ mArea

double WsfZone::mArea

protected

Referenced by Area(), WsfZone(), and WsfZone().

◆ mCentroid

Point WsfZone::mCentroid

protected

Referenced by Centroid(), WsfZoneSet::DebugDrawCentroid(), WsfZoneDefinition::DrawCentroid(), WsfZone(), and WsfZone().

◆ mIsInitialized

bool WsfZone::mIsInitialized

protected

◆ mMaxAlt

double WsfZone::mMaxAlt

protected

Referenced by WsfZoneDefinition::Draw(), WsfZoneDefinition::GetAltBounds(), WsfZoneDefinition::Initialize(), MaxPoint(), WsfZoneDefinition::ProcessInput(), WsfZoneDefinition::SetAltBounds(), WsfZone(), and WsfZone().

◆ mMaxX

double WsfZone::mMaxX

protected

Referenced by WsfZoneSet::DebugDrawBounds(), WsfZoneDefinition::DrawBounds(), WsfZoneDefinition::Initialize(), MaxPoint(), WsfZoneDefinition::SetPolyPoints(), WsfZoneDefinition::SetPolyPointsRelative(), WsfZone(), and WsfZone().

◆ mMaxY

double WsfZone::mMaxY

protected

Referenced by WsfZoneSet::DebugDrawBounds(), WsfZoneDefinition::DrawBounds(), WsfZoneDefinition::Initialize(), MaxPoint(), WsfZoneDefinition::SetPolyPoints(), WsfZoneDefinition::SetPolyPointsRelative(), WsfZone(), and WsfZone().

◆ mMinAlt

double WsfZone::mMinAlt

protected

Referenced by WsfZoneDefinition::Draw(), WsfZoneDefinition::GetAltBounds(), WsfZoneDefinition::Initialize(), MinPoint(), WsfZoneDefinition::ProcessInput(), WsfZoneDefinition::SetAltBounds(), WsfZone(), and WsfZone().

◆ mMinX

double WsfZone::mMinX

protected

Referenced by WsfZoneSet::DebugDrawBounds(), WsfZoneDefinition::DrawBounds(), WsfZoneDefinition::Initialize(), MinPoint(), WsfZoneDefinition::SetPolyPoints(), WsfZoneDefinition::SetPolyPointsRelative(), WsfZone(), and WsfZone().

◆ mMinY

double WsfZone::mMinY

protected

Referenced by WsfZoneSet::DebugDrawBounds(), WsfZoneDefinition::DrawBounds(), WsfZoneDefinition::Initialize(), MinPoint(), WsfZoneDefinition::SetPolyPoints(), WsfZoneDefinition::SetPolyPointsRelative(), WsfZone(), and WsfZone().

◆ mModifierList

std::map<WsfStringId, double> WsfZone::mModifierList

protected

Referenced by GetModifierList(), WsfZoneDefinition::Initialize(), ModifierValue(), WsfZoneDefinition::ProcessInput(), WsfZoneSet::ProcessInput(), WsfZone(), and WsfZone().

◆ mPlatformPtr

WsfPlatform* WsfZone::mPlatformPtr

protected

Referenced by ComponentParentChanged(), GetPlatform(), Initialize(), WsfZone(), and WsfZone().

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Static Public Attributes

Component infrastructure methods

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ WsfZone() [1/2]

◆ ~WsfZone()

◆ WsfZone() [2/2]

Member Function Documentation

◆ Area()

◆ Centroid()

◆ CheckIntersections()

◆ Clone()

◆ CloneComponent()

◆ ComponentParentChanged()

◆ DebugDrawBounds()

◆ DebugDrawCentroid()

◆ DebugDrawZone()

◆ DebugDrawZoneRelative()

◆ Draw()

◆ DrawBounds()

◆ DrawCentroid()

◆ DrawRelative()

◆ GetComponentInitializationOrder()

◆ GetComponentName()

◆ GetComponentRoles()

◆ GetFillColor()

◆ GetGlobalName()

◆ GetLatLonExtrema()

◆ GetLineColor()

◆ GetModifierList()

◆ GetPlatform()

◆ Initialize() [1/2]

◆ Initialize() [2/2]

◆ IsInitialized()

◆ MaxPoint()

◆ MinPoint()

◆ ModifierValue()

◆ operator=()

◆ PointIsInside()

◆ ProcessInput()

◆ QueryInterface()

◆ Reference()

◆ SetFillColor() [1/2]

◆ SetFillColor() [2/2]

◆ SetGlobalName()

◆ SetLineColor() [1/2]

◆ SetLineColor() [2/2]

Member Data Documentation

◆ cHUGE

◆ cSMALL

◆ cTYPE_KIND

◆ cUNSPECIFIED

◆ mArea

◆ mCentroid

◆ mIsInitialized

◆ mMaxAlt

◆ mMaxX

◆ mMaxY

◆ mMinAlt

◆ mMinX

◆ mMinY

◆ mModifierList

◆ mPlatformPtr
