Base class for the guidance programs (maneuvers) used by WsfGuidanceComputer. More...

#include <WsfGuidanceProgram.hpp>

Inheritance diagram for WsfGuidanceProgram:

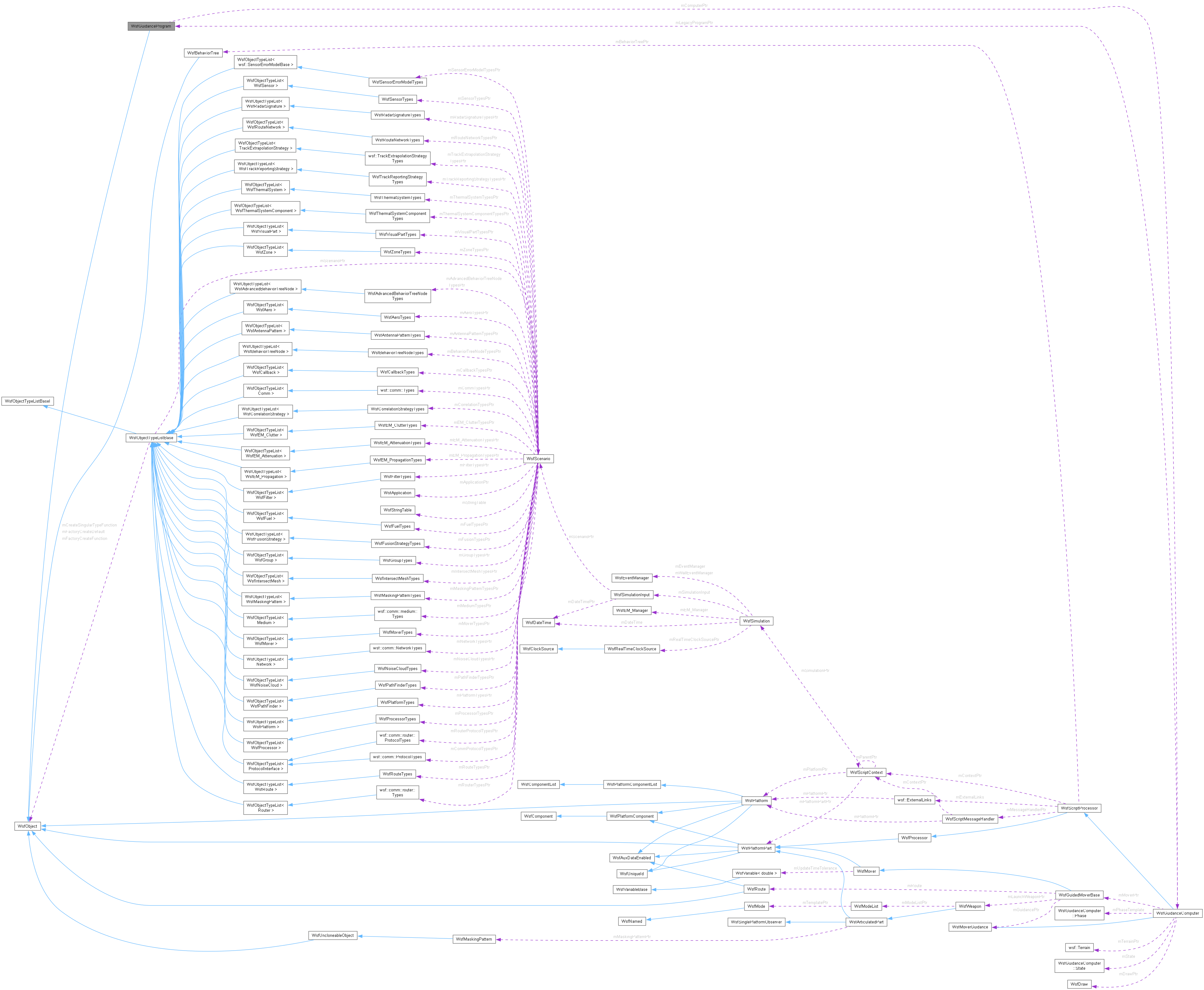

Collaboration diagram for WsfGuidanceProgram:

[legend]

Public Types
enum	Status { cCONTINUE , cCOMPLETE }
	The return status for the Execute method. More...
enum	Axis { cX_AXIS = 0 , cY_AXIS = 1 , cZ_AXIS = 2 }
using	State = WsfGuidanceComputer::State
using	Commands = WsfGuidanceComputer::Commands
using	Phase = WsfGuidanceComputer::Phase
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.

Public Member Functions
	WsfGuidanceProgram ()
	Constructor.
	WsfGuidanceProgram (const WsfGuidanceProgram &aSrc)=default
	~WsfGuidanceProgram () override=default
WsfGuidanceProgram &	operator= (const WsfGuidanceProgram &)=delete
WsfGuidanceProgram *	Clone () const override=0
	Virtual copy constructor.
virtual bool	Initialize (double aSimTime, WsfGuidanceComputer *aComputerPtr)
bool	ProcessInput (UtInput &aInput) override
virtual void	Start (double aSimTime, double aCurTime)
	Start using the program.
virtual void	Terminate (double aSimTime)
	Terminate the program.
virtual Status	Execute (State &aState, Commands &aCommands)=0
WsfPlatform *	GetPlatform ()
	A convenience method for getting the pointer to the platform.
WsfGuidanceComputer *	GetComputer ()
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Static Public Attributes
static const char *	cGC_ORBIT_DECLARED = "GC_ORBIT_DECLARED"
static const char *	cGC_DELTA_V_REMAINING = "GC_DELTA_IV_REMAINING"
static const char *	cGC_BURN_TIME_REMAINING = "GC_BURN_TIME_REMAINING"
static const char *	cGC_FUEL_REMAINING = "GC_FUEL_REMAINING"

Protected Member Functions
void	AltitudeGuidance (State &aState, Phase &aPhase, double &aZ_Accel)
	Compute the 'climb/dive-to-altitude and hold' guidance.
void	AngleOffsetGuidance (State &aState, Phase &aPhase, double &aY_Accel, double &aZ_Accel)
bool	FlightPathAngleAchieved (const State &aState, double aCommandedFlightPathAngle) const
void	FlightPathAngleGuidance (State &aState, Phase &aPhase, double aCommandedFlightPathAngle, double &aY_Accel, double &aZ_Accel)
void	ProNavGuidance (State &aState, double aProNavGain, bool aAugmented, double &aY_Accel, double &aZ_Accel)
void	PursuitGuidance (State &aState, double aPursuitGain, double &aY_Accel, double &aZ_Accel)
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Static Protected Member Functions
static void	ApplyGravityBias (UtEntity &aEntity, double aGravityBiasFactor, double &aY_Accel, double &aZ_Accel)
static void	ApplyLateralBias (UtEntity &aEntity, double aLateralBiasFactor, double &aY_Accel, double &aZ_Accel)
static void	ComputeGravitationalAcceleration (const double aLocWCS[3], double aGravAclWCS[3])

Protected Attributes
WsfGuidanceComputer *	mComputerPtr
double	mStartTime
	Simulation time when this program was started.
bool	mDebugEnabled
	True if debug output is enabled.

Detailed Description

Base class for the guidance programs (maneuvers) used by WsfGuidanceComputer.

Member Typedef Documentation

◆ Commands

using WsfGuidanceProgram::Commands = WsfGuidanceComputer::Commands

◆ Phase

using WsfGuidanceProgram::Phase = WsfGuidanceComputer::Phase

◆ State

using WsfGuidanceProgram::State = WsfGuidanceComputer::State

Member Enumeration Documentation

◆ Axis

enum WsfGuidanceProgram::Axis

Enumerator
cX_AXIS
cY_AXIS
cZ_AXIS

◆ Status

enum WsfGuidanceProgram::Status

The return status for the Execute method.

Enumerator
cCONTINUE	The program should be continued to be called (remains in the active program list).
cCOMPLETE	The program is complete and no longer needs to be called (removed from the active program list).

Constructor & Destructor Documentation

◆ WsfGuidanceProgram() [1/2]

WsfGuidanceProgram::WsfGuidanceProgram ( )

Constructor.

References mComputerPtr, mDebugEnabled, mStartTime, and WsfObject::WsfObject().

Referenced by Clone(), operator=(), and WsfGuidanceProgram().

◆ WsfGuidanceProgram() [2/2]

WsfGuidanceProgram::WsfGuidanceProgram ( const WsfGuidanceProgram & aSrc )

default

References WsfGuidanceProgram().

◆ ~WsfGuidanceProgram()

WsfGuidanceProgram::~WsfGuidanceProgram ( )

overridedefault

Member Function Documentation

◆ AltitudeGuidance()

void WsfGuidanceProgram::AltitudeGuidance	(	State &	aState,
		Phase &	aPhase,
		double &	aZ_Accel )

protected

Compute the 'climb/dive-to-altitude and hold' guidance.

References GetPlatform(), WsfPlatform::GetTerrainHeight(), WsfGuidanceComputer::Phase::mCommandedAlt, WsfGuidanceComputer::Phase::mCommandedAltIsAGL, mComputerPtr, WsfGuidanceComputer::State::mCurTime, WsfGuidanceComputer::State::mFlightPathAngle, WsfGuidanceComputer::Phase::mMaxAscentRate, WsfGuidanceComputer::Phase::mMaxDescentRate, and WsfGuidanceComputer::Phase::mMaxPitchAngle.

◆ AngleOffsetGuidance()

void WsfGuidanceProgram::AngleOffsetGuidance	(	State &	aState,
		Phase &	aPhase,
		double &	aY_Accel,
		double &	aZ_Accel )

protected

References WsfGuidanceComputer::cUNDEFINED_DOUBLE, WsfGuidanceComputer::Phase::mCommandedAzimuthOffset, WsfGuidanceComputer::State::mCurTime, WsfGuidanceComputer::State::mEndTime, WsfGuidanceComputer::Phase::mMaxGeeCmd, WsfGuidanceComputer::State::mTgtState, WsfGuidanceComputer::State::mWpnHeading, and WsfGuidanceComputer::State::mWpnState.

◆ ApplyGravityBias()

void WsfGuidanceProgram::ApplyGravityBias	(	UtEntity &	aEntity,
		double	aGravityBiasFactor,
		double &	aY_Accel,
		double &	aZ_Accel )

staticprotected

If requested, add in G bias to fight drop due to gravity.

Parameters

aEntity	[input] The weapon entity.
aGravityBiasFactor	[input] The gravity bias factor.
aY_Accel	[updated] The required ECS Y acceleration.
aZ_Accel	[updated] The required ECS Z acceleration.

References ComputeGravitationalAcceleration().

◆ ApplyLateralBias()

void WsfGuidanceProgram::ApplyLateralBias	(	UtEntity &	aEntity,
		double	aLateralBiasFactor,
		double &	aY_Accel,
		double &	aZ_Accel )

staticprotected

If requested, add in Lateral bias to fly a curving path to the target (used by radars to spread the clutter in doppler to boost SNR. "Doppler Beam Sharpening")

Parameters

aEntity	[input] The weapon entity.
aLateralBiasFactor	[input] The lateral bias factor.
aY_Accel	[updated] The required ECS Y acceleration.
aZ_Accel	[updated] The required ECS Z acceleration.

◆ Clone()

WsfGuidanceProgram * WsfGuidanceProgram::Clone ( ) const

overridepure virtual

Virtual copy constructor.

Implements WsfObject.

References Initialize(), Start(), Terminate(), and WsfGuidanceProgram().

◆ ComputeGravitationalAcceleration()

void WsfGuidanceProgram::ComputeGravitationalAcceleration	(	const double	aLocWCS[3],
		double	aGravAclWCS[3] )

staticprotected

Compute the gravitational acceleration vector at a specified location.

Parameters

aLocWCS	[input] The WCS position of the location.
aGravAclWCS	[output] The gravitational acceleration vector (pointing to the Earth's center).

Referenced by ApplyGravityBias(), and FlightPathAngleGuidance().

◆ Execute()

virtual Status WsfGuidanceProgram::Execute	(	State &	aState,
		Commands &	aCommands )

pure virtual

Execute the guidance program.

Parameters

aState	[input] The current state of the weapon and guidance target.
aCommands	[input/output] guidance program input/output.

Returns: the status of the program. 'cCONTINUE' means the program is not complete and should continue to be called. 'cCOMPLETE' means the program is complete and no longer needs to be called.

◆ FlightPathAngleAchieved()

bool WsfGuidanceProgram::FlightPathAngleAchieved	(	const State &	aState,
		double	aCommandedFlightPathAngle ) const

protected

References WsfGuidanceComputer::cFLIGHT_PATH_ANGLE_TOLERANCE, mComputerPtr, and WsfGuidanceComputer::State::mFlightPathAngle.

◆ FlightPathAngleGuidance()

void WsfGuidanceProgram::FlightPathAngleGuidance	(	State &	aState,
		Phase &	aPhase,
		double	aCommandedFlightPathAngle,
		double &	aY_Accel,
		double &	aZ_Accel )

protected

References WsfGuidanceComputer::cFLIGHT_PATH_ANGLE_TOLERANCE, ComputeGravitationalAcceleration(), GetPlatform(), WsfGuidanceComputer::State::mCurTime, WsfGuidanceComputer::State::mEndTime, WsfGuidanceComputer::State::mFlightPathAngle, WsfGuidanceComputer::Phase::mMaxGeeCmd, and WsfGuidanceComputer::State::mWpnState.

◆ GetComputer()

WsfGuidanceComputer * WsfGuidanceProgram::GetComputer ( )

inline

References mComputerPtr.

◆ GetPlatform()

WsfPlatform * WsfGuidanceProgram::GetPlatform ( )

inline

A convenience method for getting the pointer to the platform.

References mComputerPtr.

Referenced by AltitudeGuidance(), and FlightPathAngleGuidance().

◆ Initialize()

bool WsfGuidanceProgram::Initialize	(	double	aSimTime,
		WsfGuidanceComputer *	aComputerPtr )

virtual

Initialize the program.

This is called by the owning guidance computer when it performs its initialization.

References WsfPlatformPart::DebugEnabled(), mComputerPtr, and mDebugEnabled.

Referenced by Clone(), wsf::six_dof::GuidanceComputer::Initialize(), WsfGuidanceComputer::Initialize(), and WsfP6DOF_GuidanceComputer::Initialize().

◆ operator=()

WsfGuidanceProgram & WsfGuidanceProgram::operator= ( const WsfGuidanceProgram & )

delete

References WsfGuidanceProgram().

◆ ProcessInput()

bool WsfGuidanceProgram::ProcessInput ( UtInput & aInput )

overridevirtual

Process input for the program.

Parameters

aInput The current input stream.

Returns: 'true' if the command was one recognized by the program or 'false' if not.

Reimplemented from WsfObject.

References mDebugEnabled, and WsfObject::ProcessInput().

◆ ProNavGuidance()

void WsfGuidanceProgram::ProNavGuidance	(	State &	aState,
		double	aProNavGain,
		bool	aAugmented,
		double &	aY_Accel,
		double &	aZ_Accel )

protected

References WsfGuidanceComputer::State::mAimRelLocWCS, WsfGuidanceComputer::State::mTgtState, and WsfGuidanceComputer::State::mWpnState.

◆ PursuitGuidance()

void WsfGuidanceProgram::PursuitGuidance	(	State &	aState,
		double	aPursuitGain,
		double &	aY_Accel,
		double &	aZ_Accel )

protected

References WsfGuidanceComputer::State::mAimRelLocWCS, and WsfGuidanceComputer::State::mAimUnitVecECS.

◆ Start()

void WsfGuidanceProgram::Start	(	double	aSimTime,
		double	aCurTime )

virtual

Start using the program.

References mStartTime.

Referenced by Clone(), wsf::six_dof::GuidanceComputer::SelectPhase(), WsfGuidanceComputer::SelectPhase(), WsfP6DOF_GuidanceComputer::SelectPhase(), and WsfGuidanceComputer::StartProgram().

◆ Terminate()

void WsfGuidanceProgram::Terminate ( double aSimTime )

virtual

Terminate the program.

Referenced by Clone().

Member Data Documentation

◆ cGC_BURN_TIME_REMAINING

const char * WsfGuidanceProgram::cGC_BURN_TIME_REMAINING = "GC_BURN_TIME_REMAINING"

static

◆ cGC_DELTA_V_REMAINING

const char * WsfGuidanceProgram::cGC_DELTA_V_REMAINING = "GC_DELTA_IV_REMAINING"

static

◆ cGC_FUEL_REMAINING

const char * WsfGuidanceProgram::cGC_FUEL_REMAINING = "GC_FUEL_REMAINING"

static

◆ cGC_ORBIT_DECLARED

const char * WsfGuidanceProgram::cGC_ORBIT_DECLARED = "GC_ORBIT_DECLARED"

static

The following are names of aux_data variables that are defined when the ORBIT_INSERTION_PROGRAM declares that orbit conditions have been satisfied. These are tested in weapon_tools...

Referenced by OrbitalLaunchComputerGenerator::GuidanceComputerPhaseChanged().

◆ mComputerPtr

WsfGuidanceComputer* WsfGuidanceProgram::mComputerPtr

protected

Referenced by AltitudeGuidance(), FlightPathAngleAchieved(), GetComputer(), GetPlatform(), Initialize(), and WsfGuidanceProgram().

◆ mDebugEnabled

bool WsfGuidanceProgram::mDebugEnabled

protected

True if debug output is enabled.

Referenced by Initialize(), ProcessInput(), and WsfGuidanceProgram().

◆ mStartTime

double WsfGuidanceProgram::mStartTime

protected

Simulation time when this program was started.

Referenced by Start(), and WsfGuidanceProgram().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Commands

◆ Phase

◆ State

Member Enumeration Documentation

◆ Axis

◆ Status

Constructor & Destructor Documentation

◆ WsfGuidanceProgram() [1/2]

◆ WsfGuidanceProgram() [2/2]

◆ ~WsfGuidanceProgram()

Member Function Documentation

◆ AltitudeGuidance()

◆ AngleOffsetGuidance()

◆ ApplyGravityBias()

◆ ApplyLateralBias()

◆ Clone()

◆ ComputeGravitationalAcceleration()

◆ Execute()

◆ FlightPathAngleAchieved()

◆ FlightPathAngleGuidance()

◆ GetComputer()

◆ GetPlatform()

◆ Initialize()

◆ operator=()

◆ ProcessInput()

◆ ProNavGuidance()

◆ PursuitGuidance()

◆ Start()

◆ Terminate()

Member Data Documentation

◆ cGC_BURN_TIME_REMAINING

◆ cGC_DELTA_V_REMAINING

◆ cGC_FUEL_REMAINING

◆ cGC_ORBIT_DECLARED

◆ mComputerPtr

◆ mDebugEnabled

◆ mStartTime
