wsf::six_dof::RigidBodyTableTool Class Reference

#include <WsfRigidBodySixDOF_Utils.hpp>

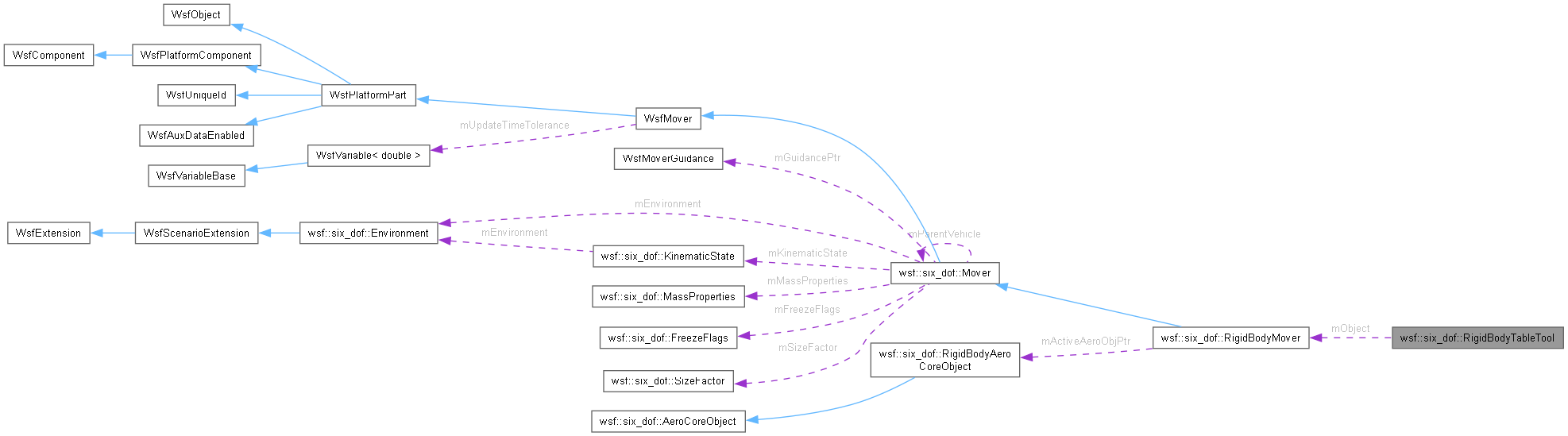

Collaboration diagram for wsf::six_dof::RigidBodyTableTool:
Collaboration graph
[legend]

Public Member Functions

 RigidBodyTableTool (RigidBodyMover *aObject)
 ~RigidBodyTableTool ()=default
void InitializeTableMachValues (double aMaxMach)
bool CreateAutopilotTables ()
void OutputCLMaxMachTableToInputString (std::string &aInput) const
void OutputCLMinMachTableToInputString (std::string &aInput) const
void OutputAlphaMaxMachTableToInputString (std::string &aInput) const
void OutputAlphaMinMachTableToInputString (std::string &aInput) const
void OutputAlphaMachCLTableToInputString (std::string &aInput) const
void OutputStickMachAlphaTablesToInputString (std::string &aInput) const
void OutputCLMachAlphaTableToInputString (std::string &aInput) const

Protected Member Functions

double CalcCLFromCLArea (double aCLArea)
void CreateMachTestList (double aMaxMach)
bool CalculateStickForZeroMoment (double aMach, double aAlpha_rad, bool aIsPowerOn, double &aThrustProduced_lbs, double &aStickBack)
bool CalculateStickForZeroMoment (double aMach, double aAlpha_rad, double &aStickBack)
void AddStickAndCL (double aMach, double aAlpha_rad, double &aStickBack, bool &aMachAdded, bool aLowPoint, bool aHighPoint)
bool CalcStickAndCL (double aMach, double aAlpha_rad, double &aStickBackBaseline, double &aStickBackThrustShift, double &aStickBackXCmShift, double &aStickBackZCmShift)
int CountValidStickAndCL (double aMach, std::vector< double > aAlphaVector_deg)
void AddAlphaVsMachCL (double aMach, double aCL, double aMinAlpha_deg, double aMaxAlpha_deg, bool &aMachAdded)

Protected Attributes

RigidBodyMover * mObject
std::unique_ptr< RigidBodyMachDataTable > mCLMaxVsMachTable
std::unique_ptr< RigidBodyMachDataTable > mCLMinVsMachTable
std::unique_ptr< RigidBodyMachDataTable > mAlphaMax_degVsMachTable
std::unique_ptr< RigidBodyMachDataTable > mAlphaMin_degVsMachTable
std::unique_ptr< RigidBodyMachParamDataTable > mStickForZeroMomentVsMachAlphaTablePtr
std::unique_ptr< RigidBodyMachParamDataTable > mThrustDeltaStickForZeroMomentVsMachAlphaTablePtr
std::unique_ptr< RigidBodyMachParamDataTable > mXcgDeltaStickForZeroMomentVsMachAlphaTablePtr
std::unique_ptr< RigidBodyMachParamDataTable > mZcgDeltaStickForZeroMomentVsMachAlphaTablePtr
std::unique_ptr< RigidBodyMachParamDataTable > mCLVsMachAlphaTable
std::unique_ptr< RigidBodyMachParamDataTable > mAlphaVsMachCLTable
std::vector< double > mMachTestList
bool mTableListsInitialized

Constructor & Destructor Documentation

◆ RigidBodyTableTool()

wsf::six_dof::RigidBodyTableTool::RigidBodyTableTool ( RigidBodyMover * aObject)
explicit

References wsf::six_dof::Mover::GetNominalEstimateMaxMach(), InitializeTableMachValues(), mAlphaMax_degVsMachTable, mAlphaMin_degVsMachTable, mAlphaVsMachCLTable, mCLMaxVsMachTable, mCLMinVsMachTable, mCLVsMachAlphaTable, mObject, mStickForZeroMomentVsMachAlphaTablePtr, mTableListsInitialized, mThrustDeltaStickForZeroMomentVsMachAlphaTablePtr, mXcgDeltaStickForZeroMomentVsMachAlphaTablePtr, and mZcgDeltaStickForZeroMomentVsMachAlphaTablePtr.

◆ ~RigidBodyTableTool()

wsf::six_dof::RigidBodyTableTool::~RigidBodyTableTool ( )
default

References AddAlphaVsMachCL(), AddStickAndCL(), CalcCLFromCLArea(), CalcStickAndCL(), CalculateStickForZeroMoment(), CountValidStickAndCL(), CreateAutopilotTables(), CreateMachTestList(), InitializeTableMachValues(), OutputAlphaMachCLTableToInputString(), OutputAlphaMaxMachTableToInputString(), OutputAlphaMinMachTableToInputString(), OutputCLMachAlphaTableToInputString(), OutputCLMaxMachTableToInputString(), OutputCLMinMachTableToInputString(), and OutputStickMachAlphaTablesToInputString().

Member Function Documentation

◆ AddAlphaVsMachCL()

void wsf::six_dof::RigidBodyTableTool::AddAlphaVsMachCL ( double aMach,
double aCL,
double aMinAlpha_deg,
double aMaxAlpha_deg,
bool & aMachAdded )
protected

References mAlphaVsMachCLTable, and mCLVsMachAlphaTable.

Referenced by ~RigidBodyTableTool().

◆ AddStickAndCL()

void wsf::six_dof::RigidBodyTableTool::AddStickAndCL ( double aMach,
double aAlpha_rad,
double & aStickBack,
bool & aMachAdded,
bool aLowPoint,
bool aHighPoint )
protected

References CalcCLFromCLArea(), CalcStickAndCL(), mCLVsMachAlphaTable, mObject, mStickForZeroMomentVsMachAlphaTablePtr, mThrustDeltaStickForZeroMomentVsMachAlphaTablePtr, mXcgDeltaStickForZeroMomentVsMachAlphaTablePtr, and mZcgDeltaStickForZeroMomentVsMachAlphaTablePtr.

Referenced by ~RigidBodyTableTool().

◆ CalcCLFromCLArea()

double wsf::six_dof::RigidBodyTableTool::CalcCLFromCLArea ( double aCLArea)
protected

References mObject.

Referenced by AddStickAndCL(), and ~RigidBodyTableTool().

◆ CalcStickAndCL()

bool wsf::six_dof::RigidBodyTableTool::CalcStickAndCL ( double aMach,
double aAlpha_rad,
double & aStickBackBaseline,
double & aStickBackThrustShift,
double & aStickBackXCmShift,
double & aStickBackZCmShift )
protected

References CalculateStickForZeroMoment(), wsf::six_dof::MassProperties::GetBaseMass_lbs(), wsf::six_dof::Mover::GetMassProperties(), and mObject.

Referenced by AddStickAndCL(), CountValidStickAndCL(), and ~RigidBodyTableTool().

◆ CalculateStickForZeroMoment() [1/2]

bool wsf::six_dof::RigidBodyTableTool::CalculateStickForZeroMoment ( double aMach,
double aAlpha_rad,
bool aIsPowerOn,
double & aThrustProduced_lbs,
double & aStickBack )
protected

References wsf::six_dof::PropulsionSystem::FillAllTanks(), wsf::six_dof::PropulsionSystem::GetFuelTanks(), wsf::six_dof::PropulsionSystem::GetNumFuelTanks(), wsf::six_dof::PilotObject::GetThrottleControllerPosition(), mObject, wsf::six_dof::PilotObject::ReleaseTestControl(), wsf::six_dof::PilotObject::SetTestThrottleControllerPosition(), success, wsf::six_dof::PilotObject::TakeTestControl(), wsf::six_dof::FreezeFlags::testingNoLag, and wsf::six_dof::PilotObject::UsingTestControl().

Referenced by CalcStickAndCL(), CalculateStickForZeroMoment(), and ~RigidBodyTableTool().

◆ CalculateStickForZeroMoment() [2/2]

bool wsf::six_dof::RigidBodyTableTool::CalculateStickForZeroMoment ( double aMach,
double aAlpha_rad,
double & aStickBack )
protected

References CalculateStickForZeroMoment().

◆ CountValidStickAndCL()

int wsf::six_dof::RigidBodyTableTool::CountValidStickAndCL ( double aMach,
std::vector< double > aAlphaVector_deg )
protected

References CalcStickAndCL().

Referenced by ~RigidBodyTableTool().

◆ CreateAutopilotTables()

bool wsf::six_dof::RigidBodyTableTool::CreateAutopilotTables ( )

Referenced by wsf::six_dof::utils::CommonCreateAutopilotSupportFile(), and ~RigidBodyTableTool().

◆ CreateMachTestList()

void wsf::six_dof::RigidBodyTableTool::CreateMachTestList ( double aMaxMach)
protected

References mMachTestList.

Referenced by InitializeTableMachValues(), and ~RigidBodyTableTool().

◆ InitializeTableMachValues()

void wsf::six_dof::RigidBodyTableTool::InitializeTableMachValues ( double aMaxMach)

References CreateMachTestList().

Referenced by wsf::six_dof::utils::CreateAutopilotSupportFileWithMaxMach(), RigidBodyTableTool(), and ~RigidBodyTableTool().

◆ OutputAlphaMachCLTableToInputString()

void wsf::six_dof::RigidBodyTableTool::OutputAlphaMachCLTableToInputString ( std::string & aInput) const

References mAlphaVsMachCLTable.

Referenced by wsf::six_dof::utils::CommonCreateAutopilotSupportFile(), and ~RigidBodyTableTool().

◆ OutputAlphaMaxMachTableToInputString()

void wsf::six_dof::RigidBodyTableTool::OutputAlphaMaxMachTableToInputString ( std::string & aInput) const

References mAlphaMax_degVsMachTable.

Referenced by wsf::six_dof::utils::CommonCreateAutopilotSupportFile(), and ~RigidBodyTableTool().

◆ OutputAlphaMinMachTableToInputString()

void wsf::six_dof::RigidBodyTableTool::OutputAlphaMinMachTableToInputString ( std::string & aInput) const

References mAlphaMin_degVsMachTable.

Referenced by wsf::six_dof::utils::CommonCreateAutopilotSupportFile(), and ~RigidBodyTableTool().

◆ OutputCLMachAlphaTableToInputString()

void wsf::six_dof::RigidBodyTableTool::OutputCLMachAlphaTableToInputString ( std::string & aInput) const

References mCLVsMachAlphaTable.

Referenced by wsf::six_dof::utils::CommonCreateAutopilotSupportFile(), and ~RigidBodyTableTool().

◆ OutputCLMaxMachTableToInputString()

void wsf::six_dof::RigidBodyTableTool::OutputCLMaxMachTableToInputString ( std::string & aInput) const

References mCLMaxVsMachTable.

Referenced by wsf::six_dof::utils::CommonCreateAutopilotSupportFile(), and ~RigidBodyTableTool().

◆ OutputCLMinMachTableToInputString()

void wsf::six_dof::RigidBodyTableTool::OutputCLMinMachTableToInputString ( std::string & aInput) const

References mCLMinVsMachTable.

Referenced by wsf::six_dof::utils::CommonCreateAutopilotSupportFile(), and ~RigidBodyTableTool().

◆ OutputStickMachAlphaTablesToInputString()

void wsf::six_dof::RigidBodyTableTool::OutputStickMachAlphaTablesToInputString ( std::string & aInput) const

References mStickForZeroMomentVsMachAlphaTablePtr, mThrustDeltaStickForZeroMomentVsMachAlphaTablePtr, mXcgDeltaStickForZeroMomentVsMachAlphaTablePtr, and mZcgDeltaStickForZeroMomentVsMachAlphaTablePtr.

Referenced by wsf::six_dof::utils::CommonCreateAutopilotSupportFile(), and ~RigidBodyTableTool().

Member Data Documentation

◆ mAlphaMax_degVsMachTable

std::unique_ptr<RigidBodyMachDataTable> wsf::six_dof::RigidBodyTableTool::mAlphaMax_degVsMachTable
protected

Referenced by OutputAlphaMaxMachTableToInputString(), and RigidBodyTableTool().

◆ mAlphaMin_degVsMachTable

std::unique_ptr<RigidBodyMachDataTable> wsf::six_dof::RigidBodyTableTool::mAlphaMin_degVsMachTable
protected

Referenced by OutputAlphaMinMachTableToInputString(), and RigidBodyTableTool().

◆ mAlphaVsMachCLTable

std::unique_ptr<RigidBodyMachParamDataTable> wsf::six_dof::RigidBodyTableTool::mAlphaVsMachCLTable
protected

Referenced by AddAlphaVsMachCL(), OutputAlphaMachCLTableToInputString(), and RigidBodyTableTool().

◆ mCLMaxVsMachTable

std::unique_ptr<RigidBodyMachDataTable> wsf::six_dof::RigidBodyTableTool::mCLMaxVsMachTable
protected

Referenced by OutputCLMaxMachTableToInputString(), and RigidBodyTableTool().

◆ mCLMinVsMachTable

std::unique_ptr<RigidBodyMachDataTable> wsf::six_dof::RigidBodyTableTool::mCLMinVsMachTable
protected

Referenced by OutputCLMinMachTableToInputString(), and RigidBodyTableTool().

◆ mCLVsMachAlphaTable

std::unique_ptr<RigidBodyMachParamDataTable> wsf::six_dof::RigidBodyTableTool::mCLVsMachAlphaTable
protected

Referenced by AddAlphaVsMachCL(), AddStickAndCL(), OutputCLMachAlphaTableToInputString(), and RigidBodyTableTool().

◆ mMachTestList

std::vector<double> wsf::six_dof::RigidBodyTableTool::mMachTestList
protected

Referenced by CreateMachTestList().

◆ mObject

RigidBodyMover* wsf::six_dof::RigidBodyTableTool::mObject
protected

Referenced by AddStickAndCL(), CalcCLFromCLArea(), CalcStickAndCL(), CalculateStickForZeroMoment(), and RigidBodyTableTool().

◆ mStickForZeroMomentVsMachAlphaTablePtr

std::unique_ptr<RigidBodyMachParamDataTable> wsf::six_dof::RigidBodyTableTool::mStickForZeroMomentVsMachAlphaTablePtr
protected

Referenced by AddStickAndCL(), OutputStickMachAlphaTablesToInputString(), and RigidBodyTableTool().

◆ mTableListsInitialized

bool wsf::six_dof::RigidBodyTableTool::mTableListsInitialized
protected

Referenced by RigidBodyTableTool().

◆ mThrustDeltaStickForZeroMomentVsMachAlphaTablePtr

std::unique_ptr<RigidBodyMachParamDataTable> wsf::six_dof::RigidBodyTableTool::mThrustDeltaStickForZeroMomentVsMachAlphaTablePtr
protected

Referenced by AddStickAndCL(), OutputStickMachAlphaTablesToInputString(), and RigidBodyTableTool().

◆ mXcgDeltaStickForZeroMomentVsMachAlphaTablePtr

std::unique_ptr<RigidBodyMachParamDataTable> wsf::six_dof::RigidBodyTableTool::mXcgDeltaStickForZeroMomentVsMachAlphaTablePtr
protected

Referenced by AddStickAndCL(), OutputStickMachAlphaTablesToInputString(), and RigidBodyTableTool().

◆ mZcgDeltaStickForZeroMomentVsMachAlphaTablePtr

std::unique_ptr<RigidBodyMachParamDataTable> wsf::six_dof::RigidBodyTableTool::mZcgDeltaStickForZeroMomentVsMachAlphaTablePtr
protected

Referenced by AddStickAndCL(), OutputStickMachAlphaTablesToInputString(), and RigidBodyTableTool().

The documentation for this class was generated from the following files:
