#include <WsfTBM_Mover.hpp>

Inheritance diagram for WsfTBM_Mover:

[legend]

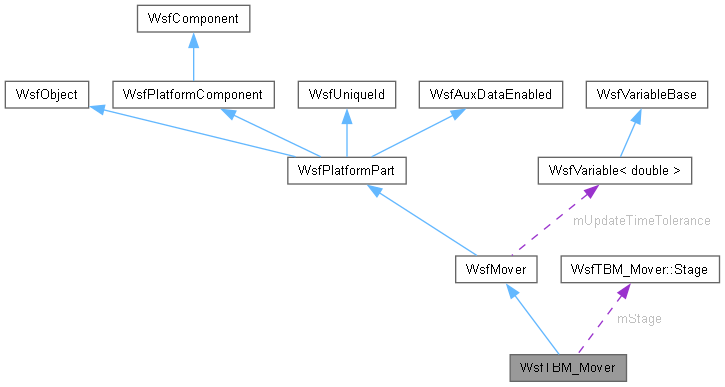

Collaboration diagram for WsfTBM_Mover:

[legend]

Classes
class	Stage
	A stage represents one stage in the vehicle. More...

Public Member Functions
	WsfTBM_Mover (WsfScenario &aScenario)
	~WsfTBM_Mover () override=default
WsfTBM_Mover &	operator= (const WsfTBM_Mover &)=delete
WsfMover *	Clone () const override
bool	Initialize (double aSimTime) override
bool	Initialize2 (double aSimTime) override
bool	ProcessInput (UtInput &aInput) override
void	Update (double aSimTime) override
WsfSpatialDomain	GetSpatialDomain () const override
double	GetTBMLastUpdateTime () const
void	SetTBMLastUpdateTime (double aLastUpdateTime)
void	GetLaunchLLA (double &aLat, double &aLon, double &aAlt, bool &aAltAGL)
void	SetLaunchLLA (double aLat, double aLon, double aAlt, bool aAltAGL)
double	GetLaunchTime () const
void	SetLaunchTime (double aLaunchTime)
unsigned int	GetStageIndex () const
void	SetStageIndex (unsigned int aStageIndex)
bool	IsExtrapolating () const override
std::vector< double >	GetState () const
void	SetState (const std::vector< double > &aStateVector)
void	GetTerminalLLA (double &aLat, double &aLon, double &aAlt)
void	GetTargetLLA (double &aLat, double &aLon, double &aAlt)
void	SetTargetLLA (double aLat, double aLon, double aAlt)
Public Member Functions inherited from WsfMover
	WsfMover ()=delete
	WsfMover (const WsfScenario &aScenario)
	WsfMover (const WsfMover &aSrc)
WsfMover &	operator= (const WsfMover &)=delete
	~WsfMover () override
virtual double	TurnRadius (double atSpeed)
WsfModeList *	GetModeList () const
virtual void	TriggerExtrapolation ()
virtual KinematicModel *	CreateKinematicModel (double aSimTime, WsfStringId aPlatformTypeId, const double aLocationWCS[3], const double aVelocityWCS[3], WsfMover aMoverPtr, WsfDraw aDrawPtr) const
WsfComponent *	CloneComponent () const override
int	GetComponentInitializationOrder () const override
const int *	GetComponentRoles () const override
void *	QueryInterface (int aRole) override
const char *	GetScriptClassName () const override
virtual void	SwapMoverInitiated (double aSimTime, WsfMover *aOldMoverPtr)
void	TurnOff (double aSimTime) override
void	TurnOn (double aSimTime) override
void	SetNonOperational (double aSimTime) override
void	SetOperational (double aSimTime) override
void	PartBroken (double aSimTime) override
void	Restore (double aSimTime) override
virtual bool	IsStopped () const
	Return whether the mover (and its attached platform) is stopped.
virtual bool	IsPaused () const
virtual void	SetHeading (double aHeading)
virtual void	SetPitch (double aPitch)
virtual void	SetRoll (double aRoll)
virtual void	SetOrientationNED (double aHeading, double aPitch, double aRoll)
virtual void	ResetPosition (double aSimTime)
	Informs the mover to use the current platform state.
double	GetLastUpdateTime () const
double	GetUpdateInterval () const override
double	GetUpdateTimeTolerance () const
void	SetUpdateInterval (double aUpdateInterval) override
void	SetLastUpdateTime (double aLastUpdateTime)
virtual bool	UpdateAllowed () const
bool	UpdateWhenBroken () const
void	SetUpdateWhenBroken ()
void	SetNoUpdateWhenBroken ()
virtual const WsfRoute *	GetRoute () const
virtual const WsfRoute *	GetDefaultRoute () const
virtual int	RoutePointIndex () const
virtual bool	GoToAltitude (double aSimTime, double aAltitude, double aClimbDiveRate, bool aKeepRoute)
virtual bool	ReturnToRoute (double aSimTime)
virtual bool	GoToClosestPoint (double aSimTime)
virtual bool	GoToLabel (double aSimTime, WsfStringId aLabelId)
virtual bool	GoToLocation (double aSimTime, double aLatitude, double aLongitude, double aAltitude)
virtual bool	GoToSpeed (double aSimTime, double aSpeed, double aLinearAccel, bool aKeepRoute)
virtual bool	TurnToHeading (double aSimTime, double aHeading, double aRadialAccel, WsfPath::TurnDirection aTurnDirection)
virtual bool	TurnToRelativeHeading (double aSimTime, double aHeadingChange, double aRadialAccel, WsfPath::TurnDirection aTurnDirection)
virtual bool	SetRoute (double aSimTime, const WsfRoute &aRoute)
virtual bool	UpdateRoute (double aSimTime, const WsfRoute &aRoute)
virtual bool	UpdateDefaultRoute ()
virtual bool	GoToWaypoint (double aSimTime, unsigned int aDestination)
virtual bool	FindAndSetPath (double aSimTime, WsfGeoPoint aStartPtr, WsfGeoPoint aEndPtr)
virtual bool	FlyRates (const UtVec3d &aAngularRates, const UtVec3d &aLongitudinalAccel)
virtual bool	FlyHeadingSpeedAltitude (double aHeading, double aSpeed, double aAltitude, double aMaxGees, double aMaxClimb)
virtual bool	TurnInPlaneWithSpeed (const UtVec3d &aPlane, double aGees, double aSpeed)
virtual bool	TurnInPlaneWithThrottle (const UtVec3d &aPlane, double aGees, double aThrottle)
virtual bool	FlyVectorWithSpeed (const UtVec3d &aVelocityVector, double aMaxGees, double aSpeed)
virtual bool	FlyVectorWithThrottle (const UtVec3d &aVelocityVector, double aMaxGees, double aThrottle)
virtual bool	ExecuteTriggers (double aSimTime, unsigned int aPointIndex)
virtual bool	GetFutureLocationWCS (double aSimTime, double aLocationWCS[3])
WsfStringId	GetModeId () const
virtual void	SetMode (WsfStringId aModeName)
bool	ThreadSafe () const
	Returns true if the mover update is thread safe.
void	SetThreadSafe ()
void	SetNotThreadSafe ()
virtual void	InitializeProperties ()
	Add any input properties and its default value common properties list.
virtual bool	PropertyExists (const std::string &aPropertyName)
	Return true if the given property exists in the set of properties.
virtual void	RegisterProperty (const std::string &aPropertyName, const int &aProperty)
	Add an integer property to the common set of properties.
virtual void	RegisterProperty (const std::string &aPropertyName, const double &aProperty)
	Add an floating point property to the common set of properties.
virtual void	RegisterProperty (const std::string &aPropertyName, const std::string &aProperty)
	Add an string property to the set of common properties.
virtual bool	GetPropertyInt (const std::string &aPropertyName, int &aProperty)
virtual bool	GetPropertyDouble (const std::string &aPropertyName, double &aProperty)
virtual bool	GetPropertyString (const std::string &aPropertyName, std::string &aProperty)
virtual double	GetThrottlePosition ()
Public Member Functions inherited from WsfPlatformPart
	WsfPlatformPart (const WsfScenario &aScenario, int aPartType)
WsfPlatformPart &	operator= (const WsfPlatformPart &aRhs)=delete
	~WsfPlatformPart () override
const int *	GetComponentRoles () const override
void *	QueryInterface (int aRole) override
bool	DebugEnabled () const
	Returns 'true' if debugging is enabled for this instance.
void	SetDebugEnabled (bool aDebugEnabled)
unsigned int	GetDebugMask ()
bool	IsExternallyControlled () const
virtual void	SetExternallyControlled (double aSimTime, bool aIsExternallyControlled)
int	GetPartType () const
const char *	GetScriptClassName () const override
WsfSimulation *	GetSimulation () const
const WsfScenario &	GetScenario () const
WsfStringId	GetComponentName () const override
void	ComponentParentChanged (WsfPlatform *aPlatformPtr) override
WsfPlatform *	GetPlatform () const
virtual void	SetPlatform (WsfPlatform *aPlatformPtr)
virtual void	PlatformAdded (double aSimTime, WsfPlatform *aPlatformPtr)
virtual void	PlatformDeleted (WsfPlatform *aPlatformPtr)
double	GetLastStatusChangeTime () const
void	SetLastStatusChangeTime (double aSimTime)
	Allows a system to set the time at which the device was initialized.
bool	CanBeMadeOperational () const
	Returns an indication that this system can be made operational.
bool	CanBeMadeNonOperational () const
	Returns an indication that this system can be made non-operational.
bool	CanBeTurnedOn () const
	Returns an indication that this system can be turned on.
bool	CanBeTurnedOff () const
	Returns an indication that this system can be turned off.
bool	IsTurnedOn () const
bool	InitiallyTurnedOn () const
	Is the system to be turned 'on' when added to the simulation?
void	SetInitiallyTurnedOn (bool aInitiallyTurnedOn)
	Sets if the system is turned on when added to the simulation.
bool	IsOperational () const
bool	SetOperational (double aSimTime, bool aMakeOperational)
double	GetDamageFactor () const
bool	SetDamageFactor (double aSimTime, double aDamageFactor)
bool	IsCritical () const
void	SetCritical (bool aValue)
virtual void	OnPlatformBrokenEvent (double aSimTime)
	Owning platform has issued a broken event.
bool	IsBroken () const
WsfInternalLinks &	GetInternalLinks ()
	Return the internal links for this part.
virtual bool	HasInternalLinks () const
	Does this platform part have a communication link to other platform parts?
virtual bool	ProcessMessage (double aSimTime, const WsfMessage &aMessage)
virtual bool	ReceiveMessage (double aSimTime, const WsfMessage &aMessage)
virtual void	SendMessage (double aSimTime, const WsfMessage &aMessage)
virtual void	SendMessageTo (double aSimTime, const WsfMessage &aMessage, WsfStringId aRecipientId)
void	SendMessageToProcessor (double aSimTime, const WsfMessage &aMessage, WsfStringId aRecipientId)
virtual void	SendQueuedMessages (double aSimTime)
const WsfCategoryList &	GetCategories () const
	Get the categories to which this part belongs.
void	AddCategory (WsfStringId aCategoryId)
	Adds the provided category to the platform part's category list.
bool	IsCategoryMember (WsfStringId aCategoryId) const
const WsfGroupList &	GetGroups () const
	Get the groups to which this platform part belongs.
void	JoinGroup (WsfGroup *aGroupPtr)
	Join the given group.
void	LeaveGroup (WsfGroup *aGroupPtr)
	Leave the given group.
bool	IsGroupMember (WsfStringId aGroupId)
unsigned int	GetUpdateEventEpoch () const
void	IncrementUpdateEventEpoch ()
bool	UpdateEventActive () const
	Is an 'Update' event active?
void	SetUpdateEventActive (bool aUpdateEventActive)
	Indicate if the 'Update' event is active.
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)
Public Member Functions inherited from WsfComponentT< WsfPlatform >
	WsfComponentT ()
	WsfComponentT (const WsfComponentT &) noexcept
WsfComponentT &	operator= (const WsfComponentT &) noexcept
	~WsfComponentT () override=default
ParentType *	GetComponentParent () const
void	SetComponentParent (ParentType *aParentPtr)
Public Member Functions inherited from WsfComponent
virtual	~WsfComponent ()=default
template<typename T>
bool	QueryInterfaceT (T *&aRolePtr)
bool	ComponentHasRole (int aRole)
	Returns true if the component has the specified role.
virtual bool	PreInitialize (double aSimTime)
virtual void	PreInput ()
Public Member Functions inherited from WsfUniqueId
	WsfUniqueId ()
	Construtor initializes the unique identifier to 0.
	WsfUniqueId (const WsfUniqueId &)
	Copy constructor initializes the unique identifier to 0.
WsfUniqueId &	operator= (const WsfUniqueId &)
unsigned int	GetUniqueId () const
	Get the unique identifier assigned to this object.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
Public Member Functions inherited from WsfAuxDataEnabled
	WsfAuxDataEnabled ()=default
	WsfAuxDataEnabled (const WsfAuxDataEnabled &aSrc)=default
WsfAuxDataEnabled &	operator= (const WsfAuxDataEnabled &aRhs)
	WsfAuxDataEnabled (WsfAuxDataEnabled &&)=default
WsfAuxDataEnabled &	operator= (WsfAuxDataEnabled &&)=default
virtual	~WsfAuxDataEnabled () noexcept
void	SetAuxData (const WsfAttributeContainer &aAuxData)
void	DeleteAuxData ()
	Delete the aux data container from the object.
void	MergeAuxData (const WsfAuxDataEnabled &aSrc)
	Merge the object's aux data with aux data from an existing object.
void	UpdateAuxData (const WsfAuxDataEnabled &aSrc)
	Update the object's aux data with aux data from an existing object.
bool	HasAuxData () const
	Returns true if this object has aux data.
bool	ProcessInput (UtInput &aInput)
template<typename T>
void	Serialize (T &aBuff)
	(De)serialization for XIO
WsfAttributeContainer &	GetAuxData ()
const WsfAttributeContainer &	GetAuxData () const noexcept
const WsfAttributeContainer &	GetAuxDataConst () const noexcept

Static Public Member Functions
static ut::Random &	GetRandom ()
static void	ClearRandom ()

Protected Member Functions
	WsfTBM_Mover (const WsfTBM_Mover &aSrc)
	Copy constructor (for clone).
bool	ProcessCepTable (UtInput &aInput)
bool	SaveCepPoint (bool &aFormatIsFrozen, std::vector< double > &aNominalRanges, std::vector< double > &aRangeErrors, std::vector< double > &aAzimuthErrors, double aNominalRange, double aRangeError, double aAzimuthError)
void	ComputeTargetError ()
void	SetMasses ()
void	ComputeImpactRange (double psi, double &rangegr, double &xmid, double &aMaxAlt)
void	ComputeTransitionStateVectors (const double aInitialState[9])
	Given an initial state vector, compute the state vectors at the transitions.
void	CreateInitialState (double aElevation, double aState[9])
void	ComputeLaunchAngle (double fltran, double psicrit, double rngmax, double &flttim, double &psi, double &maxAlt, bool &toofar)
void	ComputeMaximumRange (double al, double am, double ah, double tol, double &psicrit, double &rngmax)
double	GetAltitude (const double aState[9]) const
	Get the geocentric altitude above the ellipsoid for the specified WCS location.
double	GetSpeed (const double aState[9]) const
void	CepTableLookup (double aTargetGroundRange, double &aRangeError, double &aAzimuthError)
void	PrintState (const double aState[9], ut::log::MessageStream &aStream) const
void	ScheduleScriptEvents (double aSimTime)
void	SetTrailingEffects (double aSimTime) const
void	WriteStateForPlot (double aTime, const double aState[9])
void	odeint2 (double y[9], double x1, double x2)
void	derivs (double x, const double y[9], double dydx[6]) const
void	rkqc (double y[9], double dydx[6], double &x, double htry, double eps, double yscal[], double &hdid, double &hnext)
void	rk4 (double y[9], double dydx[6], double x, double h, double yout[9])
void	OutputDiagnostic (double aSimTime)
	Used to output data when debugging.
void	SetModeList (WsfModeList *aModeListPtr)
void	SetUpdateTimeTolerance (double aDt)
	Revise the internal time tolerance allowed for Update() sequencing logic.
	WsfPlatformPart (const WsfPlatformPart &aSrc)
	Copy constructor (for Clone()).
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).
Protected Member Functions inherited from WsfUniqueId
void	AssignUniqueId (WsfSimulation *aSimulationPtr)

Protected Attributes
double	mLaunchTime
	Simulation time at launch.
Stage	mStage
	The current stage.
unsigned int	mStageIndex
	The index of the current stage.
double	mState [9]
	The current state vector (6 + 3 for accel).
std::vector< Stage >	mStageList
	The list of stages.
bool	mExplicitStageUsed
	'true' if a 'stage' command was used
bool	mImplicitStageUsed
	'true' if a stage was defined without using 'stage'
bool	mAzErrorUsed
bool	mHaveTarget
bool	mIsBallistic
double	mFixedCEP
	Circular Error Probable. Defaults to zero, with no effect.
double	mLaunchLat
	Launch latitude.
double	mLaunchLon
	Launch longitude.
double	mLaunchAlt
	Launch altitude.
bool	mLaunchAltAGL
	'true' if AGL altitude was specified in the input file
bool	mIgnoreTarget
	true if the target specification should be ignored
bool	mLofted
	true if trajectory is lofted, false if depressed
double	mTargetLat
	target latitude (deg)
double	mTargetLon
	target longitude (deg)
double	mTargetAlt
	terrain height at target location (m)
double	mTerminalLat
	terminal latitude (deg)
double	mTerminalLon
	terminal longitude (deg)
double	mTerminalAlt
	terrain height at terminal location (m)
bool	mShowStatus
	show initial conditions on standard output
int	mDebugCallTrigger
int	mDebugCallCount
TblIndVarU< double >	mNomRanges
TblDepVar1< double >	mRangeErrors
TblDepVar1< double >	mAzimuthErrors
TblLookupLU< double >	mLookupUtility
double	mLastUpdateTime
	The simulation time when Update was last called.
WsfVariable< double >	mUpdateTimeTolerance
bool	mThreadSafe
std::vector< WsfMoverMode * >	mMoverModeList
	The generic list of modes (not valid until Initialize is called).
WsfStringId	mModeId

Additional Inherited Members
Public Types inherited from WsfPlatformPart
enum	{ cLEVEL_ONE_DEBUG = 0x00000001 , cLEVEL_TWO_DEBUG = 0x00000002 }
using	InternalMessageQueue = std::queue<WsfMessage*>
using	RecipientMessageQueue = std::queue<std::pair<WsfPlatformPart, WsfMessage>>
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
Public Types inherited from WsfComponentT< WsfPlatform >
typedef WsfPlatform	ParentType
	This is needed to support the WsfComponentList template.
Static Public Attributes inherited from WsfMover
static const char *	cTYPE_KIND = "mover"
Static Public Attributes inherited from WsfAuxDataEnabled
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataAccessed
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataDestroyed

Detailed Description

A simple theater/tactical ballistic missile (TBM) mover.

The maximum range (and the launch angle needed to reach that range) of the TBM is given by the following input characteristics:

- TBM burn time (sec)
- TBM launch time (sec)
- TBM ballistic coefficient (n/m^2)
- TBM fuel mass fraction
- TBM launch mass (kg)
- TBM specific impulse (sec)
- lofted or depressed trajectory

If the desired TBM range is less than the maximum range then the launch angle required to go the desired range is computed. If the trajectory is lofted the launch angle will be greater than the maximum range launch angle, and if the trajectory is depressed the launch angle will be less than the maximum range launch angle.

The thrust phase of the TBM flight is not modeled exactly as a real TBM would fly. Actual TBMs tend to launch vertically and then use some guidance law during boost to achieve the proper burnout conditions to hit their target. Each type of TBM would implement this in a different way, but the boost trajectories produced are fairly similar. In this model the TBM is not launched vertically, but at some angle slightly less. The direction of thrust is assumed to always be opposite the TBM velocity vector. Given these conditions, the earth's gravity will cause the TBM to turn. By selecting the correct launch angle the desired impact range will result. The trajectories produced are very similar to real ICBM trajectories.

Drag is modeled below 200000 meters. The TBM is assumed to have a constant beta, the coefficient of drag does not vary with Mach number. The air density is modeled using an exponential approximation.

Constructor & Destructor Documentation

◆ WsfTBM_Mover() [1/2]

WsfTBM_Mover::WsfTBM_Mover ( WsfScenario & aScenario )

References mAzErrorUsed, mAzimuthErrors, mDebugCallCount, mDebugCallTrigger, mExplicitStageUsed, mFixedCEP, mHaveTarget, mIgnoreTarget, mImplicitStageUsed, mIsBallistic, mLaunchAlt, mLaunchAltAGL, mLaunchLat, mLaunchLon, mLaunchTime, mLofted, mLookupUtility, mNomRanges, mRangeErrors, mShowStatus, mStage, mStageIndex, mStageList, mState, mTargetAlt, mTargetLat, mTargetLon, mTerminalAlt, mTerminalLat, mTerminalLon, and WsfMover::WsfMover().

Referenced by Clone(), operator=(), and WsfTBM_Mover().

◆ ~WsfTBM_Mover()

WsfTBM_Mover::~WsfTBM_Mover ( )

overridedefault

◆ WsfTBM_Mover() [2/2]

WsfTBM_Mover::WsfTBM_Mover ( const WsfTBM_Mover & aSrc )

protected

Copy constructor (for clone).

References mAzErrorUsed, mAzimuthErrors, mDebugCallCount, mDebugCallTrigger, mExplicitStageUsed, mFixedCEP, mHaveTarget, mIgnoreTarget, mImplicitStageUsed, mIsBallistic, mLaunchAlt, mLaunchAltAGL, mLaunchLat, mLaunchLon, mLaunchTime, mLofted, mLookupUtility, mNomRanges, mRangeErrors, mShowStatus, mStage, mStageIndex, mStageList, mState, mTargetAlt, mTargetLat, mTargetLon, mTerminalAlt, mTerminalLat, mTerminalLon, WsfMover::WsfMover(), and WsfTBM_Mover().

Member Function Documentation

◆ CepTableLookup()

void WsfTBM_Mover::CepTableLookup	(	double	aTargetGroundRange,
		double &	aRangeError,
		double &	aAzimuthError )

protected

References mAzErrorUsed, mAzimuthErrors, mLookupUtility, mNomRanges, and mRangeErrors.

Referenced by ComputeTargetError().

◆ ClearRandom()

void WsfTBM_Mover::ClearRandom ( )

static

Referenced by operator=().

◆ Clone()

WsfMover * WsfTBM_Mover::Clone ( ) const

overridevirtual

Clone this object.

Returns: a pointer to the new object.

Implements WsfMover.

References WsfMover::WsfMover(), and WsfTBM_Mover().

◆ ComputeImpactRange()

void WsfTBM_Mover::ComputeImpactRange	(	double	psi,
		double &	rangegr,
		double &	xmid,
		double &	aMaxAlt )

protected

Given the launch angle, compute the ground range and time of flight.

Parameters

psi	[input] Launch elevation angle (radians)
rangegr	[output] The ground range to the impact point.
xmid	[output] The time-of-flight to the impact point.
aMaxAlt	[output] The maximum altitude that was achieved.

References ComputeTransitionStateVectors(), CreateInitialState(), WsfPlatformPart::DebugEnabled(), GetAltitude(), WsfPlatformPart::GetPlatform(), mDebugCallCount, mDebugCallTrigger, mStage, mStageIndex, mStageList, mTargetAlt, odeint2(), SetMasses(), and WriteStateForPlot().

Referenced by ComputeLaunchAngle(), ComputeMaximumRange(), and Initialize2().

◆ ComputeLaunchAngle()

void WsfTBM_Mover::ComputeLaunchAngle	(	double	fltran,
		double	psicrit,
		double	rngmax,
		double &	flttim,
		double &	psi,
		double &	maxAlt,
		bool &	toofar )

protected

References ComputeImpactRange(), and mLofted.

Referenced by Initialize2().

◆ ComputeMaximumRange()

void WsfTBM_Mover::ComputeMaximumRange	(	double	al,
		double	am,
		double	ah,
		double	tol,
		double &	psicrit,
		double &	rngmax )

protected

References ComputeImpactRange(), WsfPlatformPart::DebugEnabled(), WsfObject::GetName(), and WsfPlatformPart::GetPlatform().

Referenced by Initialize2().

◆ ComputeTargetError()

void WsfTBM_Mover::ComputeTargetError ( )

protected

References CepTableLookup(), wsf::Terrain::GetElevInterp(), WsfPlatformPart::GetPlatform(), GetRandom(), mAzErrorUsed, mFixedCEP, mHaveTarget, mLaunchLat, mLaunchLon, mNomRanges, mTargetAlt, mTargetLat, mTargetLon, mTerminalAlt, mTerminalLat, and mTerminalLon.

Referenced by Initialize2().

◆ ComputeTransitionStateVectors()

void WsfTBM_Mover::ComputeTransitionStateVectors ( const double aInitialState[9] )

protected

Given an initial state vector, compute the state vectors at the transitions.

References WsfPlatformPart::DebugEnabled(), WsfTBM_Mover::Stage::mBurnOutState, WsfTBM_Mover::Stage::mBurnOutTime, WsfTBM_Mover::Stage::mIgnitionState, WsfTBM_Mover::Stage::mIgnitionTime, WsfTBM_Mover::Stage::mInitialState, WsfTBM_Mover::Stage::mInitialTime, WsfTBM_Mover::Stage::mSeparationTime, mStage, mStageList, odeint2(), PrintState(), and SetMasses().

Referenced by ComputeImpactRange(), and Initialize2().

◆ CreateInitialState()

void WsfTBM_Mover::CreateInitialState	(	double	aElevation,
		double	aState[9] )

protected

Create the initial state vector for a launch elevation.

Given the WCS positions of the launcher and the target, and the elevation angle of the launcher, compute the initial state vector.

Parameters

aElevation	[input] launch elevation angle from local horizon. (radians)
aState	[output] The initial state vector.

References mLaunchAlt, mLaunchLat, mLaunchLon, mTerminalAlt, mTerminalLat, and mTerminalLon.

Referenced by ComputeImpactRange().

◆ derivs()

void WsfTBM_Mover::derivs	(	double	x,
		const double	y[9],
		double	dydx[6] ) const

protected

References GetAltitude(), and mStage.

Referenced by odeint2(), rk4(), and rkqc().

◆ GetAltitude()

double WsfTBM_Mover::GetAltitude ( const double aState[9] ) const

protected

Get the geocentric altitude above the ellipsoid for the specified WCS location.

Referenced by ComputeImpactRange(), and derivs().

◆ GetLaunchLLA()

void WsfTBM_Mover::GetLaunchLLA	(	double &	aLat,
		double &	aLon,
		double &	aAlt,
		bool &	aAltAGL )

References mLaunchAlt, mLaunchAltAGL, mLaunchLat, and mLaunchLon.

◆ GetLaunchTime()

double WsfTBM_Mover::GetLaunchTime ( ) const

inline

References mLaunchTime.

◆ GetRandom()

ut::Random & WsfTBM_Mover::GetRandom ( )

static

Referenced by ComputeTargetError(), and operator=().

◆ GetSpatialDomain()

WsfSpatialDomain WsfTBM_Mover::GetSpatialDomain ( ) const

inlineoverridevirtual

Return the spatial domain in which the mover is operating.

The spatial domain is the domain in which the mover is operating (land, sea, space, etc.).

Returns: The spatial domain in which the platform is operating. WSF_SPATIAL_DOMAIN_LAND is returned if this method is not overridden by a derived class.

Reimplemented from WsfMover.

References WSF_SPATIAL_DOMAIN_AIR.

◆ GetSpeed()

double WsfTBM_Mover::GetSpeed ( const double aState[9] ) const

protected

◆ GetStageIndex()

unsigned int WsfTBM_Mover::GetStageIndex ( ) const

inline

References mStageIndex.

◆ GetState()

std::vector< double > WsfTBM_Mover::GetState ( ) const

Used to propagate the mover forward in time for explicit intercept calculations

References mState.

◆ GetTargetLLA()

void WsfTBM_Mover::GetTargetLLA	(	double &	aLat,
		double &	aLon,
		double &	aAlt )

References mTargetAlt, mTargetLat, and mTargetLon.

◆ GetTBMLastUpdateTime()

double WsfTBM_Mover::GetTBMLastUpdateTime ( ) const

inline

References WsfMover::mLastUpdateTime.

◆ GetTerminalLLA()

void WsfTBM_Mover::GetTerminalLLA	(	double &	aLat,
		double &	aLon,
		double &	aAlt )

References mTerminalAlt, mTerminalLat, and mTerminalLon.

◆ Initialize()

bool WsfTBM_Mover::Initialize ( double aSimTime )

overridevirtual

Initialize the kinematic state of the associated platform. Fix the initial location, orientation, speed and acceleration of the attached platform to what it should be at the beginning of its existence.

Parameters

aSimTime The current simulation time.

Returns: True if successful.

Reimplemented from WsfMover.

References WsfPlatformPart::DebugEnabled(), wsf::Terrain::GetElevInterp(), WsfObject::GetName(), WsfPlatformPart::GetPlatform(), WsfPlatform::GetTerrain(), WsfMover::Initialize(), Initialize(), WsfTBM_Mover::Stage::Initialize2(), mFixedCEP, mLaunchAlt, mLaunchAltAGL, mLaunchLat, mLaunchLon, mNomRanges, WsfTBM_Mover::Stage::mPayloadMass, mShowStatus, mStageList, and ok.

Referenced by Initialize().

◆ Initialize2()

bool WsfTBM_Mover::Initialize2 ( double aSimTime )

overridevirtual

Perform phase 2 initialization of the part. This is invoked by WsfPlatform::Initialize() during phase 2 initialization of the platform. During phase 2, platform components may assume that the platform location has been defined, initial tracks have been loaded and that all components have completed phase 1 initialization.

Parameters

aSimTime The current simulation time.

Returns: 'true' if successful or 'false' if some sort of error occurred.

Reimplemented from WsfMover.

◆ IsExtrapolating()

bool WsfTBM_Mover::IsExtrapolating ( ) const

inlineoverridevirtual

Return whether the mover is "extrapolating". 'Extrapolating' has a slightly different meaning depending on the mover, but it fundamentally means it is moving without any form of external guidance. In the case of a simple waypoint- following mover this means it has reached its final waypoint and has either stopped there or is continuing on at a specified direction, speed, and altitude. For movers that do not follow waypoints it is a little murkier, but it typically means that the motion is occuring without any propulsion. In this latter case it basically means that with a little knowledge an external observer could take the position at any time and use Newton's Laws to estimate future positions.

Reimplemented from WsfMover.

References mIsBallistic.

◆ odeint2()

void WsfTBM_Mover::odeint2	(	double	y[9],
		double	x1,
		double	x2 )

protected

References derivs(), and rkqc().

Referenced by ComputeImpactRange(), ComputeTransitionStateVectors(), and Update().

◆ operator=()

WsfTBM_Mover & WsfTBM_Mover::operator= ( const WsfTBM_Mover & )

delete

References ClearRandom(), GetRandom(), WsfMover::WsfMover(), and WsfTBM_Mover().

◆ OutputDiagnostic()

void WsfTBM_Mover::OutputDiagnostic ( double aSimTime )

protected

Used to output data when debugging.

Referenced by Update().

◆ PrintState()

void WsfTBM_Mover::PrintState	(	const double	aState[9],
		ut::log::MessageStream &	aStream ) const

protected

Referenced by ComputeTransitionStateVectors(), and Initialize2().

◆ ProcessCepTable()

bool WsfTBM_Mover::ProcessCepTable ( UtInput & aInput )

protected

References mAzErrorUsed, mAzimuthErrors, mNomRanges, mRangeErrors, and SaveCepPoint().

Referenced by ProcessInput().

◆ ProcessInput()

bool WsfTBM_Mover::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput a reference to a UtInput object.

Returns: 'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase (or an object derived from it) if the command was recognized but contains some sort of error.

Note: If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from WsfMover.

References mDebugCallTrigger, mExplicitStageUsed, mFixedCEP, mImplicitStageUsed, mLaunchAlt, mLaunchAltAGL, mLaunchLat, mLaunchLon, mLofted, mShowStatus, mStageList, mTargetLat, mTargetLon, ProcessCepTable(), WsfMover::ProcessInput(), and ProcessInput().

Referenced by ProcessInput().

◆ rk4()

void WsfTBM_Mover::rk4	(	double	y[9],
		double	dydx[6],
		double	x,
		double	h,
		double	yout[9] )

protected

References derivs().

Referenced by rkqc().

◆ rkqc()

void WsfTBM_Mover::rkqc	(	double	y[9],
		double	dydx[6],
		double &	x,
		double	htry,
		double	eps,
		double	yscal[],
		double &	hdid,
		double &	hnext )

protected

References derivs(), and rk4().

Referenced by odeint2().

◆ SaveCepPoint()

bool WsfTBM_Mover::SaveCepPoint	(	bool &	aFormatIsFrozen,
		std::vector< double > &	aNominalRanges,
		std::vector< double > &	aRangeErrors,
		std::vector< double > &	aAzimuthErrors,
		double	aNominalRange,
		double	aRangeError,
		double	aAzimuthError )

protected

References mAzErrorUsed.

Referenced by ProcessCepTable().

◆ ScheduleScriptEvents()

void WsfTBM_Mover::ScheduleScriptEvents ( double aSimTime )

protected

Schedule the events for ignition, burnout and separation. We schedule these ahead of time to simplify the logic in Update so it doesn't have to worry about transitioning between multiple phases. It also eliminates the worry about recursive calls that may be triggered by calling a script from with the platform Update method.

References WsfPlatform::ExecuteScriptAtTime(), WsfPlatformPart::GetPlatform(), WsfTBM_Mover::Stage::mBurnOutTime, WsfTBM_Mover::Stage::mIgnitionTime, mLaunchTime, WsfTBM_Mover::Stage::mSeparationTime, mStageList, and WsfTBM_Mover::Stage::mThrustDuration.

Referenced by Initialize2().

◆ SetLaunchLLA()

void WsfTBM_Mover::SetLaunchLLA	(	double	aLat,
		double	aLon,
		double	aAlt,
		bool	aAltAGL )

References mLaunchAlt, mLaunchAltAGL, mLaunchLat, and mLaunchLon.

◆ SetLaunchTime()

void WsfTBM_Mover::SetLaunchTime ( double aLaunchTime )

inline

References mLaunchTime.

◆ SetMasses()

void WsfTBM_Mover::SetMasses ( )

protected

References WsfPlatformPart::GetPlatform(), mStage, WsfPlatform::SetEmptyMass(), WsfPlatform::SetFuelMass(), and WsfPlatform::SetPayloadMass().

Referenced by ComputeImpactRange(), ComputeTransitionStateVectors(), Initialize2(), SetStageIndex(), and Update().

◆ SetStageIndex()

void WsfTBM_Mover::SetStageIndex ( unsigned int aStageIndex )

References mStage, mStageIndex, mStageList, and SetMasses().

◆ SetState()

void WsfTBM_Mover::SetState ( const std::vector< double > & aStateVector )

References mState.

◆ SetTargetLLA()

void WsfTBM_Mover::SetTargetLLA	(	double	aLat,
		double	aLon,
		double	aAlt )

References mTargetAlt, mTargetLat, and mTargetLon.

◆ SetTBMLastUpdateTime()

void WsfTBM_Mover::SetTBMLastUpdateTime ( double aLastUpdateTime )

inline

References WsfMover::mLastUpdateTime.

◆ SetTrailingEffects()

void WsfTBM_Mover::SetTrailingEffects ( double aSimTime ) const

protected

References WsfPlatformPart::GetPlatform(), mLaunchTime, mStageList, and WsfPlatform::SetAppearance().

Referenced by Update().

◆ Update()

void WsfTBM_Mover::Update ( double aSimTime )

overridevirtual

Update the kinematic state of the associated platform. Update the location, orientation, speed and acceleration of the attached platform to what it should be at the supplied time.

Parameters

aSimTime The current simulation time.

Note: The derived class MUST update the protected variable mLastUpdateTime to be the current simulation time.

Reimplemented from WsfMover.

References WsfPlatformPart::DebugEnabled(), DO_DIAG, WsfObject::GetName(), WsfPlatformPart::GetPlatform(), mIsBallistic, WsfMover::mLastUpdateTime, mLaunchTime, mStage, mStageIndex, mStageList, mState, WsfMover::mUpdateTimeTolerance, odeint2(), OutputDiagnostic(), SetMasses(), and SetTrailingEffects().

◆ WriteStateForPlot()

void WsfTBM_Mover::WriteStateForPlot	(	double	aTime,
		const double	aState[9] )

protected

References WsfPlatformPart::GetPlatform(), mLaunchLat, and mLaunchLon.

Referenced by ComputeImpactRange().

Member Data Documentation

◆ mAzErrorUsed

bool WsfTBM_Mover::mAzErrorUsed

protected

Referenced by CepTableLookup(), ComputeTargetError(), ProcessCepTable(), SaveCepPoint(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mAzimuthErrors

TblDepVar1<double> WsfTBM_Mover::mAzimuthErrors

protected

Referenced by CepTableLookup(), ProcessCepTable(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mDebugCallCount

int WsfTBM_Mover::mDebugCallCount

protected

Referenced by ComputeImpactRange(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mDebugCallTrigger

int WsfTBM_Mover::mDebugCallTrigger

protected

Referenced by ComputeImpactRange(), ProcessInput(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mExplicitStageUsed

bool WsfTBM_Mover::mExplicitStageUsed

protected

'true' if a 'stage' command was used

Referenced by ProcessInput(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mFixedCEP

double WsfTBM_Mover::mFixedCEP

protected

Circular Error Probable. Defaults to zero, with no effect.

Referenced by ComputeTargetError(), Initialize(), ProcessInput(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mHaveTarget

bool WsfTBM_Mover::mHaveTarget

protected

Referenced by ComputeTargetError(), Initialize2(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mIgnoreTarget

bool WsfTBM_Mover::mIgnoreTarget

protected

true if the target specification should be ignored

Referenced by Initialize2(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mImplicitStageUsed

bool WsfTBM_Mover::mImplicitStageUsed

protected

'true' if a stage was defined without using 'stage'

Referenced by ProcessInput(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mIsBallistic

bool WsfTBM_Mover::mIsBallistic

protected

Referenced by IsExtrapolating(), Update(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mLaunchAlt

double WsfTBM_Mover::mLaunchAlt

protected

Launch altitude.

Referenced by CreateInitialState(), GetLaunchLLA(), Initialize(), Initialize2(), ProcessInput(), SetLaunchLLA(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mLaunchAltAGL

bool WsfTBM_Mover::mLaunchAltAGL

protected

'true' if AGL altitude was specified in the input file

Referenced by GetLaunchLLA(), Initialize(), ProcessInput(), SetLaunchLLA(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mLaunchLat

double WsfTBM_Mover::mLaunchLat

protected

Launch latitude.

Referenced by ComputeTargetError(), CreateInitialState(), GetLaunchLLA(), Initialize(), Initialize2(), ProcessInput(), SetLaunchLLA(), WriteStateForPlot(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mLaunchLon

double WsfTBM_Mover::mLaunchLon

protected

Launch longitude.

Referenced by ComputeTargetError(), CreateInitialState(), GetLaunchLLA(), Initialize(), Initialize2(), ProcessInput(), SetLaunchLLA(), WriteStateForPlot(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mLaunchTime

double WsfTBM_Mover::mLaunchTime

protected

Simulation time at launch.

Referenced by GetLaunchTime(), Initialize2(), ScheduleScriptEvents(), SetLaunchTime(), SetTrailingEffects(), Update(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mLofted

bool WsfTBM_Mover::mLofted

protected

true if trajectory is lofted, false if depressed

Referenced by ComputeLaunchAngle(), ProcessInput(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mLookupUtility

TblLookupLU<double> WsfTBM_Mover::mLookupUtility

protected

Referenced by CepTableLookup(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mNomRanges

TblIndVarU<double> WsfTBM_Mover::mNomRanges

protected

Referenced by CepTableLookup(), ComputeTargetError(), Initialize(), ProcessCepTable(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mRangeErrors

TblDepVar1<double> WsfTBM_Mover::mRangeErrors

protected

Referenced by CepTableLookup(), ProcessCepTable(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mShowStatus

bool WsfTBM_Mover::mShowStatus

protected

show initial conditions on standard output

Referenced by Initialize(), Initialize2(), ProcessInput(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mStage

Stage WsfTBM_Mover::mStage

protected

The current stage.

Referenced by ComputeImpactRange(), ComputeTransitionStateVectors(), derivs(), Initialize2(), SetMasses(), SetStageIndex(), Update(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mStageIndex

unsigned int WsfTBM_Mover::mStageIndex

protected

The index of the current stage.

Referenced by ComputeImpactRange(), GetStageIndex(), Initialize2(), SetStageIndex(), Update(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mStageList

std::vector<Stage> WsfTBM_Mover::mStageList

protected

The list of stages.

Referenced by ComputeImpactRange(), ComputeTransitionStateVectors(), Initialize(), Initialize2(), ProcessInput(), ScheduleScriptEvents(), SetStageIndex(), SetTrailingEffects(), Update(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mState

double WsfTBM_Mover::mState[9]

protected

The current state vector (6 + 3 for accel).

Referenced by GetState(), Initialize2(), SetState(), Update(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mTargetAlt

double WsfTBM_Mover::mTargetAlt

protected

terrain height at target location (m)

Referenced by ComputeImpactRange(), ComputeTargetError(), GetTargetLLA(), Initialize2(), SetTargetLLA(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mTargetLat

double WsfTBM_Mover::mTargetLat

protected

target latitude (deg)

Referenced by ComputeTargetError(), GetTargetLLA(), Initialize2(), ProcessInput(), SetTargetLLA(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mTargetLon

double WsfTBM_Mover::mTargetLon

protected

target longitude (deg)

Referenced by ComputeTargetError(), GetTargetLLA(), Initialize2(), ProcessInput(), SetTargetLLA(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mTerminalAlt

double WsfTBM_Mover::mTerminalAlt

protected

terrain height at terminal location (m)

Referenced by ComputeTargetError(), CreateInitialState(), GetTerminalLLA(), Initialize2(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mTerminalLat

double WsfTBM_Mover::mTerminalLat

protected

terminal latitude (deg)

Referenced by ComputeTargetError(), CreateInitialState(), GetTerminalLLA(), Initialize2(), WsfTBM_Mover(), and WsfTBM_Mover().

◆ mTerminalLon

double WsfTBM_Mover::mTerminalLon

protected

terminal longitude (deg)

Referenced by ComputeTargetError(), CreateInitialState(), GetTerminalLLA(), Initialize2(), WsfTBM_Mover(), and WsfTBM_Mover().

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ WsfTBM_Mover() [1/2]

◆ ~WsfTBM_Mover()

◆ WsfTBM_Mover() [2/2]

Member Function Documentation

◆ CepTableLookup()

◆ ClearRandom()

◆ Clone()

◆ ComputeImpactRange()

◆ ComputeLaunchAngle()

◆ ComputeMaximumRange()

◆ ComputeTargetError()

◆ ComputeTransitionStateVectors()

◆ CreateInitialState()

◆ derivs()

◆ GetAltitude()

◆ GetLaunchLLA()

◆ GetLaunchTime()

◆ GetRandom()

◆ GetSpatialDomain()

◆ GetSpeed()

◆ GetStageIndex()

◆ GetState()

◆ GetTargetLLA()

◆ GetTBMLastUpdateTime()

◆ GetTerminalLLA()

◆ Initialize()

◆ Initialize2()

◆ IsExtrapolating()

◆ odeint2()

◆ operator=()

◆ OutputDiagnostic()

◆ PrintState()

◆ ProcessCepTable()

◆ ProcessInput()

◆ rk4()

◆ rkqc()

◆ SaveCepPoint()

◆ ScheduleScriptEvents()

◆ SetLaunchLLA()

◆ SetLaunchTime()

◆ SetMasses()

◆ SetStageIndex()

◆ SetState()

◆ SetTargetLLA()

◆ SetTBMLastUpdateTime()

◆ SetTrailingEffects()

◆ Update()

◆ WriteStateForPlot()

Member Data Documentation

◆ mAzErrorUsed

◆ mAzimuthErrors

◆ mDebugCallCount

◆ mDebugCallTrigger

◆ mExplicitStageUsed

◆ mFixedCEP

◆ mHaveTarget

◆ mIgnoreTarget

◆ mImplicitStageUsed

◆ mIsBallistic

◆ mLaunchAlt

◆ mLaunchAltAGL

◆ mLaunchLat

◆ mLaunchLon

◆ mLaunchTime

◆ mLofted

◆ mLookupUtility

◆ mNomRanges

◆ mRangeErrors

◆ mShowStatus

◆ mStage

◆ mStageIndex

◆ mStageList
