WsfRF_Jammer::JammerMode Class Reference

#include <WsfRF_Jammer.hpp>

Inheritance diagram for WsfRF_Jammer::JammerMode:

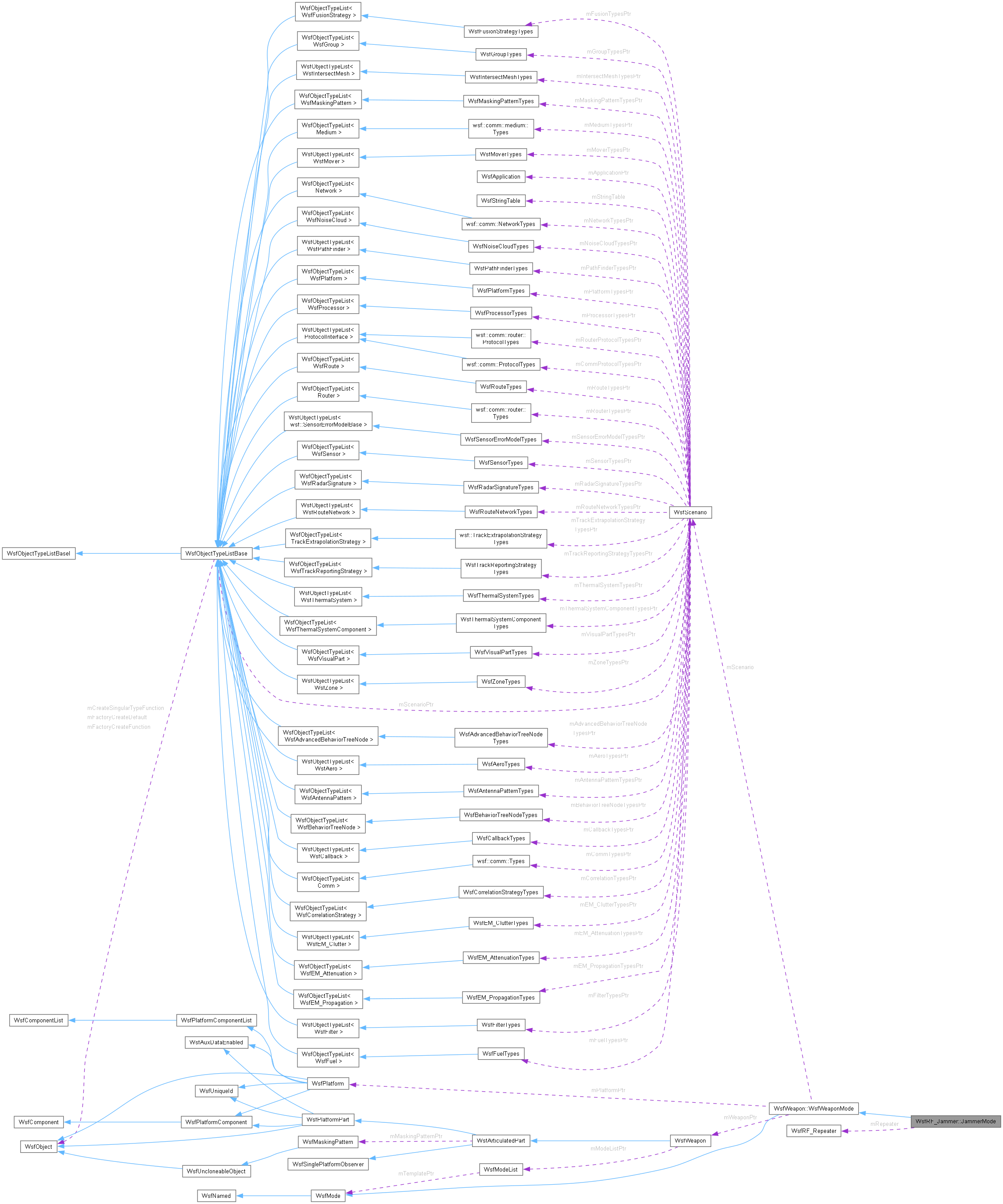

Collaboration diagram for WsfRF_Jammer::JammerMode:

Public Types
using	BeamMap = std::map<size_t, JammerBeam*>
	map<BeamIndex, JammerBeamPointer>
using	XmtrVec = std::vector<JammerXmtr*>
	Need to track all of the active transmitters for DIS Emission PDU handling.

Public Member Functions
	JammerMode (const WsfScenario &aScenario)
	Construct RF Jammer.
	JammerMode (const JammerMode &aSrc)
	Copy Constructor.
JammerMode &	operator= (const JammerMode &)=delete
	Move operator.
	~JammerMode () override
Public Member Functions inherited from WsfWeapon::WsfWeaponMode
	WsfWeaponMode (const WsfScenario &aScenario)
	WsfWeaponMode (const WsfWeaponMode &aSrc)
	~WsfWeaponMode () override=default
WsfWeaponMode &	operator= (const WsfWeaponMode &)=delete
WsfPlatform *	GetPlatform () const
	Return the pointer to the platform to which the associated weapon is attached.
WsfWeapon *	GetWeapon () const
	Return the pointer to the weapon with which this mode is associated.
bool	ProcessInput (UtInput &aInput) override
const WsfScenario &	GetScenario () const
Public Member Functions inherited from WsfMode
	WsfMode ()
	~WsfMode () override=default
size_t	GetModeIndex () const
	Return the index of this mode within its associated mode list.
bool	IsSelected () const
	Returns 'true' if the mode is selected.
Public Member Functions inherited from WsfNamed
	WsfNamed ()
	WsfNamed (WsfStringId aName)
	WsfNamed (const WsfNamed &)=default
WsfNamed &	operator= (const WsfNamed &)=default
virtual	~WsfNamed ()=default
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Master transmitter methods and definitions
std::unique_ptr< WsfEM_Antenna >	mAntenna
	Master Antenna, this mode.
std::unique_ptr< JammerXmtr >	mXmtr
	Master transmitter, this mode.
std::unique_ptr< JammerBeam >	mBeam
	Master beam, this mode.
bool	AdjustFrequencyBandwidth (double &aFrequency, double &aBandwidth)

Beam definitions
BeamMap	mActiveBeamPtrs
	List of all active beams, this mode.
BeamMap	mAvailableBeamPtrs
	List of all available beams, this mode.
bool	mBeamAllocationChanged
	Flag to indicate if a beam allocation change was made for the last [Start/Stop]Jamming call.
unsigned int	mMaxNumBeams
PowerDistribution	mBeamPowerDistribution
	Beam power distribution - average or constant - defaults to average.

Spot definitions
unsigned int	mMaximumNumSpots
XmtrVec	mActiveXmtrSpotPtrs
	Vector for the active jammer transmitters (i.e. spots).

Repeater definitions
WsfRF_Repeater	mRepeater
	Repeater logic, this mode.
bool	mUseRepeater
	Flag to specify if using a repeater, this mode.

Common infrastructure methods.
WsfMode *	Clone () const override
bool	Initialize (double aSimTime, WsfWeapon *aWeaponPtr) override
bool	ProcessInput (UtInput &aInput) override
void	Deselect (double aSimTime) override
void	Select (double aSimTime) override
void	AdjustPowerDistribution (PowerDistribution aGroupPowerDistribution, unsigned int aActiveGroupCount)

Beam methods and definitions
size_t	GetActiveBeamCount () const
size_t	GetAvailableBeamCount () const
JammerBeam *	GetJammerBeam (size_t aBeamNumber, bool &aIsActive) const
bool	GetActiveBeamSpotIndexes (double aFrequency, double aBandwidth, size_t aBeamNumber, WsfTrackId aTrackId, BeamSpotIndexMap &aBeamSpotIndexMap)
JammerBeam *	GetNextAssignableBeam (size_t aBeamNumber, bool &aIsActive) const

Spot methods and definition for this mode
size_t	GetActiveXmtrSpotCount () const
unsigned int	GetMaximumXmtrSpotCount () const

Additional Inherited Members
Protected Attributes inherited from WsfWeapon::WsfWeaponMode
const WsfScenario &	mScenario
WsfPlatform *	mPlatformPtr
	Pointer to the platform with which the weapon is associated.
WsfWeapon *	mWeaponPtr
	Pointer to the weapon with which the mode is associated.

Member Typedef Documentation

BeamMap

using WsfRF_Jammer::JammerMode::BeamMap = std::map<size_t, JammerBeam*>

map<BeamIndex, JammerBeamPointer>

XmtrVec

using WsfRF_Jammer::JammerMode::XmtrVec = std::vector<JammerXmtr*>

Need to track all of the active transmitters for DIS Emission PDU handling.

Constructor & Destructor Documentation

JammerMode() [1/2]

WsfRF_Jammer::JammerMode::JammerMode

(

const WsfScenario &

aScenario

)

Construct RF Jammer.

References WsfRF_Jammer::cAVERAGE_POWER, mActiveBeamPtrs, mActiveXmtrSpotPtrs, mAntenna, mAvailableBeamPtrs, mBeam, mBeamAllocationChanged, mBeamPowerDistribution, mMaximumNumSpots, mMaxNumBeams, mRepeater, mUseRepeater, mXmtr, and WsfWeapon::WsfWeaponMode::WsfWeaponMode().

Referenced by Clone(), JammerMode(), and operator=().

JammerMode() [2/2]

WsfRF_Jammer::JammerMode::JammerMode

(

const JammerMode &

aSrc

)

Copy Constructor.

References JammerMode(), mActiveBeamPtrs, mActiveXmtrSpotPtrs, mAntenna, mAvailableBeamPtrs, mBeam, mBeamAllocationChanged, mBeamPowerDistribution, mMaximumNumSpots, mMaxNumBeams, mRepeater, mUseRepeater, mXmtr, and WsfWeapon::WsfWeaponMode::WsfWeaponMode().

~JammerMode()

WsfRF_Jammer::JammerMode::~JammerMode ( )

override

References mActiveBeamPtrs, and mAvailableBeamPtrs.

Member Function Documentation

AdjustFrequencyBandwidth()

bool WsfRF_Jammer::JammerMode::AdjustFrequencyBandwidth	(	double &	aFrequency,
		double &	aBandwidth )

Adjusts the input frequency and bandwidth if the jammer is not a barrage jammer and is in the frequency limits of the master transmitter but the bandwidth is outside the frequency band of the master transmitter.

Parameters

aFrequency	The transmitter frequency that may need adjusted, modified by this method.
aBandwidth	The transmitter bandwidth that may need adjusted, modified by this method.

Returns

Returns 'true' if the frequency and bandwidth required adjustment.

References mMaximumNumSpots, and mXmtr.

Referenced by GetActiveBeamSpotIndexes(), WsfRF_Jammer::StartJamming(), and WsfRF_Jammer::UpdateJamming().

AdjustPowerDistribution()

void WsfRF_Jammer::JammerMode::AdjustPowerDistribution	(	PowerDistribution	aGroupPowerDistribution,
		unsigned int	aActiveGroupCount )

Adjust the power for each active spot transmitter. The total power is stored in the master transmitter (mXmtr).

Parameters

aGroupPowerDistribution	The power distribution of the groups (average, constant, etc.).
aActiveGroupCount	The number of active groups in the jammer suite.

References WsfRF_Jammer::cAVERAGE_POWER, mActiveBeamPtrs, WsfRF_Jammer::JammerBeam::mActiveSpotPtrs, mBeamAllocationChanged, mBeamPowerDistribution, WsfRF_Jammer::JammerBeam::mSpotPowerDistribution, and mXmtr.

Referenced by operator=(), WsfRF_Jammer::StartJamming(), and WsfRF_Jammer::StopJamming().

Clone()

WsfMode * WsfRF_Jammer::JammerMode::Clone ( ) const

overridevirtual

Clone this object.

Returns

a pointer to the new object.

Implements WsfWeapon::WsfWeaponMode.

References JammerMode(), and WsfMode::WsfMode().

Deselect()

void WsfRF_Jammer::JammerMode::Deselect ( double aSimTime )

overridevirtual

Deselect the mode.

Parameters

aSimTime

The current simulation time.

Implements WsfWeapon::WsfWeaponMode.

References mActiveBeamPtrs, and mRepeater.

Referenced by operator=(), and WsfRF_Jammer::StopJamming().

GetActiveBeamCount()

size_t WsfRF_Jammer::JammerMode::GetActiveBeamCount

(

)

const

Find the number of active beams.

Returns

The number of active beams.

References mActiveBeamPtrs.

Referenced by WsfRF_Jammer::GetActiveBeamCount(), and WsfRF_Jammer::GetMaximumBeamCount().

GetActiveBeamSpotIndexes()

bool WsfRF_Jammer::JammerMode::GetActiveBeamSpotIndexes	(	double	aFrequency,
		double	aBandwidth,
		size_t	aBeamNumber,
		WsfTrackId	aTrackId,
		BeamSpotIndexMap &	aBeamSpotIndexMap )

Find and return beam indexes at referenced beam parameters.

Parameters

aFrequency	The assigned jammer transmitter frequency. (Hertz)
aBandwidth	The assigned jammer transmitter bandwidth. (Hertz)
aBeamNumber	The assigned jammer transmitter Beam Number. (0 to maximum number of beams)
aTrackId	The assigned Track Id of the target to be jammed.
aBeamSpotIndexMap	The beam to spot index map for the active beams/spots list.

Returns

The request was successful at the supplied search criteria (frequency, bandwidth, beam number, and/or target index).

References AdjustFrequencyBandwidth(), WsfRF_Jammer::JammerBeam::GetActiveSpotIndex(), WsfRF_Jammer::JammerBeam::GetBeamNumber(), mActiveBeamPtrs, mRepeater, and mUseRepeater.

Referenced by WsfRF_Jammer::DeselectEA_Technique(), WsfRF_Jammer::GetJammerXmtr(), operator=(), WsfRF_Jammer::SelectEA_Technique(), WsfRF_Jammer::SetEA_DeltaGainTechnique(), and WsfRF_Jammer::StopJamming().

GetActiveXmtrSpotCount()

size_t WsfRF_Jammer::JammerMode::GetActiveXmtrSpotCount ( ) const

inline

Get the total number of active spots for this mode

Returns

Number of active spots for this mode.

References mActiveXmtrSpotPtrs.

Referenced by GetNextAssignableBeam().

GetAvailableBeamCount()

size_t WsfRF_Jammer::JammerMode::GetAvailableBeamCount

(

)

const

Find the number of available beams.

Returns

The number of available beams.

References mAvailableBeamPtrs.

Referenced by WsfRF_Jammer::GetMaximumBeamCount(), and operator=().

GetJammerBeam()

WsfRF_Jammer::JammerBeam * WsfRF_Jammer::JammerMode::GetJammerBeam	(	size_t	aBeamNumber,
		bool &	aIsActive ) const

Get the beam pointer for the specified beam number.

Parameters

aBeamNumber	The assigned jammer transmitter Beam Number. (1 to maximum number of beams)
aIsActive	Flag to provide the active status of the beam. Aids in determining which list the beam is in.

Returns

Pointer to the beam, returns 0 if one is not found.

References mActiveBeamPtrs, and mAvailableBeamPtrs.

Referenced by WsfRF_Jammer::GetActiveSpotCount(), WsfRF_Jammer::GetMaximumSpotCount(), GetNextAssignableBeam(), operator=(), and WsfRF_Jammer::UpdateJamming().

GetMaximumXmtrSpotCount()

unsigned int WsfRF_Jammer::JammerMode::GetMaximumXmtrSpotCount ( ) const

inline

Get the maximum number of available spots for this mode

Returns

Number of available spots for this mode.

References mMaximumNumSpots.

Referenced by GetNextAssignableBeam().

GetNextAssignableBeam()

WsfRF_Jammer::JammerBeam * WsfRF_Jammer::JammerMode::GetNextAssignableBeam	(	size_t	aBeamNumber,
		bool &	aIsActive ) const

Get the beam pointer for the specified beam number or select beam automatically (i.e. aBeamNumber = 0).

Parameters

aBeamNumber	The assigned jammer transmitter Beam Number. (1 to maximum number of beams)
aIsActive	Flag to provide the active status of the beam. Aids in determining which list the beam is in.

Returns

Pointer to the beam, returns 0 if one is not found.

References GetActiveXmtrSpotCount(), GetJammerBeam(), GetMaximumXmtrSpotCount(), WsfRF_Jammer::JammerBeam::mActiveSpotPtrs, WsfRF_Jammer::JammerBeam::mAvailableSpotPtrs, mMaximumNumSpots, and mMaxNumBeams.

Referenced by operator=(), and WsfRF_Jammer::StartJamming().

Initialize()

bool WsfRF_Jammer::JammerMode::Initialize ( double aSimTime, WsfWeapon * aWeaponPtr )

overridevirtual

Initialize the jammer mode.

See also

WsfWeaponMode::!Initialize

Parameters

aSimTime	The current simulation time.
aWeaponPtr	The weapon associated to this mode

Returns

'true' if successful or 'false' if some error was encountered.

Reimplemented from WsfWeapon::WsfWeaponMode.

References WsfPlatformPart::cLEVEL_TWO_DEBUG, WsfPlatformPart::DebugEnabled(), WsfPlatformPart::GetDebugMask(), WsfPlatformPart::GetSimulation(), WsfRF_Jammer::JammerBeam::Initialize(), mAntenna, mAvailableBeamPtrs, mBeam, mMaxNumBeams, mRepeater, mXmtr, ok, and WsfWeapon::WsfWeapon().

operator=()

JammerMode & WsfRF_Jammer::JammerMode::operator= ( const JammerMode & )

delete

Move operator.

References AdjustPowerDistribution(), Deselect(), GetActiveBeamSpotIndexes(), GetAvailableBeamCount(), GetJammerBeam(), GetNextAssignableBeam(), JammerMode(), Select(), WsfMode::WsfMode(), and WsfWeapon::WsfWeapon().

ProcessInput()

bool WsfRF_Jammer::JammerMode::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

See also

WsfWeaponMode::ProcessInput

Reimplemented from WsfMode.

References WsfRF_Jammer::cAVERAGE_POWER, WsfRF_Jammer::cCONSTANT_POWER, mAntenna, mBeam, mBeamPowerDistribution, mMaximumNumSpots, mMaxNumBeams, mRepeater, mUseRepeater, and mXmtr.

Select()

void WsfRF_Jammer::JammerMode::Select ( double aSimTime )

overridevirtual

Select the mode.

Parameters

aSimTime

The current simulation time.

Implements WsfWeapon::WsfWeaponMode.

References mActiveBeamPtrs.

Referenced by operator=(), and WsfRF_Jammer::StartJamming().

Member Data Documentation

mActiveBeamPtrs

BeamMap WsfRF_Jammer::JammerMode::mActiveBeamPtrs

List of all active beams, this mode.

Referenced by AdjustPowerDistribution(), Deselect(), WsfRF_Jammer::DeselectEA_Technique(), GetActiveBeamCount(), GetActiveBeamSpotIndexes(), WsfRF_Jammer::GetEM_Xmtr(), GetJammerBeam(), WsfRF_Jammer::GetJammerXmtr(), JammerMode(), JammerMode(), Select(), WsfRF_Jammer::SelectEA_Technique(), WsfRF_Jammer::SetEA_DeltaGainTechnique(), WsfRF_Jammer::StartJamming(), WsfRF_Jammer::StopJamming(), and ~JammerMode().

mActiveXmtrSpotPtrs

XmtrVec WsfRF_Jammer::JammerMode::mActiveXmtrSpotPtrs

Vector for the active jammer transmitters (i.e. spots).

Referenced by WsfRF_Jammer::GetActiveRequestCount(), GetActiveXmtrSpotCount(), WsfRF_Jammer::GetEM_Xmtr(), WsfRF_Jammer::GetEM_Xmtr(), WsfRF_Jammer::GetEM_XmtrCount(), WsfRF_Jammer::GetEM_XmtrCount(), JammerMode(), JammerMode(), WsfRF_Jammer::StartJamming(), and WsfRF_Jammer::StopJamming().

mAntenna

std::unique_ptr<WsfEM_Antenna> WsfRF_Jammer::JammerMode::mAntenna

Master Antenna, this mode.

Referenced by Initialize(), JammerMode(), JammerMode(), and ProcessInput().

mAvailableBeamPtrs

BeamMap WsfRF_Jammer::JammerMode::mAvailableBeamPtrs

List of all available beams, this mode.

Referenced by GetAvailableBeamCount(), GetJammerBeam(), Initialize(), JammerMode(), JammerMode(), WsfRF_Jammer::StartJamming(), WsfRF_Jammer::StopJamming(), and ~JammerMode().

mBeam

std::unique_ptr<JammerBeam> WsfRF_Jammer::JammerMode::mBeam

Master beam, this mode.

Referenced by Initialize(), JammerMode(), JammerMode(), and ProcessInput().

mBeamAllocationChanged

bool WsfRF_Jammer::JammerMode::mBeamAllocationChanged

Flag to indicate if a beam allocation change was made for the last [Start/Stop]Jamming call.

Referenced by AdjustPowerDistribution(), JammerMode(), JammerMode(), WsfRF_Jammer::StartJamming(), and WsfRF_Jammer::StopJamming().

mBeamPowerDistribution

PowerDistribution WsfRF_Jammer::JammerMode::mBeamPowerDistribution

Beam power distribution - average or constant - defaults to average.

Referenced by AdjustPowerDistribution(), JammerMode(), JammerMode(), and ProcessInput().

mMaximumNumSpots

unsigned int WsfRF_Jammer::JammerMode::mMaximumNumSpots

Maximum number of spots for this weapon. Includes all beams.

Referenced by AdjustFrequencyBandwidth(), WsfRF_Jammer::GetMaximumRequestCount(), GetMaximumXmtrSpotCount(), GetNextAssignableBeam(), JammerMode(), JammerMode(), ProcessInput(), WsfRF_Jammer::StartJamming(), and WsfRF_Jammer::UpdateJamming().

mMaxNumBeams

unsigned int WsfRF_Jammer::JammerMode::mMaxNumBeams

Maximum number of beams for multi-beam jamming. Defaults to 1 (barrage jammer).

Referenced by GetNextAssignableBeam(), Initialize(), JammerMode(), JammerMode(), and ProcessInput().

mRepeater

WsfRF_Repeater WsfRF_Jammer::JammerMode::mRepeater

Repeater logic, this mode.

Referenced by Deselect(), GetActiveBeamSpotIndexes(), Initialize(), JammerMode(), JammerMode(), ProcessInput(), WsfRF_Jammer::StartJamming(), WsfRF_Jammer::StartJammingTrack(), and WsfRF_Jammer::UpdateJamming().

mUseRepeater

bool WsfRF_Jammer::JammerMode::mUseRepeater

Flag to specify if using a repeater, this mode.

Referenced by GetActiveBeamSpotIndexes(), JammerMode(), JammerMode(), ProcessInput(), WsfRF_Jammer::StartJamming(), WsfRF_Jammer::StartJammingTrack(), WsfRF_Jammer::StopJamming(), WsfRF_Jammer::TurnOn(), and WsfRF_Jammer::UpdateJamming().

mXmtr

std::unique_ptr<JammerXmtr> WsfRF_Jammer::JammerMode::mXmtr

Master transmitter, this mode.

Referenced by AdjustFrequencyBandwidth(), AdjustPowerDistribution(), WsfRF_Jammer::GetMasterXmtr(), WsfRF_Jammer::GetMaximumFrequency(), WsfRF_Jammer::GetMinimumFrequency(), Initialize(), JammerMode(), JammerMode(), ProcessInput(), WsfRF_Jammer::StartJamming(), and WsfRF_Jammer::TurnOn().

---

The documentation for this class was generated from the following files:

• WsfRF_Jammer.hpp
• WsfRF_Jammer.cpp
