WsfRF_Jammer Class Reference

#include <WsfRF_Jammer.hpp>

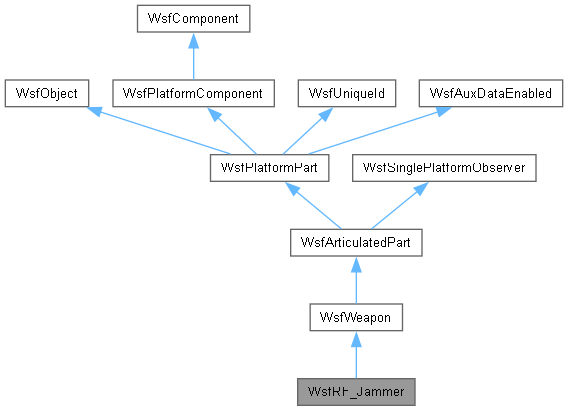

Inheritance diagram for WsfRF_Jammer:

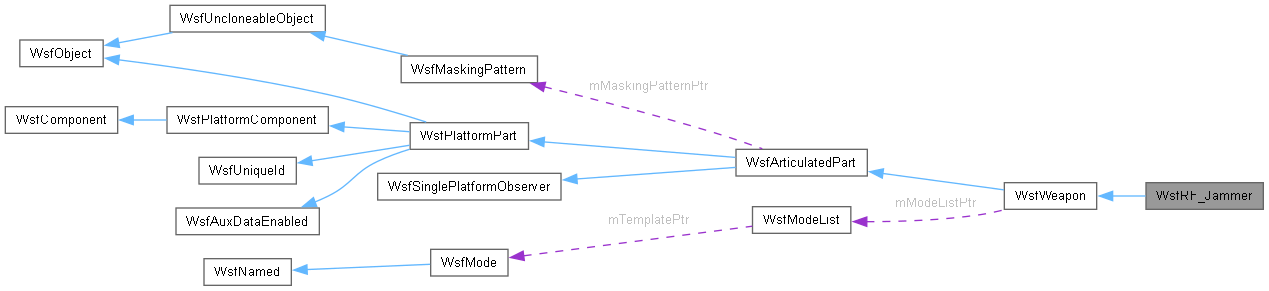

Collaboration diagram for WsfRF_Jammer:

Classes
class	TargetingData
class	JammerXmtr
class	JammerBeam
	This class is for the spatial jamming beams that are part of each mode. More...
class	JammerMode

Public Types
enum	PowerDistribution { cAVERAGE_POWER , cCONSTANT_POWER }
	GroupPowerDistribution defines the intended power distribution of the transmitters in this group. More...
using	TargetingDataMap = std::map<int, TargetingData>
Public Types inherited from WsfWeapon
enum	WeaponState {   cWEAPON_STATE_UNALLOCATED , cWEAPON_STATE_ALLOCATED , cWEAPON_STATE_DEALLOCATE , cWEAPON_STATE_NACK ,   cWEAPON_STATE_READY }
using	ComponentList = WsfComponentListT<WsfWeaponComponent>
Public Types inherited from WsfArticulatedPart
enum	SlewMode { cSLEW_FIXED = 0 , cSLEW_AZ = 1 , cSLEW_EL = 2 , cSLEW_AZ_EL = 3 }
enum	SlewDirection { cUNDEFINED = 0 , cPOSITIVE = 1 , cNEGATIVE = 2 }
enum	{   cNOT_CUED = 0x0000 , cMIN_AZ = 0x0001 , cMAX_AZ = 0x0002 , cMIN_EL = 0x0004 ,   cMAX_EL = 0x0008 , cAT_LIMIT_AZ_MASK = 0x0003 , cAT_LIMIT_EL_MASK = 0x000B , cAT_LIMIT_MASK = 0x000F ,   cCUED_AZ = 0x0010 , cCUED_EL = 0x0020 , cCUED_AZ_EL = 0x0030 , cCUED_MASK = 0x0030 }
enum	CueType { cCUED_TO_NOTHING , cCUED_TO_LOCATION , cCUED_TO_ANGLE }
Public Types inherited from WsfPlatformPart
enum	{ cLEVEL_ONE_DEBUG = 0x00000001 , cLEVEL_TWO_DEBUG = 0x00000002 }
using	InternalMessageQueue = std::queue<WsfMessage*>
using	RecipientMessageQueue = std::queue<std::pair<WsfPlatformPart*, WsfMessage*>>
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
Public Types inherited from WsfComponentT< WsfPlatform >
typedef WsfPlatform	ParentType
	This is needed to support the WsfComponentList template.

Public Member Functions
	WsfRF_Jammer (const WsfScenario &aScenario)
	WsfRF_Jammer (const WsfRF_Jammer &aSrc)
WsfRF_Jammer &	operator= (const WsfRF_Jammer &)=delete
	~WsfRF_Jammer () override=default
ComponentList &	GetComponents ()
const ComponentList &	GetComponents () const
virtual bool	AllocateTheWeapon (double aSimTime, WsfTrack *aTrackPtr, int aStoreId)
	Begin the weapon server allocation sequence.
void	SetState (WeaponState aState)
WeaponState	GetState () const
	Return weapon state.
	WsfWeapon (const WsfScenario &aScenario)
	~WsfWeapon () override
WsfComponent *	CloneComponent () const override
const int *	GetComponentRoles () const override
void *	QueryInterface (int aRole) override
int	GetComponentInitializationOrder () const override
const char *	GetScriptClassName () const override
bool	PreInitialize (double aSimTime) override
bool	Initialize (double aSimTime) override
bool	Initialize2 (double aSimTime) override
void	PreInput () override
bool	ProcessInput (UtInput &aInput) override
void	Update (double aSimTime) override
	Update the state of the weapon to the supplied time value.
void	TurnOff (double aSimTime) override
void	TurnOn (double aSimTime) override
void	SetNonOperational (double aSimTime) override
void	SetOperational (double aSimTime) override
void	PartBroken (double aSimTime) override
void	Restore (double aSimTime) override
double	GetUpdateInterval () const override
	Get the update interval.
virtual size_t	GetEM_RcvrCount () const
virtual WsfEM_Rcvr &	GetEM_Rcvr (size_t aIndex)
virtual WsfStringId	GetCurrentModeName () const
	Return the string ID of the string associated with the name of the current mode.
virtual WsfWeaponMode *	GetCurrentMode ()
virtual size_t	GetModeCount ()
	Get the number of modes associated with the weapon.
virtual WsfWeaponMode *	GetModeEntry (size_t aModeIndex)
virtual size_t	GetModeIndex (WsfStringId aModeNameId)
virtual WsfStringId	GetModeName (size_t aModeIndex)
virtual void	DeselectMode (double aSimTime, WsfStringId aModeNameId)
virtual void	SelectMode (double aSimTime, WsfStringId aModeNameId)
WsfLaunchComputer *	GetLaunchComputer () const
void	SetLaunchComputer (WsfLaunchComputer *aLaunchComputerPtr)
WsfStringId	GetWeaponEffectsType () const
	Get the string ID of the weapon effects to be used.
void	SetWeaponEffectsType (WsfStringId aWeaponEffect)
	Set the string ID of the weapon effects to be used.
virtual void	CueToTarget (double aSimTime, const WsfTrack *aTrackPtr)
virtual FireResult	Fire (double aSimTime, const FireTarget &aTarget, const FireOptions &aSettings)
virtual bool	FireSalvo (double aSimTime, const FireTarget &aTarget, const SalvoOptions &aSettings)
virtual void	ContinueSalvo (double aSimTime, unsigned int aRequestId)
virtual void	AbortSalvo (double aSimTime, const WsfTrackId &aTrackId)
virtual void	CeaseFire (double aSimTime)
double	GetTimeLastFired () const
	Get the simulation time when the weapon was last fired.
virtual double	GetFiringDelay ()
void	SetFiringDelay (const WsfRandomVariable &aFiringDelay)
virtual double	GetSalvoInterval ()
double	GetFiringInterval () const
void	SetFiringInterval (double aFiringInterval)
WsfStringId	GetLaunchedPlatformType () const
	Get the type of the platform that will be launched.
void	SetLaunchedPlatformType (WsfStringId aLaunchedPlatformType)
	Set the type of the platform that will be launched.
double	GetInitialStateQuantityRemaining () const
virtual double	GetQuantityCommitted () const
	Return the quantity that is currently committed.
virtual double	GetMaximumQuantity () const
	Return the maximum quantity that may be 'loaded'.
virtual double	GetTotalQuantityUsed () const
	Return the cumulative running total of the quantity used (fired).
virtual void	SetQuantityRemaining (double aQuantity)
void	ChangeQuantity (double aDeltaQuantity)
bool	IsReloading () const
bool	InhibitWhileReloading () const
	Flag indicating that when a weapon reload is in progress, any firing will be inhibited.
virtual void	CompleteReloading (double aSimTime, double aQuantity)
double	GetReloadInventory () const
double	GetReloadThreshold () const
	Returns the depleted value of inventory at which a reload is attempted.
double	GetReloadIncrement () const
WsfTrack *	CreateTargetTrack (double aSimTime, const WsfTrack *aTrackPtr)
bool	GetTargetLocationWCS (double aSimTime, const WsfTrack *aTrackPtr, double aTargetLocWCS[3])
void	SetUpdateInterval (double aUpdateInterval) override
double	TimeWeaponLastFiredFor (const WsfTrackId &aTrackId) const
	Return the simulation time of the most recent weapon firing against the specified track.
double	TimeWeaponLastTerminatedFor (const WsfTrackId &aTrackId) const
	Return the simulation time of the most recent weapon termination against the specified track.
int	WeaponsPendingFor (const WsfTrackId &aTrackId) const
int	WeaponsActiveFor (const WsfTrackId &aTrackId) const
int	RoundsCompleteFor (const WsfTrackId &aTrackId) const
	Returns number of weapons that were fired at the track and are now terminated.
int	WeaponsActiveAndPendingFor (const WsfTrackId &aTrackId) const
int	RoundsFiredAt (const WsfTrackId &aTrackId) const
int	SalvosFiredAt (const WsfTrackId &aTrackId) const
std::vector< size_t >	ActiveWeaponPlatformsFor (const WsfTrackId &aTrackId) const
virtual void	EngagementComplete (double aSimTime, WsfWeaponEngagement *aEngagementPtr)
void	SetIFCEnabled (bool aEnabled)
	Set to true is IFC is supported.
bool	GetIFCEnabled () const
	Returns 'true' if the platform supports IFC (Integrated Fire Control).
Public Member Functions inherited from WsfArticulatedPart
	WsfArticulatedPart (const WsfScenario &aScenario, int aPartType)
	WsfArticulatedPart (const WsfArticulatedPart &aSrc)
	~WsfArticulatedPart () override
void	SetPositionRateECS (const double aDX, const double aDY, const double aDZ)
void	GetCurrentPositionRateECS (double &aDX, double &aDY, double &aDZ) const
double	GetDX () const
double	GetDY () const
double	GetDZ () const
void	EnableArticulationUpdates (double aSimTime, double aInterval)
void	DisableArticulationUpdates (double aSimTime)
void	SetArticulationUpdateInterval (double aUpdateInterval)
double	GetArticulationUpdateInterval () const
unsigned int	GetArticulationUpdateEventEpoch () const
void	IncrementArticulationUpdateEventEpoch ()
bool	ArticulationUpdateEventActive () const
	Is an 'Update' event active?
void	SetArticulationUpdateEventActive (bool aUpdateEventActive)
	Indicate if the 'Update' event is active.
virtual double	TimeToCue (double aDesiredAz, double aDesiredEl) const
const char *	GetScriptClassName () const override
void	SetPlatform (WsfPlatform *aPlatformPtr) override
virtual void	UpdatePosition (double aSimTime)
void	OnPlatformUpdated (double, WsfPlatform *) override
SlewMode	GetSlewMode () const
	Get the allowed slewing mode.
double	GetAzSlewRate () const
	Get the current azimuth slew rate.
double	GetElSlewRate () const
	Get the current elevation slew rate.
double	GetMaxAzSlewRate () const
	Get the maximum allowable azimuth slew rate.
double	GetMaxElSlewRate () const
	Get the maximum allowable elevation slew rate.
double	GetMinAzSlew () const
	Gets the minimum azimuth slew limit.
double	GetMaxAzSlew () const
	Gets the maximum azimuth slew limit.
double	GetMinElSlew () const
	Gets the minimum elevation slew limit.
double	GetMaxElSlew () const
	Gets the maximum elevation slew limit.
int	GetSlewState () const
	Get the slew limit state.
void	SetSlewMode (SlewMode aSlewMode)
	Set the allowed slewing mode.
void	SetSlewRates (double aAzSlewRate, double aElSlewRate)
	Set the angular slew rates, limited by the maximum slew rates.
void	SetAzSlewLimits (double aMinAzSlew, double aMaxAzSlew)
	Set the azimuth slew limits.
void	SetElSlewLimits (double aMinElSlew, double aMaxElSlew)
	Set the elevation slew limits.
void	SetAzimuthSlewDirection (SlewDirection aAzSlewDirection)
	Set the azimuth slew direction.
bool	IsSlewing () const
bool	WithinSlewLimits (double aThisToTgtAz, double aThisToTgtEl) const
SlewMode	GetCueMode () const
	Get the allowed cueing mode.
double	GetAzCueRate () const
	Get the azimuth cue rate.
double	GetElCueRate () const
	Get the elevation cue rate.
double	GetMinAzCue () const
	Gets the minimum azimuth cue limit.
double	GetMaxAzCue () const
	Gets the maximum azimuth cue limit.
double	GetMinElCue () const
	Gets the minimum elevation cue limit.
double	GetMaxElCue () const
	Gets the maximum elevation cue limit.
void	SetCueMode (SlewMode aCueMode)
	Set the allowed cueing mode.
void	SetCueRates (double aAzCueRate, double aElCueRate)
	Set the angular cueing rates.
void	SetAzCueLimits (double aMinAzCue, double aMaxAzCue)
	Set the azimuth cueing limits.
void	SetElCueLimits (double aMinElCue, double aMaxElCue)
	Set the elevation cueing limits.
double	GetRoll () const
void	SetRoll (double aRoll)
	Set the platform-relative (ECS) roll angle of the articulated part.
double	GetPitch () const
void	SetPitch (double aPitch)
double	GetYaw () const
void	SetYaw (double aYaw)
	Set the platform-relative (ECS) yaw angle of the articulated part.
double	GetTilt () const
void	SetTilt (double aTilt)
void	GetCurrentOrientationECS (double &aYaw, double &aPitch, double &aRoll)
void	GetLOS_UnitVectorWCS (double aUnitLOS_WCS[3])
	Get the current WCS Frame Line-Of-Sight unit vector.
CueType	GetCueType () const
bool	IsCued () const
	Get the cued status.
void	ClearCueing ()
bool	GetActualCuedOrientation (double &aAzimuth, double &aElevation) const
void	GetCurrentCuedOrientation (double &aAzimuth, double &aElevation) const
bool	GetCuedLocationWCS (double aCuedLocationWCS[3]) const
void	SetCuedLocationWCS (const double aCuedLocationWCS[3])
bool	GetCuedOrientation (double &aAzimuth, double &aElevation) const
void	SetCuedOrientation (double aAzimuth, double aElevation)
void	GetAbsoluteCuedOrientation (double &aAzimuth, double &aElevation, double aBaseNED[3])
void	ClearTransientCue ()
bool	TransientCueActive () const
bool	GetTransientCuedLocationWCS (double aCuedLocationWCS[3]) const
void	SetTransientCuedLocationWCS (const double aCuedLocationWCS[3])
WsfStringId	GetMaskingPatternState () const
void	SetMaskingPatternState (WsfStringId aMaskingPatternStateId)
double	GetMaskingPatternFactor (double aViewAzPCS, double aViewElPCS, const double aViewVecWCS[3])
void	SetIsPrivate (bool aIsPrivate)
bool	IsPrivate () const
Public Member Functions inherited from WsfPlatformPart
	WsfPlatformPart (const WsfScenario &aScenario, int aPartType)
WsfPlatformPart &	operator= (const WsfPlatformPart &aRhs)=delete
	~WsfPlatformPart () override
bool	DebugEnabled () const
	Returns 'true' if debugging is enabled for this instance.
void	SetDebugEnabled (bool aDebugEnabled)
unsigned int	GetDebugMask ()
bool	IsExternallyControlled () const
virtual void	SetExternallyControlled (double aSimTime, bool aIsExternallyControlled)
int	GetPartType () const
const char *	GetScriptClassName () const override
WsfSimulation *	GetSimulation () const
const WsfScenario &	GetScenario () const
WsfStringId	GetComponentName () const override
void	ComponentParentChanged (WsfPlatform *aPlatformPtr) override
WsfPlatform *	GetPlatform () const
virtual void	PlatformAdded (double aSimTime, WsfPlatform *aPlatformPtr)
virtual void	PlatformDeleted (WsfPlatform *aPlatformPtr)
double	GetLastStatusChangeTime () const
void	SetLastStatusChangeTime (double aSimTime)
	Allows a system to set the time at which the device was initialized.
bool	CanBeMadeOperational () const
	Returns an indication that this system can be made operational.
bool	CanBeMadeNonOperational () const
	Returns an indication that this system can be made non-operational.
bool	CanBeTurnedOn () const
	Returns an indication that this system can be turned on.
bool	CanBeTurnedOff () const
	Returns an indication that this system can be turned off.
bool	IsTurnedOn () const
bool	InitiallyTurnedOn () const
	Is the system to be turned 'on' when added to the simulation?
void	SetInitiallyTurnedOn (bool aInitiallyTurnedOn)
	Sets if the system is turned on when added to the simulation.
bool	IsOperational () const
bool	SetOperational (double aSimTime, bool aMakeOperational)
double	GetDamageFactor () const
bool	SetDamageFactor (double aSimTime, double aDamageFactor)
bool	IsCritical () const
void	SetCritical (bool aValue)
virtual void	OnPlatformBrokenEvent (double aSimTime)
	Owning platform has issued a broken event.
bool	IsBroken () const
WsfInternalLinks &	GetInternalLinks ()
	Return the internal links for this part.
virtual bool	HasInternalLinks () const
	Does this platform part have a communication link to other platform parts?
virtual bool	ReceiveMessage (double aSimTime, const WsfMessage &aMessage)
virtual void	SendMessage (double aSimTime, const WsfMessage &aMessage)
virtual void	SendMessageTo (double aSimTime, const WsfMessage &aMessage, WsfStringId aRecipientId)
void	SendMessageToProcessor (double aSimTime, const WsfMessage &aMessage, WsfStringId aRecipientId)
virtual void	SendQueuedMessages (double aSimTime)
const WsfCategoryList &	GetCategories () const
	Get the categories to which this part belongs.
void	AddCategory (WsfStringId aCategoryId)
	Adds the provided category to the platform part's category list.
bool	IsCategoryMember (WsfStringId aCategoryId) const
const WsfGroupList &	GetGroups () const
	Get the groups to which this platform part belongs.
void	JoinGroup (WsfGroup *aGroupPtr)
	Join the given group.
void	LeaveGroup (WsfGroup *aGroupPtr)
	Leave the given group.
bool	IsGroupMember (WsfStringId aGroupId)
unsigned int	GetUpdateEventEpoch () const
void	IncrementUpdateEventEpoch ()
bool	UpdateEventActive () const
	Is an 'Update' event active?
void	SetUpdateEventActive (bool aUpdateEventActive)
	Indicate if the 'Update' event is active.
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)
Public Member Functions inherited from WsfComponentT< WsfPlatform >
	WsfComponentT ()
	WsfComponentT (const WsfComponentT &) noexcept
WsfComponentT &	operator= (const WsfComponentT &) noexcept
	~WsfComponentT () override=default
ParentType *	GetComponentParent () const
void	SetComponentParent (ParentType *aParentPtr)
Public Member Functions inherited from WsfComponent
virtual	~WsfComponent ()=default
template<typename T>
bool	QueryInterfaceT (T *&aRolePtr)
bool	ComponentHasRole (int aRole)
	Returns true if the component has the specified role.
Public Member Functions inherited from WsfUniqueId
	WsfUniqueId ()
	Construtor initializes the unique identifier to 0.
	WsfUniqueId (const WsfUniqueId &)
	Copy constructor initializes the unique identifier to 0.
WsfUniqueId &	operator= (const WsfUniqueId &)
unsigned int	GetUniqueId () const
	Get the unique identifier assigned to this object.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
Public Member Functions inherited from WsfAuxDataEnabled
	WsfAuxDataEnabled ()=default
	WsfAuxDataEnabled (const WsfAuxDataEnabled &aSrc)=default
WsfAuxDataEnabled &	operator= (const WsfAuxDataEnabled &aRhs)
	WsfAuxDataEnabled (WsfAuxDataEnabled &&)=default
WsfAuxDataEnabled &	operator= (WsfAuxDataEnabled &&)=default
virtual	~WsfAuxDataEnabled () noexcept
void	SetAuxData (const WsfAttributeContainer &aAuxData)
void	DeleteAuxData ()
	Delete the aux data container from the object.
void	MergeAuxData (const WsfAuxDataEnabled &aSrc)
	Merge the object's aux data with aux data from an existing object.
void	UpdateAuxData (const WsfAuxDataEnabled &aSrc)
	Update the object's aux data with aux data from an existing object.
bool	HasAuxData () const
	Returns true if this object has aux data.
bool	ProcessInput (UtInput &aInput)
template<typename T>
void	Serialize (T &aBuff)
	(De)serialization for XIO
WsfAttributeContainer &	GetAuxData ()
const WsfAttributeContainer &	GetAuxData () const noexcept
const WsfAttributeContainer &	GetAuxDataConst () const noexcept
Public Member Functions inherited from WsfSinglePlatformObserver
virtual	~WsfSinglePlatformObserver ()
virtual void	OnPlatformDeleting (double aSimTime, WsfPlatform *aPlatformPtr)
	Called before the platform is actually deleted.
virtual void	OnPlatformDeleted (double aSimTime, WsfPlatform *aPlatformPtr)
	Called just before the platform is removed from the simulation.

Field of view methods.
Determines if the platform is within the weapons field of view.
using	SpotIndexVec = std::vector<unsigned int>
using	BeamSpotIndexMap = std::map<unsigned int, SpotIndexVec>
bool	WithinFieldOfView (double aSimTime, WsfPlatform *aPlatformPtr) override
bool	WithinFieldOfView (double aSimTime, WsfTrack *aTrackPtr) override
const TargetingDataMap &	GetTargetDataMap () const

Common infrastructure methods.
WsfWeapon *	Clone () const override
bool	Initialize (double aSimTime) override
bool	ProcessInput (UtInput &aInput) override

Component infrastructure methods
const int *	GetComponentRoles () const override
void *	QueryInterface (int aRole) override
	Returns array of constants role type.

Status methods.
See also WsfWeapon::QueryInterface
void	TurnOff (double aSimTime) override
void	TurnOn (double aSimTime) override

Transmitter access methods.
size_t	GetEM_XmtrCount () const override
	These methods support accessing the underlying transmitter components.
WsfEM_Xmtr &	GetEM_Xmtr (size_t aIndex) override
size_t	GetEM_XmtrCount (size_t aModeIndex) const override
WsfEM_Xmtr &	GetEM_Xmtr (size_t aModeIndex, size_t aIndex) override
WsfEM_Xmtr &	GetEM_Xmtr (size_t aModeIndex, size_t aBeamIndex, size_t aSpotIndex) override
WsfEM_Xmtr &	GetMasterXmtr ()
WsfEM_Xmtr &	GetJammerXmtr (double aSimTime, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfTrackId aTrackId)

Min/Max frequency access methods.
These methods support accessing the underlying master transmitter to get the current frequency limits, assumes current mode.
double	GetMinimumFrequency () const
double	GetMaximumFrequency () const

Spot jammer start/stop methods.
These methods support spot jamming but can also be used for barrage jamming.
bool	StartJamming (double aSimTime, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfStringId aTechniqueId, WsfTrackId aTrackId, size_t aTargetIndex) override
bool	StartJammingTrack (double aSimTime, WsfStringId aTechniqueId, const WsfTrack *aTrackPtr) override
bool	StopJamming (double aSimTime, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfTrackId aTrackId) override
bool	UpdateJamming (double aSimTime, size_t aXmtrIndex, double aFrequency, double aBandwidth, WsfStringId aTechniqueId, WsfTrackId aTrackId, size_t aTargetIndex) override

Message processing methods.
These methods support messaging to and from the jammer as required.
bool	ProcessMessage (double aSimTime, const WsfMessage &aMessage) override

Jammer targeting data methods.
void	SetTargetIndex (int aId, size_t aTargetIndex) override
	Assign target to TargetDataMap.
size_t	GetTargetIndex (int aId) const override
	Return Target Id's index.
void	SetTargetTrackId (int aId, const WsfTrackId &aTargetTrackId)
	Insert Target track into TargetDataMap, if it doesn't already exist.
WsfTrackId	GetTargetTrackId (int aId) const
	Return trackId at aId location if it exists, otherwise return a nullptr.
void	SetTargetedLocationWCS (int aId, const double aTargetedLocationWCS[3]) override
void	GetTargetedLocationWCS (int aId, double aTargetedLocationWCS[3]) const override
bool	TargetedLocationValid (int aId) const override
	Preform a check of whether aId is in TargetMapData.

EA Techniques methods.
bool	SelectEA_Technique (double aSimTime, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfStringId aTechniqueId, WsfTrackId aTrackId) override
bool	DeselectEA_Technique (double aSimTime, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfStringId aTechniqueId, WsfTrackId aTrackId) override
bool	SetEA_DeltaGainTechnique (double aSimTime, WsfStringId aTechniqueId, bool aOnOff, WsfStringId aEffectId, double aJammingDeltaGain_dB, WsfStringId aSystemTypeId, WsfStringId aFunctionTypeId) override
bool	SetEA_DeltaGainTechnique (double aSimTime, WsfStringId aTechniqueId, bool aOnOff, WsfStringId aEffectId, double aJammingDeltaGain_dB, WsfStringId aSystemTypeId, WsfStringId aSystemFunctionId, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfTrackId aTrackId) override

Inventory methods.
The definition of quantity depends on the type of weapon. For some weapons it might be 'rounds', for others it might be 'jamming spots/beams, etc'. In this case, the quantity returned refers to the number of spots for the current jammer mode.
unsigned int	GetActiveRequestCount () const override
	Return the number of 'FireSalvo' calls that are in process.
unsigned int	GetMaximumRequestCount () const override
double	GetQuantityRemaining () const override
size_t	GetActiveBeamCount () const override
size_t	GetMaximumBeamCount () const override
size_t	GetActiveSpotCount (size_t aBeamNumber) const override
size_t	GetMaximumSpotCount (size_t aBeamNumber) const override

Jammer effect methods.
static double	ComputeJammerPower (double aSimTime, WsfEM_Xmtr *aJammerXmtrPtr, const WsfEM_Interaction &aTargetInteraction, WsfEM_Interaction &aJammerInteraction, WsfEW_Effect *aProcessingEW_EffectPtr=nullptr)
static double	ComputeJammerPower (double aSimTime, WsfEM_Xmtr *aJammerXmtrPtr, const WsfEM_Interaction &aTargetInteraction, WsfEW_Effect *aProcessingEW_EffectPtr=nullptr)
static void	ComputeJammerPowers (double aSimTime, WsfEM_Xmtr *aJammerXmtrPtr, const WsfEM_Interaction &aTargetInteraction, WsfEM_Interaction &aJammerInteraction, double aJammerPowers[], WsfEW_Effect *aProcessingEW_EffectPtr=nullptr)
static void	ComputeJammerPowers (double aSimTime, WsfEM_Xmtr *aJammerXmtrPtr, const WsfEM_Interaction &aTargetInteraction, double aJammerPowers[], WsfEW_Effect *aProcessingEW_EffectPtr=nullptr)
static void	ComputeSingleJammerEffect (double aSimTime, WsfEM_Xmtr *aJammerXmtrPtr, WsfEM_Interaction &aTargetInteraction, WsfEM_Interaction &aJammerInteraction, bool aApplyEW_Effects)
static void	ComputeTotalJammerEffects (double aSimTime, WsfEM_Interaction &aTargetInteraction, bool aApplyEW_Effects)
static double	ComputeReceiverGains (WsfEM_Rcvr *aRcvrPtr)
	Compute Jammer Receiver Gains from incident Radar Beam.

Additional Inherited Members
static double	TimeWeaponLastFiredFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
static double	TimeWeaponLastTerminatedFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
static int	WeaponsPendingFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
static int	WeaponsActiveFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
	Returns number of weapons that have been fired at the track and are still alive.
static int	RoundsCompleteFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
	Returns number of weapons that were fired at the track and are now terminated.
static int	WeaponsActiveAndPendingFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
	Equivalent to WeaponsActiveFor() plus WeaponsPendingFor().
static int	RoundsFiredAt (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
	Equivalent to WeaponsActiveFor() plus RoundsCompleteFor().
static int	SalvosFiredAt (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
	Returns number of salvo fire requests requested, and not the actual number of salvos fired.
static std::vector< size_t >	ActiveWeaponPlatformsFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
static void	DetermineFirepowerStatus (WsfPlatform &aPlatform)
	Decide whether to set or clear the Firepower appearance bit.
UtCallbackListN< void(double)>	SlewComplete
Static Public Attributes inherited from WsfWeapon
static const double	cUNDEFINED_DOUBLE = 1.0E+30
Static Public Attributes inherited from WsfArticulatedPart
static constexpr double	cINFINITE_SLEW_RATE = 1.0E+12 * UtMath::cRAD_PER_DEG
static constexpr double	cALMOST_FULL_CIRCLE = 359.999 * UtMath::cRAD_PER_DEG
Static Public Attributes inherited from WsfAuxDataEnabled
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataAccessed
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataDestroyed
using	WeaponStatusMap = std::map<WsfTrackId, WeaponStatus>
using	WeaponStatusMapIter = WeaponStatusMap::iterator
using	WeaponStatusMapConstIter = WeaponStatusMap::const_iterator
using	WeaponStatusVal = std::pair<WsfTrackId, WeaponStatus>
	WsfWeapon (const WsfWeapon &aSrc)
	Copy constructor (for Clone()).
WsfWeapon &	operator= (const WsfWeapon &)=delete
bool	IsQuantitySpecified () const
virtual void	ProcessReloading (double aSimTime)
void	SetIsReloading (bool aValue)
	Method used for derived classes to set or clear the IsReloading Flag.
void	SetModeList (WsfModeList *aModeListPtr)
void	SetTimeLastFired (double aTimeLastFired)
void	SetMaximumRequestCount (unsigned int aMaximumRequestCount)
double	GetReloadInterval () const
virtual void	WeaponFireAborted (double aSimTime, const WsfTrack *aTargetTrackPtr, double aQuantity)
bool	FullCircle () const
virtual double	GetAzimuthRotationRate () const
virtual double	GetElevationRotationRate () const
void	SlewToOrientation (double aSimTime, double aDesiredAz, double aDesiredEl)
virtual void	TimeToRotate (double &aDeltaAz, double &aDeltaEl, double &aAzRate, double &aElRate, double &aTimeToAz, double &aTimeToEl) const
void	UpdateCuedOrientation (double aSimTime)
bool	UpdateOrientation (double aSimTime)
	WsfPlatformPart (const WsfPlatformPart &aSrc)
	Copy constructor (for Clone()).
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).
Protected Member Functions inherited from WsfUniqueId
void	AssignUniqueId (WsfSimulation *aSimulationPtr)
WsfModeList *	mModeListPtr
	The pointer to the list of modes (for things like jammers).
WeaponStatusMap	mWeaponStatusMap
WsfMaskingPattern *	mMaskingPatternPtr
	The masking factor.
WsfStringId	mMaskingPatternName
WsfStringId	mMaskingPatternStateId
double	mYaw
	The orientation of the device coordinate system.
double	mPitch
double	mRoll
double	mDX
	The velocity of the part.
double	mDY
double	mDZ
double	mTilt
	The tilt angle above below the scan plane.
double	mAzSlewRate
	The slewing rates and limits of the device with respect to the device coordinate system.
double	mElSlewRate
double	mMaxAzSlewRate
double	mMaxElSlewRate
double	mMinAzSlew
double	mMaxAzSlew
double	mMinElSlew
double	mMaxElSlew
SlewMode	mSlewMode
SlewDirection	mAzSlewDirection
int	mSlewState
double	mAzCueRate
	The cueing rates and limits of the device with respect to the device coordinate system.
double	mElCueRate
double	mMinAzCue
double	mMaxAzCue
double	mMinElCue
double	mMaxElCue
SlewMode	mCueMode
	The directions (az and/or el) in which cueing can be performed.
CueType	mCueType
bool	mTransientCueActive
	'true' if the transient cue is defined
double	mCuedLocationWCS [3]
	The cued location if mCueType is cCUED_TO_LOCATION.
double	mCuedAz
	The cued azimuth if mCueType == cCUED_TO_ANGLE.
double	mCuedEl
	The cued elevation if mCueType == cCUED_TO_ANGLE.
double	mTransientCuedLocationWCS [3]
	The transient cue, if mTransientCueActive is true.
double	mActualCuedAz
	The actual cued location, subject to the slewing limits.
double	mActualCuedEl
double	mCurrentAz
double	mCurrentEl
double	mLastAzElUpdateTime
	The time when the current az/el were last updated.
double	mLastUpdateTime
	The time when the x/y/z position was last updated.
bool	mSlewMethodCoordinated
	'true' if slcue rates are dynamically adjusted so the target angles are reached simultaneously.
bool	mIsSlewing
	'true' if the part is slewing to satisfy a cueing request.
bool	mIsPrivate
	'true' if the part is considered 'private' and not to visible to external simulations.

Member Typedef Documentation

BeamSpotIndexMap

using WsfRF_Jammer::BeamSpotIndexMap = std::map<unsigned int, SpotIndexVec>

SpotIndexVec

using WsfRF_Jammer::SpotIndexVec = std::vector<unsigned int>

TargetingDataMap

using WsfRF_Jammer::TargetingDataMap = std::map<int, TargetingData>

Member Enumeration Documentation

PowerDistribution

enum WsfRF_Jammer::PowerDistribution

GroupPowerDistribution defines the intended power distribution of the transmitters in this group.

Enumerator
cAVERAGE_POWER	Average.
cCONSTANT_POWER	Constant.

Constructor & Destructor Documentation

WsfRF_Jammer() [1/2]

WsfRF_Jammer::WsfRF_Jammer

(

const WsfScenario &

aScenario

)

References cCONSTANT_POWER, WsfPlatformPart::SetInitiallyTurnedOn(), WsfWeapon::SetModeList(), and WsfWeapon::WsfWeapon().

Referenced by Clone(), operator=(), and WsfRF_Jammer().

WsfRF_Jammer() [2/2]

WsfRF_Jammer::WsfRF_Jammer

(

const WsfRF_Jammer &

aSrc

)

References WsfRF_Jammer(), and WsfWeapon::WsfWeapon().

~WsfRF_Jammer()

WsfRF_Jammer::~WsfRF_Jammer ( )

overridedefault

References ComputeJammerPower(), ComputeJammerPowers(), ComputeReceiverGains(), ComputeSingleJammerEffect(), ComputeTotalJammerEffects(), GetJammerXmtr(), GetMasterXmtr(), GetMaximumFrequency(), GetMinimumFrequency(), GetTargetTrackId(), SetTargetTrackId(), and WsfWeapon::WsfWeapon().

Member Function Documentation

Clone()

WsfWeapon * WsfRF_Jammer::Clone ( ) const

overridevirtual

Clone this object.

Returns

a pointer to the new object.

Implements WsfWeapon.

References WsfRF_Jammer(), and WsfWeapon::WsfWeapon().

ComputeJammerPower() [1/2]

double WsfRF_Jammer::ComputeJammerPower ( double aSimTime, WsfEM_Xmtr * aJammerXmtrPtr, const WsfEM_Interaction & aTargetInteraction, WsfEM_Interaction & aJammerInteraction, WsfEW_Effect * aProcessingEW_EffectPtr = nullptr )

static

Compute the raw jammer power from the specified transmitter on the target interaction.

Parameters

aSimTime	The current simulation time.
aJammerXmtrPtr	Pointer to the jammer transmitter.
aTargetInteraction	The interaction object representing the interaction to be jammed (radio, radar, ESM, etc.). This is used only to get the pointer to the receiver and it's current pointing information.
aJammerInteraction	[updated] The interaction between the receiver and jammer. On input the receiver and transmitter pointers are used. On output, the mNoiseJammerPower, mPulseJammerPower, mCoherentJammerPower, mEW_Effects and mEW_Error fields will be updated for this single interaction.
aProcessingEW_EffectPtr	[optional] The currently processing or called from EW effect's pointer.

Returns

The jammer power of the interaction, returns the noise power if it is greater than 0, otherwise returns the coherent power even if it is 0.

References WsfEW_Result::FindOrCreate(), WsfEW_Result::mCoherentJammerPower, WsfEW_Effects::mEW_CoherentJammingEffect, WsfEW_Result::mEW_Effects, WsfEW_Effects::mEW_NoiseJammingEffect, WsfEW_Effects::mEW_PulseJammingEffect, WsfEW_Effects::EW_JammingEffect::mJammingPowerGain, WsfEW_Result::mNoiseJammerPower, WsfEW_Result::mPulseJammerPower, and WsfEW_Effects::EW_JammingEffect::mRepeaterFactor.

Referenced by WsfEW_CoverPulseEffect::UpdateEffects(), WsfEW_RPJ_Effect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_SLB_Effect::UpdateEffects(), WsfEW_SLC_Effect::UpdateEffects(), WsfEW_TrackEffect::UpdateEffects(), and ~WsfRF_Jammer().

ComputeJammerPower() [2/2]

double WsfRF_Jammer::ComputeJammerPower ( double aSimTime, WsfEM_Xmtr * aJammerXmtrPtr, const WsfEM_Interaction & aTargetInteraction, WsfEW_Effect * aProcessingEW_EffectPtr = nullptr )

static

Compute the raw jammer power from the specified transmitter on the target interaction.

Parameters

aSimTime	The current simulation time.
aJammerXmtrPtr	Pointer to the jammer transmitter.
aTargetInteraction	The interaction object representing the interaction to be jammed (radio, radar, ESM, etc.). This is used only to get the pointer to the receiver and it's current pointing information.
aProcessingEW_EffectPtr	[optional] The currently processing or called from EW effect's pointer.

Returns

The jammer power of the interaction, returns the noise power if it is greater than 0, otherwise returns the coherent power even if it is 0.

References WsfEW_Result::FindOrCreate(), WsfEW_Result::mCoherentJammerPower, WsfEW_Effects::mEW_CoherentJammingEffect, WsfEW_Result::mEW_Effects, WsfEW_Effects::mEW_NoiseJammingEffect, WsfEW_Effects::mEW_PulseJammingEffect, WsfEW_Effects::EW_JammingEffect::mJammingPowerGain, WsfEW_Result::mNoiseJammerPower, WsfEW_Result::mPulseJammerPower, and WsfEW_Effects::EW_JammingEffect::mRepeaterFactor.

ComputeJammerPowers() [1/2]

void WsfRF_Jammer::ComputeJammerPowers ( double aSimTime, WsfEM_Xmtr * aJammerXmtrPtr, const WsfEM_Interaction & aTargetInteraction, double aJammerPowers[], WsfEW_Effect * aProcessingEW_EffectPtr = nullptr )

static

Compute the raw jammer power from the specified transmitter on the target interaction.

Parameters

aSimTime	[input] The current simulation time.
aJammerXmtrPtr	[input] Pointer to the jammer transmitter.
aTargetInteraction	[input] The interaction object representing the interaction to be jammed (radio, radar, ESM, etc.). This is used only to get the pointer to the receiver and it's current pointing information.
aJammerPowers	[updated] The jammer powers of the interaction to include: aJammerPowers[0] - noise aJammerPowers[1] - pulse aJammerPowers[2] - coherent
aProcessingEW_EffectPtr	[optional] The currently processing or called from EW effect's pointer.

References WsfEW_Result::FindOrCreate(), WsfEW_Result::mCoherentJammerPower, WsfEW_Effects::mEW_CoherentJammingEffect, WsfEW_Result::mEW_Effects, WsfEW_Effects::mEW_NoiseJammingEffect, WsfEW_Effects::mEW_PulseJammingEffect, WsfEW_Effects::EW_JammingEffect::mJammingPowerGain, WsfEW_Result::mNoiseJammerPower, WsfEW_Result::mPulseJammerPower, and WsfEW_Effects::EW_JammingEffect::mRepeaterFactor.

ComputeJammerPowers() [2/2]

void WsfRF_Jammer::ComputeJammerPowers ( double aSimTime, WsfEM_Xmtr * aJammerXmtrPtr, const WsfEM_Interaction & aTargetInteraction, WsfEM_Interaction & aJammerInteraction, double aJammerPowers[], WsfEW_Effect * aProcessingEW_EffectPtr = nullptr )

static

Compute the raw jammer power from the specified transmitter on the target interaction.

Parameters

aSimTime	[input] The current simulation time.
aJammerXmtrPtr	[input] Pointer to the jammer transmitter.
aTargetInteraction	[input] The interaction object representing the interaction to be jammed (radio, radar, ESM, etc.). This is used only to get the pointer to the receiver and it's current pointing information.
aJammerInteraction	[updated] The interaction between the receiver and jammer. On input the receiver and transmitter pointers are used. On output, the mNoiseJammerPower, mPulseJammerPower, mCoherentJammerPower, mEW_Effects and mEW_Error fields will be updated for this single interaction.
aJammerPowers	[updated] The jammer powers of the interaction to include: aJammerPowers[0] - noise aJammerPowers[1] - pulse aJammerPowers[2] - coherent
aProcessingEW_EffectPtr	[optional] The currently processing or called from EW effect's pointer.

References WsfEW_Result::FindOrCreate(), WsfEW_Result::mCoherentJammerPower, WsfEW_Effects::mEW_CoherentJammingEffect, WsfEW_Result::mEW_Effects, WsfEW_Effects::mEW_NoiseJammingEffect, WsfEW_Effects::mEW_PulseJammingEffect, WsfEW_Effects::EW_JammingEffect::mJammingPowerGain, WsfEW_Result::mNoiseJammerPower, WsfEW_Result::mPulseJammerPower, and WsfEW_Effects::EW_JammingEffect::mRepeaterFactor.

Referenced by WsfFalseTarget::PowerSufficiencyCheck(), WsfEW_PowerEffect::UpdateEffects(), and ~WsfRF_Jammer().

ComputeReceiverGains()

double WsfRF_Jammer::ComputeReceiverGains ( WsfEM_Rcvr * aRcvrPtr )

static

Compute Jammer Receiver Gains from incident Radar Beam.

References WsfRadarSensor::RadarBeam::GetAdjustmentFactor(), WsfEM_XmtrRcvr::GetIndex(), WsfRadarSensor::RadarBeam::GetIntegrationGain(), WsfEM_XmtrRcvr::GetMode(), WsfRadarSensor::RadarMode::mBeamList, and WsfRadarSensor::RadarBeam::mXmtrPtr.

Referenced by WsfFalseTargetBlip::ComputeEquivalentRCS(), WsfFalseTargetBlip::ComputeRcvdPower(), WsfEW_RepeaterEffect::UpdateGainFactors(), and ~WsfRF_Jammer().

ComputeSingleJammerEffect()

void WsfRF_Jammer::ComputeSingleJammerEffect ( double aSimTime, WsfEM_Xmtr * aJammerXmtrPtr, WsfEM_Interaction & aTargetInteraction, WsfEM_Interaction & aJammerInteraction, bool aApplyEW_Effects )

static

Compute the effect of a single jammer on the receiver in the specified interaction. This is the main method that should be called to compute the effect of a single jammer on an interaction. It determines the effect of the jammer on the given target interaction and computes the net result. If aApplyEffects is 'true' the aTargetInteraction and aJammerInteraction powers are updated with the EW effects. Upon entering it is also assumed that the aTargetInteraction jammer powers already have EW effects applied if this flag is set to true.

Parameters

aSimTime	[input] The current simulation time.
aJammerXmtrPtr	[input] The jammer pointer to compute the effects for the given interaction.
aTargetInteraction	[updated] The interaction for which jamming calculations are to be performed. On input the receiver beam position attributes are used. On output, the mNoiseJammerPower, mPulseJammerPower, mCoherentJammerPower, mEW_Effects and mEW_Error fields will be updated with current updated values.
aJammerInteraction	[updated] The interaction between the receiver and jammer. On input the receiver and transmitter pointers are used. On output, the mNoiseJammerPower, mPulseJammerPower, mCoherentJammerPower, mEW_Effects and mEW_Error fields will be updated for this single interaction.
aApplyEW_Effects	[input] If true, will apply the electronic warfare effects that impinge upon the receiver to the jamming power variables.

References WsfEW_Result::Find(), WsfEW_Result::FindOrCreate(), WsfEM_Interaction::GetReceiver(), WsfEW_Effects::EW_Error::mAzimuth, WsfEW_Effects::EW_JammingEffect::mBlanking, WsfEW_Effects::EW_JammingEffect::mCancelation, WsfEW_Result::mCoherentJammerPower, WsfEW_Effects::mEA_CoherencyMask, WsfEW_Effects::EW_Error::mElevation, WsfEW_Effects::mEW_CoherentJammingEffect, WsfEW_Result::mEW_Effects, WsfEW_Effects::mEW_Error, WsfEW_Effects::mEW_NoiseJammingEffect, WsfEW_Effects::mEW_PulseJammingEffect, WsfEW_Effects::mEW_SignalEffect, WsfEM_Interaction::mInterferencePower, WsfEW_Effects::EW_JammingEffect::mJammingPowerGain, WsfEW_Effects::EW_JammingEffect::mJtoXGain, WsfEW_Effects::mMask, WsfEW_Effects::EW_JammingEffect::mModulationGain, WsfEW_Result::mNoiseJammerPower, WsfEW_Result::mPulseJammerPower, WsfEW_Effects::EW_JammingEffect::mPulseSuppression, WsfEW_Effects::EW_JammingEffect::mRadiusFactor, WsfEW_Effects::EW_Error::mRange, WsfEM_Interaction::mRcvdPower, WsfEW_Effects::EW_SignalEffect::mRcvrNoiseGain, WsfEW_Effects::EW_JammingEffect::mRepeaterFactor, WsfEW_Effects::EW_JammingEffect::mRPJ_Gain, WsfEW_Effects::EW_SignalEffect::mSignalPowerGain, WsfEW_Effects::EW_Error::mVelocity, and WsfEM_Rcvr::SetNoiseMultiplier().

Referenced by WsfESM_Sensor::ESM_Mode::ComputeInterferenceEffect(), WsfFalseTargetBlip::ComputeRcvdPower(), WsfEW_SensorComponent::EW_Beam::DetectJamStrobes(), and ~WsfRF_Jammer().

ComputeTotalJammerEffects()

void WsfRF_Jammer::ComputeTotalJammerEffects ( double aSimTime, WsfEM_Interaction & aTargetInteraction, bool aApplyEW_Effects )

static

Compute the total effect of the jammer on the receiver in the specified interaction. This is the main method that should be called to compute the effect of jammers on an interaction. It determines all of the jammers that have an effect on the given target interaction and computes the net result.

Parameters

aSimTime	[input] The current simulation time.
aTargetInteraction	[updated] The interaction for which jamming calculations are to be performed. On input the receiver pointer and beam position attributes are used. On output, the mNoiseJammerPower, mEW_Effects and mEW_Error fields will be updated.
aApplyEW_Effects	[input] If true, will apply the electronic warfare effects that impinge upon the receiver to the jamming power variables.

References WsfEW_Result::Find(), WsfEW_Result::FindOrCreate(), WsfEM_Rcvr::GetInterferenceInteractorCount(), WsfEM_Rcvr::GetInterferenceInteractorEntry(), WsfEM_Interaction::GetReceiver(), WsfEW_Effects::EW_Error::mAzimuth, WsfEW_Effects::EW_JammingEffect::mBlanking, WsfEW_Effects::EW_JammingEffect::mCancelation, WsfEW_Result::mCoherentJammerPower, WsfEW_Effects::mEA_CoherencyMask, WsfEW_Effects::EW_Error::mElevation, WsfEW_Effects::mEW_CoherentJammingEffect, WsfEW_Result::mEW_Effects, WsfEW_Effects::mEW_Error, WsfEW_Effects::mEW_NoiseJammingEffect, WsfEW_Effects::mEW_PulseJammingEffect, WsfEW_Effects::mEW_SignalEffect, WsfEM_Interaction::mInterferencePower, WsfEW_Effects::EW_JammingEffect::mJammingPowerGain, WsfEW_Effects::EW_JammingEffect::mJtoXGain, WsfEW_Effects::mMask, WsfEW_Effects::EW_JammingEffect::mModulationGain, WsfEW_Result::mNoiseJammerPower, WsfEW_Result::mPulseJammerPower, WsfEW_Effects::EW_JammingEffect::mPulseSuppression, WsfEW_Effects::EW_JammingEffect::mRadiusFactor, WsfEW_Effects::EW_Error::mRange, WsfEM_Interaction::mRcvdPower, WsfEW_Effects::EW_SignalEffect::mRcvrNoiseGain, WsfEW_Effects::EW_JammingEffect::mRepeaterFactor, WsfEW_Effects::EW_JammingEffect::mRPJ_Gain, WsfEW_Effects::EW_SignalEffect::mSignalPowerGain, WsfEW_Effects::EW_Error::mVelocity, WsfEW_Effects::Reset(), WsfEM_Rcvr::SetNoiseMultiplier(), and WsfEW_Effects::EW_JammingEffect::Zeroize().

Referenced by WsfEW_SensorComponent::AttemptToDetect(), WsfEW_CommComponent::AttemptToReceive(), WsfFalseTargetBlip::ComputeRcvdPower(), and ~WsfRF_Jammer().

DeselectEA_Technique()

bool WsfRF_Jammer::DeselectEA_Technique ( double aSimTime, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfStringId aTechniqueId, WsfTrackId aTrackId )

overridevirtual

Select a jamming technique using the supplied criteria.

Note

Assumes current mode.

Parameters

aSimTime	The current simulation time.
aFrequency	The assigned jammer transmitter frequency. (Hertz)
aBandwidth	The assigned jammer transmitter bandwidth. (Hertz)
aBeamNumber	The assigned jammer transmitter Beam Number. (0 to maximum number of beams)
aTechniqueId	The assigned technique Id of the EA function to use.
aTrackId	The assigned Track Id of the target.

Returns

The request was successful.

Reimplemented from WsfWeapon.

References WsfPlatformPart::DebugEnabled(), WsfEW_EA_EP::DeselectTechnique(), WsfRF_Jammer::JammerMode::GetActiveBeamSpotIndexes(), WsfEM_XmtrRcvr::GetBandwidth(), WsfEW_EA::GetElectronicAttack(), WsfEM_XmtrRcvr::GetFrequency(), WsfTrackId::GetLocalTrackNumber(), WsfObject::GetName(), WsfTrackId::GetOwningPlatformId(), WsfPlatformPart::GetPlatform(), WsfRF_Jammer::JammerMode::mActiveBeamPtrs, WsfRF_Jammer::JammerBeam::mActiveSpotPtrs, WsfRF_Jammer::JammerBeam::mBeamNumber, and WsfWeapon::mModeListPtr.

GetActiveBeamCount()

size_t WsfRF_Jammer::GetActiveBeamCount ( ) const

overridevirtual

Reimplemented from WsfWeapon.

References WsfRF_Jammer::JammerMode::GetActiveBeamCount(), and WsfWeapon::mModeListPtr.

GetActiveRequestCount()

unsigned int WsfRF_Jammer::GetActiveRequestCount ( ) const

overridevirtual

Return the number of 'FireSalvo' calls that are in process.

Reimplemented from WsfWeapon.

References WsfRF_Jammer::JammerMode::mActiveXmtrSpotPtrs, and WsfWeapon::mModeListPtr.

Referenced by GetQuantityRemaining().

GetActiveSpotCount()

size_t WsfRF_Jammer::GetActiveSpotCount ( size_t aBeamNumber ) const

overridevirtual

Reimplemented from WsfWeapon.

References WsfRF_Jammer::JammerBeam::GetActiveSpotCount(), WsfRF_Jammer::JammerMode::GetJammerBeam(), and WsfWeapon::mModeListPtr.

GetComponentRoles()

const int * WsfRF_Jammer::GetComponentRoles ( ) const

overridevirtual

Returns a zero-terminated array of component roles. Note that the array should be in decreasing order of specificity and should generally the inheritance hierarchy. The first entry should be the components 'primary' role. For example a sensor would do the following:

static const int roles[] = { cWSF_COMPONENT_SENSOR, cWSF_COMPONENT_ARTICULATED_PART,
                             cWSF_COMPONENT_PLATFORM_PART, 0 };
return roles;

Reimplemented from WsfArticulatedPart.

References cWSF_COMPONENT_ARTICULATED_PART, cWSF_COMPONENT_NULL, cWSF_COMPONENT_PLATFORM_PART, cWSF_COMPONENT_RF_JAMMER, and cWSF_COMPONENT_WEAPON.

GetEM_Xmtr() [1/3]

WsfEM_Xmtr & WsfRF_Jammer::GetEM_Xmtr ( size_t aIndex )

overridevirtual

Get the transmitter with a specified index.

Parameters

aIndex

The index of the transmitter whose attributes are being requested. This must be in the range [0, GetEM_XmtrCount() - 1].

Note

It is an error to call this method if the device does not have any transmitters (i.e.: GetEM_XmtrCount() == 0).

Reimplemented from WsfWeapon.

References WsfRF_Jammer::JammerMode::mActiveXmtrSpotPtrs, and WsfWeapon::mModeListPtr.

Referenced by UpdateJamming().

GetEM_Xmtr() [2/3]

WsfEM_Xmtr & WsfRF_Jammer::GetEM_Xmtr ( size_t aModeIndex, size_t aBeamIndex, size_t aSpotIndex )

overridevirtual

Get the attributes for the transmitter on the specified beam and spot index.

Parameters

aModeIndex	The index of the mode containing the beam with the transmitter.
aBeamIndex	The index of the beam containing the transmitter.
aSpotIndex	The index of the transmitter whose attributes are being requested. This must be in the range [0, GetEM_XmtrCount() - 1] for the specified beam.

Note

The jammer beam must have active spots before calling this method. (i.e.: beamPtr->GetActiveSpots() == 0).

Reimplemented from WsfWeapon.

References WsfWeapon::GetEM_Xmtr(), WsfRF_Jammer::JammerMode::mActiveBeamPtrs, and WsfRF_Jammer::JammerBeam::mActiveSpotPtrs.

GetEM_Xmtr() [3/3]

WsfEM_Xmtr & WsfRF_Jammer::GetEM_Xmtr ( size_t aModeIndex, size_t aIndex )

overridevirtual

Get the transmitter with a specified mode and index.

Parameters

aModeIndex	The mode index of the jammer whose pointer will be used. This must be in the range of [0, mJammerModeList.size() -1].
aIndex	The index of the transmitter whose attributes are being requested. This must be in the range [0, GetEM_XmtrCount() - 1].

Note

It is an error to call this method if the device does not have any transmitters (i.e.: GetEM_XmtrCount() == 0).

Reimplemented from WsfWeapon.

References WsfWeapon::GetEM_Xmtr(), and WsfRF_Jammer::JammerMode::mActiveXmtrSpotPtrs.

GetEM_XmtrCount() [1/2]

size_t WsfRF_Jammer::GetEM_XmtrCount ( ) const

overridevirtual

These methods support accessing the underlying transmitter components.

Returns

The number of transmitters associated with this device for the current mode.

Note

returns 0 if the jammer has not been initialized.

Reimplemented from WsfWeapon.

References WsfRF_Jammer::JammerMode::mActiveXmtrSpotPtrs, and WsfWeapon::mModeListPtr.

Referenced by TurnOff(), and TurnOn().

GetEM_XmtrCount() [2/2]

size_t WsfRF_Jammer::GetEM_XmtrCount ( size_t aModeIndex ) const

overridevirtual

Returns

The number of transmitters associated with this device at the specified mode index.

Reimplemented from WsfWeapon.

References WsfRF_Jammer::JammerMode::mActiveXmtrSpotPtrs.

GetJammerXmtr()

WsfEM_Xmtr & WsfRF_Jammer::GetJammerXmtr	(	double	aSimTime,
		double	aFrequency,
		double	aBandwidth,
		size_t	aBeamNumber,
		WsfTrackId	aTrackId )

Get a transmitter using the supplied frequency, bandwidth, and track Id.

Note

Assumes current mode.

Parameters

aSimTime	The current simulation time.
aFrequency	The assigned jammer transmitter frequency. (Hertz)
aBandwidth	The assigned jammer transmitter bandwidth. (Hertz)
aBeamNumber	The assigned jammer transmitter Beam Number. (0 to maximum number of beams)
aTrackId	The assigned Track Id of the target.

Returns

The first found jammer transmitter for the specified input values, if none exist then the returned pointer is 0.

References WsfRF_Jammer::JammerMode::GetActiveBeamSpotIndexes(), WsfWeapon::GetEM_Xmtr(), WsfRF_Jammer::JammerMode::mActiveBeamPtrs, WsfRF_Jammer::JammerBeam::mActiveSpotPtrs, and WsfWeapon::mModeListPtr.

Referenced by ~WsfRF_Jammer().

GetMasterXmtr()

WsfEM_Xmtr & WsfRF_Jammer::GetMasterXmtr

(

)

Get the master transmitter for the current mode

Returns

Pointer to the Master transmitter for the current mode

References WsfWeapon::mModeListPtr, and WsfRF_Jammer::JammerMode::mXmtr.

Referenced by UT_DEFINE_SCRIPT_METHOD(), WithinFieldOfView(), WithinFieldOfView(), and ~WsfRF_Jammer().

GetMaximumBeamCount()

size_t WsfRF_Jammer::GetMaximumBeamCount ( ) const

overridevirtual

Reimplemented from WsfWeapon.

References WsfRF_Jammer::JammerMode::GetActiveBeamCount(), WsfRF_Jammer::JammerMode::GetAvailableBeamCount(), and WsfWeapon::mModeListPtr.

GetMaximumFrequency()

double WsfRF_Jammer::GetMaximumFrequency

(

)

const

References WsfWeapon::mModeListPtr, and WsfRF_Jammer::JammerMode::mXmtr.

Referenced by StartJamming(), StartJammingTrack(), UpdateJamming(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), and ~WsfRF_Jammer().

GetMaximumRequestCount()

unsigned int WsfRF_Jammer::GetMaximumRequestCount ( ) const

overridevirtual

Return the maximum number of 'FireSalvo' calls that may be in process at a time. For RF jammers, this represents the maximum number of spots per mode.

Reimplemented from WsfWeapon.

References WsfRF_Jammer::JammerMode::mMaximumNumSpots, and WsfWeapon::mModeListPtr.

Referenced by GetQuantityRemaining(), and StartJammingTrack().

GetMaximumSpotCount()

size_t WsfRF_Jammer::GetMaximumSpotCount ( size_t aBeamNumber ) const

overridevirtual

Reimplemented from WsfWeapon.

References WsfRF_Jammer::JammerBeam::GetActiveSpotCount(), WsfRF_Jammer::JammerBeam::GetAvailableSpotCount(), WsfRF_Jammer::JammerMode::GetJammerBeam(), and WsfWeapon::mModeListPtr.

GetMinimumFrequency()

double WsfRF_Jammer::GetMinimumFrequency

(

)

const

References WsfWeapon::mModeListPtr, and WsfRF_Jammer::JammerMode::mXmtr.

Referenced by StartJamming(), StartJammingTrack(), UpdateJamming(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), and ~WsfRF_Jammer().

GetQuantityRemaining()

double WsfRF_Jammer::GetQuantityRemaining ( ) const

overridevirtual

Return the quantity (rounds, bombs, units) remaining.

This includes the number of units that have been committed via 'FireSalvo'.

Note

The quantity is expressed as real value rather than an integer value to provide for weapons that expend themselves in a continuous manner rather than a discrete manner). For example, "quantity" might be a unitless discrete number representing the number of JDAM remaining, or it could mean the (more or less continuous) number of joules available to a high-energy laser (HEL). The derived class should maintain the quantity as desired and implement this method to return the current remaining quantity.

Reimplemented from WsfWeapon.

References GetActiveRequestCount(), and GetMaximumRequestCount().

Referenced by StartJammingTrack().

GetTargetDataMap()

const TargetingDataMap & WsfRF_Jammer::GetTargetDataMap ( ) const

inlineprotected

GetTargetedLocationWCS()

void WsfRF_Jammer::GetTargetedLocationWCS ( int aId, double aTargetedLocationWCS[3] ) const

overridevirtual

Get the targeted location for the jammer spot.

Parameters

aId	The Id of the jammer.
aTargetedLocationWCS	The updated targeted WCS location.

Note

Check if the location is valid before calling using TargetLocationIsValid().

Reimplemented from WsfWeapon.

Referenced by WsfMilDisInterface::UpdateXmtrFromBeam().

GetTargetIndex()

size_t WsfRF_Jammer::GetTargetIndex ( int aId ) const

overridevirtual

Return Target Id's index.

Reimplemented from WsfWeapon.

References targetIndex().

Referenced by SetEA_DeltaGainTechnique(), StopJamming(), and UpdateJamming().

GetTargetTrackId()

WsfTrackId WsfRF_Jammer::GetTargetTrackId

(

int

aId

)

const

Return trackId at aId location if it exists, otherwise return a nullptr.

Referenced by UpdateJamming(), and ~WsfRF_Jammer().

Initialize()

bool WsfRF_Jammer::Initialize ( double aSimTime )

overridevirtual

Perform phase 1 initialization. This is called by WsfPlatform::Initialize() during phase 1 initialization of the platform. The component should complete validation of input data that could not be done by ProcessInput, as well as any other functions to prepare for simulation use (subject to the next paragraph).

The order in which components are initialized is defined by GetComponentInitializationOrder. In general a component implementation of this method should not be dependent on the state of another component, i.e.: it should not assume that the other components Initialize() method has been called. If such a dependency exists one should use Initialize2() if possible, or specify a value GetComponentInitializationOrder to force things to initialize in a particular order.

Parameters

aSimTime

The current simulation time.

Returns

true if successful or false if unsuccessful (bad input data, etc.)

Note

This method should NOT add any other components to the platform. This MUST be done in PreInitialize().

Reimplemented from WsfArticulatedPart.

References WsfWeapon::Initialize(), WsfPlatformPart::InitiallyTurnedOn(), WsfWeapon::mModeListPtr, ok, and TurnOn().

operator=()

WsfRF_Jammer & WsfRF_Jammer::operator= ( const WsfRF_Jammer & )

delete

References WsfRF_Jammer().

ProcessInput()

bool WsfRF_Jammer::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput

a reference to a UtInput object.

Returns

'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase

(or an object derived from it) if the command was recognized but contains some sort of error.

Note

If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from WsfArticulatedPart.

References WsfPlatformPart::AddCategory(), cAVERAGE_POWER, cCONSTANT_POWER, WsfRandomVariable::ProcessInput(), and WsfWeapon::ProcessInput().

ProcessMessage()

bool WsfRF_Jammer::ProcessMessage ( double aSimTime, const WsfMessage & aMessage )

overridevirtual

Process a received message.

Parameters

aSimTime	The current simulation time.
aMessage	The message that is being sent.

Returns

'true' if the message was processed or 'false' if not.

Note

A message is first received by ReceiveMessage which then calls ProcessMessage to process the message. A derived class ReceiveMessage method may choose to delay the message before calling ProcessMessage or may choose to ignore the message altogether.

Reimplemented from WsfPlatformPart.

References WsfTrackDropMessage::GetTargetIndex(), WsfTrackMessage::GetTrack(), WsfTrackDropMessage::GetTrackId(), WsfMessage::GetType(), WsfTrackDropMessage::GetTypeId(), WsfTrackMessage::GetTypeId(), and WsfTrack::GetUpdateCount().

QueryInterface()

void * WsfRF_Jammer::QueryInterface ( int aRole )

overridevirtual

Returns array of constants role type.

Reimplemented from WsfArticulatedPart.

References cWSF_COMPONENT_RF_JAMMER, and WsfWeapon::QueryInterface().

SelectEA_Technique()

bool WsfRF_Jammer::SelectEA_Technique ( double aSimTime, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfStringId aTechniqueId, WsfTrackId aTrackId )

overridevirtual

Select a jamming technique using the supplied criteria.

Note

Assumes current mode.

Parameters

aSimTime	The current simulation time.
aFrequency	The assigned jammer transmitter frequency. (Hertz)
aBandwidth	The assigned jammer transmitter bandwidth. (Hertz)
aBeamNumber	The assigned jammer transmitter Beam Number. (0 to maximum number of beams)
aTechniqueId	The assigned technique Id of the EA function to use.
aTrackId	The assigned Track Id of the target to be jammed.

Returns

The request was successful.

Reimplemented from WsfWeapon.

References WsfPlatformPart::DebugEnabled(), WsfRF_Jammer::JammerMode::GetActiveBeamSpotIndexes(), WsfEM_XmtrRcvr::GetBandwidth(), WsfEW_EA::GetElectronicAttack(), WsfEM_XmtrRcvr::GetFrequency(), WsfTrackId::GetLocalTrackNumber(), WsfObject::GetName(), WsfTrackId::GetOwningPlatformId(), WsfPlatformPart::GetPlatform(), WsfRF_Jammer::JammerMode::mActiveBeamPtrs, WsfRF_Jammer::JammerBeam::mActiveSpotPtrs, WsfRF_Jammer::JammerBeam::mBeamNumber, WsfWeapon::mModeListPtr, and WsfEW_EA_EP::SelectTechnique().

Referenced by SetEA_DeltaGainTechnique().

SetEA_DeltaGainTechnique() [1/2]

bool WsfRF_Jammer::SetEA_DeltaGainTechnique ( double aSimTime, WsfStringId aTechniqueId, bool aOnOff, WsfStringId aEffectId, double aJammingDeltaGain_dB, WsfStringId aSystemTypeId, WsfStringId aFunctionTypeId )

overridevirtual

Set jamming power (delta gain) technique on the master transmitter for future use.

Note

Assumes current mode.

Parameters

aSimTime	The current simulation time.
aTechniqueId	The assigned technique Id to set.
aOnOff	The default state of the technique.
aEffectId	The assigned effect Id to set.
aJammingDeltaGain_dB	The assigned jamming modulation value.
aSystemTypeId	The assigned System Type Id of the target types this technique applies to.
aFunctionTypeId	The assigned System Function Id of the target types this technique applies to.

Returns

The request was successful.

Reimplemented from WsfWeapon.

References WsfEW_EA_EP::DebugEnabled(), WsfPlatformPart::DebugEnabled(), WsfEW_EA::GetElectronicAttack(), WsfObject::GetName(), WsfPlatformPart::GetPlatform(), WsfWeapon::mModeListPtr, and WsfEW_EA_EP::SetDeltaGainTechnique().

SetEA_DeltaGainTechnique() [2/2]

bool WsfRF_Jammer::SetEA_DeltaGainTechnique ( double aSimTime, WsfStringId aTechniqueId, bool aOnOff, WsfStringId aEffectId, double aJammingDeltaGain_dB, WsfStringId aSystemTypeId, WsfStringId aSystemFunctionId, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfTrackId aTrackId )

overridevirtual

Set a jamming power(delta gain) technique on an active spot using the supplied criteria.

Note

Assumes current mode.

Parameters

aSimTime	The current simulation time.
aTechniqueId	The assigned technique Id to set.
aOnOff	The default state of the technique, 'true' is default on, 'fasle' is default off.
aEffectId	The assigned effect Id to set.
aJammingDeltaGain_dB	The assigned jamming delta gain value.
aSystemTypeId	The assigned System Type Id of the target types this technique applies to.
aSystemFunctionId	The assigned System Function Id of the target types this technique applies to.
aFrequency	The assigned jammer transmitter frequency. (Hertz)
aBandwidth	The assigned jammer transmitter bandwidth. (Hertz)
aBeamNumber	The assigned jammer transmitter Beam Number. (0 to maximum number of beams)
aTrackId	The assigned Track Id of the target to be jammed.

Returns

The request was successful.

Reimplemented from WsfWeapon.

References WsfEW_EA_EP::DebugEnabled(), WsfPlatformPart::DebugEnabled(), WsfRF_Jammer::JammerMode::GetActiveBeamSpotIndexes(), WsfEM_XmtrRcvr::GetBandwidth(), WsfEW_EA::GetElectronicAttack(), WsfEM_XmtrRcvr::GetFrequency(), WsfTrackId::GetLocalTrackNumber(), WsfObject::GetName(), WsfTrackId::GetOwningPlatformId(), WsfPlatformPart::GetPlatform(), GetTargetIndex(), WsfUniqueId::GetUniqueId(), WsfRF_Jammer::JammerMode::mActiveBeamPtrs, WsfRF_Jammer::JammerBeam::mActiveSpotPtrs, WsfRF_Jammer::JammerBeam::mBeamNumber, WsfWeapon::mModeListPtr, WsfRF_Jammer::JammerBeam::mSpotTrackIds, SelectEA_Technique(), WsfEW_EA_EP::SetDeltaGainTechnique(), and targetIndex().

SetTargetedLocationWCS()

void WsfRF_Jammer::SetTargetedLocationWCS ( int aId, const double aTargetedLocationWCS[3] )

overridevirtual

Set the targeted location for the jammer spot.

Parameters

aId	The Id of the jammer.
aTargetedLocationWCS	The targeted WCS location.

Note

Valid WCS location must be entered.

Reimplemented from WsfWeapon.

Referenced by WsfMilDisInterface::UpdateXmtrFromBeam().

SetTargetIndex()

void WsfRF_Jammer::SetTargetIndex ( int aId, size_t aTargetIndex )

overridevirtual

Assign target to TargetDataMap.

Reimplemented from WsfWeapon.

Referenced by SetTargetTrackId(), StartJamming(), and UpdateJamming().

SetTargetTrackId()

void WsfRF_Jammer::SetTargetTrackId	(	int	aId,
		const WsfTrackId &	aTargetTrackId )

Insert Target track into TargetDataMap, if it doesn't already exist.

References WsfTrackId::IsNull(), and SetTargetIndex().

Referenced by StartJamming(), UpdateJamming(), and ~WsfRF_Jammer().

StartJamming()

bool WsfRF_Jammer::StartJamming ( double aSimTime, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfStringId aTechniqueId, WsfTrackId aTrackId, size_t aTargetIndex )

overridevirtual

Start a jamming assignment using the supplied frequency and bandwidth.

Parameters

aSimTime	The current simulation time.
aFrequency	The assigned jammer transmitter frequency. (Hertz)
aBandwidth	The assigned jammer transmitter bandwidth. (Hertz)
aBeamNumber	The assigned jammer transmitter Beam Number. (0 to maximum number of beams)
aTechniqueId	The assigned technique Id of the EA function to use.
aTrackId	The assigned Track Id of the target to be jammed.
aTargetIndex	The platform index of the target to be jammed.

Returns

The request was successful.

Reimplemented from WsfWeapon.

References WsfRF_Jammer::JammerMode::AdjustFrequencyBandwidth(), WsfRF_Jammer::JammerMode::AdjustPowerDistribution(), WsfEW_EA_EP::Clone(), WsfEM_Xmtr::Deactivate(), WsfPlatformPart::DebugEnabled(), WsfEM_XmtrRcvr::GetBandwidth(), WsfRF_Jammer::JammerBeam::GetBeamNumber(), WsfEW_EA::GetElectronicAttack(), WsfEM_XmtrRcvr::GetFrequency(), WsfTrackId::GetLocalTrackNumber(), GetMaximumFrequency(), GetMinimumFrequency(), WsfObject::GetName(), WsfRF_Jammer::JammerMode::GetNextAssignableBeam(), WsfTrackId::GetOwningPlatformId(), WsfPlatformPart::GetPlatform(), WsfPlatformPart::GetSimulation(), WsfObject::GetType(), WsfUniqueId::GetUniqueId(), WsfRF_Jammer::JammerXmtr::Initialize(), WsfPlatformPart::IsTurnedOn(), WsfObserver::JammingRequestInitiated(), WsfRF_Jammer::JammerMode::mActiveBeamPtrs, WsfRF_Jammer::JammerBeam::mActiveSpotPtrs, WsfRF_Jammer::JammerMode::mActiveXmtrSpotPtrs, WsfRF_Jammer::JammerMode::mAvailableBeamPtrs, WsfRF_Jammer::JammerBeam::mAvailableSpotPtrs, WsfRF_Jammer::JammerMode::mBeamAllocationChanged, WsfRF_Jammer::JammerBeam::mBeamNumber, WsfRF_Jammer::JammerMode::mMaximumNumSpots, WsfWeapon::mModeListPtr, WsfRF_Jammer::JammerMode::mRepeater, WsfRF_Jammer::JammerBeam::mSpotTrackIds, WsfRF_Jammer::JammerMode::mUseRepeater, WsfRF_Jammer::JammerMode::mXmtr, WsfRF_Repeater::RegisterTrackId(), WsfRF_Jammer::JammerMode::Select(), WsfEW_EA_EP::SelectTechnique(), WsfEM_Xmtr::SetBandwidth(), WsfEW_EA::SetElectronicAttack(), WsfEM_Xmtr::SetFrequency(), SetTargetIndex(), SetTargetTrackId(), and TurnOn().

Referenced by StartJammingTrack(), and TurnOn().

StartJammingTrack()

bool WsfRF_Jammer::StartJammingTrack ( double aSimTime, WsfStringId aTechniqueId, const WsfTrack * aTrackPtr )

overridevirtual

Start a jamming assignment using the supplied frequency and bandwidth.

Parameters

aSimTime	The current simulation time.
aTechniqueId	The assigned technique Id of the EA function to use.
aTrackPtr	The assigned Track Pointer of the target to be jammed.

Returns

The request was successful.

Reimplemented from WsfWeapon.

References GetMaximumFrequency(), GetMaximumRequestCount(), GetMinimumFrequency(), GetQuantityRemaining(), WsfTrack::GetSignalCount(), WsfTrack::GetSignalEntry(), WsfTrack::GetTargetIndex(), WsfTrack::GetTrackId(), WsfTrack_Signal::mLowerFrequency, WsfWeapon::mModeListPtr, WsfTrack_Signal::mPulseWidth, WsfRF_Jammer::JammerMode::mRepeater, WsfTrack_Signal::mUpperFrequency, WsfRF_Jammer::JammerMode::mUseRepeater, WsfRF_Repeater::RegisterTrack(), and StartJamming().

StopJamming()

bool WsfRF_Jammer::StopJamming ( double aSimTime, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfTrackId aTrackId )

overridevirtual

Stop a jamming assignment using the supplied frequency, bandwidth, and track Id.

Note

Assumes current mode.

Parameters

aSimTime	The current simulation time.
aFrequency	The assigned jammer transmitter frequency. (Hertz)
aBandwidth	The assigned jammer transmitter bandwidth. (Hertz)
aBeamNumber	The assigned jammer transmitter Beam Number. (0 to maximum number of beams)
aTrackId	The assigned Track Id of the target to be jammed.

Returns

The request was successful.

Reimplemented from WsfWeapon.

References WsfRF_Jammer::JammerMode::AdjustPowerDistribution(), WsfEM_Xmtr::Deactivate(), WsfPlatformPart::DebugEnabled(), WsfRF_Jammer::JammerMode::Deselect(), WsfRF_Jammer::JammerMode::GetActiveBeamSpotIndexes(), WsfEM_XmtrRcvr::GetBandwidth(), WsfRF_Jammer::JammerBeam::GetBeamNumber(), WsfEM_XmtrRcvr::GetFrequency(), WsfTrackId::GetLocalTrackNumber(), WsfObject::GetName(), WsfTrackId::GetOwningPlatformId(), WsfPlatformPart::GetPlatform(), WsfPlatformPart::GetSimulation(), GetTargetIndex(), WsfObject::GetType(), WsfUniqueId::GetUniqueId(), WsfPlatformPart::IsTurnedOn(), WsfObserver::JammingRequestCanceled(), WsfRF_Jammer::JammerMode::mActiveBeamPtrs, WsfRF_Jammer::JammerBeam::mActiveSpotPtrs, WsfRF_Jammer::JammerMode::mActiveXmtrSpotPtrs, WsfRF_Jammer::JammerMode::mAvailableBeamPtrs, WsfRF_Jammer::JammerBeam::mAvailableSpotPtrs, WsfRF_Jammer::JammerMode::mBeamAllocationChanged, WsfRF_Jammer::JammerBeam::mBeamNumber, WsfWeapon::mModeListPtr, WsfRF_Jammer::JammerBeam::mSpotTrackIds, WsfRF_Jammer::JammerMode::mUseRepeater, targetIndex(), and TurnOff().

Referenced by TurnOff().

TargetedLocationValid()

bool WsfRF_Jammer::TargetedLocationValid ( int aId ) const

overridevirtual

Preform a check of whether aId is in TargetMapData.

Reimplemented from WsfWeapon.

Referenced by WsfMilDisInterface::UpdateXmtrFromBeam().

TurnOff()

void WsfRF_Jammer::TurnOff ( double aSimTime )

overridevirtual

Turn off the platform part (system).

Parameters

aSimTime

The current simulation time.

Reimplemented from WsfPlatformPart.

References GetEM_XmtrCount(), WsfWeapon::mModeListPtr, StopJamming(), and WsfWeapon::TurnOff().

Referenced by StopJamming().

TurnOn()

void WsfRF_Jammer::TurnOn ( double aSimTime )

overridevirtual

Turn the weapon on or return statement of whether jamming has already started.

Parameters

aSimTime

The current simulation time.

Note

Jamming assignment will start if the system has been initialized and is turned off.

Reimplemented from WsfPlatformPart.

References GetEM_XmtrCount(), WsfWeapon::mModeListPtr, WsfRF_Jammer::JammerMode::mUseRepeater, WsfRF_Jammer::JammerMode::mXmtr, StartJamming(), and WsfWeapon::TurnOn().

Referenced by Initialize(), and StartJamming().

UpdateJamming()

bool WsfRF_Jammer::UpdateJamming ( double aSimTime, size_t aXmtrIndex, double aFrequency, double aBandwidth, WsfStringId aTechniqueId, WsfTrackId aTrackId, size_t aTargetIndex )

overridevirtual

Update a jamming assignment using the supplied frequency and bandwidth.

Note

This method is primarily used to update a jammer transmitter via DIS or other or other interface that is not going to Stop and Re-Start a jamming assignment to capture changes in the assignment.

Parameters

aSimTime	The current simulation time.
aXmtrIndex	The assigned jammer transmitter Beam Number. (0 to maximum number of beams)
aFrequency	The assigned jammer transmitter frequency. (Hertz)
aBandwidth	The assigned jammer transmitter bandwidth. (Hertz)
aTechniqueId	The assigned technique Id of the EA function to use.
aTrackId	The assigned Track Id of the target to be jammed.
aTargetIndex	The platform index of the target to be jammed.

Returns

The request was successful.

Reimplemented from WsfWeapon.

References WsfRF_Jammer::JammerMode::AdjustFrequencyBandwidth(), WsfPlatformPart::DebugEnabled(), WsfEM_XmtrRcvr::GetBandwidth(), WsfEW_EA::GetElectronicAttack(), GetEM_Xmtr(), WsfEM_XmtrRcvr::GetFrequency(), WsfEM_XmtrRcvr::GetIndex(), WsfRF_Jammer::JammerMode::GetJammerBeam(), WsfTrackId::GetLocalTrackNumber(), GetMaximumFrequency(), GetMinimumFrequency(), WsfObject::GetName(), WsfTrackId::GetOwningPlatformId(), WsfPlatformPart::GetPlatform(), WsfPlatformPart::GetSimulation(), GetTargetIndex(), GetTargetTrackId(), WsfObject::GetType(), WsfUniqueId::GetUniqueId(), WsfRF_Jammer::JammerXmtr::Initialize(), WsfObserver::JammingRequestUpdated(), WsfRF_Jammer::JammerBeam::mActiveSpotPtrs, WsfRF_Jammer::JammerBeam::mBeamNumber, WsfRF_Jammer::JammerMode::mMaximumNumSpots, WsfWeapon::mModeListPtr, WsfRF_Jammer::JammerMode::mRepeater, WsfRF_Jammer::JammerBeam::mSpotTrackIds, WsfRF_Jammer::JammerMode::mUseRepeater, pos, WsfRF_Repeater::RegisterTrackId(), WsfEW_EA_EP::SelectTechnique(), WsfEM_Xmtr::SetBandwidth(), WsfEM_Xmtr::SetFrequency(), SetTargetIndex(), SetTargetTrackId(), and WsfEW_EA_EP::TechniqueIsInUse().

WithinFieldOfView() [1/2]

bool WsfRF_Jammer::WithinFieldOfView ( double aSimTime, WsfPlatform * aPlatformPtr )

overridevirtual

Reimplemented from WsfWeapon.

References WsfEM_XmtrRcvr::GetAntenna(), GetMasterXmtr(), WsfPlatform::Update(), and WsfEM_Antenna::WithinFieldOfView().

WithinFieldOfView() [2/2]

bool WsfRF_Jammer::WithinFieldOfView ( double aSimTime, WsfTrack * aTrackPtr )

overridevirtual

Reimplemented from WsfWeapon.

References WsfEM_XmtrRcvr::GetAntenna(), WsfMeasurement::GetExtrapolatedLocationWCS(), GetMasterXmtr(), and WsfEM_Antenna::WithinFieldOfView().

---

The documentation for this class was generated from the following files:

• WsfRF_Jammer.hpp
• WsfRF_Jammer.cpp
