WsfTerrainPathFinder Class Reference

#include <WsfTerrainPathFinder.hpp>

Inheritance diagram for WsfTerrainPathFinder:

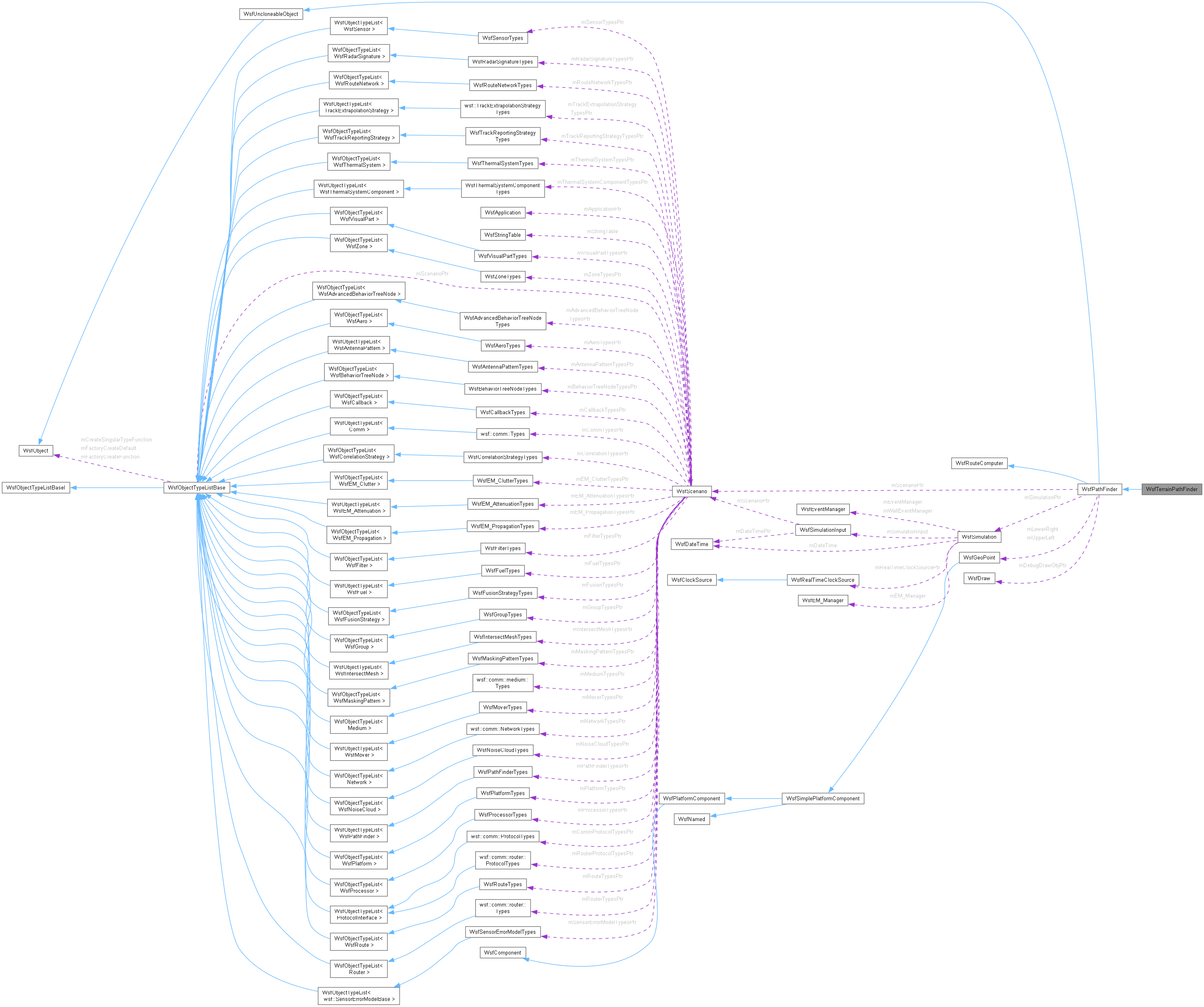

Collaboration diagram for WsfTerrainPathFinder:

Classes
struct	sTerrainLatLon
struct	sTerrainTriCell

Public Member Functions
	WsfTerrainPathFinder (WsfScenario *aScenarioPtr)
	~WsfTerrainPathFinder () override=default
bool	Initialize (WsfSimulation *aSimulationPtr) override
const WsfPFNode *	GetClosestNode (const WsfGeoPoint &aPointPtr) override
const WsfPFNode *	GetClosestNodePos (float x, const WsfGeoPoint &aPointPtr)
bool	ProcessInput (UtInput &aInput) override
bool	ComparePoints (sTerrainLatLon aPt1, sTerrainLatLon aPt2)
Public Member Functions inherited from WsfPathFinder
	WsfPathFinder (WsfScenario *aScenarioPtr, WsfGeoPoint &aUpperLeftPtr, WsfGeoPoint &aLowerRightPtr, double aGridSizeDegrees)
	WsfPathFinder (WsfScenario *aScenarioPtr)
	~WsfPathFinder () override
const char *	GetScriptClassName () const override
void	AddZone (WsfZone *aZonePtr, double aWeight)
void	RemoveZone (WsfZone *aZonePtr)
void	RecalculateWeights ()
virtual bool	FindPath (const WsfGeoPoint &aStartPtr, WsfGeoPoint &aEndPtr, WsfRoute &aRoute, double &aCost)
void	print () const
node_iterator	GetGrid (long aX, long aY)
node_iterator	GetGridAbsolute (unsigned long idx)
void	SetGrid (unsigned long aX, unsigned long aY, node_iterator aIterPtr)
void	SetGridAbsolute (unsigned long aX, node_iterator aIterPtr)
void	DebugDrawGrid ()
virtual void	DebugDrawZones ()
WsfGeoPoint	GetNodeLocation (int nodeIndex)
long	GetXSize ()
long	GetYSize ()
bool	GetConsiderNode (const WsfPFNode &aNode)
bool	GetConsiderNode (const WsfGeoPoint &aGeoPoint)
int	GetNumberOfZones ()
double	GetGridSizeDegrees ()
WsfGeoPoint	GetUpperLeft ()
WsfGeoPoint	GetLowerRight ()
WsfGeoPoint *	FindClosestPointOnEdge (double aSimTime, const WsfGeoPoint &aGeoPoint)
virtual WsfGeoPoint *	FindClosestValidPoint (double aSimTime, const WsfGeoPoint &aGeoPoint)
WsfGeoPoint *	FindClosestPointInQuadrant (const WsfGeoPoint &aGeoPoint, int aQuadrant)
WsfZone *	GetZoneByName (const std::string &aZoneName)
bool	ComputeFindPath (WsfMover &aMover, WsfRoute &aRoute) override
bool	ComputeSetRoute (WsfMover &aMover, WsfRoute &aRoute, int &aInitialPointIndex) override
bool	ComputeUpdateRoute (WsfMover &aMover, WsfRoute &aRoute) override
bool	ComputeExtrapolate (WsfMover &aMover, WsfRoute &aRoute) override
bool	ReturnToRoute (WsfMover &aMover, WsfRoute &aRoute) override
virtual WsfGeoPoint	GetRandomLocation ()
virtual void	SetDebugEnabled (bool aDebugEnabled)
bool	DebugEnabled () const
WsfSimulation *	GetSimulation () const
Public Member Functions inherited from WsfUncloneableObject
	WsfUncloneableObject ()
WsfObject *	Clone () const override
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)
Public Member Functions inherited from WsfRouteComputer
virtual	~WsfRouteComputer ()
virtual bool	IsNavMesh ()
virtual bool	GetEnabled ()

Additional Inherited Members
Public Types inherited from WsfPathFinder
using	PFGraph = UtGraphT<WsfPFNode, WsfPFEdge, false, double>
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
Protected Member Functions inherited from WsfPathFinder
bool	ContainsZone (WsfZone *aZonePtr)
bool	ContainsZone (const std::string &aZoneName)
bool	PointIsInGridBounds (int x, int y)
bool	IsDuplicateEdge (node_iterator nodeIter, const WsfPFNode &aNode2, const WsfPFEdge &tmpEdge)
bool	shortest_path (const_node_iterator aSrcNodeIter, const_node_iterator aDstNodeIter, NodeList &aPath, double &aCost, const cost_func *aCostFuncPtr=nullptr) const override
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).
Protected Attributes inherited from WsfPathFinder
WsfScenario *	mScenarioPtr
WsfSimulation *	mSimulationPtr
std::list< WsfZone * >	mZones
std::map< WsfZone *, double >	mZoneWeights
WsfGeoPoint	mUpperLeft
WsfGeoPoint	mLowerRight
double	mGridSizeDegrees
long	mXSize
long	mYSize
std::vector< node_iterator >	mGrid
bool	mInitialized
WsfDraw *	mDebugDrawObjPtr
bool	mDebugEnabled

Constructor & Destructor Documentation

WsfTerrainPathFinder()

WsfTerrainPathFinder::WsfTerrainPathFinder

(

WsfScenario *

aScenarioPtr

)

References WsfPathFinder::WsfPathFinder().

~WsfTerrainPathFinder()

WsfTerrainPathFinder::~WsfTerrainPathFinder ( )

overridedefault

References GetClosestNodePos().

Member Function Documentation

ComparePoints()

bool WsfTerrainPathFinder::ComparePoints	(	sTerrainLatLon	aPt1,
		sTerrainLatLon	aPt2 )

References WsfTerrainPathFinder::sTerrainLatLon::Lat, and WsfTerrainPathFinder::sTerrainLatLon::Lon.

GetClosestNode()

const WsfPFNode * WsfTerrainPathFinder::GetClosestNode ( const WsfGeoPoint & aPointPtr )

overridevirtual

Reimplemented from WsfPathFinder.

References GetClosestNodePos(), and WsfPathFinder::mInitialized.

GetClosestNodePos()

const WsfPFNode * WsfTerrainPathFinder::GetClosestNodePos	(	float	x,
		const WsfGeoPoint &	aPointPtr )

References WsfPathFinder::GetGridAbsolute(), WsfGeoPoint::GetLat(), WsfGeoPoint::GetLon(), WsfPFNode::getMarked(), and WsfPFNode::mLoc.

Referenced by GetClosestNode(), and ~WsfTerrainPathFinder().

Initialize()

bool WsfTerrainPathFinder::Initialize ( WsfSimulation * aSimulationPtr )

overridevirtual

Reimplemented from WsfPathFinder.

References wsf::TerrainInterface::EnableTerrain(), wsf::Terrain::GetElevApprox(), WsfGeoPoint::GetLat(), WsfGeoPoint::GetLon(), WsfSimulation::GetTerrainInterface(), WsfPathFinder::mGrid, WsfPathFinder::mGridSizeDegrees, WsfPathFinder::mInitialized, WsfPathFinder::mLowerRight, WsfPathFinder::mSimulationPtr, WsfPathFinder::mUpperLeft, WsfPathFinder::mXSize, WsfPathFinder::mYSize, WsfPathFinder::RecalculateWeights(), WsfPathFinder::SetGrid(), and WsfGeoPoint::SetLocationLLA().

ProcessInput()

bool WsfTerrainPathFinder::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput

a reference to a UtInput object.

Returns

'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase

(or an object derived from it) if the command was recognized but contains some sort of error.

Note

If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from WsfPathFinder.

References WsfPathFinder::AddZone(), WsfScenario::FindType(), WsfScenario::FromInput(), WsfPathFinder::mGridSizeDegrees, WsfPathFinder::mLowerRight, WsfPathFinder::mUpperLeft, and WsfGeoPoint::ProcessInput().

---

The documentation for this class was generated from the following files:

• WsfTerrainPathFinder.hpp
• WsfTerrainPathFinder.cpp
