P6DofSequencer Class Reference

#include <P6DofSequencer.hpp>

Inheritance diagram for P6DofSequencer:

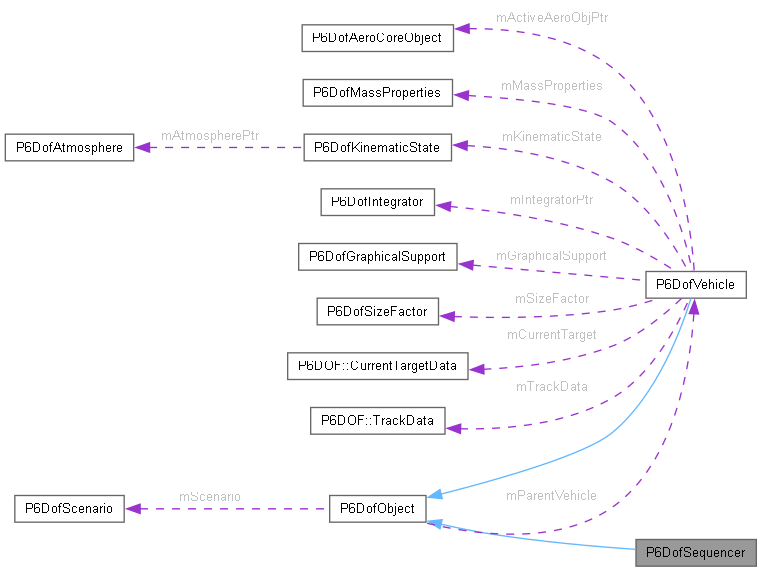

Collaboration diagram for P6DofSequencer:

Classes
struct	SequencerEvent
struct	SequencerAction

Public Member Functions
	P6DofSequencer (P6DofScenario *aScenario)
	~P6DofSequencer () override
P6DofSequencer &	operator= (const P6DofSequencer &other)=delete
P6DofSequencer *	Clone () const
void	SetParentVehicle (P6DofVehicle *aParentVehicle) override
bool	ProcessInput (UtInput &aInput)
bool	Initialize (int64_t aSimTime_nanosec)
void	Update (int64_t aSimTime_nanosec)
void	AdjustNaming (const std::string &aNamePrefix)
void	StartUp (int64_t aSimTime_nanosec)
bool	PendingTimeEvents (int64_t aSimTime_nanosec, std::set< int64_t > &aTimeOfEvents_nanosec)
bool	ActivateExternally ()
Public Member Functions inherited from P6DofObject
	P6DofObject (P6DofScenario *aScenario)
virtual	~P6DofObject ()=default
P6DofObject *	Clone () const
P6DofScenario *	GetScenario () const
std::string	GetName () const
void	SetName (const std::string &aName)
P6DofVehicle *	GetParentVehicle () const

Protected Types
enum	SequencerEventType {   Timer , LifeTime , AboveAlt_ft , BelowAlt_ft ,   DynamicPressureAbove_psf , DynamicPressureBelow_psf , StaticPressureAbove_psf , StaticPressureBelow_psf ,   FuelPercentBelow , GroundDistance_m , NxAbove_g , NxBelow_g ,   NyAbove_g , NyBelow_g , NzAbove_g , NzBelow_g ,   ReleasedFromParent , ManualInputTrigger , ManualInputButton , ManualInputButtonReleased ,   BooleanInput , NoEvent }
enum	SequencerActionType {   NoAction , JettisonObject , JettisonSelf , IgniteEngine ,   IgniteSubObject , IgniteSelfObject , ShutdownSubObject , ShutdownEngine ,   TerminateThrust , ChangeAeroMode , EnableSizeFactor , SetGraphicalModel ,   ActivateSubobjectSequencer , EnableControls , DisableControls }

Protected Member Functions
	P6DofSequencer (const P6DofSequencer &aSrc)
void	SetAllEventCounts ()
void	CheckForAllEventActivation ()
int64_t	TestForActivation (int64_t aSimTime_nanosec)
int64_t	GetTimerTime () const
Protected Member Functions inherited from P6DofObject
	P6DofObject (const P6DofObject &aSrc)=default
P6DofObject &	operator= (const P6DofObject &other)=default

Protected Attributes
int64_t	mLastSimTime_nanosec
int64_t	mElapsedTimer_nanosec
std::vector< SequencerEvent * >	mEventList
std::vector< SequencerAction * >	mActionList
std::vector< P6DofSequencer * >	mSubSequencerList
bool	mActivated
bool	mAllEvents
size_t	mAllEventNeededCount
size_t	mAllEventCurrentCount
bool	mExternalActivation
Protected Attributes inherited from P6DofObject
P6DofScenario *	mScenario
P6DofVehicle *	mParentVehicle
std::string	mObjName

Member Enumeration Documentation

SequencerActionType

enum P6DofSequencer::SequencerActionType

protected

Enumerator
NoAction
JettisonObject
JettisonSelf
IgniteEngine
IgniteSubObject
IgniteSelfObject
ShutdownSubObject
ShutdownEngine
TerminateThrust
ChangeAeroMode
EnableSizeFactor
SetGraphicalModel
ActivateSubobjectSequencer
EnableControls
DisableControls

SequencerEventType

enum P6DofSequencer::SequencerEventType

protected

Enumerator
Timer
LifeTime
AboveAlt_ft
BelowAlt_ft
DynamicPressureAbove_psf
DynamicPressureBelow_psf
StaticPressureAbove_psf
StaticPressureBelow_psf
FuelPercentBelow
GroundDistance_m
NxAbove_g
NxBelow_g
NyAbove_g
NyBelow_g
NzAbove_g
NzBelow_g
ReleasedFromParent
ManualInputTrigger
ManualInputButton
ManualInputButtonReleased
BooleanInput
NoEvent

Constructor & Destructor Documentation

P6DofSequencer() [1/2]

P6DofSequencer::P6DofSequencer ( P6DofScenario * aScenario )

explicit

References mActivated, mAllEventCurrentCount, mAllEventNeededCount, mAllEvents, mElapsedTimer_nanosec, mExternalActivation, mLastSimTime_nanosec, and P6DofObject::P6DofObject().

Referenced by Clone(), operator=(), P6DofSequencer(), ProcessInput(), and ~P6DofSequencer().

~P6DofSequencer()

P6DofSequencer::~P6DofSequencer ( )

override

References mActionList, mEventList, mSubSequencerList, and P6DofSequencer().

P6DofSequencer() [2/2]

P6DofSequencer::P6DofSequencer ( const P6DofSequencer & aSrc )

protected

References mActionList, mActivated, mAllEventCurrentCount, mAllEventNeededCount, mAllEvents, mElapsedTimer_nanosec, mEventList, mExternalActivation, mLastSimTime_nanosec, mSubSequencerList, P6DofObject::P6DofObject(), P6DofSequencer(), and while().

Member Function Documentation

ActivateExternally()

bool P6DofSequencer::ActivateExternally

(

)

References mActivated, and mExternalActivation.

Referenced by P6DofVehicle::ActivateSequencer().

AdjustNaming()

void P6DofSequencer::AdjustNaming

(

const std::string &

aNamePrefix

)

References IgniteSubObject, JettisonObject, mActionList, mSubSequencerList, and ShutdownSubObject.

CheckForAllEventActivation()

void P6DofSequencer::CheckForAllEventActivation ( )

protected

References mActivated, mAllEventCurrentCount, and mAllEventNeededCount.

Referenced by TestForActivation().

Clone()

P6DofSequencer * P6DofSequencer::Clone

(

)

const

References P6DofSequencer().

Referenced by P6DofVehicleType::DeriveFrom().

GetTimerTime()

int64_t P6DofSequencer::GetTimerTime ( ) const

protected

References mElapsedTimer_nanosec.

Initialize()

bool P6DofSequencer::Initialize

(

int64_t

aSimTime_nanosec

)

References BooleanInput, mElapsedTimer_nanosec, mEventList, mLastSimTime_nanosec, and P6DofObject::mParentVehicle.

operator=()

P6DofSequencer & P6DofSequencer::operator= ( const P6DofSequencer & other )

delete

References P6DofSequencer().

PendingTimeEvents()

bool P6DofSequencer::PendingTimeEvents	(	int64_t	aSimTime_nanosec,
		std::set< int64_t > &	aTimeOfEvents_nanosec )

References LifeTime, mActivated, mElapsedTimer_nanosec, mEventList, mLastSimTime_nanosec, P6DofObject::mParentVehicle, mSubSequencerList, and Timer.

ProcessInput()

bool P6DofSequencer::ProcessInput

(

UtInput &

aInput

)

References AboveAlt_ft, P6DofSequencer::SequencerAction::actionType, ActivateSubobjectSequencer, P6DofSequencer::SequencerAction::argumentSecondString, P6DofSequencer::SequencerAction::argumentString, BelowAlt_ft, BooleanInput, ChangeAeroMode, DisableControls, DynamicPressureAbove_psf, DynamicPressureBelow_psf, EnableControls, EnableSizeFactor, P6DofSequencer::SequencerEvent::eventType, FuelPercentBelow, P6DofObject::GetName(), P6DofObject::GetScenario(), GroundDistance_m, IgniteEngine, IgniteSelfObject, IgniteSubObject, JettisonObject, JettisonSelf, LifeTime, mActionList, mAllEvents, ManualInputButton, ManualInputButtonReleased, ManualInputTrigger, mEventList, P6DofObject::mParentVehicle, mSubSequencerList, NoAction, NoEvent, NxAbove_g, NxBelow_g, NyAbove_g, NyBelow_g, NzAbove_g, NzBelow_g, P6DofSequencer(), ProcessInput(), ReleasedFromParent, SetGraphicalModel, P6DofObject::SetName(), SetParentVehicle(), ShutdownEngine, ShutdownSubObject, StaticPressureAbove_psf, StaticPressureBelow_psf, TerminateThrust, Timer, and P6DofUtils::TimeToTime().

Referenced by ProcessInput(), and P6DofVehicleType::ProcessInput().

SetAllEventCounts()

void P6DofSequencer::SetAllEventCounts ( )

protected

References mAllEventCurrentCount, mAllEventNeededCount, mAllEvents, and mEventList.

Referenced by TestForActivation().

SetParentVehicle()

void P6DofSequencer::SetParentVehicle ( P6DofVehicle * aParentVehicle )

overridevirtual

Reimplemented from P6DofObject.

References mSubSequencerList, and P6DofObject::SetParentVehicle().

Referenced by ProcessInput().

StartUp()

void P6DofSequencer::StartUp

(

int64_t

aSimTime_nanosec

)

References mElapsedTimer_nanosec, and mLastSimTime_nanosec.

TestForActivation()

int64_t P6DofSequencer::TestForActivation ( int64_t aSimTime_nanosec )

protected

References AboveAlt_ft, ActivateSubobjectSequencer, BelowAlt_ft, BooleanInput, ChangeAeroMode, CheckForAllEventActivation(), DisableControls, DynamicPressureAbove_psf, DynamicPressureBelow_psf, EnableControls, EnableSizeFactor, FuelPercentBelow, GroundDistance_m, P6DofThrustProducerObject::Ignite(), IgniteEngine, P6DofVehicle::IgniteObject(), IgniteSelfObject, IgniteSubObject, JettisonObject, JettisonSelf, P6DofVehicle::JettisonSubobject(), LifeTime, mActionList, mActivated, mElapsedTimer_nanosec, mEventList, mExternalActivation, P6DofObject::mParentVehicle, NoEvent, NxAbove_g, NxBelow_g, NyAbove_g, NyBelow_g, NzAbove_g, NzBelow_g, ReleasedFromParent, SetAllEventCounts(), SetGraphicalModel, P6DofThrustProducerObject::Shutdown(), ShutdownEngine, P6DofVehicle::ShutdownObject(), ShutdownSubObject, StaticPressureAbove_psf, StaticPressureBelow_psf, TerminateThrust, and Timer.

Referenced by Update().

Update()

void P6DofSequencer::Update

(

int64_t

aSimTime_nanosec

)

References mActivated, mElapsedTimer_nanosec, mLastSimTime_nanosec, mSubSequencerList, and TestForActivation().

Member Data Documentation

mActionList

std::vector<SequencerAction*> P6DofSequencer::mActionList

protected

Referenced by AdjustNaming(), P6DofSequencer(), ProcessInput(), TestForActivation(), and ~P6DofSequencer().

mActivated

bool P6DofSequencer::mActivated

protected

Referenced by ActivateExternally(), CheckForAllEventActivation(), P6DofSequencer(), P6DofSequencer(), PendingTimeEvents(), TestForActivation(), and Update().

mAllEventCurrentCount

size_t P6DofSequencer::mAllEventCurrentCount

protected

Referenced by CheckForAllEventActivation(), P6DofSequencer(), P6DofSequencer(), and SetAllEventCounts().

mAllEventNeededCount

size_t P6DofSequencer::mAllEventNeededCount

protected

Referenced by CheckForAllEventActivation(), P6DofSequencer(), P6DofSequencer(), and SetAllEventCounts().

mAllEvents

bool P6DofSequencer::mAllEvents

protected

Referenced by P6DofSequencer(), P6DofSequencer(), ProcessInput(), and SetAllEventCounts().

mElapsedTimer_nanosec

int64_t P6DofSequencer::mElapsedTimer_nanosec

protected

Referenced by GetTimerTime(), Initialize(), P6DofSequencer(), P6DofSequencer(), PendingTimeEvents(), StartUp(), TestForActivation(), and Update().

mEventList

std::vector<SequencerEvent*> P6DofSequencer::mEventList

protected

Referenced by Initialize(), P6DofSequencer(), PendingTimeEvents(), ProcessInput(), SetAllEventCounts(), TestForActivation(), and ~P6DofSequencer().

mExternalActivation

bool P6DofSequencer::mExternalActivation

protected

Referenced by ActivateExternally(), P6DofSequencer(), P6DofSequencer(), and TestForActivation().

mLastSimTime_nanosec

int64_t P6DofSequencer::mLastSimTime_nanosec

protected

Referenced by Initialize(), P6DofSequencer(), P6DofSequencer(), PendingTimeEvents(), StartUp(), and Update().

mSubSequencerList

std::vector<P6DofSequencer*> P6DofSequencer::mSubSequencerList

protected

Referenced by AdjustNaming(), P6DofSequencer(), PendingTimeEvents(), ProcessInput(), SetParentVehicle(), Update(), and ~P6DofSequencer().

---

The documentation for this class was generated from the following files:

• P6DofSequencer.hpp
• P6DofSequencer.cpp
