P6DofObject Class Reference

#include <P6DofObject.hpp>

Inheritance diagram for P6DofObject:

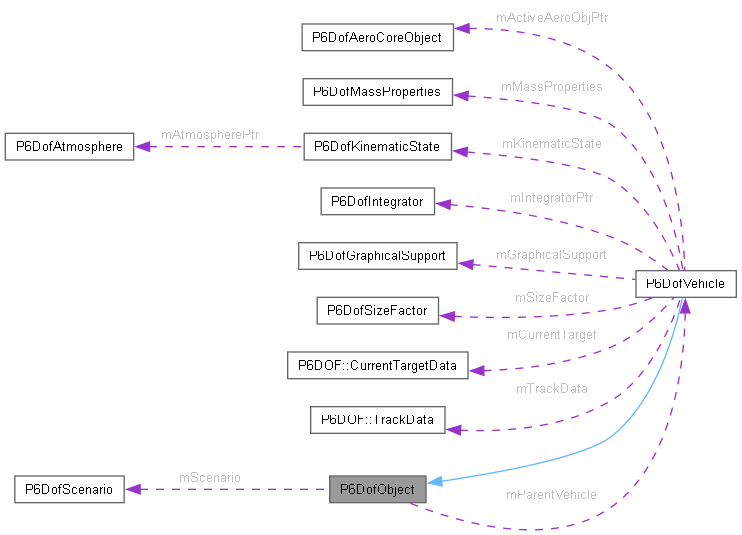

Collaboration diagram for P6DofObject:

Public Member Functions
	P6DofObject (P6DofScenario *aScenario)
virtual	~P6DofObject ()=default
P6DofObject *	Clone () const
P6DofScenario *	GetScenario () const
std::string	GetName () const
void	SetName (const std::string &aName)
P6DofVehicle *	GetParentVehicle () const
virtual void	SetParentVehicle (P6DofVehicle *aParentVehicle)

Protected Member Functions
	P6DofObject (const P6DofObject &aSrc)=default
P6DofObject &	operator= (const P6DofObject &other)=default

Protected Attributes
P6DofScenario *	mScenario
P6DofVehicle *	mParentVehicle
std::string	mObjName

Constructor & Destructor Documentation

P6DofObject() [1/2]

P6DofObject::P6DofObject ( P6DofScenario * aScenario )

explicit

References mObjName, mParentVehicle, and mScenario.

Referenced by Clone(), operator=(), P6DofFlightControlSystem::P6DofFlightControlSystem(), P6DofFlightControlSystem::P6DofFlightControlSystem(), P6DofFuelTank::P6DofFuelTank(), P6DofFuelTank::P6DofFuelTank(), P6DofGroundReactionPoint::P6DofGroundReactionPoint(), P6DofLandingGear::P6DofLandingGear(), P6DofLandingGear::P6DofLandingGear(), P6DofObject(), P6DofPilotObject::P6DofPilotObject(), P6DofPilotObject::P6DofPilotObject(), P6DofPropulsionSystem::P6DofPropulsionSystem(), P6DofPropulsionSystem::P6DofPropulsionSystem(), P6DofSequencer::P6DofSequencer(), P6DofSequencer::P6DofSequencer(), P6DofThrustProducerObject::P6DofThrustProducerObject(), P6DofThrustProducerObject::P6DofThrustProducerObject(), P6DofVehicle::P6DofVehicle(), P6DofVehicle::P6DofVehicle(), P6DofVehicleType::P6DofVehicleType(), P6DofVehicleType::P6DofVehicleType(), and ~P6DofObject().

~P6DofObject()

virtual P6DofObject::~P6DofObject ( )

virtualdefault

References Clone(), and P6DofObject().

P6DofObject() [2/2]

P6DofObject::P6DofObject ( const P6DofObject & aSrc )

protecteddefault

References P6DofObject().

Member Function Documentation

Clone()

P6DofObject * P6DofObject::Clone

(

)

const

References P6DofObject().

Referenced by ~P6DofObject().

GetName()

std::string P6DofObject::GetName ( ) const

inline

References mObjName.

Referenced by P6DofVehicle::CalculateLandingGearFM(), P6DofVehicle::CalculatePitchMomentAlphaStickBack_ftlbs(), P6DofVehicle::ComputeWashInConditions(), P6DofVehicle::DeriveFromObjectType(), P6DofFuelTank::FuelFlowPathIntact(), P6DofVehicle::GetFuelTankByName(), P6DofVehicle::GetThrustProducerObjectByName(), P6DofVehicle::InitializeDetails(), P6DofLandingGear::ProcessInput(), P6DofPropulsionSystem::ProcessInput(), P6DofSequencer::ProcessInput(), P6DofTypeManager::ProcessInput(), P6DofVehicleType::ProcessInput(), P6DofTypeManager::RegisterThrustProducerObjectType(), and P6DofVehicle::UpdateObject().

GetParentVehicle()

P6DofVehicle * P6DofObject::GetParentVehicle ( ) const

inline

References mParentVehicle.

Referenced by P6DofPropulsionSystem::AnEngineHasAfterburnerOn(), P6DofPropulsionSystem::AnEngineIsContrailing(), P6DofPropulsionSystem::AnEngineIsEmittingSmokeTrail(), P6DofPropulsionSystem::AnEngineIsOperating(), P6DofPropulsionSystem::AnEngineIsSmoking(), P6DofJetEngineObject::CalculateThrust(), P6DofRamjetEngineObject::CalculateThrust(), P6DofRocketLiquidPropellantObject::CalculateThrust(), P6DofRocketSolidPropellantObject::CalculateThrust(), P6DofFuelTank::FuelFlowPathIntact(), P6DofGuidanceAutopilot::HoldAltitude(), P6DofHardwareAutopilot::HoldAltitude(), P6DofGuidanceAutopilot::HoldBankAngle(), P6DofHardwareAutopilot::HoldBankAngle(), P6DofGuidanceAutopilot::HoldHeading(), P6DofHardwareAutopilot::HoldHeading(), P6DofGuidanceAutopilot::HoldPitchAngle(), P6DofHardwareAutopilot::HoldPitchAngle(), P6DofGuidanceAutopilot::HoldSpeedKCAS(), P6DofHardwareAutopilot::HoldSpeedKCAS(), P6DofGuidanceAutopilot::HoldSpeedKTAS(), P6DofHardwareAutopilot::HoldSpeedKTAS(), P6DofGuidanceAutopilot::HoldSpeedMach(), P6DofHardwareAutopilot::HoldSpeedMach(), P6DofGuidanceAutopilot::HoldVerticalSpeed(), and P6DofHardwareAutopilot::HoldVerticalSpeed().

GetScenario()

P6DofScenario * P6DofObject::GetScenario ( ) const

inline

References mScenario.

Referenced by P6DofVehicle::AdjustForParentInducedEffects(), P6DofUtils::Autotune(), P6DofGroundReactionPoint::CalcFrictionForceMoment(), P6DofGroundReactionPoint::CalcNormalForceMoment(), P6DofVehicle::CalculateAeroBodyFM(), P6DofVehicle::CalculateControlsAeroCoefficientVectors(), P6DofVehicle::CalculateControlsCdArea(), P6DofVehicle::CalculateControlsCLArea(), P6DofIntegrator::CalculateFM(), P6DofVehicle::CalculateLandingGearFM(), P6DofJetEngineObject::CalculateThrust(), P6DofRocketLiquidPropellantObject::CalculateThrust(), P6DofRocketSolidPropellantObject::CalculateThrust(), P6DofVehicle::CalculateWashIn(), P6DofVehicle::DeriveFromObjectType(), WsfP6DOF_MoverTestObject::GetAtmosphere(), GetAtmosphereFromMover(), P6DofVehicle::HandleGroundContact(), P6DofPropulsionSystem::Initialize(), P6DofVehicle::InitializeConditions(), P6DofVehicle::InitializeDetails(), P6DofVehicle::PerformCrash(), P6DofJetEngineObject::ProcessInput(), P6DofLandingGear::ProcessInput(), P6DofPropulsionSystem::ProcessInput(), P6DofRamjetEngineObject::ProcessInput(), P6DofRocketLiquidPropellantObject::ProcessInput(), P6DofRocketSolidPropellantObject::ProcessInput(), P6DofSequencer::ProcessInput(), P6DofVehicleType::ProcessInput(), P6DofIntegrator::PropagateRotation(), P6DofIntegrator::PropagateTranslationSphericalEarth(), P6DofIntegrator::PropagateTranslationWGSEarth(), WsfP6DOF_MoverTestObject::RestoreFromTestingMode(), P6DofVehicle::SeparateSubObject(), WsfP6DOF_MoverTestObject::SetupForTestingMode(), P6DofVehicle::TestingUpdate(), P6DofFlightControlSystem::Update(), P6DofIntegrator::Update(), P6DofPropulsionSystem::Update(), and P6DofFuelTank::UpdateFuelBurn().

operator=()

P6DofObject & P6DofObject::operator= ( const P6DofObject & other )

protecteddefault

References P6DofObject().

SetName()

void P6DofObject::SetName ( const std::string & aName )

inline

References mObjName.

Referenced by P6DofPropulsionSystem::Initialize(), P6DofFuelTank::ProcessInput(), P6DofGroundReactionPoint::ProcessInput(), P6DofJetEngineObject::ProcessInput(), P6DofRamjetEngineObject::ProcessInput(), P6DofRocketLiquidPropellantObject::ProcessInput(), P6DofRocketSolidPropellantObject::ProcessInput(), P6DofSequencer::ProcessInput(), P6DofVehicleType::ProcessInput(), and P6DofVehicle::SetNamePrefix().

SetParentVehicle()

virtual void P6DofObject::SetParentVehicle ( P6DofVehicle * aParentVehicle )

inlinevirtual

Reimplemented in P6DofLandingGear, P6DofPropulsionSystem, P6DofSequencer, and P6DofVehicle.

References mParentVehicle.

Referenced by P6DofPropulsionSystem::ProcessInput(), P6DofLandingGear::SetParentVehicle(), P6DofPropulsionSystem::SetParentVehicle(), P6DofSequencer::SetParentVehicle(), and P6DofVehicle::SetParentVehicle().

Member Data Documentation

mObjName

std::string P6DofObject::mObjName

protected

Referenced by GetName(), P6DofObject(), and SetName().

mParentVehicle

P6DofVehicle* P6DofObject::mParentVehicle

protected

Referenced by P6DofPropulsionSystem::AddFuelTransferAndConnect(), P6DofGroundReactionPoint::CalcFrictionForceMoment(), P6DofGroundReactionPoint::CalcGroundReactionForceMoment(), P6DofGroundReactionPoint::CalcMaxFrictionForceMagnitude_lbs(), P6DofGroundReactionPoint::CalcNormalForceMoment(), P6DofVehicle::ComputeWashInConditions(), P6DofVehicle::CopyDataFromParent(), P6DofLandingGear::EnableNWS(), P6DofFuelTank::FuelFlowPathIntact(), P6DofVehicle::GetFuelTankByName(), GetParentVehicle(), P6DofGroundReactionPoint::GetSteeringData(), P6DofVehicle::GetThrustProducerObjectByName(), P6DofGroundReactionPoint::Initialize(), P6DofLandingGear::Initialize(), P6DofPropulsionSystem::Initialize(), P6DofSequencer::Initialize(), P6DofObject(), P6DofSequencer::PendingTimeEvents(), P6DofPropulsionSystem::ProcessInput(), P6DofSequencer::ProcessInput(), P6DofPilotObject::SetObjectState(), P6DofLandingGear::SetParentVehicle(), SetParentVehicle(), P6DofPilotObject::SetPrePositionCAS(), P6DofPilotObject::SetPrePositionMach(), P6DofPilotObject::SetPrePositionQ(), P6DofPilotObject::SetPrePositionTAS(), P6DofPilotObject::SetThrustReverserControlPosition(), P6DofSequencer::TestForActivation(), P6DofLandingGear::Update(), P6DofPilotObject::Update(), P6DofPilotObject::UpdateControlInputsUsingCommonControllerData(), and P6DofLandingGear::VehicleIsAtRest().

mScenario

P6DofScenario* P6DofObject::mScenario

protected

Referenced by GetScenario(), P6DofPilotObject::GetScenario(), and P6DofObject().

---

The documentation for this class was generated from the following files:

• P6DofObject.hpp
• P6DofObject.cpp
