An object that represent the radar signature of a platform. More...

#include <WsfRadarSignature.hpp>

Inheritance diagram for WsfRadarSignature:

[legend]

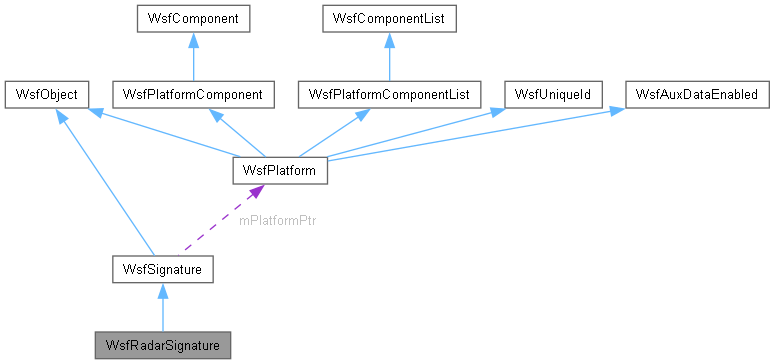

Collaboration diagram for WsfRadarSignature:

[legend]

Public Types
enum	{ cSIGNATURE_INDEX = 0 }
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.

Public Member Functions
	WsfRadarSignature ()
WsfRadarSignature *	Clone () const override=0
virtual float	GetSignature (WsfStringId aStateId, WsfEM_Types::Polarization aPolarization, double aFrequency, double aTgtToXmtrAz, double aTgtToXmtrEl, double aTgtToRcvrAz, double aTgtToRcvrEl, WsfEM_Xmtr aXmtrPtr=nullptr, WsfEM_Rcvr aRcvrPtr=nullptr)=0
virtual std::pair< float, float >	GetSignatureLimits (WsfStringId aStateId, WsfEM_Types::Polarization aPolarization) const
Public Member Functions inherited from WsfSignature
	WsfSignature ()
	WsfSignature (const WsfSignature &aSrc)
WsfSignature &	operator= (const WsfSignature &)=delete
	~WsfSignature () override=default
virtual bool	InitializeType ()
virtual bool	Initialize (double aSimTime, WsfPlatform *aPlatformPtr)
virtual bool	IsA_ValidState (WsfStringId aId) const
virtual std::vector< WsfStringId >	GetStateNames () const
	get the list of all valid states belonging to the signature
bool	ProcessInput (UtInput &aInput) override
bool	RequiresPlatform () const
	indicates that a signature can be queried without a valid mPlatform
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Methods to support the actual interface on the platform.
These methods provide the interface from the sensor model to the signature. The user makes calls like WsfOpticalReflectivity::GetSignature(...).
static WsfStringId	GetInputType (WsfPlatform *aPlatformPtr)
static WsfStringId	GetState (WsfPlatform *aPlatformPtr)
static bool	SetState (WsfPlatform *aPlatformPtr, WsfStringId aState)
static float	GetScaleFactor (WsfPlatform *aPlatformPtr)
static bool	SetScaleFactor (WsfPlatform *aPlatformPtr, float aScaleFactor)
static float	GetValue (WsfPlatform *aPlatformPtr, WsfEM_Types::Polarization aPolarization, double aFrequency, double aTgtToXmtrAz, double aTgtToXmtrEl, double aTgtToRcvrAz, double aTgtToRcvrEl)
static float	GetValue (WsfPlatform aPlatformPtr, WsfEM_Xmtr aXmtrPtr, WsfEM_Rcvr *aRcvrPtr, double aTgtToXmtrAz, double aTgtToXmtrEl, double aTgtToRcvrAz, double aTgtToRcvrEl)
static WsfRadarSignature *	GetSignature (WsfPlatform *aPlatformPtr)
static bool	SetSignature (WsfPlatform aPlatformPtr, WsfRadarSignature aSignaturePtr)
static void	RegisterScriptMethods (UtScriptTypes &aScriptTypes)
static void	RegisterInterface (WsfScenario &aScenario)
	Register the platform interface object on the prototype signature list in the specified scenario.

Additional Inherited Members
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).
Static Protected Member Functions inherited from WsfSignature
template<class SignatureState, WsfStringId SignatureState::* IdMember, typename Iterator>
static std::vector< WsfStringId >	GetStateNamesP (Iterator aBegin, Iterator aEnd)
Protected Attributes inherited from WsfSignature
WsfPlatform *	mPlatformPtr
double	mBaseTime
bool	mRequiresPlatform {false}

Detailed Description

An object that represent the radar signature of a platform.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
cSIGNATURE_INDEX	Index of signature within WsfSignatureList (must be unique).

Constructor & Destructor Documentation

◆ WsfRadarSignature()

WsfRadarSignature::WsfRadarSignature ( )

References WsfSignature::WsfSignature().

Referenced by WsfChaffRadarSignature::Clone(), WsfMilRadarSignature::Clone(), Clone(), WsfStandardRadarSignature::Clone(), GetSignature(), GetSignature(), GetValue(), GetValue(), WsfMilRadarSignature::ObjectFactory(), WsfStandardRadarSignature::ObjectFactory(), SetSignature(), WsfChaffRadarSignature::WsfChaffRadarSignature(), WsfMilRadarSignature::WsfMilRadarSignature(), and WsfStandardRadarSignature::WsfStandardRadarSignature().

Member Function Documentation

◆ Clone()

WsfRadarSignature * WsfRadarSignature::Clone ( ) const

overridepure virtual

Return a copy of this object. Must be implemented by all derived types. If cloning is impossible, a WsfUncloneableException should be thrown.

Implements WsfObject.

Implemented in WsfChaffRadarSignature, WsfMilRadarSignature, and WsfStandardRadarSignature.

References WsfRadarSignature().

◆ GetInputType()

WsfStringId WsfRadarSignature::GetInputType ( WsfPlatform * aPlatformPtr )

static

Get the input type of the signature.

Parameters

aPlatformPtr [input] The pointer to the platform containing the signature.

Returns: The current signature state.

References cSIGNATURE_INDEX, WsfSignatureList::GetInputType(), and WsfPlatform::GetSignatureList().

Referenced by GetSignature().

◆ GetScaleFactor()

float WsfRadarSignature::GetScaleFactor ( WsfPlatform * aPlatformPtr )

static

Get the signature scale factor.

Parameters

aPlatformPtr [input] The pointer to the platform containing the signature.

Returns: The signature scale factor.

References cSIGNATURE_INDEX, WsfSignatureList::GetScaleFactor(), and WsfPlatform::GetSignatureList().

Referenced by GetSignature().

◆ GetSignature() [1/2]

WsfRadarSignature * WsfRadarSignature::GetSignature ( WsfPlatform * aPlatformPtr )

static

Get the radar signature object for a platform.

Parameters

aPlatformPtr [input] The pointer to the platform containing the signature.

References cSIGNATURE_INDEX, WsfPlatform::GetSignatureList(), and WsfRadarSignature().

◆ GetSignature() [2/2]

virtual float WsfRadarSignature::GetSignature	(	WsfStringId	aStateId,
		WsfEM_Types::Polarization	aPolarization,
		double	aFrequency,
		double	aTgtToXmtrAz,
		double	aTgtToXmtrEl,
		double	aTgtToRcvrAz,
		double	aTgtToRcvrEl,
		WsfEM_Xmtr *	aXmtrPtr = nullptr,
		WsfEM_Rcvr *	aRcvrPtr = nullptr )

pure virtual

Get the radar signature for a given set of conditions.

Parameters

aStateId	[input] The string ID representing the signature state to be used.
aPolarization	[input] The polarization of the signal.
aFrequency	[input] The frequency of the signal (Hz).
aTgtToXmtrAz	[input] The azimuth of the transmitter with respect to the target.
aTgtToXmtrEl	[input] The elevation of the transmitter with respect to the target.
aTgtToRcvrAz	[input] The azimuth of the receiver with respect to the target.
aTgtToRcvrEl	[input] The elevation of the receiver with respect to the target.
aXmtrPtr	[input] Optional pointer to the transmitter
aRcvrPtr	[input] Optional pointer to the receiver

Returns: The radar cross section (m^2)

Implemented in WsfChaffRadarSignature, WsfMilRadarSignature, and WsfStandardRadarSignature.

References GetInputType(), GetScaleFactor(), GetSignature(), GetSignatureLimits(), GetState(), GetValue(), RegisterInterface(), RegisterScriptMethods(), SetScaleFactor(), SetSignature(), SetState(), and WsfRadarSignature().

Referenced by GetSignature(), GetValue(), and GetValue().

◆ GetSignatureLimits()

std::pair< float, float > WsfRadarSignature::GetSignatureLimits	(	WsfStringId	aStateId,
		WsfEM_Types::Polarization	aPolarization ) const

virtual

Get the min and max radar cross section values that can be returned by GetSignature for the given signature state and polarization.

Reimplemented in WsfChaffRadarSignature, WsfMilRadarSignature, and WsfStandardRadarSignature.

Referenced by GetSignature().

◆ GetState()

WsfStringId WsfRadarSignature::GetState ( WsfPlatform * aPlatformPtr )

static

Get the current signature state.

Parameters

aPlatformPtr [input] The pointer to the platform containing the signature.

Returns: The current signature state.

References cSIGNATURE_INDEX, WsfPlatform::GetSignatureList(), and WsfSignatureList::GetState().

Referenced by GetSignature().

◆ GetValue() [1/2]

float WsfRadarSignature::GetValue	(	WsfPlatform *	aPlatformPtr,
		WsfEM_Types::Polarization	aPolarization,
		double	aFrequency,
		double	aTgtToXmtrAz,
		double	aTgtToXmtrEl,
		double	aTgtToRcvrAz,
		double	aTgtToRcvrEl )

static

Get the radar signature for a given set of conditions.

Parameters

aPlatformPtr	[input] The pointer to the platform containing the signature.
aPolarization	[input] The polarization of the signal.
aFrequency	[input] The frequency of the signal (Hz).
aTgtToXmtrAz	[input] The azimuth of the transmitter with respect to the target.
aTgtToXmtrEl	[input] The elevation of the transmitter with respect to the target.
aTgtToRcvrAz	[input] The azimuth of the receiver with respect to the target.
aTgtToRcvrEl	[input] The elevation of the receiver with respect to the target.

Returns: The radar cross section (m^2)

References cSIGNATURE_INDEX, WsfObject::GetName(), GetSignature(), WsfPlatform::GetSignatureList(), WsfObject::GetType(), and WsfRadarSignature().

Referenced by WsfSAR_Sensor::SAR_Mode::AttemptToDetect(), WsfSurfaceWaveRadarSensor::RadarMode::AttemptToDetect(), GetSignature(), and WsfEW_SLB_Effect::UpdateEffects().

◆ GetValue() [2/2]

float WsfRadarSignature::GetValue	(	WsfPlatform *	aPlatformPtr,
		WsfEM_Xmtr *	aXmtrPtr,
		WsfEM_Rcvr *	aRcvrPtr,
		double	aTgtToXmtrAz,
		double	aTgtToXmtrEl,
		double	aTgtToRcvrAz,
		double	aTgtToRcvrEl )

static

Get the radar signature for a given set of conditions.

Parameters

aPlatformPtr	[input] The pointer to the platform containing the signature.
aXmtrPtr	[input] The pointer to the transmitter.
aRcvrPtr	[input] The pointer to the receiver.
aTgtToXmtrAz	[input] The azimuth of the transmitter with respect to the target.
aTgtToXmtrEl	[input] The elevation of the transmitter with respect to the target.
aTgtToRcvrAz	[input] The azimuth of the receiver with respect to the target.
aTgtToRcvrEl	[input] The elevation of the receiver with respect to the target.

Returns: The radar cross section (m^2)

References cSIGNATURE_INDEX, WsfEM_XmtrRcvr::GetFrequency(), WsfObject::GetName(), WsfEM_XmtrRcvr::GetPolarization(), GetSignature(), WsfPlatform::GetSignatureList(), WsfObject::GetType(), and WsfRadarSignature().

◆ RegisterInterface()

void WsfRadarSignature::RegisterInterface ( WsfScenario & aScenario )

static

Register the platform interface object on the prototype signature list in the specified scenario.

References WsfSignatureList::AddInterface(), cSIGNATURE_INDEX, and WsfScenario::GetSignatureListPrototype().

Referenced by GetSignature(), and WsfRadarSignatureTypes::WsfRadarSignatureTypes().

◆ RegisterScriptMethods()

void WsfRadarSignature::RegisterScriptMethods ( UtScriptTypes & aScriptTypes )

static

Register the script methods associated with this class.

Note: The WsfPlatform script class must be defined before calling this method.

Referenced by GetSignature(), and WsfScriptManager::RegisterTypes().

◆ SetScaleFactor()

bool WsfRadarSignature::SetScaleFactor	(	WsfPlatform *	aPlatformPtr,
		float	aScaleFactor )

static

Set the signature scale factor.

Parameters

aPlatformPtr	[input] The pointer to the platform containing the signature.
aScaleFactor	[input] The new signature scale factor.

Returns: true if successful, false if and error occurred.

References cSIGNATURE_INDEX, WsfPlatform::GetSignatureList(), and WsfSignatureList::SetScaleFactor().

Referenced by GetSignature().

◆ SetSignature()

bool WsfRadarSignature::SetSignature	(	WsfPlatform *	aPlatformPtr,
		WsfRadarSignature *	aSignaturePtr )

static

Get the radar signature object for a platform.

Parameters

aPlatformPtr	[input] The pointer to the platform containing the signature.
aSignaturePtr	[input] The pointer to the signature. The system assumes ownership if the method completes successfully.

References cSIGNATURE_INDEX, WsfPlatform::GetSignatureList(), WsfPlatform::GetSimTime(), WsfSignature::Initialize(), WsfSignature::InitializeType(), ok, and WsfRadarSignature().

Referenced by WsfChaffWeapon::AddWeaponToSimulation(), RadarEnvelopeFunction::Execute(), and GetSignature().

◆ SetState()

bool WsfRadarSignature::SetState	(	WsfPlatform *	aPlatformPtr,
		WsfStringId	aState )

static

Set the signatures state

Parameters

aPlatformPtr	[input] The pointer to the platform containing the signature.
aState	[input] The new signatures state.

Returns: true if successful, false if and error occurred.

References cSIGNATURE_INDEX, WsfPlatform::GetSignatureList(), and WsfSignatureList::SetState().

Referenced by GetSignature().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Methods to support the actual interface on the platform.

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ WsfRadarSignature()

Member Function Documentation

◆ Clone()

◆ GetInputType()

◆ GetScaleFactor()

◆ GetSignature() [1/2]

◆ GetSignature() [2/2]

◆ GetSignatureLimits()

◆ GetState()

◆ GetValue() [1/2]

◆ GetValue() [2/2]

◆ RegisterInterface()

◆ RegisterScriptMethods()

◆ SetScaleFactor()

◆ SetSignature()

◆ SetState()
