#include <WsfEW_Result.hpp>

Inheritance diagram for WsfEW_Result:

[legend]

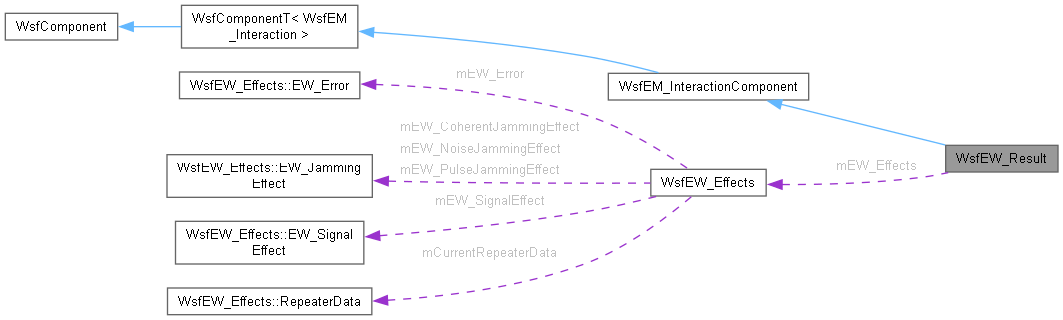

Collaboration diagram for WsfEW_Result:

[legend]

Public Member Functions
	WsfEW_Result ()=default
	~WsfEW_Result () override=default
Public Member Functions inherited from WsfComponentT< WsfEM_Interaction >
	WsfComponentT ()
WsfComponentT &	operator= (const WsfComponentT &) noexcept
	~WsfComponentT () override=default
virtual void	ComponentParentChanged (ParentType *aParentPtr)
ParentType *	GetComponentParent () const
void	SetComponentParent (ParentType *aParentPtr)
Public Member Functions inherited from WsfComponent
virtual	~WsfComponent ()=default
virtual int	GetComponentInitializationOrder () const
template<typename T>
bool	QueryInterfaceT (T *&aRolePtr)
bool	ComponentHasRole (int aRole)
	Returns true if the component has the specified role.
virtual bool	PreInitialize (double aSimTime)
virtual bool	Initialize (double aSimTime)
virtual bool	Initialize2 (double aSimTime)
virtual void	PreInput ()
virtual bool	ProcessInput (UtInput &aInput)

Static Public Member Functions
static WsfEW_Result *	Find (const WsfEM_Interaction &aEM_Interaction)
static WsfEW_Result &	FindOrCreate (WsfEM_Interaction &aResult)

Component infrastructure methods
WsfEW_Effects	mEW_Effects
	EW Effects result data and methods.
double	mNoiseJammerPower {0.0}
double	mPulseJammerPower {0.0}
double	mCoherentJammerPower {0.0}
bool	mPerceivesCoherentJamming {false}
	True if coherent (FT) jamming is perceived as determined by the coherent JNR threshold.
bool	mPerceivesContJamming {false}
	True if noise type jamming is perceived as determined by the noise JNR threshold.
bool	mPerceivesPulseJamming {false}
	True if Pulse type jamming is perceived as determined by the pulse JNR threshold.
WsfComponent *	CloneComponent () const override
WsfStringId	GetComponentName () const override
const int *	GetComponentRoles () const override
void *	QueryInterface (int aRole) override
void	Print (ut::log::MessageStream &aMsgStream, WsfEM_Interaction &aEM_Interaction) override
	Print the result data to stdout.
void	PrintStatus (ut::log::MessageStream &aMsgStream, WsfEM_Interaction &aEM_Interaction) override
void	Reset () override
bool	PrintEventOutput (std::ostream &aStream) override
void	PrintEventOutput_Powers (std::ostream &aStream) override
bool	PrintCSV_EventOutput (std::ostream &aStream) override
bool	PrintCSV_EventOutput_Powers (std::ostream &aStream) override

Additional Inherited Members
Public Types inherited from WsfComponentT< WsfEM_Interaction >
typedef WsfEM_Interaction	ParentType
	This is needed to support the WsfComponentList template.

Detailed Description

A component attached to WsfEM_Interaction that contains the results of EW interactions. This component is common to both comm and sensor interactions as they are so similar the sensor result only contained an additional element for false targets.) This ensures that a component attached in WsfRF_Jammer will be usable by both the EW comm and sensor components.

Constructor & Destructor Documentation

◆ WsfEW_Result()

WsfEW_Result::WsfEW_Result ( )

default

Referenced by CloneComponent(), Find(), and FindOrCreate().

◆ ~WsfEW_Result()

WsfEW_Result::~WsfEW_Result ( )

overridedefault

References WsfEM_InteractionComponent::WsfEM_Interaction.

Member Function Documentation

◆ CloneComponent()

WsfComponent * WsfEW_Result::CloneComponent ( ) const

overridevirtual

Clones a component. May return null if component does not support clone.

Implements WsfComponent.

References WsfEW_Result().

◆ Find()

WsfEW_Result * WsfEW_Result::Find ( const WsfEM_Interaction & aEM_Interaction )

static

References WsfComponentList::FindByRole(), WsfEM_Interaction::GetComponents(), WsfEM_InteractionComponent::WsfEM_Interaction, and WsfEW_Result().

Referenced by WsfRF_Repeater::CheckDetectAndUpdate(), WsfFalseTargetBlip::ComputeRcvdPower(), WsfRF_Jammer::ComputeSingleJammerEffect(), WsfEW_SensorComponent::ComputeSphericalMeasurementErrors(), WsfRF_Jammer::ComputeTotalJammerEffects(), WsfRadarMTD_SignalProcessor::Execute(), WsfRadarMTI_SignalProcessor::Execute(), WsfRadarPD_SignalProcessor::Execute(), WsfRadarSTC_SignalProcessor::Execute(), FindOrCreate(), WsfFalseTarget::PowerSufficiencyCheck(), wsf::event::JammingAttempt::Print(), wsf::event::JammingAttempt::PrintCSV(), WsfEW_CoverPulseEffect::UpdateEffects(), WsfEW_PowerEffect::UpdateEffects(), WsfEW_RepeaterEffect::UpdateEffects(), WsfEW_RPJ_Effect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_TrackEffect::UpdateEffects(), WsfEM_InteractionScriptMethods::UT_DEFINE_SCRIPT_METHOD_EXT(), WsfEM_InteractionScriptMethods::UT_DEFINE_SCRIPT_METHOD_EXT(), WsfEM_InteractionScriptMethods::UT_DEFINE_SCRIPT_METHOD_EXT(), WsfEM_InteractionScriptMethods::UT_DEFINE_SCRIPT_METHOD_EXT(), and WsfEM_InteractionScriptMethods::UT_DEFINE_SCRIPT_METHOD_EXT().

◆ FindOrCreate()

WsfEW_Result & WsfEW_Result::FindOrCreate ( WsfEM_Interaction & aResult )

static

References WsfEM_Interaction::AddComponent(), Find(), WsfEM_InteractionComponent::WsfEM_Interaction, and WsfEW_Result().

Referenced by WsfEW_SensorComponent::AttemptToDetect(), WsfEW_SensorComponent::AttemptToDetectFalseTarget(), WsfEW_CommComponent::AttemptToReceive(), WsfRF_Jammer::ComputeJammerPower(), WsfRF_Jammer::ComputeJammerPower(), WsfRF_Jammer::ComputeJammerPowers(), WsfRF_Jammer::ComputeJammerPowers(), WsfRF_Jammer::ComputeSingleJammerEffect(), WsfRF_Jammer::ComputeTotalJammerEffects(), and WsfEW_SensorComponent::EW_Beam::DetectJamStrobes().

◆ GetComponentName()

WsfStringId WsfEW_Result::GetComponentName ( ) const

overridevirtual

Returns the component's name. Each component in a component list has a unique name. Names are usually defined by the user, but they may also be generated by code and prefixed with a '#' to guarantee no collisions with user-defined names.

Implements WsfComponent.

◆ GetComponentRoles()

const int * WsfEW_Result::GetComponentRoles ( ) const

overridevirtual

Returns a zero-terminated array of component roles. Note that the array should be in decreasing order of specificity and should generally the inheritance hierarchy. The first entry should be the components 'primary' role. For example a sensor would do the following:

static const int roles[] = { cWSF_COMPONENT_SENSOR, cWSF_COMPONENT_ARTICULATED_PART,
                             cWSF_COMPONENT_PLATFORM_PART, 0 };
return roles;

Implements WsfComponent.

References cWSF_COMPONENT_EW_RESULT.

◆ Print()

void WsfEW_Result::Print	(	ut::log::MessageStream &	aMsgStream,
		WsfEM_Interaction &	aEM_Interaction )

overridevirtual

Print the result data to stdout.

Reimplemented from WsfEM_InteractionComponent.

References mCoherentJammerPower, mEW_Effects, WsfEM_Interaction::mFailedStatus, mNoiseJammerPower, mPulseJammerPower, and WsfEM_InteractionComponent::WsfEM_Interaction.

◆ PrintCSV_EventOutput()

bool WsfEW_Result::PrintCSV_EventOutput ( std::ostream & aStream )

overridevirtual

Reimplemented from WsfEM_InteractionComponent.

References WsfEW_Effect::cEB_DROP_MESSAGE, WsfEW_Effect::cEB_DROP_TRACK, WsfEW_Effect::cEB_FALSE_TARGET_EFFECT, WsfEW_Effect::cEB_FLOODED_BLOCKED, WsfEW_Effect::cEB_FLOODED_MAINTAINED, WsfEW_Effect::cEB_JAMMER_POWER_EFFECT, WsfEW_Effect::cEB_MAINTAIN_MESSAGE, WsfEW_Effect::cEB_MAINTAIN_TRACK, WsfEW_Effect::cEB_MESSAGE_ERROR, WsfEW_Effect::cEB_PULSE_EFFECT, WsfEW_Effect::cEB_TRACK_ERROR, and mEW_Effects.

◆ PrintCSV_EventOutput_Powers()

bool WsfEW_Result::PrintCSV_EventOutput_Powers ( std::ostream & aStream )

overridevirtual

Reimplemented from WsfEM_InteractionComponent.

References mCoherentJammerPower, mNoiseJammerPower, and mPulseJammerPower.

◆ PrintEventOutput()

bool WsfEW_Result::PrintEventOutput ( std::ostream & aStream )

overridevirtual

◆ PrintEventOutput_Powers()

void WsfEW_Result::PrintEventOutput_Powers ( std::ostream & aStream )

overridevirtual

Reimplemented from WsfEM_InteractionComponent.

References mCoherentJammerPower, and mPulseJammerPower.

◆ PrintStatus()

void WsfEW_Result::PrintStatus	(	ut::log::MessageStream &	aMsgStream,
		WsfEM_Interaction &	aEM_Interaction )

overridevirtual

Reimplemented from WsfEM_InteractionComponent.

References mPerceivesCoherentJamming, mPerceivesContJamming, mPerceivesPulseJamming, and WsfEM_InteractionComponent::WsfEM_Interaction.

◆ QueryInterface()

void * WsfEW_Result::QueryInterface ( int aRole )

overridevirtual

Requests a component's role interface. A component can support one or more roles.

Parameters

aRole The role whose interface is to be returned.

Returns: A pointer to the object if it supports the indicated role, or 'null' if it does not. Usage: WsfProcessor* procPtrOrNull = (WsfProcessor*)componentPtr->QueryComponentInterface(cWSF_COMPONENT_PROCESSOR);

Implements WsfComponent.

References cWSF_COMPONENT_EW_RESULT.
