#include <WsfEW_Effect.hpp>

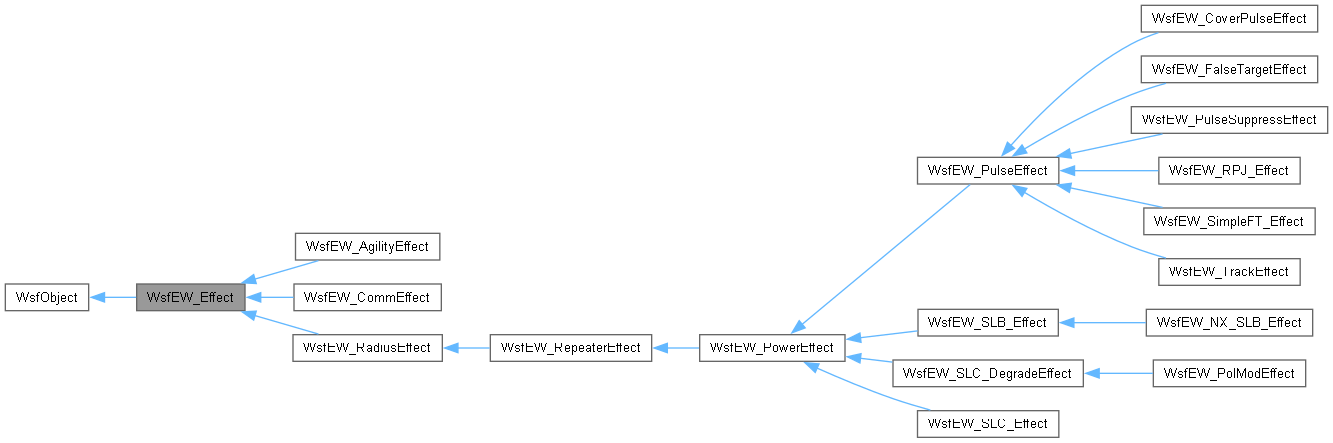

Inheritance diagram for WsfEW_Effect:

[legend]

Collaboration diagram for WsfEW_Effect:

Classes
class	EffectData
	Base effect data used to derive from in inheriting effect classes. More...

Public Types
enum	Behavior { cEB_UNDEFINED = 1 , cEB_DROP_TRACK = cEB_UNDEFINED << 1 , cEB_MAINTAIN_TRACK = cEB_UNDEFINED << 2 , cEB_TRACK_ERROR = cEB_UNDEFINED << 3 , cEB_DROP_MESSAGE = cEB_UNDEFINED << 4 , cEB_MAINTAIN_MESSAGE = cEB_UNDEFINED << 5 , cEB_MESSAGE_ERROR = cEB_UNDEFINED << 6 , cEB_JAMMER_POWER_EFFECT = cEB_UNDEFINED << 7 , cEB_SIGNAL_POWER_EFFECT = cEB_UNDEFINED << 8 , cEB_SLC_DEGRADE_EFFECT = cEB_UNDEFINED << 9 , cEB_FALSE_TARGET_EFFECT = cEB_UNDEFINED << 10 , cEB_PULSE_EFFECT = cEB_UNDEFINED << 11 , cEB_AGILITY_EFFECT = cEB_UNDEFINED << 12 , cEB_REPEATER_EFFECT = cEB_UNDEFINED << 13 , cEB_REPEATER_UPDATE = cEB_UNDEFINED << 14 , cEB_FLOODED_BLOCKED = cEB_UNDEFINED << 15 , cEB_FLOODED_MAINTAINED = cEB_UNDEFINED << 16 , cEB_JAM_STROBE_EFFECT = cEB_UNDEFINED << 17 , cEB_TARGET_REJECT_EFFECT = cEB_UNDEFINED << 18 , cEB_NEXT_FREE_MASK = cEB_UNDEFINED << 19 }
	The behavior the EW effect exhibits. More...
enum	Coherency { cEC_NONE = 1 , cEC_NONCOHERENT = cEC_NONE << 1 , cEC_COHERENT = cEC_NONE << 2 , cEC_NONCOHERENT_PULSE = cEC_NONE << 3 , cEC_COHERENT_PULSE = cEC_NONE << 4 }
	The signal coherency the EW effect exhibits on the affected system. More...
enum	ModulationType { cEM_NONE = 1 , cEM_CW = cEM_NONE << 1 , cEM_COHPULSE = cEM_NONE << 2 , cEM_NONCOHPULSE = cEM_NONE << 3 , cEM_LINEARFM = cEM_NONE << 4 , cEM_NONLINEARFM = cEM_NONE << 5 , cEM_PHASEKEY = cEM_NONE << 6 , cEM_PHASEMOD = cEM_NONE << 7 , cEM_PHASECODE = cEM_NONE << 8 , cEM_ASK = cEM_NONE << 9 , cEM_FSK = cEM_NONE << 10 , cEM_PSK = cEM_NONE << 11 , cEM_BPSK = cEM_NONE << 12 , cEM_QPSK = cEM_NONE << 13 , cEM_DPSK = cEM_NONE << 14 , cEM_QAM = cEM_NONE << 15 }
enum	TargetProtectionType { cTP_ALL , cTP_NON_SELF_PROTECT , cTP_SELF_PROTECT }
	The target protection type this effect is limited to. More...
enum	SystemFunction { cES_UNDEFINED = 1 , cES_COMM = cES_UNDEFINED << 1 , cES_SENSOR = cES_UNDEFINED << 2 , cES_JAMMER = cES_UNDEFINED << 3 , cES_NEXT_FREE_MASK = cES_UNDEFINED << 4 }
	The type of system function types the EW effect can affect. More...
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.

Public Member Functions
	WsfEW_Effect ()=default
WsfEW_Effect &	operator= (const WsfEW_Effect &)=delete
	~WsfEW_Effect () override
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Effect Data methods.
using	EffectDataMap = std::map<WsfStringId, EffectData*>
unsigned int	mSystemFunctionMask {cES_UNDEFINED}
	The system type mask that this EW effect can affect.
Behavior	mBehavior {cEB_UNDEFINED}
	The behavior that this EW effect exhibits.
unsigned int	mCoherencyMask {cEC_NONE}
	The coherency of this effect wrt to the affected system.
bool	mDebug {false}
	The debug flag, 'true' for debug, false otherwise.
WsfStringId	mCurrentTargetId {nullptr}
	Current target Id.
WsfStringId	mCurrentXmtrPlatformId {nullptr}
	Current transmitting platform Id.
WsfStringId	mCurrentRcvrPlatformId {nullptr}
	Current receiving platform Id.
int	mCurrentXmtrUniqueId {0}
	Current transmitter unique Id.
int	mCurrentRcvrUniqueId {0}
	Current receiver unique Id.
WsfStringId	mEffectedSystemId {nullptr}
	The type Id of the system being effected, changes with each call to UpdateEffects(...) or UpdateCurrentIds(...).
WsfStringId	mEffectingSystemId {nullptr}
	The type Id of the system doing the effecting, changes with each call to UpdateEffects(...) or UpdateCurrentIds(...).
bool	mUpdatingEffect {true}
	Variable to prevent infinite recursion in UpdateEffect.
EffectDataMap	mEffectDataMap
	Map of the System Type Id to the data required for this effect.
bool	ProcessEffectDataBlock (UtInputBlock &aInputBlock, WsfStringId aSystemTypeId)
virtual EffectData &	GetEffectData (WsfStringId aSystemTypeId)
void	ResetEffectData (WsfStringId aSystemTypeId)
bool	EffectDataExists (WsfStringId aSystemTypeId) const
virtual EffectData *	NewEffectData ()
void	InsertNewEffectData (WsfStringId aSystemTypeId, WsfEW_Types::EW_EffectData *aEffectPtr)
virtual EffectData *	PropagateEffectDataPtr (WsfStringId aSystemTypeId)

Common infrastructure methods.
WsfEW_Effect *	Clone () const override=0
virtual bool	Initialize (WsfSimulation &aSimulation)
bool	ProcessInput (UtInput &aInput) override

Effect methods.
virtual void	ProcessUnmitigatedEffect (double aSimTime, const WsfEM_Interaction &aTargetInteraction, const WsfEM_Interaction &aJammerToTgtInteraction, const ut::optional< WsfEM_Interaction > &aTgtToJammerInteraction, WsfEW_Effects &aEW_Effects)
virtual void	ProcessMitigatedEffect (double aSimTime, const WsfEM_Interaction &aTargetInteraction, const WsfEM_Interaction &aJammerToTgtInteraction, const ut::optional< WsfEM_Interaction > &aTgtToJammerInteraction, WsfEW_Effects &aEW_Effects, WsfEW_Effect *aEW_EffectPtr=nullptr)

Internal use only effect methods.
virtual void	ApplyUnmitigatedEffect (WsfEW_Effects &aEW_Effects) const =0
virtual void	ApplyMitigatedEffect (WsfEW_Effect *aEW_EffectPtr, WsfEW_Effects &aEW_Effects) const =0
virtual void	UpdateEffects (double aSimTime, const WsfEM_Interaction &aTargetInteraction, const WsfEM_Interaction &aJammerToTgtInteraction, const ut::optional< WsfEM_Interaction > &aTgtToJammerInteraction, WsfEW_Effects &aEW_Effects, WsfEW_Effect *aEW_EffectPtr=nullptr)

Jammer management methods.
virtual void	RemoveJammerXmtr (unsigned int aXmtrId)
virtual void	RemoveJammerXmtr (WsfEM_Xmtr *aJammerXmtrPtr)

System function methods.
void	SetSystemFunctionMask (SystemFunction aSystemFunction)
	Set the system type.
void	SetSystemFunctionMask (const std::string &aSystemFunctionId)
void	AddSystemFunctionMask (SystemFunction aSystemFunction)
	Set the system type.
void	AddSystemFunctionMask (const std::string &aSystemFunctionId)
unsigned int	GetSystemFunctionMask () const
static WsfEW_Effect::SystemFunction	ConvertToEW_SystemFunction (WsfEM_Rcvr::RcvrFunction aRcvrFunction)
static WsfEW_Effect::SystemFunction	ConvertToEW_SystemFunction (WsfEM_Xmtr::XmtrFunction aXmtrFunction)

Coherency Type methods.
void	SetCoherencyMask (Coherency aCoherency)
void	AddCoherencyMask (Coherency aCoherency)
unsigned int	GetCoherencyMask () const
static unsigned int	ConvertCoherencyIdToMask (WsfStringId aCoherencyId)

Behavior methods.
void	SetBehavior (Behavior aBehavior)
Behavior	GetBehavior () const

Debug methods.
void	SetDebug (bool aDebug)
bool	DebugEnabled () const

Class pointer methods.
void	SetEA_EP_Ptr (WsfEW_EA_EP *aPtr)
WsfEW_EA_EP *	GetEA_EP_Ptr () const
WsfEW_EA *	GetEA_Ptr () const
WsfEW_EP *	GetEP_Ptr () const
WsfEW_Technique *	GetTechniquePtr () const
void	SetTechniquePtr (WsfEW_Technique *aPtr)
virtual double	GetJammingPulseDensity () const
virtual double	GetJammingPulseDensity (WsfEM_Xmtr *aXmtrPtr) const
virtual bool	AllowTarget (WsfPlatform aXmtrPlatform, WsfPlatform aTargetPlatform) const

Current Id methods.
virtual void	UpdateCurrentIds (WsfEM_Rcvr aRcvrPtr, WsfEM_Xmtr aXmtrPtr, WsfPlatform *aTargetPtr)
WsfSimulation *	GetSimulation () const
ut::Random &	GetRandom ()
	WsfEW_Effect (const WsfEW_Effect &aSrc)
virtual void	PrintUpdateMessage (ut::log::MessageStream &aStream, double aSimTime, WsfEW_Effect *aEW_EffectPtr=nullptr)
void	ResetProtectionTypeFlag (WsfEM_Xmtr *aXmtrPtr, const WsfEM_Interaction &aTargetInteraction, WsfEW_Effects &aEW_Effects)

Additional Inherited Members
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Detailed Description

WsfEW_Effect is an abstract base class that represents an EW (Electronic Warfare) effect. If provides two methods that are used to affect an EW error. The first method, 'ApplyUnmitigatedEffect' is responsible for applying the EW effect to the errors. The second method, 'ApplyMitigatedEffect' is responsible for applying any mitigating effects to the error. WsfEW_Effect works in conjunction with the type list WsfEW_EffectTypes.

Member Typedef Documentation

◆ EffectDataMap

using WsfEW_Effect::EffectDataMap = std::map<WsfStringId, EffectData*>

protected

Member Enumeration Documentation

◆ Behavior

enum WsfEW_Effect::Behavior

The behavior the EW effect exhibits.

Enumerator
cEB_UNDEFINED
cEB_DROP_TRACK	Track is dropped.
cEB_MAINTAIN_TRACK	Track is maintained.
cEB_TRACK_ERROR	Track errors are applied.
cEB_DROP_MESSAGE	Message is dropped.
cEB_MAINTAIN_MESSAGE	Message is maintained.
cEB_MESSAGE_ERROR	Message error is applied.
cEB_JAMMER_POWER_EFFECT	Jammer power gain effect.
cEB_SIGNAL_POWER_EFFECT	Signal power or receiver noise delta gain effect.
cEB_SLC_DEGRADE_EFFECT	Sidelobe canceler degrade effect.
cEB_FALSE_TARGET_EFFECT	False target effect.
cEB_PULSE_EFFECT	Pulse jammer effect.
cEB_AGILITY_EFFECT	Agility effects are applied.
cEB_REPEATER_EFFECT	Repeater jamming effects are applied.
cEB_REPEATER_UPDATE	Repeater logic is present and is updated.
cEB_FLOODED_BLOCKED	System is flooded, either track or messages and is causing blockage.
cEB_FLOODED_MAINTAINED	System is flooded, either track or messages, but is mitigated.
cEB_JAM_STROBE_EFFECT	Jam strobe effects are applied.
cEB_TARGET_REJECT_EFFECT	Reject target effect, used to zero jamming power when applied.
cEB_NEXT_FREE_MASK	For use by derived classes to specify additional behavior masks.

◆ Coherency

enum WsfEW_Effect::Coherency

The signal coherency the EW effect exhibits on the affected system.

Enumerator
cEC_NONE
cEC_NONCOHERENT
cEC_COHERENT
cEC_NONCOHERENT_PULSE
cEC_COHERENT_PULSE

◆ ModulationType

enum WsfEW_Effect::ModulationType

The type of modulation the EW effect exhibits for modulated signal effects. Utilized by inheriting classes.

Enumerator
cEM_NONE
cEM_CW
cEM_COHPULSE
cEM_NONCOHPULSE
cEM_LINEARFM
cEM_NONLINEARFM
cEM_PHASEKEY
cEM_PHASEMOD
cEM_PHASECODE
cEM_ASK
cEM_FSK
cEM_PSK
cEM_BPSK
cEM_QPSK
cEM_DPSK
cEM_QAM

◆ SystemFunction

enum WsfEW_Effect::SystemFunction

The type of system function types the EW effect can affect.

Enumerator
cES_UNDEFINED
cES_COMM	Effect is meant for comm systems.
cES_SENSOR	Effect is meant for sensor systems.
cES_JAMMER	Effect is meant for jammer systems.
cES_NEXT_FREE_MASK	For use by derived classes to specify additional EW function masks.

◆ TargetProtectionType

enum WsfEW_Effect::TargetProtectionType

The target protection type this effect is limited to.

Enumerator
cTP_ALL
cTP_NON_SELF_PROTECT
cTP_SELF_PROTECT

Constructor & Destructor Documentation

◆ WsfEW_Effect() [1/2]

WsfEW_Effect::WsfEW_Effect ( )

default

Referenced by WsfEW_AgilityEffect::ApplyMitigatedEffect(), WsfEW_CommEffect::ApplyMitigatedEffect(), ApplyMitigatedEffect(), WsfEW_PowerEffect::ApplyMitigatedEffect(), WsfEW_RadiusEffect::ApplyMitigatedEffect(), WsfEW_RepeaterEffect::ApplyMitigatedEffect(), WsfEW_AgilityEffect::Clone(), WsfEW_CommEffect::Clone(), Clone(), WsfEW_PowerEffect::Clone(), WsfEW_RadiusEffect::Clone(), WsfEW_RepeaterEffect::Clone(), WsfEW_Effect::EffectData::GetEffectPtr(), operator=(), PrintUpdateMessage(), ProcessMitigatedEffect(), WsfEW_Effect::EffectData::SetEffectPtr(), WsfEW_AgilityEffect::UpdateEffects(), UpdateEffects(), WsfEW_PowerEffect::UpdateEffects(), WsfEW_RadiusEffect::UpdateEffects(), WsfEW_RepeaterEffect::UpdateEffects(), WsfEW_AgilityEffect::WsfEW_AgilityEffect(), WsfEW_Effect(), WsfEW_RadiusEffect::WsfEW_RadiusEffect(), WsfEW_RadiusEffect::WsfEW_RadiusEffect(), WsfEW_AgilityEffect::~WsfEW_AgilityEffect(), WsfEW_CommEffect::~WsfEW_CommEffect(), WsfEW_PowerEffect::~WsfEW_PowerEffect(), WsfEW_RadiusEffect::~WsfEW_RadiusEffect(), and WsfEW_RepeaterEffect::~WsfEW_RepeaterEffect().

◆ ~WsfEW_Effect()

WsfEW_Effect::~WsfEW_Effect ( )

override

References mEffectDataMap.

◆ WsfEW_Effect() [2/2]

WsfEW_Effect::WsfEW_Effect ( const WsfEW_Effect & aSrc )

protected

References mBehavior, mCoherencyMask, mCurrentRcvrPlatformId, mCurrentRcvrUniqueId, mCurrentTargetId, mCurrentXmtrPlatformId, mCurrentXmtrUniqueId, mDebug, mEffectDataMap, mEffectedSystemId, mEffectingSystemId, mSystemFunctionMask, mUpdatingEffect, WsfEW_Effect(), and WsfObject::WsfObject().

Member Function Documentation

◆ AddCoherencyMask()

void WsfEW_Effect::AddCoherencyMask ( Coherency aCoherency )

inline

Add the coherency type of the EW effect.

Parameters

aCoherency The coherency of the EW effect exhibits.

References mCoherencyMask.

◆ AddSystemFunctionMask() [1/2]

void WsfEW_Effect::AddSystemFunctionMask ( const std::string & aSystemFunctionId )

References cES_COMM, cES_JAMMER, cES_SENSOR, cES_UNDEFINED, and mSystemFunctionMask.

◆ AddSystemFunctionMask() [2/2]

void WsfEW_Effect::AddSystemFunctionMask ( SystemFunction aSystemFunction )

inline

Set the system type.

References mSystemFunctionMask.

◆ AllowTarget()

bool WsfEW_Effect::AllowTarget	(	WsfPlatform *	aXmtrPlatform,
		WsfPlatform *	aTargetPlatform ) const

virtual

References cTP_NON_SELF_PROTECT, cTP_SELF_PROTECT, WsfObject::GetNameId(), and WsfObject::GetTypeId().

Referenced by ProcessMitigatedEffect(), ProcessUnmitigatedEffect(), and ResetProtectionTypeFlag().

◆ ApplyMitigatedEffect()

virtual void WsfEW_Effect::ApplyMitigatedEffect	(	WsfEW_Effect *	aEW_EffectPtr,
		WsfEW_Effects &	aEW_Effects ) const

pure virtual

◆ ApplyUnmitigatedEffect()

virtual void WsfEW_Effect::ApplyUnmitigatedEffect ( WsfEW_Effects & aEW_Effects ) const

pure virtual

◆ Clone()

WsfEW_Effect * WsfEW_Effect::Clone ( ) const

overridepure virtual

Clone this object.

Returns: a pointer to the new object.

Implements WsfObject.

Implemented in WsfEW_AgilityEffect, WsfEW_CommEffect, WsfEW_CoverPulseEffect, WsfEW_FalseTargetEffect, WsfEW_NX_SLB_Effect, WsfEW_PolModEffect, WsfEW_PowerEffect, WsfEW_PulseEffect, WsfEW_PulseSuppressEffect, WsfEW_RadiusEffect, WsfEW_RepeaterEffect, WsfEW_RPJ_Effect, WsfEW_SimpleFT_Effect, WsfEW_SLB_Effect, WsfEW_SLC_DegradeEffect, WsfEW_SLC_Effect, and WsfEW_TrackEffect.

References Initialize(), ProcessMitigatedEffect(), ProcessUnmitigatedEffect(), and WsfEW_Effect().

◆ ConvertCoherencyIdToMask()

unsigned int WsfEW_Effect::ConvertCoherencyIdToMask ( WsfStringId aCoherencyId )

static

References cEC_COHERENT, cEC_COHERENT_PULSE, cEC_NONCOHERENT, cEC_NONCOHERENT_PULSE, and cEC_NONE.

Referenced by UT_DEFINE_SCRIPT_METHOD().

◆ ConvertToEW_SystemFunction() [1/2]

WsfEW_Effect::SystemFunction WsfEW_Effect::ConvertToEW_SystemFunction ( WsfEM_Rcvr::RcvrFunction aRcvrFunction )

static

A convenience function that converts a receiver's function to the appropriate system function.

Parameters

aRcvrFunction The receiver's function (i.e. comm, sensor, jammer, etc.).

Returns: Returns the corresponding system type.

References cES_COMM, cES_JAMMER, cES_SENSOR, cES_UNDEFINED, WsfEM_Rcvr::cRF_COMM, WsfEM_Rcvr::cRF_INTERFERER, WsfEM_Rcvr::cRF_PASSIVE_SENSOR, and WsfEM_Rcvr::cRF_SENSOR.

Referenced by WsfEW_Effects::Process(), and WsfEW_SimpleFT_Effect::UpdateEffects().

◆ ConvertToEW_SystemFunction() [2/2]

WsfEW_Effect::SystemFunction WsfEW_Effect::ConvertToEW_SystemFunction ( WsfEM_Xmtr::XmtrFunction aXmtrFunction )

static

A convenience function that converts a transmitter's function to the appropriate system function.

Parameters

aXmtrFunction The transmitter's function (i.e. comm, sensor, jammer, etc.).

Returns: Returns the corresponding system type.

References cES_COMM, cES_JAMMER, cES_SENSOR, cES_UNDEFINED, WsfEM_Xmtr::cXF_COMM, WsfEM_Xmtr::cXF_INTERFERER, and WsfEM_Xmtr::cXF_SENSOR.

◆ DebugEnabled()

bool WsfEW_Effect::DebugEnabled ( ) const

inline

Get the debug flag state.

Returns: Returns the debug flag state, 'true' or 'false'.

References mDebug.

Referenced by WsfEW_FalseTargetEffect::FT_Data::Initialize().

◆ EffectDataExists()

bool WsfEW_Effect::EffectDataExists ( WsfStringId aSystemTypeId ) const

protected

References mEffectDataMap.

◆ GetBehavior()

Behavior WsfEW_Effect::GetBehavior ( ) const

inline

Get the behavior of the EW Effect.

Returns: Returns the behavior this EW effect exhibits.

References mBehavior.

Referenced by WsfEW_CommEffect::ApplyMitigatedEffect(), WsfEW_TrackEffect::ApplyMitigatedEffect(), WsfEW_CommEffect::ApplyUnmitigatedEffect(), WsfEW_TrackEffect::ApplyUnmitigatedEffect(), and WsfEW_TrackEffect::UpdateEffects().

◆ GetCoherencyMask()

unsigned int WsfEW_Effect::GetCoherencyMask ( ) const

inline

Get the coherency of the EW Effect.

Returns: Returns the coherency type this EW effect exhibits.

References mCoherencyMask.

Referenced by WsfEW_PowerEffect::ApplyMitigatedEffect(), WsfEW_PulseSuppressEffect::ApplyMitigatedEffect(), WsfEW_RadiusEffect::ApplyMitigatedEffect(), WsfEW_SLB_Effect::ApplyMitigatedEffect(), WsfEW_SLC_Effect::ApplyMitigatedEffect(), WsfEW_PowerEffect::ApplyUnmitigatedEffect(), WsfEW_RadiusEffect::ApplyUnmitigatedEffect(), WsfEW_RepeaterEffect::ApplyUnmitigatedEffect(), WsfEW_Effects::Process(), ResetProtectionTypeFlag(), and WsfEW_RepeaterEffect::UpdateGainFactors().

◆ GetEA_EP_Ptr()

WsfEW_EA_EP * WsfEW_Effect::GetEA_EP_Ptr ( ) const

inline

Get the Electronic Attack / Electronic Protect pointer, returns NULL if not set.

Returns: Returns the associated EA pointer.

Referenced by WsfEW_SLB_Effect::Initialize(), WsfEW_SLC_Effect::Initialize(), WsfEW_TrackEffect::SensorModeDeactivated(), WsfEW_TrackEffect::SensorTrackDropped(), and WsfEW_TrackEffect::UpdateEffects().

◆ GetEA_Ptr()

WsfEW_EA * WsfEW_Effect::GetEA_Ptr ( ) const

Get the Electronic Attack pointer, returns NULL if not set or if N/A.

Returns: Returns the associated EA pointer.

Referenced by WsfEW_CommEffect::Initialize(), WsfEW_CoverPulseEffect::Initialize(), WsfEW_PowerEffect::Initialize(), WsfEW_PulseEffect::Initialize(), WsfEW_RadiusEffect::Initialize(), WsfEW_RepeaterEffect::Initialize(), WsfEW_SLC_DegradeEffect::Initialize(), WsfEW_TrackEffect::Initialize(), UpdateCurrentIds(), and WsfEW_PulseEffect::UpdateEffects().

◆ GetEffectData()

WsfEW_Effect::EffectData & WsfEW_Effect::GetEffectData ( WsfStringId aSystemTypeId )

protectedvirtual

References EffectDataExists(), and mEffectDataMap.

Referenced by WsfEW_RPJ_Effect::UpdateEffects(), and WsfEW_SimpleFT_Effect::UpdateEffects().

◆ GetEP_Ptr()

WsfEW_EP * WsfEW_Effect::GetEP_Ptr ( ) const

Get the Electronic Protect pointer, returns NULL if not set or if N/A.

Returns: Returns the associated EP pointer.

Referenced by Initialize(), PrintUpdateMessage(), WsfEW_TrackEffect::SensorModeDeactivated(), WsfEW_TrackEffect::SensorTrackDropped(), UpdateCurrentIds(), WsfEW_CoverPulseEffect::UpdateEffects(), and WsfEW_TrackEffect::UpdateEffects().

◆ GetJammingPulseDensity() [1/2]

virtual double WsfEW_Effect::GetJammingPulseDensity ( ) const

inlinevirtual

Get the current jamming pulse density.

Returns: The jamming pulse density, not set if it is <= 0.0.

Reimplemented in WsfEW_PulseEffect.

Referenced by WsfEW_SLB_Effect::UpdateEffects(), and WsfEW_SLC_Effect::UpdateEffects().

◆ GetJammingPulseDensity() [2/2]

virtual double WsfEW_Effect::GetJammingPulseDensity ( WsfEM_Xmtr * aXmtrPtr ) const

inlinevirtual

Reimplemented in WsfEW_PulseEffect.

◆ GetRandom()

ut::Random & WsfEW_Effect::GetRandom ( )

inline

Referenced by WsfEW_TrackEffect::TrackEffectData::WalkoffData::GetDelayTime(), WsfEW_TrackEffect::TrackEffectData::WalkoffData::GetHoldoutTime(), WsfEW_TrackEffect::TrackEffectData::WalkoffData::GetRecycleTime(), WsfEW_CoverPulseEffect::UpdateEffects(), WsfEW_PulseSuppressEffect::UpdateEffects(), WsfEW_RPJ_Effect::UpdateEffects(), and WsfEW_SLB_Effect::UpdateEffects().

◆ GetSimulation()

WsfSimulation * WsfEW_Effect::GetSimulation ( ) const

Referenced by WsfEW_AgilityEffect::ApplyUnmitigatedEffect(), WsfEW_FalseTargetEffect::FT_Data::Initialize(), WsfEW_SLB_Effect::Initialize(), WsfEW_SLC_Effect::Initialize(), WsfEW_SLB_Effect::UpdateEffects(), and WsfEW_SLC_Effect::UpdateEffects().

◆ GetSystemFunctionMask()

unsigned int WsfEW_Effect::GetSystemFunctionMask ( ) const

inline

Get the system function

Returns: returns SystemFunction by value.

References mSystemFunctionMask.

◆ GetTechniquePtr()

WsfEW_Technique * WsfEW_Effect::GetTechniquePtr ( ) const

inline

Set the technique pointer associated with this effect.

Returns: Returns the technique pointer associated with this effect.

Referenced by WsfEW_EP::GetMitigatingEffects().

◆ Initialize()

bool WsfEW_Effect::Initialize ( WsfSimulation & aSimulation )

virtual

◆ InsertNewEffectData()

void WsfEW_Effect::InsertNewEffectData	(	WsfStringId	aSystemTypeId,
		WsfEW_Types::EW_EffectData *	aEffectPtr )

protected

References mEffectDataMap, and PropagateEffectDataPtr().

Referenced by WsfEW_FalseTargetEffect::GetFT_Ptr(), WsfEW_TrackEffect::SetAzimuthError(), WsfEW_RepeaterEffect::SetControlMethod(), WsfEW_RepeaterEffect::SetDesiredFT_RCS(), WsfEW_RepeaterEffect::SetDesiredJtoN(), WsfEW_RepeaterEffect::SetDesiredJtoS(), WsfEW_TrackEffect::SetElevationError(), WsfEW_RepeaterEffect::SetGainFactors(), WsfEW_PulseEffect::SetJammerPulseDensity(), WsfEW_PowerEffect::SetJammingPowerGain(), WsfEW_TrackEffect::SetLastUpdateTime(), WsfEW_RepeaterEffect::SetMaskingFactor(), WsfEW_RepeaterEffect::SetMinDetectFactor(), WsfEW_PowerEffect::SetModulationGain(), WsfEW_TrackEffect::SetPreviousJtoS(), WsfEW_TrackEffect::SetPreviousStoN(), WsfEW_TrackEffect::SetRangeError(), WsfEW_TrackEffect::SetRangeWalkoffRate(), WsfEW_PowerEffect::SetRcvrNoiseGain(), WsfEW_TrackEffect::SetRequiredStoN(), WsfEW_PowerEffect::SetSignalPowerGain(), WsfEW_TrackEffect::SetVelocityError(), WsfEW_TrackEffect::UpdateEffects(), WsfEW_CoverPulseEffect::UpdateJammerPulseDensity(), WsfEW_FalseTargetEffect::UpdateJammerPulseDensity(), WsfEW_PulseEffect::UpdateJammerPulseDensity(), and WsfEW_TrackEffect::UpdateJammerPulseDensity().

◆ NewEffectData()

virtual EffectData * WsfEW_Effect::NewEffectData ( )

inlineprotectedvirtual

Reimplemented in WsfEW_CoverPulseEffect, WsfEW_FalseTargetEffect, WsfEW_PolModEffect, WsfEW_PowerEffect, WsfEW_PulseEffect, WsfEW_RadiusEffect, WsfEW_RepeaterEffect, WsfEW_RPJ_Effect, WsfEW_SimpleFT_Effect, WsfEW_SLC_DegradeEffect, and WsfEW_TrackEffect.

Referenced by Initialize(), ProcessEffectDataBlock(), and ProcessInput().

◆ operator=()

WsfEW_Effect & WsfEW_Effect::operator= ( const WsfEW_Effect & )

delete

References WsfEW_Effect().

◆ PrintUpdateMessage()

void WsfEW_Effect::PrintUpdateMessage	(	ut::log::MessageStream &	aStream,
		double	aSimTime,
		WsfEW_Effect *	aEW_EffectPtr = nullptr )

protectedvirtual

Print the update message when in debug mode for the given type.

Parameters

aStream	Where to write to.
aSimTime	Current simulation time.
aEW_EffectPtr	Effect pointer for the currently opposing/calculating technique if applicable.

References GetEP_Ptr(), WsfObject::GetName(), mCurrentRcvrPlatformId, mCurrentTargetId, mCurrentXmtrPlatformId, and WsfEW_Effect().

Referenced by ProcessUnmitigatedEffect(), and UpdateEffects().

◆ ProcessEffectDataBlock()

bool WsfEW_Effect::ProcessEffectDataBlock	(	UtInputBlock &	aInputBlock,
		WsfStringId	aSystemTypeId )

protected

References EffectDataExists(), mEffectDataMap, NewEffectData(), and ProcessInput().

Referenced by ProcessInput().

◆ ProcessInput()

bool WsfEW_Effect::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput a reference to a UtInput object.

Returns: 'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase (or an object derived from it) if the command was recognized but contains some sort of error.

Note: If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from WsfObject.

Reimplemented in WsfEW_FalseTargetEffect, WsfEW_NX_SLB_Effect, WsfEW_PolModEffect, WsfEW_PowerEffect, WsfEW_PulseEffect, WsfEW_PulseSuppressEffect, WsfEW_RadiusEffect, WsfEW_RepeaterEffect, WsfEW_RPJ_Effect, WsfEW_SimpleFT_Effect, WsfEW_SLB_Effect, WsfEW_SLC_DegradeEffect, WsfEW_SLC_Effect, and WsfEW_TrackEffect.

References cTP_ALL, cTP_NON_SELF_PROTECT, cTP_SELF_PROTECT, EffectDataExists(), WsfObject::GetName(), WsfObject::GetNameId(), mDebug, mEffectDataMap, NewEffectData(), ProcessEffectDataBlock(), ProcessInput(), and WsfObject::SetName().

Referenced by ProcessEffectDataBlock(), WsfEW_AgilityEffect::ProcessInput(), WsfEW_CommEffect::ProcessInput(), ProcessInput(), and WsfEW_RadiusEffect::ProcessInput().

◆ ProcessMitigatedEffect()

void WsfEW_Effect::ProcessMitigatedEffect	(	double	aSimTime,
		const WsfEM_Interaction &	aTargetInteraction,
		const WsfEM_Interaction &	aJammerToTgtInteraction,
		const ut::optional< WsfEM_Interaction > &	aTgtToJammerInteraction,
		WsfEW_Effects &	aEW_Effects,
		WsfEW_Effect *	aEW_EffectPtr = nullptr )

virtual

Runs the calculation of an effect if it has been mitigated. This Unmitigated vs Mitigated is based on if there is a Electronic Protect pointer to counter the attack type of the Electronic Attack pointer.

Parameters

aSimTime	[input] The current simulation time.
aTargetInteraction	[input] The target interaction for the detection attempt.
aJammerToTgtInteraction	[input] The jammer interaction for the jammer xmtr to victim Rcvr.
aTgtToJammerInteraction	[input] Optional jammer interaction for the Victim Xmtr to jammer Rcvr. This will have no value if the jammer Rcvr doesn't exist.
aEW_Effects	[input] The current effect that is being updated.
aEW_EffectPtr	[input] The currently processing EW effect pointer to prevent recursion in EW effect processing loops.

References AllowTarget(), ApplyMitigatedEffect(), WsfEM_XmtrRcvr::GetPlatform(), WsfEM_Interaction::GetTarget(), WsfEM_Interaction::GetTransmitter(), mUpdatingEffect, UpdateEffects(), and WsfEW_Effect().

Referenced by Clone().

◆ ProcessUnmitigatedEffect()

void WsfEW_Effect::ProcessUnmitigatedEffect	(	double	aSimTime,
		const WsfEM_Interaction &	aTargetInteraction,
		const WsfEM_Interaction &	aJammerToTgtInteraction,
		const ut::optional< WsfEM_Interaction > &	aTgtToJammerInteraction,
		WsfEW_Effects &	aEW_Effects )

virtual

Runs the calculation of an effect if it has been unmitigated. This Unmitigated vs Mitigated is based on if there is a Electronic Protect pointer to counter the attack type of the Electronic Attack pointer.

Parameters

aSimTime	[input] The current simulation time.
aTargetInteraction	[input] The target interaction for the detection attempt.
aJammerToTgtInteraction	[input] The jammer interaction for the jammer xmtr to victim Rcvr.
aTgtToJammerInteraction	[input] Optional jammer interaction for the Victim Xmtr to jammer Rcvr. This will have no value if the jammer Rcvr doesn't exist.
aEW_Effects	[input] The currently processing EW effect pointer to prevent recursion in EW effect processing loops.

References AllowTarget(), ApplyUnmitigatedEffect(), WsfEM_XmtrRcvr::GetPlatform(), WsfEM_Interaction::GetReceiver(), WsfEM_Interaction::GetTarget(), WsfEM_Interaction::GetTransmitter(), mDebug, mUpdatingEffect, PrintUpdateMessage(), ResetProtectionTypeFlag(), UpdateCurrentIds(), and UpdateEffects().

Referenced by Clone(), and WsfEW_Effects::Process().

◆ PropagateEffectDataPtr()

WsfEW_Effect::EffectData * WsfEW_Effect::PropagateEffectDataPtr ( WsfStringId aSystemTypeId )

protectedvirtual

Propagate the new effect data pointer to the other classes for local casting.

Note: Assumes that the base effect data map has the correct pointer

Parameters

aSystemTypeId The system type id to propagate the pointer for.

Reimplemented in WsfEW_CoverPulseEffect, WsfEW_FalseTargetEffect, WsfEW_PolModEffect, WsfEW_PowerEffect, WsfEW_PulseEffect, WsfEW_RadiusEffect, WsfEW_RepeaterEffect, WsfEW_RPJ_Effect, WsfEW_SimpleFT_Effect, WsfEW_SLC_DegradeEffect, and WsfEW_TrackEffect.

References EffectDataExists(), WsfObject::GetName(), and mEffectDataMap.

Referenced by Initialize(), InsertNewEffectData(), and WsfEW_RadiusEffect::PropagateEffectDataPtr().

◆ RemoveJammerXmtr() [1/2]

void WsfEW_Effect::RemoveJammerXmtr ( unsigned int aXmtrId )

virtual

Remove the specified jammer from the effect and associated classes.

Parameters

aXmtrId The unique Id of the jammer transmitter.

Reimplemented in WsfEW_SLB_Effect, and WsfEW_SLC_Effect.

Referenced by ApplyMitigatedEffect().

◆ RemoveJammerXmtr() [2/2]

void WsfEW_Effect::RemoveJammerXmtr ( WsfEM_Xmtr * aJammerXmtrPtr )

virtual

Remove the specified jammer from the effect and associated classes.

Parameters

aJammerXmtrPtr The pointer to the jammer transmitter.

Reimplemented in WsfEW_SLB_Effect, and WsfEW_SLC_Effect.

◆ ResetEffectData()

void WsfEW_Effect::ResetEffectData ( WsfStringId aSystemTypeId )

inlineprotected

◆ ResetProtectionTypeFlag()

void WsfEW_Effect::ResetProtectionTypeFlag	(	WsfEM_Xmtr *	aXmtrPtr,
		const WsfEM_Interaction &	aTargetInteraction,
		WsfEW_Effects &	aEW_Effects )

protected

References AllowTarget(), cEB_TARGET_REJECT_EFFECT, cEC_COHERENT, cEC_COHERENT_PULSE, cEC_NONCOHERENT, cEC_NONCOHERENT_PULSE, cEC_NONE, GetCoherencyMask(), WsfEM_XmtrRcvr::GetPlatform(), WsfEM_Interaction::GetTarget(), WsfEW_Effects::mEW_CoherentJammingEffect, WsfEW_Effects::mEW_NoiseJammingEffect, WsfEW_Effects::mEW_PulseJammingEffect, WsfEW_Effects::mMask, and WsfEW_Effects::EW_JammingEffect::mProtectTarget.

Referenced by ProcessUnmitigatedEffect().

◆ SetBehavior()

void WsfEW_Effect::SetBehavior ( Behavior aBehavior )

inline

Set the behavior of the EW effect.

Parameters

aBehavior The behavior of the EW effect exhibits.

References mBehavior.

Referenced by WsfEW_Technique::SetDeltaGainEffect().

◆ SetCoherencyMask()

void WsfEW_Effect::SetCoherencyMask ( Coherency aCoherency )

inline

Set the coherency type of the EW effect.

Parameters

aCoherency The coherency of the EW effect exhibits.

References mCoherencyMask.

◆ SetDebug()

void WsfEW_Effect::SetDebug ( bool aDebug )

inline

Set the debug flag state.

Parameters

aDebug The debug flag state, 'true' or 'false'.

References mDebug.

Referenced by WsfEW_Technique::SetDeltaGainEffect().

◆ SetEA_EP_Ptr()

void WsfEW_Effect::SetEA_EP_Ptr ( WsfEW_EA_EP * aPtr )

inline

Set the Electronic Attack pointer, set to NULL by default.

Parameters

aPtr	The pointer to the associated EA class.

Referenced by WsfEW_Technique::SetDeltaGainEffect().

◆ SetSystemFunctionMask() [1/2]

void WsfEW_Effect::SetSystemFunctionMask ( const std::string & aSystemFunctionId )

References cES_COMM, cES_JAMMER, cES_SENSOR, cES_UNDEFINED, and mSystemFunctionMask.

◆ SetSystemFunctionMask() [2/2]

void WsfEW_Effect::SetSystemFunctionMask ( SystemFunction aSystemFunction )

inline

Set the system type.

References mSystemFunctionMask.

Referenced by WsfEW_Technique::SetDeltaGainEffect().

◆ SetTechniquePtr()

void WsfEW_Effect::SetTechniquePtr ( WsfEW_Technique * aPtr )

inline

Set the technique pointer associated with this effect.

Parameters

aPtr	The technique pointer associated with this effect.

Referenced by WsfEW_Technique::SetDeltaGainEffect().

◆ UpdateCurrentIds()

void WsfEW_Effect::UpdateCurrentIds	(	WsfEM_Rcvr *	aRcvrPtr,
		WsfEM_Xmtr *	aXmtrPtr,
		WsfPlatform *	aTargetPtr )

virtual

References WsfEM_XmtrRcvr::GetArticulatedPart(), GetEA_Ptr(), GetEP_Ptr(), WsfObject::GetNameId(), WsfEM_XmtrRcvr::GetPlatform(), WsfObject::GetTypeId(), WsfUniqueId::GetUniqueId(), mCurrentRcvrPlatformId, mCurrentRcvrUniqueId, mCurrentTargetId, mCurrentXmtrPlatformId, mCurrentXmtrUniqueId, mEffectedSystemId, and mEffectingSystemId.

Referenced by ProcessUnmitigatedEffect(), UpdateEffects(), and WsfEW_PulseEffect::UpdateEffects().

◆ UpdateEffects()

void WsfEW_Effect::UpdateEffects	(	double	aSimTime,
		const WsfEM_Interaction &	aTargetInteraction,
		const WsfEM_Interaction &	aJammerToTgtInteraction,
		const ut::optional< WsfEM_Interaction > &	aTgtToJammerInteraction,
		WsfEW_Effects &	aEW_Effects,
		WsfEW_Effect *	aEW_EffectPtr = nullptr )

virtual

Allows the effect to update any parameters needed before running an apply effect method.

Parameters

aSimTime	[input] The current simulation time.
aTargetInteraction	[input] The target interaction for the detection attempt.
aJammerToTgtInteraction	[input] The jammer interaction for the jammer Xmtr to victim Rcvr.
aTgtToJammerInteraction	[input] Optional jammer interaction for the Victim Xmtr to jammer Rcvr. This will have no value if the jammer Rcvr doesn't exist.
aEW_Effects	[input] The current effect that is being updated.
aEW_EffectPtr	[input] The currently processing EW effect pointer to prevent recursion in EW effect processing loops.

Reimplemented in WsfEW_AgilityEffect, WsfEW_CoverPulseEffect, WsfEW_PowerEffect, WsfEW_PulseEffect, WsfEW_PulseSuppressEffect, WsfEW_RadiusEffect, WsfEW_RepeaterEffect, WsfEW_RPJ_Effect, WsfEW_SimpleFT_Effect, WsfEW_SLB_Effect, WsfEW_SLC_Effect, and WsfEW_TrackEffect.

References WsfEM_Interaction::GetReceiver(), WsfEM_Interaction::GetTarget(), WsfEM_Interaction::GetTransmitter(), mDebug, PrintUpdateMessage(), UpdateCurrentIds(), and WsfEW_Effect().

Referenced by ApplyMitigatedEffect(), ProcessMitigatedEffect(), ProcessUnmitigatedEffect(), WsfEW_AgilityEffect::UpdateEffects(), and WsfEW_RadiusEffect::UpdateEffects().

Member Data Documentation

◆ mBehavior

Behavior WsfEW_Effect::mBehavior {cEB_UNDEFINED}

protected

The behavior that this EW effect exhibits.

Referenced by GetBehavior(), WsfEW_CommEffect::ProcessInput(), WsfEW_TrackEffect::ProcessInput(), SetBehavior(), WsfEW_AgilityEffect::WsfEW_AgilityEffect(), WsfEW_CoverPulseEffect::WsfEW_CoverPulseEffect(), WsfEW_Effect(), WsfEW_FalseTargetEffect::WsfEW_FalseTargetEffect(), WsfEW_NX_SLB_Effect::WsfEW_NX_SLB_Effect(), WsfEW_PolModEffect::WsfEW_PolModEffect(), WsfEW_PowerEffect::WsfEW_PowerEffect(), WsfEW_RadiusEffect::WsfEW_RadiusEffect(), WsfEW_RepeaterEffect::WsfEW_RepeaterEffect(), WsfEW_SLB_Effect::WsfEW_SLB_Effect(), WsfEW_SLC_DegradeEffect::WsfEW_SLC_DegradeEffect(), and WsfEW_SLC_Effect::WsfEW_SLC_Effect().

◆ mCoherencyMask

unsigned int WsfEW_Effect::mCoherencyMask {cEC_NONE}

protected

The coherency of this effect wrt to the affected system.

Referenced by AddCoherencyMask(), GetCoherencyMask(), WsfEW_RPJ_Effect::ProcessInput(), SetCoherencyMask(), WsfEW_PowerEffect::UpdateEffects(), WsfEW_AgilityEffect::WsfEW_AgilityEffect(), WsfEW_CoverPulseEffect::WsfEW_CoverPulseEffect(), WsfEW_Effect(), WsfEW_FalseTargetEffect::WsfEW_FalseTargetEffect(), WsfEW_NX_SLB_Effect::WsfEW_NX_SLB_Effect(), WsfEW_PolModEffect::WsfEW_PolModEffect(), WsfEW_PowerEffect::WsfEW_PowerEffect(), WsfEW_PulseEffect::WsfEW_PulseEffect(), WsfEW_RadiusEffect::WsfEW_RadiusEffect(), WsfEW_RepeaterEffect::WsfEW_RepeaterEffect(), WsfEW_RPJ_Effect::WsfEW_RPJ_Effect(), WsfEW_SimpleFT_Effect::WsfEW_SimpleFT_Effect(), WsfEW_SLB_Effect::WsfEW_SLB_Effect(), WsfEW_SLC_DegradeEffect::WsfEW_SLC_DegradeEffect(), WsfEW_SLC_Effect::WsfEW_SLC_Effect(), and WsfEW_TrackEffect::WsfEW_TrackEffect().

◆ mCurrentRcvrPlatformId

WsfStringId WsfEW_Effect::mCurrentRcvrPlatformId {nullptr}

protected

Current receiving platform Id.

Referenced by WsfEW_PulseSuppressEffect::ApplyMitigatedEffect(), WsfEW_AgilityEffect::ApplyUnmitigatedEffect(), PrintUpdateMessage(), UpdateCurrentIds(), WsfEW_AgilityEffect::UpdateEffects(), and WsfEW_Effect().

◆ mCurrentRcvrUniqueId

int WsfEW_Effect::mCurrentRcvrUniqueId {0}

protected

Current receiver unique Id.

Referenced by UpdateCurrentIds(), and WsfEW_Effect().

◆ mCurrentTargetId

WsfStringId WsfEW_Effect::mCurrentTargetId {nullptr}

protected

Current target Id.

Referenced by WsfEW_PulseSuppressEffect::ApplyMitigatedEffect(), WsfEW_SLB_Effect::ApplyMitigatedEffect(), WsfEW_AgilityEffect::ApplyUnmitigatedEffect(), PrintUpdateMessage(), UpdateCurrentIds(), WsfEW_AgilityEffect::UpdateEffects(), WsfEW_FalseTargetEffect::UpdateJammerPulseDensity(), and WsfEW_Effect().

◆ mCurrentXmtrPlatformId

WsfStringId WsfEW_Effect::mCurrentXmtrPlatformId {nullptr}

protected

Current transmitting platform Id.

Referenced by WsfEW_PulseSuppressEffect::ApplyMitigatedEffect(), WsfEW_AgilityEffect::ApplyUnmitigatedEffect(), PrintUpdateMessage(), UpdateCurrentIds(), WsfEW_AgilityEffect::UpdateEffects(), and WsfEW_Effect().

◆ mCurrentXmtrUniqueId

int WsfEW_Effect::mCurrentXmtrUniqueId {0}

protected

Current transmitter unique Id.

Referenced by WsfEW_SLB_Effect::ApplyMitigatedEffect(), WsfEW_SLC_Effect::ApplyMitigatedEffect(), UpdateCurrentIds(), WsfEW_SLB_Effect::UpdateEffects(), WsfEW_SLC_Effect::UpdateEffects(), and WsfEW_Effect().

◆ mDebug

bool WsfEW_Effect::mDebug {false}

protected

The debug flag, 'true' for debug, false otherwise.

◆ mEffectDataMap

EffectDataMap WsfEW_Effect::mEffectDataMap

protected

◆ mEffectedSystemId

WsfStringId WsfEW_Effect::mEffectedSystemId {nullptr}

protected

The type Id of the system being effected, changes with each call to UpdateEffects(...) or UpdateCurrentIds(...).

◆ mEffectingSystemId

WsfStringId WsfEW_Effect::mEffectingSystemId {nullptr}

protected

The type Id of the system doing the effecting, changes with each call to UpdateEffects(...) or UpdateCurrentIds(...).

Referenced by UpdateCurrentIds(), WsfEW_PulseSuppressEffect::UpdateEffects(), WsfEW_SLC_Effect::UpdateEffects(), and WsfEW_Effect().

◆ mSystemFunctionMask

unsigned int WsfEW_Effect::mSystemFunctionMask {cES_UNDEFINED}

protected

The system type mask that this EW effect can affect.

◆ mUpdatingEffect

bool WsfEW_Effect::mUpdatingEffect {true}

protected

Variable to prevent infinite recursion in UpdateEffect.

Referenced by Initialize(), ProcessMitigatedEffect(), ProcessUnmitigatedEffect(), and WsfEW_Effect().

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Effect Data methods.

Common infrastructure methods.

Effect methods.

Internal use only effect methods.

Jammer management methods.

System function methods.

Coherency Type methods.

Behavior methods.

Debug methods.

Class pointer methods.

Current Id methods.

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ EffectDataMap

Member Enumeration Documentation

◆ Behavior

◆ Coherency

◆ ModulationType

◆ SystemFunction

◆ TargetProtectionType

Constructor & Destructor Documentation

◆ WsfEW_Effect() [1/2]

◆ ~WsfEW_Effect()

◆ WsfEW_Effect() [2/2]

Member Function Documentation

◆ AddCoherencyMask()

◆ AddSystemFunctionMask() [1/2]

◆ AddSystemFunctionMask() [2/2]

◆ AllowTarget()

◆ ApplyMitigatedEffect()

◆ ApplyUnmitigatedEffect()

◆ Clone()

◆ ConvertCoherencyIdToMask()

◆ ConvertToEW_SystemFunction() [1/2]

◆ ConvertToEW_SystemFunction() [2/2]

◆ DebugEnabled()

◆ EffectDataExists()

◆ GetBehavior()

◆ GetCoherencyMask()

◆ GetEA_EP_Ptr()

◆ GetEA_Ptr()

◆ GetEffectData()

◆ GetEP_Ptr()

◆ GetJammingPulseDensity() [1/2]

◆ GetJammingPulseDensity() [2/2]

◆ GetRandom()

◆ GetSimulation()

◆ GetSystemFunctionMask()

◆ GetTechniquePtr()

◆ Initialize()

◆ InsertNewEffectData()

◆ NewEffectData()

◆ operator=()

◆ PrintUpdateMessage()

◆ ProcessEffectDataBlock()

◆ ProcessInput()

◆ ProcessMitigatedEffect()

◆ ProcessUnmitigatedEffect()

◆ PropagateEffectDataPtr()

◆ RemoveJammerXmtr() [1/2]

◆ RemoveJammerXmtr() [2/2]

◆ ResetEffectData()

◆ ResetProtectionTypeFlag()

◆ SetBehavior()

◆ SetCoherencyMask()

◆ SetDebug()

◆ SetEA_EP_Ptr()

◆ SetSystemFunctionMask() [1/2]

◆ SetSystemFunctionMask() [2/2]

◆ SetTechniquePtr()

◆ UpdateCurrentIds()

◆ UpdateEffects()

Member Data Documentation

◆ mBehavior

◆ mCoherencyMask

◆ mCurrentRcvrPlatformId
