wsf::six_dof::RigidBodyPilotManager Class Reference

#include <WsfRigidBodySixDOF_PilotManager.hpp>

Inheritance diagram for wsf::six_dof::RigidBodyPilotManager:

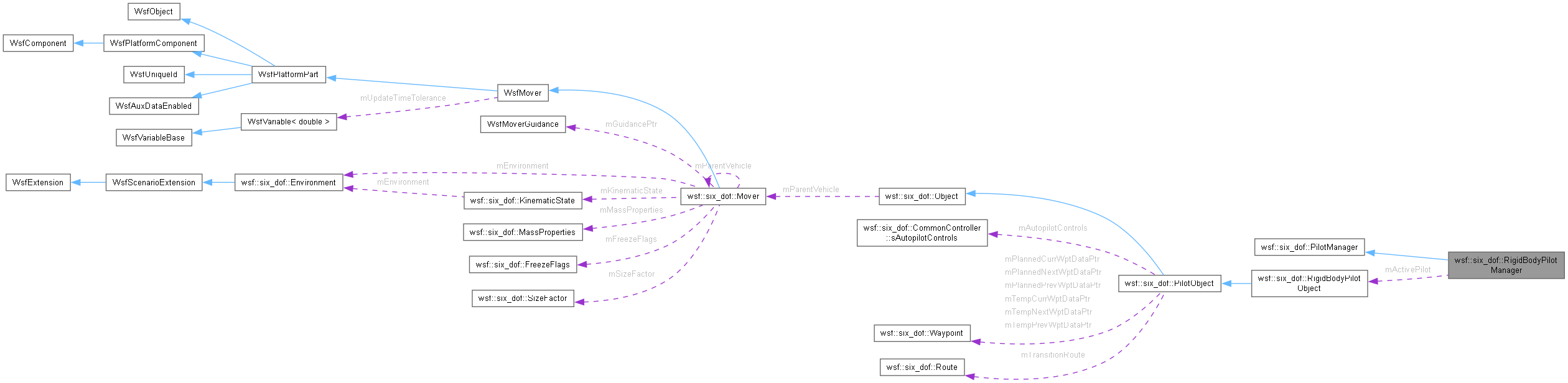

Collaboration diagram for wsf::six_dof::RigidBodyPilotManager:

Public Member Functions
	RigidBodyPilotManager ()=default
	~RigidBodyPilotManager ()=default
RigidBodyPilotManager &	operator= (const RigidBodyPilotManager &other)=delete
RigidBodyPilotManager *	Clone () const
bool	ProcessInput (UtInput &aInput)
bool	Initialize (int64_t aSimTime_nanosec) override
void	SetLastSimTime (int64_t aLastSimTime_nanosec) override
virtual void	SetParentVehicle (RigidBodyMover *aParentVehicle)
PilotObject *	GetActivePilot () override
RigidBodyPilotObject *	GetActiveRigidBodyPilot ()
PilotObject *	GetActiveSimpleManualPilot () override
PilotObject *	GetActiveAugmentedManualPilot () override
PilotObject *	GetActiveSyntheticPilot () override
void	InputAngleDeltasToPilotObjects (const double &aYaw_rad, const double &aPitch_rad, const double &aRoll_rad) override
void	EnableControls (bool aEnabled) override
bool	AreControlsEnabled () const override
bool	MakeSimpleManualPilotActive () override
bool	MakeAugmentedManualPilotActive () override
bool	MakeSyntheticPilotActive () override
void	SetDestroyed (double aPitchInputModifier, double aRollInputModifier) override
const CommonController *	GetSpecialCommonController () const override
const RigidBodyCommonController *	GetSpecialRigidBodyCommonController () const
Public Member Functions inherited from wsf::six_dof::PilotManager
	PilotManager ()=default
virtual	~PilotManager ()=default
PilotManager &	operator= (const PilotManager &other)=delete

Protected Member Functions
	RigidBodyPilotManager (const RigidBodyPilotManager &aSrc)

Protected Attributes
UtCloneablePtr< RigidBodyManualPilotSimpleControls >	mManualPilotSimpleControls {nullptr}
UtCloneablePtr< RigidBodyManualPilotAugmentedControls >	mManualPilotAugmentedControls {nullptr}
UtCloneablePtr< RigidBodySyntheticPilot >	mSyntheticPilot {nullptr}
RigidBodyPilotObject *	mActivePilot = nullptr
UtCloneablePtr< RigidBodyCommonController >	mSpecialCommonController {nullptr}
bool	mIsDestroyed = false

Constructor & Destructor Documentation

RigidBodyPilotManager() [1/2]

wsf::six_dof::RigidBodyPilotManager::RigidBodyPilotManager ( )

default

Referenced by Clone(), operator=(), and RigidBodyPilotManager().

~RigidBodyPilotManager()

wsf::six_dof::RigidBodyPilotManager::~RigidBodyPilotManager ( )

default

RigidBodyPilotManager() [2/2]

wsf::six_dof::RigidBodyPilotManager::RigidBodyPilotManager ( const RigidBodyPilotManager & aSrc )

protected

References if(), mActivePilot, mIsDestroyed, mManualPilotAugmentedControls, mManualPilotSimpleControls, mSpecialCommonController, mSyntheticPilot, and RigidBodyPilotManager().

Member Function Documentation

AreControlsEnabled()

bool wsf::six_dof::RigidBodyPilotManager::AreControlsEnabled ( ) const

overridevirtual

Implements wsf::six_dof::PilotManager.

References mActivePilot.

Clone()

wsf::six_dof::RigidBodyPilotManager * wsf::six_dof::RigidBodyPilotManager::Clone

(

)

const

References RigidBodyPilotManager().

Referenced by operator=().

EnableControls()

void wsf::six_dof::RigidBodyPilotManager::EnableControls ( bool aEnabled )

overridevirtual

Implements wsf::six_dof::PilotManager.

References mManualPilotAugmentedControls, mManualPilotSimpleControls, and mSyntheticPilot.

GetActiveAugmentedManualPilot()

wsf::six_dof::PilotObject * wsf::six_dof::RigidBodyPilotManager::GetActiveAugmentedManualPilot ( )

overridevirtual

Implements wsf::six_dof::PilotManager.

References mActivePilot, and mManualPilotAugmentedControls.

GetActivePilot()

wsf::six_dof::PilotObject * wsf::six_dof::RigidBodyPilotManager::GetActivePilot ( )

overridevirtual

Implements wsf::six_dof::PilotManager.

References mActivePilot.

Referenced by operator=().

GetActiveRigidBodyPilot()

RigidBodyPilotObject * wsf::six_dof::RigidBodyPilotManager::GetActiveRigidBodyPilot ( )

inline

References mActivePilot.

Referenced by wsf::six_dof::RigidBodyMover::GetLandingGearInput(), wsf::six_dof::RigidBodyMover::GetRudderRightInput(), wsf::six_dof::RigidBodyMover::GetSpeedBrakeInput(), wsf::six_dof::RigidBodyMover::GetSpoilerInput(), wsf::six_dof::RigidBodyMover::GetStickBackInput(), wsf::six_dof::RigidBodyMover::GetStickRightInput(), wsf::six_dof::RigidBodyMover::GetThrottleInput(), and wsf::six_dof::RigidBodyMover::ThrottleValid().

GetActiveSimpleManualPilot()

wsf::six_dof::PilotObject * wsf::six_dof::RigidBodyPilotManager::GetActiveSimpleManualPilot ( )

overridevirtual

Implements wsf::six_dof::PilotManager.

References mActivePilot, and mManualPilotSimpleControls.

GetActiveSyntheticPilot()

wsf::six_dof::PilotObject * wsf::six_dof::RigidBodyPilotManager::GetActiveSyntheticPilot ( )

overridevirtual

Implements wsf::six_dof::PilotManager.

References mActivePilot, and mSyntheticPilot.

GetSpecialCommonController()

const CommonController * wsf::six_dof::RigidBodyPilotManager::GetSpecialCommonController ( ) const

inlineoverridevirtual

Implements wsf::six_dof::PilotManager.

References mSpecialCommonController.

GetSpecialRigidBodyCommonController()

const RigidBodyCommonController * wsf::six_dof::RigidBodyPilotManager::GetSpecialRigidBodyCommonController ( ) const

inline

References mSpecialCommonController.

Referenced by wsf::six_dof::RigidBodyMoverTestObject::AlphaAtDesiredDrag(), wsf::six_dof::RigidBodyMoverTestObject::AlphaAtDesiredDrag(), wsf::six_dof::RigidBodyMoverTestObject::CalcLevelFlightDragAndAlpha(), and wsf::six_dof::RigidBodyMoverTestObject::MaxInstantaneousGLoad().

Initialize()

bool wsf::six_dof::RigidBodyPilotManager::Initialize ( int64_t aSimTime_nanosec )

overridevirtual

Implements wsf::six_dof::PilotManager.

References mManualPilotAugmentedControls, mManualPilotSimpleControls, and mSyntheticPilot.

Referenced by operator=().

InputAngleDeltasToPilotObjects()

void wsf::six_dof::RigidBodyPilotManager::InputAngleDeltasToPilotObjects ( const double & aYaw_rad, const double & aPitch_rad, const double & aRoll_rad )

overridevirtual

Implements wsf::six_dof::PilotManager.

References mManualPilotAugmentedControls, mManualPilotSimpleControls, and mSyntheticPilot.

MakeAugmentedManualPilotActive()

bool wsf::six_dof::RigidBodyPilotManager::MakeAugmentedManualPilotActive ( )

overridevirtual

Implements wsf::six_dof::PilotManager.

References mActivePilot, mIsDestroyed, and mManualPilotAugmentedControls.

MakeSimpleManualPilotActive()

bool wsf::six_dof::RigidBodyPilotManager::MakeSimpleManualPilotActive ( )

overridevirtual

Implements wsf::six_dof::PilotManager.

References mActivePilot, mIsDestroyed, and mManualPilotSimpleControls.

MakeSyntheticPilotActive()

bool wsf::six_dof::RigidBodyPilotManager::MakeSyntheticPilotActive ( )

overridevirtual

Implements wsf::six_dof::PilotManager.

References mActivePilot, mIsDestroyed, and mSyntheticPilot.

operator=()

RigidBodyPilotManager & wsf::six_dof::RigidBodyPilotManager::operator= ( const RigidBodyPilotManager & other )

delete

References Clone(), GetActivePilot(), Initialize(), ProcessInput(), RigidBodyPilotManager(), SetLastSimTime(), and SetParentVehicle().

ProcessInput()

bool wsf::six_dof::RigidBodyPilotManager::ProcessInput

(

UtInput &

aInput

)

References mActivePilot, mManualPilotAugmentedControls, mManualPilotSimpleControls, mSpecialCommonController, mSyntheticPilot, and wsf::six_dof::RigidBodyCommonController::ReadSupportFile().

Referenced by operator=().

SetDestroyed()

void wsf::six_dof::RigidBodyPilotManager::SetDestroyed ( double aPitchInputModifier, double aRollInputModifier )

overridevirtual

Implements wsf::six_dof::PilotManager.

References mActivePilot, mIsDestroyed, mManualPilotAugmentedControls, mManualPilotSimpleControls, and mSyntheticPilot.

SetLastSimTime()

void wsf::six_dof::RigidBodyPilotManager::SetLastSimTime ( int64_t aLastSimTime_nanosec )

overridevirtual

Implements wsf::six_dof::PilotManager.

References mManualPilotAugmentedControls, mManualPilotSimpleControls, and mSyntheticPilot.

Referenced by operator=().

SetParentVehicle()

void wsf::six_dof::RigidBodyPilotManager::SetParentVehicle ( RigidBodyMover * aParentVehicle )

virtual

References mManualPilotAugmentedControls, mManualPilotSimpleControls, and mSyntheticPilot.

Referenced by operator=().

Member Data Documentation

mActivePilot

RigidBodyPilotObject* wsf::six_dof::RigidBodyPilotManager::mActivePilot = nullptr

protected

Referenced by AreControlsEnabled(), GetActiveAugmentedManualPilot(), GetActivePilot(), GetActiveRigidBodyPilot(), GetActiveSimpleManualPilot(), GetActiveSyntheticPilot(), MakeAugmentedManualPilotActive(), MakeSimpleManualPilotActive(), MakeSyntheticPilotActive(), ProcessInput(), RigidBodyPilotManager(), and SetDestroyed().

mIsDestroyed

bool wsf::six_dof::RigidBodyPilotManager::mIsDestroyed = false

protected

Referenced by MakeAugmentedManualPilotActive(), MakeSimpleManualPilotActive(), MakeSyntheticPilotActive(), RigidBodyPilotManager(), and SetDestroyed().

mManualPilotAugmentedControls

UtCloneablePtr<RigidBodyManualPilotAugmentedControls> wsf::six_dof::RigidBodyPilotManager::mManualPilotAugmentedControls {nullptr}

protected

Referenced by EnableControls(), GetActiveAugmentedManualPilot(), Initialize(), InputAngleDeltasToPilotObjects(), MakeAugmentedManualPilotActive(), ProcessInput(), RigidBodyPilotManager(), SetDestroyed(), SetLastSimTime(), and SetParentVehicle().

mManualPilotSimpleControls

UtCloneablePtr<RigidBodyManualPilotSimpleControls> wsf::six_dof::RigidBodyPilotManager::mManualPilotSimpleControls {nullptr}

protected

Referenced by EnableControls(), GetActiveSimpleManualPilot(), Initialize(), InputAngleDeltasToPilotObjects(), MakeSimpleManualPilotActive(), ProcessInput(), RigidBodyPilotManager(), SetDestroyed(), SetLastSimTime(), and SetParentVehicle().

mSpecialCommonController

UtCloneablePtr<RigidBodyCommonController> wsf::six_dof::RigidBodyPilotManager::mSpecialCommonController {nullptr}

protected

Referenced by GetSpecialCommonController(), GetSpecialRigidBodyCommonController(), ProcessInput(), and RigidBodyPilotManager().

mSyntheticPilot

UtCloneablePtr<RigidBodySyntheticPilot> wsf::six_dof::RigidBodyPilotManager::mSyntheticPilot {nullptr}

protected

Referenced by EnableControls(), GetActiveSyntheticPilot(), Initialize(), InputAngleDeltasToPilotObjects(), MakeSyntheticPilotActive(), ProcessInput(), RigidBodyPilotManager(), SetDestroyed(), SetLastSimTime(), and SetParentVehicle().

---

The documentation for this class was generated from the following files:

• WsfRigidBodySixDOF_PilotManager.hpp
• WsfRigidBodySixDOF_PilotManager.cpp
