#include <WsfSensorSignalProcessor.hpp>
Classes | |
| class | List |
| A convenience class to support attaching a list of signal processors to a sensor. More... | |
Public Types | |
| using | FactoryPtr = WsfSensorSignalProcessor* (*)(const std::string&) |
| using | ObjectFactoryList = std::list<FactoryPtr> |
| Public Types inherited from WsfObject | |
| typedef std::vector< WsfStringId > | TypeList |
| The list of types returned by GetTypeList. | |
Maintenance of object types. | |
| bool | mDebug {false} |
| If 'true' additional information is written out to aid debugging. | |
| static void | AddObjectFactory (FactoryPtr aFactoryPtr) |
| static void | RemoveObjectFactory (FactoryPtr aFactoryPtr) |
| static WsfSensorSignalProcessor * | CreateInstance (const std::string &aTypeName) |
| static void | ClearTypes () |
| WsfSensorSignalProcessor * | Clone () const override=0 |
| virtual bool | Initialize (double aSimTime, WsfSensor *aSensorPtr, WsfSensorMode *aModePtr, size_t aBeamIndex=0) |
| bool | ProcessInput (UtInput &aInput) override |
| virtual void | Execute (double aSimTime, WsfSensorResult &aResult)=0 |
Additional Inherited Members | |
| Public Member Functions inherited from WsfObject | |
| WsfObject () | |
| This is the constructor for the WsfObject class. | |
| ~WsfObject () override | |
| This is the destructor for the WsfObject class. | |
| const char * | GetScriptClassName () const override |
| const std::string & | GetType () const |
| WsfStringId | GetTypeId () const |
| Get the string ID of the 'type' of the object. | |
| void | SetType (WsfStringId aType) |
| const std::string & | GetBaseType () const |
| WsfStringId | GetBaseTypeId () const |
| const TypeList & | GetTypeList () const |
| bool | IsA_TypeOf (WsfStringId aType) const |
| WsfObject & | operator= (const WsfObject &aRhs) |
| Assignment operator. | |
| template<typename T> | |
| void | Serialize (T &aBuff) |
| For XIO (de)serialization. | |
| const std::string & | GetName () const |
| WsfStringId | GetNameId () const |
| void | SetName (WsfStringId aName) |
| WsfObject (const WsfObject &aSrc) | |
| Copy constructor (for Clone()). | |
Detailed Description
An abstract base class that defines a signal processing technique for a sensor.
Not all sensors support this feature, but for those that do it provides access to an extendable library that implement signal processing techniques. When a sensor makes use of this interface it typically computes the unprocessed signal and then calls any defined processors to adjust the received power, clutter power, etc., which are then used to calculate the signal-to-interference ratio and subsequently tested for detectability.
Additional processors can be added by registering an object factory (AddObjectFactory) that will create instances with the desired functionality.
Member Typedef Documentation
◆ FactoryPtr
| using WsfSensorSignalProcessor::FactoryPtr = WsfSensorSignalProcessor* (*)(const std::string&) |
◆ ObjectFactoryList
| using WsfSensorSignalProcessor::ObjectFactoryList = std::list<FactoryPtr> |
Member Function Documentation
◆ AddObjectFactory()
|
static |
Add an object factory for creating an instance from a fundamental type. The factory should be a static method and should be added only once.
Referenced by WsfSensorTypes::WsfSensorTypes().
◆ ClearTypes()
|
static |
◆ Clone()
|
overridepure virtual |
Return a copy of this object. Must be implemented by all derived types. If cloning is impossible, a WsfUncloneableException should be thrown.
Implements WsfObject.

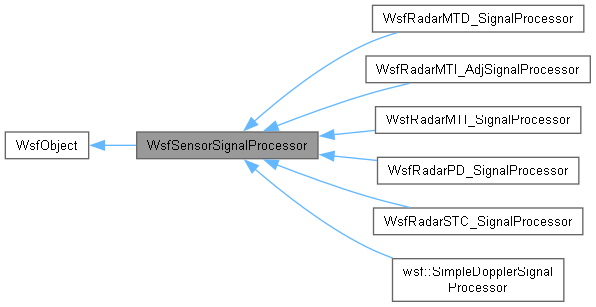

Implemented in wsf::SimpleDopplerSignalProcessor, WsfRadarMTD_SignalProcessor, WsfRadarMTI_AdjSignalProcessor, WsfRadarMTI_SignalProcessor, WsfRadarPD_SignalProcessor, and WsfRadarSTC_SignalProcessor.
References Initialize().
◆ CreateInstance()
|
static |
Referenced by WsfSensorSignalProcessor::List::ProcessInput().
◆ Execute()
|
pure virtual |
◆ Initialize()
|
virtual |
Reimplemented in WsfRadarMTD_SignalProcessor, WsfRadarMTI_AdjSignalProcessor, WsfRadarMTI_SignalProcessor, and WsfRadarPD_SignalProcessor.
Referenced by Clone().
◆ ProcessInput()
|
overridevirtual |
Process input from a generic source.
Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.
- Parameters
-
aInput a reference to a UtInput object.
- Returns
- 'true' if the command was one recognized by the class or 'false' if not.
- Exceptions
-
UtInput::ExceptionBase (or an object derived from it) if the command was recognized but contains some sort of error.
- Note
- If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.
Reimplemented from WsfObject.
References mDebug.
Referenced by wsf::SimpleDopplerSignalProcessor::ProcessInput(), WsfRadarMTD_SignalProcessor::ProcessInput(), WsfRadarMTI_AdjSignalProcessor::ProcessInput(), WsfRadarMTI_SignalProcessor::ProcessInput(), WsfRadarPD_SignalProcessor::ProcessInput(), and WsfRadarSTC_SignalProcessor::ProcessInput().
◆ RemoveObjectFactory()
|
static |
Add an object factory for removing an instance from a fundamental type. The factory should be a static method and this should be for adding duplicate factories.
Member Data Documentation
◆ mDebug
|
protected |
If 'true' additional information is written out to aid debugging.
Referenced by WsfRadarMTD_SignalProcessor::Execute(), WsfRadarMTI_AdjSignalProcessor::Execute(), WsfRadarMTI_SignalProcessor::Execute(), WsfRadarPD_SignalProcessor::Execute(), WsfRadarSTC_SignalProcessor::Execute(), WsfRadarMTD_SignalProcessor::Initialize(), WsfRadarMTI_AdjSignalProcessor::Initialize(), WsfRadarMTI_SignalProcessor::Initialize(), WsfRadarPD_SignalProcessor::Initialize(), WsfRadarSTC_SignalProcessor::Initialize(), WsfRadarSTC_SignalProcessor::ProcessInput(), and ProcessInput().
The documentation for this class was generated from the following files:
