#include <WsfSensorMode.hpp>

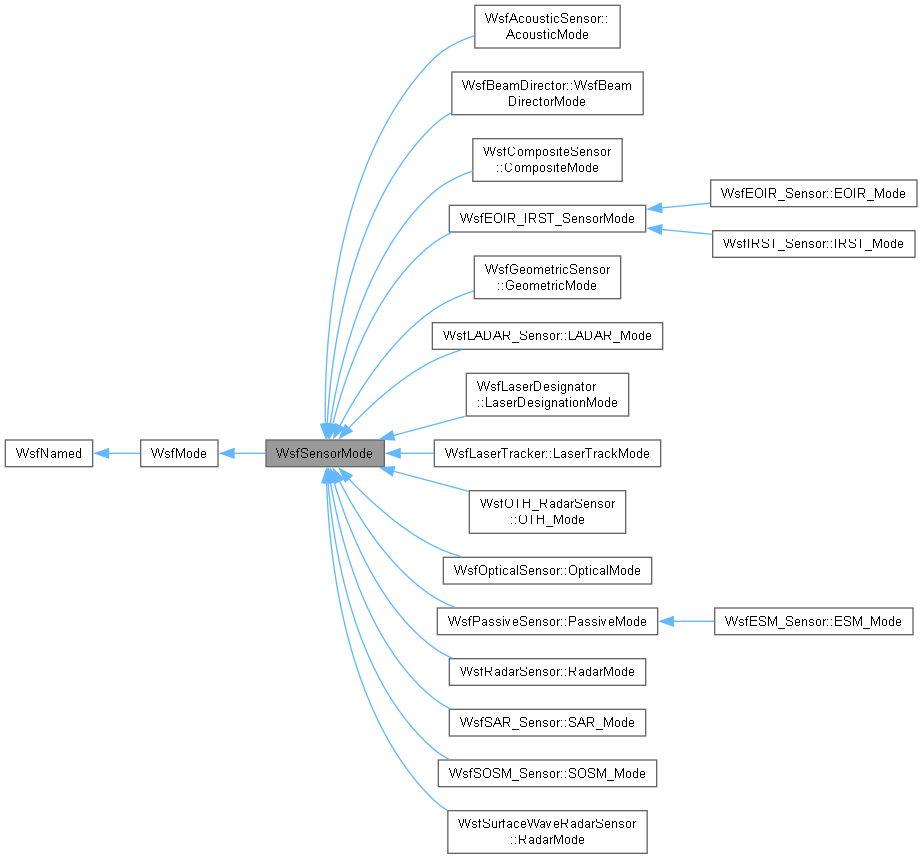

Inheritance diagram for WsfSensorMode:

[legend]

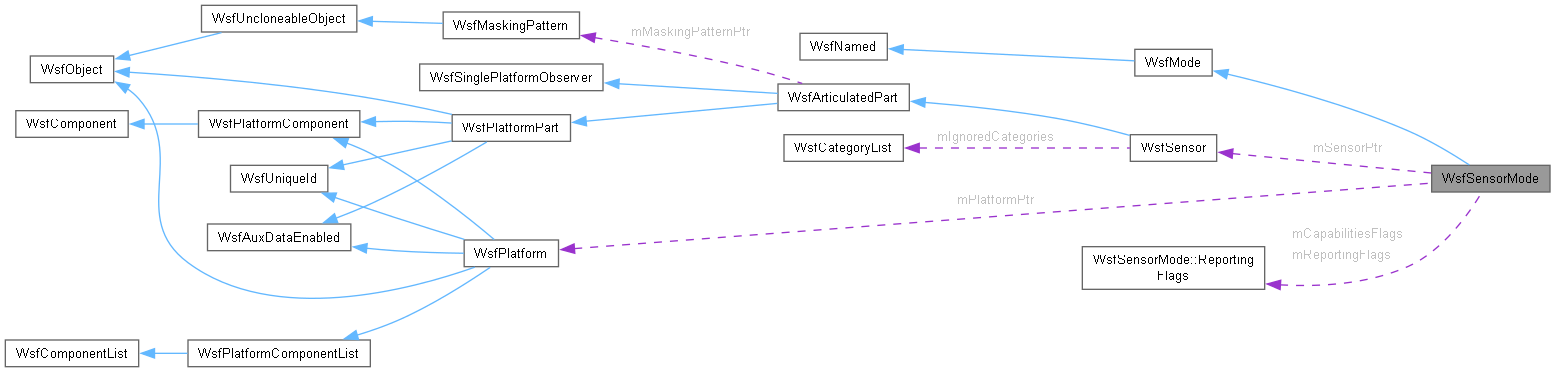

Collaboration diagram for WsfSensorMode:

[legend]

Classes
class	AltFrequencyChangeEvent
struct	ReportingFlags

Public Member Functions
	WsfSensorMode ()
	WsfSensorMode (const WsfSensorMode &aSrc)
WsfSensorMode &	operator= (const WsfSensorMode &aRhs)
	~WsfSensorMode () override
WsfPlatform *	GetPlatform () const
	Return the pointer to the platform to which the associated sensor is attached.
WsfSensor *	GetSensor () const
	Return the pointer to the sensor with which this mode is associated.
const WsfScenario &	GetScenario () const
WsfSimulation *	GetSimulation () const
WsfMode *	Clone () const override=0
	Create an exact duplicate of this mode.
virtual bool	Initialize (double aSimTime)
bool	ProcessInput (UtInput &aInput) override
Public Member Functions inherited from WsfMode
	WsfMode ()
	~WsfMode () override=default
size_t	GetModeIndex () const
	Return the index of this mode within its associated mode list.
bool	IsSelected () const
	Returns 'true' if the mode is selected.
Public Member Functions inherited from WsfNamed
	WsfNamed ()
	WsfNamed (WsfStringId aName)
	WsfNamed (const WsfNamed &)=default
WsfNamed &	operator= (const WsfNamed &)=default
virtual	~WsfNamed ()=default
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Friends
class	WsfSensorModeList

Automatic mode switch control.
WsfSensor *	mSensorPtr
	Pointer to the sensor with which the mode is associated.
WsfPlatform *	mPlatformPtr
	Pointer to the platform with which the sensor is associated.
double	mMaximumRange
double	mAzCueRate
double	mElCueRate
double	mMinAzCue
double	mMaxAzCue
double	mMinElCue
double	mMaxElCue
WsfSensor::SlewMode	mCueMode
int	mMaximumRequestCount
bool	mCanSearchWhileTrack
bool	mDisablesSearch
double	mFrameTime
double	mRevisitTime
double	mDwellTime
double	mRequiredPd
size_t	GetOnSuccessModeIndex () const
size_t	GetOnFailureModeIndex () const
int	GetMessageLength () const
	Return the logical length (int bits) of report messages that originate from this sensor mode.
int	GetMessagePriority () const
	Return the priority of report messages that originate from this sensor mode.
void	UpdateTrackPosition (WsfTrack *aTrackPtr, WsfSensorResult &aResult, const double aTgtLocationWCS[3])
WsfSensor::SlewMode	GetCueMode () const
bool	InitializeReporting ()
virtual void	SelectAlternateFrequency (double aSimTime, int aAltFreqId=-1)

Track establishment and maintain window definition.
double	mEstablishTrackProbability
	When the M/N establish track criteria is met, this is the probability that a track will be established.
double	mMaintainTrackProbability
int	mHitsToEstablishTrack
	The number of hits (M) within the window (N) that are required to establish a track.
int	mEstablishTrackWindow
	The window size (N) for establishing a track.
unsigned int	mEstablishTrackMask
int	mHitsToMaintainTrack
	The number of hits (M) within the window (N) that are required to maintain a track.
int	mMaintainTrackWindow
	The window size (N) for maintaining a track.
unsigned int	mMaintainTrackMask
double	mTrackQuality
	Base line track quality (0..1].

Sensor error parameters.
double	mAzErrorStdDev
double	mElErrorStdDev
double	mRangeErrorStdDev
double	mRangeRateErrorStdDev
	Range rate error standard deviation.
ut::CloneablePtr< wsf::SensorErrorModelBase >	mErrorModelPtr {nullptr}
	The model that calculates and applies errors to sensor detection results.
WsfStringId	mOnSuccessModeName
size_t	mOnSuccessModeIndex
WsfStringId	mOnFailureModeName
size_t	mOnFailureModeIndex
int	mMessageLength
	The length of messages originating from this sensor mode.
int	mMessagePriority
	The priority of messages originating from this sensor mode.
WsfSpatialDomain	mReportsSpatialDomain
ReportingFlags	mReportingFlags
ReportingFlags	mCapabilitiesFlags
static const unsigned int	cNONE = 0
	The following are flags/masks meant to be combined and used in the SetCapabilities method.
static const unsigned int	cLOCATION = 1
static const unsigned int	cVELOCITY = 2
static const unsigned int	cRANGE = 4
static const unsigned int	cBEARING = 8
static const unsigned int	cELEVATION = 16
static const unsigned int	cRANGE_RATE = 32
static const unsigned int	cSIDE = 64
static const unsigned int	cTYPE = 128
static const unsigned int	cIFF_STATUS = 256
static const unsigned int	cSIGNAL_TO_NOISE = 512
static const unsigned int	cFREQUENCY = 1024
static const unsigned int	cPULSEWIDTH = 2048
static const unsigned int	cPULSE_REPITITION_INTERVAL = 4096
static const unsigned int	cSTATE_COVARIANCE = 8192
static const unsigned int	cOTHER = 16384
static const unsigned int	cALL = 0xFFFFFFFF
	Catch-all for anything other than the above.
void	SetCapabilities (unsigned int aFlags)
void	SetReportingFlags (unsigned int aFlags)

Beam access methods.
These are optional methods that a sensor MAY provide to access beams. A given sensor model may or may not support beams. Some derived versions of WsfSensorComputer make use of these methods to gain access to details about the beam.
virtual size_t	GetBeamCount () const
virtual WsfSensorBeam *	GetBeamEntry (size_t aIndex)
virtual bool	AttemptToDetect (double aSimTime, WsfPlatform *aTargetPtr, WsfSensor::Settings &aSettings, WsfSensorResult &aResult)=0
virtual double	GetAltFreqSelectDelay () const
virtual void	ScheduleAltFreqChange (double aSimTime, int aAltFreqId=-1)
virtual bool	IsAltFreqChangeScheduled () const
virtual double	GetLastAltFreqSelectTime () const
virtual bool	IsFrequencyAgile () const
void	Deselect (double aSimTime) override=0
void	Select (double aSimTime) override=0
virtual void	ApplyMeasurementErrors (WsfSensorResult &aResult)
virtual WSF_DEPRECATED void	ComputeMeasurementErrors (WsfSensorResult &aResult, double &aAzError, double &aElError, double &aRangeError, double &aRangeRateError) final
virtual void	InitializeTrack (double aSimTime, WsfTrack *&aTrackPtr)
virtual void	UpdateSensorCueingLimits ()
virtual void	UpdateTrack (double aSimTime, WsfTrack aTrackPtr, WsfPlatform aTargetPtr, WsfSensorResult &aResult)
virtual void	UpdateTrackReportingFlags (double aSimTime, WsfTrack *aTrackPtr)
virtual bool	WithinDetectionRange (double aSimTime, WsfPlatform *aTargetPtr)
double	GetMaximumRange () const
	Return the optimistic maximum range of the sensor mode.
int	GetMaximumRequestCount () const
	Return the maximum number of cued-search or tracking requests the mode can support.
bool	DisablesSearch () const
	Does using this mode prevent this or any other mode from searching?
bool	CanSearchWhileTrack () const
	Can this mode continue to search while it is also performing tracking requests.
double	GetFrameTime () const
void	SetFrameTime (double aFrameTime)
double	GetRevisitTime () const
double	GetDwellTime () const
double	GetRequiredPd () const
double	EstablishTrackProbability () const
double	MaintainTrackProbability () const
int	HitsToEstablishTrack () const
	The number of hits (M) within the window (N) that are required to establish a track.
int	EstablishTrackWindow () const
	The window size (N) for establishing a track.
int	HitsToMaintainTrack () const
	The number of hits (M) within the window (N) that are required to maintain a track.
int	MaintainTrackWindow () const
	The window size (N) for maintaining a track.
unsigned int	EstablishTrackMask () const
unsigned int	MaintainTrackMask () const
double	GetTrackQuality () const
unsigned int	GetReportingFlags () const
	Accessors for the reporting flags.
bool	ReportsLocation () const
bool	ReportsVelocity () const
bool	ReportsRange () const
bool	ReportsBearing () const
bool	ReportsElevation () const
bool	ReportsRangeRate () const
bool	ReportsSide () const
bool	ReportsType () const
bool	ReportsIFF_Status () const
bool	ReportsSignalToNoise () const
bool	ReportsFrequency () const
bool	ReportsPulseWidth () const
bool	ReportsPulseRepititionInterval () const

Sensor error model methods.
const wsf::SensorErrorModelBase *	GetErrorModel () const
wsf::SensorErrorModelBase *	GetErrorModel ()
void	SetErrorModel (std::unique_ptr< wsf::SensorErrorModelBase > aErrorModelPtr)

Sensor mode error access methods.
virtual WSF_DEPRECATED double	GetAzErrorStdDev () final
virtual WSF_DEPRECATED double	GetElErrorStdDev () final
virtual WSF_DEPRECATED double	GetRangeErrorStdDev () final
virtual WSF_DEPRECATED double	GetRangeRateErrorStdDev () final
virtual WSF_DEPRECATED void	SetAzErrorStdDev (double aAzErrorStdDev) final
virtual WSF_DEPRECATED void	SetElErrorStdDev (double aElErrorStdDev) final
virtual WSF_DEPRECATED void	SetRangeErrorStdDev (double aRangeErrorStdDev) final
virtual WSF_DEPRECATED void	SetRangeRateErrorStdDev (double aRangeRateErrorStdDev) final

Detailed Description

A specialization of WsfMode for sensors. A sensor mode represents a particular set of operating characteristics for a sensor. For instance, a radar may have search, acquire and track modes.

Constructor & Destructor Documentation

◆ WsfSensorMode() [1/2]

WsfSensorMode::WsfSensorMode ( )

References cALL, mAzCueRate, mAzErrorStdDev, mCanSearchWhileTrack, mCapabilitiesFlags, mCueMode, mDisablesSearch, mDwellTime, mElCueRate, mElErrorStdDev, mErrorModelPtr, mEstablishTrackMask, mEstablishTrackProbability, mEstablishTrackWindow, mFrameTime, mHitsToEstablishTrack, mHitsToMaintainTrack, mMaintainTrackMask, mMaintainTrackProbability, mMaintainTrackWindow, mMaxAzCue, mMaxElCue, mMaximumRange, mMaximumRequestCount, mMessageLength, mMessagePriority, mMinAzCue, mMinElCue, mOnFailureModeIndex, mOnFailureModeName, mOnSuccessModeIndex, mOnSuccessModeName, mPlatformPtr, mRangeErrorStdDev, mRangeRateErrorStdDev, mReportingFlags, mReportsSpatialDomain, mRequiredPd, mRevisitTime, mSensorPtr, mTrackQuality, and WSF_SPATIAL_DOMAIN_UNKNOWN.

◆ WsfSensorMode() [2/2]

WsfSensorMode::WsfSensorMode ( const WsfSensorMode & aSrc )

◆ ~WsfSensorMode()

WsfSensorMode::~WsfSensorMode ( )

override

Member Function Documentation

◆ ApplyMeasurementErrors()

void WsfSensorMode::ApplyMeasurementErrors ( WsfSensorResult & aResult )

virtual

Compute and apply measurement errors to the current detection attempt.

Parameters

aResult [input] The results of the sensing chance. [output] The mReportedLocWCS updated as appropriate.

Reimplemented in WsfCompositeSensor::CompositeMode.

References mErrorModelPtr.

Referenced by WsfEW_SensorComponent::AttemptToDetectFalseTarget(), WsfPassiveSensor::PassiveMode::EmitterActiveCallback(), WsfOTH_RadarSensor::PerformScheduledDetections(), WsfRadarSensor::PerformScheduledDetections(), WsfSensor::PerformScheduledDetections(), and Select().

◆ AttemptToDetect()

virtual bool WsfSensorMode::AttemptToDetect	(	double	aSimTime,
		WsfPlatform *	aTargetPtr,
		WsfSensor::Settings &	aSettings,
		WsfSensorResult &	aResult )

pure virtual

Attempt to detect the specified target.

Parameters

aSimTime	[input] The current simulation time.
aTargetPtr	[input] The platform that will be attempted to be detected.
aSettings	[input] The sensor settings.
aResult	[output] The results of the detection attempt.

Returns: 'true' if the target was detected or 'false' if it was not detected.

Implemented in WsfAcousticSensor::AcousticMode, WsfBeamDirector::WsfBeamDirectorMode, WsfCompositeSensor::CompositeMode, WsfEOIR_Sensor::EOIR_Mode, WsfGeometricSensor::GeometricMode, WsfIRST_Sensor::IRST_Mode, WsfLADAR_Sensor::LADAR_Mode, WsfLaserDesignator::LaserDesignationMode, WsfLaserTracker::LaserTrackMode, WsfOpticalSensor::OpticalMode, WsfOTH_RadarSensor::OTH_Mode, WsfPassiveSensor::PassiveMode, WsfRadarSensor::RadarMode, WsfSAR_Sensor::SAR_Mode, WsfSOSM_Sensor::SOSM_Mode, and WsfSurfaceWaveRadarSensor::RadarMode.

Referenced by WsfPassiveSensor::AttemptToDetect(), WsfSensor::AttemptToDetect(), and WsfTRIMSIM_Processor::AttemptToDetect().

◆ CanSearchWhileTrack()

bool WsfSensorMode::CanSearchWhileTrack ( ) const

inline

Can this mode continue to search while it is also performing tracking requests.

References mCanSearchWhileTrack.

Referenced by WsfDefaultSensorScheduler::CheckSearchModeAvailability(), and WsfPhysicalScanSensorScheduler::CheckSearchModeAvailability().

◆ Clone()

WsfMode * WsfSensorMode::Clone ( ) const

overridepure virtual

◆ ComputeMeasurementErrors()

void WsfSensorMode::ComputeMeasurementErrors	(	WsfSensorResult &	aResult,
		double &	aAzError,
		double &	aElError,
		double &	aRangeError,
		double &	aRangeRateError )

finalvirtual

Compute the 'standard' measurement errors.

Parameters

aResult	[input] The sensing chance result data. [output] Measurement sigmas.
aAzError	[output] The computed azimuth error.
aElError	[output] The computed elevation error.
aRangeError	[output] The computed range error.
aRangeRateError	[output] The computed range rate error.

References WsfSensorComponent::ComputeSphericalMeasurementErrors(), GetSensor(), wsf::SphericalMeasurementErrors::mAzError, wsf::StandardSensorErrorModel::Sigmas::mAzErrorStdDev, mAzErrorStdDev, wsf::SphericalMeasurementErrors::mElError, wsf::StandardSensorErrorModel::Sigmas::mElErrorStdDev, mElErrorStdDev, mErrorModelPtr, wsf::SphericalMeasurementErrors::mRangeError, wsf::StandardSensorErrorModel::Sigmas::mRangeErrorStdDev, mRangeErrorStdDev, wsf::SphericalMeasurementErrors::mRangeRateError, wsf::StandardSensorErrorModel::Sigmas::mRangeRateErrorStdDev, and mRangeRateErrorStdDev.

Referenced by Select().

◆ Deselect()

void WsfSensorMode::Deselect ( double aSimTime )

overridepure virtual

The mode is being deselected. The specific implementation should perform whatever actions are associated with deselecting the mode (e.g.: deactivating transmitters or receivers).

Parameters

aSimTime [input] The current simulation time.

Reimplemented from WsfMode.

Implemented in WsfAcousticSensor::AcousticMode, WsfBeamDirector::WsfBeamDirectorMode, WsfCompositeSensor::CompositeMode, WsfEOIR_Sensor::EOIR_Mode, WsfGeometricSensor::GeometricMode, WsfIRST_Sensor::IRST_Mode, WsfLADAR_Sensor::LADAR_Mode, WsfLaserDesignator::LaserDesignationMode, WsfLaserTracker::LaserTrackMode, WsfOpticalSensor::OpticalMode, WsfOTH_RadarSensor::OTH_Mode, WsfPassiveSensor::PassiveMode, WsfRadarSensor::RadarMode, WsfSAR_Sensor::SAR_Mode, WsfSOSM_Sensor::SOSM_Mode, and WsfSurfaceWaveRadarSensor::RadarMode.

Referenced by WsfCompositeSensor::CompositeMode::Deselect(), WsfBeamDirector::PointAtTarget(), and WsfBeamDirector::TurnOff().

◆ DisablesSearch()

bool WsfSensorMode::DisablesSearch ( ) const

inline

Does using this mode prevent this or any other mode from searching?

References mDisablesSearch.

Referenced by WsfDefaultSensorScheduler::CheckSearchModeAvailability(), and WsfPhysicalScanSensorScheduler::CheckSearchModeAvailability().

◆ EstablishTrackMask()

unsigned int WsfSensorMode::EstablishTrackMask ( ) const

inline

A bit mask that defines the track establish window. If the window is N detection opportunities, then the mask will have bits 2^0 through 2^(N-1) on.

References mEstablishTrackMask.

Referenced by WsfDefaultSensorTracker::TargetDetected(), and WsfDefaultSensorTracker::TargetUndetected().

◆ EstablishTrackProbability()

double WsfSensorMode::EstablishTrackProbability ( ) const

inline

Return the probability that a track will actually be established given than the M/N establish track criteria has been met.

References mEstablishTrackProbability.

Referenced by WsfDefaultSensorTracker::TargetDetected().

◆ EstablishTrackWindow()

int WsfSensorMode::EstablishTrackWindow ( ) const

inline

The window size (N) for establishing a track.

References mEstablishTrackWindow.

Referenced by WsfDefaultSensorTracker::TargetUndetected().

◆ GetAltFreqSelectDelay()

virtual double WsfSensorMode::GetAltFreqSelectDelay ( ) const

inlinevirtual

Reimplemented in WsfOTH_RadarSensor::OTH_Mode, and WsfRadarSensor::RadarMode.

Referenced by WsfEW_SensorComponent::Initialize(), and WsfEW_AgilityEffect::UpdateEffects().

◆ GetAzErrorStdDev()

virtual WSF_DEPRECATED double WsfSensorMode::GetAzErrorStdDev ( )

inlinefinalvirtual

References mAzErrorStdDev.

◆ GetBeamCount()

size_t WsfSensorMode::GetBeamCount ( ) const

virtual

Return the number of beams in the mode. Derived classes should return the number of beams that are defined.

Returns: The number of beams defined. The result will be 0 if the derived class does not support beams.

Reimplemented in WsfOTH_RadarSensor::OTH_Mode, WsfPassiveSensor::PassiveMode, WsfRadarSensor::RadarMode, WsfSAR_Sensor::SAR_Mode, and WsfSurfaceWaveRadarSensor::RadarMode.

Referenced by WsfSensorModeList::AddMode(), WsfEW_SensorComponent::AttemptToDetectFalseTarget(), Clone(), WsfEW_SensorComponent::DeselectEP_Technique(), WsfCTD_SensorComponent::Initialize(), WsfEW_SensorComponent::Initialize(), WsfEW_SensorComponent::IsEP_TechniqueActive(), WsfEW_SensorComponent::SelectEP_Technique(), WsfEW_SensorComponent::EW_Mode::UpdateFalseTargetInteractors(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), and UT_DEFINE_SCRIPT_METHOD().

◆ GetBeamEntry()

WsfSensorBeam * WsfSensorMode::GetBeamEntry ( size_t aIndex )

virtual

Return a pointer to the beam with the specified index. A derived class will return a pointer

Parameters

aIndex The index of the beam to be retrieved. The index is NOT checked for validity. It MUST be in the range [0..GetBeamCount()].

Returns: A pointer to the beam. The results are undefined if an invalid index is provided or if the derived class does not support beams.

Reimplemented in WsfOTH_RadarSensor::OTH_Mode, WsfPassiveSensor::PassiveMode, WsfRadarSensor::RadarMode, WsfSAR_Sensor::SAR_Mode, and WsfSurfaceWaveRadarSensor::RadarMode.

Referenced by WsfSensorModeList::AddMode(), WsfCTD_SensorComponent::AttemptToDetect(), Clone(), WsfEW_SensorComponent::DeselectEP_Technique(), WsfEW_SensorComponent::EW_Beam::DetectJamStrobes(), wsf::DetectionProbabilityTable::Initialize(), wsf::MarcumSwerling::Initialize(), WsfCTD_SensorComponent::Initialize(), WsfEW_SensorComponent::Initialize(), WsfRadarMTD_SignalProcessor::Initialize(), WsfRadarMTI_SignalProcessor::Initialize(), WsfRadarPD_SignalProcessor::Initialize(), WsfEW_SensorComponent::IsEP_TechniqueActive(), WsfEW_SensorComponent::SelectEP_Technique(), and WsfEW_SensorComponent::EW_Mode::UpdateFalseTargetInteractors().

◆ GetCueMode()

WsfSensor::SlewMode WsfSensorMode::GetCueMode ( ) const

inline

References mCueMode.

◆ GetDwellTime()

double WsfSensorMode::GetDwellTime ( ) const

inline

References mDwellTime.

Referenced by WsfRadarMTI_AdjSignalProcessor::Initialize(), WsfDefaultSensorScheduler::SelectTarget(), WsfSensorsManagerFovSensorScheduler::TurnOn(), WsfEW_RPJ_Effect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_FalseTargetEffect::UpdateFT(), WsfEW_FalseTargetEffect::UpdateJammerPulseDensity(), and WsfEW_SimpleFT_Effect::UpdateJammerPulseDensity().

◆ GetElErrorStdDev()

virtual WSF_DEPRECATED double WsfSensorMode::GetElErrorStdDev ( )

inlinefinalvirtual

References mElErrorStdDev.

◆ GetErrorModel() [1/2]

wsf::SensorErrorModelBase * WsfSensorMode::GetErrorModel ( )

inline

References mErrorModelPtr.

◆ GetErrorModel() [2/2]

const wsf::SensorErrorModelBase * WsfSensorMode::GetErrorModel ( ) const

inline

References mErrorModelPtr.

Referenced by WsfTRIMSIM_Processor::AttemptToDetect(), WsfEOIR_Sensor::Update(), and WsfTRIMSIM_SensorComponent::UpdateTrack().

◆ GetFrameTime()

double WsfSensorMode::GetFrameTime ( ) const

inline

References mFrameTime.

Referenced by WsfPassiveSensor::PassiveMode::AttemptToDetect(), WsfSAR_Sensor::SAR_Mode::ComputeUpdateInterval(), WsfEOIR_Sensor::EOIR_Mode::Initialize(), WsfEW_SensorComponent::Initialize(), WsfPassiveSensor::PassiveMode::Initialize(), WsfPhysicalScanSensorScheduler::Initialize(), WsfRadarMTI_AdjSignalProcessor::Initialize(), WsfEOIR_Sensor::EOIR_Mode::Select(), WsfPassiveSensor::PassiveMode::Select(), WsfEventPipeInterface::SendModeActive(), WsfDefaultSensorScheduler::StartTracking(), WsfDefaultSensorScheduler::TrackerModeChange(), WsfSensorsManagerFovSensorScheduler::TurnOn(), WsfEventStepSimulation::TurnPartOn(), WsfEOIR_Sensor::Update(), WsfEW_RPJ_Effect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_FalseTargetEffect::UpdateFT(), WsfEW_FalseTargetEffect::UpdateJammerPulseDensity(), and WsfEW_SimpleFT_Effect::UpdateJammerPulseDensity().

◆ GetLastAltFreqSelectTime()

virtual double WsfSensorMode::GetLastAltFreqSelectTime ( ) const

inlinevirtual

Reimplemented in WsfOTH_RadarSensor::OTH_Mode, and WsfRadarSensor::RadarMode.

Referenced by WsfEW_AgilityEffect::UpdateEffects().

◆ GetMaximumRange()

double WsfSensorMode::GetMaximumRange ( ) const

inline

Return the optimistic maximum range of the sensor mode.

References mMaximumRange.

◆ GetMaximumRequestCount()

int WsfSensorMode::GetMaximumRequestCount ( ) const

inline

Return the maximum number of cued-search or tracking requests the mode can support.

References mMaximumRequestCount.

Referenced by WsfSensor::SelectMode(), WsfSensor::TurnOn(), and WsfDisInterface::UpdateSystemFromSensor().

◆ GetMessageLength()

int WsfSensorMode::GetMessageLength ( ) const

inline

Return the logical length (int bits) of report messages that originate from this sensor mode.

References mMessageLength.

Referenced by WsfSensor::SetMessageParameters().

◆ GetMessagePriority()

int WsfSensorMode::GetMessagePriority ( ) const

inline

Return the priority of report messages that originate from this sensor mode.

References mMessagePriority.

Referenced by WsfSensor::SetMessageParameters().

◆ GetOnFailureModeIndex()

size_t WsfSensorMode::GetOnFailureModeIndex ( ) const

inline

Return the mode list index of the mode to be used after dropping a track.

Returns: The mode list index of the next mode to be used. This will either be the index for the new mode or the index for the current mode (the value of GetModeIndex()) if 'on_failure' has not been defined.

Note: This is valid only after Initialize() has been called.

References mOnFailureModeIndex.

Referenced by WsfDefaultSensorTracker::TargetDetected(), and WsfDefaultSensorTracker::TargetUndetected().

◆ GetOnSuccessModeIndex()

size_t WsfSensorMode::GetOnSuccessModeIndex ( ) const

inline

Return the mode list index of the mode to be used after declaring a track or a successful mode switch;

Returns: The mode list index of the next mode to be used. This will either be the index for the new mode or the index for the current mode (the value of GetModeIndex()) if 'on_success' has not been defined.

Note: This is valid only after Initialize() has been called.

References mOnSuccessModeIndex.

Referenced by WsfDefaultSensorTracker::TargetDetected().

◆ GetPlatform()

WsfPlatform * WsfSensorMode::GetPlatform ( ) const

inline

Return the pointer to the platform to which the associated sensor is attached.

References mPlatformPtr.

Referenced by WsfEOIR_IRST_SensorMode::BeginDetectionAttempt(), InitializeTrack(), WsfFusionCenter::PrintFuserState(), WsfEW_SensorComponent::TrackerAllowTracking(), UpdateTrack(), and UpdateTrackPosition().

◆ GetRangeErrorStdDev()

virtual WSF_DEPRECATED double WsfSensorMode::GetRangeErrorStdDev ( )

inlinefinalvirtual

References mRangeErrorStdDev.

◆ GetRangeRateErrorStdDev()

virtual WSF_DEPRECATED double WsfSensorMode::GetRangeRateErrorStdDev ( )

inlinefinalvirtual

References mRangeRateErrorStdDev.

◆ GetReportingFlags()

unsigned int WsfSensorMode::GetReportingFlags ( ) const

inline

Accessors for the reporting flags.

References mReportingFlags.

Referenced by Initialize().

◆ GetRequiredPd()

double WsfSensorMode::GetRequiredPd ( ) const

inline

Return the Pd required for detection. This is only meaningful for sensors that do not employ binary (0/1) detectors.

References mRequiredPd.

Referenced by WsfSensor::GetRequiredPd(), wsf::DetectionProbabilityTable::Initialize(), and wsf::MarcumSwerling::Initialize().

◆ GetRevisitTime()

double WsfSensorMode::GetRevisitTime ( ) const

inline

References mRevisitTime.

Referenced by WsfDefaultSensorScheduler::SelectTarget().

◆ GetScenario()

const WsfScenario & WsfSensorMode::GetScenario ( ) const

References mSensorPtr.

Referenced by WsfSAR_Sensor::SAR_Mode::SAR_ErrorModel::Initialize().

◆ GetSensor()

WsfSensor * WsfSensorMode::GetSensor ( ) const

inline

Return the pointer to the sensor with which this mode is associated.

References mSensorPtr.

◆ GetSimulation()

WsfSimulation * WsfSensorMode::GetSimulation ( ) const

References mSensorPtr.

Referenced by WsfSensorMode::AltFrequencyChangeEvent::Execute(), InitializeTrack(), ProcessInput(), and UpdateTrack().

◆ GetTrackQuality()

double WsfSensorMode::GetTrackQuality ( ) const

inline

References mTrackQuality.

Referenced by WsfDefaultSensorTracker::TargetDetected(), WsfEOIR_Sensor::Update(), UT_DEFINE_SCRIPT_METHOD(), UT_DEFINE_SCRIPT_METHOD(), and UT_DEFINE_SCRIPT_METHOD().

◆ HitsToEstablishTrack()

int WsfSensorMode::HitsToEstablishTrack ( ) const

inline

The number of hits (M) within the window (N) that are required to establish a track.

References mHitsToEstablishTrack.

Referenced by WsfDefaultSensorTracker::TargetDetected(), and WsfDefaultSensorTracker::TargetUndetected().

◆ HitsToMaintainTrack()

int WsfSensorMode::HitsToMaintainTrack ( ) const

inline

The number of hits (M) within the window (N) that are required to maintain a track.

References mHitsToMaintainTrack.

Referenced by WsfDefaultSensorTracker::TargetDeleted(), WsfDefaultSensorTracker::TargetSkipped(), and WsfDefaultSensorTracker::TargetUndetected().

◆ Initialize()

bool WsfSensorMode::Initialize ( double aSimTime )

virtual

Initialize the sensor mode.

Parameters

aSimTime The current simulation time.

Returns: 'true' if the mode was successfully initialize or 'false' if not.

Reimplemented in WsfAcousticSensor::AcousticMode, WsfBeamDirector::WsfBeamDirectorMode, WsfCompositeSensor::CompositeMode, WsfEOIR_IRST_SensorMode, WsfEOIR_Sensor::EOIR_Mode, WsfGeometricSensor::GeometricMode, WsfIRST_Sensor::IRST_Mode, WsfLADAR_Sensor::LADAR_Mode, WsfLaserDesignator::LaserDesignationMode, WsfLaserTracker::LaserTrackMode, WsfOpticalSensor::OpticalMode, WsfOTH_RadarSensor::OTH_Mode, WsfPassiveSensor::PassiveMode, WsfRadarSensor::RadarMode, WsfSAR_Sensor::SAR_Mode, WsfSOSM_Sensor::SOSM_Mode, and WsfSurfaceWaveRadarSensor::RadarMode.

References WsfModeList::GetModeByName(), WsfModeList::GetModeCount(), WsfMode::GetModeIndex(), WsfNamed::GetName(), GetReportingFlags(), InitializeReporting(), wsf::StandardSensorErrorModel::Sigmas::mAzErrorStdDev, mAzErrorStdDev, mCanSearchWhileTrack, mDisablesSearch, wsf::StandardSensorErrorModel::Sigmas::mElErrorStdDev, mElErrorStdDev, mErrorModelPtr, mFrameTime, mMaximumRequestCount, mOnFailureModeIndex, mOnFailureModeName, mOnSuccessModeIndex, mOnSuccessModeName, mPlatformPtr, wsf::StandardSensorErrorModel::Sigmas::mRangeErrorStdDev, mRangeErrorStdDev, wsf::StandardSensorErrorModel::Sigmas::mRangeRateErrorStdDev, mRangeRateErrorStdDev, mRevisitTime, mSensorPtr, ok, and WsfMode::WsfModeList.

◆ InitializeReporting()

bool WsfSensorMode::InitializeReporting ( )

protected

Referenced by Initialize().

◆ InitializeTrack()

void WsfSensorMode::InitializeTrack	(	double	aSimTime,
		WsfTrack *&	aTrackPtr )

virtual

Initialize a new track.

This method is called to initialize a new track. A new track number is assigned and all fields in the track are set to their initial state.

Parameters

aSimTime	The current simulation time.
aTrackPtr	A reference to a pointer to the track to be initialized. A track will be created if the pointer is null.

Reimplemented in WsfCompositeSensor::CompositeMode.

References WsfTrack::cUNFILTERED_SENSOR, WsfNamed::GetNameId(), GetPlatform(), GetSensor(), GetSimulation(), WsfTrack::Initialize(), mReportsSpatialDomain, mTrackQuality, ReportsBearing(), ReportsElevation(), ReportsLocation(), ReportsRange(), ReportsRangeRate(), ReportsSide(), ReportsSignalToNoise(), ReportsType(), ReportsVelocity(), WsfTrack::SetMessageDataTag(), WsfTrack::SetSensorModeId(), WsfTrack::SetSignalToNoiseValid(), WsfMeasurement::SetSpatialDomain(), and WsfTrack::SetTrackQuality().

Referenced by WsfSensorTracker::InitializeTrackP(), WsfEOIR_Sensor::NotifyObservers(), Select(), and WsfEW_SensorComponent::TrackerInitializeTrack().

◆ IsAltFreqChangeScheduled()

virtual bool WsfSensorMode::IsAltFreqChangeScheduled ( ) const

inlinevirtual

Reimplemented in WsfOTH_RadarSensor::OTH_Mode, and WsfRadarSensor::RadarMode.

Referenced by WsfEW_AgilityEffect::UpdateEffects().

◆ IsFrequencyAgile()

virtual bool WsfSensorMode::IsFrequencyAgile ( ) const

inlinevirtual

Reimplemented in WsfOTH_RadarSensor::OTH_Mode, and WsfRadarSensor::RadarMode.

Referenced by WsfEW_FalseTargetEffect::UpdateFT().

◆ MaintainTrackMask()

unsigned int WsfSensorMode::MaintainTrackMask ( ) const

inline

A bit mask that defines the track maintain window. If the window is N detection opportunities, then the mask will have bits 2^0 through 2^(N-1) on.

References mMaintainTrackMask.

Referenced by WsfDefaultSensorTracker::TargetDeleted(), and WsfDefaultSensorTracker::TargetSkipped().

◆ MaintainTrackProbability()

double WsfSensorMode::MaintainTrackProbability ( ) const

inline

Return the probability that a track will actually be maintained given that the M/N maintain track criteria has been met.

References mMaintainTrackProbability.

Referenced by WsfDefaultSensorTracker::TargetDetected().

◆ MaintainTrackWindow()

int WsfSensorMode::MaintainTrackWindow ( ) const

inline

The window size (N) for maintaining a track.

References mMaintainTrackWindow.

Referenced by WsfDefaultSensorTracker::TargetUndetected().

◆ operator=()

WsfSensorMode & WsfSensorMode::operator= ( const WsfSensorMode & aRhs )

References mAzCueRate, mAzErrorStdDev, mCanSearchWhileTrack, mCapabilitiesFlags, mCueMode, mDisablesSearch, mDwellTime, mElCueRate, mElErrorStdDev, mErrorModelPtr, mEstablishTrackMask, mEstablishTrackProbability, mEstablishTrackWindow, mFrameTime, mHitsToEstablishTrack, mHitsToMaintainTrack, mMaintainTrackMask, mMaintainTrackProbability, mMaintainTrackWindow, mMaxAzCue, mMaxElCue, mMaximumRange, mMaximumRequestCount, mMessageLength, mMessagePriority, mMinAzCue, mMinElCue, mOnFailureModeIndex, mOnFailureModeName, mOnSuccessModeIndex, mOnSuccessModeName, mPlatformPtr, mRangeErrorStdDev, mRangeRateErrorStdDev, mReportingFlags, mReportsSpatialDomain, mRequiredPd, mRevisitTime, mSensorPtr, mTrackQuality, WsfNamed::operator=(), and WsfSensorMode().

Referenced by WsfCompositeSensor::CompositeMode::operator=(), WsfCompositeSensor::CompositeMode::operator=(), WsfGeometricSensor::GeometricMode::operator=(), WsfPassiveSensor::PassiveMode::operator=(), and WsfRadarSensor::RadarMode::operator=().

◆ ProcessInput()

bool WsfSensorMode::ProcessInput ( UtInput & aInput )

overridevirtual

Reimplemented from WsfMode.

References cNONE, WsfArticulatedPart::cSLEW_AZ, WsfArticulatedPart::cSLEW_AZ_EL, WsfArticulatedPart::cSLEW_EL, WsfArticulatedPart::cSLEW_FIXED, WsfScenario::FromInput(), WsfUtil::GenerateBitMask(), WsfSensorErrorModelTypes::Get(), WsfSensor::GetComponents(), WsfNamed::GetNameId(), GetSensor(), GetSimulation(), WsfComponentList::HasComponents(), mAzCueRate, mCanSearchWhileTrack, mCueMode, mDisablesSearch, mDwellTime, mElCueRate, mErrorModelPtr, mEstablishTrackMask, mEstablishTrackProbability, mEstablishTrackWindow, mFrameTime, mHitsToEstablishTrack, mHitsToMaintainTrack, mMaintainTrackMask, mMaintainTrackProbability, mMaintainTrackWindow, mMaxAzCue, mMaxElCue, mMaximumRequestCount, mMessageLength, mMessagePriority, mMinAzCue, mMinElCue, mOnFailureModeName, mOnSuccessModeName, mReportingFlags, mReportsSpatialDomain, mRequiredPd, mRevisitTime, mSensorPtr, mTrackQuality, WsfMode::ProcessInput(), and WSF_SPATIAL_DOMAIN_UNKNOWN.

◆ ReportsBearing()

bool WsfSensorMode::ReportsBearing ( ) const

inline

References mReportingFlags.

Referenced by UCI_Util::GetKinematics(), wsf::StandardSensorErrorModel::GetSphericalErrorStdDev(), wsf::SurfaceWaveRadarSensorErrorModel::GetSphericalErrorStdDev(), InitializeTrack(), and UpdateTrackReportingFlags().

◆ ReportsElevation()

bool WsfSensorMode::ReportsElevation ( ) const

inline

References mReportingFlags.

Referenced by UCI_Util::GetKinematics(), wsf::StandardSensorErrorModel::GetSphericalErrorStdDev(), wsf::SurfaceWaveRadarSensorErrorModel::GetSphericalErrorStdDev(), InitializeTrack(), and UpdateTrackReportingFlags().

◆ ReportsFrequency()

bool WsfSensorMode::ReportsFrequency ( ) const

inline

References mReportingFlags.

Referenced by WsfPassiveSensor::PassiveMode::AttemptToDetect(), and WsfPassiveSensor::PassiveMode::UpdateTrack().

◆ ReportsIFF_Status()

bool WsfSensorMode::ReportsIFF_Status ( ) const

inline

References mReportingFlags.

Referenced by UpdateTrack().

◆ ReportsLocation()

bool WsfSensorMode::ReportsLocation ( ) const

inline

References mReportingFlags.

Referenced by UCI_Util::GetKinematics(), wsf::StandardSensorErrorModel::GetSphericalErrorStdDev(), wsf::SurfaceWaveRadarSensorErrorModel::GetSphericalErrorStdDev(), InitializeTrack(), and UpdateTrackReportingFlags().

◆ ReportsPulseRepititionInterval()

bool WsfSensorMode::ReportsPulseRepititionInterval ( ) const

inline

References mReportingFlags.

Referenced by WsfPassiveSensor::PassiveMode::AttemptToDetect().

◆ ReportsPulseWidth()

bool WsfSensorMode::ReportsPulseWidth ( ) const

inline

References mReportingFlags.

Referenced by WsfPassiveSensor::PassiveMode::AttemptToDetect().

◆ ReportsRange()

bool WsfSensorMode::ReportsRange ( ) const

inline

References mReportingFlags.

Referenced by UCI_Util::GetKinematics(), wsf::StandardSensorErrorModel::GetSphericalErrorStdDev(), wsf::SurfaceWaveRadarSensorErrorModel::GetSphericalErrorStdDev(), InitializeTrack(), and UpdateTrackReportingFlags().

◆ ReportsRangeRate()

bool WsfSensorMode::ReportsRangeRate ( ) const

inline

References mReportingFlags.

Referenced by wsf::StandardSensorErrorModel::GetSphericalErrorStdDev(), wsf::SurfaceWaveRadarSensorErrorModel::GetSphericalErrorStdDev(), InitializeTrack(), and UpdateTrackReportingFlags().

◆ ReportsSide()

bool WsfSensorMode::ReportsSide ( ) const

inline

References mReportingFlags.

Referenced by InitializeTrack(), and UpdateTrackReportingFlags().

◆ ReportsSignalToNoise()

bool WsfSensorMode::ReportsSignalToNoise ( ) const

inline

References mReportingFlags.

Referenced by WsfEW_SensorComponent::Initialize(), InitializeTrack(), and UpdateTrackReportingFlags().

◆ ReportsType()

bool WsfSensorMode::ReportsType ( ) const

inline

References mReportingFlags.

Referenced by InitializeTrack(), WsfPassiveSensor::PassiveMode::UpdateTrack(), and UpdateTrackReportingFlags().

◆ ReportsVelocity()

bool WsfSensorMode::ReportsVelocity ( ) const

inline

References mReportingFlags.

Referenced by UCI_Util::GetKinematics(), InitializeTrack(), and UpdateTrackReportingFlags().

◆ ScheduleAltFreqChange()

virtual void WsfSensorMode::ScheduleAltFreqChange	(	double	aSimTime,
		int	aAltFreqId = -1 )

inlinevirtual

Reimplemented in WsfOTH_RadarSensor::OTH_Mode, and WsfRadarSensor::RadarMode.

Referenced by WsfEW_AgilityEffect::UpdateEffects().

◆ Select()

void WsfSensorMode::Select ( double aSimTime )

overridepure virtual

The mode is being activated. The specific implementation should perform whatever actions are associated with selecting the mode (e.g.: activating transmitters or receivers).

Parameters

aSimTime [input] The current simulation time.

Reimplemented from WsfMode.

Implemented in WsfAcousticSensor::AcousticMode, WsfBeamDirector::WsfBeamDirectorMode, WsfCompositeSensor::CompositeMode, WsfEOIR_Sensor::EOIR_Mode, WsfGeometricSensor::GeometricMode, WsfIRST_Sensor::IRST_Mode, WsfLADAR_Sensor::LADAR_Mode, WsfLaserDesignator::LaserDesignationMode, WsfLaserTracker::LaserTrackMode, WsfOpticalSensor::OpticalMode, WsfOTH_RadarSensor::OTH_Mode, WsfPassiveSensor::PassiveMode, WsfRadarSensor::RadarMode, WsfSAR_Sensor::SAR_Mode, WsfSOSM_Sensor::SOSM_Mode, and WsfSurfaceWaveRadarSensor::RadarMode.

References ApplyMeasurementErrors(), ComputeMeasurementErrors(), InitializeTrack(), UpdateSensorCueingLimits(), UpdateTrack(), UpdateTrackReportingFlags(), and WithinDetectionRange().

Referenced by WsfCompositeSensor::CompositeMode::Select().

◆ SelectAlternateFrequency()

virtual void WsfSensorMode::SelectAlternateFrequency	(	double	aSimTime,
		int	aAltFreqId = -1 )

inlineprotectedvirtual

Reimplemented in WsfOTH_RadarSensor::OTH_Mode, and WsfRadarSensor::RadarMode.

◆ SetAzErrorStdDev()

void WsfSensorMode::SetAzErrorStdDev ( double aAzErrorStdDev )

finalvirtual

References mAzErrorStdDev, and mErrorModelPtr.

◆ SetCapabilities()

void WsfSensorMode::SetCapabilities ( unsigned int aFlags )

inlineprotected

References mCapabilitiesFlags.

Referenced by WsfAcousticSensor::AcousticMode::AcousticMode(), WsfGeometricSensor::GeometricMode::GeometricMode(), WsfBeamDirector::WsfBeamDirectorMode::Initialize(), WsfLADAR_Sensor::LADAR_Mode::LADAR_Mode(), WsfOpticalSensor::OpticalMode::OpticalMode(), WsfOTH_RadarSensor::OTH_Mode::OTH_Mode(), and WsfEOIR_IRST_SensorMode::WsfEOIR_IRST_SensorMode().

◆ SetElErrorStdDev()

void WsfSensorMode::SetElErrorStdDev ( double aElErrorStdDev )

finalvirtual

References mElErrorStdDev, and mErrorModelPtr.

◆ SetErrorModel()

void WsfSensorMode::SetErrorModel ( std::unique_ptr< wsf::SensorErrorModelBase > aErrorModelPtr )

inline

References mErrorModelPtr.

Referenced by WsfCompositeSensor::CompositeMode::CompositeMode(), WsfCompositeSensor::CompositeMode::CompositeMode(), WsfEOIR_Sensor::EOIR_Mode::EOIR_Mode(), WsfCompositeSensor::CompositeMode::operator=(), WsfOTH_RadarSensor::OTH_Mode::OTH_Mode(), WsfPassiveSensor::PassiveMode::PassiveMode(), WsfRadarSensor::RadarMode::RadarMode(), and WsfSAR_Sensor::SAR_Mode::SAR_Mode().

◆ SetFrameTime()

void WsfSensorMode::SetFrameTime ( double aFrameTime )

inline

References mFrameTime.

◆ SetRangeErrorStdDev()

void WsfSensorMode::SetRangeErrorStdDev ( double aRangeErrorStdDev )

finalvirtual

References mErrorModelPtr, and mRangeErrorStdDev.

◆ SetRangeRateErrorStdDev()

void WsfSensorMode::SetRangeRateErrorStdDev ( double aRangeRateErrorStdDev )

finalvirtual

References mErrorModelPtr, and mRangeRateErrorStdDev.

◆ SetReportingFlags()

void WsfSensorMode::SetReportingFlags ( unsigned int aFlags )

inlineprotected

References mReportingFlags.

◆ UpdateSensorCueingLimits()

void WsfSensorMode::UpdateSensorCueingLimits ( )

virtual

Update the sensor cueing limits from the mode cueing limits. This is called by WsfSensor::AttemptToDetect immediately before calling WsfSensorMode::AttempToDetect. It modifies the sensor cueing limits to be the same as the mode cueing limits.

References GetSensor(), mAzCueRate, mCueMode, mElCueRate, mMaxAzCue, mMaxElCue, mMinAzCue, mMinElCue, WsfArticulatedPart::SetAzCueLimits(), WsfArticulatedPart::SetCueMode(), WsfArticulatedPart::SetCueRates(), and WsfArticulatedPart::SetElCueLimits().

Referenced by WsfPassiveSensor::AttemptToDetect(), WsfSensor::AttemptToDetect(), WsfPassiveSensor::PassiveMode::CanDetect(), WsfPassiveSensor::PassiveMode::EmitterActiveCallback(), Select(), WsfSensor::SelectMode(), and WsfSensor::TurnOn().

◆ UpdateTrack()

void WsfSensorMode::UpdateTrack	(	double	aSimTime,
		WsfTrack *	aTrackPtr,
		WsfPlatform *	aTargetPtr,
		WsfSensorResult &	aResult )

virtual

Update a track with the results from the current detection.

Parameters

aSimTime	The current simulation time.
aTrackPtr	A pointer to the track to be updated.
aTargetPtr	Pointer to the target.
aResult	The results of the current detection attempt

Reimplemented in WsfCompositeSensor::CompositeMode, WsfOTH_RadarSensor::OTH_Mode, and WsfPassiveSensor::PassiveMode.

References WsfEM_XmtrRcvr::GetAntenna(), WsfPlatform::GetCategories(), WsfCategoryList::GetCategoryList(), WsfPlatform::GetIndex(), WsfPlatform::GetLocationErrorWCS(), WsfEM_Antenna::GetLocationWCS(), WsfNamed::GetNameId(), WsfObject::GetNameId(), WsfEM_XmtrRcvr::GetPlatform(), GetPlatform(), WsfEM_Interaction::GetReceiver(), GetSensor(), WsfPlatform::GetSideId(), GetSimulation(), WsfMeasurement::GetSpatialDomain(), WsfPlatform::GetSpatialDomain(), WsfObject::GetTypeId(), WsfEM_Interaction::LocationData::mIsValid, WsfEM_Interaction::LocationData::mLocWCS, WsfSensorResult::mMeasurement, WsfEM_Interaction::mRcvrLoc, WsfEM_Interaction::mRcvrToTgt, mSensorPtr, WsfEM_Interaction::mSignalToNoise, WsfEM_Interaction::RelativeData::mTrueUnitVecWCS, ReportsIFF_Status(), WsfTrack::SetIFF_Status(), WsfTrack::SetMessageDataTag(), WsfTrack::SetSensorModeId(), WsfTrack::SetSignalToNoise(), WsfMeasurement::SetSpatialDomain(), WsfTrack::SetTargetIndex(), WsfTrack::SetTargetName(), WsfTrack::SetTargetType(), WsfTrack::SignalToNoiseValid(), WsfTrack::Update(), WsfSensorComponent::UpdateTrack(), UpdateTrackPosition(), UpdateTrackReportingFlags(), and WSF_SPATIAL_DOMAIN_UNKNOWN.

Referenced by WsfEOIR_Sensor::NotifyObservers(), Select(), WsfOTH_RadarSensor::OTH_Mode::UpdateTrack(), WsfPassiveSensor::PassiveMode::UpdateTrack(), and WsfSensorTracker::UpdateTrackP().

◆ UpdateTrackPosition()

void WsfSensorMode::UpdateTrackPosition	(	WsfTrack *	aTrackPtr,
		WsfSensorResult &	aResult,
		const double	aTgtLocationWCS[3] )

Update a track with new position information from the current detection.

Parameters

aTrackPtr	A pointer to the track to be updated.
aResult	[input] The results of the sensing chance.
aTgtLocationWCS	New location specified for this track.

Note: Errors for range, bearing, elevation, and measurement covariance will also be set as appropriate.

References WsfEM_Antenna::ConvertWCS_ToNED(), WsfEM_XmtrRcvr::GetAntenna(), WsfPlatform::GetLocationErrorWCS(), GetPlatform(), WsfEM_Interaction::GetReceiver(), WsfTrack::GetUpdateTime(), WsfTrack::Is3D(), WsfSensorResult::mMeasurement, and WsfTrack::Set3D().

Referenced by UpdateTrack().

◆ UpdateTrackReportingFlags()

void WsfSensorMode::UpdateTrackReportingFlags	(	double	aSimTime,
		WsfTrack *	aTrackPtr )

virtual

Update the reported data flags in a track.

This is called by UpdateTrack() prior to applying the sensor detection results to the track. The function of the method is to set the flags in the track that indicate what data is 'valid'. UpdateTrack() uses the flags to decide what data from the sensor detection results is to be pushed into the track.

A base class may override this method to provide the ability to dynamically change the reporting abilities. The default method simply sets the reporting flags from the mode.

Parameters

aSimTime	The current simulation time.
aTrackPtr	The track whose reporting flags are to be updated.

Note: In general, the base class should call this method.

Reimplemented in WsfPassiveSensor::PassiveMode, and WsfSOSM_Sensor::SOSM_Mode.

References mReportsSpatialDomain, ReportsBearing(), ReportsElevation(), ReportsLocation(), ReportsRange(), ReportsRangeRate(), ReportsSide(), ReportsSignalToNoise(), ReportsType(), ReportsVelocity(), WsfTrack::SetSignalToNoiseValid(), and WsfMeasurement::SetSpatialDomain().

Referenced by Select(), UpdateTrack(), WsfPassiveSensor::PassiveMode::UpdateTrackReportingFlags(), and WsfSOSM_Sensor::SOSM_Mode::UpdateTrackReportingFlags().

◆ WithinDetectionRange()

bool WsfSensorMode::WithinDetectionRange	(	double	aSimTime,
		WsfPlatform *	aTargetPtr )

virtual

Perform a very conservative check to see if the target is within the detection range of the sensor.

This method performs a very conservative check to see if the target is within the detection range of the sensor. It should can be called by the before attempting to update the targets position to the current time. It will make a quick estimate of the targets current location based on the last known location and then check to see if that location is somewhat close to the detection range of the sensor.

Judicious use of this method can reduce computation time.

Parameters

aSimTime	The current simulation time.
aTargetPtr	The target in question.

Returns: true if there is even a remote possibility that the target is within range of the sensor.

References mMaximumRange, mPlatformPtr, and WsfUtil::PotentiallyWithinRange().

Referenced by WsfOTH_RadarSensor::PerformScheduledDetections(), WsfRadarSensor::PerformScheduledDetections(), WsfSensor::PerformScheduledDetections(), Select(), and WsfEOIR_Sensor::Update().

◆ WsfSensorModeList

friend class WsfSensorModeList

friend

References WsfSensorMode(), and WsfSensorModeList.

Referenced by WsfSensorModeList.

Member Data Documentation

◆ cALL

const unsigned int WsfSensorMode::cALL = 0xFFFFFFFF

staticprotected

Catch-all for anything other than the above.

Referenced by WsfAcousticSensor::AcousticMode::AcousticMode(), WsfGeometricSensor::GeometricMode::GeometricMode(), WsfLADAR_Sensor::LADAR_Mode::LADAR_Mode(), WsfOpticalSensor::OpticalMode::OpticalMode(), WsfOTH_RadarSensor::OTH_Mode::OTH_Mode(), WsfSensorMode::ReportingFlags::ReportingFlags(), WsfEOIR_IRST_SensorMode::WsfEOIR_IRST_SensorMode(), and WsfSensorMode().

◆ cBEARING

const unsigned int WsfSensorMode::cBEARING = 8

staticprotected

Referenced by WsfBeamDirector::WsfBeamDirectorMode::Initialize().

◆ cELEVATION

const unsigned int WsfSensorMode::cELEVATION = 16

staticprotected

Referenced by WsfBeamDirector::WsfBeamDirectorMode::Initialize().

◆ cFREQUENCY

const unsigned int WsfSensorMode::cFREQUENCY = 1024

staticprotected

Referenced by WsfAcousticSensor::AcousticMode::AcousticMode(), WsfGeometricSensor::GeometricMode::GeometricMode(), WsfLADAR_Sensor::LADAR_Mode::LADAR_Mode(), WsfOpticalSensor::OpticalMode::OpticalMode(), WsfOTH_RadarSensor::OTH_Mode::OTH_Mode(), and WsfEOIR_IRST_SensorMode::WsfEOIR_IRST_SensorMode().

◆ cIFF_STATUS

const unsigned int WsfSensorMode::cIFF_STATUS = 256

staticprotected

◆ cLOCATION

const unsigned int WsfSensorMode::cLOCATION = 1

staticprotected

Referenced by WsfBeamDirector::WsfBeamDirectorMode::Initialize().

◆ cNONE

const unsigned int WsfSensorMode::cNONE = 0

staticprotected

The following are flags/masks meant to be combined and used in the SetCapabilities method.

Referenced by ProcessInput().

◆ cOTHER

const unsigned int WsfSensorMode::cOTHER = 16384

staticprotected

◆ cPULSE_REPITITION_INTERVAL

const unsigned int WsfSensorMode::cPULSE_REPITITION_INTERVAL = 4096

staticprotected

Referenced by WsfAcousticSensor::AcousticMode::AcousticMode(), WsfGeometricSensor::GeometricMode::GeometricMode(), WsfLADAR_Sensor::LADAR_Mode::LADAR_Mode(), WsfOpticalSensor::OpticalMode::OpticalMode(), WsfOTH_RadarSensor::OTH_Mode::OTH_Mode(), and WsfEOIR_IRST_SensorMode::WsfEOIR_IRST_SensorMode().

◆ cPULSEWIDTH

const unsigned int WsfSensorMode::cPULSEWIDTH = 2048

staticprotected

Referenced by WsfAcousticSensor::AcousticMode::AcousticMode(), WsfGeometricSensor::GeometricMode::GeometricMode(), WsfLADAR_Sensor::LADAR_Mode::LADAR_Mode(), WsfOpticalSensor::OpticalMode::OpticalMode(), WsfOTH_RadarSensor::OTH_Mode::OTH_Mode(), and WsfEOIR_IRST_SensorMode::WsfEOIR_IRST_SensorMode().

◆ cRANGE

const unsigned int WsfSensorMode::cRANGE = 4

staticprotected

Referenced by WsfBeamDirector::WsfBeamDirectorMode::Initialize().

◆ cRANGE_RATE

const unsigned int WsfSensorMode::cRANGE_RATE = 32

staticprotected

◆ cSIDE

const unsigned int WsfSensorMode::cSIDE = 64

staticprotected

◆ cSIGNAL_TO_NOISE

const unsigned int WsfSensorMode::cSIGNAL_TO_NOISE = 512

staticprotected

Referenced by WsfGeometricSensor::GeometricMode::GeometricMode().

◆ cSTATE_COVARIANCE

const unsigned int WsfSensorMode::cSTATE_COVARIANCE = 8192

staticprotected

◆ cTYPE

const unsigned int WsfSensorMode::cTYPE = 128

staticprotected

Referenced by WsfBeamDirector::WsfBeamDirectorMode::Initialize().

◆ cVELOCITY

const unsigned int WsfSensorMode::cVELOCITY = 2

staticprotected

Referenced by WsfBeamDirector::WsfBeamDirectorMode::Initialize().

◆ mAzCueRate

double WsfSensorMode::mAzCueRate

protected

Mode-specific cueing rates and limits. These limits are in addition the slew rates and limits of the sensor. They are typically used to disable or otherwise limit cueing in a particular direction.

Referenced by operator=(), ProcessInput(), UpdateSensorCueingLimits(), WsfSensorMode(), and WsfSensorMode().

◆ mAzErrorStdDev

double WsfSensorMode::mAzErrorStdDev

protected

Azimuth error standard deviation. If positive then it is in radians. If negative then it is the negative 'percent_of_true_range' specification.

Referenced by ComputeMeasurementErrors(), GetAzErrorStdDev(), Initialize(), operator=(), SetAzErrorStdDev(), WsfSensorMode(), and WsfSensorMode().

◆ mCanSearchWhileTrack

bool WsfSensorMode::mCanSearchWhileTrack

protected

Can this mode continue to search while it is also tracking? This has applicability only if this mode has tracking capabilities (maximum_request_count > 0). If 'true' then this mode can perform search attempts while it is also performing tracking requests. If 'false' then submitting any tracking request to the mode will prevent it from performing search requests.

This value is forced to 'true' if maximum_request_count = 0.

Referenced by CanSearchWhileTrack(), Initialize(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mCapabilitiesFlags

ReportingFlags WsfSensorMode::mCapabilitiesFlags

protected

Referenced by InitializeReporting(), operator=(), SetCapabilities(), WsfSensorMode(), and WsfSensorMode().

◆ mCueMode

WsfSensor::SlewMode WsfSensorMode::mCueMode

protected

Referenced by GetCueMode(), operator=(), ProcessInput(), UpdateSensorCueingLimits(), WsfSensorMode(), and WsfSensorMode().

◆ mDisablesSearch

bool WsfSensorMode::mDisablesSearch

protected

Does this mode prevent another mode from searching. If 'true' then using this mode will prevent this or any other active mode from performing searches. If 'false' then search attempts are interleaved to the extent possible.

This value is forced to 'false' if maximum_request_count = 0.

Referenced by DisablesSearch(), Initialize(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mDwellTime

double WsfSensorMode::mDwellTime

protected

Referenced by GetDwellTime(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mElCueRate

double WsfSensorMode::mElCueRate

protected

Referenced by operator=(), ProcessInput(), UpdateSensorCueingLimits(), WsfSensorMode(), and WsfSensorMode().

◆ mElErrorStdDev

double WsfSensorMode::mElErrorStdDev

protected

Elevation error standard deviation. If positive then it is in radians. If negative then it is the negative 'percent_of_true_range' specification.

Referenced by ComputeMeasurementErrors(), GetElErrorStdDev(), Initialize(), operator=(), SetElErrorStdDev(), WsfSensorMode(), and WsfSensorMode().

◆ mErrorModelPtr

ut::CloneablePtr<wsf::SensorErrorModelBase> WsfSensorMode::mErrorModelPtr {nullptr}

protected

The model that calculates and applies errors to sensor detection results.

Note: These have been moved into WsfStandardSensorErrorModel and will be removed in a future release.

Referenced by ApplyMeasurementErrors(), WsfSAR_Sensor::SAR_Mode::AttemptToDetect(), ComputeMeasurementErrors(), GetErrorModel(), GetErrorModel(), Initialize(), operator=(), ProcessInput(), WsfSurfaceWaveRadarSensor::RadarMode::ProcessInput(), WsfSAR_Sensor::SAR_Mode::SAR_Mode(), WsfSAR_Sensor::SAR_Mode::SAR_Mode(), SetAzErrorStdDev(), SetElErrorStdDev(), SetErrorModel(), SetRangeErrorStdDev(), SetRangeRateErrorStdDev(), WsfSensorMode(), and WsfSensorMode().

◆ mEstablishTrackMask

unsigned int WsfSensorMode::mEstablishTrackMask

protected

A bit mask that defines the track establish window. If the window is N detection opportunities, then the mask will have bits 2^0 through 2^(N-1) on.

Referenced by EstablishTrackMask(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mEstablishTrackProbability

double WsfSensorMode::mEstablishTrackProbability

protected

When the M/N establish track criteria is met, this is the probability that a track will be established.

Referenced by EstablishTrackProbability(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mEstablishTrackWindow

int WsfSensorMode::mEstablishTrackWindow

protected

The window size (N) for establishing a track.

Referenced by EstablishTrackWindow(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mFrameTime

double WsfSensorMode::mFrameTime

protected

Referenced by WsfOpticalSensor::OpticalMode::ComputeProbabilityOfDetection(), GetFrameTime(), WsfRadarSensor::RadarMode::Initialize(), WsfSAR_Sensor::SAR_Mode::Initialize(), Initialize(), operator=(), ProcessInput(), SetFrameTime(), WsfSensorMode(), and WsfSensorMode().

◆ mHitsToEstablishTrack

int WsfSensorMode::mHitsToEstablishTrack

protected

The number of hits (M) within the window (N) that are required to establish a track.

Referenced by HitsToEstablishTrack(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mHitsToMaintainTrack

int WsfSensorMode::mHitsToMaintainTrack

protected

The number of hits (M) within the window (N) that are required to maintain a track.

Referenced by HitsToMaintainTrack(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mMaintainTrackMask

unsigned int WsfSensorMode::mMaintainTrackMask

protected

A bit mask that defines the track maintain window. If the window is N detection opportunities, then the mask will have bits 2^0 through 2^(N-1) on.

Referenced by MaintainTrackMask(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mMaintainTrackProbability

double WsfSensorMode::mMaintainTrackProbability

protected

As long as the M/N maintain track criteria is met, this is the probability that the track will be maintained.

Referenced by MaintainTrackProbability(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mMaintainTrackWindow

int WsfSensorMode::mMaintainTrackWindow

protected

The window size (N) for maintaining a track.

Referenced by MaintainTrackWindow(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mMaxAzCue

double WsfSensorMode::mMaxAzCue

protected

Referenced by operator=(), ProcessInput(), UpdateSensorCueingLimits(), WsfSensorMode(), and WsfSensorMode().

◆ mMaxElCue

double WsfSensorMode::mMaxElCue

protected

Referenced by operator=(), ProcessInput(), UpdateSensorCueingLimits(), WsfSensorMode(), and WsfSensorMode().

◆ mMaximumRange

double WsfSensorMode::mMaximumRange

protected

A very optimistic estimate of the maximum range at which this mode can detect a target. This is ONLY used for performing initial detection culling. The default is std::numeric_limits<double>::max() and can be overridden by the sensor.

Referenced by WsfLaserTracker::LaserTrackMode::GetMaximumRange(), GetMaximumRange(), WsfAcousticSensor::AcousticMode::Initialize(), WsfEOIR_IRST_SensorMode::Initialize(), WsfGeometricSensor::GeometricMode::Initialize(), WsfOTH_RadarSensor::OTH_Mode::Initialize(), WsfPassiveSensor::PassiveMode::Initialize(), WsfRadarSensor::RadarMode::Initialize(), WsfSurfaceWaveRadarSensor::RadarMode::Initialize(), operator=(), WsfLaserTracker::LaserTrackMode::ProcessInput(), WithinDetectionRange(), WsfSensorMode(), and WsfSensorMode().

◆ mMaximumRequestCount

int WsfSensorMode::mMaximumRequestCount

protected

The maximum number of cued search/track requests. A pure search mode will have a maximum request count of 0.

Referenced by GetMaximumRequestCount(), WsfBeamDirector::WsfBeamDirectorMode::Initialize(), Initialize(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mMessageLength

int WsfSensorMode::mMessageLength

protected

The length of messages originating from this sensor mode.

Referenced by GetMessageLength(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mMessagePriority

int WsfSensorMode::mMessagePriority

protected

The priority of messages originating from this sensor mode.

Referenced by GetMessagePriority(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mMinAzCue

double WsfSensorMode::mMinAzCue

protected

Referenced by operator=(), ProcessInput(), UpdateSensorCueingLimits(), WsfSensorMode(), and WsfSensorMode().

◆ mMinElCue

double WsfSensorMode::mMinElCue

protected

Referenced by operator=(), ProcessInput(), UpdateSensorCueingLimits(), WsfSensorMode(), and WsfSensorMode().

◆ mOnFailureModeIndex

size_t WsfSensorMode::mOnFailureModeIndex

protected

Referenced by GetOnFailureModeIndex(), Initialize(), operator=(), WsfSensorMode(), and WsfSensorMode().

◆ mOnFailureModeName

WsfStringId WsfSensorMode::mOnFailureModeName

protected

The name (ID) of the next mode on lost of track. The value is zero if no automatic switch is to be performed.

Referenced by Initialize(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mOnSuccessModeIndex

size_t WsfSensorMode::mOnSuccessModeIndex

protected

Referenced by GetOnSuccessModeIndex(), Initialize(), operator=(), WsfSensorMode(), and WsfSensorMode().

◆ mOnSuccessModeName

WsfStringId WsfSensorMode::mOnSuccessModeName

protected

The name (ID) of the next mode on successful acquisition. The value is zero if no automatic switch is to be performed.

Referenced by Initialize(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mPlatformPtr

WsfPlatform* WsfSensorMode::mPlatformPtr

protected

Pointer to the platform with which the sensor is associated.

Referenced by GetPlatform(), WsfEOIR_IRST_SensorMode::Initialize(), Initialize(), operator=(), WithinDetectionRange(), WsfSensorMode(), and WsfSensorMode().

◆ mRangeErrorStdDev

double WsfSensorMode::mRangeErrorStdDev

protected

Range error standard deviation. If positive then it is in meters. If negative then it is the negative 'percent_of_true_range' specification.

Referenced by ComputeMeasurementErrors(), GetRangeErrorStdDev(), Initialize(), operator=(), SetRangeErrorStdDev(), WsfSensorMode(), and WsfSensorMode().

◆ mRangeRateErrorStdDev

double WsfSensorMode::mRangeRateErrorStdDev

protected

Range rate error standard deviation.

Referenced by ComputeMeasurementErrors(), GetRangeRateErrorStdDev(), Initialize(), operator=(), SetRangeRateErrorStdDev(), WsfSensorMode(), and WsfSensorMode().

◆ mReportingFlags

◆ mReportsSpatialDomain

WsfSpatialDomain WsfSensorMode::mReportsSpatialDomain

protected

The spatial domain for tracks reported by this sensor mode. If this value is WSF_SPATIAL_DOMAIN_UNKNOWN then it will report the spatial domain of the platform.

Referenced by InitializeTrack(), operator=(), ProcessInput(), UpdateTrackReportingFlags(), WsfSensorMode(), and WsfSensorMode().

◆ mRequiredPd

double WsfSensorMode::mRequiredPd

protected

The required probability for detection. The default value is -1.0, which indicates the standard 1.0 - GetSimulation()->GetRandom().Uniform() is to be used. If greater than or equal to zero then this is the fixed required Pd required for detection.

Referenced by GetRequiredPd(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mRevisitTime

double WsfSensorMode::mRevisitTime

protected

Referenced by GetRevisitTime(), Initialize(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

◆ mSensorPtr

WsfSensor* WsfSensorMode::mSensorPtr

protected

Pointer to the sensor with which the mode is associated.

◆ mTrackQuality

double WsfSensorMode::mTrackQuality

protected

Base line track quality (0..1].

Referenced by GetTrackQuality(), InitializeTrack(), operator=(), ProcessInput(), WsfSensorMode(), and WsfSensorMode().

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Friends

Automatic mode switch control.

Track establishment and maintain window definition.

Sensor error parameters.

Beam access methods.

Sensor error model methods.

Sensor mode error access methods.

Detailed Description

Constructor & Destructor Documentation

◆ WsfSensorMode() [1/2]

◆ WsfSensorMode() [2/2]

◆ ~WsfSensorMode()

Member Function Documentation

◆ ApplyMeasurementErrors()

◆ AttemptToDetect()

◆ CanSearchWhileTrack()

◆ Clone()

◆ ComputeMeasurementErrors()

◆ Deselect()

◆ DisablesSearch()

◆ EstablishTrackMask()

◆ EstablishTrackProbability()

◆ EstablishTrackWindow()

◆ GetAltFreqSelectDelay()

◆ GetAzErrorStdDev()

◆ GetBeamCount()

◆ GetBeamEntry()

◆ GetCueMode()

◆ GetDwellTime()

◆ GetElErrorStdDev()

◆ GetErrorModel() [1/2]

◆ GetErrorModel() [2/2]

◆ GetFrameTime()

◆ GetLastAltFreqSelectTime()

◆ GetMaximumRange()

◆ GetMaximumRequestCount()

◆ GetMessageLength()

◆ GetMessagePriority()

◆ GetOnFailureModeIndex()

◆ GetOnSuccessModeIndex()

◆ GetPlatform()

◆ GetRangeErrorStdDev()

◆ GetRangeRateErrorStdDev()

◆ GetReportingFlags()

◆ GetRequiredPd()

◆ GetRevisitTime()

◆ GetScenario()

◆ GetSensor()

◆ GetSimulation()

◆ GetTrackQuality()

◆ HitsToEstablishTrack()

◆ HitsToMaintainTrack()

◆ Initialize()

◆ InitializeReporting()

◆ InitializeTrack()

◆ IsAltFreqChangeScheduled()

◆ IsFrequencyAgile()

◆ MaintainTrackMask()

◆ MaintainTrackProbability()

◆ MaintainTrackWindow()

◆ operator=()

◆ ProcessInput()

◆ ReportsBearing()

◆ ReportsElevation()

◆ ReportsFrequency()

◆ ReportsIFF_Status()

◆ ReportsLocation()

◆ ReportsPulseRepititionInterval()

◆ ReportsPulseWidth()

◆ ReportsRange()

◆ ReportsRangeRate()

◆ ReportsSide()

◆ ReportsSignalToNoise()

◆ ReportsType()

◆ ReportsVelocity()

◆ ScheduleAltFreqChange()

◆ Select()

◆ SelectAlternateFrequency()
