WsfDefaultHEL Class Reference
#include <WsfDefaultHEL.hpp>
Inheritance diagram for WsfDefaultHEL:

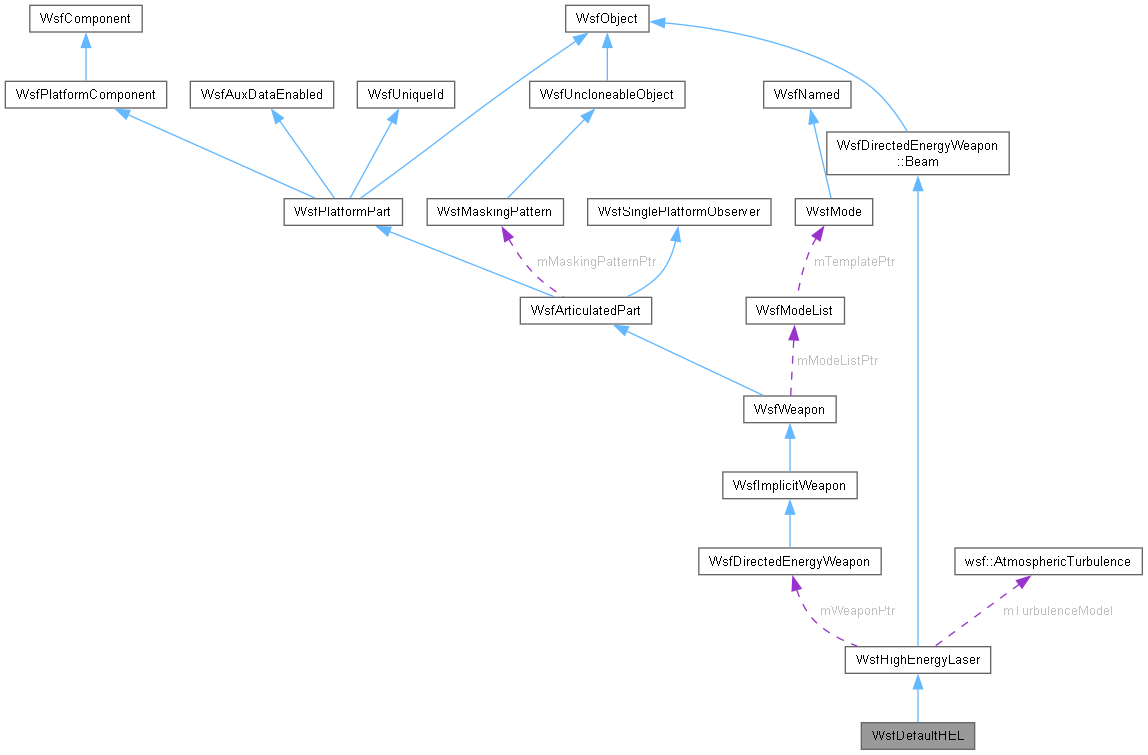

Collaboration diagram for WsfDefaultHEL:
Public Member Functions | |
| WsfDefaultHEL (WsfScenario &aScenario) | |
| ~WsfDefaultHEL () override=default | |
| WsfDirectedEnergyWeapon::Beam * | Clone () const override |
| Clone this object. | |
| bool | ProcessInput (UtInput &aInput) override |
| void | Propagate (double aSimTime) override |
| Public Member Functions inherited from WsfHighEnergyLaser | |
| WsfHighEnergyLaser (WsfScenario &aScenario) | |
| WsfHighEnergyLaser (const WsfHighEnergyLaser &aSrc) | |
| WsfHighEnergyLaser & | operator= (const WsfHighEnergyLaser &)=delete |
| ~WsfHighEnergyLaser () override=default | |
| bool | ProcessInput (UtInput &aInput) override |
| virtual bool | Initialize (WsfDirectedEnergyWeapon *aWeaponPtr) |
| virtual void | OutputConfiguration () const |
| WsfDirectedEnergyWeapon * | GetWeapon () const |
| virtual void | BeginLasing (double aSimTime, size_t aTargetIndex, const std::string &aTargetOffsetName="") |
| void | UpdateLasing (double aSimTime) |
| virtual void | EndLasing (double aSimTime) |
| bool | IsLasing () const |
| Return whether the weapon is currently lasing. | |
| double | GetIncidenceAngle () const override |
| Return the incidence angle of the laser on the target. | |
| virtual bool | TargetOccluded () const |
| virtual bool | TestLasing (double aDuration, size_t aTargetIndex, const std::string &aTargetOffset="") |
| virtual bool | TestLasing (double aDuration, const WsfGeoPoint &aSourceLocation, const WsfGeoPoint &aTargetLocation) |
| virtual double | RequiredDurationEnergy (double aEnergy, const WsfGeoPoint &aSourceLocation, const WsfGeoPoint &aTargetLocation) |
| virtual double | RequiredDurationFluence (double aEnergyDensity, const WsfGeoPoint &aSourceLocation, const WsfGeoPoint &aTargetLocation) |
| virtual double | RequiredDurationEnergy (double aEnergy, int aTargetIndex, const std::string &aTargetOffset="") |
| virtual double | RequiredDurationFluence (double aEnergyDensity, size_t aTargetIndex, const std::string &aTargetOffset="") |
| virtual bool | UpdateEngagementGeometry (double aSimTime, size_t aTargetIndex, const std::string &aTargetOffset="", bool aAddJitter=true) |
| double | GetDamageRadius () const |
| double | GetDefaultDamageRadius () const |
| virtual void | SetDamageRadius (double aDamageRadius) |
| virtual void | SetAtmosphericStructure (const std::string &aAtmosphericStructure) |
| double | GetJitter () const |
| Get the expected value for the jitter of the HEL on target. | |
| void | SetJitter (double aJitter) |
| Set the expected value for the jitter of the HEL on target. | |
| size_t | GetTargetIndex () const |
| Get the current target index (valid only while IsLasing is true). | |
| double | GetTargetRange () const |
| Get the current range to target (only valid while IsLasing is true). | |
| void | SetBeamQuality (double aBeamQuality) |
| Set the beam quality wrt a perfect Gaussian beam. | |
| virtual double | GetWindowStrehl () const |
| Get the strehl due to window effects (default is 1.0 [no effect]). | |
| virtual void | SetWindowStrehl (double aWindowStrehl) |
| Set the window strehl (should be between 0 and 1). | |
| virtual double | GetAeroStrehl () const |
| Get the aero strehl (strehl from aerooptics; should be between 0 and 1). | |
| virtual void | SetAeroStrehl (double aAeroStrehl) |
| Set the areo strehl (strehl from aerooptics; should be between 0 and 1). | |
| virtual double | GetSystemStrehl () const |
| Get the total rms strehl from all sources. | |
| virtual void | SetSystemStrehl (double aSystemStrehl) |
| Set the total rms system strehl. | |
| virtual double | GetSystemTransmission () const |
| Get the system transmission, if available (default is 1.0). | |
| WsfSimulation * | GetSimulation () const |
| Public Member Functions inherited from WsfDirectedEnergyWeapon::Beam | |
| Beam () | |
| Beam (const Beam &aSrc) | |
| Beam & | operator= (const Beam &)=delete |
| ~Beam () override=default | |
| void | Initialize () |
| Initialize the beam structure elements to initial values. | |
| double | GetPeakFluence () const |
| Return the peak fluence (i.e., the peak irradiance on target integrated over time). | |
| void | SetPeakFluence (double aPeakFluence) |
| Set the peak fluence, in W/m^2. | |
| double | GetEdgeFluence () const |
| void | SetEdgeFluence (double aEdgeFluence) |
| Set the edge fluence, in W/m^2. | |
| double | GetEdgeRadius () const |
| Return the edge radius (i.e., the radius at which the edge fluence is calculated). | |
| void | SetEdgeRadius (double aEdgeRadius) |
| Set the edge radius (i.e., the radius at which the edge fluence is calculated). | |
| double | GetSemiMinorAxis () const |
| Same as GetEdgeRadius, above. | |
| void | SetSpotRadius (double aRadius) |
| Set the spot radius, which for an elliptical spot is the same as the semi-minor axis. | |
| double | GetSpotRadius () const |
| Return the spot radius, which for an elliptical spot is the same as the semi-minor axis. | |
| double | GetSemiMajorAxis () const |
| virtual void | SetIncidenceAngle (double aIncidenceAngle) |
| Set the incidence angle of the beam on target, with respect to the normal to the target's surface at the spot center. | |
| virtual double | GetWavelength () const |
| Return the characteristic wavelength of the beam. | |
| unsigned | GetWavelength_nm () const |
| Return the characteristic wavelength of the beam as a string in nm. | |
| virtual void | SetWavelength (double aWavelength) |
| Set the characteristic wavelength. | |
| virtual double | GetApertureDiameter () const |
| Return the diameter of the exit aperture of the beam producing the spot. | |
| virtual void | SetApertureDiameter (double aApertureDiameter) |
| Set the diameter of the aperture through which the beam exits (m^2). | |
| virtual double | GetInitialPower () const |
| Return the initial power of the beam before any losses. | |
| virtual void | SetInitialPower (double aInitialPower) |
| Set initial power of the beam before any losses. | |
| double | GetPeakIrradiance () const |
| Return the average irradiance. | |
| void | SetPeakIrradiance (double aPeakIrradiance) |
| Set the peak irradiance (W/m^2). | |
| double | GetAverageIrradiance () const |
| Return the average irradiance over the beam spot (W/m2). | |
| void | SetAverageIrradiance (double aAverageIrradiance) |
| Set the average irradiance over the beam spot. | |
| double | GetEdgeIrradiance () const |
| Return the average irradiance over the beam spot (W/m2). | |
| void | SetEdgeIrradiance (double aEdgeIrradiance) |
| Set the average irradiance over the beam spot. | |
| virtual double | GetPulseRepetitionFrequency () const |
| Return the Pulse Repetition Frequency. | |
| virtual void | SetPulseRepetitionFrequency (double aPRF) |
| Set the pulse repetition frequency. | |
| virtual double | GetPulseWidth () const |
| Return the Pulse Width. | |
| virtual void | SetPulseWidth (double aPulseWidth) |
| Set the pulse width (0 == CW). | |
| virtual double | GetEnergyDensity () const |
| double | GetEnergy () const |
| Return the total energy (i.e., the average irradiance on target integrated over time and area; J). | |
| void | SetEnergy (double aEnergy) |
| Set the energy deposited during the engagement in the beam spot (J). | |
| double | GetAveragePower () const |
| Return the average power on target, integrated over the beam spot. | |
| void | SetAveragePower (double aAveragePower) |
| Set the average power on target, integrated over the beam spot. | |
| void | GetOffsetLocationECS (double aLocationECS[3]) const |
| Get the beam's offset location in target entity coordinates. | |
| void | SetOffsetLocationECS (const double aLocationECS[3]) |
| Set the beam's offset location in target entity coordinates. | |
| Public Member Functions inherited from WsfObject | |
| WsfObject () | |
| This is the constructor for the WsfObject class. | |
| ~WsfObject () override | |
| This is the destructor for the WsfObject class. | |
| const char * | GetScriptClassName () const override |
| const std::string & | GetType () const |
| WsfStringId | GetTypeId () const |
| Get the string ID of the 'type' of the object. | |
| void | SetType (WsfStringId aType) |
| const std::string & | GetBaseType () const |
| WsfStringId | GetBaseTypeId () const |
| const TypeList & | GetTypeList () const |
| bool | IsA_TypeOf (WsfStringId aType) const |
| WsfObject & | operator= (const WsfObject &aRhs) |
| Assignment operator. | |
| template<typename T> | |
| void | Serialize (T &aBuff) |
| For XIO (de)serialization. | |
| const std::string & | GetName () const |
| WsfStringId | GetNameId () const |
| void | SetName (WsfStringId aName) |
Additional Inherited Members | |
| Public Types inherited from WsfObject | |
| typedef std::vector< WsfStringId > | TypeList |
| The list of types returned by GetTypeList. | |
| WsfObject (const WsfObject &aSrc) | |
| Copy constructor (for Clone()). | |
| Protected Attributes inherited from WsfHighEnergyLaser | |
| WsfDirectedEnergyWeapon * | mWeaponPtr |
| bool | mSysInit |
| The weapon object associated with the HEL. | |
| bool | mCalculateIncidence |
| double | mIncidenceAngle |
| size_t | mTargetIndex |
| WsfStringId | mTargetOffsetName |
| bool | mTargetOccluded |
| double | mTargetRange |
| bool | mIsLasing |
| bool | mDebug |
| double | mLastUpdateTime |
| double | mDamageRadius |
| double | mDefaultDamageRadius |
| double | mJitterExpectedValue |
| double | mBeamQuality |
| wsf::AtmosphericTurbulence | mTurbulenceModel |
Detailed Description
Deafult (core) HEL model. This model is based based the papaer by Gephardt (1976), "High Energy Laser Propagation". It calculates the spot on target based on the following phenomena:
- Diffraction of the beam around the exit aperture.
- Extinction losses from atmospheric propagation.
- Beam Spread due to atmospheric turbulence.
- Spot jitter.
This model does not yet account for thermal blooming but may eventually use the approximations in Gepahrdt to model it.
Constructor & Destructor Documentation
◆ WsfDefaultHEL()
| WsfDefaultHEL::WsfDefaultHEL | ( | WsfScenario & | aScenario | ) |
References WsfHighEnergyLaser::WsfHighEnergyLaser().
Referenced by Clone().
◆ ~WsfDefaultHEL()
|
overridedefault |
Member Function Documentation
◆ Clone()
|
inlineoverridevirtual |
◆ ProcessInput()
|
overridevirtual |
Process input from a generic source.
Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.
- Parameters
-
aInput a reference to a UtInput object.
- Returns
- 'true' if the command was one recognized by the class or 'false' if not.
- Exceptions
-
UtInput::ExceptionBase (or an object derived from it) if the command was recognized but contains some sort of error.
- Note
- If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.
Reimplemented from WsfDirectedEnergyWeapon::Beam.
References WsfHighEnergyLaser::ProcessInput().
◆ Propagate()
|
overridevirtual |
Propagate the beam to the target.
- Note
- This method's signature may be changed in the future.
Implements WsfHighEnergyLaser.
References WsfPlatform::Comment(), WsfObject::GetName(), WsfPlatformPart::GetPlatform(), WsfSimulation::GetPlatformByIndex(), WsfHighEnergyLaser::GetSimulation(), WsfHighEnergyLaser::GetTargetRange(), WsfHighEnergyLaser::GetWeapon(), WsfHighEnergyLaser::mTargetIndex, WsfHighEnergyLaser::mTargetOccluded, and WsfHighEnergyLaser::mWeaponPtr.
The documentation for this class was generated from the following files:
