WsfDirectedEnergyWeapon Class Reference

#include <WsfDirectedEnergyWeapon.hpp>

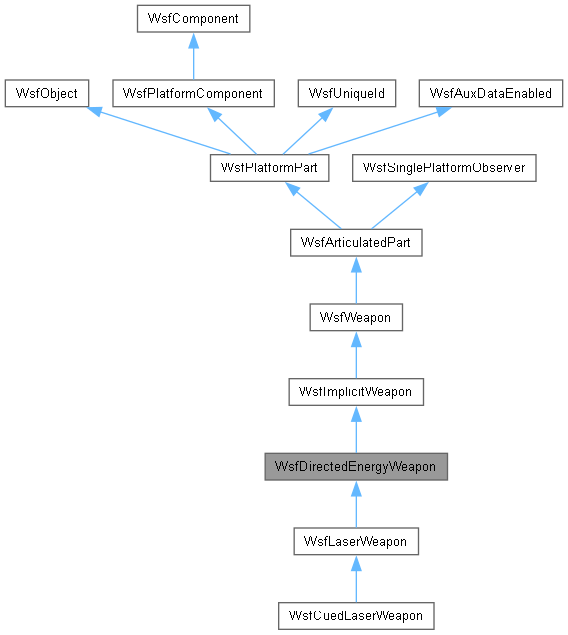

Inheritance diagram for WsfDirectedEnergyWeapon:

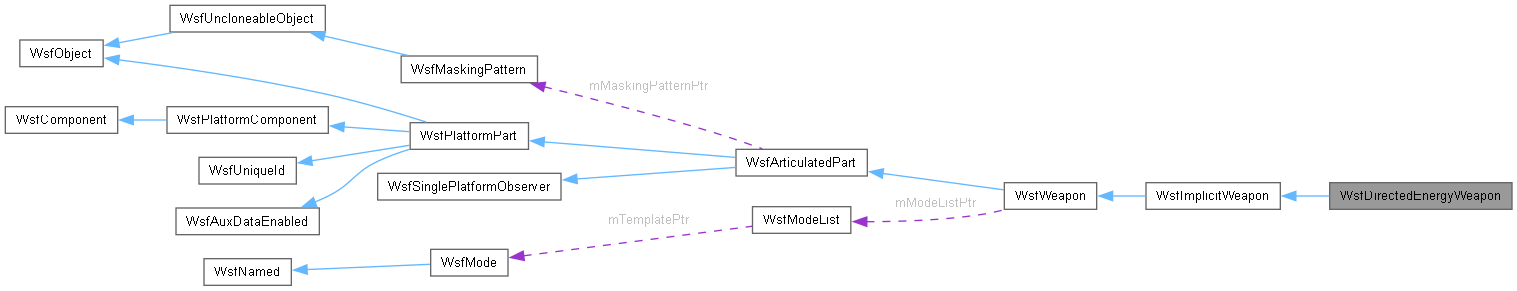

Collaboration diagram for WsfDirectedEnergyWeapon:

Classes
class	Beam

Public Member Functions
	WsfDirectedEnergyWeapon (const WsfScenario &aScenario)
WsfDirectedEnergyWeapon &	operator= (const WsfDirectedEnergyWeapon &)=delete
	~WsfDirectedEnergyWeapon () override
WsfWeapon *	Clone () const override
Beam *	GetBeam () const
void	SetBeam (Beam *aBeamPtr)
	Set the beam structure. The instance assumes ownership of the passed object.
FireResult	Fire (double aSimTime, const FireTarget &aTarget, const FireOptions &aSettings) override
void	CeaseFire (double aSimTime) override
virtual bool	IsFiring () const
	Return whether the weapon is firing for the last updated time.
void	EngagementComplete (double aSimTime, WsfWeaponEngagement *aEngagementPtr) override
Public Member Functions inherited from WsfImplicitWeapon
	WsfImplicitWeapon (const WsfScenario &aScenario)
	~WsfImplicitWeapon () override
WsfWeapon *	Clone () const override
bool	Initialize (double aSimTime) override
void	Update (double aSimTime) override
const char *	GetScriptClassName () const override
WsfStringId	GetTargetName () const
	Return the current target name.
WsfStringId	GetTargetOffset () const
	Return the name id of the target offset, if any.
WsfWeaponEngagement *	GetCurrentEngagement () const
void	ClearCurrentEngagement (double aSimTime)
	Clear the current engagement.
WsfWeaponEngagement *	GetEngagement (int aEngagementId=0) const
void	ClearEngagement (double aSimTime, int aEngagementId=0)
	Clear the current engagement.
FireResult	Fire (double aSimTime, const FireTarget &aTarget, const FireOptions &aSettings) override
void	CeaseFire (double aSimTime) override
ComponentList &	GetComponents ()
const ComponentList &	GetComponents () const
virtual bool	AllocateTheWeapon (double aSimTime, WsfTrack *aTrackPtr, int aStoreId)
	Begin the weapon server allocation sequence.
void	SetState (WeaponState aState)
WeaponState	GetState () const
	Return weapon state.
	WsfWeapon (const WsfScenario &aScenario)
	~WsfWeapon () override
WsfComponent *	CloneComponent () const override
const int *	GetComponentRoles () const override
void *	QueryInterface (int aRole) override
int	GetComponentInitializationOrder () const override
const char *	GetScriptClassName () const override
bool	PreInitialize (double aSimTime) override
bool	Initialize (double aSimTime) override
bool	Initialize2 (double aSimTime) override
void	PreInput () override
bool	ProcessInput (UtInput &aInput) override
void	Update (double aSimTime) override
	Update the state of the weapon to the supplied time value.
void	TurnOff (double aSimTime) override
void	TurnOn (double aSimTime) override
void	SetNonOperational (double aSimTime) override
void	SetOperational (double aSimTime) override
void	PartBroken (double aSimTime) override
void	Restore (double aSimTime) override
double	GetUpdateInterval () const override
	Get the update interval.
virtual size_t	GetEM_RcvrCount () const
virtual WsfEM_Rcvr &	GetEM_Rcvr (size_t aIndex)
virtual size_t	GetEM_XmtrCount () const
virtual WsfEM_Xmtr &	GetEM_Xmtr (size_t aIndex)
virtual size_t	GetEM_XmtrCount (size_t aModeIndex) const
virtual WsfEM_Xmtr &	GetEM_Xmtr (size_t aModeIndex, size_t aIndex)
virtual WsfEM_Xmtr &	GetEM_Xmtr (size_t aModeIndex, size_t aBeamIndex, size_t aIndex)
virtual WsfStringId	GetCurrentModeName () const
	Return the string ID of the string associated with the name of the current mode.
virtual WsfWeaponMode *	GetCurrentMode ()
virtual size_t	GetModeCount ()
	Get the number of modes associated with the weapon.
virtual WsfWeaponMode *	GetModeEntry (size_t aModeIndex)
virtual size_t	GetModeIndex (WsfStringId aModeNameId)
virtual WsfStringId	GetModeName (size_t aModeIndex)
virtual void	DeselectMode (double aSimTime, WsfStringId aModeNameId)
virtual void	SelectMode (double aSimTime, WsfStringId aModeNameId)
WsfLaunchComputer *	GetLaunchComputer () const
void	SetLaunchComputer (WsfLaunchComputer *aLaunchComputerPtr)
WsfStringId	GetWeaponEffectsType () const
	Get the string ID of the weapon effects to be used.
void	SetWeaponEffectsType (WsfStringId aWeaponEffect)
	Set the string ID of the weapon effects to be used.
virtual void	CueToTarget (double aSimTime, const WsfTrack *aTrackPtr)
virtual bool	FireSalvo (double aSimTime, const FireTarget &aTarget, const SalvoOptions &aSettings)
virtual void	ContinueSalvo (double aSimTime, unsigned int aRequestId)
virtual void	AbortSalvo (double aSimTime, const WsfTrackId &aTrackId)
virtual unsigned int	GetActiveRequestCount () const
	Return the number of 'FireSalvo' calls that are in process.
virtual unsigned int	GetMaximumRequestCount () const
double	GetTimeLastFired () const
	Get the simulation time when the weapon was last fired.
virtual double	GetFiringDelay ()
void	SetFiringDelay (const WsfRandomVariable &aFiringDelay)
virtual double	GetSalvoInterval ()
double	GetFiringInterval () const
void	SetFiringInterval (double aFiringInterval)
WsfStringId	GetLaunchedPlatformType () const
	Get the type of the platform that will be launched.
void	SetLaunchedPlatformType (WsfStringId aLaunchedPlatformType)
	Set the type of the platform that will be launched.
double	GetInitialStateQuantityRemaining () const
virtual double	GetQuantityRemaining () const
virtual double	GetQuantityCommitted () const
	Return the quantity that is currently committed.
virtual double	GetMaximumQuantity () const
	Return the maximum quantity that may be 'loaded'.
virtual double	GetTotalQuantityUsed () const
	Return the cumulative running total of the quantity used (fired).
virtual void	SetQuantityRemaining (double aQuantity)
void	ChangeQuantity (double aDeltaQuantity)
bool	IsReloading () const
bool	InhibitWhileReloading () const
	Flag indicating that when a weapon reload is in progress, any firing will be inhibited.
virtual void	CompleteReloading (double aSimTime, double aQuantity)
double	GetReloadInventory () const
double	GetReloadThreshold () const
	Returns the depleted value of inventory at which a reload is attempted.
double	GetReloadIncrement () const
WsfTrack *	CreateTargetTrack (double aSimTime, const WsfTrack *aTrackPtr)
bool	GetTargetLocationWCS (double aSimTime, const WsfTrack *aTrackPtr, double aTargetLocWCS[3])
virtual void	SetTargetIndex (int aId, size_t aTargetIndex)
virtual size_t	GetTargetIndex (int aId) const
virtual void	SetTargetedLocationWCS (int aId, const double aTargetedLocationWCS[3])
virtual void	GetTargetedLocationWCS (int aId, double aTargetedLocationWCS[3]) const
virtual bool	TargetedLocationValid (int aId) const
virtual bool	WithinFieldOfView (double aSimTime, WsfPlatform *aPlatformPtr)
virtual bool	WithinFieldOfView (double aSimTime, WsfTrack *aTrackPtr)
virtual bool	StartJamming (double aSimTime, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfStringId aTechniqueId, WsfTrackId aTrackId, size_t aTargetIndex)
virtual bool	StartJammingTrack (double aSimTime, WsfStringId aTechniqueId, const WsfTrack *aTrackPtr)
virtual bool	StopJamming (double aSimTime, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfTrackId aTrackId)
virtual bool	UpdateJamming (double aSimTime, size_t aXmtrIndex, double aFrequency, double aBandwidth, WsfStringId aTechniqueId, WsfTrackId aTrackId, size_t aTargetIndex)
virtual size_t	GetActiveBeamCount () const
virtual size_t	GetMaximumBeamCount () const
virtual size_t	GetActiveSpotCount (size_t aBeamNumber) const
virtual size_t	GetMaximumSpotCount (size_t aBeamNumber) const
virtual bool	SelectEA_Technique (double aSimTime, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfStringId aTechniqueId, WsfTrackId aTrackId)
virtual bool	DeselectEA_Technique (double aSimTime, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfStringId aTechniqueId, WsfTrackId aTrackId)
virtual bool	SetEA_DeltaGainTechnique (double aSimTime, WsfStringId aTechniqueId, bool aOnOff, WsfStringId aEffectId, double aJammingDeltaGain_dB, WsfStringId aSystemTypeId, WsfStringId aFunctionTypeId)
virtual bool	SetEA_DeltaGainTechnique (double aSimTime, WsfStringId aTechniqueId, bool aOnOff, WsfStringId aEffectId, double aJammingDeltaGain_dB, WsfStringId aSystemTypeId, WsfStringId aFunctionTypeId, double aFrequency, double aBandwidth, size_t aBeamNumber, WsfTrackId aTrackId)
void	SetUpdateInterval (double aUpdateInterval) override
double	TimeWeaponLastFiredFor (const WsfTrackId &aTrackId) const
	Return the simulation time of the most recent weapon firing against the specified track.
double	TimeWeaponLastTerminatedFor (const WsfTrackId &aTrackId) const
	Return the simulation time of the most recent weapon termination against the specified track.
int	WeaponsPendingFor (const WsfTrackId &aTrackId) const
int	WeaponsActiveFor (const WsfTrackId &aTrackId) const
int	RoundsCompleteFor (const WsfTrackId &aTrackId) const
	Returns number of weapons that were fired at the track and are now terminated.
int	WeaponsActiveAndPendingFor (const WsfTrackId &aTrackId) const
int	RoundsFiredAt (const WsfTrackId &aTrackId) const
int	SalvosFiredAt (const WsfTrackId &aTrackId) const
std::vector< size_t >	ActiveWeaponPlatformsFor (const WsfTrackId &aTrackId) const
void	SetIFCEnabled (bool aEnabled)
	Set to true is IFC is supported.
bool	GetIFCEnabled () const
	Returns 'true' if the platform supports IFC (Integrated Fire Control).
Public Member Functions inherited from WsfArticulatedPart
	WsfArticulatedPart (const WsfScenario &aScenario, int aPartType)
	WsfArticulatedPart (const WsfArticulatedPart &aSrc)
	~WsfArticulatedPart () override
void	SetPositionRateECS (const double aDX, const double aDY, const double aDZ)
void	GetCurrentPositionRateECS (double &aDX, double &aDY, double &aDZ) const
double	GetDX () const
double	GetDY () const
double	GetDZ () const
void	EnableArticulationUpdates (double aSimTime, double aInterval)
void	DisableArticulationUpdates (double aSimTime)
void	SetArticulationUpdateInterval (double aUpdateInterval)
double	GetArticulationUpdateInterval () const
unsigned int	GetArticulationUpdateEventEpoch () const
void	IncrementArticulationUpdateEventEpoch ()
bool	ArticulationUpdateEventActive () const
	Is an 'Update' event active?
void	SetArticulationUpdateEventActive (bool aUpdateEventActive)
	Indicate if the 'Update' event is active.
virtual double	TimeToCue (double aDesiredAz, double aDesiredEl) const
const char *	GetScriptClassName () const override
void	SetPlatform (WsfPlatform *aPlatformPtr) override
virtual void	UpdatePosition (double aSimTime)
void	OnPlatformUpdated (double, WsfPlatform *) override
SlewMode	GetSlewMode () const
	Get the allowed slewing mode.
double	GetAzSlewRate () const
	Get the current azimuth slew rate.
double	GetElSlewRate () const
	Get the current elevation slew rate.
double	GetMaxAzSlewRate () const
	Get the maximum allowable azimuth slew rate.
double	GetMaxElSlewRate () const
	Get the maximum allowable elevation slew rate.
double	GetMinAzSlew () const
	Gets the minimum azimuth slew limit.
double	GetMaxAzSlew () const
	Gets the maximum azimuth slew limit.
double	GetMinElSlew () const
	Gets the minimum elevation slew limit.
double	GetMaxElSlew () const
	Gets the maximum elevation slew limit.
int	GetSlewState () const
	Get the slew limit state.
void	SetSlewMode (SlewMode aSlewMode)
	Set the allowed slewing mode.
void	SetSlewRates (double aAzSlewRate, double aElSlewRate)
	Set the angular slew rates, limited by the maximum slew rates.
void	SetAzSlewLimits (double aMinAzSlew, double aMaxAzSlew)
	Set the azimuth slew limits.
void	SetElSlewLimits (double aMinElSlew, double aMaxElSlew)
	Set the elevation slew limits.
void	SetAzimuthSlewDirection (SlewDirection aAzSlewDirection)
	Set the azimuth slew direction.
bool	IsSlewing () const
bool	WithinSlewLimits (double aThisToTgtAz, double aThisToTgtEl) const
SlewMode	GetCueMode () const
	Get the allowed cueing mode.
double	GetAzCueRate () const
	Get the azimuth cue rate.
double	GetElCueRate () const
	Get the elevation cue rate.
double	GetMinAzCue () const
	Gets the minimum azimuth cue limit.
double	GetMaxAzCue () const
	Gets the maximum azimuth cue limit.
double	GetMinElCue () const
	Gets the minimum elevation cue limit.
double	GetMaxElCue () const
	Gets the maximum elevation cue limit.
void	SetCueMode (SlewMode aCueMode)
	Set the allowed cueing mode.
void	SetCueRates (double aAzCueRate, double aElCueRate)
	Set the angular cueing rates.
void	SetAzCueLimits (double aMinAzCue, double aMaxAzCue)
	Set the azimuth cueing limits.
void	SetElCueLimits (double aMinElCue, double aMaxElCue)
	Set the elevation cueing limits.
double	GetRoll () const
void	SetRoll (double aRoll)
	Set the platform-relative (ECS) roll angle of the articulated part.
double	GetPitch () const
void	SetPitch (double aPitch)
double	GetYaw () const
void	SetYaw (double aYaw)
	Set the platform-relative (ECS) yaw angle of the articulated part.
double	GetTilt () const
void	SetTilt (double aTilt)
void	GetCurrentOrientationECS (double &aYaw, double &aPitch, double &aRoll)
void	GetLOS_UnitVectorWCS (double aUnitLOS_WCS[3])
	Get the current WCS Frame Line-Of-Sight unit vector.
CueType	GetCueType () const
bool	IsCued () const
	Get the cued status.
void	ClearCueing ()
bool	GetActualCuedOrientation (double &aAzimuth, double &aElevation) const
void	GetCurrentCuedOrientation (double &aAzimuth, double &aElevation) const
bool	GetCuedLocationWCS (double aCuedLocationWCS[3]) const
void	SetCuedLocationWCS (const double aCuedLocationWCS[3])
bool	GetCuedOrientation (double &aAzimuth, double &aElevation) const
void	SetCuedOrientation (double aAzimuth, double aElevation)
void	GetAbsoluteCuedOrientation (double &aAzimuth, double &aElevation, double aBaseNED[3])
void	ClearTransientCue ()
bool	TransientCueActive () const
bool	GetTransientCuedLocationWCS (double aCuedLocationWCS[3]) const
void	SetTransientCuedLocationWCS (const double aCuedLocationWCS[3])
WsfStringId	GetMaskingPatternState () const
void	SetMaskingPatternState (WsfStringId aMaskingPatternStateId)
double	GetMaskingPatternFactor (double aViewAzPCS, double aViewElPCS, const double aViewVecWCS[3])
void	SetIsPrivate (bool aIsPrivate)
bool	IsPrivate () const
Public Member Functions inherited from WsfPlatformPart
	WsfPlatformPart (const WsfScenario &aScenario, int aPartType)
WsfPlatformPart &	operator= (const WsfPlatformPart &aRhs)=delete
	~WsfPlatformPart () override
bool	DebugEnabled () const
	Returns 'true' if debugging is enabled for this instance.
void	SetDebugEnabled (bool aDebugEnabled)
unsigned int	GetDebugMask ()
bool	IsExternallyControlled () const
virtual void	SetExternallyControlled (double aSimTime, bool aIsExternallyControlled)
int	GetPartType () const
const char *	GetScriptClassName () const override
WsfSimulation *	GetSimulation () const
const WsfScenario &	GetScenario () const
WsfStringId	GetComponentName () const override
void	ComponentParentChanged (WsfPlatform *aPlatformPtr) override
WsfPlatform *	GetPlatform () const
virtual void	PlatformAdded (double aSimTime, WsfPlatform *aPlatformPtr)
virtual void	PlatformDeleted (WsfPlatform *aPlatformPtr)
double	GetLastStatusChangeTime () const
void	SetLastStatusChangeTime (double aSimTime)
	Allows a system to set the time at which the device was initialized.
bool	CanBeMadeOperational () const
	Returns an indication that this system can be made operational.
bool	CanBeMadeNonOperational () const
	Returns an indication that this system can be made non-operational.
bool	CanBeTurnedOn () const
	Returns an indication that this system can be turned on.
bool	CanBeTurnedOff () const
	Returns an indication that this system can be turned off.
bool	IsTurnedOn () const
bool	InitiallyTurnedOn () const
	Is the system to be turned 'on' when added to the simulation?
void	SetInitiallyTurnedOn (bool aInitiallyTurnedOn)
	Sets if the system is turned on when added to the simulation.
bool	IsOperational () const
bool	SetOperational (double aSimTime, bool aMakeOperational)
double	GetDamageFactor () const
bool	SetDamageFactor (double aSimTime, double aDamageFactor)
bool	IsCritical () const
void	SetCritical (bool aValue)
virtual void	OnPlatformBrokenEvent (double aSimTime)
	Owning platform has issued a broken event.
bool	IsBroken () const
WsfInternalLinks &	GetInternalLinks ()
	Return the internal links for this part.
virtual bool	HasInternalLinks () const
	Does this platform part have a communication link to other platform parts?
virtual bool	ProcessMessage (double aSimTime, const WsfMessage &aMessage)
virtual bool	ReceiveMessage (double aSimTime, const WsfMessage &aMessage)
virtual void	SendMessage (double aSimTime, const WsfMessage &aMessage)
virtual void	SendMessageTo (double aSimTime, const WsfMessage &aMessage, WsfStringId aRecipientId)
void	SendMessageToProcessor (double aSimTime, const WsfMessage &aMessage, WsfStringId aRecipientId)
virtual void	SendQueuedMessages (double aSimTime)
const WsfCategoryList &	GetCategories () const
	Get the categories to which this part belongs.
void	AddCategory (WsfStringId aCategoryId)
	Adds the provided category to the platform part's category list.
bool	IsCategoryMember (WsfStringId aCategoryId) const
const WsfGroupList &	GetGroups () const
	Get the groups to which this platform part belongs.
void	JoinGroup (WsfGroup *aGroupPtr)
	Join the given group.
void	LeaveGroup (WsfGroup *aGroupPtr)
	Leave the given group.
bool	IsGroupMember (WsfStringId aGroupId)
unsigned int	GetUpdateEventEpoch () const
void	IncrementUpdateEventEpoch ()
bool	UpdateEventActive () const
	Is an 'Update' event active?
void	SetUpdateEventActive (bool aUpdateEventActive)
	Indicate if the 'Update' event is active.
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)
Public Member Functions inherited from WsfComponentT< WsfPlatform >
	WsfComponentT ()
	WsfComponentT (const WsfComponentT &) noexcept
WsfComponentT &	operator= (const WsfComponentT &) noexcept
	~WsfComponentT () override=default
ParentType *	GetComponentParent () const
void	SetComponentParent (ParentType *aParentPtr)
Public Member Functions inherited from WsfComponent
virtual	~WsfComponent ()=default
template<typename T>
bool	QueryInterfaceT (T *&aRolePtr)
bool	ComponentHasRole (int aRole)
	Returns true if the component has the specified role.
Public Member Functions inherited from WsfUniqueId
	WsfUniqueId ()
	Construtor initializes the unique identifier to 0.
	WsfUniqueId (const WsfUniqueId &)
	Copy constructor initializes the unique identifier to 0.
WsfUniqueId &	operator= (const WsfUniqueId &)
unsigned int	GetUniqueId () const
	Get the unique identifier assigned to this object.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
Public Member Functions inherited from WsfAuxDataEnabled
	WsfAuxDataEnabled ()=default
	WsfAuxDataEnabled (const WsfAuxDataEnabled &aSrc)=default
WsfAuxDataEnabled &	operator= (const WsfAuxDataEnabled &aRhs)
	WsfAuxDataEnabled (WsfAuxDataEnabled &&)=default
WsfAuxDataEnabled &	operator= (WsfAuxDataEnabled &&)=default
virtual	~WsfAuxDataEnabled () noexcept
void	SetAuxData (const WsfAttributeContainer &aAuxData)
void	DeleteAuxData ()
	Delete the aux data container from the object.
void	MergeAuxData (const WsfAuxDataEnabled &aSrc)
	Merge the object's aux data with aux data from an existing object.
void	UpdateAuxData (const WsfAuxDataEnabled &aSrc)
	Update the object's aux data with aux data from an existing object.
bool	HasAuxData () const
	Returns true if this object has aux data.
bool	ProcessInput (UtInput &aInput)
template<typename T>
void	Serialize (T &aBuff)
	(De)serialization for XIO
WsfAttributeContainer &	GetAuxData ()
const WsfAttributeContainer &	GetAuxData () const noexcept
const WsfAttributeContainer &	GetAuxDataConst () const noexcept
Public Member Functions inherited from WsfSinglePlatformObserver
virtual	~WsfSinglePlatformObserver ()
virtual void	OnPlatformDeleting (double aSimTime, WsfPlatform *aPlatformPtr)
	Called before the platform is actually deleted.
virtual void	OnPlatformDeleted (double aSimTime, WsfPlatform *aPlatformPtr)
	Called just before the platform is removed from the simulation.

Component infrastructure methods not provided by WsfWeapon.
WsfComponent *	CloneComponent () const override
const int *	GetComponentRoles () const override
void *	QueryInterface (int aRole) override
	WsfDirectedEnergyWeapon (const WsfDirectedEnergyWeapon &aSrc)
virtual bool	BeginEngagement (double aSimTime, EngagementData *aEngagementDataPtr)

Additional Inherited Members
Public Types inherited from WsfWeapon
enum	WeaponState {   cWEAPON_STATE_UNALLOCATED , cWEAPON_STATE_ALLOCATED , cWEAPON_STATE_DEALLOCATE , cWEAPON_STATE_NACK ,   cWEAPON_STATE_READY }
using	ComponentList = WsfComponentListT<WsfWeaponComponent>
Public Types inherited from WsfArticulatedPart
enum	SlewMode { cSLEW_FIXED = 0 , cSLEW_AZ = 1 , cSLEW_EL = 2 , cSLEW_AZ_EL = 3 }
enum	SlewDirection { cUNDEFINED = 0 , cPOSITIVE = 1 , cNEGATIVE = 2 }
enum	{   cNOT_CUED = 0x0000 , cMIN_AZ = 0x0001 , cMAX_AZ = 0x0002 , cMIN_EL = 0x0004 ,   cMAX_EL = 0x0008 , cAT_LIMIT_AZ_MASK = 0x0003 , cAT_LIMIT_EL_MASK = 0x000B , cAT_LIMIT_MASK = 0x000F ,   cCUED_AZ = 0x0010 , cCUED_EL = 0x0020 , cCUED_AZ_EL = 0x0030 , cCUED_MASK = 0x0030 }
enum	CueType { cCUED_TO_NOTHING , cCUED_TO_LOCATION , cCUED_TO_ANGLE }
Public Types inherited from WsfPlatformPart
enum	{ cLEVEL_ONE_DEBUG = 0x00000001 , cLEVEL_TWO_DEBUG = 0x00000002 }
using	InternalMessageQueue = std::queue<WsfMessage*>
using	RecipientMessageQueue = std::queue<std::pair<WsfPlatformPart*, WsfMessage*>>
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
Public Types inherited from WsfComponentT< WsfPlatform >
typedef WsfPlatform	ParentType
	This is needed to support the WsfComponentList template.
static double	TimeWeaponLastFiredFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
static double	TimeWeaponLastTerminatedFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
static int	WeaponsPendingFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
static int	WeaponsActiveFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
	Returns number of weapons that have been fired at the track and are still alive.
static int	RoundsCompleteFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
	Returns number of weapons that were fired at the track and are now terminated.
static int	WeaponsActiveAndPendingFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
	Equivalent to WeaponsActiveFor() plus WeaponsPendingFor().
static int	RoundsFiredAt (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
	Equivalent to WeaponsActiveFor() plus RoundsCompleteFor().
static int	SalvosFiredAt (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
	Returns number of salvo fire requests requested, and not the actual number of salvos fired.
static std::vector< size_t >	ActiveWeaponPlatformsFor (const WsfPlatform &aPlatform, const WsfTrackId &aTrackId, WsfStringId aWeaponName=WsfStringId())
static void	DetermineFirepowerStatus (WsfPlatform &aPlatform)
	Decide whether to set or clear the Firepower appearance bit.
UtCallbackListN< void(double)>	SlewComplete
Static Public Attributes inherited from WsfWeapon
static const double	cUNDEFINED_DOUBLE = 1.0E+30
Static Public Attributes inherited from WsfArticulatedPart
static constexpr double	cINFINITE_SLEW_RATE = 1.0E+12 * UtMath::cRAD_PER_DEG
static constexpr double	cALMOST_FULL_CIRCLE = 359.999 * UtMath::cRAD_PER_DEG
Static Public Attributes inherited from WsfAuxDataEnabled
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataAccessed
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataDestroyed
using	WeaponStatusMap = std::map<WsfTrackId, WeaponStatus>
using	WeaponStatusMapIter = WeaponStatusMap::iterator
using	WeaponStatusMapConstIter = WeaponStatusMap::const_iterator
using	WeaponStatusVal = std::pair<WsfTrackId, WeaponStatus>
Protected Member Functions inherited from WsfImplicitWeapon
	WsfImplicitWeapon (const WsfImplicitWeapon &aSrc)
WsfImplicitWeapon &	operator= (const WsfImplicitWeapon &)=delete
void	DeleteEngagementData (EngagementData *aEngagementDataPtr)
bool	BeginEngagement (double aSimTime, EngagementData *aEngagementDataPtr)
void	EngagementComplete (double aSimTime, WsfWeaponEngagement *aEngagementPtr) override
	WsfWeapon (const WsfWeapon &aSrc)
	Copy constructor (for Clone()).
WsfWeapon &	operator= (const WsfWeapon &)=delete
bool	IsQuantitySpecified () const
virtual void	ProcessReloading (double aSimTime)
void	SetIsReloading (bool aValue)
	Method used for derived classes to set or clear the IsReloading Flag.
void	SetModeList (WsfModeList *aModeListPtr)
void	SetTimeLastFired (double aTimeLastFired)
void	SetMaximumRequestCount (unsigned int aMaximumRequestCount)
double	GetReloadInterval () const
virtual void	WeaponFireAborted (double aSimTime, const WsfTrack *aTargetTrackPtr, double aQuantity)
bool	FullCircle () const
virtual double	GetAzimuthRotationRate () const
virtual double	GetElevationRotationRate () const
void	SlewToOrientation (double aSimTime, double aDesiredAz, double aDesiredEl)
virtual void	TimeToRotate (double &aDeltaAz, double &aDeltaEl, double &aAzRate, double &aElRate, double &aTimeToAz, double &aTimeToEl) const
void	UpdateCuedOrientation (double aSimTime)
bool	UpdateOrientation (double aSimTime)
	WsfPlatformPart (const WsfPlatformPart &aSrc)
	Copy constructor (for Clone()).
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).
Protected Member Functions inherited from WsfUniqueId
void	AssignUniqueId (WsfSimulation *aSimulationPtr)
WsfModeList *	mModeListPtr
	The pointer to the list of modes (for things like jammers).
WeaponStatusMap	mWeaponStatusMap
WsfMaskingPattern *	mMaskingPatternPtr
	The masking factor.
WsfStringId	mMaskingPatternName
WsfStringId	mMaskingPatternStateId
double	mYaw
	The orientation of the device coordinate system.
double	mPitch
double	mRoll
double	mDX
	The velocity of the part.
double	mDY
double	mDZ
double	mTilt
	The tilt angle above below the scan plane.
double	mAzSlewRate
	The slewing rates and limits of the device with respect to the device coordinate system.
double	mElSlewRate
double	mMaxAzSlewRate
double	mMaxElSlewRate
double	mMinAzSlew
double	mMaxAzSlew
double	mMinElSlew
double	mMaxElSlew
SlewMode	mSlewMode
SlewDirection	mAzSlewDirection
int	mSlewState
double	mAzCueRate
	The cueing rates and limits of the device with respect to the device coordinate system.
double	mElCueRate
double	mMinAzCue
double	mMaxAzCue
double	mMinElCue
double	mMaxElCue
SlewMode	mCueMode
	The directions (az and/or el) in which cueing can be performed.
CueType	mCueType
bool	mTransientCueActive
	'true' if the transient cue is defined
double	mCuedLocationWCS [3]
	The cued location if mCueType is cCUED_TO_LOCATION.
double	mCuedAz
	The cued azimuth if mCueType == cCUED_TO_ANGLE.
double	mCuedEl
	The cued elevation if mCueType == cCUED_TO_ANGLE.
double	mTransientCuedLocationWCS [3]
	The transient cue, if mTransientCueActive is true.
double	mActualCuedAz
	The actual cued location, subject to the slewing limits.
double	mActualCuedEl
double	mCurrentAz
double	mCurrentEl
double	mLastAzElUpdateTime
	The time when the current az/el were last updated.
double	mLastUpdateTime
	The time when the x/y/z position was last updated.
bool	mSlewMethodCoordinated
	'true' if slcue rates are dynamically adjusted so the target angles are reached simultaneously.
bool	mIsSlewing
	'true' if the part is slewing to satisfy a cueing request.
bool	mIsPrivate
	'true' if the part is considered 'private' and not to visible to external simulations.

Detailed Description

An interface for directed energy weapons. Currently directed-energy weapons are modeled as an implicit weapon with an optional "beam" object. This object is suitable for HEL modeling. For HPM modeling another structure should be added and used instead of the beam object.

Constructor & Destructor Documentation

WsfDirectedEnergyWeapon() [1/2]

WsfDirectedEnergyWeapon::WsfDirectedEnergyWeapon

(

const WsfScenario &

aScenario

)

References WsfImplicitWeapon::WsfImplicitWeapon().

Referenced by Clone(), operator=(), WsfDirectedEnergyWeapon(), WsfLaserWeapon::WsfLaserWeapon(), and WsfLaserWeapon::WsfLaserWeapon().

~WsfDirectedEnergyWeapon()

WsfDirectedEnergyWeapon::~WsfDirectedEnergyWeapon ( )

override

WsfDirectedEnergyWeapon() [2/2]

WsfDirectedEnergyWeapon::WsfDirectedEnergyWeapon ( const WsfDirectedEnergyWeapon & aSrc )

protected

References WsfDirectedEnergyWeapon(), and WsfImplicitWeapon::WsfImplicitWeapon().

Member Function Documentation

BeginEngagement()

bool WsfDirectedEnergyWeapon::BeginEngagement ( double aSimTime, EngagementData * aEngagementDataPtr )

protectedvirtual

References WsfImplicitWeapon::BeginEngagement(), WsfPlatformPart::GetPlatform(), WsfImplicitWeapon::EngagementData::mEngagementPtr, WsfImplicitWeapon::EngagementData::mTargetTrackPtr, WsfWeaponEngagement::SetInitialWeaponVelocityWCS(), and success.

CeaseFire()

void WsfDirectedEnergyWeapon::CeaseFire ( double aSimTime )

overridevirtual

Reimplemented from WsfWeapon.

Reimplemented in WsfLaserWeapon.

References WsfImplicitWeapon::CeaseFire().

Referenced by WsfDisDirectedEnergyFire::Process().

Clone()

WsfWeapon * WsfDirectedEnergyWeapon::Clone ( ) const

inlineoverridevirtual

Clone this object.

Returns

a pointer to the new object.

Implements WsfWeapon.

Reimplemented in WsfLaserWeapon.

References WsfDirectedEnergyWeapon(), and WsfWeapon::WsfWeapon().

CloneComponent()

WsfComponent * WsfDirectedEnergyWeapon::CloneComponent ( ) const

inlineoverridevirtual

Clones a component. May return null if component does not support clone.

Implements WsfComponent.

References WsfImplicitWeapon::Clone().

EngagementComplete()

void WsfDirectedEnergyWeapon::EngagementComplete ( double aSimTime, WsfWeaponEngagement * aEngagementPtr )

overridevirtual

Method used by the weapon engagement when the weapon platform terminates or the engagement is about to be marked "complete" (which is not the same as "ended"). This is not an observer callback but is used to update weapon and engagement status prior to the WsfObserver::WeaponTerminated call.

Reimplemented from WsfWeapon.

References WsfWeapon::EngagementComplete(), WsfWeaponEngagement::GetFiringPlatform(), WsfWeaponEngagement::GetTargetPlatform(), WsfWeaponEngagement::SetTargetLocationWCS(), and WsfWeaponEngagement::SetWeaponVelocityWCS().

Fire()

WsfWeapon::FireResult WsfDirectedEnergyWeapon::Fire ( double aSimTime, const FireTarget & aTarget, const FireOptions & aSettings )

overridevirtual

Attempt to fire a weapon. WsfPlatform::GetCurrentTarget() will be used as the target if it is defined.

Parameters

aSimTime	The current simulation time.
aTarget	The target of the weapon.
aSettings	Options for firing the weapon.

Note

This is the only virtual Fire() method, it should be implemented by derived classes.

Reimplemented from WsfWeapon.

Reimplemented in WsfLaserWeapon.

References WsfObserver::DirectedEnergyWeaponFired(), WsfImplicitWeapon::Fire(), WsfImplicitWeapon::GetEngagement(), WsfPlatformPart::GetPlatform(), WsfPlatformPart::GetSimulation(), WsfWeapon::FireResult::mSuccess, WsfWeapon::FireTarget::mTargetName, WsfWeapon::FireTarget::mTrackPtr, and success.

Referenced by WsfLaserWeapon::Fire().

GetBeam()

Beam * WsfDirectedEnergyWeapon::GetBeam ( ) const

inline

Return the Spot object associated with this directed energy weapon. If this weapon is not a spot-based weapon, this method returns zero.

Referenced by WsfDisWeaponEvents::DirectedEnergyWeaponFired(), WsfDisWeaponEvents::DirectedEnergyWeaponHit(), wsf::event::utils::GetAdditionalDE_Info(), wsf::event::utilsCSV::GetAdditionalDE_Info(), WsfDisDirectedEnergyFire::Process(), and WsfHighEnergyLaser::UpdateEngagementGeometry().

GetComponentRoles()

const int * WsfDirectedEnergyWeapon::GetComponentRoles ( ) const

overridevirtual

Returns a zero-terminated array of component roles. Note that the array should be in decreasing order of specificity and should generally the inheritance hierarchy. The first entry should be the components 'primary' role. For example a sensor would do the following:

static const int roles[] = { cWSF_COMPONENT_SENSOR, cWSF_COMPONENT_ARTICULATED_PART,
                             cWSF_COMPONENT_PLATFORM_PART, 0 };
return roles;

Reimplemented from WsfArticulatedPart.

References cWSF_COMPONENT_ARTICULATED_PART, cWSF_COMPONENT_DIRECTED_ENERGY_WEAPON, cWSF_COMPONENT_NULL, cWSF_COMPONENT_PLATFORM_PART, and cWSF_COMPONENT_WEAPON.

IsFiring()

bool WsfDirectedEnergyWeapon::IsFiring ( ) const

virtual

Return whether the weapon is firing for the last updated time.

Return whether the weapon is currently firing. The default implementation returns true if the weapon currently has an engagement.

Reimplemented in WsfLaserWeapon.

Referenced by WsfDisWeaponEvents::DirectedEnergyWeaponFired().

operator=()

WsfDirectedEnergyWeapon & WsfDirectedEnergyWeapon::operator= ( const WsfDirectedEnergyWeapon & )

delete

References WsfDirectedEnergyWeapon().

QueryInterface()

void * WsfDirectedEnergyWeapon::QueryInterface ( int aRole )

overridevirtual

Requests a component's role interface. A component can support one or more roles.

Parameters

aRole

The role whose interface is to be returned.

Returns

A pointer to the object if it supports the indicated role, or 'null' if it does not. Usage: WsfProcessor* procPtrOrNull = (WsfProcessor*)componentPtr->QueryComponentInterface(cWSF_COMPONENT_PROCESSOR);

Reimplemented from WsfArticulatedPart.

References cWSF_COMPONENT_ARTICULATED_PART, cWSF_COMPONENT_DIRECTED_ENERGY_WEAPON, cWSF_COMPONENT_PLATFORM_PART, cWSF_COMPONENT_WEAPON, WsfArticulatedPart::WsfArticulatedPart(), and WsfWeapon::WsfWeapon().

SetBeam()

void WsfDirectedEnergyWeapon::SetBeam

(

WsfDirectedEnergyWeapon::Beam *

aBeamPtr

)

Set the beam structure. The instance assumes ownership of the passed object.

Referenced by WsfDisDirectedEnergyFire::Process(), and WsfLaserWeapon::SetHEL().

---

The documentation for this class was generated from the following files:

• WsfDirectedEnergyWeapon.hpp
• WsfDirectedEnergyWeapon.cpp
