WsfCorrelationStrategy Class Reference

#include <WsfCorrelationStrategy.hpp>

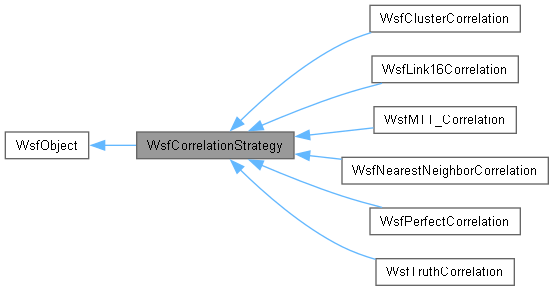

Inheritance diagram for WsfCorrelationStrategy:

Collaboration diagram for WsfCorrelationStrategy:

Public Types
typedef WsfObjectTypeList< WsfCorrelationStrategy >	CorrelationStrategyTypes
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.

Public Member Functions
	~WsfCorrelationStrategy () override=default
WsfCorrelationStrategy *	Clone () const override=0
	Create a clone of "this" object.
bool	ProcessInput (UtInput &aInput) override
	Process input from a common source.
virtual bool	Initialize (WsfTrackManager *aTrackManagerPtr)
	Perform any necessary initialization.
void	NewTrackCorrelation (const WsfTrack &aRawTrack, const WsfLocalTrack &aLocalTrack)
WsfLocalTrack *	Correlate (double aSimTime, const WsfTrack &aNonLocalTrack, WsfLocalTrackList &aTrackList)
const WsfTrackId &	GetCorrelatedTrackId (const WsfTrackId &aRawTrackId) const
virtual void	Decorrelate (const WsfTrackId &aRawTrackId)
	Allow the user to break an existing correlation.
void	NotifyOfLocalTrackCorrelation (double aSimTime, const WsfLocalTrack &aLocalTrack, const WsfTrackId &aRawTrackId)
WsfTrackManager &	GetTrackManager ()
	Return a reference to the track manager being accessed internally by this object.
void	SetTrackManager (WsfTrackManager *aTrackManagerPtr)
WsfSimulation *	GetSimulation () const
bool	TestCorrelation (const WsfTrack &aTrack1, const WsfTrack &aTrack2)
	Method to facilitate unit testing.
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Protected Member Functions
	WsfCorrelationStrategy ()
	WsfCorrelationStrategy (const WsfCorrelationStrategy &aSrc)
WsfCorrelationStrategy &	operator= (const WsfCorrelationStrategy &aRhs)
virtual WsfLocalTrack *	CorrelateImpl (double aSimTime, const WsfTrack &aNonLocalTrack, WsfLocalTrackList &aTrackList)=0
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Protected Attributes
std::map< WsfTrackId, WsfTrackId >	mCorrelationMap

Detailed Description

This class defines the interface for a correlation strategy. It is to be used and configured by the WsfTrackManager. A factory method called WsfCorrelationStrategy::Create is provided to return new instances of existing correlation object prototypes.

In order to create new correlation objects, the implementor should do the following:

• Re-implement WsfCorrelationStrategy::CorrelateImpl, the method that implements the correlation algorithm.
• Re-implement WsfCorrelationStrategy::Clone.
• Add a prototype in "WsfCorrelationStrategy::GetTypes", in the static initialization section; or, add a call to "WsfCorrelationStrategy::GetTypes::Add" (see "WsfObjectTypeList::Add" ) elsewhere in the code.

Note

It is suggested that the developer prefer the use of WsfCorrelationStrategy::Create over Clone() as the former (factory) method ties in the desired instance of WsfTrackManager.

Member Typedef Documentation

CorrelationStrategyTypes

typedef WsfObjectTypeList<WsfCorrelationStrategy> WsfCorrelationStrategy::CorrelationStrategyTypes

Constructor & Destructor Documentation

~WsfCorrelationStrategy()

WsfCorrelationStrategy::~WsfCorrelationStrategy ( )

overridedefault

WsfCorrelationStrategy() [1/2]

WsfCorrelationStrategy::WsfCorrelationStrategy ( )

protected

References mCorrelationMap.

Referenced by WsfClusterCorrelation::Clone(), Clone(), WsfLink16Correlation::Clone(), WsfMTT_Correlation::Clone(), WsfNearestNeighborCorrelation::Clone(), WsfPerfectCorrelation::Clone(), WsfTruthCorrelation::Clone(), operator=(), WsfClusterCorrelation::WsfClusterCorrelation(), WsfCorrelationStrategy(), WsfLink16Correlation::WsfLink16Correlation(), WsfMTT_Correlation::WsfMTT_Correlation(), WsfMTT_Correlation::WsfMTT_Correlation(), WsfNearestNeighborCorrelation::WsfNearestNeighborCorrelation(), WsfPerfectCorrelation::WsfPerfectCorrelation(), WsfTruthCorrelation::WsfTruthCorrelation(), and WsfNearestNeighborCorrelation::~WsfNearestNeighborCorrelation().

WsfCorrelationStrategy() [2/2]

WsfCorrelationStrategy::WsfCorrelationStrategy ( const WsfCorrelationStrategy & aSrc )

protected

References mCorrelationMap, and WsfCorrelationStrategy().

Member Function Documentation

Clone()

WsfCorrelationStrategy * WsfCorrelationStrategy::Clone ( ) const

overridepure virtual

Create a clone of "this" object.

Implements WsfObject.

Implemented in WsfClusterCorrelation, WsfLink16Correlation, WsfMTT_Correlation, WsfNearestNeighborCorrelation, WsfPerfectCorrelation, and WsfTruthCorrelation.

References WsfCorrelationStrategy().

Referenced by WsfCorrelationStrategyTypes::Create().

Correlate()

WsfLocalTrack * WsfCorrelationStrategy::Correlate	(	double	aSimTime,
		const WsfTrack &	aNonLocalTrack,
		WsfLocalTrackList &	aTrackList )

Given a non-local track update (or measurement), find the track in the track list that correlates with the given track or measurement.

Given a non-local track update (or measurement), find the track in the track list that correlates with the given track or measurement.

Note

This is a template method that defers execution to CorrelateImpl

References CorrelateImpl(), WsfTrack::GetTrackId(), and mCorrelationMap.

Referenced by TestCorrelation().

CorrelateImpl()

virtual WsfLocalTrack * WsfCorrelationStrategy::CorrelateImpl ( double aSimTime, const WsfTrack & aNonLocalTrack, WsfLocalTrackList & aTrackList )

protectedpure virtual

Given a non-local track update (or measurement), find the track in the track list that correlates with the given track or measurement (pure virtual method).

Implemented in WsfClusterCorrelation, WsfLink16Correlation, WsfMTT_Correlation, WsfNearestNeighborCorrelation, WsfPerfectCorrelation, and WsfTruthCorrelation.

Referenced by Correlate().

Decorrelate()

void WsfCorrelationStrategy::Decorrelate ( const WsfTrackId & aRawTrackId )

virtual

Allow the user to break an existing correlation.

Reimplemented in WsfNearestNeighborCorrelation.

References mCorrelationMap.

Referenced by WsfNearestNeighborCorrelation::Decorrelate(), and WsfClusterCorrelation::MakeDecorrelated().

GetCorrelatedTrackId()

const WsfTrackId & WsfCorrelationStrategy::GetCorrelatedTrackId

(

const WsfTrackId &

aRawTrackId

)

const

Given a raw track id, return the (local) track id previously correlated with this track id. If there is no correlation, the track id will be "null", (i.e., the function WsfTrackId::IsNull will return true for the returned value of this method.

References mCorrelationMap.

Referenced by WsfPerfectCorrelation::CorrelateImpl().

GetSimulation()

WsfSimulation * WsfCorrelationStrategy::GetSimulation

(

)

const

Referenced by WsfTruthCorrelation::CorrelateImpl().

GetTrackManager()

WsfTrackManager & WsfCorrelationStrategy::GetTrackManager ( )

inline

Return a reference to the track manager being accessed internally by this object.

Referenced by WsfClusterCorrelation::ClusterRawTracksIntoLocalTracks(), WsfMTT_Correlation::CorrelateImpl(), WsfNearestNeighborCorrelation::CorrelateImpl(), WsfMTT_Correlation::DecorrelateNonlocalTrack(), WsfClusterCorrelation::GetCorrelatedTrack(), WsfClusterCorrelation::GetCorrelatedTrack(), WsfMTT_Correlation::Initialize(), and WsfTruthCorrelation::Initialize().

Initialize()

virtual bool WsfCorrelationStrategy::Initialize ( WsfTrackManager * aTrackManagerPtr )

inlinevirtual

Perform any necessary initialization.

Reimplemented in WsfClusterCorrelation, WsfMTT_Correlation, and WsfTruthCorrelation.

Referenced by WsfClusterCorrelation::Initialize(), WsfMTT_Correlation::Initialize(), and WsfTruthCorrelation::Initialize().

NewTrackCorrelation()

void WsfCorrelationStrategy::NewTrackCorrelation	(	const WsfTrack &	aRawTrack,
		const WsfLocalTrack &	aLocalTrack )

Notifies the correlation strategy that a new track correlation has been made This is called by the track manager for new tracks.

References WsfTrack::GetTrackId(), and mCorrelationMap.

Referenced by WsfMTT_Correlation::CorrelateImpl().

NotifyOfLocalTrackCorrelation()

void WsfCorrelationStrategy::NotifyOfLocalTrackCorrelation	(	double	aSimTime,
		const WsfLocalTrack &	aLocalTrack,
		const WsfTrackId &	aRawTrackId )

Notifies the track manager and observers that a track has been correlated by the correlation strategy

Referenced by WsfPerfectCorrelation::CorrelateImpl(), and WsfTruthCorrelation::CorrelateImpl().

operator=()

WsfCorrelationStrategy & WsfCorrelationStrategy::operator= ( const WsfCorrelationStrategy & aRhs )

protected

References mCorrelationMap, WsfObject::operator=(), and WsfCorrelationStrategy().

ProcessInput()

bool WsfCorrelationStrategy::ProcessInput ( UtInput & aInput )

inlineoverridevirtual

Process input from a common source.

Reimplemented from WsfObject.

Reimplemented in WsfLink16Correlation, WsfMTT_Correlation, WsfNearestNeighborCorrelation, and WsfTruthCorrelation.

Referenced by WsfCorrelationStrategyTypes::LoadInstance(), WsfLink16Correlation::ProcessInput(), WsfNearestNeighborCorrelation::ProcessInput(), and WsfTruthCorrelation::ProcessInput().

SetTrackManager()

void WsfCorrelationStrategy::SetTrackManager ( WsfTrackManager * aTrackManagerPtr )

inline

TestCorrelation()

bool WsfCorrelationStrategy::TestCorrelation	(	const WsfTrack &	aTrack1,
		const WsfTrack &	aTrack2 )

Method to facilitate unit testing.

References WsfTrackListT< T >::AddTrack(), Correlate(), and WsfTrack::GetUpdateTime().

Member Data Documentation

mCorrelationMap

std::map<WsfTrackId, WsfTrackId> WsfCorrelationStrategy::mCorrelationMap

protected

Referenced by Correlate(), Decorrelate(), WsfClusterCorrelation::GetCorrelatedTrack(), WsfClusterCorrelation::GetCorrelatedTrack(), GetCorrelatedTrackId(), WsfClusterCorrelation::MakeCorrelated(), NewTrackCorrelation(), operator=(), WsfCorrelationStrategy(), and WsfCorrelationStrategy().

---

The documentation for this class was generated from the following files:

• WsfCorrelationStrategy.hpp
• WsfCorrelationStrategy.cpp
