#include <WsfExtEmission.hpp>

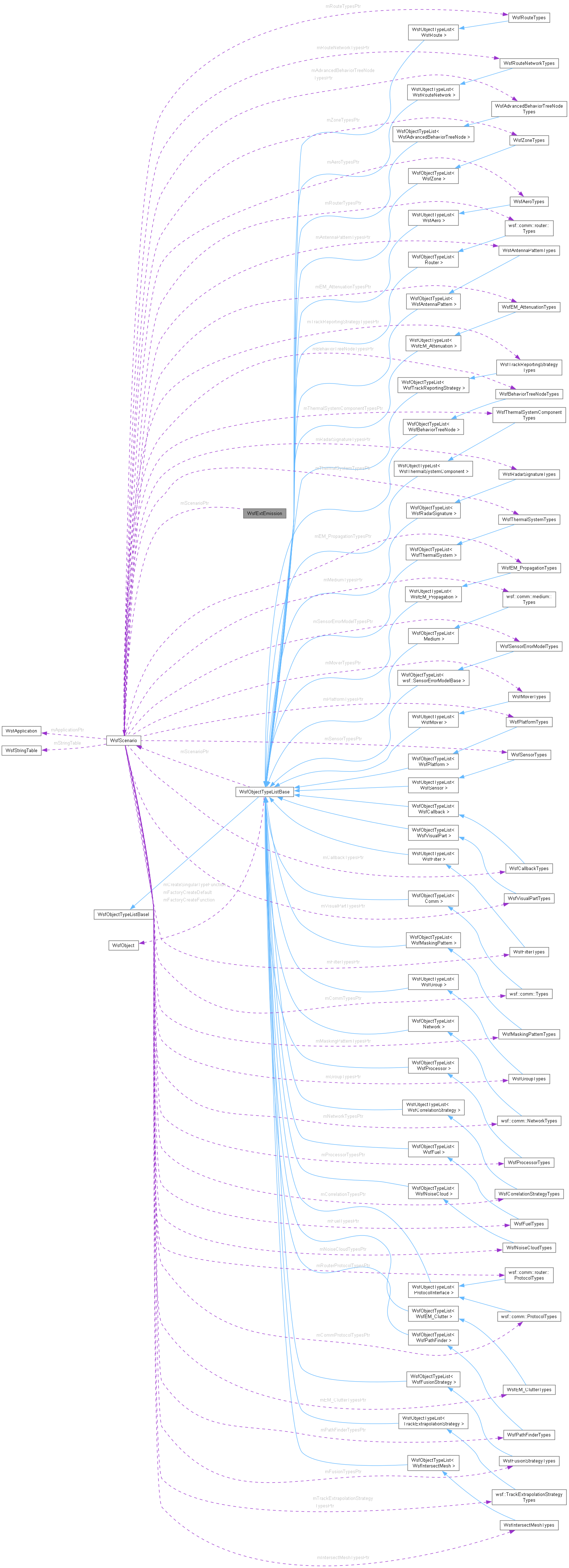

Collaboration diagram for WsfExtEmission:

[legend]

Classes
class	BeamKey

Public Types
enum	{ cLEVEL_ONE_DEBUG = 0x00000001 , cLEVEL_TWO_DEBUG = 0x00000002 }

Public Member Functions
	WsfExtEmission (WsfScenario &aScenario)
bool	ProcessInput (UtInput &aInput)
	Process input commands.
void	ProcessBeamFunction (UtInput &aInput)
void	ProcessBeamType (UtInput &aInput)
void	ProcessEmitterFunction (UtInput &aInput)
void	ProcessEmitterType (UtInput &aInput)
int	GetDebugMask ()
void	SetDebugMask (int aMask)
uint8_t	GetBeamFunction (WsfStringId aPartTypeId, WsfStringId aModeNameId, int aBeamNumber)
	Return the DIS beam function that corresponds to given BeamKey.
uint16_t	GetBeamType (WsfStringId aPartTypeId, WsfStringId aModeNameId, int aBeamNumber)
	Return the DIS beam index that corresponds to given <sensor type, Mode, beam number> key.
uint16_t	GetEmitterType (WsfStringId aPartTypeId)
	Return the DIS emitter name that corresponds to given WSF part (comm/sensor) type ID.
uint8_t	GetEmitterFunction (WsfStringId aPartTypeId)
	Return the DIS emitter function that corresponds to given WSF part (comm/sensor) type ID.
WsfStringId	GetPartTypeId (uint16_t aEmitterType)
	Return the WSF part (comm/sensor) type ID that corresponds to given DIS Emitter type.
void	UpdateBeamLimits (WsfEM_XmtrRcvr &aXmtrRcvr, double &aMinAz, double &aMaxAz, double &aMinEl, double &aMaxEl)
WsfSensor *	GetSensor (WsfPlatform *aPlatformPtr, WsfStringId aSensorTypeId, unsigned int aEmitterNameDIS, unsigned int aEmitterIdNumberDIS)
WsfSensor *	GetSensor (WsfStringId aSensorTypeId, unsigned int aEmitterNameDIS, unsigned int aEmitterIdNumberDIS)
WsfSensor *	AddSensor (double aSimTime, WsfPlatform *aPlatformPtr, WsfStringId aSensorTypeId, unsigned int aEmitterNameDIS, unsigned int aEmitterIdNumberDIS)
WsfScenario &	GetScenario () const

Protected Attributes
WsfScenario *	mScenarioPtr {nullptr}
unsigned int	sDebugMask {0}
	A bit mask for turning on debug levels.
std::map< BeamKey, uint8_t >	sBeamKeyToBeamFunction
	The following maps a beam-key (sensor-type, mode-name, beam-index) to a DIS Beam Function.
std::map< BeamKey, uint16_t >	sBeamKeyToBeamType
	The following maps a beam-key (sensor-type, mode-name, beam-index) to a DIS Beam Parameter Index.
std::map< WsfStringId, uint8_t >	sPartTypeToEmitterFunction
	The following maps a WSF comm/sensor type to DIS emitter function.
std::map< WsfStringId, uint16_t >	sPartTypeToEmitterType
	The following maps a WSF comm/sensor type id to DIS emitter type.
std::map< uint16_t, WsfStringId >	sEmitterTypeToPartType

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
cLEVEL_ONE_DEBUG	General debug.
cLEVEL_TWO_DEBUG	Debug beam data.

Constructor & Destructor Documentation

◆ WsfExtEmission()

WsfExtEmission::WsfExtEmission ( WsfScenario & aScenario )

References mScenarioPtr.

Member Function Documentation

◆ AddSensor()

WsfSensor * WsfExtEmission::AddSensor	(	double	aSimTime,
		WsfPlatform *	aPlatformPtr,
		WsfStringId	aSensorTypeId,
		unsigned int	aEmitterNameDIS,
		unsigned int	aEmitterIdNumberDIS )

Adds a sensor to the given platform.

Parameters

aSimTime	[input] Current simulation time.
aPlatformPtr	[input] Pointer to the sensor's platform.
aSensorTypeId	[input] Sensor type ID.
aEmitterNameDIS	[input] DIS emitter system - emitter name
aEmitterIdNumberDIS	[input] DIS emitter system - emitter ID number

Returns: A pointer to the sensor just added.

References WsfComponentListT< COMPONENT_TYPE >::AddComponent(), WsfSensor::Clone(), cWSF_COMPONENT_SENSOR, WsfComponentList::DeleteComponent(), WsfScenario::FindType(), WsfObject::GetName(), WsfObject::GetNameId(), WsfSimulation::GetScenario(), GetSensor(), WsfPlatform::GetSimulation(), WsfObject::GetType(), WsfSensor::Initialize(), WsfPlatformPart::SetExternallyControlled(), and WsfObject::SetName().

Referenced by WsfDisInterface::UpdatePlatformSystem().

◆ GetBeamFunction()

uint8_t WsfExtEmission::GetBeamFunction	(	WsfStringId	aPartTypeId,
		WsfStringId	aModeNameId,
		int	aBeamNumber )

Return the DIS beam function that corresponds to given BeamKey.

References WsfExtEmission::BeamKey::mBeamNumber, WsfExtEmission::BeamKey::mMode, and sBeamKeyToBeamFunction.

Referenced by WsfDisInterface::SetBeamTypeAndFunction().

◆ GetBeamType()

uint16_t WsfExtEmission::GetBeamType	(	WsfStringId	aPartTypeId,
		WsfStringId	aModeNameId,
		int	aBeamNumber )

Return the DIS beam index that corresponds to given <sensor type, Mode, beam number> key.

References WsfExtEmission::BeamKey::mBeamNumber, WsfExtEmission::BeamKey::mMode, and sBeamKeyToBeamType.

Referenced by WsfDisInterface::SetBeamTypeAndFunction().

◆ GetDebugMask()

int WsfExtEmission::GetDebugMask ( )

inline

References sDebugMask.

Referenced by WsfMilDisInterface::AddEmissionSystem(), WsfMilDisInterface::UpdateEmissionSystem(), and WsfDisInterface::UpdatePlatformSystem().

◆ GetEmitterFunction()

uint8_t WsfExtEmission::GetEmitterFunction ( WsfStringId aPartTypeId )

Return the DIS emitter function that corresponds to given WSF part (comm/sensor) type ID.

References sPartTypeToEmitterFunction.

Referenced by WsfDisInterface::SetEmitterTypeAndFunction().

◆ GetEmitterType()

uint16_t WsfExtEmission::GetEmitterType ( WsfStringId aPartTypeId )

Return the DIS emitter name that corresponds to given WSF part (comm/sensor) type ID.

References sPartTypeToEmitterType.

Referenced by WsfMilExtInterface::PrintEmitterTypes(), and WsfDisInterface::SetEmitterTypeAndFunction().

◆ GetPartTypeId()

WsfStringId WsfExtEmission::GetPartTypeId ( uint16_t aEmitterType )

Return the WSF part (comm/sensor) type ID that corresponds to given DIS Emitter type.

References sEmitterTypeToPartType.

Referenced by WsfMilExtInterface::PrintEmitterTypes(), and WsfDisInterface::UpdatePlatformSystem().

◆ GetScenario()

WsfScenario & WsfExtEmission::GetScenario ( ) const

inline

References mScenarioPtr.

Referenced by GetSensor().

◆ GetSensor() [1/2]

WsfSensor * WsfExtEmission::GetSensor	(	WsfPlatform *	aPlatformPtr,
		WsfStringId	aSensorTypeId,
		unsigned int	aEmitterNameDIS,
		unsigned int	aEmitterIdNumberDIS )

Gets a sensor from the given platform.

Parameters

aPlatformPtr	[input] Pointer to the sensor's platform.
aSensorTypeId	[input] Sensor type ID.
aEmitterNameDIS	[input] DIS emitter system - emitter name
aEmitterIdNumberDIS	[input] DIS emitter system - emitter ID number

Returns: A pointer to the sensor just found.

References WsfComponentList::RoleIterator< T >::AtEnd(), and WsfUtil::GetAuxValue().

Referenced by AddSensor(), and WsfDisInterface::UpdatePlatformSystem().

◆ GetSensor() [2/2]

WsfSensor * WsfExtEmission::GetSensor	(	WsfStringId	aSensorTypeId,
		unsigned int	aEmitterNameDIS,
		unsigned int	aEmitterIdNumberDIS )

Gets a sensor from the given platform.

Parameters

aSensorTypeId	[input] Sensor type ID.
aEmitterNameDIS	[input] DIS emitter system - emitter name
aEmitterIdNumberDIS	[input] DIS emitter system - emitter ID number

Returns: A pointer to the sensor just found.

References WsfObjectTypeList< T >::Clone(), WsfSensorTypes::Get(), WsfAuxDataEnabled::GetAuxData(), and GetScenario().

◆ ProcessBeamFunction()

void WsfExtEmission::ProcessBeamFunction ( UtInput & aInput )

References sBeamKeyToBeamFunction.

Referenced by ProcessInput().

◆ ProcessBeamType()

void WsfExtEmission::ProcessBeamType ( UtInput & aInput )

References sBeamKeyToBeamType.

Referenced by ProcessInput().

◆ ProcessEmitterFunction()

void WsfExtEmission::ProcessEmitterFunction ( UtInput & aInput )

References sPartTypeToEmitterFunction.

Referenced by ProcessInput().

◆ ProcessEmitterType()

void WsfExtEmission::ProcessEmitterType ( UtInput & aInput )

References sEmitterTypeToPartType, and sPartTypeToEmitterType.

Referenced by ProcessInput().

◆ ProcessInput()

bool WsfExtEmission::ProcessInput ( UtInput & aInput )

Process input commands.

References ProcessBeamFunction(), ProcessBeamType(), ProcessEmitterFunction(), ProcessEmitterType(), and sDebugMask.

◆ SetDebugMask()

void WsfExtEmission::SetDebugMask ( int aMask )

inline

References sDebugMask.

◆ UpdateBeamLimits()

void WsfExtEmission::UpdateBeamLimits	(	WsfEM_XmtrRcvr &	aXmtrRcvr,
		double &	aMinAz,
		double &	aMaxAz,
		double &	aMinEl,
		double &	aMaxEl )

Update the beam field-of-view limits from the user limits. Use the field-of-view limits from the antenna definition (which could be the default 'unlimited' values) if either of the following is true:

-) The user explicitly specified the field-of-view limits in the antenna definition. -) No limits from the scan or slew limits could be used.

The incoming values are not modified if they have valid values AND the user did not explicitly specify [azimuth/elevation]_field_of_view in the antenna definition.

References WsfEM_Antenna::cSCAN_AZ, WsfEM_Antenna::cSCAN_AZ_EL, WsfEM_Antenna::cSCAN_EL, WsfArticulatedPart::cSLEW_AZ, WsfArticulatedPart::cSLEW_AZ_EL, WsfArticulatedPart::cSLEW_EL, WsfEM_XmtrRcvr::GetAntenna(), WsfEM_Antenna::GetArticulatedPart(), WsfEM_Antenna::GetAzimuthFieldOfView(), WsfEM_Antenna::GetAzimuthScanLimits(), WsfEM_Antenna::GetElevationFieldOfView(), WsfEM_Antenna::GetElevationScanLimits(), WsfArticulatedPart::GetMaxAzSlew(), WsfArticulatedPart::GetMaxElSlew(), WsfArticulatedPart::GetMinAzSlew(), WsfArticulatedPart::GetMinElSlew(), WsfEM_Antenna::GetScanMode(), and WsfArticulatedPart::GetSlewMode().

Referenced by WsfDisInterface::UpdateBeamFromXmtr(), WsfDisInterface::UpdateSystemFromSensor(), and WsfDisInterface::UpdateXmtrFromBeam().

Member Data Documentation

◆ mScenarioPtr

WsfScenario* WsfExtEmission::mScenarioPtr {nullptr}

protected

Referenced by GetScenario(), and WsfExtEmission().

◆ sBeamKeyToBeamFunction

std::map<BeamKey, uint8_t> WsfExtEmission::sBeamKeyToBeamFunction

protected

The following maps a beam-key (sensor-type, mode-name, beam-index) to a DIS Beam Function.

Referenced by GetBeamFunction(), and ProcessBeamFunction().

◆ sBeamKeyToBeamType

std::map<BeamKey, uint16_t> WsfExtEmission::sBeamKeyToBeamType

protected

The following maps a beam-key (sensor-type, mode-name, beam-index) to a DIS Beam Parameter Index.

Referenced by GetBeamType(), and ProcessBeamType().

◆ sDebugMask

unsigned int WsfExtEmission::sDebugMask {0}

protected

A bit mask for turning on debug levels.

Referenced by GetDebugMask(), ProcessInput(), and SetDebugMask().

◆ sEmitterTypeToPartType

std::map<uint16_t, WsfStringId> WsfExtEmission::sEmitterTypeToPartType

protected

Referenced by GetPartTypeId(), and ProcessEmitterType().

◆ sPartTypeToEmitterFunction

std::map<WsfStringId, uint8_t> WsfExtEmission::sPartTypeToEmitterFunction

protected

The following maps a WSF comm/sensor type to DIS emitter function.

Referenced by GetEmitterFunction(), and ProcessEmitterFunction().

◆ sPartTypeToEmitterType

std::map<WsfStringId, uint16_t> WsfExtEmission::sPartTypeToEmitterType

protected

The following maps a WSF comm/sensor type id to DIS emitter type.

Referenced by GetEmitterType(), and ProcessEmitterType().

The documentation for this class was generated from the following files:
