#include <WsfEM_XmtrRcvr.hpp>

Inheritance diagram for WsfEM_XmtrRcvr:

[legend]

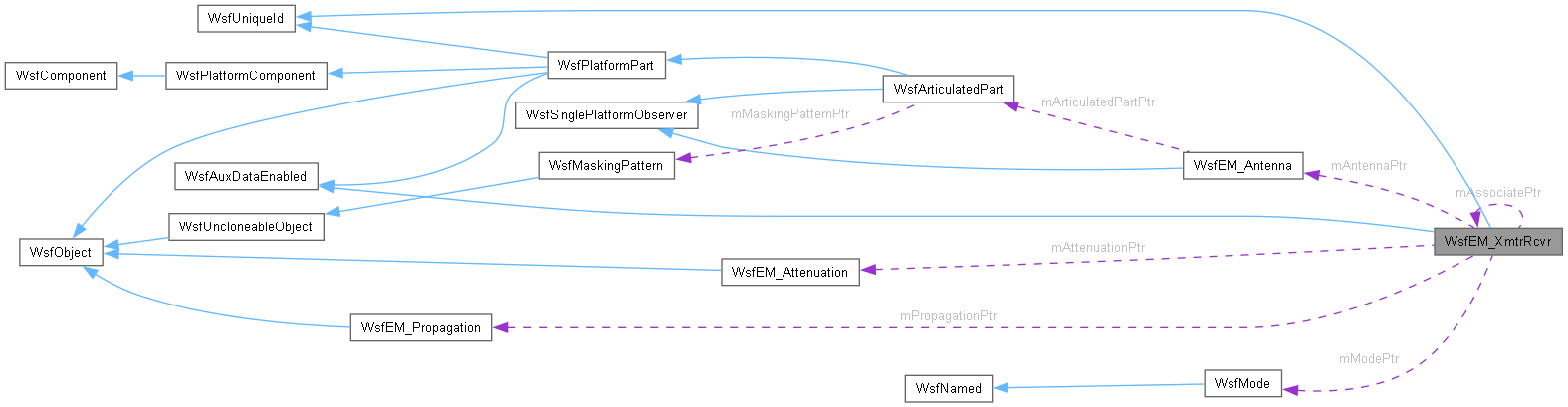

Collaboration diagram for WsfEM_XmtrRcvr:

[legend]

Public Types
using	AntennaPatternList = std::vector<std::pair<WsfAntennaPattern*, double>>
	Vector of pairs of antenna pattern pointer and associated lower frequency bounds.

Public Member Functions
	WsfEM_XmtrRcvr (WsfEM_Antenna *aAntennaPtr=nullptr)
	WsfEM_XmtrRcvr (const WsfEM_XmtrRcvr &aSrc, WsfEM_Antenna *aAntennaPtr)
virtual	~WsfEM_XmtrRcvr ()
WsfPlatform *	GetPlatform () const
WsfArticulatedPart *	GetArticulatedPart () const
virtual bool	Initialize (WsfSimulation &aSimulation)
virtual bool	ProcessInput (UtInput &aInput)
virtual void	UpdatePosition (double aSimTime)
const char *	GetScriptClassName () const override
WsfEM_Attenuation *	GetAttenuationModel () const
void	SetAttenuationModel (WsfEM_Attenuation *aAttenuationPtr)
WsfStringId	GetAttenuationModelType () const
	Return the type of the attenuation model (if one is defined).
void	SetAttenuationModelType (WsfStringId aAttenuationType)
WsfEM_Propagation *	GetPropagationModel () const
void	SetPropagationModel (WsfEM_Propagation *aPropagationPtr)
WsfStringId	GetPropagationModelType () const
	Return the type of the propagation model (if one is defined).
void	SetPropagationModelType (WsfStringId aPropagationType)
Public Member Functions inherited from WsfUniqueId
	WsfUniqueId ()
	Construtor initializes the unique identifier to 0.
	WsfUniqueId (const WsfUniqueId &)
	Copy constructor initializes the unique identifier to 0.
WsfUniqueId &	operator= (const WsfUniqueId &)
unsigned int	GetUniqueId () const
	Get the unique identifier assigned to this object.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
Public Member Functions inherited from WsfAuxDataEnabled
	WsfAuxDataEnabled ()=default
	WsfAuxDataEnabled (const WsfAuxDataEnabled &aSrc)=default
WsfAuxDataEnabled &	operator= (const WsfAuxDataEnabled &aRhs)
	WsfAuxDataEnabled (WsfAuxDataEnabled &&)=default
WsfAuxDataEnabled &	operator= (WsfAuxDataEnabled &&)=default
virtual	~WsfAuxDataEnabled () noexcept
void	SetAuxData (const WsfAttributeContainer &aAuxData)
void	DeleteAuxData ()
	Delete the aux data container from the object.
void	MergeAuxData (const WsfAuxDataEnabled &aSrc)
	Merge the object's aux data with aux data from an existing object.
void	UpdateAuxData (const WsfAuxDataEnabled &aSrc)
	Update the object's aux data with aux data from an existing object.
bool	HasAuxData () const
	Returns true if this object has aux data.
bool	ProcessInput (UtInput &aInput)
template<typename T>
void	Serialize (T &aBuff)
	(De)serialization for XIO
WsfAttributeContainer &	GetAuxData ()
const WsfAttributeContainer &	GetAuxData () const noexcept
const WsfAttributeContainer &	GetAuxDataConst () const noexcept

Special functions for receivers.
By default receivers disable the use of the attenuation_model and propagation_model, as interactions that involve a transmitter use models stored on the transmitter. For interactions where the signal source is not a transmitter, it is still useful to have these objects. Models that want to enabled them may do so...
WsfStringId	mAttenuationType
	The type of the atmospheric attenuation model to be used.
WsfStringId	mPropagationType
	The type of the propagation model to be used.
WsfEM_Attenuation *	mAttenuationPtr
	Pointer to the atmospheric attenuation model.
WsfEM_Propagation *	mPropagationPtr
	Pointer to the propagation object.
WsfMode *	mModePtr
WsfEM_Antenna *	mAntennaPtr
	Pointer to the 'geometry' object for this transmitter/receiver.
std::array< AntennaPatternList, WsfEM_Types::cPOL_COUNT >	mPatternTables {}
WsfEM_XmtrRcvr *	mAssociatePtr
double	mBeamTilt
double	mEarthRadiusMultiplier
double	mFrequency
double	mBandwidth
double	mInternalLoss
WsfEM_Types::Polarization	mPolarization
size_t	mIndex
std::array< bool, WsfEM_Types::cPOL_COUNT >	mUsedExplicitPolarization {{false}}
bool	mDebugEnabled
unsigned int	mTerrainMaskingMode
	Settings used for masking checks.
bool	mCheckMasking
	true if horizon and terrain masking enabled.
bool	mExplicitBandwidth
	true if explicit 'bandwidth' specified
void	SetAttenuationInputEnabled (bool aEnabled)
	Enable or disable 'attenuation_model' input.
void	SetPropagationInputEnabled (bool aEnabled)
	Enable or disable 'propagation_model' input.

Antenna methods.
WsfEM_Antenna *	GetAntenna () const
	Get the pointer associated geometry object.
void	SetAntenna (WsfEM_Antenna *aAntennaPtr)
WsfAntennaPattern *	GetAntennaPattern (WsfEM_Types::Polarization aPolarization, double aFrequency) const
bool	SetAntennaPattern (WsfAntennaPattern *aAntennaPatternPtr, WsfEM_Types::Polarization aPolarization, double aFrequency)
bool	AddAntennaPattern (WsfAntennaPattern *aAntennaPatternPtr, WsfEM_Types::Polarization aPolarization, double aFrequency)
const AntennaPatternList *	GetAntennaPatternList (WsfEM_Types::Polarization aPolarization) const
double	GetBeamTilt () const
void	SetBeamTilt (double aBeamTilt)
	Set the angle of the boresight of the antenna gain pattern above/below (+/-) the antenna boresight.
virtual double	GetAntennaGain (WsfEM_Types::Polarization aPolarization, double aFrequency, double aTargetAz, double aTargetEl, double aEBS_Az, double aEBS_El)
virtual WSF_DEPRECATED double	GetAzimuthBeamwidth () const final
virtual double	GetAzimuthBeamwidth (double aEBS_Azimuth, double aEBS_Elevation) const
virtual WSF_DEPRECATED double	GetElevationBeamwidth () const final
virtual double	GetElevationBeamwidth (double aEBS_Azimuth, double aEBS_Elevation) const
virtual double	GetPeakAntennaGain () const
virtual double	GetMinimumAntennaGain () const
virtual void	SetAntennaBeamCount (unsigned int aBeamCount)

Debugging methods
bool	DebugEnabled () const
	Determine if debugging is enabled.
void	SetDebugEnabled (bool aDebugEnabled)
bool	IsHorizonMaskingEnabled () const
	determine if horizon masking is to be checked
bool	IsTerrainMaskingEnabled () const
	determine if terrain masking is to be checked
std::string	MaskingMode () const
	Gets the masking mode.
void	SetMaskingMode (const std::string &aTerrainMaskingMode)
	Set the type of masking to perform.
bool	CheckMasking () const
	determine if horizon and terrain masking is to be checked
void	SetCheckMasking (bool aCheckMasking)
	enable/disable checking of horizon and terrain masking
void	DisableMaskingCheck ()
	disables the checking of horizon and terrain masking (retained for compatibility)
static void	AssociateSystems (WsfEM_XmtrRcvr aSystem1Ptr, WsfEM_XmtrRcvr aSystem2Ptr)

Mode Association and Index methods.
The use of these methods is completely optional. Complex systems may use these to identify the context in which a a specific xmtr/rcvr exists (e.g.: a particular xmtr/rcvr may represent 'beam x' in 'mode y'). Some observers (the DIS observer in particular) make use of the information if it is available. Note These are purely optional! Users of the 'Get' methods should be careful!
WsfMode *	GetMode () const
void	SetMode (WsfMode *aModePtr)
size_t	GetIndex () const
	Get the index of the xmtr/rcvr in the complex assembly.
void	SetIndex (size_t aIndex)
	Set the index of the xmtr/rcvr in the complex assembly.
WsfSimulation *	GetSimulation () const
WsfEM_Manager *	GetEM_Manager () const
double	GetEarthRadiusMultiplier () const
double	GetFrequency () const
double	GetWavelength () const
double	GetBandwidth () const
bool	IsBandwidthExplicit () const
double	GetInternalLoss () const
WsfEM_Types::Polarization	GetPolarization () const
	Get the polarization of the EM system.
void	SetEarthRadiusMultiplier (double aMultiplier)
virtual void	SetFrequency (double aFrequency)
virtual void	SetBandwidth (double aBandwidth)
void	SetInternalLoss (double aInternalLoss)
virtual void	SetPolarization (WsfEM_Types::Polarization aPolarization)

Additional Inherited Members
Static Public Attributes inherited from WsfAuxDataEnabled
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataAccessed
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataDestroyed
Protected Member Functions inherited from WsfUniqueId
void	AssignUniqueId (WsfSimulation *aSimulationPtr)

Detailed Description

This is the base class for WsfEM_Xmtr and WsfEM_Rcvr. It encapsulates the common attributes of a transmitter or a receiver (antenna position, gain patterns, etc).

Member Typedef Documentation

◆ AntennaPatternList

using WsfEM_XmtrRcvr::AntennaPatternList = std::vector<std::pair<WsfAntennaPattern*, double>>

Vector of pairs of antenna pattern pointer and associated lower frequency bounds.

Constructor & Destructor Documentation

◆ WsfEM_XmtrRcvr() [1/2]

WsfEM_XmtrRcvr::WsfEM_XmtrRcvr ( WsfEM_Antenna * aAntennaPtr = nullptr )

◆ WsfEM_XmtrRcvr() [2/2]

WsfEM_XmtrRcvr::WsfEM_XmtrRcvr	(	const WsfEM_XmtrRcvr &	aSrc,
		WsfEM_Antenna *	aAntennaPtr )

◆ ~WsfEM_XmtrRcvr()

WsfEM_XmtrRcvr::~WsfEM_XmtrRcvr ( )

virtual

References mAttenuationPtr, mPatternTables, and mPropagationPtr.

Member Function Documentation

◆ AddAntennaPattern()

bool WsfEM_XmtrRcvr::AddAntennaPattern	(	WsfAntennaPattern *	aAntennaPatternPtr,
		WsfEM_Types::Polarization	aPolarization,
		double	aFrequency )

Add the antenna pattern to the list with the associated lower frequency bound.

Parameters

aAntennaPatternPtr	Pointer to the antenna pattern.
aFrequency	The lower frequency bound of the antenna pattern.
aPolarization	The polarization of the antenna pattern. Defaults to DEFAULT

Returns: True if the insert was successful, False if a pattern associated with the frequency already exists.

References WsfEM_Types::cPOL_DEFAULT, mPatternTables, and mUsedExplicitPolarization.

Referenced by ProcessInput(), and SetAntennaPattern().

◆ AssociateSystems()

void WsfEM_XmtrRcvr::AssociateSystems	(	WsfEM_XmtrRcvr *	aSystem1Ptr,
		WsfEM_XmtrRcvr *	aSystem2Ptr )

static

Indicate that two systems (typically a transmitter/receiver pair) are 'associated'. Certain parameters that haven't been defined in one system are automatically copied from the associated system during initialization.

References mAssociatePtr, and WsfEM_XmtrRcvr().

Referenced by WsfEM_Xmtr::SetLinkedReceiver().

◆ CheckMasking()

bool WsfEM_XmtrRcvr::CheckMasking ( ) const

inline

determine if horizon and terrain masking is to be checked

References mCheckMasking.

Referenced by WsfEM_Rcvr::CheckXmtrMasking().

◆ DebugEnabled()

bool WsfEM_XmtrRcvr::DebugEnabled ( ) const

inline

Determine if debugging is enabled.

References mDebugEnabled.

◆ DisableMaskingCheck()

void WsfEM_XmtrRcvr::DisableMaskingCheck ( )

inline

disables the checking of horizon and terrain masking (retained for compatibility)

References mCheckMasking.

Referenced by wsf::comm::ComponentHW_Subsurface::ComponentHW_Subsurface(), and wsf::comm::ComponentHW_Subsurface::ComponentHW_Subsurface().

◆ GetAntenna()

WsfEM_Antenna * WsfEM_XmtrRcvr::GetAntenna ( ) const

inline

Get the pointer associated geometry object.

References mAntennaPtr.

Referenced by WsfEM_Manager::ActivateRcvr(), WsfEM_Manager::ActivateXmtr(), wsf::RadarSensorErrorModel::ApplyMeasurementErrors(), wsf::StandardSensorErrorModel::ApplyMeasurementErrors(), WsfPassiveSensor::PassiveMode::AttemptToDetect(), WsfEW_SensorComponent::AttemptToDetectFalseTarget(), WsfSensorResult::BeginGenericInteraction(), WsfSensorResult::BeginOneWayInteraction(), WsfSensorResult::BeginOneWayInteraction(), WsfSensorResult::BeginTwoWayInteraction(), WsfSensorResult::BeginTwoWayOTH_Interaction(), wsf::comm::ComponentHW_Subsurface::CanSendTo(), WsfOpticalEnvironment::ComputeBackgroundRadiance(), WsfEM_SurfaceClutter::ComputeClutterPower(), WsfEM_ALARM_Geometry::ComputeGeometry(), WsfEM_FastMultipath::ComputePropagationFactor(), WsfPassiveSensor::PassiveBeam::ComputePSOS_Effects(), WsfEM_FastMultipath::ComputeReflectionGain(), AntennaPlotFunction::Execute(), WsfBeamDirector::GetAzFOV(), WsfBeamDirector::GetElFOV(), WsfFalseTargetBlip::GetReferenceJammerToRadarRange(), WsfChaffRadarSignature::GetSignature(), wsf::BistaticErrorModel::GetSphericalErrorStdDev(), SAM_LaunchComputerGenerator::Initialize(), WsfEM_SurfaceClutter::Initialize(), WsfLASER_RcvrComponent::Initialize(), WsfRF_Jammer::JammerBeam::Initialize(), WsfEM_Interaction::MaskedByHorizon(), WsfEM_Interaction::MaskedByHorizon(), WsfEM_Interaction::MaskedByHorizon(), WsfDisPlatform::MessageTransmitted(), wsf::event::utils::PrintEM_BeamData(), wsf::event::utilsCSV::PrintEM_BeamData(), wsf::event::utils::PrintEM_RelXmtrRcvrData(), wsf::event::utilsCSV::PrintEM_RelXmtrRcvrData(), WsfDisInterface::UpdateBeamFromXmtr(), WsfExtEmission::UpdateBeamLimits(), WsfEW_RepeaterEffect::UpdateEffects(), WsfEW_RPJ_Effect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_SLB_Effect::UpdateEffects(), WsfEW_SLC_Effect::UpdateEffects(), WsfEW_FalseTargetEffect::UpdateFT(), WsfEW_FalseTargetEffect::UpdateJammerPulseDensity(), WsfEW_SimpleFT_Effect::UpdateJammerPulseDensity(), WsfDisInterface::UpdateSystemFromSensor(), WsfMilDisInterface::UpdateSystemFromWeapon(), WsfJamStrobeDetector::UpdateTrack(), WsfSensorMode::UpdateTrack(), WsfTRIMSIM_SensorComponent::UpdateTrack(), WsfSensorMode::UpdateTrackPosition(), WsfDisInterface::UpdateXmtrFromBeam(), WsfMilDisInterface::UpdateXmtrFromBeam(), WsfRF_Jammer::WithinFieldOfView(), WsfRF_Jammer::WithinFieldOfView(), WsfSensor::WithinFieldOfView(), WsfSensor::WithinFieldOfView(), WsfWeapon::WithinFieldOfView(), and WsfWeapon::WithinFieldOfView().

◆ GetAntennaGain()

double WsfEM_XmtrRcvr::GetAntennaGain	(	WsfEM_Types::Polarization	aPolarization,
		double	aFrequency,
		double	aTargetAz,
		double	aTargetEl,
		double	aEBS_Az,
		double	aEBS_El )

virtual

Get the antenna gain at the specified azimuth and elevation.

Parameters

aPolarization	The polarization of the signal being transmitted or received.
aFrequency	The frequency of the signal being transmitted or received (Hertz)
aTargetAz	The azimuth of the target with respect to the beam boresight (radians)
aTargetEl	The elevation of the target with respect to the beam boresight (radians)
aEBS_Az	The azimuth of the beam boresight with respect to the antenna face (radians). (see note below).
aEBS_El	The elevation of the beam boresight with respect to the antenna face (radians). (see note below).

Returns: The antenna gain as an absolute value (not dBi).

Note: The arguments 'aEBS_Az' and 'aEBS_El' are only used if electronic beam steering is used.

References WsfEM_Antenna::cEBS_NONE, GetAntennaPattern(), WsfAntennaPattern::GetGain(), WsfAntennaPattern::GetMinimumGain(), and mAntennaPtr.

Referenced by WsfSAR_Sensor::SAR_Mode::Calibrate(), WsfPassiveSensor::PassiveBeam::ComputePSOS_Effects(), WsfEM_Xmtr::ComputeRadiatedPower(), WsfEM_Rcvr::ComputeReceivedPower(), WsfPassiveSensor::PassiveRcvr::ComputeReceivedPower(), WsfEM_FastMultipath::ComputeReflectionGain(), WsfEW_SimpleFT_Effect::UpdateEffects(), and WsfDisEmission::UpdateXmtr().

◆ GetAntennaPattern()

WsfAntennaPattern * WsfEM_XmtrRcvr::GetAntennaPattern	(	WsfEM_Types::Polarization	aPolarization,
		double	aFrequency ) const

Return the antenna pattern for the supplied polarization and frequency.

Parameters

aPolarization	The polarization of the signal.
aFrequency	The frequency of the signal.

Returns: Pointer to the antenna gain pattern or nullptr if there is no associated pattern.

References mPatternTables.

Referenced by WsfEM_ALARM_Clutter::ComputeClutterPower(), WsfPassiveSensor::PassiveBeam::ComputePSOS_Effects(), GetAntennaGain(), GetAzimuthBeamwidth(), GetElevationBeamwidth(), GetMinimumAntennaGain(), GetPeakAntennaGain(), WsfEW_RepeaterEffect::UpdateEffects(), WsfDisInterface::UpdateSystemFromSensor(), and WsfMilDisInterface::UpdateSystemFromWeapon().

◆ GetAntennaPatternList()

const WsfEM_XmtrRcvr::AntennaPatternList * WsfEM_XmtrRcvr::GetAntennaPatternList ( WsfEM_Types::Polarization aPolarization ) const

Return the list of antenna patterns for a specified polarization.

Parameters

aPolarization The polarization for whose antenna patterns are being requested.

Returns: The pointer to the vector of the associated antenna pattern list.

Note: The return value is zero for non-default polarization if no pattern was explicitly loaded.; This method was created to allow External Services access to the antenna patterns. It should not be considered part of the public interface as it is exposing data that was once 'private'. Use at your own risk.

References WsfEM_Types::cPOL_DEFAULT, mPatternTables, and mUsedExplicitPolarization.

◆ GetArticulatedPart()

WsfArticulatedPart * WsfEM_XmtrRcvr::GetArticulatedPart ( ) const

Convenience method to get the pointer to the associated articulated/platform part.

Note: This is valid only after initialization.

References mAntennaPtr.

Referenced by WsfEmitterTypeReporting::AddEmitterReportState(), WsfPassiveSensor::PassiveMode::AddInteractor(), WsfPassiveSensor::PassiveMode::AttemptToDetect(), WsfPassiveSensor::PassiveMode::CanDetect(), WsfPassiveSensor::PassiveMode::EmitterActiveCallback(), WsfEM_ALARM_Clutter::Initialize(), WsfPassiveSensor::PassiveRcvr::Initialize(), WsfFalseTarget::PowerSufficiencyCheck(), wsf::event::utils::PrintEM_AbsXmtrRcvrData(), wsf::event::utilsCSV::PrintEM_AbsXmtrRcvrData(), WsfPassiveSensor::PassiveMode::RemoveInteractor(), WsfEW_TrackEffect::SensorModeDeactivated(), WsfEW_TrackEffect::SensorTrackDropped(), WsfPassiveSensor::PassiveRcvr::TuneFrequencyBand(), WsfEW_Effect::UpdateCurrentIds(), WsfEW_AgilityEffect::UpdateEffects(), WsfEW_RPJ_Effect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_SLB_Effect::UpdateEffects(), WsfEW_SLC_Effect::UpdateEffects(), WsfEW_SensorComponent::EW_Mode::UpdateFalseTargetInteractors(), WsfEW_FalseTargetEffect::UpdateJammerPulseDensity(), WsfEW_SimpleFT_Effect::UpdateJammerPulseDensity(), WsfPassiveSensor::PassiveMode::UpdateTrack(), WsfDisInterface::UpdateXmtrFromBeam(), WsfMilDisInterface::UpdateXmtrFromBeam(), WsfESM_Sensor::ESM_Mode::UseListenerForInterferer(), and UT_DEFINE_SCRIPT_METHOD().

◆ GetAttenuationModel()

WsfEM_Attenuation * WsfEM_XmtrRcvr::GetAttenuationModel ( ) const

inline

Get the pointer to the attenuation model (if one is defined).

Note: Only valid after initialization.

References mAttenuationPtr.

◆ GetAttenuationModelType()

WsfStringId WsfEM_XmtrRcvr::GetAttenuationModelType ( ) const

inline

Return the type of the attenuation model (if one is defined).

References mAttenuationType.

◆ GetAzimuthBeamwidth() [1/2]

virtual WSF_DEPRECATED double WsfEM_XmtrRcvr::GetAzimuthBeamwidth ( ) const

inlinefinalvirtual

References GetAzimuthBeamwidth().

Referenced by WsfJamStrobeDetector::ApplyMeasurementErrors(), WsfSurfaceWaveRadarSensor::RadarMode::AttemptToDetect(), WsfSAR_Sensor::SAR_Mode::Calibrate(), WsfBMSensorInfoRecord::GetAzExtent(), GetAzimuthBeamwidth(), wsf::SurfaceWaveRadarSensorErrorModel::GetSphericalErrorStdDev(), WsfEW_RPJ_Effect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_FalseTargetEffect::UpdateFT(), WsfEW_FalseTargetEffect::UpdateJammerPulseDensity(), and WsfEW_SimpleFT_Effect::UpdateJammerPulseDensity().

◆ GetAzimuthBeamwidth() [2/2]

double WsfEM_XmtrRcvr::GetAzimuthBeamwidth	(	double	aEBS_Azimuth,
		double	aEBS_Elevation ) const

virtual

Get the azimuth beamwidth of the first antenna pattern found.

Parameters

aEBS_Azimuth	The Electronic Beamwidth Steering in terms of Azimuth (radians)
aEBS_Elevation	The Electronic Beamwidth Steering in terms of Elevation (radians)

Returns: Azimuth beamwidth (radians)

References WsfEM_Types::cPOL_DEFAULT, GetAntennaPattern(), WsfAntennaPattern::GetAzimuthBeamwidth(), and mFrequency.

◆ GetBandwidth()

double WsfEM_XmtrRcvr::GetBandwidth ( ) const

inline

Get the EM operating bandwidth.

Returns: The operating bandwidth (Hz).

References mBandwidth.

Referenced by WsfPassiveSensor::PassiveMode::AttemptToDetect(), WsfEM_Rcvr::CanInteractWith(), WsfPassiveSensor::PassiveRcvr::CanInteractWith(), WsfRF_Jammer::DeselectEA_Technique(), WsfRF_Jammer::JammerBeam::GetActiveSpotIndex(), wsf::SurfaceWaveRadarSensorErrorModel::GetSphericalErrorStdDev(), WsfRadarMTD_SignalProcessor::Initialize(), WsfRadarMTI_SignalProcessor::Initialize(), WsfRadarPD_SignalProcessor::Initialize(), WsfXIO_ObjectInfoLoad::Load_EM_Rcvr(), WsfXIO_ObjectInfoLoad::Load_EM_Xmtr(), WsfDisPlatform::MessageTransmitted(), WsfMilDisInterface::RemoveXmtrs(), WsfRF_Jammer::SelectEA_Technique(), WsfRF_Jammer::SetEA_DeltaGainTechnique(), WsfRF_Jammer::StartJamming(), WsfRF_Jammer::StopJamming(), WsfDisInterface::UpdateBeamFromXmtr(), WsfEW_SLB_Effect::UpdateEffects(), WsfEW_SLC_Effect::UpdateEffects(), WsfRF_Jammer::UpdateJamming(), and WsfDisEmission::UpdateXmtr().

◆ GetBeamTilt()

double WsfEM_XmtrRcvr::GetBeamTilt ( ) const

inline

Get the angle of the boresight of the antenna gain pattern above/below (+/-) the antenna boresight. Note that this is used primarily to model stacked beam radar systems.

References mBeamTilt.

Referenced by WsfEM_Antenna::ComputeBeamPosition(), and WsfEM_Rcvr::UpdateNoisePower().

◆ GetEarthRadiusMultiplier()

double WsfEM_XmtrRcvr::GetEarthRadiusMultiplier ( ) const

inline

Get the earth radius multiplier (to account for diffraction).

Returns: The earth radius multiplier (default 1)

Note: This is only for passive systems where there is not a corresponding transmitter object.

References mEarthRadiusMultiplier.

Referenced by WsfEM_Interaction::BeginOneWayInteraction(), WsfEM_ITU_Attenuation::ComputeAttenuationFactor(), WsfEM_ALARM_Geometry::ComputeGeometry(), WsfEM_FastMultipath::ComputePropagationFactor(), Utility::CueSensorToTarget(), WsfEM_Interaction::MaskedByHorizon(), and WsfEW_FalseTargetEffect::UpdateFT().

◆ GetElevationBeamwidth() [1/2]

virtual WSF_DEPRECATED double WsfEM_XmtrRcvr::GetElevationBeamwidth ( ) const

inlinefinalvirtual

References GetElevationBeamwidth().

Referenced by WsfJamStrobeDetector::ApplyMeasurementErrors(), WsfSAR_Sensor::SAR_Mode::Calibrate(), GetElevationBeamwidth(), wsf::SurfaceWaveRadarSensorErrorModel::GetSphericalErrorStdDev(), WsfEW_RPJ_Effect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_FalseTargetEffect::UpdateFT(), WsfEW_FalseTargetEffect::UpdateJammerPulseDensity(), and WsfEW_SimpleFT_Effect::UpdateJammerPulseDensity().

◆ GetElevationBeamwidth() [2/2]

double WsfEM_XmtrRcvr::GetElevationBeamwidth	(	double	aEBS_Azimuth,
		double	aEBS_Elevation ) const

virtual

Get the elevation beamwidth of the first antenna pattern found.

Parameters

aEBS_Azimuth	The Electronic Beamwidth Steering in terms of Azimuth (radians)
aEBS_Elevation	The Electronic Beamwidth Steering in terms of Elevation (radians)

Returns: Elevation beamwidth (radians)

References WsfEM_Types::cPOL_DEFAULT, GetAntennaPattern(), WsfAntennaPattern::GetElevationBeamwidth(), and mFrequency.

◆ GetEM_Manager()

WsfEM_Manager * WsfEM_XmtrRcvr::GetEM_Manager ( ) const

References WsfSimulation::GetEM_Manager(), and GetSimulation().

Referenced by WsfEM_Rcvr::Activate(), and WsfEM_Xmtr::Activate().

◆ GetFrequency()

double WsfEM_XmtrRcvr::GetFrequency ( ) const

inline

Get the EM operating frequency.

Returns: The current operating frequency (Hz).

References mFrequency.

Referenced by WsfPassiveSensor::PassiveBeam::AttemptToDetect(), WsfPassiveSensor::PassiveMode::AttemptToDetect(), WsfSurfaceWaveRadarSensor::RadarMode::AttemptToDetect(), WsfSAR_Sensor::SAR_Mode::Calibrate(), WsfSurfaceWaveRadarSensor::RadarMode::Calibrate(), WsfEM_Rcvr::CanInteractWith(), WsfPassiveSensor::PassiveRcvr::CanInteractWith(), WsfEM_Attenuation::ComputeAttenuationFactor(), WsfEM_ITU_Attenuation::ComputeAttenuationFactor(), WsfTabularAttenuation::ComputeAttenuationFactor(), WsfEM_ALARM_Clutter::ComputeClutterPower(), WsfPassiveDetector::ComputeDetectability(), WsfPassiveSensor::PassiveMode::PassiveErrorModel::ComputeMeasurementErrors(), WsfEM_Noise::ComputeNoise(), WsfEM_ALARM_Propagation::ComputePropagationFactor(), WsfEM_FastMultipath::ComputePropagationFactor(), WsfEM_GroundWavePropagation::ComputePropagationFactor(), WsfPassiveSensor::PassiveBeam::ComputePSOS_Effects(), WsfRF_Jammer::DeselectEA_Technique(), WsfRF_Jammer::JammerBeam::GetActiveSpotIndex(), WsfRadarSignature::GetValue(), WsfLASER_XmtrComponent::Initialize(), WsfPassiveSensor::PassiveRcvr::Initialize(), WsfXIO_ObjectInfoLoad::Load_EM_Rcvr(), WsfXIO_ObjectInfoLoad::Load_EM_Xmtr(), WsfDisPlatform::MessageTransmitted(), wsf::event::CommFrequencyChanged::Print(), wsf::event::CommFrequencyChanged::PrintCSV(), WsfMilDisInterface::RemoveXmtrs(), WsfRF_Jammer::SelectEA_Technique(), WsfRF_Jammer::SetEA_DeltaGainTechnique(), WsfRF_Jammer::StartJamming(), WsfRF_Jammer::StopJamming(), WsfDisInterface::UpdateBeamFromXmtr(), WsfEW_PulseSuppressEffect::UpdateEffects(), WsfEW_RepeaterEffect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_SLB_Effect::UpdateEffects(), WsfEW_SLC_Effect::UpdateEffects(), WsfRF_Jammer::UpdateJamming(), WsfDisInterface::UpdateSystemFromSensor(), WsfMilDisInterface::UpdateSystemFromWeapon(), and WsfDisEmission::UpdateXmtr().

◆ GetIndex()

size_t WsfEM_XmtrRcvr::GetIndex ( ) const

inline

Get the index of the xmtr/rcvr in the complex assembly.

References mIndex.

Referenced by WsfPassiveSensor::PassiveMode::AttemptToDetect(), WsfPassiveSensor::PassiveMode::CanDetect(), WsfRF_Jammer::ComputeReceiverGains(), WsfPassiveSensor::PassiveMode::EmitterActiveCallback(), WsfEW_AgilityEffect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_FalseTargetEffect::UpdateFT(), WsfEW_FalseTargetEffect::UpdateJammerPulseDensity(), WsfEW_SimpleFT_Effect::UpdateJammerPulseDensity(), and WsfRF_Jammer::UpdateJamming().

◆ GetInternalLoss()

double WsfEM_XmtrRcvr::GetInternalLoss ( ) const

inline

Get the internal loss.

Returns: Internal loss (absolute ratio, NOT dB)

Note: This is a LOSS FACTOR (which is 1/GAIN). Therefore it should be greater than 1.

References mInternalLoss.

Referenced by WsfSAR_Sensor::SAR_Mode::Calibrate(), WsfSurfaceWaveRadarSensor::RadarMode::Calibrate(), WsfEM_ALARM_Clutter::ComputeClutterPower(), WsfXIO_ObjectInfoLoad::Load_EM_Rcvr(), WsfXIO_ObjectInfoLoad::Load_EM_Xmtr(), WsfDisInterface::UpdateBeamFromXmtr(), and WsfDisEmission::UpdateXmtr().

◆ GetMinimumAntennaGain()

double WsfEM_XmtrRcvr::GetMinimumAntennaGain ( ) const

virtual

Return the minimum antenna gain of the first antenna pattern found.

Returns: The minimum antenna gain (absolute ratio, NOT dB)

References WsfEM_Types::cPOL_DEFAULT, GetAntennaPattern(), WsfAntennaPattern::GetMinimumGain(), and mFrequency.

Referenced by WsfRF_Repeater::CheckDetectAndUpdate().

◆ GetMode()

WsfMode * WsfEM_XmtrRcvr::GetMode ( ) const

inline

Get the mode with which this xmtr/rcvr is associated.

Note: This may be zero (association is optional).; This is valid only after initialization.

References mModePtr.

Referenced by WsfPassiveSensor::PassiveMode::AddInteractor(), WsfEW_SensorComponent::AttemptToDetect(), WsfPassiveSensor::PassiveMode::AttemptToDetect(), WsfPassiveSensor::PassiveMode::CanDetect(), WsfRF_Jammer::ComputeReceiverGains(), WsfPassiveSensor::PassiveMode::EmitterActiveCallback(), WsfPassiveSensor::PassiveRcvr::Initialize(), WsfRF_Jammer::JammerBeam::Initialize(), WsfEW_FalseTargetEffect::InitializeFT(), WsfEW_RcvrComponent::RemoveInteractor(), WsfEW_TrackEffect::SensorModeDeactivated(), WsfEW_TrackEffect::SensorTrackDropped(), WsfEW_AgilityEffect::UpdateEffects(), WsfEW_RPJ_Effect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_FalseTargetEffect::UpdateFT(), WsfEW_FalseTargetEffect::UpdateJammerPulseDensity(), WsfEW_SimpleFT_Effect::UpdateJammerPulseDensity(), WsfDisEmission::UpdateSensor(), WsfDisInterface::UpdateSystemFromSensor(), WsfMilDisInterface::UpdateSystemFromWeapon(), WsfDisEmission::UpdateXmtr(), and WsfESM_Sensor::ESM_Mode::UseListenerForInterferer().

◆ GetPeakAntennaGain()

double WsfEM_XmtrRcvr::GetPeakAntennaGain ( ) const

virtual

Return the peak antenna gain of the first antenna pattern found.

Returns: The peak antenna gain (absolute ratio, NOT dB)

References WsfEM_Types::cPOL_DEFAULT, GetAntennaPattern(), WsfAntennaPattern::GetPeakGain(), and mFrequency.

Referenced by WsfSAR_Sensor::SAR_Mode::Calibrate(), WsfSurfaceWaveRadarSensor::RadarMode::Calibrate(), WsfRF_Repeater::CheckDetectAndUpdate(), WsfEM_ALARM_Clutter::ComputeClutterPower(), WsfXIO_ObjectInfoLoad::Load_EM_Rcvr(), WsfXIO_ObjectInfoLoad::Load_EM_Xmtr(), WsfDisInterface::UpdateBeamFromXmtr(), and WsfEW_SimpleFT_Effect::UpdateEffects().

◆ GetPlatform()

WsfPlatform * WsfEM_XmtrRcvr::GetPlatform ( ) const

Convenience method to get the pointer to the associated platform.

Note: This is valid only after initialization.

References mAntennaPtr.

◆ GetPolarization()

WsfEM_Types::Polarization WsfEM_XmtrRcvr::GetPolarization ( ) const

inline

Get the polarization of the EM system.

References mPolarization.

Referenced by WsfEM_GroundWavePropagation::BasicTransmissionLoss(), WsfSAR_Sensor::SAR_Mode::Calibrate(), WsfEM_ITU_Attenuation::ComputeAttenuationFactor(), WsfEM_ALARM_Clutter::ComputeClutterPower(), WsfEM_ALARM_Propagation::ComputePropagationFactor(), WsfEM_FastMultipath::ComputePropagationFactor(), WsfEM_GroundWavePropagation::ComputePropagationFactor(), WsfPassiveSensor::PassiveBeam::ComputePSOS_Effects(), WsfRadarSignature::GetValue(), WsfEW_RepeaterEffect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfDisInterface::UpdateSystemFromSensor(), WsfMilDisInterface::UpdateSystemFromWeapon(), and WsfDisEmission::UpdateXmtr().

◆ GetPropagationModel()

WsfEM_Propagation * WsfEM_XmtrRcvr::GetPropagationModel ( ) const

inline

Get the pointer to the propagation model (if one is defined).

Note: Only valid after initialization.

References mPropagationPtr.

Referenced by WsfEM_ALARM_Clutter::ComputeClutterPower().

◆ GetPropagationModelType()

WsfStringId WsfEM_XmtrRcvr::GetPropagationModelType ( ) const

inline

Return the type of the propagation model (if one is defined).

References mPropagationType.

◆ GetScriptClassName()

const char * WsfEM_XmtrRcvr::GetScriptClassName ( ) const

inlineoverride

◆ GetSimulation()

WsfSimulation * WsfEM_XmtrRcvr::GetSimulation ( ) const

References GetPlatform(), and platformPtr.

Referenced by GetEM_Manager(), WsfEM_ALARM_Clutter::Initialize(), WsfEM_ALARM_Propagation::Initialize(), WsfEM_SurfaceClutter::Initialize(), WsfEW_RcvrComponent::Initialize(), and WsfEW_XmtrComponent::Initialize().

◆ GetWavelength()

double WsfEM_XmtrRcvr::GetWavelength ( ) const

Get the wavelength of the transmitter.

Returns: wavelength (in meters)

References mFrequency.

Referenced by WsfLADAR_Sensor::LADAR_Mode::AttemptToDetect(), WsfLADAR_Sensor::LADAR_Mode::ComputeProbabilityOfDetection(), WsfLASER_RcvrComponent::Initialize(), and WsfLASER_XmtrComponent::Initialize().

◆ Initialize()

bool WsfEM_XmtrRcvr::Initialize ( WsfSimulation & aSimulation )

virtual

◆ IsBandwidthExplicit()

bool WsfEM_XmtrRcvr::IsBandwidthExplicit ( ) const

inline

Return the source of the bandwidth

Returns: true if bandwidth was defined in the input file

References mExplicitBandwidth.

◆ IsHorizonMaskingEnabled()

bool WsfEM_XmtrRcvr::IsHorizonMaskingEnabled ( ) const

determine if horizon masking is to be checked

References WsfEM_Interaction::cRCVR_HORIZON_MASKING, WsfEM_Interaction::cXMTR_HORIZON_MASKING, and mTerrainMaskingMode.

◆ IsTerrainMaskingEnabled()

bool WsfEM_XmtrRcvr::IsTerrainMaskingEnabled ( ) const

determine if terrain masking is to be checked

References WsfEM_Interaction::cRCVR_TERRAIN_MASKING, WsfEM_Interaction::cXMTR_TERRAIN_MASKING, and mTerrainMaskingMode.

◆ MaskingMode()

std::string WsfEM_XmtrRcvr::MaskingMode ( ) const

Gets the masking mode.

References WsfEM_Interaction::cRCVR_HORIZON_MASKING, WsfEM_Interaction::cRCVR_TERRAIN_MASKING, WsfEM_Interaction::cXMTR_HORIZON_MASKING, WsfEM_Interaction::cXMTR_TERRAIN_MASKING, and mTerrainMaskingMode.

◆ ProcessInput()

bool WsfEM_XmtrRcvr::ProcessInput ( UtInput & aInput )

virtual

◆ SetAntenna()

void WsfEM_XmtrRcvr::SetAntenna ( WsfEM_Antenna * aAntennaPtr )

inline

Set the pointer to the associated antenna object.

Parameters

aAntennaPtr Pointer to the associated geometry object.

Note: The caller retains ownership of the geometry object as it may be shared with multiple transmitters and receivers.

References mAntennaPtr.

Referenced by WsfEW_SLB_Effect::ProcessInput(), and WsfEW_SLC_Effect::ProcessInput().

◆ SetAntennaBeamCount()

void WsfEM_XmtrRcvr::SetAntennaBeamCount ( unsigned int aBeamCount )

virtual

References mPatternTables.

◆ SetAntennaPattern()

bool WsfEM_XmtrRcvr::SetAntennaPattern	(	WsfAntennaPattern *	aAntennaPatternPtr,
		WsfEM_Types::Polarization	aPolarization,
		double	aFrequency )

Clear current list of antenna patterns and add the antenna pattern to the list with the associated polarization and lower frequency bound.

Parameters

aAntennaPatternPtr	Pointer to the antenna pattern.
aFrequency	The lower frequency bound of the antenna pattern.
aPolarization	The polarization of the antenna pattern. Defaults to DEFAULT

Returns: True if the insert was successful, False if a pattern associated with the frequency already exists.

References AddAntennaPattern().

Referenced by AntennaPlotFunction::Execute().

◆ SetAttenuationInputEnabled()

void WsfEM_XmtrRcvr::SetAttenuationInputEnabled ( bool aEnabled )

inline

Enable or disable 'attenuation_model' input.

Referenced by WsfEM_Rcvr::WsfEM_Rcvr().

◆ SetAttenuationModel()

void WsfEM_XmtrRcvr::SetAttenuationModel ( WsfEM_Attenuation * aAttenuationPtr )

Set the pointer to a new attenuation model. This provides a means to define a new model at run-time. This may be called only after Initialize.

Parameters

aAttenuationPtr Pointer to the attenuation model, which may be null. The model must be initialized. Any existing model is deleted and this class assumes of the new model.

References mAttenuationPtr.

◆ SetAttenuationModelType()

void WsfEM_XmtrRcvr::SetAttenuationModelType ( WsfStringId aAttenuationType )

inline

Set the type of attenuation model to be used.

Note: Only valid before initialization.

References mAttenuationType.

◆ SetBandwidth()

void WsfEM_XmtrRcvr::SetBandwidth ( double aBandwidth )

virtual

Set the operating bandwidth.

Parameters

aBandwidth The receiver operating bandwidth (Hz).

Reimplemented in WsfEM_Rcvr, and WsfEM_Xmtr.

Referenced by ProcessInput().

◆ SetBeamTilt()

void WsfEM_XmtrRcvr::SetBeamTilt ( double aBeamTilt )

inline

Set the angle of the boresight of the antenna gain pattern above/below (+/-) the antenna boresight.

References mBeamTilt.

Referenced by ProcessInput().

◆ SetCheckMasking()

void WsfEM_XmtrRcvr::SetCheckMasking ( bool aCheckMasking )

inline

enable/disable checking of horizon and terrain masking

References mCheckMasking.

◆ SetDebugEnabled()

void WsfEM_XmtrRcvr::SetDebugEnabled ( bool aDebugEnabled )

inline

Set the debug state.

Parameters

aDebugEnabled New debug state

References mDebugEnabled.

◆ SetEarthRadiusMultiplier()

void WsfEM_XmtrRcvr::SetEarthRadiusMultiplier ( double aMultiplier )

inline

Set the earth radius multiplier (to account for diffraction).

Parameters

aMultiplier The new earth radius multiplier.

Note: This is only for passive systems where there is not a corresponding transmitter object.

References mEarthRadiusMultiplier.

Referenced by wsf::comm::ComponentHW_Subsurface::ComponentHW_Subsurface(), wsf::comm::ComponentHW_Subsurface::ComponentHW_Subsurface(), WsfLASER_XmtrComponent::ComponentParentChanged(), ProcessInput(), and WsfEM_Xmtr::WsfEM_Xmtr().

◆ SetFrequency()

void WsfEM_XmtrRcvr::SetFrequency ( double aFrequency )

virtual

Set the operating frequency.

Parameters

aFrequency The operating frequency (Hz)

Reimplemented in WsfEM_Rcvr, and WsfEM_Xmtr.

Referenced by ProcessInput().

◆ SetIndex()

void WsfEM_XmtrRcvr::SetIndex ( size_t aIndex )

inline

Set the index of the xmtr/rcvr in the complex assembly.

References mIndex.

Referenced by WsfPassiveSensor::PassiveMode::Initialize(), and WsfRF_Jammer::JammerBeam::Initialize().

◆ SetInternalLoss()

void WsfEM_XmtrRcvr::SetInternalLoss ( double aInternalLoss )

inline

Set the internal loss.

Parameters

aInternalLoss Internal loss (absolute ratio, NOT dB)

Note: This is a LOSS FACTOR (which is 1/GAIN). Therefore it should be greater than 1.

References mInternalLoss.

Referenced by ProcessInput().

◆ SetMaskingMode()

void WsfEM_XmtrRcvr::SetMaskingMode ( const std::string & aTerrainMaskingMode )

Set the type of masking to perform.

References WsfEM_Interaction::cRCVR_HORIZON_MASKING, WsfEM_Interaction::cRCVR_TERRAIN_MASKING, WsfEM_Interaction::cXMTR_HORIZON_MASKING, WsfEM_Interaction::cXMTR_TERRAIN_MASKING, and mTerrainMaskingMode.

Referenced by ProcessInput().

◆ SetMode()

void WsfEM_XmtrRcvr::SetMode ( WsfMode * aModePtr )

inline

Set the mode with which this xmtr/rcvr is associated.

Note: The caller retains ownership of the mode.; The value is not propagate across copy construction.

References mModePtr.

Referenced by WsfPassiveSensor::PassiveMode::Initialize(), and WsfRF_Jammer::JammerBeam::Initialize().

◆ SetPolarization()

void WsfEM_XmtrRcvr::SetPolarization ( WsfEM_Types::Polarization aPolarization )

virtual

Set the polarization of the receive antenna.

Parameters

aPolarization The polarization.

Reimplemented in WsfEM_Rcvr, and WsfEM_Xmtr.

Referenced by ProcessInput().

◆ SetPropagationInputEnabled()

void WsfEM_XmtrRcvr::SetPropagationInputEnabled ( bool aEnabled )

inline

Enable or disable 'propagation_model' input.

Referenced by WsfEM_Rcvr::WsfEM_Rcvr().

◆ SetPropagationModel()

void WsfEM_XmtrRcvr::SetPropagationModel ( WsfEM_Propagation * aPropagationPtr )

Set the pointer to the propagation model. This provides a means to define a new model at run-time. This may be called only after Initialize.

Parameters

aPropagationPtr Pointer to the propagation model, which may be null. The model must be initialized. Any existing model is deleted and this class assumes of the new model.

References mPropagationPtr.

◆ SetPropagationModelType()

void WsfEM_XmtrRcvr::SetPropagationModelType ( WsfStringId aPropagationType )

inline

Set the type of propagation model to be used.

Note: Only valid before initialization.

References mPropagationType.

◆ UpdatePosition()

void WsfEM_XmtrRcvr::UpdatePosition ( double aSimTime )

virtual

Update the state of the object to reflect its position as of the supplied time.

Parameters

aSimTime The current simulation time.

References mAntennaPtr.

Referenced by WsfPassiveSensor::PassiveMode::AttemptToDetect(), wsf::comm::ComponentHW_JTIDS::CanReceiveFrom(), wsf::comm::ComponentHW::CanSendTo(), wsf::comm::ComponentHW_Subsurface::CanSendTo(), and WsfESM_Sensor::ESM_Mode::ComputeInterferenceEffect().

Member Data Documentation

◆ mAntennaPtr

WsfEM_Antenna* WsfEM_XmtrRcvr::mAntennaPtr

protected

Pointer to the 'geometry' object for this transmitter/receiver.

Referenced by GetAntenna(), GetAntennaGain(), GetArticulatedPart(), GetPlatform(), Initialize(), WsfEM_Xmtr::ProcessInput(), ProcessInput(), SetAntenna(), WsfEM_Rcvr::UpdateNoisePower(), UpdatePosition(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mAssociatePtr

WsfEM_XmtrRcvr* WsfEM_XmtrRcvr::mAssociatePtr

protected

Pointer to the transmitter/receiver which is associated to this receiver/transmitter. If two systems are linked then some unassigned values in one system will be implied from the other system. This makes user configuration a little easier.

Referenced by AssociateSystems(), Initialize(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mAttenuationPtr

WsfEM_Attenuation* WsfEM_XmtrRcvr::mAttenuationPtr

protected

Pointer to the atmospheric attenuation model.

Referenced by GetAttenuationModel(), Initialize(), SetAttenuationModel(), WsfEM_XmtrRcvr(), WsfEM_XmtrRcvr(), and ~WsfEM_XmtrRcvr().

◆ mAttenuationType

WsfStringId WsfEM_XmtrRcvr::mAttenuationType

protected

The type of the atmospheric attenuation model to be used.

Referenced by GetAttenuationModelType(), Initialize(), ProcessInput(), SetAttenuationModelType(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mBandwidth

double WsfEM_XmtrRcvr::mBandwidth

protected

Referenced by GetBandwidth(), WsfEM_Rcvr::GetBandwidthEffect(), WsfEM_Rcvr::SetBandwidth(), WsfEM_Xmtr::SetBandwidth(), WsfEM_Rcvr::SetInstantaneousBandwidth(), WsfEM_Rcvr::UpdateNoisePower(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mBeamTilt

double WsfEM_XmtrRcvr::mBeamTilt

protected

The tilt angle of the boresight of the antenna gain pattern above/below (+/-) the antenna boresight. Note that this is primarily intended for modeling stack-beam radars. Other uses have not been examined.

Referenced by GetBeamTilt(), Initialize(), SetBeamTilt(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mCheckMasking

bool WsfEM_XmtrRcvr::mCheckMasking

protected

true if horizon and terrain masking enabled.

Referenced by CheckMasking(), DisableMaskingCheck(), ProcessInput(), SetCheckMasking(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mDebugEnabled

bool WsfEM_XmtrRcvr::mDebugEnabled

protected

Referenced by DebugEnabled(), SetDebugEnabled(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mEarthRadiusMultiplier

double WsfEM_XmtrRcvr::mEarthRadiusMultiplier

protected

Referenced by GetEarthRadiusMultiplier(), SetEarthRadiusMultiplier(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mExplicitBandwidth

bool WsfEM_XmtrRcvr::mExplicitBandwidth

protected

true if explicit 'bandwidth' specified

Referenced by IsBandwidthExplicit(), WsfEM_Rcvr::SetBandwidth(), WsfEM_Rcvr::SetInstantaneousBandwidth(), WsfEM_Rcvr::UpdateNoisePower(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mFrequency

double WsfEM_XmtrRcvr::mFrequency

protected

Referenced by WsfEM_Xmtr::ComputeRadiatedPower(), WsfEM_Rcvr::ComputeReceivedPower(), GetAzimuthBeamwidth(), WsfEM_Rcvr::GetBandwidthEffect(), GetElevationBeamwidth(), GetFrequency(), GetMinimumAntennaGain(), GetPeakAntennaGain(), WsfEM_Xmtr::GetPeakPower(), GetWavelength(), WsfEM_Rcvr::Initialize(), WsfEM_Xmtr::Initialize(), WsfEM_Rcvr::SetFrequency(), WsfEM_Xmtr::SetFrequency(), WsfEM_Rcvr::UpdateNoisePower(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mIndex

size_t WsfEM_XmtrRcvr::mIndex

protected

The index of this xmtr/rcvr in a system which may be composed of multiple xmtr/rcvrs. See GetIndex/SetIndex for more information.

Referenced by GetIndex(), SetIndex(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mInternalLoss

double WsfEM_XmtrRcvr::mInternalLoss

protected

Referenced by WsfEM_Xmtr::ComputeRadiatedPower(), WsfEM_Rcvr::ComputeReceivedPower(), WsfPassiveSensor::PassiveRcvr::ComputeReceivedPower(), GetInternalLoss(), SetInternalLoss(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mModePtr

WsfMode* WsfEM_XmtrRcvr::mModePtr

protected

The mode with which the xmtr/rcvr is associated. This may be zero. (association is optional).

Referenced by GetMode(), SetMode(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mPatternTables

std::array<AntennaPatternList, WsfEM_Types::cPOL_COUNT> WsfEM_XmtrRcvr::mPatternTables {}

protected

Array of the polarization possibilities each containing a vector of Antenna pattern pointer/frequency pairs. If vector is empty, then there is no gain pattern and any gain is assumed to be 1.0

Referenced by AddAntennaPattern(), GetAntennaPattern(), GetAntennaPatternList(), Initialize(), ProcessInput(), SetAntennaBeamCount(), WsfEM_XmtrRcvr(), and ~WsfEM_XmtrRcvr().

◆ mPolarization

WsfEM_Types::Polarization WsfEM_XmtrRcvr::mPolarization

protected

Referenced by WsfEM_Xmtr::ComputeRadiatedPower(), GetPolarization(), WsfEM_Rcvr::GetPolarizationEffect(), WsfEM_Rcvr::SetPolarization(), WsfEM_Xmtr::SetPolarization(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mPropagationPtr

WsfEM_Propagation* WsfEM_XmtrRcvr::mPropagationPtr

protected

Pointer to the propagation object.

Referenced by GetPropagationModel(), Initialize(), SetPropagationModel(), WsfEM_XmtrRcvr(), WsfEM_XmtrRcvr(), and ~WsfEM_XmtrRcvr().

◆ mPropagationType

WsfStringId WsfEM_XmtrRcvr::mPropagationType

protected

The type of the propagation model to be used.

Referenced by GetPropagationModelType(), Initialize(), ProcessInput(), SetPropagationModelType(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mTerrainMaskingMode

unsigned int WsfEM_XmtrRcvr::mTerrainMaskingMode

protected

Settings used for masking checks.

Referenced by IsHorizonMaskingEnabled(), IsTerrainMaskingEnabled(), MaskingMode(), SetMaskingMode(), WsfEM_XmtrRcvr(), and WsfEM_XmtrRcvr().

◆ mUsedExplicitPolarization

std::array<bool, WsfEM_Types::cPOL_COUNT> WsfEM_XmtrRcvr::mUsedExplicitPolarization {{false}}

protected

Array used to keep track of which explicitly declared patterns were loaded in the mPatternTables array

Referenced by AddAntennaPattern(), GetAntennaPatternList(), Initialize(), and WsfEM_XmtrRcvr().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Special functions for receivers.

Antenna methods.

Debugging methods

Mode Association and Index methods.

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ AntennaPatternList

Constructor & Destructor Documentation

◆ WsfEM_XmtrRcvr() [1/2]

◆ WsfEM_XmtrRcvr() [2/2]

◆ ~WsfEM_XmtrRcvr()

Member Function Documentation

◆ AddAntennaPattern()

◆ AssociateSystems()

◆ CheckMasking()

◆ DebugEnabled()

◆ DisableMaskingCheck()

◆ GetAntenna()

◆ GetAntennaGain()

◆ GetAntennaPattern()

◆ GetAntennaPatternList()

◆ GetArticulatedPart()

◆ GetAttenuationModel()

◆ GetAttenuationModelType()

◆ GetAzimuthBeamwidth() [1/2]

◆ GetAzimuthBeamwidth() [2/2]

◆ GetBandwidth()

◆ GetBeamTilt()

◆ GetEarthRadiusMultiplier()

◆ GetElevationBeamwidth() [1/2]

◆ GetElevationBeamwidth() [2/2]

◆ GetEM_Manager()

◆ GetFrequency()

◆ GetIndex()

◆ GetInternalLoss()

◆ GetMinimumAntennaGain()

◆ GetMode()

◆ GetPeakAntennaGain()

◆ GetPlatform()

◆ GetPolarization()

◆ GetPropagationModel()

◆ GetPropagationModelType()

◆ GetScriptClassName()

◆ GetSimulation()

◆ GetWavelength()

◆ Initialize()

◆ IsBandwidthExplicit()

◆ IsHorizonMaskingEnabled()

◆ IsTerrainMaskingEnabled()

◆ MaskingMode()

◆ ProcessInput()

◆ SetAntenna()

◆ SetAntennaBeamCount()

◆ SetAntennaPattern()

◆ SetAttenuationInputEnabled()

◆ SetAttenuationModel()

◆ SetAttenuationModelType()

◆ SetBandwidth()

◆ SetBeamTilt()

◆ SetCheckMasking()

◆ SetDebugEnabled()

◆ SetEarthRadiusMultiplier()

◆ SetFrequency()

◆ SetIndex()

◆ SetInternalLoss()

◆ SetMaskingMode()

◆ SetMode()

◆ SetPolarization()

◆ SetPropagationInputEnabled()

◆ SetPropagationModel()

◆ SetPropagationModelType()

◆ UpdatePosition()

Member Data Documentation

◆ mAntennaPtr

◆ mAssociatePtr

◆ mAttenuationPtr

◆ mAttenuationType
