#include <WsfBehaviorTreeNode.hpp>

Inheritance diagram for WsfBehaviorTreeLeafNode:

[legend]

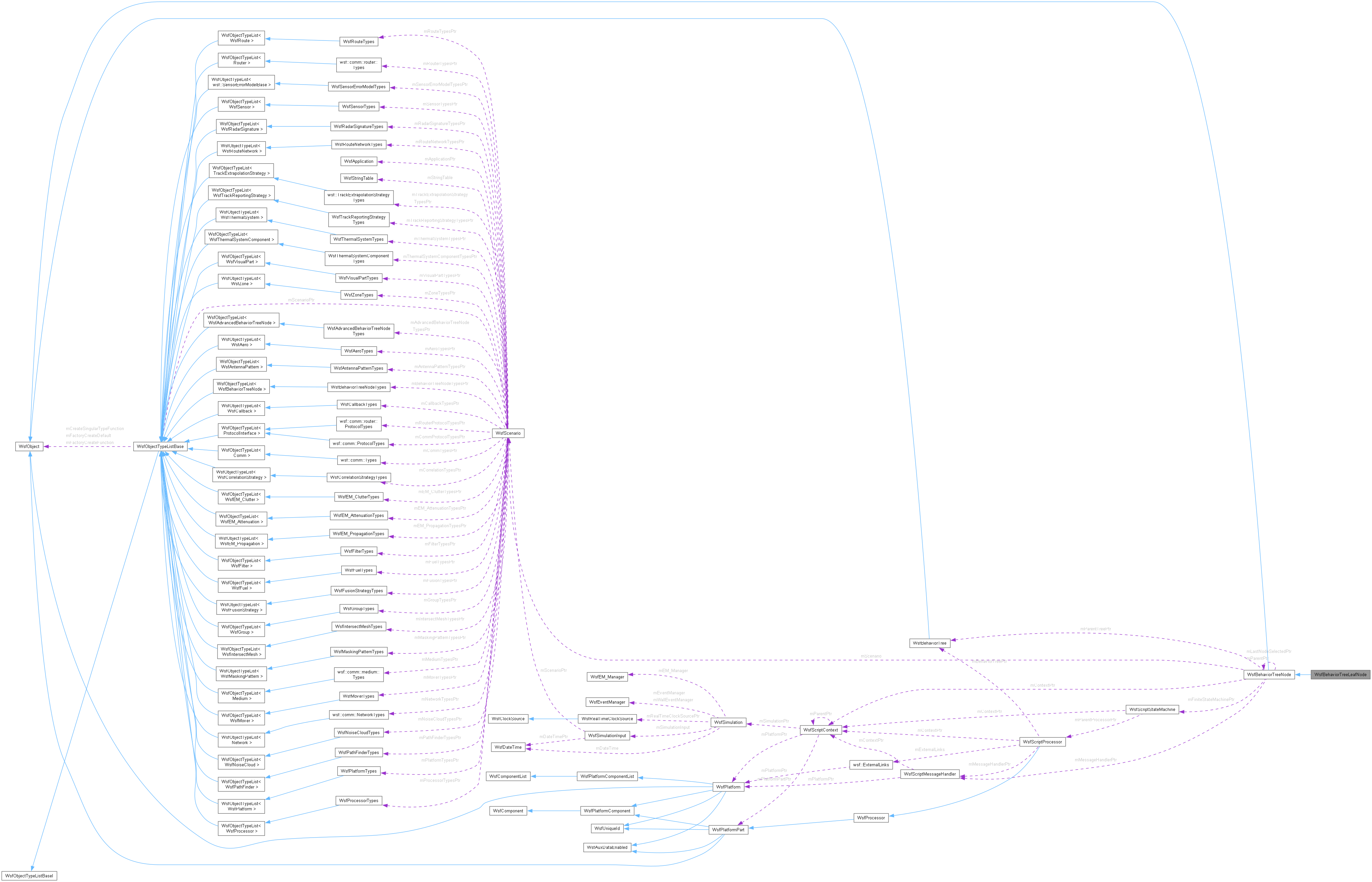

Collaboration diagram for WsfBehaviorTreeLeafNode:

[legend]

Public Member Functions
	WsfBehaviorTreeLeafNode (WsfScenario &aScenario, bool aRegisterPlatformVariable=true, bool aRegisterProcessorVariable=true)
	WsfBehaviorTreeLeafNode (const WsfBehaviorTreeLeafNode &aSrc)
WsfBehaviorTreeLeafNode &	operator= (const WsfBehaviorTreeLeafNode &aRhs)=delete
	~WsfBehaviorTreeLeafNode () override=default
WsfObject *	Clone () const override
bool	ProcessInput (UtInput &aInput) override
void	RegisterInput (UtInput &aInput) override
bool	Initialize (double aSimTime, WsfScriptContext *aParentContextPtr) override
bool	LocalExecute (double aSimTime) override
void	SetTree (WsfBehaviorTree *aTreePtr) override
Public Member Functions inherited from WsfBehaviorTreeNode
	WsfBehaviorTreeNode (const WsfScenario &aScenario)
	WsfBehaviorTreeNode (const WsfBehaviorTreeNode &aSrc)
WsfBehaviorTreeNode &	operator= (const WsfBehaviorTreeNode &)=delete
	~WsfBehaviorTreeNode () override
bool	ProcessInput (UtInput &aInput) override
bool	PreconditionsMet ()
double	PreconditionValue ()
void	AddChild (WsfBehaviorTreeNode *aNodePtr)
std::vector< WsfBehaviorTreeNode * > &	Children ()
int	ChildCount () const
WsfBehaviorTreeNode *	ChildEntry (int aIndex)
void	SetParent (WsfBehaviorTreeNode *aNodePtr)
WsfBehaviorTreeNode *	Parent ()
WsfScriptContext &	GetScriptContext ()
bool	Execute (double aSimTime, bool aSkipCheck=false)
void	TurnOn ()
void	TurnOff ()
void	SetFailureReason (const std::string &aReason, bool aSendEvent=false)
std::string	FailureReason () const
bool	ExecutedLastRun ()
void	SetExecutedLastRun (bool aVal)
void	SetExecutedLastRunRecursive (bool aVal)
void	SetExecutedLastRun (bool aVal, const std::string &aReason)
void	SetExecutedLastRunRecursive (bool aVal, const std::string &aReason)
WsfBehaviorTree *	OwningTree ()
WsfScriptProcessor *	OwningProcessor ()
WsfPlatform *	OwningPlatform ()
WsfSimulation *	GetSimulation ()
bool	TryRunLast (double aSimTime)
bool	ShouldRunNext (double aSimTime)
unsigned int	Id () const
void	LogNodeStructure (double aSimTime, bool aRecurse)
std::string	FilePath () const
time_t	FileLastModTime () const
void	SetFilePath (const std::string &aPath)
void	SetFileInfo (const std::string &aPath, time_t aModTime)
WsfBehaviorTreeNode *	FindNode (const std::string &aNodeName)
void	FindLastExecuted (std::vector< WsfBehaviorTreeNode * > &aLastExecuted)
const char *	GetScriptClassName () const override
UtScriptContext *	GetScriptAccessibleContext () const override
const WsfScenario &	GetScenario () const
virtual bool	ProcessMessage (double aSimTime, const WsfMessage &aMessage)
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Protected Member Functions
bool	RegisterExternVariable (const std::string &aVariableType, const std::string &aVariableName)
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Additional Inherited Members
Public Types inherited from WsfBehaviorTreeNode
enum	RunType { Repeat , ForTime , UntilDone }
enum	SelectType { Continous , Finite }
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
Static Public Member Functions inherited from WsfBehaviorTreeNode
static unsigned int	GetUniqueNodeId (void)
static void	Reset ()
Protected Attributes inherited from WsfBehaviorTreeNode
const WsfScenario &	mScenario
bool	mInitialized
bool	mTurnedOn
WsfBehaviorTree *	mParentTreePtr
WsfBehaviorTreeNode *	mParentPtr
std::vector< WsfBehaviorTreeNode * >	mChildren
WsfScriptContext *	mContextPtr
UtScript *	mPreconditionScriptPtr
UtScript *	mNewExecuteScriptPtr
UtScript *	mNewFailScriptPtr
std::string	mFailureReason
double	mFailureTime
bool	mLastExecute
unsigned int	mId
std::string	mFullPathFileName
time_t	mFileLastModTime
RunType	mRunType
int	mRepeats
double	mRunDuration
WsfBehaviorTreeNode *	mLastNodeSelectedPtr
int	mRepeatsLeft
double	mRunStartTime
SelectType	mSelectType
int	mSelectLimit
int	mSelectCount
WsfScriptStateMachine *	mFiniteStateMachinePtr
int	mStateIndex
WsfScriptMessageHandler *	mMessageHandlerPtr
bool	mDebug

Constructor & Destructor Documentation

◆ WsfBehaviorTreeLeafNode() [1/2]

WsfBehaviorTreeLeafNode::WsfBehaviorTreeLeafNode	(	WsfScenario &	aScenario,
		bool	aRegisterPlatformVariable = true,
		bool	aRegisterProcessorVariable = true )

References RegisterExternVariable(), WsfObject::SetName(), WsfObject::SetType(), and WsfBehaviorTreeNode::WsfBehaviorTreeNode().

Referenced by operator=(), and WsfBehaviorTreeLeafNode().

◆ WsfBehaviorTreeLeafNode() [2/2]

WsfBehaviorTreeLeafNode::WsfBehaviorTreeLeafNode ( const WsfBehaviorTreeLeafNode & aSrc )

References WsfBehaviorTreeNode::mContextPtr, WsfBehaviorTreeLeafNode(), and WsfBehaviorTreeNode::WsfBehaviorTreeNode().

◆ ~WsfBehaviorTreeLeafNode()

WsfBehaviorTreeLeafNode::~WsfBehaviorTreeLeafNode ( )

overridedefault

References Initialize(), LocalExecute(), RegisterExternVariable(), RegisterInput(), SetTree(), and WsfObject::WsfObject().

Member Function Documentation

◆ Clone()

WsfObject * WsfBehaviorTreeLeafNode::Clone ( ) const

overridevirtual

Return a copy of this object. Must be implemented by all derived types. If cloning is impossible, a WsfUncloneableException should be thrown.

Implements WsfBehaviorTreeNode.

References WsfBehaviorTreeNode::WsfBehaviorTreeLeafNode, and WsfObject::WsfObject().

◆ Initialize()

bool WsfBehaviorTreeLeafNode::Initialize	(	double	aSimTime,
		WsfScriptContext *	aParentContextPtr )

overridevirtual

Reimplemented from WsfBehaviorTreeNode.

References WsfBehaviorTreeNode::mChildren, WsfBehaviorTreeNode::mContextPtr, WsfBehaviorTreeNode::mFiniteStateMachinePtr, WsfBehaviorTreeNode::mMessageHandlerPtr, WsfBehaviorTreeNode::mStateIndex, ok, WsfBehaviorTreeNode::OwningPlatform(), and WsfBehaviorTreeNode::OwningProcessor().

Referenced by ~WsfBehaviorTreeLeafNode().

◆ LocalExecute()

bool WsfBehaviorTreeLeafNode::LocalExecute ( double aSimTime )

overridevirtual

Implements WsfBehaviorTreeNode.

References WsfBehaviorTreeNode::mChildren, and WsfBehaviorTreeNode::mContextPtr.

Referenced by ~WsfBehaviorTreeLeafNode().

◆ operator=()

WsfBehaviorTreeLeafNode & WsfBehaviorTreeLeafNode::operator= ( const WsfBehaviorTreeLeafNode & aRhs )

delete

References WsfBehaviorTreeLeafNode().

◆ ProcessInput()

bool WsfBehaviorTreeLeafNode::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput a reference to a UtInput object.

Returns: 'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase (or an object derived from it) if the command was recognized but contains some sort of error.

Note: If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from WsfObject.

References WsfBehaviorTreeNode::AddChild(), WsfBehaviorTreeNode::GetScenario(), WsfBehaviorTreeNode::mContextPtr, WsfBehaviorTreeNode::mParentTreePtr, WsfBehaviorTreeNode::ProcessInput(), WsfObject::SetName(), and WsfBehaviorTreeNode::WsfBehaviorTreeNode().

Referenced by WsfScriptStateMachine::State::ProcessInput().
