#include <WsfOrbitalAttitudeChangeEvent.hpp>

Inheritance diagram for WsfOrbitalAttitudeChangeEvent:

[legend]

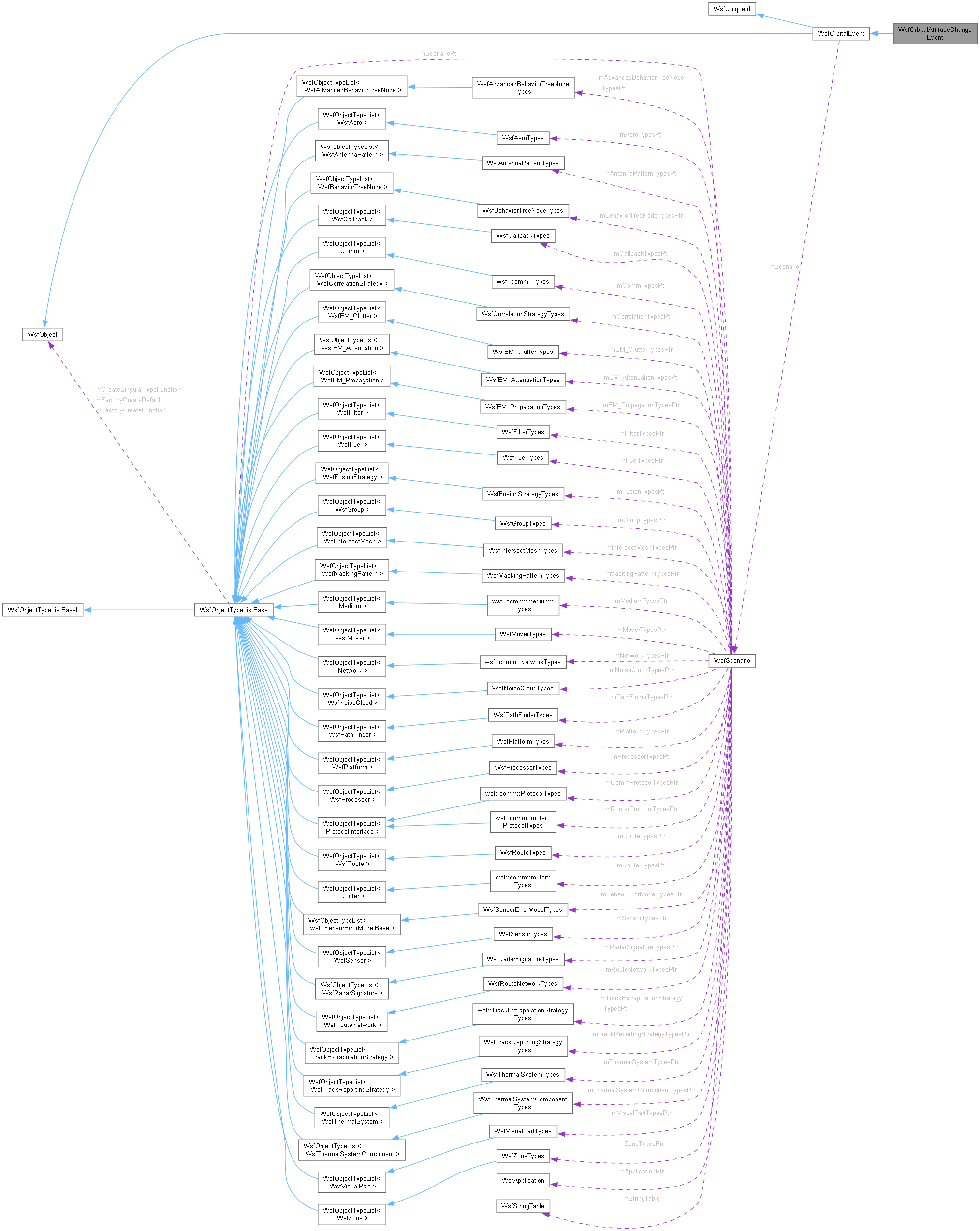

Collaboration diagram for WsfOrbitalAttitudeChangeEvent:

[legend]

Public Member Functions
	WsfOrbitalAttitudeChangeEvent (const WsfScenario &aScenario)
	WsfOrbitalAttitudeChangeEvent (const WsfOrbitalAttitudeChangeEvent &aSrc)
	~WsfOrbitalAttitudeChangeEvent () override=default
WsfOrbitalEvent *	Clone () const override
	Make a copy of this object.
bool	ProcessInput (UtInput &aInput) override
bool	Initialize (const UtCalendar &aEpoch, const wsf::space::OrbitalMissionContext &aContext) override
const char *	GetScriptClassName () const override
void	SetOrientation (std::unique_ptr< wsf::space::Orientation > aOrientationPtr)
wsf::space::Orientation *	GetOrientation () const
void	Accept (WsfOrbitalEventVisitor *aVisitorPtr) override
bool	ValidateParameterRanges (const std::string &aExecutingPlatformName) const override
Public Member Functions inherited from WsfOrbitalEvent
	WsfOrbitalEvent (const WsfOrbitalEvent &aSrc)
WsfOrbitalEvent &	operator= (const WsfOrbitalEvent &)=delete
	~WsfOrbitalEvent () override=default
bool	ProcessInput (UtInput &aInput) override
bool	CanVerify () const
	Return whether this event can be verified.
virtual bool	VerifyCondition () const
virtual bool	EvaluatePreconditions (const wsf::space::OrbitalMissionContext &aContext) const
virtual bool	EvaluatePostconditions (const wsf::space::OrbitalMissionContext &aContext) const
bool	IsComplete () const
	Return whether the event is complete.
bool	IsCanceled () const
	Return whether the event is canceled.
void	SetCanceled ()
	Mark the event as canceled.
bool	Execute (const UtCalendar &aEpoch, wsf::space::OrbitalMissionContext &aContext)
const char *	GetScriptClassName () const override
bool	IsFinite () const
void	SetFinite (bool aIsFinite)
	Set whether the event is finite.
bool	HasExecuted () const
	Return whether the event has executed at least once (i.e., Execute() has been called).
const wsf::space::OrbitalPropagatorCondition &	GetCondition () const
	Return the condition for event execution (const).
wsf::space::OrbitalPropagatorCondition &	GetCondition ()
	Return the condition for event execution (non-const).
WsfStringId	GetConditionString () const
	Return the condition string for event execution.
void	SetCondition (std::unique_ptr< wsf::space::OrbitalPropagatorCondition > aConditionPtr)
	Set the condition for execution.
const UtCalendar &	GetStartTime () const
	Return the time at which the event will begin executing.
void	SetStartTime (const UtCalendar &aStartTime)
	Set the start time to begin event execution.
const UtCalendar &	GetEvaluationTime () const
	Return the nominal time to execute the event impulsively.
UtTimeValue	GetDuration () const
	Return the full duration of the event. If the event is impulsive, this method returns 0.
void	SetDuration (const UtTimeValue &aDuration)
	Set the full duration of the event. A value of 0 implies and impulsive event; otherwise it is finite.
void	SetOnlyDuration (const UtTimeValue &aDuration)
UtTimeValue	GetUpdateInterval () const
	For finite events, return the interval at which the event is to be re-evaluated.
void	SetUpdateInterval (const UtTimeValue &aUpdateInterval)
	Set the update interval for which the event is to be re-evaluated.
virtual const WsfOrbitalEvent *	GetCurrentMissionEvent () const
virtual WsfOrbitalEvent *	GetCurrentMissionEvent ()
virtual WsfOrbitalEvent *	AdvanceMissionEvent (const UtCalendar &aEpoch, const wsf::space::OrbitalMissionContext &aContext)
virtual bool	IsSequence () const
	Is this MissionEvent a MissionEvent sequence (WsfMissionEventSequence)?
virtual double	GetRequiredDeltaV (const UtOrbitalPropagatorBase &aPropagator) const
	Return the minimum required delta-v needed to complete this event; the default is to return 0.0.
virtual double	GetDeltaV () const
	Get the delta V expended to execute this event; the default is to return 0.0.
virtual bool	GetNextExecutionTime (const UtCalendar &aCurrentTime, const UtOrbitalPropagatorBase &aPropagator, UtCalendar &aNextExecutionTime)
	For finite events, return the next time the event should be executed.
Public Member Functions inherited from WsfUniqueId
	WsfUniqueId ()
	Construtor initializes the unique identifier to 0.
	WsfUniqueId (const WsfUniqueId &)
	Copy constructor initializes the unique identifier to 0.
WsfUniqueId &	operator= (const WsfUniqueId &)
unsigned int	GetUniqueId () const
	Get the unique identifier assigned to this object.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Static Public Member Functions
static WsfStringId	GetTypeId ()
Static Public Member Functions inherited from WsfOrbitalEvent
static WsfOrbitalEvent *	Create (const WsfScenario &aScenario, UtInput &aInput, bool aIgnoreSomeExceptions=false)

Protected Member Functions
bool	ExecuteEvent (const UtCalendar &aEpoch, wsf::space::OrbitalMissionContext &aContext) override
Protected Member Functions inherited from WsfOrbitalEvent
	WsfOrbitalEvent (const WsfScenario &aScenario)
virtual bool	InitializeVariables (const UtCalendar &aCurrentTime, const UtCalendar &aEvaluationTime, const wsf::space::OrbitalMissionContext &aContext)
virtual bool	InitializeTimes (const UtCalendar &aEpoch, const wsf::space::OrbitalMissionContext &aContext)
virtual bool	EvaluateCompletion (const UtCalendar &aEpoch, const UtOrbitalPropagatorBase &aPropagator)
Protected Member Functions inherited from WsfUniqueId
void	AssignUniqueId (WsfSimulation *aSimulationPtr)
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Protected Attributes
std::unique_ptr< wsf::space::Orientation >	mOrientationPtr {nullptr}
Protected Attributes inherited from WsfOrbitalEvent
ut::CloneablePtr< wsf::space::OrbitalPropagatorCondition >	mCondition {}
bool	mIsFinite
bool	mHasExecuted
bool	mIsComplete
bool	mIsCanceled
bool	mDebug
bool	mCanVerify
UtCalendar	mStartTime
	Can this event be verified without running in a simulation?
UtCalendar	mEvaluationTime
UtTimeValue	mDuration
UtTimeValue	mUpdateInterval
const WsfScenario &	mScenario

Additional Inherited Members
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
Static Protected Member Functions inherited from WsfOrbitalEvent
static WsfOrbitalEvent *	Create (const WsfScenario &aScenario, WsfStringId aType)

Detailed Description

An orbital event to change the attitude of the spacecraft to one of the standard types (see wsf::space::Orientation).

Constructor & Destructor Documentation

◆ WsfOrbitalAttitudeChangeEvent() [1/2]

WsfOrbitalAttitudeChangeEvent::WsfOrbitalAttitudeChangeEvent ( const WsfScenario & aScenario )

References GetTypeId(), WsfObject::SetType(), and WsfOrbitalEvent::WsfOrbitalEvent().

Referenced by Clone(), and WsfOrbitalAttitudeChangeEvent().

◆ WsfOrbitalAttitudeChangeEvent() [2/2]

WsfOrbitalAttitudeChangeEvent::WsfOrbitalAttitudeChangeEvent ( const WsfOrbitalAttitudeChangeEvent & aSrc )

References mOrientationPtr, WsfOrbitalAttitudeChangeEvent(), and WsfOrbitalEvent::WsfOrbitalEvent().

◆ ~WsfOrbitalAttitudeChangeEvent()

WsfOrbitalAttitudeChangeEvent::~WsfOrbitalAttitudeChangeEvent ( )

overridedefault

References WsfOrbitalEvent::WsfOrbitalEvent().

Member Function Documentation

◆ Accept()

void WsfOrbitalAttitudeChangeEvent::Accept ( WsfOrbitalEventVisitor * aVisitorPtr )

overridevirtual

Implements WsfOrbitalEvent.

References WsfOrbitalEventVisitor::VisitOrbitalAttitudeChangeEvent().

◆ Clone()

WsfOrbitalEvent * WsfOrbitalAttitudeChangeEvent::Clone ( ) const

overridevirtual

Make a copy of this object.

Implements WsfOrbitalEvent.

References WsfOrbitalAttitudeChangeEvent(), and WsfOrbitalEvent::WsfOrbitalEvent().

◆ ExecuteEvent()

bool WsfOrbitalAttitudeChangeEvent::ExecuteEvent	(	const UtCalendar &	aCurrentTime,
		wsf::space::OrbitalMissionContext &	aContext )

overrideprotectedvirtual

Perform any necessary event processing. For example, in the case of orbital maneuvers, the actual Maneuver(...) method is called and delta-V computations are performed.

Parameters

aCurrentTime	The current time to be used in the event execution.
aContext	The orbital mission context in which this event is executing.

Note: This is a template method called from within Execute(...).

Implements WsfOrbitalEvent.

References WsfSpaceMoverBase::GetAttitudeController(), wsf::space::OrbitalMissionContext::GetSpaceMover(), mOrientationPtr, and WsfAttitudeController::SetOrientation().

◆ GetOrientation()

wsf::space::Orientation * WsfOrbitalAttitudeChangeEvent::GetOrientation ( ) const

References mOrientationPtr.

◆ GetScriptClassName()

const char * WsfOrbitalAttitudeChangeEvent::GetScriptClassName ( ) const

inlineoverride

◆ GetTypeId()

WsfStringId WsfOrbitalAttitudeChangeEvent::GetTypeId ( )

static

Referenced by WsfSpaceExtension::AddedToScenario(), and WsfOrbitalAttitudeChangeEvent().

◆ Initialize()

bool WsfOrbitalAttitudeChangeEvent::Initialize	(	const UtCalendar &	aEpoch,
		const wsf::space::OrbitalMissionContext &	aContext )

overridevirtual

Initialize this MissionEvent in preparation to execute it.

Parameters

aEpoch	The current epoch, to be used as the basis for evaluating the next mission event in the sequence.
aContext	The orbital mission context in which this event is executing.

Reimplemented from WsfOrbitalEvent.

References WsfSpaceMoverBase::GetAttitudeController(), wsf::space::OrbitalMissionContext::GetSpaceMover(), WsfOrbitalEvent::Initialize(), mOrientationPtr, and ok.

◆ ProcessInput()

bool WsfOrbitalAttitudeChangeEvent::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput a reference to a UtInput object.

Returns: 'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase (or an object derived from it) if the command was recognized but contains some sort of error.

Note: If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from WsfObject.

References wsf::space::Orientation::Factory(), mOrientationPtr, and WsfOrbitalEvent::ProcessInput().

◆ SetOrientation()

void WsfOrbitalAttitudeChangeEvent::SetOrientation ( std::unique_ptr< wsf::space::Orientation > aOrientationPtr )

References mOrientationPtr.

◆ ValidateParameterRanges()

bool WsfOrbitalAttitudeChangeEvent::ValidateParameterRanges ( const std::string & aExecutingPlatformName ) const

overridevirtual

Check that the event's parameters are in the valid range for each parameter. When deriving from WsfOrbitalEvent, the subclass should call into this method to apply the checks on any parameters related to the event being finite.

Parameters

aExecutingPlatformName The name of the platform that would be executing this event.

Returns: True if the event parameters are all in allowed ranges.

Reimplemented from WsfOrbitalEvent.

References WsfObject::GetType(), mOrientationPtr, and WsfOrbitalEvent::ValidateParameterRanges().

Member Data Documentation

◆ mOrientationPtr

std::unique_ptr<wsf::space::Orientation> WsfOrbitalAttitudeChangeEvent::mOrientationPtr {nullptr}

protected

Referenced by ExecuteEvent(), GetOrientation(), Initialize(), ProcessInput(), SetOrientation(), ValidateParameterRanges(), and WsfOrbitalAttitudeChangeEvent().

The documentation for this class was generated from the following files:
