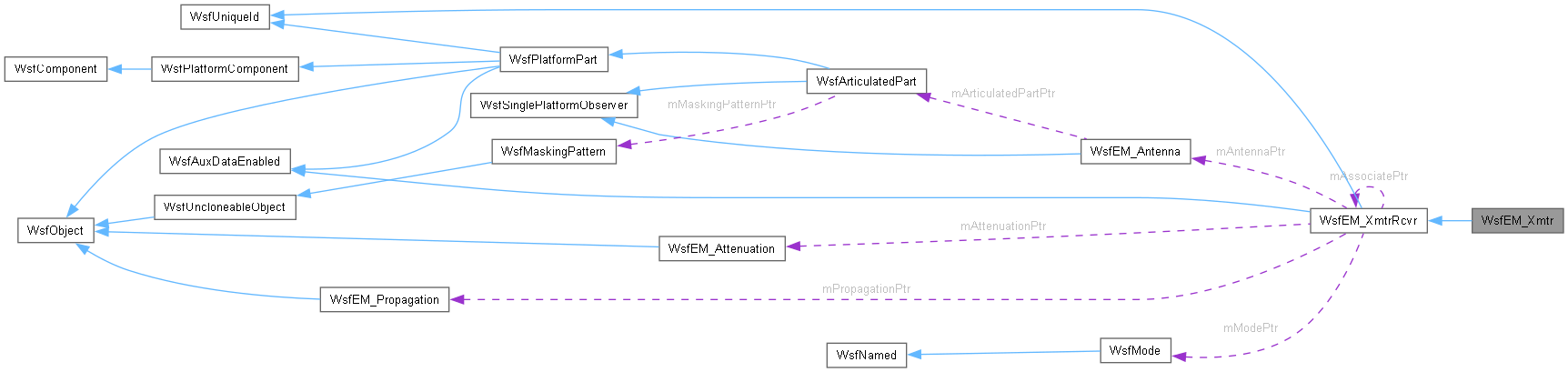

Collaboration diagram for WsfEM_Xmtr:

[legend]

Definitions to support the component list on the transmitter.
enum	XmtrFunction { cXF_UNDEFINED , cXF_COMM , cXF_SENSOR , cXF_INTERFERER }
	XmtrFunction defines the intended purpose of the transmitter. More...
using	Component = WsfEM_XmtrComponent
	Even though this isn't a component, it must have a role in order to use component factories.
using	ComponentList = WsfComponentListT<WsfEM_XmtrComponent>
using	PowerList = std::vector<std::pair<double, double>>
	Type definition for the frequency dependent power.
	WsfEM_Xmtr (XmtrFunction aFunction, WsfEM_Antenna *aAntennaPtr=nullptr)
	WsfEM_Xmtr (const WsfEM_Xmtr &aSrc, WsfEM_Antenna *aAntennaPtr=nullptr)
	~WsfEM_Xmtr () override
WsfEM_Xmtr &	operator= (const WsfEM_Xmtr &)=delete
std::string	GetName () const
	Required to display error messages in WsfComponentFactoryList.

Component list methods.
using	FrequencyList = std::map<size_t, double>
	Get the frequencies container. This is for External Services.
ComponentList &	GetComponents ()
const ComponentList &	GetComponents () const
const char *	GetScriptClassName () const override
void	Activate ()
void	Deactivate ()
virtual bool	AllowInteractionWith (WsfEM_Rcvr *aRcvrPtr)
virtual double	ComputeRadiatedPower (double aTargetAz, double aTargetEl, double aEBS_Az, double aEBS_El, double aFrequency, double &aAntennaGain)
bool	Initialize (WsfSimulation &aSimulation) override
bool	ProcessInput (UtInput &aInput) override
virtual bool	ProcessInputBlock (UtInput &aInput)
	A convenience method to check for and process a 'transmitter/end_transmitter' block.
bool	AllowZeroFrequencyInput () const
void	AllowZeroFrequencyInput (bool val)
WsfEM_Rcvr *	GetLinkedReceiver () const
int	GetAlternateFrequencyCount () const
const FrequencyList &	GetAlternateFrequencies ()
int	GetCurrentAlternateFrequencyId () const
double	GetAlternateFrequency (unsigned int aId) const
bool	ExplicitFrequencyList () const
XmtrFunction	GetFunction () const

Transmission End Time maintenance.
The transmission end time is primarily used by the passive type sensors to maintain detection of a long intermittent transmission.
double	GetTransmissionEndTime () const
void	SetTransmissionEndTime (double aTransmissionEndTime)
	Set the simulation time when the current transmission is to be completed.

Power Functions
Returns peak or average power as indicated by name, or in the case of GetPower, conditionally returns either peak or average power based on user preference.
double	GetPeakPower (double aFrequency=0.0) const
double	GetAveragePower (double aFrequency=0.0) const
double	GetPower (double aFrequency=0.0) const
double	GetPulseCompressionRatio () const
int	GetPulseRepetitionFrequencyCount () const
double	GetPulseRepetitionFrequency (size_t aIndex=0) const
std::vector< double >	GetPulseRepetitionFrequencies () const
int	GetPulseRepetitionIntervalCount () const
double	GetPulseRepetitionInterval (size_t aIndex=0) const
std::vector< double >	GetPulseRepetitionIntervals () const
double	GetPulseWidth () const
double	GetDutyCycle () const
bool	IsUsingPeakPower () const
void	SetLinkedReceiver (WsfEM_Rcvr *aRcvrPtr)
void	SetBandwidth (double aBandwidth) override
void	SetFrequency (double aFrequency) override
void	SelectAlternateFrequency (unsigned int aId)
bool	UseDefaultFrequency ()
void	UseDefaultFrequency (bool aUseDefaultFrequency)
void	SetPolarization (WsfEM_Types::Polarization aPolarization) override
void	SetPower (double aPower)
bool	SetPower (double aPower, double aFrequency)
void	SetPulseCompressionRatio (double aPulseCompressionRatio)
void	SetPulseRepetitionFrequency (double aPulseRepetitionFrequency, size_t aPRF_Num=1)
void	SetPulseRepetitionInterval (double aPulseRepetitionInterval, size_t aPRF_Num=1)
void	SetPulseWidth (double aPulseWidth)
void	SetDutyCycle (double aDutyCycle)

Passive listener list maintenance.
virtual bool	AddListener (WsfEM_Rcvr *aRcvrPtr)
virtual bool	RemoveListener (WsfEM_Rcvr *aRcvrPtr)
virtual void	NotifyListeners (double aSimTime, WsfEM_Interaction &aResult)
virtual bool	HasListeners () const
	Return true if any passive listeners have been attached.
virtual bool	AddChangeListener (WsfEM_Rcvr *aRcvrPtr)
virtual bool	RemoveChangeListener (WsfEM_Rcvr *aRcvrPtr)
virtual void	NotifyChangeListeners (double aSimTime, size_t aTargetIndex)
virtual bool	HasChangeListeners () const
	Return true if any passive listeners have been attached.

Additional Inherited Members
Public Types inherited from WsfEM_XmtrRcvr
using	AntennaPatternList = std::vector<std::pair<WsfAntennaPattern*, double>>
	Vector of pairs of antenna pattern pointer and associated lower frequency bounds.
Public Member Functions inherited from WsfEM_XmtrRcvr
	WsfEM_XmtrRcvr (WsfEM_Antenna *aAntennaPtr=nullptr)
	WsfEM_XmtrRcvr (const WsfEM_XmtrRcvr &aSrc, WsfEM_Antenna *aAntennaPtr)
virtual	~WsfEM_XmtrRcvr ()
WsfPlatform *	GetPlatform () const
WsfArticulatedPart *	GetArticulatedPart () const
virtual void	UpdatePosition (double aSimTime)
const char *	GetScriptClassName () const override
WsfEM_Attenuation *	GetAttenuationModel () const
void	SetAttenuationModel (WsfEM_Attenuation *aAttenuationPtr)
WsfStringId	GetAttenuationModelType () const
	Return the type of the attenuation model (if one is defined).
void	SetAttenuationModelType (WsfStringId aAttenuationType)
WsfEM_Propagation *	GetPropagationModel () const
void	SetPropagationModel (WsfEM_Propagation *aPropagationPtr)
WsfStringId	GetPropagationModelType () const
	Return the type of the propagation model (if one is defined).
void	SetPropagationModelType (WsfStringId aPropagationType)
void	SetAttenuationInputEnabled (bool aEnabled)
	Enable or disable 'attenuation_model' input.
void	SetPropagationInputEnabled (bool aEnabled)
	Enable or disable 'propagation_model' input.
WsfEM_Antenna *	GetAntenna () const
	Get the pointer associated geometry object.
void	SetAntenna (WsfEM_Antenna *aAntennaPtr)
WsfAntennaPattern *	GetAntennaPattern (WsfEM_Types::Polarization aPolarization, double aFrequency) const
bool	SetAntennaPattern (WsfAntennaPattern *aAntennaPatternPtr, WsfEM_Types::Polarization aPolarization, double aFrequency)
bool	AddAntennaPattern (WsfAntennaPattern *aAntennaPatternPtr, WsfEM_Types::Polarization aPolarization, double aFrequency)
const AntennaPatternList *	GetAntennaPatternList (WsfEM_Types::Polarization aPolarization) const
double	GetBeamTilt () const
void	SetBeamTilt (double aBeamTilt)
	Set the angle of the boresight of the antenna gain pattern above/below (+/-) the antenna boresight.
virtual double	GetAntennaGain (WsfEM_Types::Polarization aPolarization, double aFrequency, double aTargetAz, double aTargetEl, double aEBS_Az, double aEBS_El)
virtual WSF_DEPRECATED double	GetAzimuthBeamwidth () const final
virtual double	GetAzimuthBeamwidth (double aEBS_Azimuth, double aEBS_Elevation) const
virtual WSF_DEPRECATED double	GetElevationBeamwidth () const final
virtual double	GetElevationBeamwidth (double aEBS_Azimuth, double aEBS_Elevation) const
virtual double	GetPeakAntennaGain () const
virtual double	GetMinimumAntennaGain () const
virtual void	SetAntennaBeamCount (unsigned int aBeamCount)
bool	DebugEnabled () const
	Determine if debugging is enabled.
void	SetDebugEnabled (bool aDebugEnabled)
bool	IsHorizonMaskingEnabled () const
	determine if horizon masking is to be checked
bool	IsTerrainMaskingEnabled () const
	determine if terrain masking is to be checked
std::string	MaskingMode () const
	Gets the masking mode.
void	SetMaskingMode (const std::string &aTerrainMaskingMode)
	Set the type of masking to perform.
bool	CheckMasking () const
	determine if horizon and terrain masking is to be checked
void	SetCheckMasking (bool aCheckMasking)
	enable/disable checking of horizon and terrain masking
void	DisableMaskingCheck ()
	disables the checking of horizon and terrain masking (retained for compatibility)
WsfMode *	GetMode () const
void	SetMode (WsfMode *aModePtr)
size_t	GetIndex () const
	Get the index of the xmtr/rcvr in the complex assembly.
void	SetIndex (size_t aIndex)
	Set the index of the xmtr/rcvr in the complex assembly.
WsfSimulation *	GetSimulation () const
WsfEM_Manager *	GetEM_Manager () const
double	GetEarthRadiusMultiplier () const
double	GetFrequency () const
double	GetWavelength () const
double	GetBandwidth () const
bool	IsBandwidthExplicit () const
double	GetInternalLoss () const
WsfEM_Types::Polarization	GetPolarization () const
	Get the polarization of the EM system.
void	SetEarthRadiusMultiplier (double aMultiplier)
void	SetInternalLoss (double aInternalLoss)
Public Member Functions inherited from WsfUniqueId
	WsfUniqueId ()
	Construtor initializes the unique identifier to 0.
	WsfUniqueId (const WsfUniqueId &)
	Copy constructor initializes the unique identifier to 0.
WsfUniqueId &	operator= (const WsfUniqueId &)
unsigned int	GetUniqueId () const
	Get the unique identifier assigned to this object.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
Public Member Functions inherited from WsfAuxDataEnabled
	WsfAuxDataEnabled ()=default
	WsfAuxDataEnabled (const WsfAuxDataEnabled &aSrc)=default
WsfAuxDataEnabled &	operator= (const WsfAuxDataEnabled &aRhs)
	WsfAuxDataEnabled (WsfAuxDataEnabled &&)=default
WsfAuxDataEnabled &	operator= (WsfAuxDataEnabled &&)=default
virtual	~WsfAuxDataEnabled () noexcept
void	SetAuxData (const WsfAttributeContainer &aAuxData)
void	DeleteAuxData ()
	Delete the aux data container from the object.
void	MergeAuxData (const WsfAuxDataEnabled &aSrc)
	Merge the object's aux data with aux data from an existing object.
void	UpdateAuxData (const WsfAuxDataEnabled &aSrc)
	Update the object's aux data with aux data from an existing object.
bool	HasAuxData () const
	Returns true if this object has aux data.
bool	ProcessInput (UtInput &aInput)
template<typename T>
void	Serialize (T &aBuff)
	(De)serialization for XIO
WsfAttributeContainer &	GetAuxData ()
const WsfAttributeContainer &	GetAuxData () const noexcept
const WsfAttributeContainer &	GetAuxDataConst () const noexcept
static void	AssociateSystems (WsfEM_XmtrRcvr aSystem1Ptr, WsfEM_XmtrRcvr aSystem2Ptr)
Static Public Attributes inherited from WsfAuxDataEnabled
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataAccessed
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataDestroyed
Protected Member Functions inherited from WsfUniqueId
void	AssignUniqueId (WsfSimulation *aSimulationPtr)
WsfStringId	mAttenuationType
	The type of the atmospheric attenuation model to be used.
WsfStringId	mPropagationType
	The type of the propagation model to be used.
WsfEM_Attenuation *	mAttenuationPtr
	Pointer to the atmospheric attenuation model.
WsfEM_Propagation *	mPropagationPtr
	Pointer to the propagation object.
WsfMode *	mModePtr
WsfEM_Antenna *	mAntennaPtr
	Pointer to the 'geometry' object for this transmitter/receiver.
std::array< AntennaPatternList, WsfEM_Types::cPOL_COUNT >	mPatternTables {}
WsfEM_XmtrRcvr *	mAssociatePtr
double	mBeamTilt
double	mEarthRadiusMultiplier
double	mFrequency
double	mBandwidth
double	mInternalLoss
WsfEM_Types::Polarization	mPolarization
size_t	mIndex
std::array< bool, WsfEM_Types::cPOL_COUNT >	mUsedExplicitPolarization {{false}}
bool	mDebugEnabled
unsigned int	mTerrainMaskingMode
	Settings used for masking checks.
bool	mCheckMasking
	true if horizon and terrain masking enabled.
bool	mExplicitBandwidth
	true if explicit 'bandwidth' specified

Detailed Description

A transmitter of electromagnetic radiation.

This can be used to implement the transmitters in radars, RF interferers or RF communications.

To use one of these within a system, the following protocol must be observed

Set the attributes of the object (using ProcessInput or the Set methods)
Ensure that a pointer to a valid WsfEM_Antenna object has been provided via either the (copy) constructor or SetAntenna() method.
Invoke the Initialize() method when all of the attributes have been defined. (This is typically done within the Initialize() method of the containing system).
The Activate() method must be called when the system is turned on. (This is typically done within the TurnOn() method of the containing system).
The Deactivate() method must be called when the system is turned off. (This is typically done within the TurnOff() method of the containing system).

Member Typedef Documentation

◆ Component

using WsfEM_Xmtr::Component = WsfEM_XmtrComponent

Even though this isn't a component, it must have a role in order to use component factories.

◆ ComponentList

using WsfEM_Xmtr::ComponentList = WsfComponentListT<WsfEM_XmtrComponent>

◆ FrequencyList

using WsfEM_Xmtr::FrequencyList = std::map<size_t, double>

Get the frequencies container. This is for External Services.

◆ PowerList

using WsfEM_Xmtr::PowerList = std::vector<std::pair<double, double>>

Type definition for the frequency dependent power.

Member Enumeration Documentation

◆ XmtrFunction

enum WsfEM_Xmtr::XmtrFunction

XmtrFunction defines the intended purpose of the transmitter.

Enumerator
cXF_UNDEFINED	Undefined.
cXF_COMM	Communications.
cXF_SENSOR	Sensing.
cXF_INTERFERER	Interfering system.

Constructor & Destructor Documentation

◆ WsfEM_Xmtr() [1/2]

WsfEM_Xmtr::WsfEM_Xmtr	(	XmtrFunction	aFunction,
		WsfEM_Antenna *	aAntennaPtr = nullptr )

Construct a transmitter.

Parameters

aFunction	The primary function of the transmitter.
aAntennaPtr	Pointer to the antenna associated with the transmitter. If one isn't provided or if it is zero then call must be made to SetAntenna() prior to calling Initialize().

Note: The caller retains ownership of the antenna as it may be shared with other receivers or transmitters.

References WsfEM_XmtrRcvr::SetEarthRadiusMultiplier(), SetPulseRepetitionInterval(), and WsfEM_XmtrRcvr::WsfEM_XmtrRcvr().

Referenced by WsfRF_Jammer::JammerXmtr::JammerXmtr(), WsfRF_Jammer::JammerXmtr::JammerXmtr(), operator=(), and WsfEM_Xmtr().

◆ WsfEM_Xmtr() [2/2]

WsfEM_Xmtr::WsfEM_Xmtr	(	const WsfEM_Xmtr &	aSrc,
		WsfEM_Antenna *	aAntennaPtr = nullptr )

Copy construct a transmitter.

Parameters

aSrc	The transmitter from which to copy.
aAntennaPtr	Pointer to the antenna associated with the transmitter. If one isn't provided or if it is zero then call must be made to SetAntenna() prior to calling Initialize().

Note: The caller retains ownership of the antenna as it may be shared with other receivers or transmitters.

References WsfEM_Xmtr(), and WsfEM_XmtrRcvr::WsfEM_XmtrRcvr().

◆ ~WsfEM_Xmtr()

WsfEM_Xmtr::~WsfEM_Xmtr ( )

override

References Deactivate().

Member Function Documentation

◆ Activate()

void WsfEM_Xmtr::Activate ( )

Indicate the transmitter is 'turned-on'.

This method adds the transmitter from the list of active transmitters within the simulation.

References WsfEM_XmtrRcvr::GetEM_Manager().

◆ AddChangeListener()

bool WsfEM_Xmtr::AddChangeListener ( WsfEM_Rcvr * aRcvrPtr )

virtual

Add a receiver to the list of those to be notified when the transmitter changes parameters.

Parameters

aRcvrPtr The receiver to be notified when a transmission prameter changes occur.

Returns: true if the receiver was added to the list or false if it was already in the list.

Referenced by WsfPassiveSensor::PassiveMode::AddInteractor().

◆ AddListener()

bool WsfEM_Xmtr::AddListener ( WsfEM_Rcvr * aRcvrPtr )

virtual

Add a receiver to the list of those to be notified when the transmitter emits.

Parameters

aRcvrPtr The receiver to be notified when a transmission occurs.

Returns: true if the receiver was added to the list or false if it was already in the list.

Referenced by WsfPassiveSensor::PassiveMode::AddInteractor().

◆ AllowInteractionWith()

bool WsfEM_Xmtr::AllowInteractionWith ( WsfEM_Rcvr * aRcvrPtr )

virtual

Is this transmitter allowed to interact with (transmit radiation to) the specified receiver.

This method should answer the question, 'Should we allow this transmitter to interact with the supplied receiver'. This method must NOT consider geometry.

Reimplemented in WsfRF_Jammer::JammerXmtr.

Referenced by WsfEM_Rcvr::UpdateInteractions().

◆ AllowZeroFrequencyInput() [1/2]

bool WsfEM_Xmtr::AllowZeroFrequencyInput ( ) const

inline

◆ AllowZeroFrequencyInput() [2/2]

void WsfEM_Xmtr::AllowZeroFrequencyInput ( bool val )

inline

◆ ComputeRadiatedPower()

double WsfEM_Xmtr::ComputeRadiatedPower	(	double	aTargetAz,
		double	aTargetEl,
		double	aEBS_Az,
		double	aEBS_El,
		double	aFrequency,
		double &	aAntennaGain )

virtual

Compute the effective radiated power density in a given direction.

Parameters

aTargetAz	[input] Target azimuth with respect to the beam (radians)
aTargetEl	[input] Target elevation with respect to the beam (radians)
aEBS_Az	[input] Beam azimuth with respect to the antenna (radians)
aEBS_El	[input] Beam elevation with respect to the antenna (radians)
aFrequency	[input] Frequency of the receiver receiving the signal (Hertz).
aAntennaGain	[output] The computed antenna gain (absolute - not dB)

Returns: The effective radiated power (Watts)

References WsfEM_XmtrRcvr::GetAntennaGain(), GetPower(), WsfEM_XmtrRcvr::mFrequency, WsfEM_XmtrRcvr::mInternalLoss, and WsfEM_XmtrRcvr::mPolarization.

◆ Deactivate()

void WsfEM_Xmtr::Deactivate ( )

Indicate the transmitter is 'turned-off'.

This method removes the transmitter from the list of active transmitters within the simulation.

Referenced by WsfRF_Jammer::StartJamming(), WsfRF_Jammer::StopJamming(), and ~WsfEM_Xmtr().

◆ ExplicitFrequencyList()

bool WsfEM_Xmtr::ExplicitFrequencyList ( ) const

inline

◆ GetAlternateFrequencies()

const FrequencyList & WsfEM_Xmtr::GetAlternateFrequencies ( )

inline

◆ GetAlternateFrequency()

double WsfEM_Xmtr::GetAlternateFrequency ( unsigned int aId ) const

Get the alternate frequency with aId.

Note: If the aId is not in the list then it is assumed that the list has been exhausted and it will return a frequency value of 0.0.

Parameters

aId	The Id of the alternate frequency to get the value of; [0, ... N-1], where N is the size of the list.

◆ GetAlternateFrequencyCount()

int WsfEM_Xmtr::GetAlternateFrequencyCount ( ) const

inline

Get the number of alternate frequencies specified.

Returns: The number of alternate frequencies specified

Referenced by WsfPassiveSensor::PassiveMode::AddInteractor().

◆ GetAveragePower()

double WsfEM_Xmtr::GetAveragePower ( double aFrequency = 0.0 ) const

Get the average power for the currently set frequency.

Returns: The average power at the currently set frequency.

References GetDutyCycle(), and GetPeakPower().

Referenced by WsfLADAR_Sensor::LADAR_Mode::AttemptToDetect(), WsfSAR_Sensor::SAR_Mode::Calibrate(), WsfSurfaceWaveRadarSensor::RadarMode::Calibrate(), and GetPower().

◆ GetComponents() [1/2]

ComponentList & WsfEM_Xmtr::GetComponents ( )

inline

Referenced by WsfEW_XmtrComponent::Find(), and WsfEW_XmtrComponent::FindOrCreate().

◆ GetComponents() [2/2]

const ComponentList & WsfEM_Xmtr::GetComponents ( ) const

inline

◆ GetCurrentAlternateFrequencyId()

int WsfEM_Xmtr::GetCurrentAlternateFrequencyId ( ) const

inline

Referenced by wsf::event::CommFrequencyChanged::Print(), wsf::event::CommFrequencyChanged::PrintCSV(), wsf::comm::ComponentHW::SelectAlternateFrequency(), and WsfEW_AgilityEffect::UpdateEffects().

◆ GetDutyCycle()

double WsfEM_Xmtr::GetDutyCycle ( ) const

inline

Get the duty-cycle

Returns: Duty-cycle no-units. If 1.0 then average power is equal to peak power.

Referenced by GetAveragePower().

◆ GetFunction()

XmtrFunction WsfEM_Xmtr::GetFunction ( ) const

inline

Get the intended function of the transmitter.

Returns: The intended function of the transmitter.

Referenced by WsfEM_Rcvr::AddInteractor(), WsfPassiveSensor::PassiveMode::AddInteractor(), WsfPassiveSensor::PassiveMode::AttemptToDetect(), WsfEW_Effects::Process(), WsfEM_Rcvr::RemoveInteractor(), WsfEW_RcvrComponent::RemoveInteractor(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfDisInterface::UpdateXmtrFromBeam(), WsfMilDisInterface::UpdateXmtrFromBeam(), and UT_DEFINE_SCRIPT_METHOD().

◆ GetLinkedReceiver()

WsfEM_Rcvr * WsfEM_Xmtr::GetLinkedReceiver ( ) const

inline

Get the receiver that is linked to this transmitter.

See also: SetLinkedReceiver for more information.

Referenced by WsfXIO_WeaponComponent::HandleStateChangeRequest(), and WsfXIO_ObjectInfoLoad::Load_EM_Xmtr().

◆ GetName()

std::string WsfEM_Xmtr::GetName ( ) const

inline

Required to display error messages in WsfComponentFactoryList.

Referenced by WsfPassiveSensor::PassiveMode::AddInteractor(), and WsfPassiveSensor::PassiveMode::RemoveInteractor().

◆ GetPeakPower()

double WsfEM_Xmtr::GetPeakPower ( double aFrequency = 0.0 ) const

Get the peak power for the currently set frequency.

Parameters

aFrequency [input] Frequency of the receiver receiving the signal (Hertz).

Returns: The peak power at the currently set frequency.

References WsfEM_XmtrRcvr::mFrequency.

Referenced by WsfSAR_Sensor::SAR_Mode::Calibrate(), WsfSurfaceWaveRadarSensor::RadarMode::Calibrate(), GetAveragePower(), and GetPower().

◆ GetPower()

double WsfEM_Xmtr::GetPower ( double aFrequency = 0.0 ) const

Get the power for the currently set frequency. Conditionally provides either peak or average power depending on user preference via the mUsePeakPower flag.

Returns: The average or peak power at the currently set frequency.

References GetAveragePower(), and GetPeakPower().

Referenced by WsfSAR_Sensor::SAR_Mode::Calibrate(), WsfSurfaceWaveRadarSensor::RadarMode::Calibrate(), WsfEM_ALARM_Clutter::ComputeClutterPower(), ComputeRadiatedPower(), Initialize(), WsfXIO_ObjectInfoLoad::Load_EM_Xmtr(), WsfDisPlatform::MessageTransmitted(), and WsfDisInterface::UpdateBeamFromXmtr().

◆ GetPulseCompressionRatio()

double WsfEM_Xmtr::GetPulseCompressionRatio ( ) const

inline

Get the pulse compression ratio.

Returns: Pulse compression ratio (absolute ratio, NOT dB).

Referenced by WsfSurfaceWaveRadarSensor::RadarMode::AttemptToDetect(), WsfSAR_Sensor::SAR_Mode::Calibrate(), WsfSurfaceWaveRadarSensor::RadarMode::Calibrate(), WsfEM_ALARM_Clutter::ComputeClutterPower(), wsf::SurfaceWaveRadarSensorErrorModel::GetSphericalErrorStdDev(), and WsfXIO_ObjectInfoLoad::Load_EM_Xmtr().

◆ GetPulseRepetitionFrequencies()

std::vector< double > WsfEM_Xmtr::GetPulseRepetitionFrequencies ( ) const

Get the pulse repetition frequency list

Returns: Pulse repetition frequency list (Hertz).

Referenced by WsfRadarMTD_SignalProcessor::Execute(), WsfRadarMTI_SignalProcessor::Execute(), WsfRadarPD_SignalProcessor::Execute(), WsfRadarMTD_SignalProcessor::Initialize(), WsfRadarMTI_SignalProcessor::Initialize(), and WsfRadarPD_SignalProcessor::Initialize().

◆ GetPulseRepetitionFrequency()

double WsfEM_Xmtr::GetPulseRepetitionFrequency ( size_t aIndex = 0 ) const

Get the pulse repetition frequency

Returns: Pulse repetition frequency (Hertz). If 0.0 then it is a continuous wave transmitter.

Get the pulse repetition frequency

Parameters

aIndex [input] The PRF index to lookup.

Returns: Pulse repetition frequency (Hertz).

Note: If 0.0 then it is a continuous wave transmitter.; Default returns average PRF, i.e.index 0.

Referenced by WsfSAR_Sensor::SAR_Mode::Calibrate(), WsfSurfaceWaveRadarSensor::RadarMode::Calibrate(), WsfEM_ALARM_Clutter::ComputeClutterPower(), WsfEM_SurfaceClutter::ComputeClutterPower(), WsfRadarSTC_SignalProcessor::Execute(), WsfLASER_CommXmtrComponent::Modulation::Initialize(), WsfRadarMTD_SignalProcessor::Initialize(), WsfXIO_ObjectInfoLoad::Load_EM_Xmtr(), WsfDisInterface::UpdateBeamFromXmtr(), WsfEW_PulseSuppressEffect::UpdateEffects(), WsfEW_RPJ_Effect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_FalseTargetEffect::UpdateFT(), WsfEW_FalseTargetEffect::UpdateJammerPulseDensity(), WsfEW_SimpleFT_Effect::UpdateJammerPulseDensity(), and WsfDisEmission::UpdateXmtr().

◆ GetPulseRepetitionFrequencyCount()

int WsfEM_Xmtr::GetPulseRepetitionFrequencyCount ( ) const

inline

Get the number of PRFs specified.

Returns: The number of PRFs specified

Referenced by WsfRadarMTD_SignalProcessor::Initialize(), WsfRadarMTI_SignalProcessor::Initialize(), WsfRadarPD_SignalProcessor::Initialize(), and ProcessInput().

◆ GetPulseRepetitionInterval()

double WsfEM_Xmtr::GetPulseRepetitionInterval ( size_t aIndex = 0 ) const

Get the pulse repetition interval (1 / PRF).

Returns: Pulse repetition interval (seconds). If 0.0 then it is a continuous wave transmitter.

Get the pulse repetition interval (1 / PRF).

Parameters

aIndex [input] The PRF index to lookup.

Returns: Pulse repetition interval (seconds).

Note: If 0.0 then it is a continuous wave transmitter.; Default returns average PRI, i.e. index 0.

Referenced by WsfLADAR_Sensor::LADAR_Mode::AttemptToDetect(), WsfPassiveSensor::PassiveMode::AttemptToDetect(), WsfEW_PulseEffect::GetJammingPulseDensity(), WsfXIO_ObjectInfoLoad::Load_EM_Xmtr(), WsfEW_RPJ_Effect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_SLC_Effect::UpdateEffects(), WsfEW_FalseTargetEffect::UpdateFT(), WsfEW_CoverPulseEffect::UpdateJammerPulseDensity(), WsfEW_PulseEffect::UpdateJammerPulseDensity(), and WsfEW_TrackEffect::UpdateJammerPulseDensity().

◆ GetPulseRepetitionIntervalCount()

int WsfEM_Xmtr::GetPulseRepetitionIntervalCount ( ) const

inline

Get the number of PRFs specified.

Returns: The number of PRFs specified

Referenced by ProcessInput().

◆ GetPulseRepetitionIntervals()

std::vector< double > WsfEM_Xmtr::GetPulseRepetitionIntervals ( ) const

Get the pulse repetition interval list

Returns: Pulse repetition interval list (1 / PRF).

◆ GetPulseWidth()

double WsfEM_Xmtr::GetPulseWidth ( ) const

inline

Get the pulse width

Returns: Pulse width (seconds). If 0.0 then it is a continuous wave transmitter.

Referenced by WsfLADAR_Sensor::LADAR_Mode::AttemptToDetect(), WsfPassiveSensor::PassiveMode::AttemptToDetect(), WsfSurfaceWaveRadarSensor::RadarMode::AttemptToDetect(), WsfSAR_Sensor::SAR_Mode::Calibrate(), WsfSurfaceWaveRadarSensor::RadarMode::Calibrate(), WsfEM_ALARM_Clutter::ComputeClutterPower(), WsfPassiveDetector::ComputeDetectability(), WsfLADAR_Sensor::LADAR_Mode::ComputeProbabilityOfDetection(), WsfEM_ALARM_Propagation::ComputePropagationFactor(), WsfEW_PulseEffect::GetJammingPulseDensity(), wsf::SurfaceWaveRadarSensorErrorModel::GetSphericalErrorStdDev(), WsfLASER_CommXmtrComponent::Modulation::Initialize(), WsfLASER_XmtrComponent::Initialize(), WsfRadarMTD_SignalProcessor::Initialize(), WsfRadarPD_SignalProcessor::Initialize(), WsfXIO_ObjectInfoLoad::Load_EM_Xmtr(), WsfDisInterface::UpdateBeamFromXmtr(), WsfEW_PulseSuppressEffect::UpdateEffects(), WsfEW_RPJ_Effect::UpdateEffects(), WsfEW_SimpleFT_Effect::UpdateEffects(), WsfEW_SLC_Effect::UpdateEffects(), WsfEW_FalseTargetEffect::UpdateFT(), WsfEW_CoverPulseEffect::UpdateJammerPulseDensity(), WsfEW_FalseTargetEffect::UpdateJammerPulseDensity(), WsfEW_PulseEffect::UpdateJammerPulseDensity(), WsfEW_SimpleFT_Effect::UpdateJammerPulseDensity(), WsfEW_TrackEffect::UpdateJammerPulseDensity(), and WsfDisEmission::UpdateXmtr().

◆ GetScriptClassName()

const char * WsfEM_Xmtr::GetScriptClassName ( ) const

inlineoverride

◆ GetTransmissionEndTime()

double WsfEM_Xmtr::GetTransmissionEndTime ( ) const

inline

Get the simulation time when the current transmission is to be completed.

Returns: The simulation time when the current transmission is to be completed. The value will be less than the current simulation time if no transmission is active.

Referenced by WsfPassiveSensor::PassiveMode::AttemptToDetect().

◆ HasChangeListeners()

virtual bool WsfEM_Xmtr::HasChangeListeners ( ) const

inlinevirtual

Return true if any passive listeners have been attached.

◆ HasListeners()

virtual bool WsfEM_Xmtr::HasListeners ( ) const

inlinevirtual

Return true if any passive listeners have been attached.

Referenced by WsfDisEmission::UpdateSensor().

◆ Initialize()

bool WsfEM_Xmtr::Initialize ( WsfSimulation & aSimulation )

overridevirtual

Initialize the transmitter.

Returns: 'true' if successful or false if some error was encountered.

Reimplemented from WsfEM_XmtrRcvr.

References WsfObject::GetName(), WsfEM_XmtrRcvr::GetPlatform(), GetPower(), WsfSimulation::GetScenario(), WsfSimulation::GetSimTime(), WsfEM_XmtrRcvr::Initialize(), WsfEM_XmtrRcvr::mFrequency, ok, WsfComponentFactoryList< PARENT_TYPE >::PreInitialize(), SetFrequency(), and simTime.

Referenced by WsfRF_Jammer::JammerXmtr::Initialize().

◆ IsUsingPeakPower()

bool WsfEM_Xmtr::IsUsingPeakPower ( ) const

inline

Get if the transmitter reports and uses peak power instead of average power.

Returns: True if using peak power as indicated by the user, false by default.

Note: This method does not report true for using peak power if the duty cycle is set to 1.0, and the average power is effectively equivalent to peak power.

Referenced by WsfXIO_ObjectInfoLoad::Load_EM_Xmtr().

◆ NotifyChangeListeners()

void WsfEM_Xmtr::NotifyChangeListeners	(	double	aSimTime,
		size_t	aTargetIndex )

virtual

Notify listening receivers that this target's transmitters have changed parameters.

Parameters

aSimTime	The current simulation time.
aTargetIndex	The target platform index representing the transmission

Referenced by wsf::comm::ComponentHW::SelectAlternateFrequency().

◆ NotifyListeners()

void WsfEM_Xmtr::NotifyListeners	(	double	aSimTime,
		WsfEM_Interaction &	aResult )

virtual

Notify listening receivers that this transmitter is now emitting.

Parameters

aSimTime	The current simulation time.
aResult	The interaction object representing the transmission. aResult.GetTransmitter() returns the emitting transmitter.

Referenced by WsfOTH_RadarSensor::OTH_Mode::AttemptToDetect(), WsfPassiveSensor::PassiveMode::AttemptToDetect(), WsfRadarSensor::RadarMode::AttemptToDetect(), WsfEW_SensorComponent::AttemptToDetectFalseTarget(), WsfOTH_RadarSensor::PerformScheduledDetections(), WsfRadarSensor::PerformScheduledDetections(), WsfJTIDS_Terminal::ReceiveActions(), and wsf::comm::medium::Unguided::TransmitMessage().

◆ operator=()

WsfEM_Xmtr & WsfEM_Xmtr::operator= ( const WsfEM_Xmtr & )

delete

References WsfEM_Xmtr().

◆ ProcessInput()

bool WsfEM_Xmtr::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

See also: WsfObject::ProcessInput

Reimplemented from WsfEM_XmtrRcvr.

References WsfScenario::FromInput(), GetPulseRepetitionFrequencyCount(), GetPulseRepetitionIntervalCount(), WsfEM_XmtrRcvr::mAntennaPtr, WsfComponentFactoryList< PARENT_TYPE >::ProcessInput(), WsfEM_XmtrRcvr::ProcessInput(), SetDutyCycle(), SetFrequency(), SetPower(), SetPulseCompressionRatio(), SetPulseRepetitionFrequency(), SetPulseRepetitionInterval(), and SetPulseWidth().

Referenced by WsfRF_Jammer::JammerXmtr::ProcessInput(), and ProcessInputBlock().

◆ ProcessInputBlock()

bool WsfEM_Xmtr::ProcessInputBlock ( UtInput & aInput )

virtual

A convenience method to check for and process a 'transmitter/end_transmitter' block.

References ProcessInput().

◆ RemoveChangeListener()

bool WsfEM_Xmtr::RemoveChangeListener ( WsfEM_Rcvr * aRcvrPtr )

virtual

Remove a receiver from the list of those to be notified when the transmitter changes parameters.

Parameters

aRcvrPtr The receiver to be removed from the list.

Returns: true if the receiver was removed from the list or false if it was not in the list.

Referenced by WsfPassiveSensor::PassiveMode::RemoveInteractor().

◆ RemoveListener()

bool WsfEM_Xmtr::RemoveListener ( WsfEM_Rcvr * aRcvrPtr )

virtual

Remove a receiver from the list of those to be notified when the transmitter emits.

Parameters

aRcvrPtr The receiver to be removed from the list.

Returns: true if the receiver was removed from the list or false if it was not in the list.

Referenced by WsfPassiveSensor::PassiveMode::RemoveInteractor().

◆ SelectAlternateFrequency()

void WsfEM_Xmtr::SelectAlternateFrequency ( unsigned int aId )

Selects the alternate frequency with aId.

Note: If the aId is not in the list then it is assumed that the list has been exhausted and it will return to the default (index 0) frequency value.

Parameters

aId	The Id of the alternate frequency to set; [0, ... N-1], where N is the size of the list.

References SetFrequency().

Referenced by wsf::comm::ComponentHW::SelectAlternateFrequency().

◆ SetBandwidth()

void WsfEM_Xmtr::SetBandwidth ( double aBandwidth )

overridevirtual

Set the bandwidth.

Parameters

aBandwidth The bandwidth (Hertz)

Reimplemented from WsfEM_XmtrRcvr.

References WsfEM_XmtrRcvr::mBandwidth.

Referenced by WsfRF_Jammer::StartJamming(), WsfRF_Jammer::UpdateJamming(), and WsfDisEmission::UpdateXmtr().

◆ SetDutyCycle()

void WsfEM_Xmtr::SetDutyCycle ( double aDutyCycle )

Set the duty-cycle

Parameters

aDutyCycle Duty cycle (absolute).

Referenced by WsfLASER_CommXmtrComponent::Initialize(), and ProcessInput().

◆ SetFrequency()

void WsfEM_Xmtr::SetFrequency ( double aFrequency )

overridevirtual

Set the frequency.

Parameters

aFrequency The frequency (Hertz)

Reimplemented from WsfEM_XmtrRcvr.

References WsfEM_XmtrRcvr::mFrequency.

Referenced by Initialize(), WsfDisPlatform::MessageTransmitted(), ProcessInput(), WsfRF_Jammer::JammerXmtr::ProcessInput(), SelectAlternateFrequency(), WsfRF_Jammer::StartJamming(), WsfRF_Jammer::UpdateJamming(), and WsfDisEmission::UpdateXmtr().

◆ SetLinkedReceiver()

void WsfEM_Xmtr::SetLinkedReceiver ( WsfEM_Rcvr * aRcvrPtr )

Define the receiver that is linked to this transmitter. A receiver is typically linked to a transmitter when they share the same antenna. When certain receiver attributes are defined they will also automatically be set in the linked receiver.

The attributes currently include:

Frequency
Antenna pattern

Parameters

aRcvrPtr The receiver to be linked to this transmitter.

References WsfEM_XmtrRcvr::AssociateSystems().

◆ SetPolarization()

void WsfEM_Xmtr::SetPolarization ( WsfEM_Types::Polarization aPolarization )

overridevirtual

Set the polarization of the transmitted signal.

Parameters

aPolarization The polarization.

Reimplemented from WsfEM_XmtrRcvr.

References WsfEM_Types::cPOL_COUNT, WsfEM_Types::cPOL_DEFAULT, and WsfEM_XmtrRcvr::mPolarization.

◆ SetPower() [1/2]

void WsfEM_Xmtr::SetPower ( double aPower )

Set the power.

Parameters

aPower The power (Watts)

Referenced by WsfLASER_CommXmtrComponent::Initialize(), ProcessInput(), and WsfDisEmission::UpdateXmtr().

◆ SetPower() [2/2]

bool WsfEM_Xmtr::SetPower	(	double	aPower,
		double	aFrequency )

Set the power for the supplied frequency.

Parameters

aPower	The power (Watts).
aFrequency	The lower frequency bound of the power input value.

Returns: True if the insert was successful, False if the input frequency was previously defined.

◆ SetPulseCompressionRatio()

void WsfEM_Xmtr::SetPulseCompressionRatio ( double aPulseCompressionRatio )

Set the pulse compression ratio.

Parameters

aPulseCompressionRatio Pulse compression ratio (absolute ratio, NOT dB)

Referenced by ProcessInput().

◆ SetPulseRepetitionFrequency()

void WsfEM_Xmtr::SetPulseRepetitionFrequency	(	double	aPulseRepetitionFrequency,
		size_t	aPRF_Num = 1 )

Set the pulse repetition frequency

Parameters

aPulseRepetitionFrequency	Pulse Repetition Frequency (Hertz)
aPRF_Num	The PRF number to set. Must be in increasing order.

Referenced by WsfLASER_CommXmtrComponent::Modulation::Initialize(), ProcessInput(), and WsfDisEmission::UpdateXmtr().

◆ SetPulseRepetitionInterval()

void WsfEM_Xmtr::SetPulseRepetitionInterval	(	double	aPulseRepetitionInterval,
		size_t	aPRI_Num = 1 )

Set the pulse repetition interval (PRI = 1 / PRF)

Parameters

aPulseRepetitionInterval	Pulse Repetition Interval (seconds)
aPRI_Num	The PRI number in the index to set. Must be in increasing order.

Referenced by WsfLASER_XmtrComponent::Initialize(), ProcessInput(), and WsfEM_Xmtr().

◆ SetPulseWidth()

void WsfEM_Xmtr::SetPulseWidth ( double aPulseWidth )

Set the pulse width

Parameters

aPulseWidth Pulse width (seconds).

Referenced by WsfLASER_CommXmtrComponent::Modulation::Initialize(), ProcessInput(), and WsfDisEmission::UpdateXmtr().

◆ SetTransmissionEndTime()

void WsfEM_Xmtr::SetTransmissionEndTime ( double aTransmissionEndTime )

inline

Set the simulation time when the current transmission is to be completed.

Referenced by wsf::comm::medium::Unguided::TransmitMessage().

◆ UseDefaultFrequency() [1/2]

bool WsfEM_Xmtr::UseDefaultFrequency ( )

inline

◆ UseDefaultFrequency() [2/2]

void WsfEM_Xmtr::UseDefaultFrequency ( bool aUseDefaultFrequency )

inline

The documentation for this class was generated from the following files:

Definitions to support the component list on the transmitter.

Component list methods.

Transmission End Time maintenance.

Power Functions

Passive listener list maintenance.

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Component

◆ ComponentList

◆ FrequencyList

◆ PowerList

Member Enumeration Documentation

◆ XmtrFunction

Constructor & Destructor Documentation

◆ WsfEM_Xmtr() [1/2]

◆ WsfEM_Xmtr() [2/2]

◆ ~WsfEM_Xmtr()

Member Function Documentation

◆ Activate()

◆ AddChangeListener()

◆ AddListener()

◆ AllowInteractionWith()

◆ AllowZeroFrequencyInput() [1/2]

◆ AllowZeroFrequencyInput() [2/2]

◆ ComputeRadiatedPower()

◆ Deactivate()

◆ ExplicitFrequencyList()

◆ GetAlternateFrequencies()

◆ GetAlternateFrequency()

◆ GetAlternateFrequencyCount()

◆ GetAveragePower()

◆ GetComponents() [1/2]

◆ GetComponents() [2/2]

◆ GetCurrentAlternateFrequencyId()

◆ GetDutyCycle()

◆ GetFunction()

◆ GetLinkedReceiver()

◆ GetName()

◆ GetPeakPower()

◆ GetPower()

◆ GetPulseCompressionRatio()

◆ GetPulseRepetitionFrequencies()

◆ GetPulseRepetitionFrequency()

◆ GetPulseRepetitionFrequencyCount()

◆ GetPulseRepetitionInterval()

◆ GetPulseRepetitionIntervalCount()

◆ GetPulseRepetitionIntervals()

◆ GetPulseWidth()

◆ GetScriptClassName()

◆ GetTransmissionEndTime()

◆ HasChangeListeners()

◆ HasListeners()

◆ Initialize()

◆ IsUsingPeakPower()

◆ NotifyChangeListeners()

◆ NotifyListeners()

◆ operator=()

◆ ProcessInput()

◆ ProcessInputBlock()

◆ RemoveChangeListener()

◆ RemoveListener()

◆ SelectAlternateFrequency()

◆ SetBandwidth()

◆ SetDutyCycle()

◆ SetFrequency()

◆ SetLinkedReceiver()

◆ SetPolarization()

◆ SetPower() [1/2]

◆ SetPower() [2/2]

◆ SetPulseCompressionRatio()

◆ SetPulseRepetitionFrequency()

◆ SetPulseRepetitionInterval()

◆ SetPulseWidth()

◆ SetTransmissionEndTime()

◆ UseDefaultFrequency() [1/2]

◆ UseDefaultFrequency() [2/2]
