WsfSAR_Sensor::SAR_Mode Class Reference

The 'mode' of the sensor. More...

#include <WsfSAR_Sensor.hpp>

Inheritance diagram for WsfSAR_Sensor::SAR_Mode:

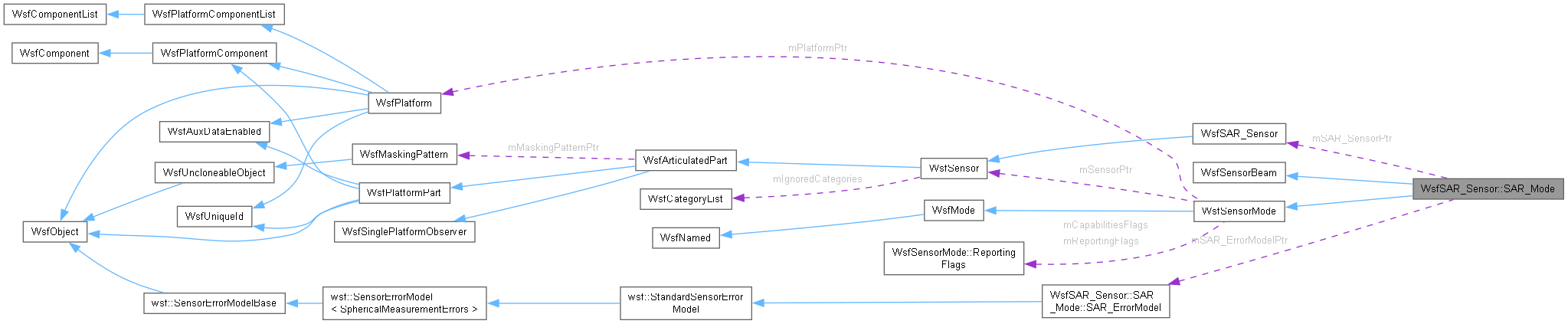

Collaboration diagram for WsfSAR_Sensor::SAR_Mode:

Classes
class	SAR_ErrorModel

Public Types
enum	OperatingMode { cOM_SPOT , cOM_STRIP }

Public Member Functions
	SAR_Mode ()
	SAR_Mode (const SAR_Mode &aSrc)
	~SAR_Mode () override=default
SAR_Mode &	operator= (const SAR_Mode &)=delete
size_t	GetBeamCount () const override
WsfSensorBeam *	GetBeamEntry (size_t) override
WsfEM_Rcvr *	GetEM_Rcvr () override
WsfEM_Xmtr *	GetEM_Xmtr () override
bool	AttemptToDetect (double aSimTime, WsfPlatform *aTargetPtr, Settings &aSettings, WsfSensorResult &aResult) override
void	Deselect (double aSimTime) override
void	Select (double aSimTime) override
WsfMode *	Clone () const override
	Create an exact duplicate of this mode.
bool	Initialize (double aSimTime) override
bool	ProcessInput (UtInput &aInput) override
void	Calibrate ()
void	ComputeGeometry (double aSimTime, Geometry &aGeometry)
	Compute the geometry parameters for a imaging or prediction request.
double	ComputeCNR (const Geometry &aGeometry, double aPRF, double aDwellTime, double aResolution)
double	ComputeDwellTime (const Geometry &aGeometry, double aResolution)
	Compute the dwell time necessary to achieve a specified resolution.
double	ComputePRF (const Geometry &aGeometry)
double	ComputeAzimuthResolution (const Geometry &aGeometry, double aDwellTime)
double	ComputeGroundRangeResolution (const Geometry &aGeometry)
bool	ComputeImageCenter (double aLocationWCS_1[3], double aLocationWCS_2[3], bool aFirstPass=false)
void	ComputeFOV (const Geometry &aGeometry)
double	ComputeSlantRange (double aAltitude, double aDepressionAngle, double &aGrazingAngle)
double	ComputeSquintAngle (WsfPlatform *aTargetPtr, double &aSlantRange)
	Compute the angle between the sensing platform's velocity vector and the target.
void	ComputeUpdateInterval (double aSimTime)
	Compute the simulation update interval for this mode.
void	PredictPerformance (const Geometry &aGeometry, double &aPRF, double &aDwellTime, double &aAzimuthResolution, double &aCNR, double &aMinimumPRF)
bool	WithinUnambiguousRange (WsfSensorResult &aResult)
void	SetIntegrationGain (double aIntegrationGain) override
Public Member Functions inherited from WsfSensorMode
	WsfSensorMode ()
	WsfSensorMode (const WsfSensorMode &aSrc)
WsfSensorMode &	operator= (const WsfSensorMode &aRhs)
	~WsfSensorMode () override
WsfPlatform *	GetPlatform () const
	Return the pointer to the platform to which the associated sensor is attached.
WsfSensor *	GetSensor () const
	Return the pointer to the sensor with which this mode is associated.
const WsfScenario &	GetScenario () const
WsfSimulation *	GetSimulation () const
bool	ProcessInput (UtInput &aInput) override
size_t	GetOnSuccessModeIndex () const
size_t	GetOnFailureModeIndex () const
int	GetMessageLength () const
	Return the logical length (int bits) of report messages that originate from this sensor mode.
int	GetMessagePriority () const
	Return the priority of report messages that originate from this sensor mode.
void	UpdateTrackPosition (WsfTrack *aTrackPtr, WsfSensorResult &aResult, const double aTgtLocationWCS[3])
WsfSensor::SlewMode	GetCueMode () const
virtual double	GetAltFreqSelectDelay () const
virtual void	ScheduleAltFreqChange (double aSimTime, int aAltFreqId=-1)
virtual bool	IsAltFreqChangeScheduled () const
virtual double	GetLastAltFreqSelectTime () const
virtual bool	IsFrequencyAgile () const
virtual void	ApplyMeasurementErrors (WsfSensorResult &aResult)
virtual WSF_DEPRECATED void	ComputeMeasurementErrors (WsfSensorResult &aResult, double &aAzError, double &aElError, double &aRangeError, double &aRangeRateError) final
virtual void	InitializeTrack (double aSimTime, WsfTrack *&aTrackPtr)
virtual void	UpdateSensorCueingLimits ()
virtual void	UpdateTrack (double aSimTime, WsfTrack *aTrackPtr, WsfPlatform *aTargetPtr, WsfSensorResult &aResult)
virtual void	UpdateTrackReportingFlags (double aSimTime, WsfTrack *aTrackPtr)
virtual bool	WithinDetectionRange (double aSimTime, WsfPlatform *aTargetPtr)
double	GetMaximumRange () const
	Return the optimistic maximum range of the sensor mode.
int	GetMaximumRequestCount () const
	Return the maximum number of cued-search or tracking requests the mode can support.
bool	DisablesSearch () const
	Does using this mode prevent this or any other mode from searching?
bool	CanSearchWhileTrack () const
	Can this mode continue to search while it is also performing tracking requests.
double	GetFrameTime () const
void	SetFrameTime (double aFrameTime)
double	GetRevisitTime () const
double	GetDwellTime () const
double	GetRequiredPd () const
double	EstablishTrackProbability () const
double	MaintainTrackProbability () const
int	HitsToEstablishTrack () const
	The number of hits (M) within the window (N) that are required to establish a track.
int	EstablishTrackWindow () const
	The window size (N) for establishing a track.
int	HitsToMaintainTrack () const
	The number of hits (M) within the window (N) that are required to maintain a track.
int	MaintainTrackWindow () const
	The window size (N) for maintaining a track.
unsigned int	EstablishTrackMask () const
unsigned int	MaintainTrackMask () const
double	GetTrackQuality () const
unsigned int	GetReportingFlags () const
	Accessors for the reporting flags.
bool	ReportsLocation () const
bool	ReportsVelocity () const
bool	ReportsRange () const
bool	ReportsBearing () const
bool	ReportsElevation () const
bool	ReportsRangeRate () const
bool	ReportsSide () const
bool	ReportsType () const
bool	ReportsIFF_Status () const
bool	ReportsSignalToNoise () const
bool	ReportsFrequency () const
bool	ReportsPulseWidth () const
bool	ReportsPulseRepititionInterval () const
const wsf::SensorErrorModelBase *	GetErrorModel () const
wsf::SensorErrorModelBase *	GetErrorModel ()
void	SetErrorModel (std::unique_ptr< wsf::SensorErrorModelBase > aErrorModelPtr)
virtual WSF_DEPRECATED double	GetAzErrorStdDev () final
virtual WSF_DEPRECATED double	GetElErrorStdDev () final
virtual WSF_DEPRECATED double	GetRangeErrorStdDev () final
virtual WSF_DEPRECATED double	GetRangeRateErrorStdDev () final
virtual WSF_DEPRECATED void	SetAzErrorStdDev (double aAzErrorStdDev) final
virtual WSF_DEPRECATED void	SetElErrorStdDev (double aElErrorStdDev) final
virtual WSF_DEPRECATED void	SetRangeErrorStdDev (double aRangeErrorStdDev) final
virtual WSF_DEPRECATED void	SetRangeRateErrorStdDev (double aRangeRateErrorStdDev) final
Public Member Functions inherited from WsfMode
	WsfMode ()
	~WsfMode () override=default
size_t	GetModeIndex () const
	Return the index of this mode within its associated mode list.
bool	IsSelected () const
	Returns 'true' if the mode is selected.
Public Member Functions inherited from WsfNamed
	WsfNamed ()
	WsfNamed (WsfStringId aName)
	WsfNamed (const WsfNamed &)=default
WsfNamed &	operator= (const WsfNamed &)=default
virtual	~WsfNamed ()=default
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)
Public Member Functions inherited from WsfSensorBeam
	WsfSensorBeam ()
	WsfSensorBeam (const WsfSensorBeam &aSrc)=default
WsfSensorBeam &	operator= (const WsfSensorBeam &aRhs)
virtual	~WsfSensorBeam ()=default
virtual int	GetNumberOfPulsesIntegrated () const
virtual double	GetIntegrationGain () const
virtual WsfEM_Clutter *	GetClutter () const
void	SetBeamOwner (WsfSensorMode *aSensorModePtr)
	Set the beam owner (the parent mode).
void	SetBeamIndex (size_t aBeamIndex)
WsfSensorMode *	GetSensorMode () const
size_t	GetBeamIndex () const
WsfSensorSignalProcessor::List &	GetSignalProcessors ()

Public Attributes
WsfSAR_Sensor *	mSAR_SensorPtr
	The pointer to the derived sensor class.
SAR_ErrorModel *	mSAR_ErrorModelPtr
	The pointer to the derived error model class.
OperatingMode	mOperatingMode
	The operating mode (spot, strip, etc.).
std::unique_ptr< WsfEM_Antenna >	mAntennaPtr
	The Antenna for the Mode.
std::unique_ptr< WsfEM_Xmtr >	mXmtrPtr
	The transmitter for a Mode.
std::unique_ptr< WsfEM_Rcvr >	mRcvrPtr
	The receiver for a Mode.
double	mKa
	Doppler filter broadening factor.
double	mKd
	Doppler fold-over margin factor (also called the over-collect ratio).
double	mResolution
	Desired azimuth resolution.
double	mDwellTime
	Desired or computed dwell/integration time.
double	mMaximumDwellTime
	Maximum dwell/integration.
double	mMinimumCNR
	Minimum allowable clutter-to-noise limit.
double	mMaxDetectableSpeed
	The speed above which an object cannot be seen.
double	mCurrentAzimuthResolution
	The current azimuth resolution.
double	mCurrentGroundRangeResolution
	The current ground range resolution.
double	mAngularResolution
	The angular resolution of a pixel (radians).
double	mIntegrationGain
	Integration gain for non-Swerling detector.
double	mAdjustmentFactor
	A term to represent a general adjustment (multiplier) to the radar range equation.
double	mOneM2DetectRange
	If non-zero, this represents the 1 m^2 detection range.
bool	mComputeDwellTime
	For spot requests, compute dwell time necessary to achieve the required image resolution.
bool	mComputePRF
	Compute the pulse repetition frequency.
bool	mAutomaticTurnOff
bool	mInhibitSubstandardCollection
	Inhibit collection if the computed dwell time is greater than the maximum allowable.
double	mImageHeight
	Image height and width in meters; used for spot SAR.
double	mImageWidth
double	mImageCenterWCS [3]
	The approximate image center.

Additional Inherited Members
bool	InitializeReporting ()
virtual void	SelectAlternateFrequency (double aSimTime, int aAltFreqId=-1)
void	SetCapabilities (unsigned int aFlags)
void	SetReportingFlags (unsigned int aFlags)
WsfSensor *	mSensorPtr
	Pointer to the sensor with which the mode is associated.
WsfPlatform *	mPlatformPtr
	Pointer to the platform with which the sensor is associated.
double	mMaximumRange
double	mAzCueRate
double	mElCueRate
double	mMinAzCue
double	mMaxAzCue
double	mMinElCue
double	mMaxElCue
WsfSensor::SlewMode	mCueMode
int	mMaximumRequestCount
bool	mCanSearchWhileTrack
bool	mDisablesSearch
double	mFrameTime
double	mRevisitTime
double	mDwellTime
double	mRequiredPd
double	mEstablishTrackProbability
	When the M/N establish track criteria is met, this is the probability that a track will be established.
double	mMaintainTrackProbability
int	mHitsToEstablishTrack
	The number of hits (M) within the window (N) that are required to establish a track.
int	mEstablishTrackWindow
	The window size (N) for establishing a track.
unsigned int	mEstablishTrackMask
int	mHitsToMaintainTrack
	The number of hits (M) within the window (N) that are required to maintain a track.
int	mMaintainTrackWindow
	The window size (N) for maintaining a track.
unsigned int	mMaintainTrackMask
double	mTrackQuality
	Base line track quality (0..1].
double	mAzErrorStdDev
double	mElErrorStdDev
double	mRangeErrorStdDev
double	mRangeRateErrorStdDev
	Range rate error standard deviation.
ut::CloneablePtr< wsf::SensorErrorModelBase >	mErrorModelPtr {nullptr}
	The model that calculates and applies errors to sensor detection results.
WsfStringId	mOnSuccessModeName
size_t	mOnSuccessModeIndex
WsfStringId	mOnFailureModeName
size_t	mOnFailureModeIndex
int	mMessageLength
	The length of messages originating from this sensor mode.
int	mMessagePriority
	The priority of messages originating from this sensor mode.
WsfSpatialDomain	mReportsSpatialDomain
ReportingFlags	mReportingFlags
ReportingFlags	mCapabilitiesFlags
static const unsigned int	cNONE = 0
	The following are flags/masks meant to be combined and used in the SetCapabilities method.
static const unsigned int	cLOCATION = 1
static const unsigned int	cVELOCITY = 2
static const unsigned int	cRANGE = 4
static const unsigned int	cBEARING = 8
static const unsigned int	cELEVATION = 16
static const unsigned int	cRANGE_RATE = 32
static const unsigned int	cSIDE = 64
static const unsigned int	cTYPE = 128
static const unsigned int	cIFF_STATUS = 256
static const unsigned int	cSIGNAL_TO_NOISE = 512
static const unsigned int	cFREQUENCY = 1024
static const unsigned int	cPULSEWIDTH = 2048
static const unsigned int	cPULSE_REPITITION_INTERVAL = 4096
static const unsigned int	cSTATE_COVARIANCE = 8192
static const unsigned int	cOTHER = 16384
static const unsigned int	cALL = 0xFFFFFFFF
	Catch-all for anything other than the above.

Detailed Description

The 'mode' of the sensor.

Member Enumeration Documentation

OperatingMode

enum WsfSAR_Sensor::SAR_Mode::OperatingMode

Enumerator
cOM_SPOT
cOM_STRIP

Constructor & Destructor Documentation

SAR_Mode() [1/2]

WsfSAR_Sensor::SAR_Mode::SAR_Mode

(

)

References cOM_SPOT, GetEM_Rcvr(), mAdjustmentFactor, mAngularResolution, mAntennaPtr, mAutomaticTurnOff, mComputeDwellTime, mComputePRF, mCurrentAzimuthResolution, mCurrentGroundRangeResolution, mDwellTime, WsfSensorMode::mErrorModelPtr, mImageCenterWCS, mImageHeight, mImageWidth, mInhibitSubstandardCollection, mIntegrationGain, mKa, mKd, mMaxDetectableSpeed, mMaximumDwellTime, mMinimumCNR, mOneM2DetectRange, mOperatingMode, mRcvrPtr, mResolution, mSAR_ErrorModelPtr, mSAR_SensorPtr, mXmtrPtr, WsfSensorBeam::SetBeamOwner(), WsfSensorMode::SetErrorModel(), WsfSensorBeam::WsfSensorBeam(), and WsfSensorBeam::WsfSensorMode.

Referenced by WsfSAR_Sensor::SAR_Mode::SAR_ErrorModel::Initialize(), operator=(), and SAR_Mode().

SAR_Mode() [2/2]

WsfSAR_Sensor::SAR_Mode::SAR_Mode

(

const SAR_Mode &

aSrc

)

References GetEM_Rcvr(), mAdjustmentFactor, mAngularResolution, mAntennaPtr, mAutomaticTurnOff, mComputeDwellTime, mComputePRF, mCurrentAzimuthResolution, mCurrentGroundRangeResolution, mDwellTime, WsfSensorMode::mErrorModelPtr, mImageCenterWCS, mImageHeight, mImageWidth, mInhibitSubstandardCollection, mIntegrationGain, mKa, mKd, mMaxDetectableSpeed, mMaximumDwellTime, mMinimumCNR, mOneM2DetectRange, mOperatingMode, mRcvrPtr, mResolution, mSAR_ErrorModelPtr, mSAR_SensorPtr, mXmtrPtr, SAR_Mode(), WsfSensorBeam::WsfSensorBeam(), and WsfSensorBeam::WsfSensorMode.

~SAR_Mode()

WsfSAR_Sensor::SAR_Mode::~SAR_Mode ( )

overridedefault

Member Function Documentation

AttemptToDetect()

bool WsfSAR_Sensor::SAR_Mode::AttemptToDetect ( double aSimTime, WsfPlatform * aTargetPtr, Settings & aSettings, WsfSensorResult & aResult )

overridevirtual

Attempt to detect the specified target.

Parameters

aSimTime	[input] The current simulation time.
aTargetPtr	[input] The platform that will be attempted to be detected.
aSettings	[input] The sensor settings.
aResult	[output] The results of the detection attempt.

Returns

'true' if the target was detected or 'false' if it was not detected.

Implements WsfSensorMode.

References WsfSensorComponent::AttemptToDetect(), WsfSensorResult::BeginGenericInteraction(), WsfSensorResult::BeginTwoWayInteraction(), WsfSensorResult::cCONCEALMENT, WsfEM_Interaction::ComputeRadarSigAzEl(), WsfEM_Interaction::ComputeRF_TwoWayPower(), WsfSensorResult::cVELOCITY_LIMITS, WsfEM_Interaction::cXMTR_RANGE_LIMITS, WsfPlatformPart::DebugEnabled(), WsfPlatform::GetConcealmentFactor(), WsfObject::GetName(), WsfPlatformPart::GetPlatform(), WsfSensorMode::GetSensor(), WsfOpticalSignature::GetValue(), WsfRadarSignature::GetValue(), WsfSensor::GetZoneAttenuationModifier(), mAdjustmentFactor, WsfEM_Interaction::MaskedByTerrain(), WsfEM_Interaction::mCheckedStatus, WsfEM_Interaction::mClutterPower, mCurrentAzimuthResolution, mCurrentGroundRangeResolution, mDwellTime, WsfSensorMode::mErrorModelPtr, WsfEM_Interaction::mFailedStatus, mIntegrationGain, WsfEM_Interaction::mInterferenceFactor, WsfEM_Interaction::mInterferencePower, mMaxDetectableSpeed, WsfEM_Interaction::mOpticalSig, WsfEM_Interaction::mOpticalSigAz, WsfEM_Interaction::mOpticalSigEl, WsfSensorResult::mPd, WsfEM_Interaction::mPixelCount, WsfEM_Interaction::mRadarSig, WsfEM_Interaction::mRadarSigAz, WsfEM_Interaction::mRadarSigEl, WsfEM_Interaction::mRcvdPower, mRcvrPtr, WsfSensor::Settings::mRequiredPd, WsfEM_Interaction::mSignalToNoise, mXmtrPtr, WsfSensorComponent::PostAttemptToDetect(), WsfEM_Interaction::Print(), WsfSensorResult::Reset(), WsfEM_Interaction::SetCategory(), WsfEM_Interaction::SetReceiverBeamPosition(), WsfEM_Interaction::SetTransmitterBeamPosition(), WsfPlatform::Update(), and WithinUnambiguousRange().

Calibrate()

void WsfSAR_Sensor::SAR_Mode::Calibrate

(

)

References WsfEM_XmtrRcvr::GetAntennaGain(), WsfEM_Xmtr::GetAveragePower(), WsfEM_XmtrRcvr::GetAzimuthBeamwidth(), WsfEM_Rcvr::GetDetectionThreshold(), WsfEM_XmtrRcvr::GetElevationBeamwidth(), WsfSAR_Sensor::GetEM_Rcvr(), WsfSAR_Sensor::GetEM_Xmtr(), WsfEM_XmtrRcvr::GetFrequency(), WsfEM_XmtrRcvr::GetInternalLoss(), WsfEM_Rcvr::GetNoisePower(), WsfEM_XmtrRcvr::GetPeakAntennaGain(), WsfEM_Xmtr::GetPeakPower(), WsfEM_XmtrRcvr::GetPolarization(), WsfEM_Xmtr::GetPower(), WsfEM_Xmtr::GetPulseCompressionRatio(), WsfEM_Xmtr::GetPulseRepetitionFrequency(), WsfEM_Xmtr::GetPulseWidth(), mAdjustmentFactor, mIntegrationGain, mOneM2DetectRange, WsfSensorMode::mSensorPtr, and WsfEM_Rcvr::SetNoisePower().

Referenced by Initialize().

Clone()

WsfMode * WsfSAR_Sensor::SAR_Mode::Clone ( ) const

overridevirtual

Create an exact duplicate of this mode.

Implements WsfSensorMode.

References WsfSAR_Sensor::SAR_Mode, and WsfMode::WsfMode().

ComputeAzimuthResolution()

double WsfSAR_Sensor::SAR_Mode::ComputeAzimuthResolution	(	const Geometry &	aGeometry,
		double	aDwellTime )

References mAngularResolution, WsfSAR_Sensor::Geometry::mGrazingAngle, WsfSAR_Sensor::Geometry::mGroundSpeed, mKa, WsfSAR_Sensor::Geometry::mScanAngle, WsfSAR_Sensor::Geometry::mSlantRange, WsfSAR_Sensor::Geometry::mSquintAngle, and mXmtrPtr.

Referenced by WsfSAR_Sensor::AttemptToDetect(), and PredictPerformance().

ComputeCNR()

double WsfSAR_Sensor::SAR_Mode::ComputeCNR	(	const Geometry &	aGeometry,
		double	aPRF,
		double	aDwellTime,
		double	aResolution )

Compute the Clutter-to-Noise Ratio This assumes UpdatePosition and ComputeGeometry have been called.

References WsfSensorResult::BeginGenericInteraction(), WsfEM_Interaction::ComputeRF_TwoWayPower(), WsfSensorResult::ComputeUndefinedGeometry(), WsfSensorMode::GetSensor(), mAdjustmentFactor, WsfSAR_Sensor::Geometry::mGrazingAngle, mIntegrationGain, mRcvrPtr, mSAR_SensorPtr, WsfSAR_Sensor::Geometry::mScanAngle, WsfSAR_Sensor::Geometry::mSlantRange, mXmtrPtr, WsfEM_Interaction::SetReceiverBeamPosition(), and WsfEM_Interaction::SetTransmitterBeamPosition().

Referenced by PredictPerformance().

ComputeDwellTime()

double WsfSAR_Sensor::SAR_Mode::ComputeDwellTime	(	const Geometry &	aGeometry,
		double	aResolution )

Compute the dwell time necessary to achieve a specified resolution.

References WsfSAR_Sensor::Geometry::mGrazingAngle, WsfSAR_Sensor::Geometry::mGroundSpeed, mKa, mMaximumDwellTime, WsfSAR_Sensor::Geometry::mScanAngle, WsfSAR_Sensor::Geometry::mSlantRange, WsfSAR_Sensor::Geometry::mSquintAngle, and mXmtrPtr.

Referenced by WsfSAR_Sensor::AttemptToDetect(), and PredictPerformance().

ComputeFOV()

void WsfSAR_Sensor::SAR_Mode::ComputeFOV

(

const Geometry &

aGeometry

)

Computes the sensor FOV if image height and width constraints are given.

Parameters

aGeometry

Current sensor geometry

References WsfArticulatedPart::cCUED_TO_ANGLE, WsfArticulatedPart::cCUED_TO_LOCATION, WsfArticulatedPart::cCUED_TO_NOTHING, ComputeImageCenter(), WsfArticulatedPart::GetCueType(), WsfPlatformPart::GetPlatform(), WsfSensorMode::GetSensor(), mAntennaPtr, WsfSAR_Sensor::Geometry::mDepressionAngle, mImageCenterWCS, mImageHeight, mImageWidth, and WsfSAR_Sensor::Geometry::mSlantRange.

Referenced by ComputeGeometry().

ComputeGeometry()

void WsfSAR_Sensor::SAR_Mode::ComputeGeometry	(	double	aSimTime,
		Geometry &	aGeometry )

Compute the geometry parameters for a imaging or prediction request.

References WsfArticulatedPart::cAT_LIMIT_MASK, WsfEM_Antenna::cEBS_AZIMUTH, WsfEM_Antenna::cEBS_ELEVATION, WsfEM_Antenna::cEBS_NONE, ComputeFOV(), ComputeSlantRange(), WsfPlatformPart::DebugEnabled(), WsfArticulatedPart::GetMaxAzCue(), WsfArticulatedPart::GetMaxAzSlew(), WsfArticulatedPart::GetMaxElCue(), WsfArticulatedPart::GetMaxElSlew(), WsfArticulatedPart::GetMinAzCue(), WsfArticulatedPart::GetMinAzSlew(), WsfArticulatedPart::GetMinElCue(), WsfArticulatedPart::GetMinElSlew(), WsfPlatformPart::GetPlatform(), WsfSensorMode::GetSensor(), WsfArticulatedPart::GetSlewState(), WsfSAR_Sensor::Geometry::mAltitude, mAntennaPtr, WsfSAR_Sensor::Geometry::mDepressionAngle, WsfSAR_Sensor::Geometry::mGrazingAngle, WsfSAR_Sensor::Geometry::mGroundSpeed, WsfSAR_Sensor::Geometry::mScanAngle, WsfSAR_Sensor::Geometry::mSlantRange, WsfSAR_Sensor::Geometry::mSquintAngle, WsfSAR_Sensor::Geometry::mTotalAngle, mXmtrPtr, platformPtr, WsfArticulatedPart::SetAzCueLimits(), WsfArticulatedPart::SetAzSlewLimits(), WsfArticulatedPart::SetElCueLimits(), WsfArticulatedPart::SetElSlewLimits(), WsfSensor::UpdatePosition(), and WsfSensorBeam::WsfSensor.

Referenced by WsfSAR_Sensor::AttemptToDetect(), WsfSAR_Sensor::CanImageNow(), and ComputeUpdateInterval().

ComputeGroundRangeResolution()

double WsfSAR_Sensor::SAR_Mode::ComputeGroundRangeResolution

(

const Geometry &

aGeometry

)

References mAngularResolution, WsfSAR_Sensor::Geometry::mGrazingAngle, mRcvrPtr, mResolution, WsfSAR_Sensor::Geometry::mSlantRange, and mXmtrPtr.

Referenced by WsfSAR_Sensor::AttemptToDetect().

ComputeImageCenter()

bool WsfSAR_Sensor::SAR_Mode::ComputeImageCenter	(	double	aLocationWCS_1[3],
		double	aLocationWCS_2[3],
		bool	aFirstPass = false )

Computes the center of the image. (Recursive)

Parameters

aLocationWCS_1	WCS location of point 1
aLocationWCS_2	WCS location of point 2
aFirstPass	Set to true if first pass (default = false)

Returns

'true' if image center calculation is complete or 'false' if not.

References ComputeImageCenter(), and WsfPlatformPart::GetSimulation().

Referenced by ComputeFOV(), and ComputeImageCenter().

ComputePRF()

double WsfSAR_Sensor::SAR_Mode::ComputePRF

(

const Geometry &

aGeometry

)

References ComputeSlantRange(), WsfSAR_Sensor::Geometry::mAltitude, WsfSAR_Sensor::Geometry::mDepressionAngle, mSAR_SensorPtr, and WsfSAR_Sensor::Geometry::mSlantRange.

Referenced by WsfSAR_Sensor::AttemptToDetect(), and PredictPerformance().

ComputeSlantRange()

double WsfSAR_Sensor::SAR_Mode::ComputeSlantRange	(	double	aAltitude,
		double	aDepressionAngle,
		double &	aGrazingAngle )

Compute the slant range to the 'center-of-interest' for a given altitude and depression angle.

Parameters

aAltitude	[input] The altitude of the sensor. (meters above MSL)
aDepressionAngle	[input] The depression angle to the center-of-interest. (radians). This is the POSITIVE angle that between the pointing vector to the center-of-interest and the local horizontal plane at the sensor.
aGrazingAngle	[output] The angle between the pointing vector to the center-of-interest and the local horizontal plane at the center of interest. (radians)

Returns

The slant range to the center of interest. (meters)

References mXmtrPtr.

Referenced by ComputeGeometry(), and ComputePRF().

ComputeSquintAngle()

double WsfSAR_Sensor::SAR_Mode::ComputeSquintAngle	(	WsfPlatform *	aTargetPtr,
		double &	aSlantRange )

Compute the angle between the sensing platform's velocity vector and the target.

References WsfPlatformPart::GetPlatform(), and platformPtr.

ComputeUpdateInterval()

void WsfSAR_Sensor::SAR_Mode::ComputeUpdateInterval

(

double

aSimTime

)

Compute the simulation update interval for this mode.

References cOM_STRIP, ComputeGeometry(), WsfSensorMode::GetFrameTime(), WsfObject::GetName(), WsfPlatformPart::GetPlatform(), WsfSensorMode::GetSensor(), WsfSAR_Sensor::Geometry::mGroundSpeed, mOperatingMode, mSAR_SensorPtr, WsfSAR_Sensor::Geometry::mSlantRange, and mXmtrPtr.

Referenced by Select().

Deselect()

void WsfSAR_Sensor::SAR_Mode::Deselect ( double aSimTime )

overridevirtual

The mode is being deselected. The specific implementation should perform whatever actions are associated with deselecting the mode (e.g.: deactivating transmitters or receivers).

Parameters

aSimTime

[input] The current simulation time.

Implements WsfSensorMode.

References mRcvrPtr, and mXmtrPtr.

GetBeamCount()

size_t WsfSAR_Sensor::SAR_Mode::GetBeamCount ( ) const

inlineoverridevirtual

Return the number of beams in the mode. Derived classes should return the number of beams that are defined.

Returns

The number of beams defined. The result will be 0 if the derived class does not support beams.

Reimplemented from WsfSensorMode.

GetBeamEntry()

WsfSensorBeam * WsfSAR_Sensor::SAR_Mode::GetBeamEntry ( size_t aIndex )

inlineoverridevirtual

Return a pointer to the beam with the specified index. A derived class will return a pointer

Parameters

aIndex

The index of the beam to be retrieved. The index is NOT checked for validity. It MUST be in the range [0..GetBeamCount()].

Returns

A pointer to the beam. The results are undefined if an invalid index is provided or if the derived class does not support beams.

Reimplemented from WsfSensorMode.

References WsfSensorBeam::WsfSensorBeam().

GetEM_Rcvr()

WsfEM_Rcvr * WsfSAR_Sensor::SAR_Mode::GetEM_Rcvr ( )

inlineoverridevirtual

Reimplemented from WsfSensorBeam.

References mRcvrPtr.

Referenced by SAR_Mode(), and SAR_Mode().

GetEM_Xmtr()

WsfEM_Xmtr * WsfSAR_Sensor::SAR_Mode::GetEM_Xmtr ( )

inlineoverridevirtual

Reimplemented from WsfSensorBeam.

References mXmtrPtr.

Initialize()

bool WsfSAR_Sensor::SAR_Mode::Initialize ( double aSimTime )

overridevirtual

Initialize the sensor mode.

Parameters

aSimTime

The current simulation time.

Returns

'true' if the mode was successfully initialize or 'false' if not.

Reimplemented from WsfSensorMode.

References Calibrate(), WsfObject::GetName(), WsfPlatformPart::GetPlatform(), WsfSensorMode::GetSensor(), WsfPlatformPart::GetSimulation(), WsfSensorMode::Initialize(), mAntennaPtr, mAutomaticTurnOff, mComputeDwellTime, mComputePRF, mDwellTime, WsfSensorMode::mFrameTime, mRcvrPtr, mResolution, mSAR_SensorPtr, WsfSensorMode::mSensorPtr, mXmtrPtr, ok, and WsfSAR_Sensor::WsfSAR_Sensor().

operator=()

SAR_Mode & WsfSAR_Sensor::SAR_Mode::operator= ( const SAR_Mode & )

delete

References SAR_Mode().

PredictPerformance()

void WsfSAR_Sensor::SAR_Mode::PredictPerformance	(	const Geometry &	aGeometry,
		double &	aPRF,
		double &	aDwellTime,
		double &	aAzimuthResolution,
		double &	aCNR,
		double &	aMinimumPRF )

References ComputeAzimuthResolution(), ComputeCNR(), ComputeDwellTime(), ComputePRF(), mComputeDwellTime, mComputePRF, mDwellTime, WsfSAR_Sensor::Geometry::mGroundSpeed, mKd, mResolution, WsfSAR_Sensor::Geometry::mScanAngle, WsfSAR_Sensor::Geometry::mTotalAngle, and mXmtrPtr.

Referenced by WsfSAR_Sensor::CanImageNow().

ProcessInput()

bool WsfSAR_Sensor::SAR_Mode::ProcessInput ( UtInput & aInput )

overridevirtual

Reimplemented from WsfMode.

References cOM_SPOT, cOM_STRIP, mAdjustmentFactor, mAngularResolution, mAntennaPtr, mAutomaticTurnOff, mComputeDwellTime, mDwellTime, mImageHeight, mImageWidth, mInhibitSubstandardCollection, mIntegrationGain, mKa, mKd, mMaxDetectableSpeed, mMaximumDwellTime, mMinimumCNR, mOneM2DetectRange, mOperatingMode, mRcvrPtr, mResolution, mXmtrPtr, WsfSensorBeam::ProcessInput(), and WsfSensorMode::ProcessInput().

Select()

void WsfSAR_Sensor::SAR_Mode::Select ( double aSimTime )

overridevirtual

The mode is being activated. The specific implementation should perform whatever actions are associated with selecting the mode (e.g.: activating transmitters or receivers).

Parameters

aSimTime

[input] The current simulation time.

Implements WsfSensorMode.

References ComputeUpdateInterval(), mRcvrPtr, and mXmtrPtr.

SetIntegrationGain()

void WsfSAR_Sensor::SAR_Mode::SetIntegrationGain ( double aIntegrationGain )

inlineoverridevirtual

Reimplemented from WsfSensorBeam.

References mIntegrationGain.

WithinUnambiguousRange()

bool WsfSAR_Sensor::SAR_Mode::WithinUnambiguousRange

(

WsfSensorResult &

aResult

)

References WsfEM_Interaction::RelativeData::mRange, mXmtrPtr, and WsfEM_Interaction::mXmtrToTgt.

Referenced by AttemptToDetect().

Member Data Documentation

mAdjustmentFactor

double WsfSAR_Sensor::SAR_Mode::mAdjustmentFactor

A term to represent a general adjustment (multiplier) to the radar range equation.

Referenced by AttemptToDetect(), Calibrate(), ComputeCNR(), ProcessInput(), SAR_Mode(), and SAR_Mode().

mAngularResolution

double WsfSAR_Sensor::SAR_Mode::mAngularResolution

The angular resolution of a pixel (radians).

Additional data to represent the sensor more simply (like in WsfRadarSensor).

Referenced by ComputeAzimuthResolution(), ComputeGroundRangeResolution(), ProcessInput(), SAR_Mode(), and SAR_Mode().

mAntennaPtr

std::unique_ptr<WsfEM_Antenna> WsfSAR_Sensor::SAR_Mode::mAntennaPtr

The Antenna for the Mode.

Referenced by ComputeFOV(), ComputeGeometry(), Initialize(), ProcessInput(), SAR_Mode(), and SAR_Mode().

mAutomaticTurnOff

bool WsfSAR_Sensor::SAR_Mode::mAutomaticTurnOff

For spot mode only, 'true' if the sensor is to be automatically turned off at the end of the image formation time. If 'false' then the sensor must be turned off manually, and the sensor will continue to form the image.

Note that the image is not delivered UNTIL the sensor is turned off!

Referenced by Initialize(), ProcessInput(), SAR_Mode(), and SAR_Mode().

mComputeDwellTime

bool WsfSAR_Sensor::SAR_Mode::mComputeDwellTime

For spot requests, compute dwell time necessary to achieve the required image resolution.

Referenced by WsfSAR_Sensor::AttemptToDetect(), Initialize(), PredictPerformance(), ProcessInput(), SAR_Mode(), SAR_Mode(), WsfSAR_Sensor::SetDwellTime(), and WsfSAR_Sensor::SetResolution().

mComputePRF

bool WsfSAR_Sensor::SAR_Mode::mComputePRF

Compute the pulse repetition frequency.

Referenced by WsfSAR_Sensor::AttemptToDetect(), Initialize(), PredictPerformance(), SAR_Mode(), and SAR_Mode().

mCurrentAzimuthResolution

double WsfSAR_Sensor::SAR_Mode::mCurrentAzimuthResolution

The current azimuth resolution.

Referenced by WsfSAR_Sensor::AttemptToDetect(), AttemptToDetect(), SAR_Mode(), and SAR_Mode().

mCurrentGroundRangeResolution

double WsfSAR_Sensor::SAR_Mode::mCurrentGroundRangeResolution

The current ground range resolution.

Referenced by WsfSAR_Sensor::AttemptToDetect(), AttemptToDetect(), SAR_Mode(), and SAR_Mode().

mDwellTime

double WsfSAR_Sensor::SAR_Mode::mDwellTime

Desired or computed dwell/integration time.

Referenced by WsfSAR_Sensor::AttemptToDetect(), AttemptToDetect(), WsfSAR_Sensor::GetDwellTime(), Initialize(), PredictPerformance(), ProcessInput(), SAR_Mode(), SAR_Mode(), WsfSAR_Sensor::SetDwellTime(), and UT_DEFINE_SCRIPT_METHOD().

mImageCenterWCS

double WsfSAR_Sensor::SAR_Mode::mImageCenterWCS[3]

The approximate image center.

Referenced by ComputeFOV(), SAR_Mode(), and SAR_Mode().

mImageHeight

double WsfSAR_Sensor::SAR_Mode::mImageHeight

Image height and width in meters; used for spot SAR.

Referenced by ComputeFOV(), ProcessInput(), SAR_Mode(), and SAR_Mode().

mImageWidth

double WsfSAR_Sensor::SAR_Mode::mImageWidth

Referenced by ComputeFOV(), ProcessInput(), SAR_Mode(), and SAR_Mode().

mInhibitSubstandardCollection

bool WsfSAR_Sensor::SAR_Mode::mInhibitSubstandardCollection

Inhibit collection if the computed dwell time is greater than the maximum allowable.

Referenced by ProcessInput(), SAR_Mode(), and SAR_Mode().

mIntegrationGain

double WsfSAR_Sensor::SAR_Mode::mIntegrationGain

Integration gain for non-Swerling detector.

Referenced by AttemptToDetect(), Calibrate(), ComputeCNR(), ProcessInput(), SAR_Mode(), SAR_Mode(), and SetIntegrationGain().

mKa

double WsfSAR_Sensor::SAR_Mode::mKa

Doppler filter broadening factor.

Referenced by ComputeAzimuthResolution(), ComputeDwellTime(), ProcessInput(), SAR_Mode(), and SAR_Mode().

mKd

double WsfSAR_Sensor::SAR_Mode::mKd

Doppler fold-over margin factor (also called the over-collect ratio).

Referenced by PredictPerformance(), ProcessInput(), SAR_Mode(), and SAR_Mode().

mMaxDetectableSpeed

double WsfSAR_Sensor::SAR_Mode::mMaxDetectableSpeed

The speed above which an object cannot be seen.

Referenced by AttemptToDetect(), ProcessInput(), SAR_Mode(), and SAR_Mode().

mMaximumDwellTime

double WsfSAR_Sensor::SAR_Mode::mMaximumDwellTime

Maximum dwell/integration.

Referenced by WsfSAR_Sensor::AttemptToDetect(), WsfSAR_Sensor::CanImageNow(), ComputeDwellTime(), ProcessInput(), SAR_Mode(), and SAR_Mode().

mMinimumCNR

double WsfSAR_Sensor::SAR_Mode::mMinimumCNR

Minimum allowable clutter-to-noise limit.

Referenced by ProcessInput(), SAR_Mode(), and SAR_Mode().

mOneM2DetectRange

double WsfSAR_Sensor::SAR_Mode::mOneM2DetectRange

If non-zero, this represents the 1 m^2 detection range.

Referenced by Calibrate(), ProcessInput(), SAR_Mode(), and SAR_Mode().

mOperatingMode

OperatingMode WsfSAR_Sensor::SAR_Mode::mOperatingMode

The operating mode (spot, strip, etc.).

Referenced by ComputeUpdateInterval(), ProcessInput(), SAR_Mode(), SAR_Mode(), WsfSAR_Sensor::TurnOff(), and WsfSAR_Sensor::Update().

mRcvrPtr

std::unique_ptr<WsfEM_Rcvr> WsfSAR_Sensor::SAR_Mode::mRcvrPtr

The receiver for a Mode.

Referenced by AttemptToDetect(), ComputeCNR(), ComputeGroundRangeResolution(), Deselect(), GetEM_Rcvr(), Initialize(), ProcessInput(), SAR_Mode(), SAR_Mode(), and Select().

mResolution

double WsfSAR_Sensor::SAR_Mode::mResolution

Desired azimuth resolution.

Referenced by WsfSAR_Sensor::AttemptToDetect(), ComputeGroundRangeResolution(), WsfSAR_Sensor::GetResolution(), Initialize(), PredictPerformance(), ProcessInput(), SAR_Mode(), SAR_Mode(), WsfSAR_Sensor::SetResolution(), and UT_DEFINE_SCRIPT_METHOD().

mSAR_ErrorModelPtr

SAR_ErrorModel* WsfSAR_Sensor::SAR_Mode::mSAR_ErrorModelPtr

The pointer to the derived error model class.

Referenced by SAR_Mode(), and SAR_Mode().

mSAR_SensorPtr

WsfSAR_Sensor* WsfSAR_Sensor::SAR_Mode::mSAR_SensorPtr

The pointer to the derived sensor class.

Referenced by ComputeCNR(), ComputePRF(), ComputeUpdateInterval(), Initialize(), SAR_Mode(), and SAR_Mode().

mXmtrPtr

std::unique_ptr<WsfEM_Xmtr> WsfSAR_Sensor::SAR_Mode::mXmtrPtr

The transmitter for a Mode.

Referenced by WsfSAR_Sensor::AttemptToDetect(), AttemptToDetect(), ComputeAzimuthResolution(), ComputeCNR(), ComputeDwellTime(), ComputeGeometry(), ComputeGroundRangeResolution(), ComputeSlantRange(), ComputeUpdateInterval(), Deselect(), GetEM_Xmtr(), Initialize(), PredictPerformance(), ProcessInput(), SAR_Mode(), SAR_Mode(), Select(), and WithinUnambiguousRange().

---

The documentation for this class was generated from the following files:

• WsfSAR_Sensor.hpp
• WsfSAR_Sensor.cpp
