WsfJTIDS_Terminal Class Reference

A specialization of WsfComm representing a JTIDS terminal. More...

#include <WsfJTIDS_Terminal.hpp>

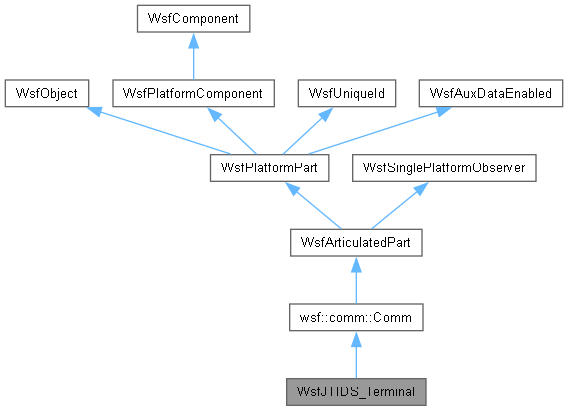

Inheritance diagram for WsfJTIDS_Terminal:

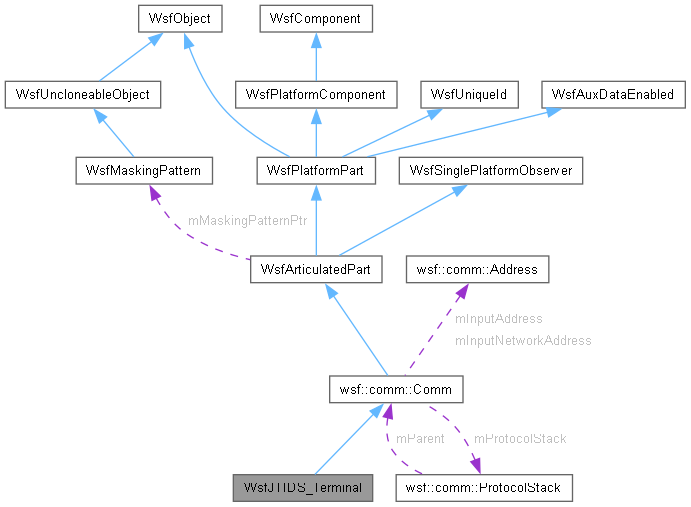

Collaboration diagram for WsfJTIDS_Terminal:

Public Member Functions
	WsfJTIDS_Terminal (WsfScenario &aScenario)
	~WsfJTIDS_Terminal () override
Public Member Functions inherited from wsf::comm::Comm
	Comm (const WsfScenario &aScenario, CommType aCommType=cCT_XMT_RCV)
	~Comm () override=default
Comm &	operator= (const Comm &aRhs)=delete
ComponentList &	GetComponents ()
const ComponentList &	GetComponents () const
virtual bool	SendActions (double aSimTime, bool aSendStatus, Message &aMessage)
WsfComponent *	CloneComponent () const override
const int *	GetComponentRoles () const override
void *	QueryInterface (int aRole) override
int	GetComponentInitializationOrder () const override
const char *	GetScriptClassName () const override
bool	PreInitialize (double aSimTime) override
bool	Initialize2 (double aSimTime) override
void	PreInput () override
bool	ProcessInput (UtInput &aInput) override
void	Update (double aSimTime) override
virtual void	Setup ()
virtual void	PendingStart ()
void	PartBroken (double aSimTime) override
void	SetNonOperational (double aSimTime) override
void	SetOperational (double aSimTime) override
void	TurnOn (double aSimTime) override
virtual void	AddLinkAddress (const Address &aAddress)
virtual void	AddLink (const std::string &aPlatformName, const std::string &aCommName)
const Address &	GetGateway () const
const std::string &	GetGatewayRemotePlatform () const
const std::string &	GetGatewayRemoteComm () const
void	SetGateway (const Address &aAddress)
virtual bool	CanSendTo (double aSimTime, Comm *aRcvrPtr, Message *aMessagePtr=nullptr)
virtual bool	Receive (double aSimTime, Comm *aXmtrPtr, Message &aMessage)
virtual bool	Send (double aSimTime, std::unique_ptr< WsfMessage > aMessagePtr, const Address &aAddress)
virtual WSF_DEPRECATED bool	Send (double aSimTime, const WsfMessage &aMessage, const Address &aAddress) final
virtual bool	ProcessLayerMessage (double aSimTime, size_t aLayerIndex, layer::Message aLayerMessage, Message *aCommMessagePtr)
	Process a layer event.
CommType	GetCommType () const
	Returns the comm device's true type as was intended on construction.
WsfStringId	GetClassId () const
const Address &	GetAddress () const
const Address &	GetInputAddress () const
	Returns the user indicated interface address.
const std::string &	GetNetwork () const
size_t	GetNumChannels () const
const std::string &	GetInputNetwork () const
	Returns the user indicated network membership.
const Address &	GetInputNetworkAddress () const
	Returns the user indicated network membership in address format.
const LinkAddress &	GetLinkAddresses () const
	Returns the user suppled interface linkage in address format.
const LinkPair &	GetLinkPairs () const
	Returns the user supplied interface linkage in platform/comm name format.
void	SetAddress (const Address &aAddress)
void	SetNetwork (const std::string &aNetwork)
virtual std::string	GetFullName () const
	Returns comm device name as a string.
virtual bool	CanReceive () const
virtual bool	CanSend () const
void	SetReceiveEnabled (bool aIsEnabled)
void	SetTransmitEnabled (bool aIsEnabled)
router::Router *	GetRouter () const
void	SetRouter (router::Router *aRouterPtr)
const std::string &	GetRouterName () const
void	SetRouterName (const std::string &aRouterName)
std::vector< ProtocolInterface * >	GetSortedProtocols () const
MulticastConformanceLevel	GetMulticastLevel () const
virtual void	SetMulticastLevel ()
ProtocolStack &	GetProtocolStack ()
	Accessor/mutator for protocol stack.
const ProtocolStack &	GetProtocolStack () const
Public Member Functions inherited from WsfArticulatedPart
	WsfArticulatedPart (const WsfScenario &aScenario, int aPartType)
	WsfArticulatedPart (const WsfArticulatedPart &aSrc)
	~WsfArticulatedPart () override
void	SetPositionRateECS (const double aDX, const double aDY, const double aDZ)
void	GetCurrentPositionRateECS (double &aDX, double &aDY, double &aDZ) const
double	GetDX () const
double	GetDY () const
double	GetDZ () const
void	EnableArticulationUpdates (double aSimTime, double aInterval)
void	DisableArticulationUpdates (double aSimTime)
void	SetArticulationUpdateInterval (double aUpdateInterval)
double	GetArticulationUpdateInterval () const
unsigned int	GetArticulationUpdateEventEpoch () const
void	IncrementArticulationUpdateEventEpoch ()
bool	ArticulationUpdateEventActive () const
	Is an 'Update' event active?
void	SetArticulationUpdateEventActive (bool aUpdateEventActive)
	Indicate if the 'Update' event is active.
virtual double	TimeToCue (double aDesiredAz, double aDesiredEl) const
const int *	GetComponentRoles () const override
void *	QueryInterface (int aRole) override
const char *	GetScriptClassName () const override
bool	ProcessInput (UtInput &aInput) override
void	SetPlatform (WsfPlatform *aPlatformPtr) override
virtual void	UpdatePosition (double aSimTime)
void	OnPlatformUpdated (double, WsfPlatform *) override
SlewMode	GetSlewMode () const
	Get the allowed slewing mode.
double	GetAzSlewRate () const
	Get the current azimuth slew rate.
double	GetElSlewRate () const
	Get the current elevation slew rate.
double	GetMaxAzSlewRate () const
	Get the maximum allowable azimuth slew rate.
double	GetMaxElSlewRate () const
	Get the maximum allowable elevation slew rate.
double	GetMinAzSlew () const
	Gets the minimum azimuth slew limit.
double	GetMaxAzSlew () const
	Gets the maximum azimuth slew limit.
double	GetMinElSlew () const
	Gets the minimum elevation slew limit.
double	GetMaxElSlew () const
	Gets the maximum elevation slew limit.
int	GetSlewState () const
	Get the slew limit state.
void	SetSlewMode (SlewMode aSlewMode)
	Set the allowed slewing mode.
void	SetSlewRates (double aAzSlewRate, double aElSlewRate)
	Set the angular slew rates, limited by the maximum slew rates.
void	SetAzSlewLimits (double aMinAzSlew, double aMaxAzSlew)
	Set the azimuth slew limits.
void	SetElSlewLimits (double aMinElSlew, double aMaxElSlew)
	Set the elevation slew limits.
void	SetAzimuthSlewDirection (SlewDirection aAzSlewDirection)
	Set the azimuth slew direction.
bool	IsSlewing () const
bool	WithinSlewLimits (double aThisToTgtAz, double aThisToTgtEl) const
SlewMode	GetCueMode () const
	Get the allowed cueing mode.
double	GetAzCueRate () const
	Get the azimuth cue rate.
double	GetElCueRate () const
	Get the elevation cue rate.
double	GetMinAzCue () const
	Gets the minimum azimuth cue limit.
double	GetMaxAzCue () const
	Gets the maximum azimuth cue limit.
double	GetMinElCue () const
	Gets the minimum elevation cue limit.
double	GetMaxElCue () const
	Gets the maximum elevation cue limit.
void	SetCueMode (SlewMode aCueMode)
	Set the allowed cueing mode.
void	SetCueRates (double aAzCueRate, double aElCueRate)
	Set the angular cueing rates.
void	SetAzCueLimits (double aMinAzCue, double aMaxAzCue)
	Set the azimuth cueing limits.
void	SetElCueLimits (double aMinElCue, double aMaxElCue)
	Set the elevation cueing limits.
double	GetRoll () const
void	SetRoll (double aRoll)
	Set the platform-relative (ECS) roll angle of the articulated part.
double	GetPitch () const
void	SetPitch (double aPitch)
double	GetYaw () const
void	SetYaw (double aYaw)
	Set the platform-relative (ECS) yaw angle of the articulated part.
double	GetTilt () const
void	SetTilt (double aTilt)
void	GetCurrentOrientationECS (double &aYaw, double &aPitch, double &aRoll)
void	GetLOS_UnitVectorWCS (double aUnitLOS_WCS[3])
	Get the current WCS Frame Line-Of-Sight unit vector.
CueType	GetCueType () const
bool	IsCued () const
	Get the cued status.
void	ClearCueing ()
bool	GetActualCuedOrientation (double &aAzimuth, double &aElevation) const
void	GetCurrentCuedOrientation (double &aAzimuth, double &aElevation) const
bool	GetCuedLocationWCS (double aCuedLocationWCS[3]) const
void	SetCuedLocationWCS (const double aCuedLocationWCS[3])
bool	GetCuedOrientation (double &aAzimuth, double &aElevation) const
void	SetCuedOrientation (double aAzimuth, double aElevation)
void	GetAbsoluteCuedOrientation (double &aAzimuth, double &aElevation, double aBaseNED[3])
void	ClearTransientCue ()
bool	TransientCueActive () const
bool	GetTransientCuedLocationWCS (double aCuedLocationWCS[3]) const
void	SetTransientCuedLocationWCS (const double aCuedLocationWCS[3])
WsfStringId	GetMaskingPatternState () const
void	SetMaskingPatternState (WsfStringId aMaskingPatternStateId)
double	GetMaskingPatternFactor (double aViewAzPCS, double aViewElPCS, const double aViewVecWCS[3])
void	SetIsPrivate (bool aIsPrivate)
bool	IsPrivate () const
Public Member Functions inherited from WsfPlatformPart
	WsfPlatformPart (const WsfScenario &aScenario, int aPartType)
WsfPlatformPart &	operator= (const WsfPlatformPart &aRhs)=delete
	~WsfPlatformPart () override
const int *	GetComponentRoles () const override
void *	QueryInterface (int aRole) override
bool	DebugEnabled () const
	Returns 'true' if debugging is enabled for this instance.
void	SetDebugEnabled (bool aDebugEnabled)
unsigned int	GetDebugMask ()
bool	IsExternallyControlled () const
virtual void	SetExternallyControlled (double aSimTime, bool aIsExternallyControlled)
int	GetPartType () const
const char *	GetScriptClassName () const override
WsfSimulation *	GetSimulation () const
const WsfScenario &	GetScenario () const
WsfStringId	GetComponentName () const override
void	ComponentParentChanged (WsfPlatform *aPlatformPtr) override
bool	Initialize (double aSimTime) override
bool	Initialize2 (double aSimTime) override
bool	ProcessInput (UtInput &aInput) override
WsfPlatform *	GetPlatform () const
virtual void	PlatformAdded (double aSimTime, WsfPlatform *aPlatformPtr)
virtual void	PlatformDeleted (WsfPlatform *aPlatformPtr)
double	GetLastStatusChangeTime () const
void	SetLastStatusChangeTime (double aSimTime)
	Allows a system to set the time at which the device was initialized.
bool	CanBeMadeOperational () const
	Returns an indication that this system can be made operational.
bool	CanBeMadeNonOperational () const
	Returns an indication that this system can be made non-operational.
bool	CanBeTurnedOn () const
	Returns an indication that this system can be turned on.
bool	CanBeTurnedOff () const
	Returns an indication that this system can be turned off.
bool	IsTurnedOn () const
bool	InitiallyTurnedOn () const
	Is the system to be turned 'on' when added to the simulation?
void	SetInitiallyTurnedOn (bool aInitiallyTurnedOn)
	Sets if the system is turned on when added to the simulation.
virtual void	Restore (double aSimTime)
bool	IsOperational () const
bool	SetOperational (double aSimTime, bool aMakeOperational)
double	GetDamageFactor () const
bool	SetDamageFactor (double aSimTime, double aDamageFactor)
bool	IsCritical () const
void	SetCritical (bool aValue)
virtual void	OnPlatformBrokenEvent (double aSimTime)
	Owning platform has issued a broken event.
bool	IsBroken () const
WsfInternalLinks &	GetInternalLinks ()
	Return the internal links for this part.
virtual bool	HasInternalLinks () const
	Does this platform part have a communication link to other platform parts?
virtual bool	ProcessMessage (double aSimTime, const WsfMessage &aMessage)
virtual bool	ReceiveMessage (double aSimTime, const WsfMessage &aMessage)
virtual void	SendMessage (double aSimTime, const WsfMessage &aMessage)
virtual void	SendMessageTo (double aSimTime, const WsfMessage &aMessage, WsfStringId aRecipientId)
void	SendMessageToProcessor (double aSimTime, const WsfMessage &aMessage, WsfStringId aRecipientId)
virtual void	SendQueuedMessages (double aSimTime)
const WsfCategoryList &	GetCategories () const
	Get the categories to which this part belongs.
void	AddCategory (WsfStringId aCategoryId)
	Adds the provided category to the platform part's category list.
bool	IsCategoryMember (WsfStringId aCategoryId) const
const WsfGroupList &	GetGroups () const
	Get the groups to which this platform part belongs.
void	JoinGroup (WsfGroup *aGroupPtr)
	Join the given group.
void	LeaveGroup (WsfGroup *aGroupPtr)
	Leave the given group.
bool	IsGroupMember (WsfStringId aGroupId)
unsigned int	GetUpdateEventEpoch () const
void	IncrementUpdateEventEpoch ()
bool	UpdateEventActive () const
	Is an 'Update' event active?
void	SetUpdateEventActive (bool aUpdateEventActive)
	Indicate if the 'Update' event is active.
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)
Public Member Functions inherited from WsfComponentT< WsfPlatform >
	WsfComponentT ()
	WsfComponentT (const WsfComponentT &) noexcept
WsfComponentT &	operator= (const WsfComponentT &) noexcept
	~WsfComponentT () override=default
ParentType *	GetComponentParent () const
void	SetComponentParent (ParentType *aParentPtr)
Public Member Functions inherited from WsfComponent
virtual	~WsfComponent ()=default
template<typename T>
bool	QueryInterfaceT (T *&aRolePtr)
bool	ComponentHasRole (int aRole)
	Returns true if the component has the specified role.
Public Member Functions inherited from WsfUniqueId
	WsfUniqueId ()
	Construtor initializes the unique identifier to 0.
	WsfUniqueId (const WsfUniqueId &)
	Copy constructor initializes the unique identifier to 0.
WsfUniqueId &	operator= (const WsfUniqueId &)
unsigned int	GetUniqueId () const
	Get the unique identifier assigned to this object.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
Public Member Functions inherited from WsfAuxDataEnabled
	WsfAuxDataEnabled ()=default
	WsfAuxDataEnabled (const WsfAuxDataEnabled &aSrc)=default
WsfAuxDataEnabled &	operator= (const WsfAuxDataEnabled &aRhs)
	WsfAuxDataEnabled (WsfAuxDataEnabled &&)=default
WsfAuxDataEnabled &	operator= (WsfAuxDataEnabled &&)=default
virtual	~WsfAuxDataEnabled () noexcept
void	SetAuxData (const WsfAttributeContainer &aAuxData)
void	DeleteAuxData ()
	Delete the aux data container from the object.
void	MergeAuxData (const WsfAuxDataEnabled &aSrc)
	Merge the object's aux data with aux data from an existing object.
void	UpdateAuxData (const WsfAuxDataEnabled &aSrc)
	Update the object's aux data with aux data from an existing object.
bool	HasAuxData () const
	Returns true if this object has aux data.
bool	ProcessInput (UtInput &aInput)
template<typename T>
void	Serialize (T &aBuff)
	(De)serialization for XIO
WsfAttributeContainer &	GetAuxData ()
const WsfAttributeContainer &	GetAuxData () const noexcept
const WsfAttributeContainer &	GetAuxDataConst () const noexcept
Public Member Functions inherited from WsfSinglePlatformObserver
virtual	~WsfSinglePlatformObserver ()
virtual void	OnPlatformDeleting (double aSimTime, WsfPlatform *aPlatformPtr)
	Called before the platform is actually deleted.
virtual void	OnPlatformDeleted (double aSimTime, WsfPlatform *aPlatformPtr)
	Called just before the platform is removed from the simulation.

Static Public Member Functions
static WsfStringId	GetJTIDSClassId ()
	Return the RTTI class ID.

Callback lists.
UtCallbackListN< void(double, const WsfMessage *, int, WsfJTIDS_SlotGroup *)>	MessageSent
	WsfJTIDS_Terminal (const WsfJTIDS_Terminal &aSrc)
	Copy Constructor.
void	PrintDebugReception (double aSimTime, const wsf::comm::Message &aMessage) const override
	Displays debug info associated with message reception.

Common infrastructure methods.
wsf::comm::Comm *	Clone () const override
	Standard Clone() method.
bool	Initialize (double aSimTime) override
void	TurnOff (double aSimTime) override

Send/Receive methods
bool	ReceiveSetup (double aSimTime, wsf::comm::Comm *aXmtrPtr, wsf::comm::Message &aMessage) override
bool	SendSetup (double aSimTime, wsf::comm::Message &aMessage, const wsf::comm::Address &aAddress) override
bool	ReceiveActions (double aSimTime, bool aReceiveStatus, Comm *aXmtrPtr, wsf::comm::Message &aMessage) override

Additional Inherited Members
Public Types inherited from wsf::comm::Comm
enum	CommType { cCT_XMT_ONLY = 0x0001 , cCT_RCV_ONLY = 0x0002 , cCT_XMT_RCV = cCT_XMT_ONLY | cCT_RCV_ONLY }
enum class	MulticastConformanceLevel : size_t { cLEVEL_0 , cLEVEL_1 , cLEVEL_2 }
using	LinkAddress = std::vector<wsf::comm::Address>
using	LinkPair = std::vector<std::pair<std::string, std::string>>
using	ComponentList = WsfComponentListT<WsfComponentT<Comm>>
Public Types inherited from WsfArticulatedPart
enum	SlewMode { cSLEW_FIXED = 0 , cSLEW_AZ = 1 , cSLEW_EL = 2 , cSLEW_AZ_EL = 3 }
enum	SlewDirection { cUNDEFINED = 0 , cPOSITIVE = 1 , cNEGATIVE = 2 }
enum	{   cNOT_CUED = 0x0000 , cMIN_AZ = 0x0001 , cMAX_AZ = 0x0002 , cMIN_EL = 0x0004 ,   cMAX_EL = 0x0008 , cAT_LIMIT_AZ_MASK = 0x0003 , cAT_LIMIT_EL_MASK = 0x000B , cAT_LIMIT_MASK = 0x000F ,   cCUED_AZ = 0x0010 , cCUED_EL = 0x0020 , cCUED_AZ_EL = 0x0030 , cCUED_MASK = 0x0030 }
enum	CueType { cCUED_TO_NOTHING , cCUED_TO_LOCATION , cCUED_TO_ANGLE }
Public Types inherited from WsfPlatformPart
enum	{ cLEVEL_ONE_DEBUG = 0x00000001 , cLEVEL_TWO_DEBUG = 0x00000002 }
using	InternalMessageQueue = std::queue<WsfMessage*>
using	RecipientMessageQueue = std::queue<std::pair<WsfPlatformPart*, WsfMessage*>>
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
Public Types inherited from WsfComponentT< WsfPlatform >
typedef WsfPlatform	ParentType
	This is needed to support the WsfComponentList template.
UtCallbackListN< void(double)>	SlewComplete
Static Public Attributes inherited from WsfArticulatedPart
static constexpr double	cINFINITE_SLEW_RATE = 1.0E+12 * UtMath::cRAD_PER_DEG
static constexpr double	cALMOST_FULL_CIRCLE = 359.999 * UtMath::cRAD_PER_DEG
Static Public Attributes inherited from WsfAuxDataEnabled
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataAccessed
static UtCallbackListN< void(const WsfAuxDataEnabled *)>	AuxDataDestroyed
	Comm (const Comm &aSrc)
	Copy constructor (for Clone()).
void	SetUpdateInterval (double aInterval) override
double	GetUpdateInterval () const override
void	SetClassId (WsfStringId aClassId)
virtual bool	ValidateGateway ()
	Helper method for ensuring/setting valid gateways.
bool	FullCircle () const
virtual double	GetAzimuthRotationRate () const
virtual double	GetElevationRotationRate () const
void	SlewToOrientation (double aSimTime, double aDesiredAz, double aDesiredEl)
virtual void	TimeToRotate (double &aDeltaAz, double &aDeltaEl, double &aAzRate, double &aElRate, double &aTimeToAz, double &aTimeToEl) const
void	UpdateCuedOrientation (double aSimTime)
bool	UpdateOrientation (double aSimTime)
	WsfPlatformPart (const WsfPlatformPart &aSrc)
	Copy constructor (for Clone()).
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).
Protected Member Functions inherited from WsfUniqueId
void	AssignUniqueId (WsfSimulation *aSimulationPtr)
ProtocolStack	mProtocolStack
	Protocol stack used by this comm device.
Address	mInputAddress
	A user supplied address indicated for use with this interface. May be null if not specified.
std::string	mInputNetwork
	A user supplied network, for indicating which network this interface should join.
Address	mInputNetworkAddress
	A user supplied network address, for indicating which network this interface should join.
size_t	mNumChannels
WsfMaskingPattern *	mMaskingPatternPtr
	The masking factor.
WsfStringId	mMaskingPatternName
WsfStringId	mMaskingPatternStateId
double	mYaw
	The orientation of the device coordinate system.
double	mPitch
double	mRoll
double	mDX
	The velocity of the part.
double	mDY
double	mDZ
double	mTilt
	The tilt angle above below the scan plane.
double	mAzSlewRate
	The slewing rates and limits of the device with respect to the device coordinate system.
double	mElSlewRate
double	mMaxAzSlewRate
double	mMaxElSlewRate
double	mMinAzSlew
double	mMaxAzSlew
double	mMinElSlew
double	mMaxElSlew
SlewMode	mSlewMode
SlewDirection	mAzSlewDirection
int	mSlewState
double	mAzCueRate
	The cueing rates and limits of the device with respect to the device coordinate system.
double	mElCueRate
double	mMinAzCue
double	mMaxAzCue
double	mMinElCue
double	mMaxElCue
SlewMode	mCueMode
	The directions (az and/or el) in which cueing can be performed.
CueType	mCueType
bool	mTransientCueActive
	'true' if the transient cue is defined
double	mCuedLocationWCS [3]
	The cued location if mCueType is cCUED_TO_LOCATION.
double	mCuedAz
	The cued azimuth if mCueType == cCUED_TO_ANGLE.
double	mCuedEl
	The cued elevation if mCueType == cCUED_TO_ANGLE.
double	mTransientCuedLocationWCS [3]
	The transient cue, if mTransientCueActive is true.
double	mActualCuedAz
	The actual cued location, subject to the slewing limits.
double	mActualCuedEl
double	mCurrentAz
double	mCurrentEl
double	mLastAzElUpdateTime
	The time when the current az/el were last updated.
double	mLastUpdateTime
	The time when the x/y/z position was last updated.
bool	mSlewMethodCoordinated
	'true' if slcue rates are dynamically adjusted so the target angles are reached simultaneously.
bool	mIsSlewing
	'true' if the part is slewing to satisfy a cueing request.
bool	mIsPrivate
	'true' if the part is considered 'private' and not to visible to external simulations.

Detailed Description

A specialization of WsfComm representing a JTIDS terminal.

This class, along with WsfJTIDS_SlotGroup constitute the implementation of the JTIDS model. The implementation was derived mostly from reading:

Understanding Link-16; a Guidebook for New Users (Logicon, Inc.) NATO STANAG 5516

The current implementation models network capacity by requiring only the number of slots per frame needed by a slot group. It does not require (nor does it yet allow) a network definition via actual time slot block definitions (The current structure will allow it to be implemented at a future date).

The current model implements:

) multiple networks ) per-slot-group packing limit ) paired slot relays ) dedicated access ) time-slot reuse in relays (flood relays)

The model does not yet implement:

) Contention access. ) Time slot reallocation access. ) Repromulgated relays.

Note that this is NOT a Link-16 model - it doesn't explicitly model the J-series messages. That is left to something higher up. This really just models the physical transport of a message.

The model also allows changing of the basic network slot parameters (bits per slot, seconds per slot, slots per frame) to allow modeling of future concepts that may use the JTIDS TDMA architecture but with some modifications.

Constructor & Destructor Documentation

WsfJTIDS_Terminal() [1/2]

WsfJTIDS_Terminal::WsfJTIDS_Terminal

(

WsfScenario &

aScenario

)

Set all JTIDS comm objects to exist on the JTIDS network

References wsf::comm::Layer::cDATALINK, wsf::comm::Comm::Comm(), wsf::comm::Layer::cPHYSICAL, wsf::comm::ComponentHW_JTIDS::FindOrCreate(), MessageSent, wsf::comm::Comm::mInputNetwork, wsf::comm::Comm::mProtocolStack, and wsf::comm::Comm::SetClassId().

Referenced by Clone(), and WsfJTIDS_Terminal().

~WsfJTIDS_Terminal()

WsfJTIDS_Terminal::~WsfJTIDS_Terminal ( )

override

WsfJTIDS_Terminal() [2/2]

WsfJTIDS_Terminal::WsfJTIDS_Terminal ( const WsfJTIDS_Terminal & aSrc )

protected

Copy Constructor.

References wsf::comm::Comm::Comm(), MessageSent, and WsfJTIDS_Terminal().

Member Function Documentation

Clone()

wsf::comm::Comm * WsfJTIDS_Terminal::Clone ( ) const

overridevirtual

Standard Clone() method.

Reimplemented from wsf::comm::Comm.

References WsfJTIDS_Terminal().

GetJTIDSClassId()

WsfStringId WsfJTIDS_Terminal::GetJTIDSClassId ( )

static

Return the RTTI class ID.

Referenced by ReceiveSetup().

Initialize()

bool WsfJTIDS_Terminal::Initialize ( double aSimTime )

overridevirtual

Perform phase 1 initialization. This is called by WsfPlatform::Initialize() during phase 1 initialization of the platform. The component should complete validation of input data that could not be done by ProcessInput, as well as any other functions to prepare for simulation use (subject to the next paragraph).

The order in which components are initialized is defined by GetComponentInitializationOrder. In general a component implementation of this method should not be dependent on the state of another component, i.e.: it should not assume that the other components Initialize() method has been called. If such a dependency exists one should use Initialize2() if possible, or specify a value GetComponentInitializationOrder to force things to initialize in a particular order.

Parameters

aSimTime

The current simulation time.

Returns

true if successful or false if unsuccessful (bad input data, etc.)

Note

This method should NOT add any other components to the platform. This MUST be done in PreInitialize().

Add this comm to be managed by the network manager

Reimplemented from wsf::comm::Comm.

References wsf::comm::ProtocolStack::GetLayer(), wsf::comm::Comm::GetProtocolStack(), wsf::comm::Comm::Initialize(), and ok.

PrintDebugReception()

void WsfJTIDS_Terminal::PrintDebugReception ( double aSimTime, const wsf::comm::Message & aMessage ) const

overrideprotectedvirtual

Displays debug info associated with message reception.

Reimplemented from wsf::comm::Comm.

References wsf::comm::NetworkManager::GetComm(), WsfSimulation::GetCommNetworkManager(), WsfObject::GetName(), WsfPlatformPart::GetPlatform(), WsfPlatformPart::GetSimulation(), and wsf::comm::Message::SourceMessage().

ReceiveActions()

bool WsfJTIDS_Terminal::ReceiveActions ( double aSimTime, bool aReceiveStatus, Comm * aXmtrPtr, wsf::comm::Message & aMessage )

overridevirtual

Reimplemented from wsf::comm::Comm.

References wsf::comm::Comm::Comm(), wsf::comm::Message::GetResult(), WsfPlatformPart::GetSimulation(), WsfEM_Interaction::GetTransmitter(), WsfEM_Interaction::mCheckedStatus, WsfObserver::MessageDeliveryAttempt(), WsfObserver::MessageReceived(), WsfEM_Xmtr::NotifyListeners(), WsfPlatformPart::SendMessage(), and wsf::comm::Message::SourceMessage().

ReceiveSetup()

bool WsfJTIDS_Terminal::ReceiveSetup ( double aSimTime, wsf::comm::Comm * aXmtrPtr, wsf::comm::Message & aMessage )

overridevirtual

Reimplemented from wsf::comm::Comm.

References wsf::comm::Comm::GetClassId(), GetJTIDSClassId(), and wsf::comm::Comm::ReceiveSetup().

SendSetup()

bool WsfJTIDS_Terminal::SendSetup ( double aSimTime, wsf::comm::Message & aMessage, const wsf::comm::Address & aAddress )

overridevirtual

Reimplemented from wsf::comm::Comm.

References WsfAuxDataEnabled::GetAuxData(), wsf::comm::Comm::SendSetup(), and wsf::comm::Message::SourceMessage().

TurnOff()

void WsfJTIDS_Terminal::TurnOff ( double aSimTime )

overridevirtual

Turn off the communication device.

Parameters

aSimTime

The current simulation time.

Note

This method should not be invoked directly by application code. Use the WsfSimulation::TurnCommOff method.

Reimplemented from wsf::comm::Comm.

References wsf::comm::ProtocolStack::GetLayer(), wsf::comm::Comm::GetProtocolStack(), and wsf::comm::Comm::TurnOff().

Member Data Documentation

MessageSent

UtCallbackListN<void(double, const WsfMessage*, int, WsfJTIDS_SlotGroup*)> WsfJTIDS_Terminal::MessageSent

Referenced by WsfL16::ComputerProcessor::Initialize(), WsfJTIDS_Terminal(), and WsfJTIDS_Terminal().

---

The documentation for this class was generated from the following files:

• WsfJTIDS_Terminal.hpp
• WsfJTIDS_Terminal.cpp
