wsf::comm::Network Class Reference

#include <WsfCommNetwork.hpp>

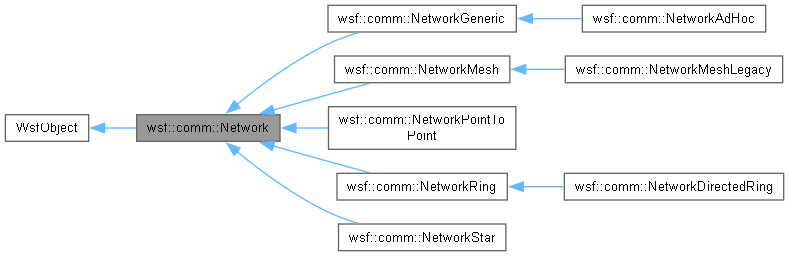

Inheritance diagram for wsf::comm::Network:

Collaboration diagram for wsf::comm::Network:

Classes
struct	NamedComm

Public Types
using	AddressList = std::vector<Address>
using	AddressLinkList = std::vector<std::pair<Address, Address>>
using	NamedList = std::vector<NamedComm>
using	NamedLinkList = std::vector<std::pair<NamedComm, NamedComm>>
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.

Public Member Functions
	Network ()=default
	~Network () override=default
	Network (const std::string &aNetworkName, const Address &aAddress)
	Network (const Network &aSrc)=default
Network &	operator= (const Network &aRhs)=default
	Network (Network &&aSrc)=default
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Add/Remove Implementation Behavior Methods
These methods allow implementations to add functionality to the base add/remove methods. Note These methods are called after container actions have been completed (add/remove), in an assumptive "true" state in the public method call. Thus, the implementation may undo these changes and return a different value. In addition, these methods are required for correct establishment of linkage, as they should notify the network manager to create the necessary linkage so that implementation details are local.
Address	mAddress {}
AddressList	mAddressList {}
AddressList	mInputAddressList {}
AddressLinkList	mAddressLinkList {}
AddressLinkList	mInputAddressLinkList {}
	Same case as "mInputAddressList" above, except with link definitions.
NamedList	mNamedList {}
NamedLinkList	mNamedLinkList {}
bool	mManaged {false}
	True if this network is being managed by the simulation.
virtual bool	AddMemberP (const Address &aAddress, WsfSimulation &aSimulation, const Address &aOptionalAddress=Address())
virtual bool	RemoveMemberP (const Address &aAddress, WsfSimulation &aSimulation, const Address &aOptionalAddress=Address())
virtual bool	AddLinkP (const Address &aSourceAddress, const Address &aDestinationAddress, WsfSimulation &aSimulation, const Address &aOptionalAddress=Address())
virtual bool	RemoveLinkP (const Address &aSourceAddress, const Address &aDestinationAddress, WsfSimulation &aSimulation, const Address &aOptionalAddress=Address())

InitializeLinkage
Required method for creating links for this particular network topology. This class only converts named comms to addresses. Implementations should use the protected version for implementing their behavior.
bool	InitializeLinkage (WsfSimulation &aSimulation)
bool	ProcessInput (UtInput &aInput) override
Network *	Clone () const override
const char *	GetScriptClassName () const override
virtual bool	Initialize (WsfSimulation &aSim)

Remove/Add Public Methods
These methods are the interface accessible methods for adding/removing to the network. These base methods only add/remove to the applicable container depending on the implementation specific call of the same name. The optional address parameter is included for passage of an additional address via the Network interface that may or may not be used on by various implementations.
bool	AddMember (const Address &aAddress, WsfSimulation &aSimulation, const Address &aOptionalAddress=Address())
bool	RemoveMember (const Address &aAddress, WsfSimulation &aSimulation, const Address &aOptionalAddress=Address())
bool	AddLink (const Address &aSourceAddress, const Address &aDestinationAddress, WsfSimulation &aSimulation, const Address &aOptionalAddress=Address())
bool	RemoveLink (const Address &aSourceAddress, const Address &aDestinationAddress, WsfSimulation &aSimulation, const Address &aOptionalAddress=Address())

Update method
This method is called when a re-evaluation of linkage should occur within the network topology. This is useful on special network implementations where linkage isn't solely defined on membership or edge definitions, i.e. add-hoc networking. The derived member implementations should define the logic for establishment/removal of linkage via the protected version of this method.
void	SetAddress (const Address &aAddress)
void	SetIsManaged (bool aManaged)
const Address &	GetAddress () const
size_t	GetHostsMax () const
bool	IsManaged () const

GetNamedMemberList
This method returns the named member list for this network, as provided by user input with the network type definition. These members must be available for external inspection (namely by the network manager) so that any associated comm interface can have its definition modified to specify inclusion into this network, otherwise it may be incorrectly assigned elsewhere (default network). This isn't required for other member types, as they are static and indicate network membership directly with the address itself.
const NamedList &	GetNamedMemberList () const

HasMember
Checks for existence of address in network. Should only be used during runtime/after comm framework is initialized.
bool	HasMember (const Address &aAddress) const
virtual bool	InitializeLinkageP (WsfSimulation &aSimulation)

GetAddressFromNamedComm
Helper method for obtaining an address from a named comm. This is provided as a public member for conversion of named platform/comms to the address interface used by the the network object.
static Address	GetAddressFromNamedComm (WsfStringId aPlatformName, WsfStringId aCommName, WsfSimulation &aSimulation)

ProcessInput helper methods
These methods parse input based on the particular container they are applicable to. These are provided for individual usage as indicated by implementation.
virtual bool	ProcessAddressListInput (UtInput &aInput)
virtual bool	ProcessAddressLinkListInput (UtInput &aInput)
virtual bool	ProcessNamedListInput (UtInput &aInput)
virtual bool	ProcessNamedLinkListInput (UtInput &aInput)

Additional Inherited Members
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Member Typedef Documentation

AddressLinkList

using wsf::comm::Network::AddressLinkList = std::vector<std::pair<Address, Address>>

AddressList

using wsf::comm::Network::AddressList = std::vector<Address>

NamedLinkList

using wsf::comm::Network::NamedLinkList = std::vector<std::pair<NamedComm, NamedComm>>

NamedList

using wsf::comm::Network::NamedList = std::vector<NamedComm>

Constructor & Destructor Documentation

Network() [1/4]

wsf::comm::Network::Network ( )

default

Need to provide a default constructor for instantiation prior to address provisioning. Setters need to be called on Network objects created this way prior to usage.

Referenced by Clone(), Network(), Network(), wsf::comm::NetworkGeneric::NetworkGeneric(), wsf::comm::NetworkMesh::NetworkMesh(), wsf::comm::NetworkPointToPoint::NetworkPointToPoint(), wsf::comm::NetworkRing::NetworkRing(), wsf::comm::NetworkStar::NetworkStar(), operator=(), and ~Network().

~Network()

wsf::comm::Network::~Network ( )

overridedefault

References Network().

Network() [2/4]

wsf::comm::Network::Network	(	const std::string &	aNetworkName,
		const Address &	aAddress )

References mAddress, WsfObject::SetType(), and WsfObject::WsfObject().

Network() [3/4]

wsf::comm::Network::Network ( const Network & aSrc )

default

References Network().

Network() [4/4]

wsf::comm::Network::Network ( Network && aSrc )

default

References InitializeLinkage(), and Network().

Member Function Documentation

AddLink()

bool wsf::comm::Network::AddLink	(	const Address &	aSourceAddress,
		const Address &	aDestinationAddress,
		WsfSimulation &	aSimulation,
		const Address &	aOptionalAddress = Address() )

References AddLinkP(), and mAddressLinkList.

Referenced by wsf::comm::NetworkManager::InitializeUserLinks(), wsf::comm::NetworkAdHoc::Update(), wsf::comm::NetworkAdHoc::Update(), and wsf::comm::NetworkAdHoc::Update().

AddLinkP()

virtual bool wsf::comm::Network::AddLinkP ( const Address & aSourceAddress, const Address & aDestinationAddress, WsfSimulation & aSimulation, const Address & aOptionalAddress = Address() )

inlineprotectedvirtual

Reimplemented in wsf::comm::NetworkGeneric.

Referenced by AddLink().

AddMember()

bool wsf::comm::Network::AddMember	(	const Address &	aAddress,
		WsfSimulation &	aSimulation,
		const Address &	aOptionalAddress = Address() )

Avoid duplicates

References AddMemberP(), and mAddressList.

AddMemberP()

virtual bool wsf::comm::Network::AddMemberP ( const Address & aAddress, WsfSimulation & aSimulation, const Address & aOptionalAddress = Address() )

inlineprotectedvirtual

Reimplemented in wsf::comm::NetworkDirectedRing, wsf::comm::NetworkMesh, wsf::comm::NetworkMeshLegacy, wsf::comm::NetworkPointToPoint, wsf::comm::NetworkRing, and wsf::comm::NetworkStar.

Referenced by AddMember().

Clone()

Network * wsf::comm::Network::Clone ( ) const

inlineoverridevirtual

Return a copy of this object. Must be implemented by all derived types. If cloning is impossible, a WsfUncloneableException should be thrown.

Implements WsfObject.

Reimplemented in wsf::comm::NetworkAdHoc, wsf::comm::NetworkDirectedRing, wsf::comm::NetworkGeneric, wsf::comm::NetworkMesh, wsf::comm::NetworkMeshLegacy, wsf::comm::NetworkPointToPoint, wsf::comm::NetworkRing, and wsf::comm::NetworkStar.

References Network().

GetAddress()

const Address & wsf::comm::Network::GetAddress ( ) const

inline

References mAddress.

Referenced by wsf::comm::NetworkManager::AddComm(), and wsf::comm::ScriptNetworkClass::ToString().

GetAddressFromNamedComm()

Address wsf::comm::Network::GetAddressFromNamedComm ( WsfStringId aPlatformName, WsfStringId aCommName, WsfSimulation & aSimulation )

static

References wsf::comm::Comm::GetAddress(), WsfSimulation::GetPlatformByName(), and platformPtr.

Referenced by InitializeLinkage(), wsf::comm::NetworkStar::InitializeLinkageP(), wsf::comm::UT_DEFINE_SCRIPT_METHOD(), wsf::comm::UT_DEFINE_SCRIPT_METHOD(), wsf::comm::UT_DEFINE_SCRIPT_METHOD(), wsf::comm::UT_DEFINE_SCRIPT_METHOD(), and wsf::comm::UT_DEFINE_SCRIPT_METHOD().

GetHostsMax()

size_t wsf::comm::Network::GetHostsMax ( ) const

inline

References mAddress.

GetNamedMemberList()

const NamedList & wsf::comm::Network::GetNamedMemberList ( ) const

inline

References mNamedList.

GetScriptClassName()

const char * wsf::comm::Network::GetScriptClassName ( ) const

override

HasMember()

bool wsf::comm::Network::HasMember

(

const Address &

aAddress

)

const

References mAddressList.

Initialize()

virtual bool wsf::comm::Network::Initialize ( WsfSimulation & aSim )

inlinevirtual

Reimplemented in wsf::comm::NetworkAdHoc.

InitializeLinkage()

bool wsf::comm::Network::InitializeLinkage

(

WsfSimulation &

aSimulation

)

References GetAddressFromNamedComm(), wsf::comm::NetworkManager::GetComm(), WsfSimulation::GetCommNetworkManager(), WsfObject::GetType(), InitializeLinkageP(), mAddressLinkList, mAddressList, mInputAddressLinkList, mInputAddressList, mNamedLinkList, and mNamedList.

Referenced by Network().

InitializeLinkageP()

virtual bool wsf::comm::Network::InitializeLinkageP ( WsfSimulation & aSimulation )

inlineprotectedvirtual

Reimplemented in wsf::comm::NetworkDirectedRing, wsf::comm::NetworkGeneric, wsf::comm::NetworkMesh, wsf::comm::NetworkPointToPoint, wsf::comm::NetworkRing, and wsf::comm::NetworkStar.

Referenced by InitializeLinkage().

IsManaged()

bool wsf::comm::Network::IsManaged ( ) const

inline

References mManaged.

operator=()

Network & wsf::comm::Network::operator= ( const Network & aRhs )

default

References Network().

ProcessAddressLinkListInput()

bool wsf::comm::Network::ProcessAddressLinkListInput ( UtInput & aInput )

protectedvirtual

References mAddressLinkList, and wsf::comm::Address::ProcessInput().

Referenced by wsf::comm::NetworkGeneric::ProcessInput().

ProcessAddressListInput()

bool wsf::comm::Network::ProcessAddressListInput ( UtInput & aInput )

protectedvirtual

References mInputAddressList, and wsf::comm::Address::ProcessInput().

Referenced by wsf::comm::NetworkGeneric::ProcessInput(), wsf::comm::NetworkMesh::ProcessInput(), wsf::comm::NetworkPointToPoint::ProcessInput(), wsf::comm::NetworkRing::ProcessInput(), and wsf::comm::NetworkStar::ProcessInput().

ProcessInput()

bool wsf::comm::Network::ProcessInput ( UtInput & aInput )

inlineoverridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput

a reference to a UtInput object.

Returns

'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase

(or an object derived from it) if the command was recognized but contains some sort of error.

Note

If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from WsfObject.

Reimplemented in wsf::comm::NetworkAdHoc, wsf::comm::NetworkGeneric, wsf::comm::NetworkMesh, wsf::comm::NetworkPointToPoint, wsf::comm::NetworkRing, and wsf::comm::NetworkStar.

ProcessNamedLinkListInput()

bool wsf::comm::Network::ProcessNamedLinkListInput ( UtInput & aInput )

protectedvirtual

References wsf::comm::Network::NamedComm::mCommName, mNamedLinkList, and wsf::comm::Network::NamedComm::mPlatformName.

Referenced by wsf::comm::NetworkGeneric::ProcessInput().

ProcessNamedListInput()

bool wsf::comm::Network::ProcessNamedListInput ( UtInput & aInput )

protectedvirtual

References wsf::comm::Network::NamedComm::mCommName, mNamedList, and wsf::comm::Network::NamedComm::mPlatformName.

Referenced by wsf::comm::NetworkGeneric::ProcessInput(), wsf::comm::NetworkMesh::ProcessInput(), wsf::comm::NetworkPointToPoint::ProcessInput(), wsf::comm::NetworkRing::ProcessInput(), and wsf::comm::NetworkStar::ProcessInput().

RemoveLink()

bool wsf::comm::Network::RemoveLink	(	const Address &	aSourceAddress,
		const Address &	aDestinationAddress,
		WsfSimulation &	aSimulation,
		const Address &	aOptionalAddress = Address() )

References mAddressLinkList, and RemoveLinkP().

Referenced by wsf::comm::NetworkGeneric::RemoveMemberP(), wsf::comm::NetworkAdHoc::Update(), wsf::comm::NetworkAdHoc::Update(), and wsf::comm::NetworkAdHoc::Update().

RemoveLinkP()

virtual bool wsf::comm::Network::RemoveLinkP ( const Address & aSourceAddress, const Address & aDestinationAddress, WsfSimulation & aSimulation, const Address & aOptionalAddress = Address() )

inlineprotectedvirtual

Reimplemented in wsf::comm::NetworkGeneric.

Referenced by RemoveLink().

RemoveMember()

bool wsf::comm::Network::RemoveMember	(	const Address &	aAddress,
		WsfSimulation &	aSimulation,
		const Address &	aOptionalAddress = Address() )

References mAddressList, and RemoveMemberP().

Referenced by wsf::comm::NetworkManager::RemoveComm().

RemoveMemberP()

virtual bool wsf::comm::Network::RemoveMemberP ( const Address & aAddress, WsfSimulation & aSimulation, const Address & aOptionalAddress = Address() )

inlineprotectedvirtual

Reimplemented in wsf::comm::NetworkDirectedRing, wsf::comm::NetworkGeneric, wsf::comm::NetworkMesh, wsf::comm::NetworkPointToPoint, wsf::comm::NetworkRing, and wsf::comm::NetworkStar.

Referenced by RemoveMember().

SetAddress()

void wsf::comm::Network::SetAddress ( const Address & aAddress )

inline

References mAddress.

SetIsManaged()

void wsf::comm::Network::SetIsManaged ( bool aManaged )

inline

References mManaged.

Member Data Documentation

mAddress

Address wsf::comm::Network::mAddress {}

protected

Referenced by GetAddress(), GetHostsMax(), Network(), wsf::comm::NetworkGeneric::ProcessInput(), wsf::comm::NetworkMesh::ProcessInput(), wsf::comm::NetworkPointToPoint::ProcessInput(), wsf::comm::NetworkRing::ProcessInput(), wsf::comm::NetworkStar::ProcessInput(), and SetAddress().

mAddressLinkList

AddressLinkList wsf::comm::Network::mAddressLinkList {}

protected

Referenced by AddLink(), InitializeLinkage(), wsf::comm::NetworkGeneric::InitializeLinkageP(), ProcessAddressLinkListInput(), RemoveLink(), and wsf::comm::NetworkGeneric::RemoveMemberP().

mAddressList

AddressList wsf::comm::Network::mAddressList {}

protected

Referenced by AddMember(), wsf::comm::NetworkDirectedRing::AddMemberP(), wsf::comm::NetworkMesh::AddMemberP(), wsf::comm::NetworkMeshLegacy::AddMemberP(), wsf::comm::NetworkPointToPoint::AddMemberP(), wsf::comm::NetworkRing::AddMemberP(), HasMember(), InitializeLinkage(), wsf::comm::NetworkDirectedRing::InitializeLinkageP(), wsf::comm::NetworkMesh::InitializeLinkageP(), wsf::comm::NetworkPointToPoint::InitializeLinkageP(), wsf::comm::NetworkRing::InitializeLinkageP(), wsf::comm::NetworkStar::InitializeLinkageP(), wsf::comm::NetworkStar::RemoveHub(), RemoveMember(), wsf::comm::NetworkDirectedRing::RemoveMemberP(), wsf::comm::NetworkMesh::RemoveMemberP(), wsf::comm::NetworkPointToPoint::RemoveMemberP(), wsf::comm::NetworkRing::RemoveMemberP(), wsf::comm::NetworkAdHoc::Update(), wsf::comm::NetworkAdHoc::Update(), and wsf::comm::NetworkAdHoc::Update().

mInputAddressLinkList

AddressLinkList wsf::comm::Network::mInputAddressLinkList {}

protected

Same case as "mInputAddressList" above, except with link definitions.

Referenced by InitializeLinkage().

mInputAddressList

AddressList wsf::comm::Network::mInputAddressList {}

protected

Because we use the "mAddressList" member as a container for all address input, we have to use an additional container to distinguish between addresses converted during object processing, and those set via user input. This object is only for addresses provided directly by the user via ProcessInput, or via direct access.

Referenced by InitializeLinkage(), and ProcessAddressListInput().

mManaged

bool wsf::comm::Network::mManaged {false}

protected

True if this network is being managed by the simulation.

Referenced by IsManaged(), and SetIsManaged().

mNamedLinkList

NamedLinkList wsf::comm::Network::mNamedLinkList {}

protected

Referenced by InitializeLinkage(), and ProcessNamedLinkListInput().

mNamedList

NamedList wsf::comm::Network::mNamedList {}

protected

These member variables only exist to handle ProcessInput parsing of comms defined by names, since these comms are not instantiated yet, and do not have addresses.

Referenced by GetNamedMemberList(), InitializeLinkage(), and ProcessNamedListInput().

---

The documentation for this class was generated from the following files:

• WsfCommNetwork.hpp
• WsfCommNetwork.cpp
