#include <SAM_LaunchComputerGenerator.hpp>

Inheritance diagram for SAM_LaunchComputerGenerator:

[legend]

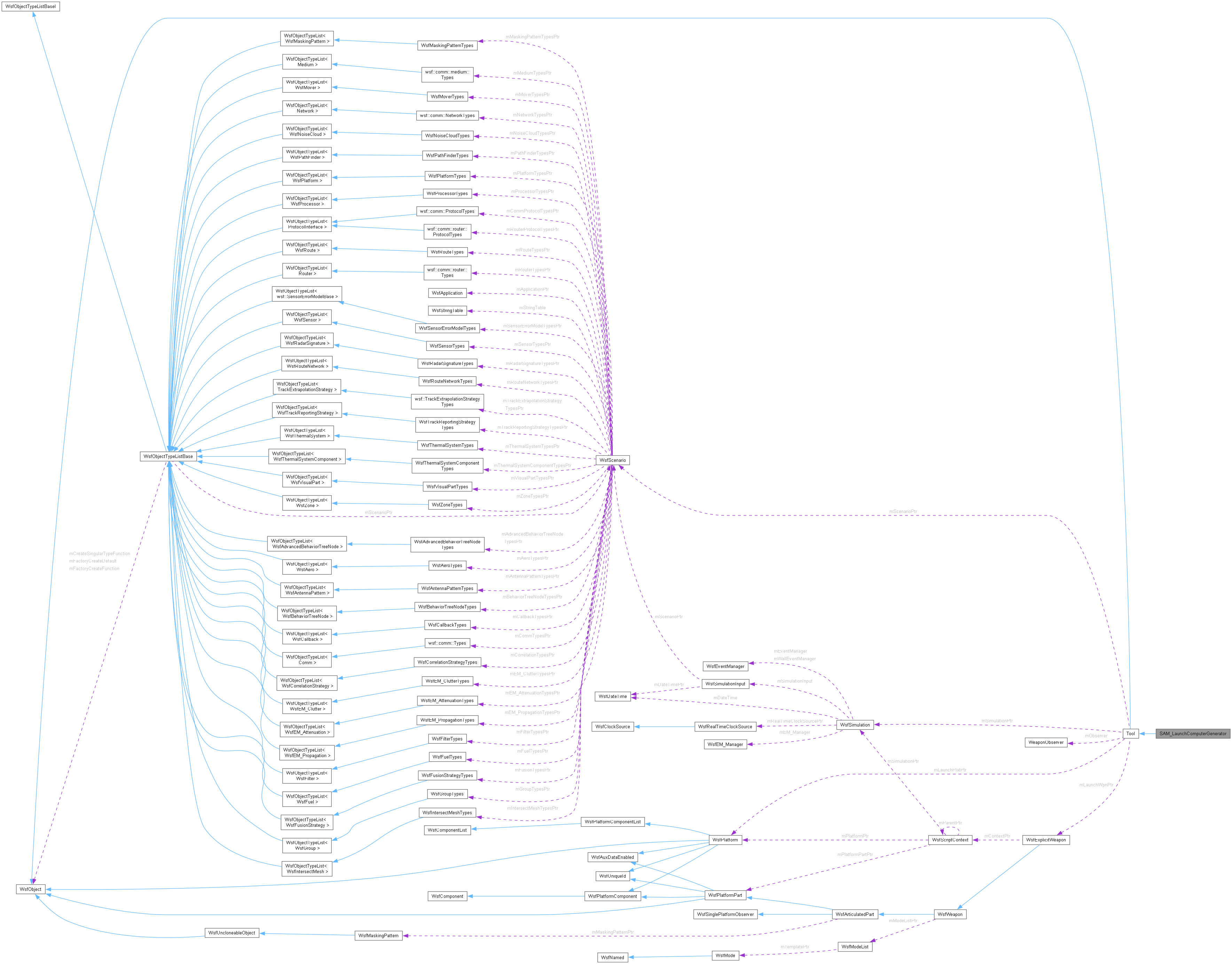

Collaboration diagram for SAM_LaunchComputerGenerator:

[legend]

Classes
struct	TestPoint

Public Member Functions
	SAM_LaunchComputerGenerator (WsfScenario &aScenario)
	~SAM_LaunchComputerGenerator () override
Tool *	Clone () const override
bool	Initialize (WsfSimulation &aSimulation) override
bool	ProcessInput (UtInput &aInput) override
void	Update (double aSimTime) override
Public Member Functions inherited from Tool
	Tool (const Tool &aSrc)
Tool &	operator= (const Tool &)=delete
	~Tool () override
bool	ProcessInput (UtInput &aInput) override
virtual void	MoverBurnout (double aSimTime, WsfMover *aMoverPtr)
	name Callbacks from WeaponObserver (lets the tool have access to simulation callbacks)
virtual void	GuidanceComputerPhaseChanged (double aSimTime, WsfGuidanceComputer *aComputerPtr)
	Optional tool method called by WeaponObserver to pass on the GuidanceComputerPhaseChanged simulation observer event.
virtual void	PlatformAdded (double aSimTime, WsfPlatform *aPlatformPtr)
	Optional tool method called by WeaponObserver to pass on the PlatformAdded simulation observer event.
WsfStringId	WeaponPlatformTypeId () const
double	FrameStep () const
bool	IsInitialized () const
WsfPlatform *	GetLauncherPlatform () const
WsfExplicitWeapon *	GetLauncherWeapon () const
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Protected Types
enum	StateType { cLC_GEN , cDONE }
	< Enumerated states listed in chronological order: More...

Protected Member Functions
void	ErrorBailout () override
bool	FireNewWeapon (double aSimTime) override
void	LCGenUpdate (double aSimTime)
bool	PlaceNewTarget (double aSimTime, WsfTrack &aTrack)
void	WriteOutputFile ()
void	TestOutputFile ()
void	TestPoints ()
bool	ProcessArray (UtInput &aInput, const std::string &aBlockTerminator, UtInput::ValueType aUnitType, std::vector< double > &aValues)
Protected Member Functions inherited from Tool
WsfSimulation *	GetSimulation () const
WsfScenario &	GetScenario () const
ToolManager *	GetManager () const
	Tool (WsfScenario &aScenario)
	This constructor initializes the object.
void	UnInitialize ()
bool	IsDone () const
	Return a flag to indicate that this Tool has completed its work.
bool	DebugEnabled () const
	Return a flag to indicate that debugging is enabled.
virtual void	ResolveNames ()
	Method called to determine what the output objects and file names are called.
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Additional Inherited Members
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.
Protected Attributes inherited from Tool
WsfScenario *	mScenarioPtr
WsfSimulation *	mSimulationPtr
WeaponObserver	mObserver
WsfPlatform *	mLaunchPlatPtr
WsfExplicitWeapon *	mLaunchWpnPtr
double	mFrameStep
double	mLastUpdate
double	mLatDeg
double	mLonDeg
double	mAlt
double	mHeadingRad
bool	mDone
bool	mNotifiedDone
bool	mInitialized
bool	mDebug
bool	mTerminateOnLaunchFailure
std::string	mToolProduces
std::string	mFileExtension
WsfStringId	mWeaponEffectTypeId
WsfStringId	mLaunchPlatformTypeId
WsfStringId	mTargetPlatformTypeId
WsfStringId	mWeaponNameId
std::string	mOutputFileName
std::string	mOutputObjectName

Detailed Description

Surface To Air Missile (SAM) Launch Computer Generation Tool. An instance of this class fires SAM System missiles repeatedly against targets at specified altitudes and ranges, to compute the Time Of Flight and Range attained. This information is used to feed values to a Launch Computer, setting the earliest time when a missile system can be fired against an inbound threat missile.

Member Enumeration Documentation

◆ StateType

enum SAM_LaunchComputerGenerator::StateType

protected

< Enumerated states listed in chronological order:

Enumerator
cLC_GEN	Generate.
cDONE	Done.

Constructor & Destructor Documentation

◆ SAM_LaunchComputerGenerator()

SAM_LaunchComputerGenerator::SAM_LaunchComputerGenerator ( WsfScenario & aScenario )

References cLC_GEN, Tool::mToolProduces, and Tool::Tool().

Referenced by Clone().

◆ ~SAM_LaunchComputerGenerator()

SAM_LaunchComputerGenerator::~SAM_LaunchComputerGenerator ( )

override

Member Function Documentation

◆ Clone()

Tool * SAM_LaunchComputerGenerator::Clone ( ) const

overridevirtual

Return a copy of this object. Must be implemented by all derived types. If cloning is impossible, a WsfUncloneableException should be thrown.

Implements Tool.

References SAM_LaunchComputerGenerator(), and Tool::Tool().

◆ ErrorBailout()

void SAM_LaunchComputerGenerator::ErrorBailout ( )

overrideprotectedvirtual

Reimplemented from Tool.

References cDONE, Tool::mDone, and Tool::mObserver.

◆ FireNewWeapon()

bool SAM_LaunchComputerGenerator::FireNewWeapon ( double aSimTime )

overrideprotectedvirtual

Method called to fire a new weapon. Pure virtual base method must be implemented in derived classes.

Parameters

aSimTime The current simulated time.

Implements Tool.

References Tool::DebugEnabled(), Tool::mLatDeg, Tool::mLaunchPlatPtr, Tool::mLaunchWpnPtr, Tool::mLonDeg, Tool::mObserver, PlaceNewTarget(), and Tool::WeaponPlatformTypeId().

Referenced by LCGenUpdate().

◆ Initialize()

bool SAM_LaunchComputerGenerator::Initialize ( WsfSimulation & aSimulation )

overridevirtual

In another typical WSF construct, this method initializes the object prior to run time. If the Initialization fails, the object will not be permitted to transition to the run mode. Derived classes must assure that they are initialized internally, as well as calling the base class Initialize method.

Returns: Boolean success value.

Reimplemented from Tool.

References WsfEM_XmtrRcvr::GetAntenna(), WsfSensor::GetEM_Xmtr(), WsfSensor::GetEM_XmtrCount(), WsfEM_Antenna::GetHeight(), Tool::Initialize(), Tool::mInitialized, Tool::mLaunchPlatPtr, Tool::mObserver, and Tool::UnInitialize().

◆ LCGenUpdate()

void SAM_LaunchComputerGenerator::LCGenUpdate ( double aSimTime )

protected

References cDONE, WeaponObserver::cIDLE, WeaponObserver::cTERMINATED, Tool::DebugEnabled(), WsfSimulation::DeletePlatform(), FireNewWeapon(), WsfSimulation::GetPlatformByIndex(), Tool::GetSimulation(), Tool::mDone, Tool::mObserver, TestOutputFile(), TestPoints(), and WriteOutputFile().

Referenced by Update().

◆ PlaceNewTarget()

bool SAM_LaunchComputerGenerator::PlaceNewTarget	(	double	aSimTime,
		WsfTrack &	aTrack )

protected

References WsfRoute::Append(), WsfObjectTypeList< T >::Clone(), Tool::DebugEnabled(), WsfPlatformTypes::Get(), WsfPlatform::GetIndex(), WsfPlatform::GetMover(), Tool::GetScenario(), Tool::GetSimulation(), WsfTrack::Initialize(), Tool::mLaunchPlatPtr, moverPtr, Tool::mTargetPlatformTypeId, WsfWaypoint::SetHeading(), WsfTrackId::SetLocalTrackNumber(), WsfObject::SetName(), WsfTrackId::SetOwningPlatformId(), WsfTrack::SetTargetIndex(), and WsfTrack::Update().

Referenced by FireNewWeapon().

◆ ProcessArray()

bool SAM_LaunchComputerGenerator::ProcessArray	(	UtInput &	aInput,
		const std::string &	aBlockTerminator,
		UtInput::ValueType	aUnitType,
		std::vector< double > &	aValues )

protected

Parse an input stream and extract from it an array of unit values.

Parameters

aInput	The input stream reference.
aBlockTerminator	The string to search for end-of-block.
aUnitType	The type of unit to be read in and added to the array contents.
aValues	An array of floating point values to hold the results of parsing.

Returns: 'True' if the aValues array was added to in any way.

Referenced by ProcessInput().

◆ ProcessInput()

bool SAM_LaunchComputerGenerator::ProcessInput ( UtInput & aInput )

overridevirtual

Process input from a generic source.

Examine the current input command. If it is NOT one of the commands recognized by this class then it simply returns 'false'. If it is one of the commands recognized by this class then it processes the command and returns 'true'.

Parameters

aInput a reference to a UtInput object.

Returns: 'true' if the command was one recognized by the class or 'false' if not.

Exceptions

UtInput::ExceptionBase (or an object derived from it) if the command was recognized but contains some sort of error.

Note: If a derived class does not recognize the command (i.e.: the return value is false) then it should call the base class ProcessInput method. This chain should continue until either the command is recognized or the top-level base class is encountered.

Reimplemented from WsfObject.

References SAM_LaunchComputerGenerator::TestPoint::altitude, SAM_LaunchComputerGenerator::TestPoint::groundRange, SAM_LaunchComputerGenerator::TestPoint::latOffset, ProcessArray(), Tool::ProcessInput(), and SAM_LaunchComputerGenerator::TestPoint::speed.

◆ TestOutputFile()

void SAM_LaunchComputerGenerator::TestOutputFile ( )

protected

References WsfLaunchComputerTypes::Get(), Tool::GetScenario(), Tool::mOutputFileName, and WsfSAM_LaunchComputer::ValidateEnvelope().

Referenced by LCGenUpdate().

◆ TestPoints()

void SAM_LaunchComputerGenerator::TestPoints ( )

protected

References SAM_LaunchComputerGenerator::TestPoint::altitude, WsfSimulation::GetSimTime(), Tool::GetSimulation(), SAM_LaunchComputerGenerator::TestPoint::groundRange, SAM_LaunchComputerGenerator::TestPoint::latOffset, Tool::mLaunchPlatPtr, simTime, and SAM_LaunchComputerGenerator::TestPoint::speed.

Referenced by LCGenUpdate().

◆ Update()

void SAM_LaunchComputerGenerator::Update ( double aSimTime )

overridevirtual

Advance the Tool forward in time. This base method shall be overridden in derived classes, and at the end of the derived method, this parent method must be called, to properly maintain the internal state.

Reimplemented from Tool.

References cDONE, cLC_GEN, LCGenUpdate(), Tool::mLastUpdate, and Tool::Update().

◆ WriteOutputFile()

void SAM_LaunchComputerGenerator::WriteOutputFile ( )

protected

References WsfSAM_LaunchComputer::InterceptEnvelope::Altitude(), WsfSAM_LaunchComputer::BaseTypeName(), WsfSAM_LaunchComputer::InterceptEnvelope::GroundRange(), Tool::mOutputFileName, Tool::mOutputObjectName, WsfSAM_LaunchComputer::InterceptEnvelope::NumAltitudes(), WsfSAM_LaunchComputer::InterceptEnvelope::NumOffsets(), WsfSAM_LaunchComputer::InterceptEnvelope::NumRanges(), WsfSAM_LaunchComputer::InterceptEnvelope::NumSpeeds(), WsfSAM_LaunchComputer::InterceptEnvelope::Offset(), WsfSAM_LaunchComputer::InterceptEnvelope::Speed(), and WsfSAM_LaunchComputer::InterceptEnvelope::TimeOfFlight().

Referenced by LCGenUpdate().
