#include <Tool.hpp>

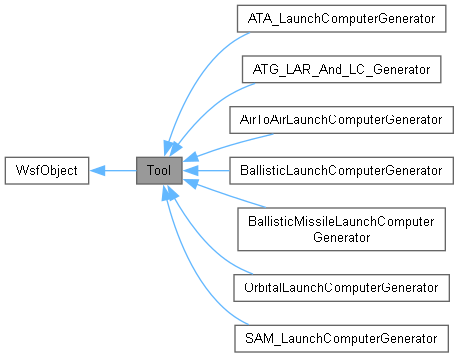

Inheritance diagram for Tool:

[legend]

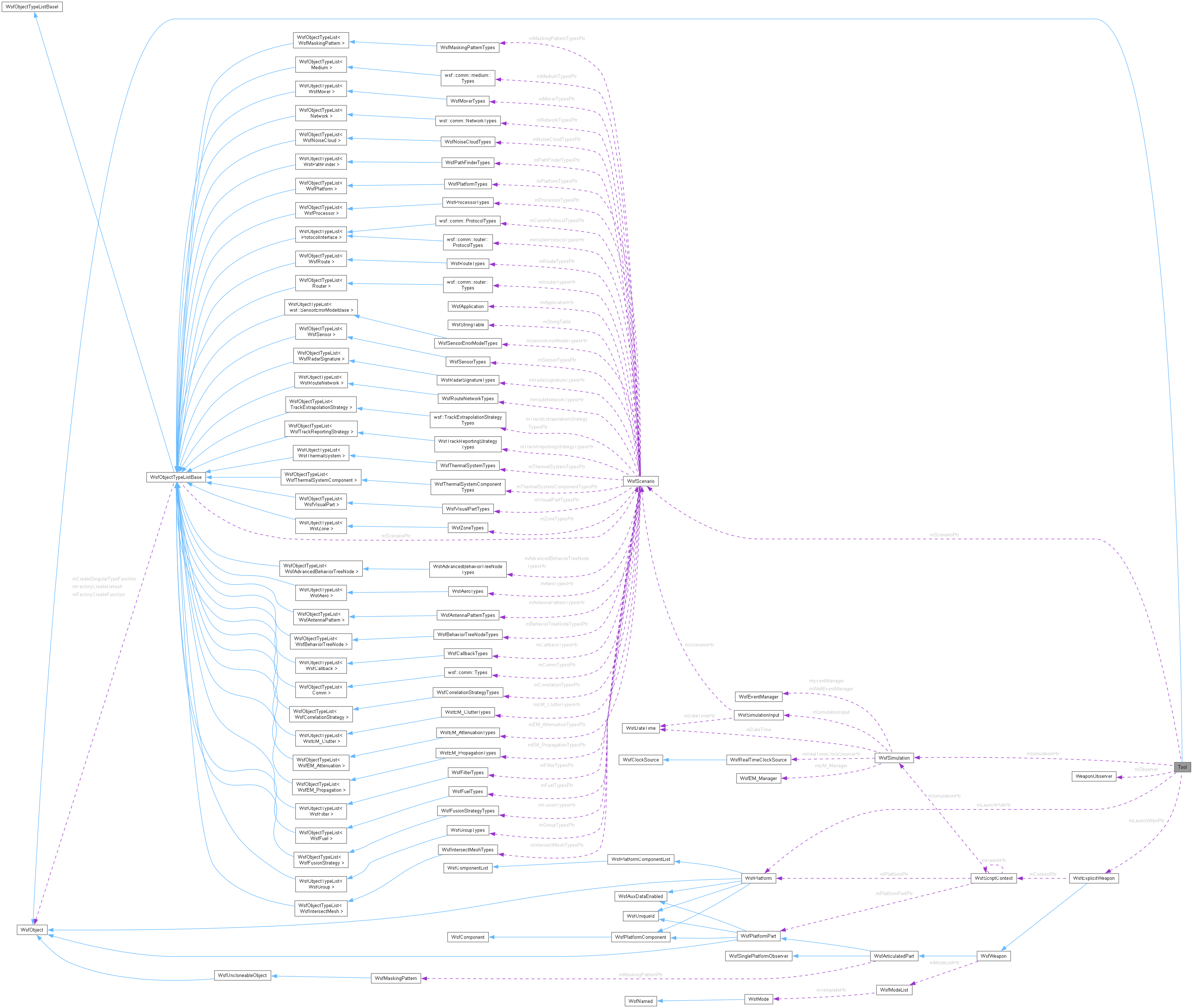

Collaboration diagram for Tool:

[legend]

Public Member Functions
	Tool (const Tool &aSrc)
Tool &	operator= (const Tool &)=delete
	~Tool () override
Tool *	Clone () const override=0
virtual void	Update (double aSimTime)
virtual bool	Initialize (WsfSimulation &aSimulation)
bool	ProcessInput (UtInput &aInput) override
virtual void	MoverBurnout (double aSimTime, WsfMover *aMoverPtr)
	name Callbacks from WeaponObserver (lets the tool have access to simulation callbacks)
virtual void	GuidanceComputerPhaseChanged (double aSimTime, WsfGuidanceComputer *aComputerPtr)
	Optional tool method called by WeaponObserver to pass on the GuidanceComputerPhaseChanged simulation observer event.
virtual void	PlatformAdded (double aSimTime, WsfPlatform *aPlatformPtr)
	Optional tool method called by WeaponObserver to pass on the PlatformAdded simulation observer event.
WsfStringId	WeaponPlatformTypeId () const
double	FrameStep () const
bool	IsInitialized () const
WsfPlatform *	GetLauncherPlatform () const
WsfExplicitWeapon *	GetLauncherWeapon () const
Public Member Functions inherited from WsfObject
	WsfObject ()
	This is the constructor for the WsfObject class.
	~WsfObject () override
	This is the destructor for the WsfObject class.
const char *	GetScriptClassName () const override
const std::string &	GetType () const
WsfStringId	GetTypeId () const
	Get the string ID of the 'type' of the object.
void	SetType (WsfStringId aType)
const std::string &	GetBaseType () const
WsfStringId	GetBaseTypeId () const
const TypeList &	GetTypeList () const
bool	IsA_TypeOf (WsfStringId aType) const
WsfObject &	operator= (const WsfObject &aRhs)
	Assignment operator.
template<typename T>
void	Serialize (T &aBuff)
	For XIO (de)serialization.
const std::string &	GetName () const
WsfStringId	GetNameId () const
void	SetName (WsfStringId aName)

Protected Member Functions
WsfSimulation *	GetSimulation () const
WsfScenario &	GetScenario () const
ToolManager *	GetManager () const
	Tool (WsfScenario &aScenario)
	This constructor initializes the object.
void	UnInitialize ()
bool	IsDone () const
	Return a flag to indicate that this Tool has completed its work.
bool	DebugEnabled () const
	Return a flag to indicate that debugging is enabled.
virtual void	ResolveNames ()
	Method called to determine what the output objects and file names are called.
virtual bool	FireNewWeapon (double aSimTime)=0
virtual void	ErrorBailout ()
	WsfObject (const WsfObject &aSrc)
	Copy constructor (for Clone()).

Protected Attributes
WsfScenario *	mScenarioPtr
WsfSimulation *	mSimulationPtr
WeaponObserver	mObserver
WsfPlatform *	mLaunchPlatPtr
WsfExplicitWeapon *	mLaunchWpnPtr
double	mFrameStep
double	mLastUpdate
double	mLatDeg
double	mLonDeg
double	mAlt
double	mHeadingRad
bool	mDone
bool	mNotifiedDone
bool	mInitialized
bool	mDebug
bool	mTerminateOnLaunchFailure
std::string	mToolProduces
std::string	mFileExtension
WsfStringId	mWeaponEffectTypeId
WsfStringId	mLaunchPlatformTypeId
WsfStringId	mTargetPlatformTypeId
WsfStringId	mWeaponNameId
std::string	mOutputFileName
std::string	mOutputObjectName

Additional Inherited Members
Public Types inherited from WsfObject
typedef std::vector< WsfStringId >	TypeList
	The list of types returned by GetTypeList.

Detailed Description

Tool is a base class for a processor that does some utility function and reports when it is done. Tool is a processor (similar to WsfProcessor, but distinct from it, since it does not reside on a WsfPlatform) that does some utility function. The look and feel of this utility is modeled upon the WSF core framework. The intent is that a single "main" function will instantiate and control one or more Tools, and carry out a WsfSimulation, advancing time until each of the instantiated Tools have reported that they are done. The earliest use of this class is in repeatedly firing explicit weapons of interest, under completely controlled engagement conditions, to gather metrics that quantify the weapon's performance and behavior (defining lethality tables, Launch Acceptable Regions (LARs), times of flight, etc.). The input stream (see ProcessInput()) will specify where the Tool activity takes place (in latitude, longitude), the explicit weapon type to experiment upon, and other necessary information.

Constructor & Destructor Documentation

◆ Tool() [1/2]

Tool::Tool ( const Tool & aSrc )

References mAlt, mDebug, mDone, mFileExtension, mFrameStep, mHeadingRad, mInitialized, mLastUpdate, mLatDeg, mLaunchPlatformTypeId, mLaunchPlatPtr, mLaunchWpnPtr, mLonDeg, mNotifiedDone, mObserver, mOutputFileName, mOutputObjectName, mScenarioPtr, mSimulationPtr, mTargetPlatformTypeId, mTerminateOnLaunchFailure, mToolProduces, mWeaponEffectTypeId, mWeaponNameId, Tool(), and WsfObject::WsfObject().

◆ ~Tool()

Tool::~Tool ( )

override

◆ Tool() [2/2]

Tool::Tool ( WsfScenario & aScenario )

protected

This constructor initializes the object.

References mAlt, mDebug, mDone, mFileExtension, mFrameStep, mHeadingRad, mInitialized, mLastUpdate, mLatDeg, mLaunchPlatformTypeId, mLaunchPlatPtr, mLaunchWpnPtr, mLonDeg, mNotifiedDone, mObserver, mOutputFileName, mOutputObjectName, mScenarioPtr, mSimulationPtr, mTargetPlatformTypeId, mTerminateOnLaunchFailure, mToolProduces, mWeaponEffectTypeId, mWeaponNameId, and WsfObject::WsfObject().

Member Function Documentation

◆ Clone()

Tool * Tool::Clone ( ) const

overridepure virtual

Return a copy of this object. Must be implemented by all derived types. If cloning is impossible, a WsfUncloneableException should be thrown.

Implements WsfObject.

Implemented in AirToAirLaunchComputerGenerator, ATA_LaunchComputerGenerator, ATG_LAR_And_LC_Generator, BallisticLaunchComputerGenerator, BallisticMissileLaunchComputerGenerator, OrbitalLaunchComputerGenerator, and SAM_LaunchComputerGenerator.

References GuidanceComputerPhaseChanged(), Initialize(), MoverBurnout(), PlatformAdded(), Tool(), and WeaponPlatformTypeId().

Referenced by ToolManager::ProcessInput().

◆ DebugEnabled()

bool Tool::DebugEnabled ( ) const

inlineprotected

Return a flag to indicate that debugging is enabled.

References mDebug.

◆ ErrorBailout()

virtual void Tool::ErrorBailout ( )

inlineprotectedvirtual

Reimplemented in AirToAirLaunchComputerGenerator, ATG_LAR_And_LC_Generator, BallisticLaunchComputerGenerator, and SAM_LaunchComputerGenerator.

◆ FireNewWeapon()

virtual bool Tool::FireNewWeapon ( double aSimTime )

protectedpure virtual

Method called to fire a new weapon. Pure virtual base method must be implemented in derived classes.

Parameters

aSimTime The current simulated time.

Implemented in AirToAirLaunchComputerGenerator, ATG_LAR_And_LC_Generator, BallisticLaunchComputerGenerator, and SAM_LaunchComputerGenerator.

◆ FrameStep()

double Tool::FrameStep ( ) const

inline

References mFrameStep.

◆ GetLauncherPlatform()

WsfPlatform * Tool::GetLauncherPlatform ( ) const

inline

References mLaunchPlatPtr.

◆ GetLauncherWeapon()

WsfExplicitWeapon * Tool::GetLauncherWeapon ( ) const

inline

References mLaunchWpnPtr.

◆ GetManager()

ToolManager * Tool::GetManager ( ) const

protected

References ToolManager::Find(), and GetScenario().

Referenced by UnInitialize(), and Update().

◆ GetScenario()

WsfScenario & Tool::GetScenario ( ) const

inlineprotected

References mScenarioPtr.

Referenced by GetManager(), Initialize(), ATG_LAR_And_LC_Generator::LARGenUpdate(), SAM_LaunchComputerGenerator::PlaceNewTarget(), ATA_LaunchComputerGenerator::ProcessInput(), ATA_LaunchComputerGenerator::ResolveNames(), SAM_LaunchComputerGenerator::TestOutputFile(), ATA_LaunchComputerGenerator::WriteOutputFile(), ATG_LAR_And_LC_Generator::WriteOutputFile(), and BallisticLaunchComputerGenerator::WriteOutputFile().

◆ GetSimulation()

WsfSimulation * Tool::GetSimulation ( ) const

inlineprotected

References mSimulationPtr.

Referenced by ATG_LAR_And_LC_Generator::LARGenUpdate(), SAM_LaunchComputerGenerator::LCGenUpdate(), SAM_LaunchComputerGenerator::PlaceNewTarget(), SAM_LaunchComputerGenerator::TestPoints(), and ATA_LaunchComputerGenerator::Update().

◆ GuidanceComputerPhaseChanged()

void Tool::GuidanceComputerPhaseChanged	(	double	aSimTime,
		WsfGuidanceComputer *	aComputerPtr )

virtual

Optional tool method called by WeaponObserver to pass on the GuidanceComputerPhaseChanged simulation observer event.

Reimplemented in OrbitalLaunchComputerGenerator.

Referenced by Clone().

◆ Initialize()

bool Tool::Initialize ( WsfSimulation & aSimulation )

virtual

In another typical WSF construct, this method initializes the object prior to run time. If the Initialization fails, the object will not be permitted to transition to the run mode. Derived classes must assure that they are initialized internally, as well as calling the base class Initialize method.

Returns: Boolean success value.

Reimplemented in AirToAirLaunchComputerGenerator, ATA_LaunchComputerGenerator, ATG_LAR_And_LC_Generator, BallisticLaunchComputerGenerator, BallisticMissileLaunchComputerGenerator, OrbitalLaunchComputerGenerator, and SAM_LaunchComputerGenerator.

References WsfSimulation::AddEvent(), WsfSimulation::AddPlatform(), WsfComponentList::RoleIterator< T >::AtEnd(), WsfObjectTypeList< T >::Clone(), WsfPlatformTypes::Get(), WsfWeaponEffectsTypes::Get(), WsfObject::GetNameId(), WsfSimulation::GetPlatformByName(), GetScenario(), WsfSimulation::GetSimTime(), mAlt, mHeadingRad, mInitialized, mLastUpdate, mLatDeg, mLaunchPlatformTypeId, mLaunchPlatPtr, mLaunchWpnPtr, mLonDeg, mObserver, mSimulationPtr, mWeaponEffectTypeId, mWeaponNameId, ResolveNames(), WsfLaunchComputer::SetComputerGenerationMode(), success, and UnInitialize().

Referenced by Clone(), AirToAirLaunchComputerGenerator::Initialize(), ATA_LaunchComputerGenerator::Initialize(), ATG_LAR_And_LC_Generator::Initialize(), BallisticLaunchComputerGenerator::Initialize(), BallisticMissileLaunchComputerGenerator::Initialize(), OrbitalLaunchComputerGenerator::Initialize(), and SAM_LaunchComputerGenerator::Initialize().

◆ IsDone()

bool Tool::IsDone ( ) const

inlineprotected

Return a flag to indicate that this Tool has completed its work.

References mDone.

◆ IsInitialized()

bool Tool::IsInitialized ( ) const

inline

References mInitialized.

◆ MoverBurnout()

void Tool::MoverBurnout	(	double	aSimTime,
		WsfMover *	aMoverPtr )

virtual

name Callbacks from WeaponObserver (lets the tool have access to simulation callbacks)

Optional tool method called by WeaponObserver to pass on the MoverBurnout simulation observer event.

Reimplemented in OrbitalLaunchComputerGenerator.

Referenced by Clone().

◆ operator=()

Tool & Tool::operator= ( const Tool & )

delete

References Tool().

◆ PlatformAdded()

void Tool::PlatformAdded	(	double	aSimTime,
		WsfPlatform *	aPlatformPtr )

virtual

Optional tool method called by WeaponObserver to pass on the PlatformAdded simulation observer event.

Reimplemented in BallisticLaunchComputerGenerator, and OrbitalLaunchComputerGenerator.

Referenced by Clone().

◆ ProcessInput()

bool Tool::ProcessInput ( UtInput & aInput )

overridevirtual

In a typical WSF construct, this method parses the input stream, in order to extract commands and values fed to it. See the Weapon Tools User's Guide for details.

Reimplemented from WsfObject.

References mAlt, mDebug, mFileExtension, mFrameStep, mHeadingRad, mLatDeg, mLaunchPlatformTypeId, mLonDeg, mOutputFileName, mOutputObjectName, mTargetPlatformTypeId, mTerminateOnLaunchFailure, mToolProduces, mWeaponEffectTypeId, and mWeaponNameId.

Referenced by AirToAirLaunchComputerGenerator::ProcessInput(), ATA_LaunchComputerGenerator::ProcessInput(), ATG_LAR_And_LC_Generator::ProcessInput(), BallisticLaunchComputerGenerator::ProcessInput(), BallisticMissileLaunchComputerGenerator::ProcessInput(), OrbitalLaunchComputerGenerator::ProcessInput(), SAM_LaunchComputerGenerator::ProcessInput(), and ToolManager::ProcessInput().

◆ ResolveNames()

void Tool::ResolveNames ( )

protectedvirtual

Method called to determine what the output objects and file names are called.

Virtual method to resolve the output object name and output file names.

Reimplemented in ATA_LaunchComputerGenerator.

References mFileExtension, mOutputFileName, mOutputObjectName, mToolProduces, and WeaponPlatformTypeId().

Referenced by Initialize().

◆ UnInitialize()

void Tool::UnInitialize ( )

protected

If Initialize() fails, this method will de-register the Tool from active consideration within the main execution loop, allowing the simulation to complete when all other Tools (if any) are done.

References GetManager(), and ToolManager::UnRegister().

Referenced by AirToAirLaunchComputerGenerator::Initialize(), ATA_LaunchComputerGenerator::Initialize(), ATG_LAR_And_LC_Generator::Initialize(), BallisticLaunchComputerGenerator::Initialize(), SAM_LaunchComputerGenerator::Initialize(), and Initialize().

◆ Update()

void Tool::Update ( double aSimTime )

virtual

Advance the Tool forward in time. This base method shall be overridden in derived classes, and at the end of the derived method, this parent method must be called, to properly maintain the internal state.

Reimplemented in AirToAirLaunchComputerGenerator, ATA_LaunchComputerGenerator, ATG_LAR_And_LC_Generator, BallisticLaunchComputerGenerator, BallisticMissileLaunchComputerGenerator, OrbitalLaunchComputerGenerator, and SAM_LaunchComputerGenerator.

References GetManager(), mDone, mLastUpdate, mNotifiedDone, and ToolManager::UnRegister().

Referenced by AirToAirLaunchComputerGenerator::Update(), ATA_LaunchComputerGenerator::Update(), ATG_LAR_And_LC_Generator::Update(), BallisticLaunchComputerGenerator::Update(), BallisticMissileLaunchComputerGenerator::Update(), OrbitalLaunchComputerGenerator::Update(), and SAM_LaunchComputerGenerator::Update().
