This is the assess module of the SA Processor. More...

#include <WsfSA_Assess.hpp>

Inheritance diagram for WsfSA_Assess:

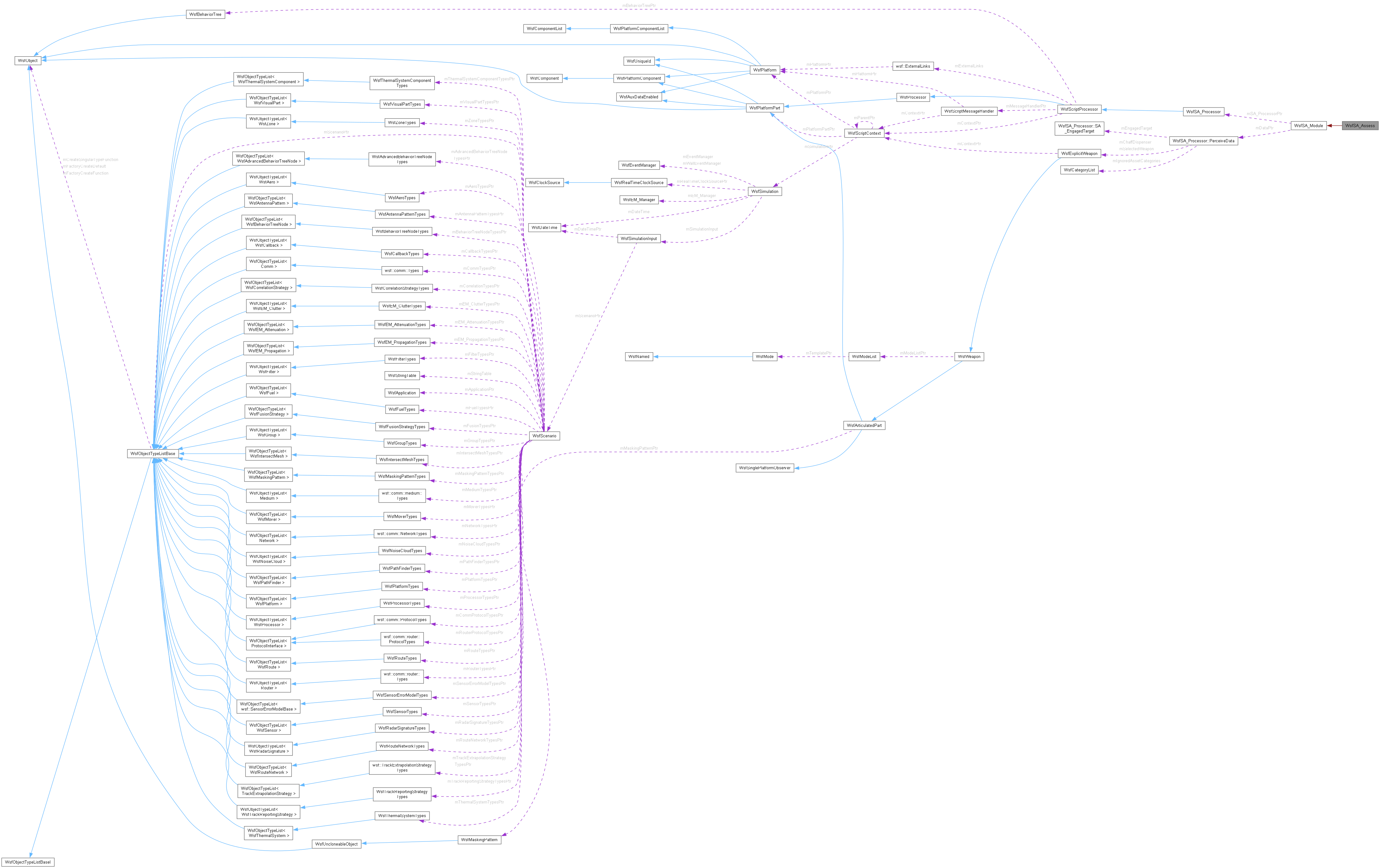

Collaboration diagram for WsfSA_Assess:

[legend]

Classes
struct	AssessEngagementData
struct	AircraftSignatureParameters
struct	PlatormScorePairing

Public Types
enum	AcceptableRiskLevel { LOW = 0 , MEDIUM = 1 , HIGH = 2 }

Public Member Functions
	WsfSA_Assess (WsfSA_Processor aSA_ProcPtr, WsfSA_Processor::PerceiveData aDataPtr)
WsfSA_Assess &	operator= (const WsfSA_Assess &)=delete
	~WsfSA_Assess ()
bool	ProcessInput (UtInput &aInput)
	Process input from script.
void	Initialize (double aSimTime)
	Performs initialization during creation.
double	TryUpdateEngagements (double aSimTime)
	Attempt to update engagement data at a sim time, and return an appropriate time for the next event update.
double	TryUpdatePrioritizedItemData (double aSimTime)
	Attempt to update prioritized threat and target data at a sim time, and return an appropriate time for the next event update.
double	TryUpdatePrioritizedItemCalculation (double aSimTime)
	Attempt to update prioritized threat and target calculations at a sim time, and return an appropriate time for the next event update.
void	UpdateEngagements (double aSimTime)
	Update engagement data at a sim time, and return an appropriate time for the next event update.
void	UpdatePrioritizedItemData (double aSimTime)
	Update prioritized threat and target data at a sim time, and return an appropriate time for the next event update.
void	UpdatePrioritizedItemCalculation (double aSimTime)
	Update prioritized threat and target calculations at a sim time, and return an appropriate time for the next event update.
void	UpdateEngagementsData (double aSimTime)
	Update engagement data at a sim time, and return an appropriate time for the next event update.
void	UpdatePrioritizedThreatsAndTargetsData (double aSimTime)
	Update prioritized threat and target data at a sim time, and return an appropriate time for the next event update.
void	AssessBogiesBandits (double aSimTime)
	Update and assess the current perceived bogies and bandits groups for the current platform.
void	CalculatePrioritizedThreats (double aSimTime)
	Calculate the prioritized threats for the current platform.
void	CalculatePrioritizedTargets (double aSimTime)
	Calculate the prioritized targets for the current platform.
void	UpdateWeaponSupport (double aSimTime)
	This updates the weapon support parameters using an optional script function.
unsigned int	MaxPrioritizedThreats ()
	Return the max prioritized threat count the platform can handle.
void	SetMaxPrioritizedThreats (unsigned int aMax)
	Set the prioritized threat maximum.
void	ResetMaxPrioritizedThreats ()
	Set the max prioritized target to the value provided during initialization (default is 0 where not provided).
unsigned int	MaxPrioritizedTargets ()
	Return the max prioritized target count the platform can handle.
void	SetMaxPrioritizedTargets (unsigned int aMax)
	Set the prioritized target maximum.
void	ResetMaxPrioritizedTargets ()
	Set the max prioritized target to the value provided during initialization (default is 0 where not provided).
double	AngleOffTarget2D (const WsfPlatform &aTargetPlatform) const
	This returns the 2D angle-off between the target and the platform (the difference in headings).
double	AngleOffTarget3D (const WsfPlatform &aTargetPlatform) const
	This returns the 3D angle-off between the target and the platform (the difference in heading/velocity).
double	AspectAngleForTarget2D (const WsfPlatform &aTargetPlatform) const
	This returns the aspect-angle for the target relative to the platform's position in 2D, meaning the aspect is based on a horizontal plane that contains the target, with the platform's position projected onto the plane.
double	AspectAngleForTarget3D (const WsfPlatform &aTargetPlatform) const
	This returns the aspect-angle for the target relative to the platform's position in 3D, meaning the aspect is based on the angle between a 3D vector opposite of the target's velocity vector and the vector from the target to the platform's position.
double	OffBoresightAngleForTarget (const WsfPlatform &aTargetPlatform) const
	This returns the off-boresight angle for the target relative to the platform's x-axis.
double	OffBoresightAngleForTarget (const double aLocationWCS[3]) const
	This returns the off-boresight angle for the target location relative to the platform's x-axis.
double	ExpectedDetectionRangeAgainstTarget (const WsfPlatform &aTargetPlatform) const
	This returns the expected detection range (in meters) where the current platform could detect the target platform, with the current relative aspects and states.
double	ExpectedDetectionRangeAgainstTarget (size_t aIndex) const
	This returns the expected detection range (in meters) where the current platform could detect the target platform, with the current relative aspects and states.
double	ExpectedDetectionRangeByTarget (const WsfPlatform &aTargetPlatform) const
	This returns the expected detection range (in meters) where the target platform could detect the current platform, with the current relative aspects and states.
double	ExpectedDetectionRangeByTarget (size_t aIndex) const
	This returns the expected detection range (in meters) where the target platform could detect the current platform, with the current relative aspects and states.
double	ExpectedDetectionRange (const WsfPlatform &aSourePlatform, const WsfPlatform &aTargetPlatform) const
	This returns the expected detection range (in meters) where the current platform could detect the target platform, with the current relative aspects and states.
double	ExpectedNormalizedDetectionRangeAgainstTarget (const WsfPlatform &aTargetPlatform) const
	This returns the expected detection range against a given target platform as a normalized value between 0 and 1.
double	ExpectedNormalizedDetectionRangeAgainstTarget (size_t aIndex) const
	This returns the expected detection range against a given target platform as a normalized value between 0 and 1.
double	ExpectedNormalizedWezRangeAgainstTarget (const WsfPlatform &aTargetPlatform) const
	This returns the expected WEZ range against a given target platform as a normalized value between 0 and 1.
double	ExpectedNormalizedWezRangeAgainstTarget (size_t aIndex) const
	This returns the expected WEZ range against a given target platform as a normalized value between 0 and 1.
double	ExpectedWezRangeAgainstTarget (const WsfPlatform &aTargetPlatform) const
	This returns the expected WEZ range for the current platform against the target platform, with the current relative aspects and states.
double	ExpectedWezRangeAgainstTarget (size_t aIndex) const
	This returns the expected WEZ range for the current platform against the target platform, with the current relative aspects and states.
double	ExpectedMinimumEngagementRangeAgainstTarget (const WsfPlatform &aTargetPlatform) const
	This returns the expected minimum engagement range for the current platform against the given target platform.
double	ExpectedMinimumEngagementRangeAgainstTarget (size_t aIndex) const
	This returns the expected minimum engagement range for the current platform against the given target platform.
double	ExpectedMaximumEngagementRangeAgainstTarget (const WsfPlatform &aTargetPlatform) const
	This returns the expected maximum engagement range for the current platform against the given target platform.
double	ExpectedMaximumEngagementRangeAgainstTarget (size_t aIndex) const
	This returns the expected maximum engagement range for the current platform against the given target platform.
double	ExpectedNoEscapeRangeAgainstTarget (const WsfPlatform &aTargetPlatform) const
	This returns the expected "no escape" engagement range for the current platform against the given target platform.
double	ExpectedNoEscapeRangeAgainstTarget (size_t aIndex) const
	This returns the expected "no escape" engagement range for the current platform against the given target platform.
double	ExpectedWezRangeByTarget (const WsfPlatform &aTargetPlatform) const
	This returns the expected WEZ range for the target platform against the current platform, with the current relative aspects and states.
double	ExpectedWezRangeByTarget (size_t aIndex) const
	This returns the expected WEZ range for the target platform against the current platform, with the current relative aspects and states.
double	CalcSlantRange (const WsfPlatform &aSourcePlatform, const WsfPlatform &aTargetPlatform) const
	This returns the range between the specified source platform and the target platform.
double	CalcSlantRange (const WsfPlatform &aTargetPlatform) const
	This returns the range between the current platform and the specified target platform.
double	CalcDeltaAltitude (const WsfPlatform &aSourcePlatform, const WsfPlatform &aTargetPlatform) const
	This returns the difference in altitude the specified source platform and the target platform.
double	CalcDeltaAltitude (const WsfPlatform &aTargetPlatform) const
	This returns the difference in altitude between the current platform and the specified target platform.
bool	WeaponBayDoorsOpen () const
	A placeholder function that, in the future, will return whether a platform's weapon bay doors are open.
bool	GetWeaponBayOpen ()
	This returns the state of the weapon bay doors.
void	SetWeaponBayOpen (bool aWeaponBayOpen)
	This sets the state of the weapon bay doors.
std::string	GetSelectedWeapon ()
	This returns the name of the current selected weapon.
void	SetSelectedWeapon (const std::string &aSelectedWeapon)
	This sets the name of the current selected weapon.
double	GetCornerSpeed_KCAS () const
	A placeholder function that, in the future, will return the minimum speed required to reach the platform's maximum G Load.
std::vector< WsfSA_PerceivedItem * >	PerceivedThreatItems (double aSimTime)
	Return a reference to the list of perceived items for the current platform at a given time.
std::vector< size_t >	PrioritizedThreatIds () const
	This returns a list of prioritized threat platform ids, beginning with the highest priority threat and working down to the lowest priority threat.
std::vector< std::string >	PrioritizedThreatNames () const
	This returns a list of prioritized threat platform names, beginning with the highest priority threat and working down to the lowest priority threat.
const std::list< UtWeakReference< WsfSA_PerceivedItem > > &	GetPrioritizedThreatItems () const
	This returns a const list of prioritized threat perceived items, beginning with the highest priority threat and working down to the lowest priority threat.
std::list< UtWeakReference< WsfSA_PerceivedItem > > &	GetPrioritizedThreatItems ()
	This returns a list of prioritized threat perceived items, beginning with the highest priority threat and working down to the lowest priority threat.
const std::list< UtWeakReference< WsfSA_EntityPerception > > &	GetPrioritizedThreatEntities () const
	This returns a const list of prioritized threat perceived entities, beginning with the highest priority threat and working down to the lowest priority threat.
std::list< UtWeakReference< WsfSA_EntityPerception > > &	GetPrioritizedThreatEntities ()
	This returns a list of prioritized threat perceived entities, beginning with the highest priority threat and working down to the lowest priority threat.
const std::list< UtWeakReference< WsfSA_EntityPerception > > &	GetPrioritizedAircraftThreatEntities () const
	This returns a const list of prioritized aircraft threat entity perceptions, beginning with the highest priority threat and working down to the lowest priority threat.
std::list< UtWeakReference< WsfSA_EntityPerception > > &	GetPrioritizedAircraftThreatEntities ()
	This returns a list of prioritized aircraft threat entity perceptions, beginning with the highest priority threat and working down to the lowest priority threat.
const std::list< UtWeakReference< WsfSA_EntityPerception > > &	GetPrioritizedMissileThreatEntities () const
	This returns a const list of prioritized missile threat entity perceptions, beginning with the highest priority threat and working down to the lowest priority threat.
std::list< UtWeakReference< WsfSA_EntityPerception > > &	GetPrioritizedMissileThreatEntities ()
	This returns a list of prioritized missile threat entity perceptions, beginning with the highest priority threat and working down to the lowest priority threat.
const std::list< UtWeakReference< WsfSA_Group > > &	GetPrioritizedThreatGroups () const
	This returns a const list of prioritized threat unfocused groups, beginning with the highest priority threat and working down to the lowest priority threat.
std::list< UtWeakReference< WsfSA_Group > > &	GetPrioritizedThreatGroups ()
	This returns a list of prioritized threat unfocused groups, beginning with the highest priority threat and working down to the lowest priority threat.
WsfSA_PerceivedItem *	HighestThreat (double aSimTime)
	This returns a pointer to the highest threat or nullptr if no such threat exists.
WsfSA_EntityPerception *	HighestThreatEntity (double aSimTime)
	This returns a pointer to the highest entity threat or nullptr if no such threat exists.
WsfSA_EntityPerception *	HighestThreatAircraft (double aSimTime)
	This returns a pointer to the highest aircraft threat or nullptr if no such threat exists.
WsfSA_EntityPerception *	HighestThreatMissile (double aSimTime)
	This returns a pointer to the highest missile threat or nullptr if no such threat exists.
WsfSA_Group *	HighestThreatGroup (double aSimTime)
	This returns a pointer to the highest group threat or nullptr if no such threat exists.
std::vector< size_t >	PrioritizedTargetIds () const
	This returns a list of prioritized target platform ids, beginning with the highest priority target and working down to the lowest priority target.
std::vector< std::string >	PrioritizedTargetNames () const
	This returns a list of prioritized target platform names, beginning with the highest priority target and working down to the lowest priority target.
const std::list< UtWeakReference< WsfSA_PerceivedItem > > &	GetPrioritizedTargetItems () const
	This returns a const list of prioritized target perceived items, beginning with the highest priority target and working down to the lowest priority target.
std::list< UtWeakReference< WsfSA_PerceivedItem > > &	GetPrioritizedTargetItems ()
	This returns a list of prioritized target perceived items, beginning with the highest priority target and working down to the lowest priority target.
const std::list< UtWeakReference< WsfSA_EntityPerception > > &	GetPrioritizedTargetEntities () const
	This returns a const list of prioritized target perceived entities, beginning with the highest priority target and working down to the lowest priority target.
std::list< UtWeakReference< WsfSA_EntityPerception > > &	GetPrioritizedTargetEntities ()
	This returns a list of prioritized target perceived entities, beginning with the highest priority target and working down to the lowest priority target.
const std::list< UtWeakReference< WsfSA_EntityPerception > > &	GetPrioritizedAircraftTargetEntities () const
	This returns a const list of prioritized aircraft target entity perceptions, beginning with the highest priority target and working down to the lowest priority target.
std::list< UtWeakReference< WsfSA_EntityPerception > > &	GetPrioritizedAircraftTargetEntities ()
	This returns a list of prioritized aircraft target entity perceptions, beginning with the highest priority target and working down to the lowest priority target.
const std::list< UtWeakReference< WsfSA_EntityPerception > > &	GetPrioritizedMissileTargetEntities () const
	This returns a const list of prioritized missile target entity perceptions, beginning with the highest priority target and working down to the lowest priority target.
std::list< UtWeakReference< WsfSA_EntityPerception > > &	GetPrioritizedMissileTargetEntities ()
	This returns a list of prioritized missile target entity perceptions, beginning with the highest priority target and working down to the lowest priority target.
const std::list< UtWeakReference< WsfSA_Group > > &	GetPrioritizedTargetGroups () const
	This returns a const list of prioritized target unfocused groups, beginning with the highest priority target and working down to the lowest priority target.
std::list< UtWeakReference< WsfSA_Group > > &	GetPrioritizedTargetGroups ()
	This returns a list of prioritized target unfocused groups, beginning with the highest priority target and working down to the lowest priority target.
WsfSA_PerceivedItem *	BestTarget (double aSimTime)
	This returns a pointer to the best target or nullptr if no such target exists.
WsfSA_EntityPerception *	BestTargetEntity (double aSimTime)
	This returns a pointer to the best target entity or nullptr if no such target exists.
WsfSA_EntityPerception *	BestTargetAircraft (double aSimTime)
	This returns a pointer to the best aircraft target or nullptr if no such target exists.
WsfSA_EntityPerception *	BestTargetMissile (double aSimTime)
	This returns a pointer to the best missile target or nullptr if no such target exists.
WsfSA_Group *	BestTargetGroup (double aSimTime)
	This returns a pointer to the best group target or nullptr if no such target exists.
std::vector< std::size_t >	CurrentlyTrackedPlatformIds () const
	This returns a list of platform ids that are currently being tracked.
std::vector< std::string >	CurrentlyTrackedPlatformNames () const
	This returns a list of platform names that are currently being tracked.
bool	IsCurrentlyBeingTracked (size_t aPlatformId) const
	This returns true if the specified platform id is in the list of platforms that are currently being tracked.
const std::list< WsfSA_Group * > &	PerceivedGroups () const
	This returns a list of SA_PerceivedGroups that are currently perceived and assessed.
const std::list< WsfSA_Group * > &	FocusedGroups () const
	This returns a list of WsfSA_Groups that are focused.
const std::list< WsfSA_Group * > &	UnfocusedGroups () const
	This returns a list of WsfSA_Groups that are unfocused.
void	UpdateGroupFocusLists ()
	Update mFocusedGroups and mUnfocusedGroups.
void	SortedGroups (int aSortingEnum, std::vector< WsfSA_Group * > &aGroups) const
	This returns all groups recognized by the SAP, sorted according to the given enumeration.
WsfSA_Group *	GetGroup (const std::string &aName) const
	This returns a pointer to the group with the specified name or null, if no group exists.
std::string	MissionTask () const
	This returns a string indicating the primary mission task.
AcceptableRiskLevel	AcceptableLevelOfRisk () const
	This returns the acceptable level of risk, expressed as an enum.
uint8_t	AcceptableLevelOfRiskByte () const
	This returns the acceptable level of risk, expressed as an uint8_t.
double	Risk () const
	This returns a normalized risk level, ranging from 0 (no risk) to 1 (maximum risk).
double	Defensiveness () const
	This returns a normalized defensiveness level, ranging from 0 (fully non-defensive) to 1 (fully defensive).
double	Urgency () const
	This returns a normalized urgency level, ranging from 0 (no urgency) to 1 (maximum urgency).
double	SelfRisk () const
	This returns a normalized self-risk level, ranging from 0 (no risk) to 1 (maximum risk).
double	FlightRisk () const
	This returns a normalized flight-risk level, ranging from 0 (no risk) to 1 (maximum risk).
double	PackageRisk () const
	This returns a normalized package-risk level, ranging from 0 (no risk) to 1 (maximum risk).
double	MissionRisk () const
	This returns a normalized mission-risk level, ranging from 0 (no risk) to 1 (maximum risk).
bool	SupportingWeapon () const
	This returns true if at least one weapon is being supported.
bool	IgnoreMissilesAsThreats () const
	This returns true if missiles should be ignored as threats.
bool	IgnoreBogiesAsThreats () const
	This returns true if bogies should be ignored as threats.
bool	IgnoreMissilesAsTargets () const
	This returns true if missiles should be ignored as targets.
bool	IgnoreBogiesAsTargets () const
	This returns true if bogies should be ignored as targets.

Static Public Member Functions
static double	AngleOffTarget2D (const WsfPlatform &aPlatform, const WsfPlatform &aTargetPlatform)
	This returns the 2D angle-off between the target and the platform (the difference in headings).
static double	AngleOffTarget3D (const WsfPlatform &aPlatform, const WsfPlatform &aTargetPlatform)
	This returns the 3D angle-off between the target and the platform (the difference in heading/velocity).
static double	AspectAngleForTarget2D (const WsfPlatform &aPlatform, const WsfPlatform &aTargetPlatform)
	This returns the aspect-angle for the target relative to the platform's position in 2D, meaning the aspect is based on a horizontal plane that contains the target, with the platform's position projected onto the plane.
static double	AspectAngleForTarget3D (const WsfPlatform &aPlatform, const WsfPlatform &aTargetPlatform)
	This returns the aspect-angle for the target relative to the platform's position in 3D, meaning the aspect is based on the angle between a 3D vector opposite of the target's velocity vector and the vector from the target to the platform's position.
static double	OffBoresightAngleForTarget (const WsfPlatform &aPlatform, const WsfPlatform &aTargetPlatform)
	This returns the off-boresight angle for the target relative to the platform's x-axis.

Protected Member Functions
	WsfSA_Assess (const WsfSA_Assess &)=default
void	CalculateTrackedPlatforms (double aSimTime)
	Calculate the currently tracked platforms for the current platform.
bool	PlatformIsCurrentlyBeingTracked (size_t aTgtPlatformIndex) const
	This returns true if the specified target platform index is in the list of currently tracked platforms.
WsfLocalTrack *	GetPerceivedTrackedPlatformWithTarget (size_t aTgtPlatformIndex)
	This returns a pointer to the first track containing the specified target platform index, or returns null.
void	CalculateOverallRisks (double aSimTime)
	Calculate the overall risk, self-risk, flight-risk, package-risk, and mission-risk level for the current platform.
void	CalculateOverallDefensiveness (double aSimTime)
	Calculate the overall defensiveness level for the current platform Defensiveness is normalized, and limited to 0.0 to 1.0.
void	CalculateOverallUrgency (double aSimTime)
	Calculate the overall sense of urgency for the current platform Urgency is normalized, and limited to 0.0 to 1.0.
double	CalculateThreatLevel (double aSimTime, WsfSA_PerceivedItem *aThreatItem, bool aIsBogie)
	Calculate the threat level posed by the specified threat SA entity to the current platform.
double	CalculateTargetValue (double aSimTime, WsfSA_PerceivedItem *aTargetItem, bool aIsBogie)
	Calculate the target value presented by the specified threat SA entity to the current platform Target value is normalized, and limited to 0.0 to 1.0.
double	CalculateMissileThreatLevel (double aSimTime, WsfSA_EntityPerception *aThreatItem, bool aIsBogie)
	Calculate the threat level posed by the specified missile threat SA entity to the current platform.
double	CalculateMissileTargetValue (double aSimTime, WsfSA_EntityPerception *aTargetItem, bool aIsBogie)
	Calculate the target value presented by the specified missile SA entity to the current platform Target value is normalized, and limited to 0.0 to 1.0.
double	CalculateRisk (double aSimTime, WsfSA_EntityPerception *aThreatItem)
	Calculate the risk posed by the specified threat SA entity to the current platform Risk is normalized, and limited to 0.0 to 1.0.
double	CalculateDefensiveness (double aSimTime, WsfSA_EntityPerception *aThreatItem)
	Calculate the defensiveness caused by the specified threat SA entity to the current platform.
double	CalculateUrgency (double aSimTime, WsfSA_EntityPerception *aThreatItem)
	Calculate the urgency created by the specified threat SA entity to the current platform Urgency is normalized, and limited to 0.0 to 1.0.
double	ExecuteCalculateRisk (double aSimTime)
	This will call an AFSIM script function "CalculateRisk".
double	ExecuteCalculateSelfRisk (double aSimTime)
	This will call an AFSIM script function "CalculateSelfRisk".
double	ExecuteCalculateFlightRisk (double aSimTime)
	This will call an AFSIM script function "CalculateFlightRisk".
double	ExecuteCalculatePackageRisk (double aSimTime)
	This will call an AFSIM script function "CalculatePackageRisk".
double	ExecuteCalculateMissionRisk (double aSimTime)
	This will call an AFSIM script function "CalculateMissionRisk".
double	ExecuteCalculateDefensiveness (double aSimTime)
	This will call an AFSIM script function "CalculateDefensiveness".
double	ExecuteCalculateUrgency (double aSimTime)
	This will call an AFSIM script function "CalculateUrgency".
double	ExecuteCalculateEntityThreatLevel (double aSimTime, WsfSA_EntityPerception *aThreatItem, bool aIsBogie)
	This will call an AFSIM script function "CalculateThreatLevel".
double	ExecuteCalculateEntityTargetValue (double aSimTime, WsfSA_EntityPerception *aTargetItem, bool aIsBogie)
	This will call an AFSIM script function "CalculateTargetValue".
double	ExecuteCalculateMissileThreatLevel (double aSimTime, WsfSA_EntityPerception *aThreatItem, bool aIsBogie)
	This will call an AFSIM script function "CalculateMissileThreatLevel".
double	ExecuteCalculateMissileTargetValue (double aSimTime, WsfSA_EntityPerception *aTargetItem, bool aIsBogie)
	This will call an AFSIM script function "CalculateMissileTargetValue".
double	ExecuteCalculateGroupThreatLevel (double aSimTime, WsfSA_Group *aThreatItem, bool aIsBogie)
	This will call an AFSIM script function "CalculateGroupThreatLevel".
double	ExecuteCalculateGroupTargetValue (double aSimTime, WsfSA_Group *aTargetItem, bool aIsBogie)
	This will call an AFSIM script function "CalculateGroupTargetValue".
bool	ExecuteCalcWeaponSupport (double aSimTime)
	This will call an AFSIM script function "CalcWeaponSupport".

Static Protected Member Functions
static bool	CompareScore (const PlatormScorePairing &first, const PlatormScorePairing &second)

Friends
class	WsfSA_Processor

Detailed Description

This is the assess module of the SA Processor.

Member Enumeration Documentation

◆ AcceptableRiskLevel

enum WsfSA_Assess::AcceptableRiskLevel

Enumerator
LOW
MEDIUM
HIGH

Constructor & Destructor Documentation

◆ WsfSA_Assess() [1/2]

WsfSA_Assess::WsfSA_Assess	(	WsfSA_Processor *	aSA_ProcPtr,
		WsfSA_Processor::PerceiveData *	aDataPtr )

References WsfSA_Module::WsfSA_Module(), and WsfSA_Processor.

Referenced by operator=(), WsfSA_Assess(), and WsfSA_Processor.

◆ ~WsfSA_Assess()

WsfSA_Assess::~WsfSA_Assess ( )

◆ WsfSA_Assess() [2/2]

WsfSA_Assess::WsfSA_Assess ( const WsfSA_Assess & )

protecteddefault

References CalculateDefensiveness(), CalculateMissileTargetValue(), CalculateMissileThreatLevel(), CalculateOverallDefensiveness(), CalculateOverallRisks(), CalculateOverallUrgency(), CalculateRisk(), CalculateTargetValue(), CalculateThreatLevel(), CalculateTrackedPlatforms(), CalculateUrgency(), GetPerceivedTrackedPlatformWithTarget(), PlatformIsCurrentlyBeingTracked(), and WsfSA_Assess().

Member Function Documentation

◆ AcceptableLevelOfRisk()

AcceptableRiskLevel WsfSA_Assess::AcceptableLevelOfRisk ( ) const

inline

This returns the acceptable level of risk, expressed as an enum.

◆ AcceptableLevelOfRiskByte()

uint8_t WsfSA_Assess::AcceptableLevelOfRiskByte ( ) const

inline

This returns the acceptable level of risk, expressed as an uint8_t.

◆ AngleOffTarget2D() [1/2]

double WsfSA_Assess::AngleOffTarget2D	(	const WsfPlatform &	aPlatform,
		const WsfPlatform &	aTargetPlatform )

static

This returns the 2D angle-off between the target and the platform (the difference in headings).

This calculates angle-off as the angle between the headings of the target and the platform. A positive angle-off is when the difference in between the target heading and the platform heading is positive and is less than or equal to Pi. If the difference is negative and is greater than negative Pi, the angle-off is negative. The angle is in radians.

Parameters

aPlatform	platform to calculate 2d angle-off from.
aTargetPlatform	platform to calculate 2d angle-off to.

Referenced by AngleOffTarget2D(), and UpdateEngagementsData().

◆ AngleOffTarget2D() [2/2]

double WsfSA_Assess::AngleOffTarget2D ( const WsfPlatform & aTargetPlatform ) const

This returns the 2D angle-off between the target and the platform (the difference in headings).

This calculates angle-off as the angle between the headings of the target and the platform. A positive angle-off is when the difference in between the target heading and the platform heading is positive and is less than or equal to Pi. If the difference is negative and is greater than negative Pi, the angle-off is negative. The angle is in radians.

Parameters

aTargetPlatform platform to calculate 2d angle-off to.

References AngleOffTarget2D(), and WsfSA_Module::GetPlatform().

◆ AngleOffTarget3D() [1/2]

double WsfSA_Assess::AngleOffTarget3D	(	const WsfPlatform &	aPlatform,
		const WsfPlatform &	aTargetPlatform )

static

This returns the 3D angle-off between the target and the platform (the difference in heading/velocity).

This calculates angle-off as the angle between the velocity vectors of the target and the platform. A positive angle-off is when the target is to the right of the platform. This is determined based on the y-vector of the platform. If the dot-product of the target's velocity vector and the platform's right side vector is positive, it is considered a positive angle-off. When the dot-product is negative, the angle-off is a negative value. The angle is in radians.

Parameters

aPlatform	platform to calculate 3d angle-off from.
aTargetPlatform	platform to calculate 3d angle-off to.

Referenced by AngleOffTarget3D().

◆ AngleOffTarget3D() [2/2]

double WsfSA_Assess::AngleOffTarget3D ( const WsfPlatform & aTargetPlatform ) const

This returns the 3D angle-off between the target and the platform (the difference in heading/velocity).

This calculates angle-off as the angle between the velocity vectors of the target and the platform. A positive angle-off is when the target is to the right of the platform. This is determined based on the y-vector of the platform. If the dot-product of the target's velocity vector and the platform's right side vector is positive, it is considered a positive angle-off. When the dot-product is negative, the angle-off is a negative value. The angle is in radians.

Parameters

aTargetPlatform platform to calculate 3d angle-off to.

References AngleOffTarget3D(), and WsfSA_Module::GetPlatform().

◆ AspectAngleForTarget2D() [1/2]

double WsfSA_Assess::AspectAngleForTarget2D	(	const WsfPlatform &	aPlatform,
		const WsfPlatform &	aTargetPlatform )

static

This returns the aspect-angle for the target relative to the platform's position in 2D, meaning the aspect is based on a horizontal plane that contains the target, with the platform's position projected onto the plane.

A positive angle is the "right side" of the target and a negative angle is "left side" of the target. The angle is in radians.

Parameters

aPlatform	platform to calculate 2d aspect-angle from.
aTargetPlatform	platform to calculate 2d aspect-angle to.

Referenced by AspectAngleForTarget2D(), UpdateEngagementsData(), and WsfSA_Processor::UpdateTrackData().

◆ AspectAngleForTarget2D() [2/2]

double WsfSA_Assess::AspectAngleForTarget2D ( const WsfPlatform & aTargetPlatform ) const

This returns the aspect-angle for the target relative to the platform's position in 2D, meaning the aspect is based on a horizontal plane that contains the target, with the platform's position projected onto the plane.

A positive angle is the "right side" of the target and a negative angle is "left side" of the target. The angle is in radians.

Parameters

aTargetPlatform platform to calculate 2d aspect-angle to.

References AspectAngleForTarget2D(), and WsfSA_Module::GetPlatform().

◆ AspectAngleForTarget3D() [1/2]

double WsfSA_Assess::AspectAngleForTarget3D	(	const WsfPlatform &	aPlatform,
		const WsfPlatform &	aTargetPlatform )

static

This returns the aspect-angle for the target relative to the platform's position in 3D, meaning the aspect is based on the angle between a 3D vector opposite of the target's velocity vector and the vector from the target to the platform's position.

Right side (positive) and left side (negative) is determined based on the y-vector of the target aircraft. If the vector dot-product of the target y-vector and the vector towards the platform is positive, it is considered "right side". The angle is measured in radians.

Parameters

aPlatform	platform to calculate 3d aspect-angle from.
aTargetPlatform	platform to calculate 3d aspect-angle to.

Referenced by AspectAngleForTarget3D().

◆ AspectAngleForTarget3D() [2/2]

double WsfSA_Assess::AspectAngleForTarget3D ( const WsfPlatform & aTargetPlatform ) const

This returns the aspect-angle for the target relative to the platform's position in 3D, meaning the aspect is based on the angle between a 3D vector opposite of the target's velocity vector and the vector from the target to the platform's position.

Right side (positive) and left side (negative) is determined based on the y-vector of the target aircraft. If the vector dot-product of the target y-vector and the vector towards the platform is positive, it is considered "right side". The angle is measured in radians.

Parameters

aTargetPlatform platform to calculate 3d aspect-angle to.

References AspectAngleForTarget3D(), and WsfSA_Module::GetPlatform().

◆ AssessBogiesBandits()

void WsfSA_Assess::AssessBogiesBandits ( double aSimTime )

Update and assess the current perceived bogies and bandits groups for the current platform.

Parameters

aSimTime sim time at which to calculate

References CalculateDefensiveness(), CalculateRisk(), CalculateTargetValue(), CalculateThreatLevel(), and CalculateUrgency().

Referenced by WsfSA_Perceive::UpdatePerceivedItemsCalculation().

◆ BestTarget()

WsfSA_PerceivedItem * WsfSA_Assess::BestTarget ( double aSimTime )

This returns a pointer to the best target or nullptr if no such target exists.

Parameters

aSimTime time at which to get the item

References WsfSA_Module::GetSAP(), and WsfSA_Module::mDataPtr.

◆ BestTargetAircraft()

WsfSA_EntityPerception * WsfSA_Assess::BestTargetAircraft ( double aSimTime )

This returns a pointer to the best aircraft target or nullptr if no such target exists.

Parameters

aSimTime time at which to get entity

References WsfSA_Module::mDataPtr.

◆ BestTargetEntity()

WsfSA_EntityPerception * WsfSA_Assess::BestTargetEntity ( double aSimTime )

This returns a pointer to the best target entity or nullptr if no such target exists.

Parameters

aSimTime time at which to get entity

References WsfSA_Module::GetSAP().

◆ BestTargetGroup()

WsfSA_Group * WsfSA_Assess::BestTargetGroup ( double aSimTime )

This returns a pointer to the best group target or nullptr if no such target exists.

Parameters

aSimTime time at which to get group

References WsfSA_Module::GetSAP().

◆ BestTargetMissile()

WsfSA_EntityPerception * WsfSA_Assess::BestTargetMissile ( double aSimTime )

This returns a pointer to the best missile target or nullptr if no such target exists.

Parameters

aSimTime time at which to get entity

References WsfSA_Module::mDataPtr.

◆ CalcDeltaAltitude() [1/2]

double WsfSA_Assess::CalcDeltaAltitude	(	const WsfPlatform &	aSourcePlatform,
		const WsfPlatform &	aTargetPlatform ) const

This returns the difference in altitude the specified source platform and the target platform.

Positive delta means the target platform is higher than the source platform.

Parameters

aSourcePlatform	source platform to calculate delta altitude from
aTargetPlatform	target platform to calculate delta altitude to

Referenced by CalcDeltaAltitude(), and UpdateEngagementsData().

◆ CalcDeltaAltitude() [2/2]

double WsfSA_Assess::CalcDeltaAltitude ( const WsfPlatform & aTargetPlatform ) const

This returns the difference in altitude between the current platform and the specified target platform.

Positive delta means the target platform is higher than the source platform.

Parameters

aTargetPlatform target platform to calculate delta altitude to

References CalcDeltaAltitude(), and WsfSA_Module::GetPlatform().

◆ CalcSlantRange() [1/2]

double WsfSA_Assess::CalcSlantRange	(	const WsfPlatform &	aSourcePlatform,
		const WsfPlatform &	aTargetPlatform ) const

This returns the range between the specified source platform and the target platform.

Parameters

aSourcePlatform	source platform to calculate range from
aTargetPlatform	target platform to calculate range to

Referenced by CalcSlantRange(), ExpectedNormalizedDetectionRangeAgainstTarget(), ExpectedNormalizedWezRangeAgainstTarget(), and UpdateEngagementsData().

◆ CalcSlantRange() [2/2]

double WsfSA_Assess::CalcSlantRange ( const WsfPlatform & aTargetPlatform ) const

This returns the range between the current platform and the specified target platform.

Parameters

aTargetPlatform target platform to calculate range to.

References CalcSlantRange(), and WsfSA_Module::GetPlatform().

◆ CalculateDefensiveness()

double WsfSA_Assess::CalculateDefensiveness	(	double	aSimTime,
		WsfSA_EntityPerception *	aThreatItem )

protected

Calculate the defensiveness caused by the specified threat SA entity to the current platform.

Defensiveness is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime	sim time at which to calculate
aThreatItem	threat SA entity to evaluate

References WsfScriptContext::ExecuteScript(), WsfSA_EntityPerception::GetDefensiveness(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), WsfSA_Module::GetScriptContext(), WsfScriptContext::GetTypes(), and WsfSA_EntityPerception::SetDefensiveness().

Referenced by AssessBogiesBandits(), UpdateEngagementsData(), and WsfSA_Assess().

◆ CalculateMissileTargetValue()

double WsfSA_Assess::CalculateMissileTargetValue	(	double	aSimTime,
		WsfSA_EntityPerception *	aTargetItem,
		bool	aIsBogie )

protected

Calculate the target value presented by the specified missile SA entity to the current platform Target value is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime	sim time at which to calculate
aTargetItem	target SA entity to evaluate
aIsBogie	true if entity is a bogie (this adjusts the target value scoring)

References ExecuteCalculateMissileTargetValue(), WsfSA_EntityPerception::GetAltitude_ft(), WsfSA_PerceivedItem::GetAltitudeValid(), WsfSA_EntityPerception::GetIsMissile(), WsfSA_EntityPerception::GetLat_deg(), WsfSA_EntityPerception::GetLon_deg(), WsfSA_Module::GetPlatform(), WsfSA_PerceivedItem::GetTargetValue(), OffBoresightAngleForTarget(), and WsfSA_PerceivedItem::SetTargetValue().

Referenced by CalculateTargetValue(), and WsfSA_Assess().

◆ CalculateMissileThreatLevel()

double WsfSA_Assess::CalculateMissileThreatLevel	(	double	aSimTime,
		WsfSA_EntityPerception *	aThreatItem,
		bool	aIsBogie )

protected

Calculate the threat level posed by the specified missile threat SA entity to the current platform.

Threat level is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime	sim time at which to calculate
aThreatItem	threat SA entity to evaluate
aIsBogie	true if entity is a bogie (this adjusts the threat level scoring)

References ExecuteCalculateMissileThreatLevel(), WsfSA_EntityPerception::GetAltitude_ft(), WsfSA_PerceivedItem::GetAltitudeValid(), WsfSA_EntityPerception::GetIsMissile(), WsfSA_EntityPerception::GetLat_deg(), WsfSA_EntityPerception::GetLon_deg(), WsfSA_Module::GetPlatform(), WsfSA_PerceivedItem::GetThreatLevel(), OffBoresightAngleForTarget(), and WsfSA_PerceivedItem::SetThreatLevel().

Referenced by CalculateThreatLevel(), and WsfSA_Assess().

◆ CalculateOverallDefensiveness()

void WsfSA_Assess::CalculateOverallDefensiveness ( double aSimTime )

protected

Calculate the overall defensiveness level for the current platform Defensiveness is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime sim time at which to calculate

References ExecuteCalculateDefensiveness().

Referenced by UpdatePrioritizedThreatsAndTargetsData(), and WsfSA_Assess().

◆ CalculateOverallRisks()

void WsfSA_Assess::CalculateOverallRisks ( double aSimTime )

protected

Calculate the overall risk, self-risk, flight-risk, package-risk, and mission-risk level for the current platform.

Risks are normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime sim time at which to calculate

References ExecuteCalculateFlightRisk(), ExecuteCalculateMissionRisk(), ExecuteCalculatePackageRisk(), ExecuteCalculateRisk(), and ExecuteCalculateSelfRisk().

Referenced by UpdatePrioritizedThreatsAndTargetsData(), and WsfSA_Assess().

◆ CalculateOverallUrgency()

void WsfSA_Assess::CalculateOverallUrgency ( double aSimTime )

protected

Calculate the overall sense of urgency for the current platform Urgency is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime sim time at which to calculate

References ExecuteCalculateUrgency().

Referenced by UpdatePrioritizedThreatsAndTargetsData(), and WsfSA_Assess().

◆ CalculatePrioritizedTargets()

void WsfSA_Assess::CalculatePrioritizedTargets ( double aSimTime )

Calculate the prioritized targets for the current platform.

Parameters

aSimTime sim time at which to calculate

References WsfSA_PerceivedItem::BANDIT, CalculateTargetValue(), WsfSA_PerceivedItem::CompareTargetValueHighGood(), WsfSA_PerceivedItem::ENTITY, WsfSA_PerceivedItem::FRIENDLY, WsfObject::GetName(), WsfSimulation::GetPlatformByIndex(), WsfSA_Module::GetSimulation(), and WsfSA_PerceivedItem::NEUTRAL.

Referenced by UpdatePrioritizedThreatsAndTargetsData().

◆ CalculatePrioritizedThreats()

void WsfSA_Assess::CalculatePrioritizedThreats ( double aSimTime )

Calculate the prioritized threats for the current platform.

Parameters

aSimTime sim time at which to calculate

References WsfSA_PerceivedItem::BANDIT, CalculateThreatLevel(), WsfSA_PerceivedItem::CompareThreatLevelHighGood(), WsfSA_PerceivedItem::ENTITY, WsfSA_PerceivedItem::FRIENDLY, WsfSA_EntityPerception::GetEntityPlatformIndex(), WsfSA_EntityPerception::GetIsMissile(), WsfObject::GetName(), WsfSimulation::GetPlatformByIndex(), WsfSA_Module::GetSimulation(), WsfTrack::GetTargetIndex(), WsfTrack::GetTargetName(), WsfSA_EntityPerception::GetTrackPtr(), and WsfSA_PerceivedItem::NEUTRAL.

Referenced by UpdatePrioritizedThreatsAndTargetsData().

◆ CalculateRisk()

double WsfSA_Assess::CalculateRisk	(	double	aSimTime,
		WsfSA_EntityPerception *	aThreatItem )

protected

Calculate the risk posed by the specified threat SA entity to the current platform Risk is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime	sim time at which to calculate
aThreatItem	threat SA entity to evaluate

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), WsfSA_EntityPerception::GetRisk(), WsfSA_Module::GetScriptContext(), WsfScriptContext::GetTypes(), and WsfSA_EntityPerception::SetRisk().

Referenced by AssessBogiesBandits(), UpdateEngagementsData(), and WsfSA_Assess().

◆ CalculateTargetValue()

double WsfSA_Assess::CalculateTargetValue	(	double	aSimTime,
		WsfSA_PerceivedItem *	aTargetItem,
		bool	aIsBogie )

protected

Calculate the target value presented by the specified threat SA entity to the current platform Target value is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime	sim time at which to calculate
aTargetItem	target SA entity to evaluate
aIsBogie	true if entity is a bogie (this adjusts the target value scoring)

Referenced by AssessBogiesBandits(), CalculatePrioritizedTargets(), UpdateEngagementsData(), and WsfSA_Assess().

◆ CalculateThreatLevel()

double WsfSA_Assess::CalculateThreatLevel	(	double	aSimTime,
		WsfSA_PerceivedItem *	aThreatItem,
		bool	aIsBogie )

protected

Calculate the threat level posed by the specified threat SA entity to the current platform.

Threat level is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime	sim time at which to calculate
aThreatItem	threat SA entity to evaluate
aIsBogie	true if entity is a bogie (this adjusts the threat level scoring)

Referenced by AssessBogiesBandits(), CalculatePrioritizedThreats(), UpdateEngagementsData(), and WsfSA_Assess().

◆ CalculateTrackedPlatforms()

void WsfSA_Assess::CalculateTrackedPlatforms ( double aSimTime )

protected

Calculate the currently tracked platforms for the current platform.

Parameters

aSimTime sim time at which to calculate

References WsfSA_Module::GetSAP(), WsfSA_Processor::GetTrackManagerList(), and WsfSA_Processor::PerceptionMasterTrackProcessor().

Referenced by UpdateEngagementsData(), and WsfSA_Assess().

◆ CalculateUrgency()

double WsfSA_Assess::CalculateUrgency	(	double	aSimTime,
		WsfSA_EntityPerception *	aThreatItem )

protected

Calculate the urgency created by the specified threat SA entity to the current platform Urgency is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime	sim time at which to calculate
aThreatItem	threat SA entity to evaluate

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), WsfSA_Module::GetScriptContext(), WsfScriptContext::GetTypes(), WsfSA_EntityPerception::GetUrgency(), and WsfSA_EntityPerception::SetUrgency().

Referenced by AssessBogiesBandits(), UpdateEngagementsData(), and WsfSA_Assess().

◆ CompareScore()

bool WsfSA_Assess::CompareScore	(	const PlatormScorePairing &	first,
		const PlatormScorePairing &	second )

staticprotected

References WsfSA_Assess::PlatormScorePairing::score.

◆ CurrentlyTrackedPlatformIds()

std::vector< std::size_t > WsfSA_Assess::CurrentlyTrackedPlatformIds ( ) const

inline

This returns a list of platform ids that are currently being tracked.

◆ CurrentlyTrackedPlatformNames()

std::vector< std::string > WsfSA_Assess::CurrentlyTrackedPlatformNames ( ) const

inline

This returns a list of platform names that are currently being tracked.

Referenced by WsfSA_Processor::DebugTestOutput().

◆ Defensiveness()

double WsfSA_Assess::Defensiveness ( ) const

inline

This returns a normalized defensiveness level, ranging from 0 (fully non-defensive) to 1 (fully defensive).

Referenced by WsfSA_Processor::DebugTestOutput().

◆ ExecuteCalculateDefensiveness()

double WsfSA_Assess::ExecuteCalculateDefensiveness ( double aSimTime )

protected

This will call an AFSIM script function "CalculateDefensiveness".

It returns the value, or if the function is not present, it will return zero. Defensiveness is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime sim time at which to calculate

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), and WsfSA_Module::GetScriptContext().

Referenced by CalculateOverallDefensiveness().

◆ ExecuteCalculateEntityTargetValue()

double WsfSA_Assess::ExecuteCalculateEntityTargetValue	(	double	aSimTime,
		WsfSA_EntityPerception *	aTargetItem,
		bool	aIsBogie )

protected

This will call an AFSIM script function "CalculateTargetValue".

It returns the value, or if the function is not present, it will return zero. Target value is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime	sim time at which to calculate
aTargetItem	entity being evaluated
aIsBogie	true if this entity is a bogie

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), WsfSA_Module::GetScriptContext(), and WsfScriptContext::GetTypes().

Referenced by CalculateTargetValue().

◆ ExecuteCalculateEntityThreatLevel()

double WsfSA_Assess::ExecuteCalculateEntityThreatLevel	(	double	aSimTime,
		WsfSA_EntityPerception *	aThreatItem,
		bool	aIsBogie )

protected

This will call an AFSIM script function "CalculateThreatLevel".

It returns the value, or if the function is not present, it will return zero. Threat level is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime	sim time at which to calculate
aThreatItem	entity being evaluated
aIsBogie	true if this entity is a bogie

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), WsfSA_Module::GetScriptContext(), and WsfScriptContext::GetTypes().

Referenced by CalculateThreatLevel().

◆ ExecuteCalculateFlightRisk()

double WsfSA_Assess::ExecuteCalculateFlightRisk ( double aSimTime )

protected

This will call an AFSIM script function "CalculateFlightRisk".

It returns the value, or if the function is not present, it will return zero. Flight risk is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime sim time at which to calculate

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), and WsfSA_Module::GetScriptContext().

Referenced by CalculateOverallRisks().

◆ ExecuteCalculateGroupTargetValue()

double WsfSA_Assess::ExecuteCalculateGroupTargetValue	(	double	aSimTime,
		WsfSA_Group *	aTargetItem,
		bool	aIsBogie )

protected

This will call an AFSIM script function "CalculateGroupTargetValue".

It returns the value, or if the function is not present, it will return zero. Target value is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime	sim time at which to calculate
aTargetItem	entity being evaluated
aIsBogie	true if this entity is a bogie

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), WsfSA_Module::GetScriptContext(), and WsfScriptContext::GetTypes().

Referenced by CalculateTargetValue().

◆ ExecuteCalculateGroupThreatLevel()

double WsfSA_Assess::ExecuteCalculateGroupThreatLevel	(	double	aSimTime,
		WsfSA_Group *	aThreatItem,
		bool	aIsBogie )

protected

This will call an AFSIM script function "CalculateGroupThreatLevel".

It returns the value, or if the function is not present, it will return zero. Threat level is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime	sim time at which to calculate
aThreatItem	entity being evaluated
aIsBogie	true if this entity is a bogie

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), WsfSA_Module::GetScriptContext(), and WsfScriptContext::GetTypes().

Referenced by CalculateThreatLevel().

◆ ExecuteCalculateMissileTargetValue()

double WsfSA_Assess::ExecuteCalculateMissileTargetValue	(	double	aSimTime,
		WsfSA_EntityPerception *	aTargetItem,
		bool	aIsBogie )

protected

This will call an AFSIM script function "CalculateMissileTargetValue".

It returns the value, or if the function is not present, it will return zero. Target value is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime	sim time at which to calculate
aTargetItem	entity being evaluated
aIsBogie	true if this entity is a bogie

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), WsfSA_Module::GetScriptContext(), and WsfScriptContext::GetTypes().

Referenced by CalculateMissileTargetValue().

◆ ExecuteCalculateMissileThreatLevel()

double WsfSA_Assess::ExecuteCalculateMissileThreatLevel	(	double	aSimTime,
		WsfSA_EntityPerception *	aThreatItem,
		bool	aIsBogie )

protected

This will call an AFSIM script function "CalculateMissileThreatLevel".

It returns the value, or if the function is not present, it will return zero. Threat level is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime	sim time at which to calculate
aThreatItem	entity being evaluated
aIsBogie	true if this entity is a bogie

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), WsfSA_Module::GetScriptContext(), and WsfScriptContext::GetTypes().

Referenced by CalculateMissileThreatLevel().

◆ ExecuteCalculateMissionRisk()

double WsfSA_Assess::ExecuteCalculateMissionRisk ( double aSimTime )

protected

This will call an AFSIM script function "CalculateMissionRisk".

It returns the value, or if the function is not present, it will return zero. Mission risk is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime sim time at which to calculate

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), and WsfSA_Module::GetScriptContext().

Referenced by CalculateOverallRisks().

◆ ExecuteCalculatePackageRisk()

double WsfSA_Assess::ExecuteCalculatePackageRisk ( double aSimTime )

protected

This will call an AFSIM script function "CalculatePackageRisk".

It returns the value, or if the function is not present, it will return zero. Package risk is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime sim time at which to calculate

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), and WsfSA_Module::GetScriptContext().

Referenced by CalculateOverallRisks().

◆ ExecuteCalculateRisk()

double WsfSA_Assess::ExecuteCalculateRisk ( double aSimTime )

protected

This will call an AFSIM script function "CalculateRisk".

It returns the value, or if the function is not present, it will return zero. Risk is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime sim time at which to calculate

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), and WsfSA_Module::GetScriptContext().

Referenced by CalculateOverallRisks().

◆ ExecuteCalculateSelfRisk()

double WsfSA_Assess::ExecuteCalculateSelfRisk ( double aSimTime )

protected

This will call an AFSIM script function "CalculateSelfRisk".

It returns the value, or if the function is not present, it will return zero. Self risk is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime sim time at which to calculate

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), and WsfSA_Module::GetScriptContext().

Referenced by CalculateOverallRisks().

◆ ExecuteCalculateUrgency()

double WsfSA_Assess::ExecuteCalculateUrgency ( double aSimTime )

protected

This will call an AFSIM script function "CalculateUrgency".

It returns the value, or if the function is not present, it will return zero. Urgency is normalized, and limited to 0.0 to 1.0.

Parameters

aSimTime sim time at which to calculate

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), and WsfSA_Module::GetScriptContext().

Referenced by CalculateOverallUrgency().

◆ ExecuteCalcWeaponSupport()

bool WsfSA_Assess::ExecuteCalcWeaponSupport ( double aSimTime )

protected

This will call an AFSIM script function "CalcWeaponSupport".

It returns the value, or if the function is not present, it will return false. *

References WsfScriptContext::ExecuteScript(), WsfObject::GetName(), WsfSA_Module::GetPlatform(), and WsfSA_Module::GetScriptContext().

Referenced by UpdateWeaponSupport().

◆ ExpectedDetectionRange()

double WsfSA_Assess::ExpectedDetectionRange	(	const WsfPlatform &	aSourePlatform,
		const WsfPlatform &	aTargetPlatform ) const

This returns the expected detection range (in meters) where the current platform could detect the target platform, with the current relative aspects and states.

This will consider all radars and IR sensors, and select the sensor with the best range. If a sensor is turned off, it will not be considered. The function will return zero if no viable sensors are available and operating.

Parameters

aSourePlatform	platform trying to perform the detection.
aTargetPlatform	target platform being detected.

Referenced by ExpectedDetectionRangeAgainstTarget(), and ExpectedDetectionRangeByTarget().

◆ ExpectedDetectionRangeAgainstTarget() [1/2]

double WsfSA_Assess::ExpectedDetectionRangeAgainstTarget ( const WsfPlatform & aTargetPlatform ) const

This returns the expected detection range (in meters) where the current platform could detect the target platform, with the current relative aspects and states.

This will consider all radars and IR sensors, and select the sensor with the best range. If a sensor is turned off, it will not be considered. The function will return zero if no viable sensors are available and operating.

Parameters

aTargetPlatform target platform to get the detection range from the current platform.

References ExpectedDetectionRange(), and WsfSA_Module::GetPlatform().

Referenced by ExpectedDetectionRangeAgainstTarget(), ExpectedNormalizedDetectionRangeAgainstTarget(), and UpdateEngagementsData().

◆ ExpectedDetectionRangeAgainstTarget() [2/2]

double WsfSA_Assess::ExpectedDetectionRangeAgainstTarget ( size_t aIndex ) const

This returns the expected detection range (in meters) where the current platform could detect the target platform, with the current relative aspects and states.

This will consider all radars and IR sensors, and select the sensor with the best range. If a sensor is turned off, it will not be considered. The function will return zero if no viable sensors are available and operating.

Parameters

aIndex index of the target platform to get the detection range from the current platform.

References ExpectedDetectionRangeAgainstTarget(), WsfSimulation::GetPlatformByIndex(), and WsfSA_Module::GetSimulation().

◆ ExpectedDetectionRangeByTarget() [1/2]

double WsfSA_Assess::ExpectedDetectionRangeByTarget ( const WsfPlatform & aTargetPlatform ) const

This returns the expected detection range (in meters) where the target platform could detect the current platform, with the current relative aspects and states.

This will consider all radars and IR sensors, and select the sensor with the best range. If a sensor is turned off, it will not be considered. The function will return zero if no viable sensors are available and operating.

Parameters

aTargetPlatform target platform to get the detection range to the current platform.

References ExpectedDetectionRange(), and WsfSA_Module::GetPlatform().

Referenced by ExpectedDetectionRangeByTarget().

◆ ExpectedDetectionRangeByTarget() [2/2]

double WsfSA_Assess::ExpectedDetectionRangeByTarget ( size_t aIndex ) const

This returns the expected detection range (in meters) where the target platform could detect the current platform, with the current relative aspects and states.

This will consider all radars and IR sensors, and select the sensor with the best range. If a sensor is turned off, it will not be considered. The function will return zero if no viable sensors are available and operating.

Parameters

aIndex index of the target platform to get the detection range to the current platform.

References ExpectedDetectionRangeByTarget(), WsfSimulation::GetPlatformByIndex(), and WsfSA_Module::GetSimulation().

◆ ExpectedMaximumEngagementRangeAgainstTarget() [1/2]

double WsfSA_Assess::ExpectedMaximumEngagementRangeAgainstTarget ( const WsfPlatform & aTargetPlatform ) const

This returns the expected maximum engagement range for the current platform against the given target platform.

Parameters

aTargetPlatform the target platform to calculate maximum engagement range against.

Referenced by ExpectedMaximumEngagementRangeAgainstTarget(), and UpdateEngagementsData().

◆ ExpectedMaximumEngagementRangeAgainstTarget() [2/2]

double WsfSA_Assess::ExpectedMaximumEngagementRangeAgainstTarget ( size_t aIndex ) const

This returns the expected maximum engagement range for the current platform against the given target platform.

Parameters

aIndex index of the target platform to calculate maximum engagement range against.

References ExpectedMaximumEngagementRangeAgainstTarget(), and WsfSA_Module::mSA_ProcessorPtr.

◆ ExpectedMinimumEngagementRangeAgainstTarget() [1/2]

double WsfSA_Assess::ExpectedMinimumEngagementRangeAgainstTarget ( const WsfPlatform & aTargetPlatform ) const

This returns the expected minimum engagement range for the current platform against the given target platform.

Parameters

aTargetPlatform the target platform to calculate minimum engagement range against.

Referenced by ExpectedMinimumEngagementRangeAgainstTarget(), and UpdateEngagementsData().

◆ ExpectedMinimumEngagementRangeAgainstTarget() [2/2]

double WsfSA_Assess::ExpectedMinimumEngagementRangeAgainstTarget ( size_t aIndex ) const

This returns the expected minimum engagement range for the current platform against the given target platform.

Parameters

aIndex index of the target platform to calculate minimum engagement range against.

References ExpectedMinimumEngagementRangeAgainstTarget(), and WsfSA_Module::mSA_ProcessorPtr.

◆ ExpectedNoEscapeRangeAgainstTarget() [1/2]

double WsfSA_Assess::ExpectedNoEscapeRangeAgainstTarget ( const WsfPlatform & aTargetPlatform ) const

This returns the expected "no escape" engagement range for the current platform against the given target platform.

Parameters

aTargetPlatform the target platform to calculate "no escape" engagement range against.

Referenced by ExpectedNoEscapeRangeAgainstTarget(), and UpdateEngagementsData().

◆ ExpectedNoEscapeRangeAgainstTarget() [2/2]

double WsfSA_Assess::ExpectedNoEscapeRangeAgainstTarget ( size_t aIndex ) const

This returns the expected "no escape" engagement range for the current platform against the given target platform.

Parameters

aIndex index of the target platform to calculate "no escape" engagement range against.

References ExpectedNoEscapeRangeAgainstTarget(), and WsfSA_Module::mSA_ProcessorPtr.

◆ ExpectedNormalizedDetectionRangeAgainstTarget() [1/2]

double WsfSA_Assess::ExpectedNormalizedDetectionRangeAgainstTarget ( const WsfPlatform & aTargetPlatform ) const

This returns the expected detection range against a given target platform as a normalized value between 0 and 1.

Parameters

aTargetPlatform target platform to get the normalized detection range for.

References CalcSlantRange(), ExpectedDetectionRangeAgainstTarget(), and WsfSA_Module::GetPlatform().

Referenced by ExpectedNormalizedDetectionRangeAgainstTarget().

◆ ExpectedNormalizedDetectionRangeAgainstTarget() [2/2]

double WsfSA_Assess::ExpectedNormalizedDetectionRangeAgainstTarget ( size_t aIndex ) const

This returns the expected detection range against a given target platform as a normalized value between 0 and 1.

Parameters

aIndex index of the target platform to get the normalized detection range for.

References ExpectedNormalizedDetectionRangeAgainstTarget(), WsfSimulation::GetPlatformByIndex(), and WsfSA_Module::GetSimulation().

◆ ExpectedNormalizedWezRangeAgainstTarget() [1/2]

double WsfSA_Assess::ExpectedNormalizedWezRangeAgainstTarget ( const WsfPlatform & aTargetPlatform ) const

This returns the expected WEZ range against a given target platform as a normalized value between 0 and 1.

Parameters

aTargetPlatform target platform to get the normalized WEZ range to the current platform.

References CalcSlantRange(), ExpectedWezRangeAgainstTarget(), and WsfSA_Module::GetPlatform().

Referenced by ExpectedNormalizedWezRangeAgainstTarget().

◆ ExpectedNormalizedWezRangeAgainstTarget() [2/2]

double WsfSA_Assess::ExpectedNormalizedWezRangeAgainstTarget ( size_t aIndex ) const

This returns the expected WEZ range against a given target platform as a normalized value between 0 and 1.

Parameters

aIndex index of the target platform to get the normalized WEZ range to the current platform.

References ExpectedNormalizedWezRangeAgainstTarget(), WsfSimulation::GetPlatformByIndex(), and WsfSA_Module::GetSimulation().

◆ ExpectedWezRangeAgainstTarget() [1/2]

double WsfSA_Assess::ExpectedWezRangeAgainstTarget ( const WsfPlatform & aTargetPlatform ) const

This returns the expected WEZ range for the current platform against the target platform, with the current relative aspects and states.

The WEZ is for the currently selected weapon.

Parameters

aTargetPlatform target platform to get the WEZ range to the current platform.

Referenced by ExpectedNormalizedWezRangeAgainstTarget(), ExpectedWezRangeAgainstTarget(), and UpdateEngagementsData().

◆ ExpectedWezRangeAgainstTarget() [2/2]

double WsfSA_Assess::ExpectedWezRangeAgainstTarget ( size_t aIndex ) const

This returns the expected WEZ range for the current platform against the target platform, with the current relative aspects and states.

The WEZ is for the currently selected weapon.

Parameters

aIndex index of the target platform to get the WEZ range to the current platform.

References ExpectedWezRangeAgainstTarget(), and WsfSA_Module::mSA_ProcessorPtr.

◆ ExpectedWezRangeByTarget() [1/2]

double WsfSA_Assess::ExpectedWezRangeByTarget ( const WsfPlatform & aTargetPlatform ) const

This returns the expected WEZ range for the target platform against the current platform, with the current relative aspects and states.

The WEZ is for the currently selected weapon.

Parameters

aTargetPlatform target platform to get the WEZ range from the current platform.

References WsfSA_Module::GetPlatform().

Referenced by ExpectedWezRangeByTarget().

◆ ExpectedWezRangeByTarget() [2/2]

double WsfSA_Assess::ExpectedWezRangeByTarget ( size_t aIndex ) const

This returns the expected WEZ range for the target platform against the current platform, with the current relative aspects and states.

The WEZ is for the currently selected weapon.

Parameters

aIndex index of the target platform to get the WEZ range from the current platform.

References ExpectedWezRangeByTarget(), and WsfSA_Module::mSA_ProcessorPtr.

◆ FlightRisk()

double WsfSA_Assess::FlightRisk ( ) const

inline

This returns a normalized flight-risk level, ranging from 0 (no risk) to 1 (maximum risk).

Referenced by WsfSA_Processor::DebugTestOutput().

◆ FocusedGroups()

const std::list< WsfSA_Group * > & WsfSA_Assess::FocusedGroups ( ) const

inline

This returns a list of WsfSA_Groups that are focused.

◆ GetCornerSpeed_KCAS()

double WsfSA_Assess::GetCornerSpeed_KCAS ( ) const

inline

A placeholder function that, in the future, will return the minimum speed required to reach the platform's maximum G Load.

◆ GetGroup()

WsfSA_Group * WsfSA_Assess::GetGroup ( const std::string & aName ) const

This returns a pointer to the group with the specified name or null, if no group exists.

Parameters

aName name of the desired group.

References WsfSA_Module::GetSAP().

◆ GetPerceivedTrackedPlatformWithTarget()

WsfLocalTrack * WsfSA_Assess::GetPerceivedTrackedPlatformWithTarget ( size_t aTgtPlatformIndex )

protected

This returns a pointer to the first track containing the specified target platform index, or returns null.

Note that this uses the perceived master track processor if available, otherwise it uses the master track processor.

Parameters

aTgtPlatformIndex target platform index to consider

References WsfSA_Processor::GetPerceptionMasterTrackProcessorTrackList(), WsfSA_Module::GetPlatform(), WsfSA_Module::GetSAP(), WsfTrack::GetTargetIndex(), WsfTrackListT< T >::GetTrackCount(), WsfTrackListT< T >::GetTrackEntry(), WsfTrackManager::GetTrackList(), and WsfPlatform::GetTrackManager().

Referenced by UpdateEngagementsData(), and WsfSA_Assess().

◆ GetPrioritizedAircraftTargetEntities() [1/2]

std::list< UtWeakReference< WsfSA_EntityPerception > > & WsfSA_Assess::GetPrioritizedAircraftTargetEntities ( )

inline

This returns a list of prioritized aircraft target entity perceptions, beginning with the highest priority target and working down to the lowest priority target.

◆ GetPrioritizedAircraftTargetEntities() [2/2]

const std::list< UtWeakReference< WsfSA_EntityPerception > > & WsfSA_Assess::GetPrioritizedAircraftTargetEntities ( ) const

inline

This returns a const list of prioritized aircraft target entity perceptions, beginning with the highest priority target and working down to the lowest priority target.

◆ GetPrioritizedAircraftThreatEntities() [1/2]

std::list< UtWeakReference< WsfSA_EntityPerception > > & WsfSA_Assess::GetPrioritizedAircraftThreatEntities ( )

inline

This returns a list of prioritized aircraft threat entity perceptions, beginning with the highest priority threat and working down to the lowest priority threat.

◆ GetPrioritizedAircraftThreatEntities() [2/2]

const std::list< UtWeakReference< WsfSA_EntityPerception > > & WsfSA_Assess::GetPrioritizedAircraftThreatEntities ( ) const

inline

This returns a const list of prioritized aircraft threat entity perceptions, beginning with the highest priority threat and working down to the lowest priority threat.

◆ GetPrioritizedMissileTargetEntities() [1/2]

std::list< UtWeakReference< WsfSA_EntityPerception > > & WsfSA_Assess::GetPrioritizedMissileTargetEntities ( )

inline

This returns a list of prioritized missile target entity perceptions, beginning with the highest priority target and working down to the lowest priority target.

◆ GetPrioritizedMissileTargetEntities() [2/2]

const std::list< UtWeakReference< WsfSA_EntityPerception > > & WsfSA_Assess::GetPrioritizedMissileTargetEntities ( ) const

inline

This returns a const list of prioritized missile target entity perceptions, beginning with the highest priority target and working down to the lowest priority target.

◆ GetPrioritizedMissileThreatEntities() [1/2]

std::list< UtWeakReference< WsfSA_EntityPerception > > & WsfSA_Assess::GetPrioritizedMissileThreatEntities ( )

inline

This returns a list of prioritized missile threat entity perceptions, beginning with the highest priority threat and working down to the lowest priority threat.

◆ GetPrioritizedMissileThreatEntities() [2/2]

const std::list< UtWeakReference< WsfSA_EntityPerception > > & WsfSA_Assess::GetPrioritizedMissileThreatEntities ( ) const

inline

This returns a const list of prioritized missile threat entity perceptions, beginning with the highest priority threat and working down to the lowest priority threat.

◆ GetPrioritizedTargetEntities() [1/2]

std::list< UtWeakReference< WsfSA_EntityPerception > > & WsfSA_Assess::GetPrioritizedTargetEntities ( )

inline

This returns a list of prioritized target perceived entities, beginning with the highest priority target and working down to the lowest priority target.

◆ GetPrioritizedTargetEntities() [2/2]

const std::list< UtWeakReference< WsfSA_EntityPerception > > & WsfSA_Assess::GetPrioritizedTargetEntities ( ) const

inline

This returns a const list of prioritized target perceived entities, beginning with the highest priority target and working down to the lowest priority target.

◆ GetPrioritizedTargetGroups() [1/2]

std::list< UtWeakReference< WsfSA_Group > > & WsfSA_Assess::GetPrioritizedTargetGroups ( )

inline

This returns a list of prioritized target unfocused groups, beginning with the highest priority target and working down to the lowest priority target.

◆ GetPrioritizedTargetGroups() [2/2]

const std::list< UtWeakReference< WsfSA_Group > > & WsfSA_Assess::GetPrioritizedTargetGroups ( ) const

inline

This returns a const list of prioritized target unfocused groups, beginning with the highest priority target and working down to the lowest priority target.

◆ GetPrioritizedTargetItems() [1/2]

std::list< UtWeakReference< WsfSA_PerceivedItem > > & WsfSA_Assess::GetPrioritizedTargetItems ( )

inline

This returns a list of prioritized target perceived items, beginning with the highest priority target and working down to the lowest priority target.

◆ GetPrioritizedTargetItems() [2/2]

const std::list< UtWeakReference< WsfSA_PerceivedItem > > & WsfSA_Assess::GetPrioritizedTargetItems ( ) const

inline

This returns a const list of prioritized target perceived items, beginning with the highest priority target and working down to the lowest priority target.

◆ GetPrioritizedThreatEntities() [1/2]

std::list< UtWeakReference< WsfSA_EntityPerception > > & WsfSA_Assess::GetPrioritizedThreatEntities ( )

inline

This returns a list of prioritized threat perceived entities, beginning with the highest priority threat and working down to the lowest priority threat.

◆ GetPrioritizedThreatEntities() [2/2]

const std::list< UtWeakReference< WsfSA_EntityPerception > > & WsfSA_Assess::GetPrioritizedThreatEntities ( ) const

inline

This returns a const list of prioritized threat perceived entities, beginning with the highest priority threat and working down to the lowest priority threat.

◆ GetPrioritizedThreatGroups() [1/2]

std::list< UtWeakReference< WsfSA_Group > > & WsfSA_Assess::GetPrioritizedThreatGroups ( )

inline

This returns a list of prioritized threat unfocused groups, beginning with the highest priority threat and working down to the lowest priority threat.

◆ GetPrioritizedThreatGroups() [2/2]

const std::list< UtWeakReference< WsfSA_Group > > & WsfSA_Assess::GetPrioritizedThreatGroups ( ) const

inline

This returns a const list of prioritized threat unfocused groups, beginning with the highest priority threat and working down to the lowest priority threat.

◆ GetPrioritizedThreatItems() [1/2]

std::list< UtWeakReference< WsfSA_PerceivedItem > > & WsfSA_Assess::GetPrioritizedThreatItems ( )

inline

This returns a list of prioritized threat perceived items, beginning with the highest priority threat and working down to the lowest priority threat.

◆ GetPrioritizedThreatItems() [2/2]

const std::list< UtWeakReference< WsfSA_PerceivedItem > > & WsfSA_Assess::GetPrioritizedThreatItems ( ) const

inline

This returns a const list of prioritized threat perceived items, beginning with the highest priority threat and working down to the lowest priority threat.

◆ GetSelectedWeapon()

std::string WsfSA_Assess::GetSelectedWeapon ( )

inline

This returns the name of the current selected weapon.

It will return an empty string if no weapon is selected.

Referenced by WsfSA_Processor::DebugTestOutput().

◆ GetWeaponBayOpen()

bool WsfSA_Assess::GetWeaponBayOpen ( )

inline

This returns the state of the weapon bay doors.

It will return true if the doors are open.

◆ HighestThreat()

WsfSA_PerceivedItem * WsfSA_Assess::HighestThreat ( double aSimTime )

This returns a pointer to the highest threat or nullptr if no such threat exists.

Parameters

aSimTime time at which to get entity

References WsfSA_Module::GetSAP(), and WsfSA_Module::mDataPtr.

◆ HighestThreatAircraft()

WsfSA_EntityPerception * WsfSA_Assess::HighestThreatAircraft ( double aSimTime )

This returns a pointer to the highest aircraft threat or nullptr if no such threat exists.

Parameters

aSimTime time at which to get entity

References WsfSA_Module::mDataPtr.

◆ HighestThreatEntity()

WsfSA_EntityPerception * WsfSA_Assess::HighestThreatEntity ( double aSimTime )

This returns a pointer to the highest entity threat or nullptr if no such threat exists.

Parameters

aSimTime time at which to get entity

References WsfSA_Module::GetSAP().

◆ HighestThreatGroup()

WsfSA_Group * WsfSA_Assess::HighestThreatGroup ( double aSimTime )

This returns a pointer to the highest group threat or nullptr if no such threat exists.

Parameters

aSimTime time at which to get entity

References WsfSA_Module::GetSAP().

◆ HighestThreatMissile()

WsfSA_EntityPerception * WsfSA_Assess::HighestThreatMissile ( double aSimTime )

This returns a pointer to the highest missile threat or nullptr if no such threat exists.

Parameters

aSimTime time at which to get entity

References WsfSA_Module::mDataPtr.

◆ IgnoreBogiesAsTargets()

bool WsfSA_Assess::IgnoreBogiesAsTargets ( ) const

inline

This returns true if bogies should be ignored as targets.

◆ IgnoreBogiesAsThreats()

bool WsfSA_Assess::IgnoreBogiesAsThreats ( ) const

inline

This returns true if bogies should be ignored as threats.

◆ IgnoreMissilesAsTargets()

bool WsfSA_Assess::IgnoreMissilesAsTargets ( ) const

inline

This returns true if missiles should be ignored as targets.

◆ IgnoreMissilesAsThreats()

bool WsfSA_Assess::IgnoreMissilesAsThreats ( ) const

inline

This returns true if missiles should be ignored as threats.

◆ Initialize()

void WsfSA_Assess::Initialize ( double aSimTime )

Performs initialization during creation.

This should be called from the SA Processor's Initialize() function.

Parameters

aSimTime sim time when processing

References WsfScriptContext::FindScript(), WsfSA_Processor::GetData(), WsfSA_Module::GetSAP(), WsfScriptProcessor::GetScriptContext(), ok, WsfSA_Processor::Perceive(), and WsfScriptContext::ValidateScript().

◆ IsCurrentlyBeingTracked()

bool WsfSA_Assess::IsCurrentlyBeingTracked ( size_t aPlatformId ) const

This returns true if the specified platform id is in the list of platforms that are currently being tracked.

◆ MaxPrioritizedTargets()

unsigned int WsfSA_Assess::MaxPrioritizedTargets ( )

inline

Return the max prioritized target count the platform can handle.

◆ MaxPrioritizedThreats()

unsigned int WsfSA_Assess::MaxPrioritizedThreats ( )

inline

Return the max prioritized threat count the platform can handle.

◆ MissionRisk()

double WsfSA_Assess::MissionRisk ( ) const

inline

This returns a normalized mission-risk level, ranging from 0 (no risk) to 1 (maximum risk).

Referenced by WsfSA_Processor::DebugTestOutput().

◆ MissionTask()

std::string WsfSA_Assess::MissionTask ( ) const

inline

This returns a string indicating the primary mission task.

Referenced by WsfSA_Processor::DebugTestOutput().

◆ OffBoresightAngleForTarget() [1/3]

double WsfSA_Assess::OffBoresightAngleForTarget ( const double aLocationWCS[3] ) const

This returns the off-boresight angle for the target location relative to the platform's x-axis.

It is a positive angle between zero (directly in front of the nose) to Pi (directly behind the tail). The angle is measured in radians.

Parameters

aLocationWCS location to calculate 3d aspect-angle towards.

References WsfSA_Module::GetPlatform().

◆ OffBoresightAngleForTarget() [2/3]

double WsfSA_Assess::OffBoresightAngleForTarget	(	const WsfPlatform &	aPlatform,
		const WsfPlatform &	aTargetPlatform )

static

This returns the off-boresight angle for the target relative to the platform's x-axis.

It is a positive angle between zero (directly in front of the nose) to Pi (directly behind the tail). The angle is measured in radians.

Parameters

aPlatform	platform to calculate off-boresight aspect-angle from.
aTargetPlatform	platform to calculate angle towards.

Referenced by CalculateMissileTargetValue(), CalculateMissileThreatLevel(), CalculateTargetValue(), CalculateThreatLevel(), and OffBoresightAngleForTarget().

◆ OffBoresightAngleForTarget() [3/3]

double WsfSA_Assess::OffBoresightAngleForTarget ( const WsfPlatform & aTargetPlatform ) const

This returns the off-boresight angle for the target relative to the platform's x-axis.

It is a positive angle between zero (directly in front of the nose) to Pi (directly behind the tail). The angle is measured in radians.

Parameters

aTargetPlatform platform to calculate 3d aspect-angle towards.

References WsfSA_Module::GetPlatform(), and OffBoresightAngleForTarget().

◆ operator=()

WsfSA_Assess & WsfSA_Assess::operator= ( const WsfSA_Assess & )

delete

References WsfSA_Assess().

◆ PackageRisk()

double WsfSA_Assess::PackageRisk ( ) const

inline

This returns a normalized package-risk level, ranging from 0 (no risk) to 1 (maximum risk).

Referenced by WsfSA_Processor::DebugTestOutput().

◆ PerceivedGroups()

const std::list< WsfSA_Group * > & WsfSA_Assess::PerceivedGroups ( ) const

inline

This returns a list of SA_PerceivedGroups that are currently perceived and assessed.

References WsfSA_Processor::GetData(), WsfSA_Module::GetSAP(), and WsfSA_Processor::PerceiveData::mCurrentlyPerceivedGroups.

Referenced by WsfSA_Processor::DebugTestOutput().

◆ PerceivedThreatItems()

std::vector< WsfSA_PerceivedItem * > WsfSA_Assess::PerceivedThreatItems ( double aSimTime )

Return a reference to the list of perceived items for the current platform at a given time.

Parameters

aSimTime The sim time at which to get the list of perceived bogies

References WsfSA_PerceivedItem::FRIENDLY, WsfSA_Processor::GetData(), WsfSA_Module::GetSAP(), WsfSA_Processor::PerceiveData::mPerceivedBandits, and WsfSA_PerceivedItem::NEUTRAL.

◆ PlatformIsCurrentlyBeingTracked()

bool WsfSA_Assess::PlatformIsCurrentlyBeingTracked ( size_t aTgtPlatformIndex ) const

protected

This returns true if the specified target platform index is in the list of currently tracked platforms.

Parameters

aTgtPlatformIndex target platform index to consider

Referenced by UpdateEngagementsData(), and WsfSA_Assess().

◆ PrioritizedTargetIds()

std::vector< size_t > WsfSA_Assess::PrioritizedTargetIds ( ) const

inline

This returns a list of prioritized target platform ids, beginning with the highest priority target and working down to the lowest priority target.

◆ PrioritizedTargetNames()

std::vector< std::string > WsfSA_Assess::PrioritizedTargetNames ( ) const

inline

This returns a list of prioritized target platform names, beginning with the highest priority target and working down to the lowest priority target.

Referenced by WsfSA_Processor::DebugTestOutput().

◆ PrioritizedThreatIds()

std::vector< size_t > WsfSA_Assess::PrioritizedThreatIds ( ) const

inline

This returns a list of prioritized threat platform ids, beginning with the highest priority threat and working down to the lowest priority threat.

◆ PrioritizedThreatNames()

std::vector< std::string > WsfSA_Assess::PrioritizedThreatNames ( ) const

inline

This returns a list of prioritized threat platform names, beginning with the highest priority threat and working down to the lowest priority threat.

Referenced by WsfSA_Processor::DebugTestOutput().

◆ ProcessInput()

bool WsfSA_Assess::ProcessInput ( UtInput & aInput )

Process input from script.

Parameters

aInput input to parse.

◆ ResetMaxPrioritizedTargets()

void WsfSA_Assess::ResetMaxPrioritizedTargets ( )

inline

Set the max prioritized target to the value provided during initialization (default is 0 where not provided).

◆ ResetMaxPrioritizedThreats()

void WsfSA_Assess::ResetMaxPrioritizedThreats ( )

inline

Set the max prioritized target to the value provided during initialization (default is 0 where not provided).

◆ Risk()

double WsfSA_Assess::Risk ( ) const

inline

This returns a normalized risk level, ranging from 0 (no risk) to 1 (maximum risk).

Referenced by WsfSA_Processor::DebugTestOutput(), and UT_DEFINE_SCRIPT_METHOD().

◆ SelfRisk()

double WsfSA_Assess::SelfRisk ( ) const

inline

This returns a normalized self-risk level, ranging from 0 (no risk) to 1 (maximum risk).

Referenced by WsfSA_Processor::DebugTestOutput().

◆ SetMaxPrioritizedTargets()

void WsfSA_Assess::SetMaxPrioritizedTargets ( unsigned int aMax )

inline

Set the prioritized target maximum.

Parameters

aMax	number of targets a platform can prioritize (0 value means no limit)

◆ SetMaxPrioritizedThreats()

void WsfSA_Assess::SetMaxPrioritizedThreats ( unsigned int aMax )

inline

Set the prioritized threat maximum.

Parameters

aMax	number of threats a platform can prioritize (0 value means no limit)

◆ SetSelectedWeapon()

void WsfSA_Assess::SetSelectedWeapon ( const std::string & aSelectedWeapon )

inline

This sets the name of the current selected weapon.

If no weapon is selected, an empty string should be used.

◆ SetWeaponBayOpen()

void WsfSA_Assess::SetWeaponBayOpen ( bool aWeaponBayOpen )

inline

This sets the state of the weapon bay doors.

True indicates that the doors are open.

◆ SortedGroups()

void WsfSA_Assess::SortedGroups	(	int	aSortingEnum,
		std::vector< WsfSA_Group * > &	aGroups ) const

This returns all groups recognized by the SAP, sorted according to the given enumeration.

Parameters

aSortingEnum	The enumeration which describes how the list should be sorted.
aGroups	The output variable. This should be supplied with an empty vector.

References WsfSA_Module::GetPlatform(), WsfSA_Module::mDataPtr, and WsfSA_GroupUtils::SortedGroups().

◆ SupportingWeapon()

bool WsfSA_Assess::SupportingWeapon ( ) const

inline

This returns true if at least one weapon is being supported.

◆ TryUpdateEngagements()

double WsfSA_Assess::TryUpdateEngagements ( double aSimTime )

Attempt to update engagement data at a sim time, and return an appropriate time for the next event update.

A cognitive delay is factored in.

Parameters

aSimTime sim time at which to attempt updating

References WsfSA_Processor::cENGAGEMENT_DATA, WsfSA_Module::GetSAP(), and UpdateEngagements().

◆ TryUpdatePrioritizedItemCalculation()

double WsfSA_Assess::TryUpdatePrioritizedItemCalculation ( double aSimTime )

Attempt to update prioritized threat and target calculations at a sim time, and return an appropriate time for the next event update.

A cognitive delay is factored in.

Parameters

aSimTime sim time at which to attempt updating

References WsfSA_Processor::cPRIORITIZED_ITEM_CALCULATION, WsfSA_Module::GetSAP(), and UpdatePrioritizedItemCalculation().

◆ TryUpdatePrioritizedItemData()

double WsfSA_Assess::TryUpdatePrioritizedItemData ( double aSimTime )

Attempt to update prioritized threat and target data at a sim time, and return an appropriate time for the next event update.

Parameters

aSimTime sim time at which to attempt updating

References WsfSA_Processor::cPRIORITIZED_ITEM_DATA, WsfSA_Module::GetSAP(), and UpdatePrioritizedItemData().

◆ UnfocusedGroups()

const std::list< WsfSA_Group * > & WsfSA_Assess::UnfocusedGroups ( ) const

inline

This returns a list of WsfSA_Groups that are unfocused.

◆ UpdateEngagements()

void WsfSA_Assess::UpdateEngagements ( double aSimTime )

Update engagement data at a sim time, and return an appropriate time for the next event update.

A cognitive delay is factored in.

Parameters

aSimTime sim time at which to attempt updating

References WsfObserver::AirCombatSendEngagementSummaryData(), WsfSA_Processor::cENGAGEMENT_DATA, WsfSA_Module::GetPlatform(), WsfSA_Module::GetSAP(), WsfSA_Module::GetSimulation(), WsfSA_Processor::SetLastUpdateTime(), and UpdateEngagementsData().

Referenced by TryUpdateEngagements().

◆ UpdateEngagementsData()

void WsfSA_Assess::UpdateEngagementsData ( double aSimTime )

Update engagement data at a sim time, and return an appropriate time for the next event update.

A cognitive delay is factored in.

Parameters

aSimTime sim time at which to attempt updating

Referenced by UpdateEngagements().

◆ UpdateGroupFocusLists()

void WsfSA_Assess::UpdateGroupFocusLists ( )

Update mFocusedGroups and mUnfocusedGroups.

References WsfSA_Module::mDataPtr.

Referenced by WsfSA_Perceive::SetFocus(), and WsfSA_Perceive::UpdateGroupsData().

◆ UpdatePrioritizedItemCalculation()

void WsfSA_Assess::UpdatePrioritizedItemCalculation ( double aSimTime )

Update prioritized threat and target calculations at a sim time, and return an appropriate time for the next event update.

A cognitive delay is factored in.

Parameters

aSimTime sim time at which to attempt updating

References WsfSA_Processor::cPRIORITIZED_ITEM_CALCULATION, WsfSA_Module::GetSAP(), WsfSA_Processor::SetLastUpdateTime(), and UpdatePrioritizedThreatsAndTargetsData().

Referenced by TryUpdatePrioritizedItemCalculation().

◆ UpdatePrioritizedItemData()

void WsfSA_Assess::UpdatePrioritizedItemData ( double aSimTime )

Update prioritized threat and target data at a sim time, and return an appropriate time for the next event update.

Parameters

aSimTime sim time at which to attempt updating

References WsfObserver::AirCombatSendPrioritizedThreatsAndTargetsData(), WsfSA_Processor::cPRIORITIZED_ITEM_DATA, WsfSA_Module::GetPlatform(), WsfSA_Module::GetSAP(), WsfSA_Module::GetSimulation(), and WsfSA_Processor::SetLastUpdateTime().

Referenced by TryUpdatePrioritizedItemData().

◆ UpdatePrioritizedThreatsAndTargetsData()

void WsfSA_Assess::UpdatePrioritizedThreatsAndTargetsData ( double aSimTime )

Update prioritized threat and target data at a sim time, and return an appropriate time for the next event update.

A cognitive delay is factored in.

Parameters

aSimTime sim time at which to attempt updating

References CalculateOverallDefensiveness(), CalculateOverallRisks(), CalculateOverallUrgency(), CalculatePrioritizedTargets(), and CalculatePrioritizedThreats().

Referenced by UpdatePrioritizedItemCalculation().

◆ UpdateWeaponSupport()

void WsfSA_Assess::UpdateWeaponSupport ( double aSimTime )

This updates the weapon support parameters using an optional script function.

References ExecuteCalcWeaponSupport().

◆ Urgency()

double WsfSA_Assess::Urgency ( ) const

inline

This returns a normalized urgency level, ranging from 0 (no urgency) to 1 (maximum urgency).

Referenced by WsfSA_Processor::DebugTestOutput().

◆ WeaponBayDoorsOpen()

bool WsfSA_Assess::WeaponBayDoorsOpen ( ) const

inline

A placeholder function that, in the future, will return whether a platform's weapon bay doors are open.

◆ WsfSA_Processor

friend class WsfSA_Processor

friend

References WsfSA_Assess(), and WsfSA_Processor.

Referenced by WsfSA_Assess(), and WsfSA_Processor.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Friends

Detailed Description

Member Enumeration Documentation

◆ AcceptableRiskLevel

Constructor & Destructor Documentation

◆ WsfSA_Assess() [1/2]

◆ ~WsfSA_Assess()

◆ WsfSA_Assess() [2/2]

Member Function Documentation

◆ AcceptableLevelOfRisk()

◆ AcceptableLevelOfRiskByte()

◆ AngleOffTarget2D() [1/2]

◆ AngleOffTarget2D() [2/2]

◆ AngleOffTarget3D() [1/2]

◆ AngleOffTarget3D() [2/2]

◆ AspectAngleForTarget2D() [1/2]

◆ AspectAngleForTarget2D() [2/2]

◆ AspectAngleForTarget3D() [1/2]

◆ AspectAngleForTarget3D() [2/2]

◆ AssessBogiesBandits()

◆ BestTarget()

◆ BestTargetAircraft()

◆ BestTargetEntity()

◆ BestTargetGroup()

◆ BestTargetMissile()

◆ CalcDeltaAltitude() [1/2]

◆ CalcDeltaAltitude() [2/2]

◆ CalcSlantRange() [1/2]

◆ CalcSlantRange() [2/2]

◆ CalculateDefensiveness()

◆ CalculateMissileTargetValue()

◆ CalculateMissileThreatLevel()

◆ CalculateOverallDefensiveness()

◆ CalculateOverallRisks()

◆ CalculateOverallUrgency()

◆ CalculatePrioritizedTargets()

◆ CalculatePrioritizedThreats()

◆ CalculateRisk()

◆ CalculateTargetValue()

◆ CalculateThreatLevel()

◆ CalculateTrackedPlatforms()

◆ CalculateUrgency()

◆ CompareScore()

◆ CurrentlyTrackedPlatformIds()

◆ CurrentlyTrackedPlatformNames()

◆ Defensiveness()

◆ ExecuteCalculateDefensiveness()

◆ ExecuteCalculateEntityTargetValue()

◆ ExecuteCalculateEntityThreatLevel()

◆ ExecuteCalculateFlightRisk()

◆ ExecuteCalculateGroupTargetValue()

◆ ExecuteCalculateGroupThreatLevel()

◆ ExecuteCalculateMissileTargetValue()

◆ ExecuteCalculateMissileThreatLevel()

◆ ExecuteCalculateMissionRisk()

◆ ExecuteCalculatePackageRisk()

◆ ExecuteCalculateRisk()

◆ ExecuteCalculateSelfRisk()

◆ ExecuteCalculateUrgency()

◆ ExecuteCalcWeaponSupport()

◆ ExpectedDetectionRange()

◆ ExpectedDetectionRangeAgainstTarget() [1/2]

◆ ExpectedDetectionRangeAgainstTarget() [2/2]

◆ ExpectedDetectionRangeByTarget() [1/2]

◆ ExpectedDetectionRangeByTarget() [2/2]

◆ ExpectedMaximumEngagementRangeAgainstTarget() [1/2]

◆ ExpectedMaximumEngagementRangeAgainstTarget() [2/2]

◆ ExpectedMinimumEngagementRangeAgainstTarget() [1/2]

◆ ExpectedMinimumEngagementRangeAgainstTarget() [2/2]

◆ ExpectedNoEscapeRangeAgainstTarget() [1/2]

◆ ExpectedNoEscapeRangeAgainstTarget() [2/2]

◆ ExpectedNormalizedDetectionRangeAgainstTarget() [1/2]

◆ ExpectedNormalizedDetectionRangeAgainstTarget() [2/2]

◆ ExpectedNormalizedWezRangeAgainstTarget() [1/2]
