WsfSensorScheduler Class Reference

#include <WsfSensorScheduler.hpp>

Inheritance diagram for WsfSensorScheduler:

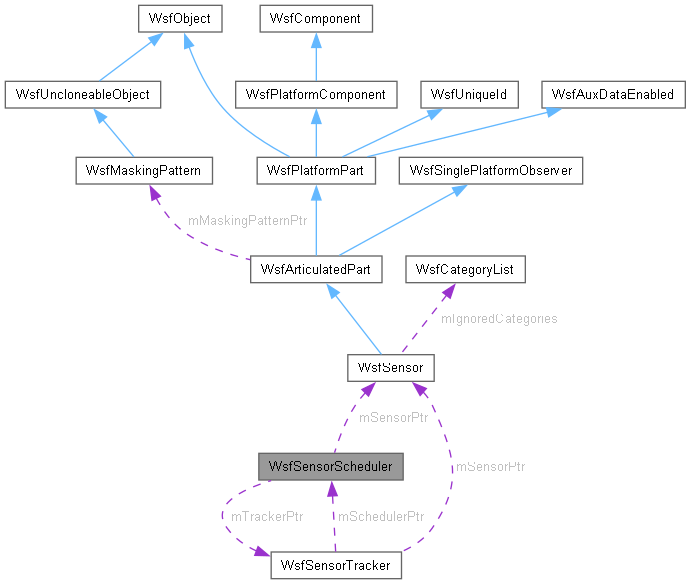

Collaboration diagram for WsfSensorScheduler:

Public Member Functions
	WsfSensorScheduler ()
virtual	~WsfSensorScheduler ()=default
virtual WsfSensorScheduler *	Clone () const
bool	DebugEnabled () const
	Returns 'true' if debugging is enabled for the scheduler.
void	SetDebugEnabled (bool aDebug)
virtual void	FrameTimeChanged (double aSimTime, WsfStringId aModeNameId)
virtual int	GetActiveRequestCount (WsfStringId aModeNameId) const
virtual int	GetMaximumRequestCount (WsfStringId aModeNameId) const
virtual bool	HaveRequestFor (const WsfTrackId &aRequestId) const
virtual bool	Initialize (double aSimTime, WsfSensor *aSensorPtr, WsfSensorTracker *aTrackerPtr)
virtual void	ModeDeselected (double aSimTime, WsfStringId aModeNameId)
virtual void	ModeSelected (double aSimTime, WsfStringId aModeNameId)
virtual void	PlatformAdded (double aSimTime, WsfPlatform *aPlatformPtr)
virtual void	PlatformDeleted (WsfPlatform *aPlatformPtr)
virtual bool	ProcessInput (UtInput &aInput)
virtual void	RemoveTarget (double aSimTime, size_t aTargetIndex)
virtual const WsfTrack &	GetTrackForRequest (const WsfTrackId &aRequestId) const
virtual bool	SelectTarget (double aSimTime, double &aNextSimTime, size_t &aTargetIndex, WsfTrackId &aRequestId, WsfSensor::Settings &aSettings)
virtual bool	StartTracking (double aSimTime, const WsfTrack &aTrack, WsfStringId aModeNameId)
virtual bool	StopTracking (double aSimTime, const WsfTrackId &aTrackId)
virtual void	TrackerModeChange (double aSimTime, const WsfTrackId &aRequestId, size_t aTargetIndex, WsfPlatform *aTargetPtr, const WsfTrack *aTrackPtr, WsfStringId aModeNameId)
virtual void	TurnOff (double aSimTime)
virtual void	TurnOn (double aSimTime)
WsfSimulation *	GetSimulation () const

Protected Types
using	SearchList = std::vector<size_t>
using	SearchListIndex = SearchList::size_type

Protected Member Functions
	WsfSensorScheduler (const WsfSensorScheduler &aSrc)
WsfSensorScheduler &	operator= (const WsfSensorScheduler &aSrc)=delete
const SearchList &	GetSearchList () const

Protected Attributes
WsfSensor *	mSensorPtr
WsfSensorTracker *	mTrackerPtr
SearchList	mSearchList

Detailed Description

Schedules detection chances for sensors.

The main task of the sensor scheduler is to schedule detection chances for a sensor. WsfSensorScheduler is a virtual interface for sensor scheduler implementations. See WsfDefaultSensorScheduler for the default scheduler implementation.

Member Typedef Documentation

SearchList

using WsfSensorScheduler::SearchList = std::vector<size_t>

protected

SearchListIndex

using WsfSensorScheduler::SearchListIndex = SearchList::size_type

protected

Constructor & Destructor Documentation

WsfSensorScheduler() [1/2]

WsfSensorScheduler::WsfSensorScheduler

(

)

References mSearchList, mSensorPtr, and mTrackerPtr.

Referenced by WsfDefaultSensorScheduler::Clone(), WsfEOIR_Sensor::EOIR_SensorScheduler::Clone(), WsfPhysicalScanSensorScheduler::Clone(), WsfSectorScanSensorScheduler::Clone(), Clone(), WsfSensorsManagerFovSensorScheduler::Clone(), WsfSpinSensorScheduler::Clone(), WsfEOIR_Sensor::EOIR_SensorScheduler::EOIR_SensorScheduler(), operator=(), WsfDefaultSensorScheduler::WsfDefaultSensorScheduler(), WsfDefaultSensorScheduler::WsfDefaultSensorScheduler(), WsfPhysicalScanSensorScheduler::WsfPhysicalScanSensorScheduler(), WsfPhysicalScanSensorScheduler::WsfPhysicalScanSensorScheduler(), WsfSectorScanSensorScheduler::WsfSectorScanSensorScheduler(), WsfSensorScheduler(), WsfSpinSensorScheduler::WsfSpinSensorScheduler(), WsfEOIR_Sensor::EOIR_SensorScheduler::~EOIR_SensorScheduler(), WsfDefaultSensorScheduler::~WsfDefaultSensorScheduler(), WsfPhysicalScanSensorScheduler::~WsfPhysicalScanSensorScheduler(), WsfSectorScanSensorScheduler::~WsfSectorScanSensorScheduler(), ~WsfSensorScheduler(), and WsfSpinSensorScheduler::~WsfSpinSensorScheduler().

~WsfSensorScheduler()

virtual WsfSensorScheduler::~WsfSensorScheduler ( )

virtualdefault

References Clone(), and WsfSensorScheduler().

WsfSensorScheduler() [2/2]

WsfSensorScheduler::WsfSensorScheduler ( const WsfSensorScheduler & aSrc )

protected

References mSearchList, mSensorPtr, mTrackerPtr, and WsfSensorScheduler().

Member Function Documentation

Clone()

WsfSensorScheduler * WsfSensorScheduler::Clone ( ) const

virtual

Reimplemented in WsfDefaultSensorScheduler, WsfEOIR_Sensor::EOIR_SensorScheduler, WsfPhysicalScanSensorScheduler, WsfSectorScanSensorScheduler, WsfSensorsManagerFovSensorScheduler, and WsfSpinSensorScheduler.

References WsfSensorScheduler().

Referenced by ~WsfSensorScheduler().

DebugEnabled()

bool WsfSensorScheduler::DebugEnabled ( ) const

inline

Returns 'true' if debugging is enabled for the scheduler.

Referenced by WsfPhysicalScanSensorScheduler::Initialize(), WsfSpinSensorScheduler::PlatformAdded(), WsfDefaultSensorScheduler::SelectTarget(), WsfPhysicalScanSensorScheduler::SelectTarget(), WsfSpinSensorScheduler::SelectTarget(), WsfDefaultSensorScheduler::StartTracking(), WsfDefaultSensorScheduler::StopTracking(), WsfDefaultSensorScheduler::TrackerModeChange(), WsfPhysicalScanSensorScheduler::TurnOff(), WsfSectorScanSensorScheduler::TurnOff(), WsfSpinSensorScheduler::TurnOff(), WsfPhysicalScanSensorScheduler::TurnOn(), WsfSectorScanSensorScheduler::TurnOn(), and WsfSpinSensorScheduler::TurnOn().

FrameTimeChanged()

void WsfSensorScheduler::FrameTimeChanged ( double aSimTime, WsfStringId aModeNameId )

virtual

A notification call to indicate the frame time for the specified mode has changed.

Parameters

aSimTime	The current simulation time.
aModeNameId	The name (string ID) of the mode.

Reimplemented in WsfDefaultSensorScheduler.

GetActiveRequestCount()

int WsfSensorScheduler::GetActiveRequestCount ( WsfStringId aModeNameId ) const

virtual

Return the number of requests that are active in a specified mode.

Parameters

aModeNameId

The name (string ID) of the mode.

Reimplemented in WsfDefaultSensorScheduler.

GetMaximumRequestCount()

int WsfSensorScheduler::GetMaximumRequestCount ( WsfStringId aModeNameId ) const

virtual

Return the maximum number of requests that can be processed by the indicated mode.

Parameters

aModeNameId

The name (string ID) of the mode.

Reimplemented in WsfDefaultSensorScheduler.

GetSearchList()

const SearchList & WsfSensorScheduler::GetSearchList ( ) const

inlineprotected

References mSearchList.

GetSimulation()

WsfSimulation * WsfSensorScheduler::GetSimulation

(

)

const

References mSensorPtr.

Referenced by WsfPhysicalScanSensorScheduler::Initialize(), WsfSpinSensorScheduler::Initialize(), WsfSpinSensorScheduler::PlatformAdded(), WsfPhysicalScanSensorScheduler::SelectTarget(), WsfSectorScanSensorScheduler::SelectTarget(), WsfSpinSensorScheduler::SelectTarget(), WsfPhysicalScanSensorScheduler::TurnOn(), WsfSectorScanSensorScheduler::TurnOn(), and WsfSpinSensorScheduler::TurnOn().

GetTrackForRequest()

const WsfTrack & WsfSensorScheduler::GetTrackForRequest ( const WsfTrackId & aRequestId ) const

virtual

Returns the track data for the request, this return is of a constant type to prevent modification.

Parameters

aRequestId

The track ID. This should be the track ID of a track submitted to StartTracking.

Returns

The track that corresponds to the request.

Reimplemented in WsfDefaultSensorScheduler.

HaveRequestFor()

bool WsfSensorScheduler::HaveRequestFor ( const WsfTrackId & aRequestId ) const

virtual

Does the scheduler have a request for the indicated track ID?

Parameters

aRequestId

The track ID. This should be the track ID of a track submitted to StartTracking.

Reimplemented in WsfDefaultSensorScheduler.

Initialize()

bool WsfSensorScheduler::Initialize ( double aSimTime, WsfSensor * aSensorPtr, WsfSensorTracker * aTrackerPtr )

virtual

Initialize the scheduler.

Parameters

aSimTime	The current simulation time.
aSensorPtr	The sensor with which the scheduler is associated.
aTrackerPtr	The tracker that is associated with the sensor. This can be zero if there is no tracker.

Returns

'true' if successful or 'false' if not.

Reimplemented in WsfDefaultSensorScheduler, WsfPhysicalScanSensorScheduler, WsfSectorScanSensorScheduler, and WsfSpinSensorScheduler.

References mSensorPtr, and mTrackerPtr.

Referenced by WsfDefaultSensorScheduler::Initialize(), WsfPhysicalScanSensorScheduler::Initialize(), WsfSectorScanSensorScheduler::Initialize(), and WsfSpinSensorScheduler::Initialize().

ModeDeselected()

void WsfSensorScheduler::ModeDeselected ( double aSimTime, WsfStringId aModeNameId )

virtual

A mode has been explicitly deselected. This is called from WsfSensor::DeselectMode to indicate that a mode has been deselected.

Parameters

aSimTime	The current simulation time.
aModeNameId	The name (string ID) of the mode that has been deselected.

Note

This is not called for implicit mode deselections that occur with tracking requests.

Reimplemented in WsfDefaultSensorScheduler, WsfPhysicalScanSensorScheduler, WsfSectorScanSensorScheduler, and WsfSpinSensorScheduler.

ModeSelected()

void WsfSensorScheduler::ModeSelected ( double aSimTime, WsfStringId aModeNameId )

virtual

A mode has been explicitly selected. This is called from WsfSensor::SelectMode to indicate that a mode has been selected.

Parameters

aSimTime	The current simulation time.
aModeNameId	The name (string ID) of the mode that has been selected.

Note

This is not called for implicit mode selections that occur with tracking requests.

Reimplemented in WsfDefaultSensorScheduler, WsfPhysicalScanSensorScheduler, WsfSectorScanSensorScheduler, and WsfSpinSensorScheduler.

operator=()

WsfSensorScheduler & WsfSensorScheduler::operator= ( const WsfSensorScheduler & aSrc )

protecteddelete

References WsfSensorScheduler().

PlatformAdded()

void WsfSensorScheduler::PlatformAdded ( double aSimTime, WsfPlatform * aPlatformPtr )

virtual

A platform has been added to the simulation.

Parameters

aSimTime	The current simulation time.
aPlatformPtr	A pointer to the platform that was added.

Reimplemented in WsfDefaultSensorScheduler, WsfPhysicalScanSensorScheduler, WsfSectorScanSensorScheduler, and WsfSpinSensorScheduler.

PlatformDeleted()

void WsfSensorScheduler::PlatformDeleted ( WsfPlatform * aPlatformPtr )

virtual

A platform has been removed from the simulation.

Parameters

aPlatformPtr

A pointer to the platform that was deleted.

Reimplemented in WsfDefaultSensorScheduler.

ProcessInput()

bool WsfSensorScheduler::ProcessInput ( UtInput & aInput )

virtual

Reimplemented in WsfDefaultSensorScheduler, WsfPhysicalScanSensorScheduler, WsfSectorScanSensorScheduler, and WsfSpinSensorScheduler.

Referenced by WsfDefaultSensorScheduler::ProcessInput(), WsfPhysicalScanSensorScheduler::ProcessInput(), WsfSectorScanSensorScheduler::ProcessInput(), and WsfSpinSensorScheduler::ProcessInput().

RemoveTarget()

void WsfSensorScheduler::RemoveTarget ( double aSimTime, size_t aTargetIndex )

virtual

Indicate that the specified target should be removed from further consideration. This is called from the scheduler to indicate that the target should be removed from any scheduling list.

Parameters

aSimTime	The current simulation time.
aTargetIndex	The object ID of the target to be removed.

Reimplemented in WsfDefaultSensorScheduler, WsfPhysicalScanSensorScheduler, WsfSectorScanSensorScheduler, and WsfSpinSensorScheduler.

SelectTarget()

bool WsfSensorScheduler::SelectTarget ( double aSimTime, double & aNextSimTime, size_t & aTargetIndex, WsfTrackId & aRequestId, WsfSensor::Settings & aSettings )

virtual

Select a target for a detection attempt.

Parameters

aSimTime	[input] The current simulation time.
aNextSimTime	[output] The simulation time when the scheduler should next be called.
aTargetIndex	[output] The object ID of the target to be detected (typically a platform index or some other unique ID). This will not be valid if the return value from the method is false.
aRequestId	[output] The request ID (original track ID from StartTracking) associated with the target. aRequest.IsNull() will be true if the target is not associated with a track request. This will not be valid if the return value from the method is false.
aSettings	[updated] The sensor settings to be used for the detection attempt. This will not be valid if the return value from the method is false.

Returns

true if a target was selected or false if no target selected.

Reimplemented in WsfDefaultSensorScheduler, WsfEOIR_Sensor::EOIR_SensorScheduler, WsfPhysicalScanSensorScheduler, WsfSectorScanSensorScheduler, and WsfSpinSensorScheduler.

SetDebugEnabled()

void WsfSensorScheduler::SetDebugEnabled ( bool aDebug )

inline

StartTracking()

bool WsfSensorScheduler::StartTracking ( double aSimTime, const WsfTrack & aTrack, WsfStringId aModeNameId )

virtual

Start tracking a target specified by a track.

Parameters

aSimTime	The current simulation time.
aTrack	The target track cue.
aModeNameId	The mode name (string ID) of the mode to be used. If zero then the implementation will choose an appropriate mode.

Returns

'true' if the tracking request was accepted or 'false' if not.

Reimplemented in WsfDefaultSensorScheduler.

StopTracking()

bool WsfSensorScheduler::StopTracking ( double aSimTime, const WsfTrackId & aRequestId )

virtual

Stop tracking a target.

Parameters

aSimTime	The current simulation time.
aRequestId	The track ID from the track that was provided to StartTracking.

Returns

'true' if the request was stopped.

Reimplemented in WsfDefaultSensorScheduler.

TrackerModeChange()

void WsfSensorScheduler::TrackerModeChange ( double aSimTime, const WsfTrackId & aRequestId, size_t aTargetIndex, WsfPlatform * aTargetPtr, const WsfTrack * aTrackPtr, WsfStringId aModeNameId )

virtual

The tracker has changed the mode for the requested target.

Parameters

aSimTime	The current simulation time.
aRequestId	If non-zero, the associated sensor scheduler request ID.
aTargetIndex	The index of the target of interest. For a platform this should be its platform ID and for other objects it should be their unique ID.
aTargetPtr	The pointer of the target of interest.
aTrackPtr	Pointer to the current track associated with the target (may be zero).
aModeNameId	The name (ID) of the new mode.

Reimplemented in WsfDefaultSensorScheduler.

TurnOff()

void WsfSensorScheduler::TurnOff ( double aSimTime )

virtual

The sensor is being turned off.

Parameters

aSimTime

The current simulation time.

Reimplemented in WsfDefaultSensorScheduler, WsfPhysicalScanSensorScheduler, WsfSectorScanSensorScheduler, WsfSensorsManagerFovSensorScheduler, and WsfSpinSensorScheduler.

TurnOn()

void WsfSensorScheduler::TurnOn ( double aSimTime )

virtual

The sensor is being turned on.

Parameters

aSimTime

The current simulation time.

Reimplemented in WsfDefaultSensorScheduler, WsfPhysicalScanSensorScheduler, WsfSectorScanSensorScheduler, WsfSensorsManagerFovSensorScheduler, and WsfSpinSensorScheduler.

Member Data Documentation

mSearchList

SearchList WsfSensorScheduler::mSearchList

protected

A list of platform indices representing search chances. See the notes at the top of the implementation file for more information.

Referenced by GetSearchList(), WsfDefaultSensorScheduler::PlatformAdded(), WsfPhysicalScanSensorScheduler::PlatformAdded(), WsfSectorScanSensorScheduler::PlatformAdded(), WsfSpinSensorScheduler::PlatformAdded(), WsfDefaultSensorScheduler::PlatformDeleted(), WsfDefaultSensorScheduler::RemoveTarget(), WsfPhysicalScanSensorScheduler::RemoveTarget(), WsfSectorScanSensorScheduler::RemoveTarget(), WsfSpinSensorScheduler::RemoveTarget(), WsfDefaultSensorScheduler::ResetSearchList(), WsfPhysicalScanSensorScheduler::ResetSearchList(), WsfDefaultSensorScheduler::SelectTarget(), WsfPhysicalScanSensorScheduler::SelectTarget(), WsfSectorScanSensorScheduler::SelectTarget(), WsfSpinSensorScheduler::SelectTarget(), WsfDefaultSensorScheduler::UpdateSearchChanceInterval(), WsfSensorScheduler(), and WsfSensorScheduler().

mSensorPtr

WsfSensor* WsfSensorScheduler::mSensorPtr

protected

Referenced by WsfDefaultSensorScheduler::CheckSearchModeAvailability(), WsfDefaultSensorScheduler::DeselectMode(), WsfDefaultSensorScheduler::GetActiveRequestCount(), WsfDefaultSensorScheduler::GetMaximumRequestCount(), GetSimulation(), WsfDefaultSensorScheduler::Initialize(), WsfPhysicalScanSensorScheduler::Initialize(), WsfSectorScanSensorScheduler::Initialize(), Initialize(), WsfSpinSensorScheduler::Initialize(), WsfDefaultSensorScheduler::ModeDeselected(), WsfPhysicalScanSensorScheduler::ModeDeselected(), WsfSectorScanSensorScheduler::ModeDeselected(), WsfSpinSensorScheduler::ModeDeselected(), WsfDefaultSensorScheduler::ModeSelected(), WsfPhysicalScanSensorScheduler::ModeSelected(), WsfSectorScanSensorScheduler::ModeSelected(), WsfSpinSensorScheduler::ModeSelected(), WsfSpinSensorScheduler::PlatformAdded(), WsfDefaultSensorScheduler::SelectMode(), WsfDefaultSensorScheduler::SelectTarget(), WsfEOIR_Sensor::EOIR_SensorScheduler::SelectTarget(), WsfPhysicalScanSensorScheduler::SelectTarget(), WsfSectorScanSensorScheduler::SelectTarget(), WsfSpinSensorScheduler::SelectTarget(), WsfDefaultSensorScheduler::StartTracking(), WsfDefaultSensorScheduler::StopTracking(), WsfDefaultSensorScheduler::TrackerModeChange(), WsfPhysicalScanSensorScheduler::TurnOff(), WsfSectorScanSensorScheduler::TurnOff(), WsfSpinSensorScheduler::TurnOff(), WsfDefaultSensorScheduler::TurnOn(), WsfPhysicalScanSensorScheduler::TurnOn(), WsfSectorScanSensorScheduler::TurnOn(), WsfSensorsManagerFovSensorScheduler::TurnOn(), WsfSpinSensorScheduler::TurnOn(), WsfDefaultSensorScheduler::UpdateSearchChanceInterval(), WsfDefaultSensorScheduler::UpdateSearchFrameTime(), WsfSensorScheduler(), and WsfSensorScheduler().

mTrackerPtr

WsfSensorTracker* WsfSensorScheduler::mTrackerPtr

protected

Referenced by Initialize(), WsfDefaultSensorScheduler::SelectTarget(), WsfDefaultSensorScheduler::StopTracking(), WsfSensorScheduler(), and WsfSensorScheduler().

---

The documentation for this class was generated from the following files:

• WsfSensorScheduler.hpp
• WsfSensorScheduler.cpp
